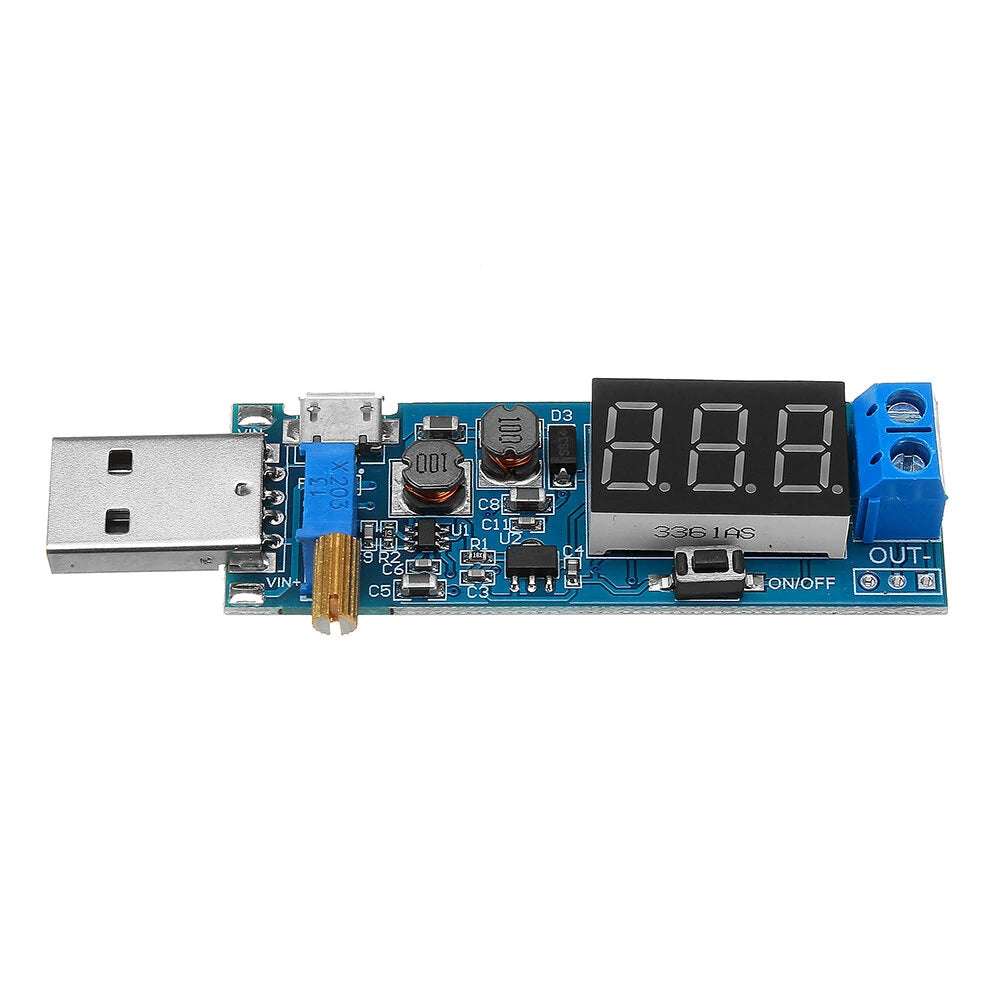

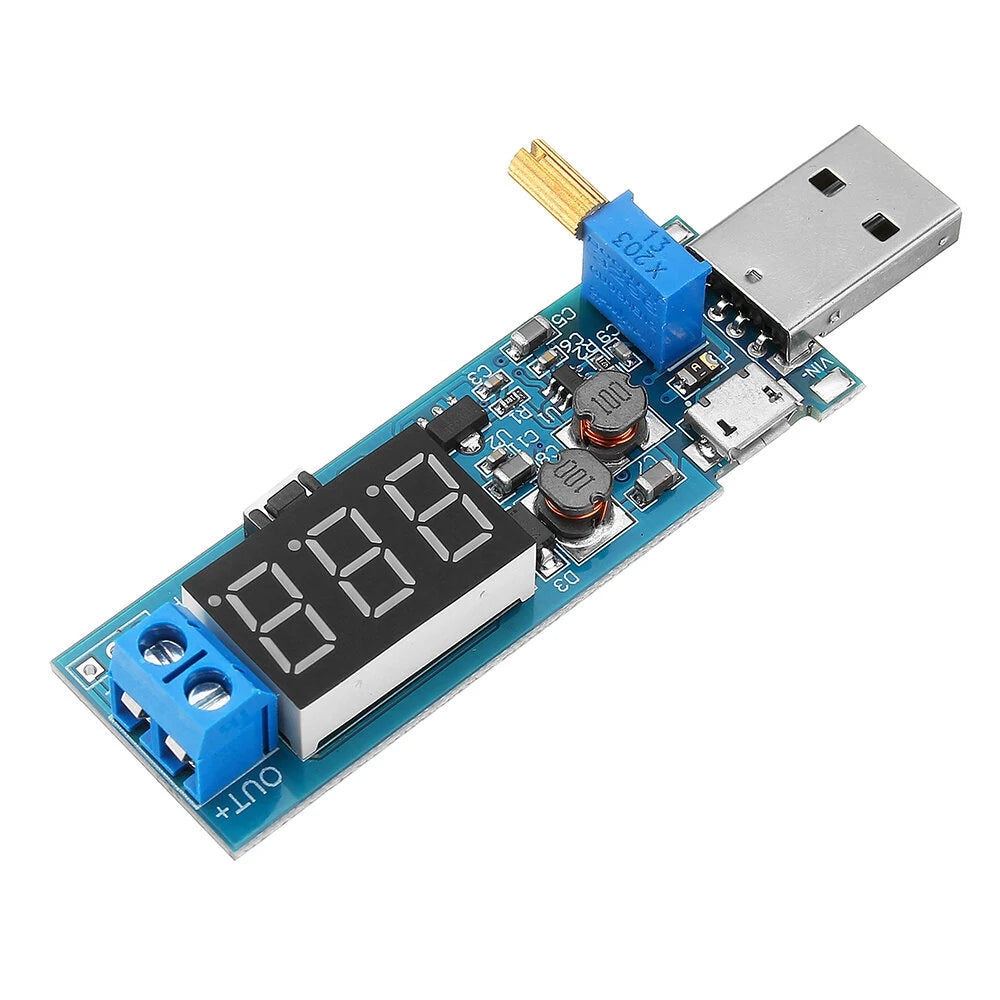

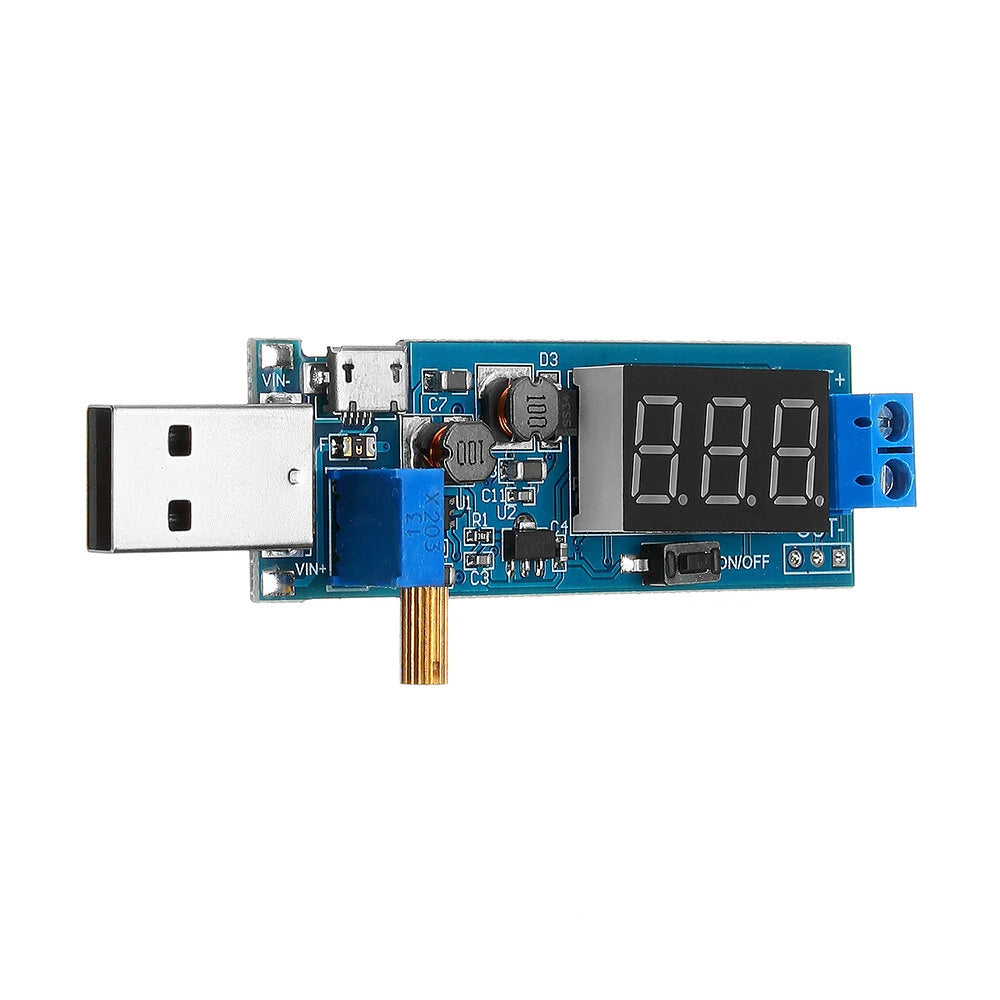

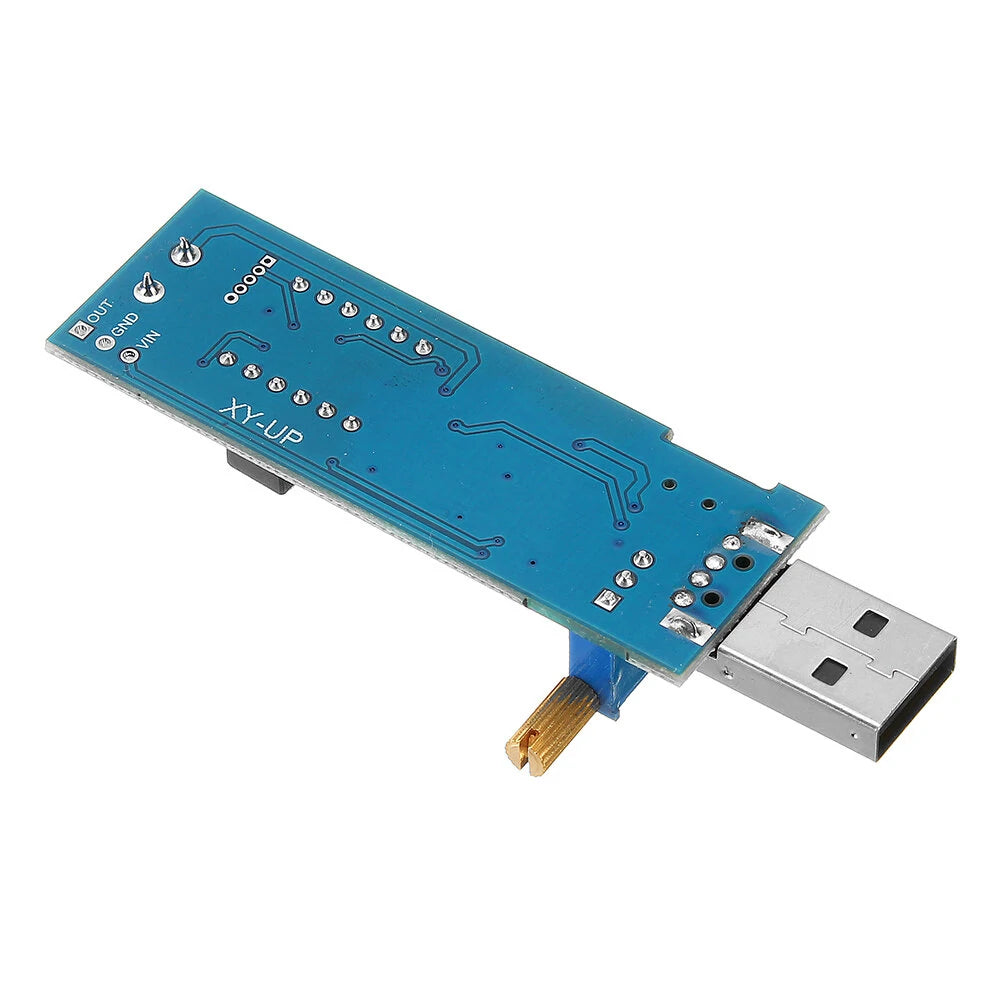

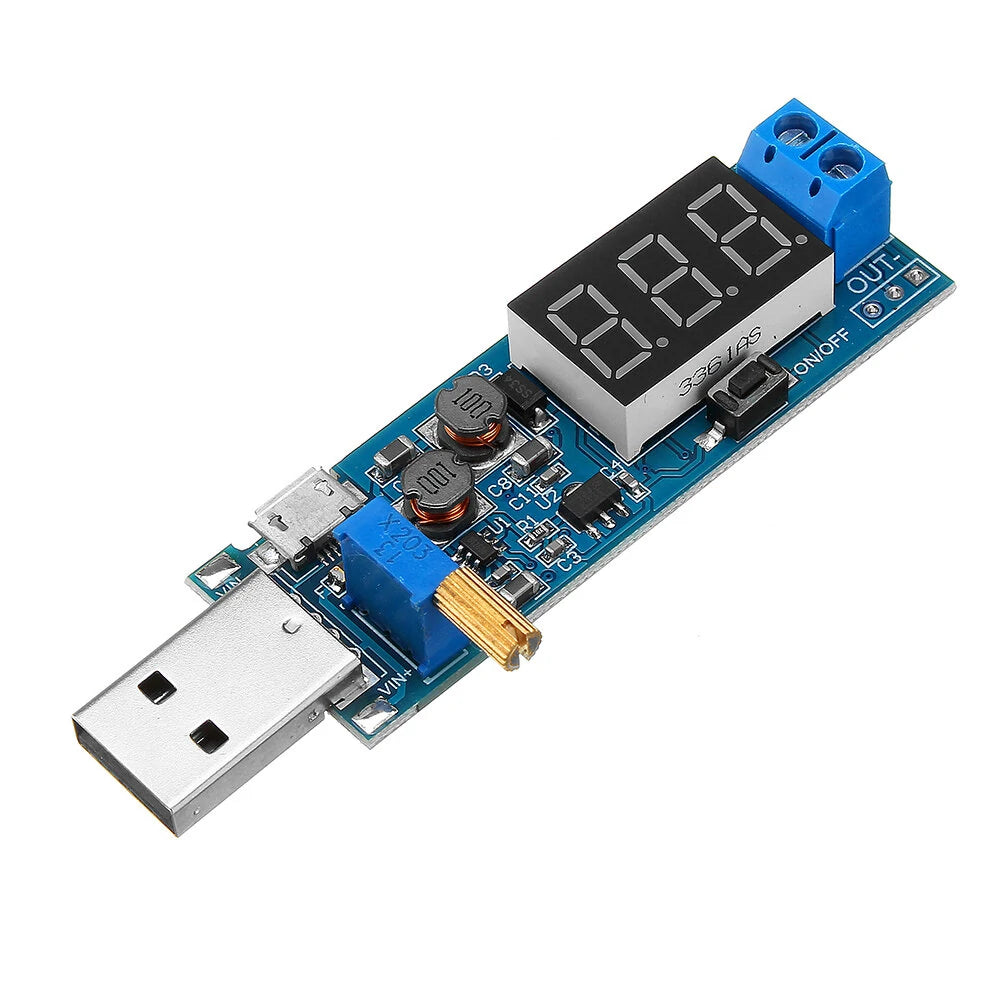

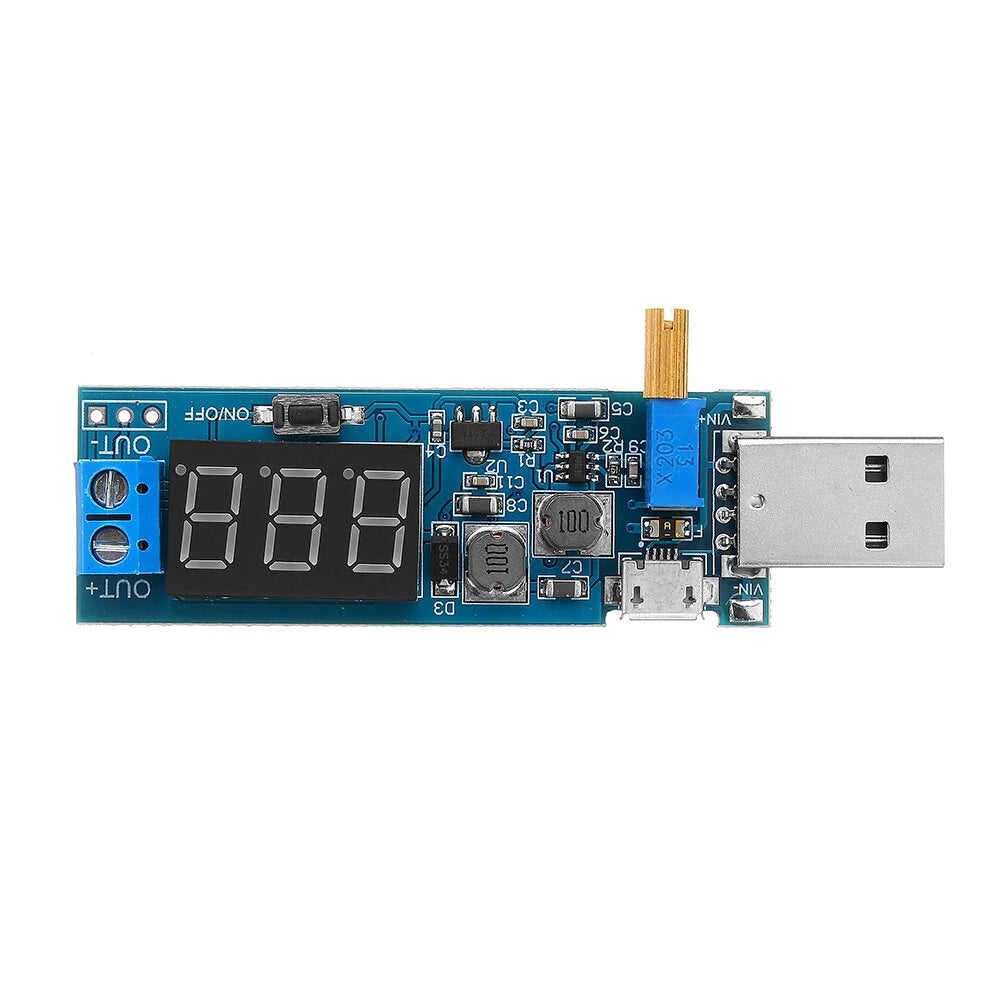

USB Step UP/Down Power Supply Module, DC 3.5-12V to 1.2-24V, Adjustable Boost/Buck Converter

Product Description

Experience seamless power conversion with our USB Boost/Buck Power Supply Module. Designed for flexibility, this module adjusts to your desired voltage with a simple turn of the potentiometer, providing tailored power solutions for your devices.

Key Features

• One-button output shutdown
• Supply ON/OFF display screen
• Supports low power and sleep modes
• Input via Standard USB, Micro USB, or pads

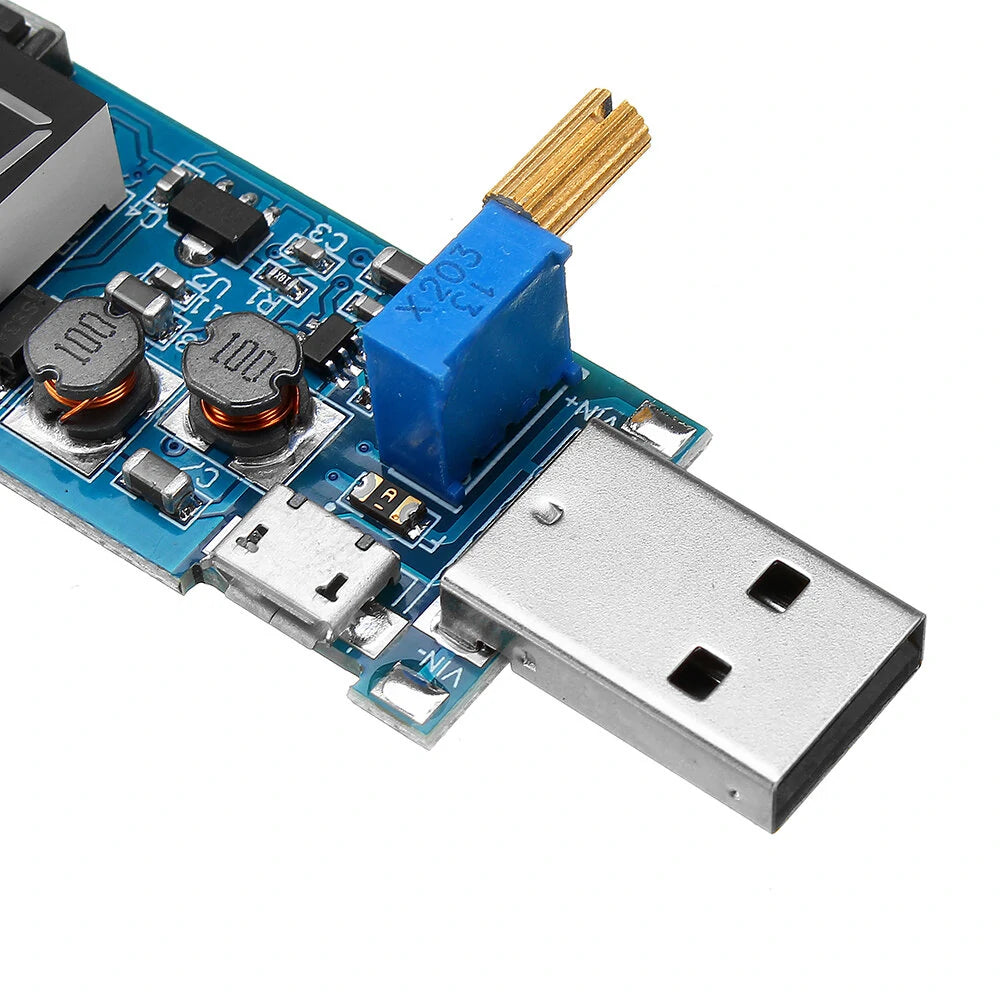

• Convenient potentiometer with rotating handle

Technical Specifications

• Input Voltage: DC 3.5-12V
• Output Voltage: DC 1.2-24V
• Output Power:
  • 1.2-2V input: Max 2W output
  • 2-20V input: Max 3W output
  • 20-24V input: Max 2.5W output

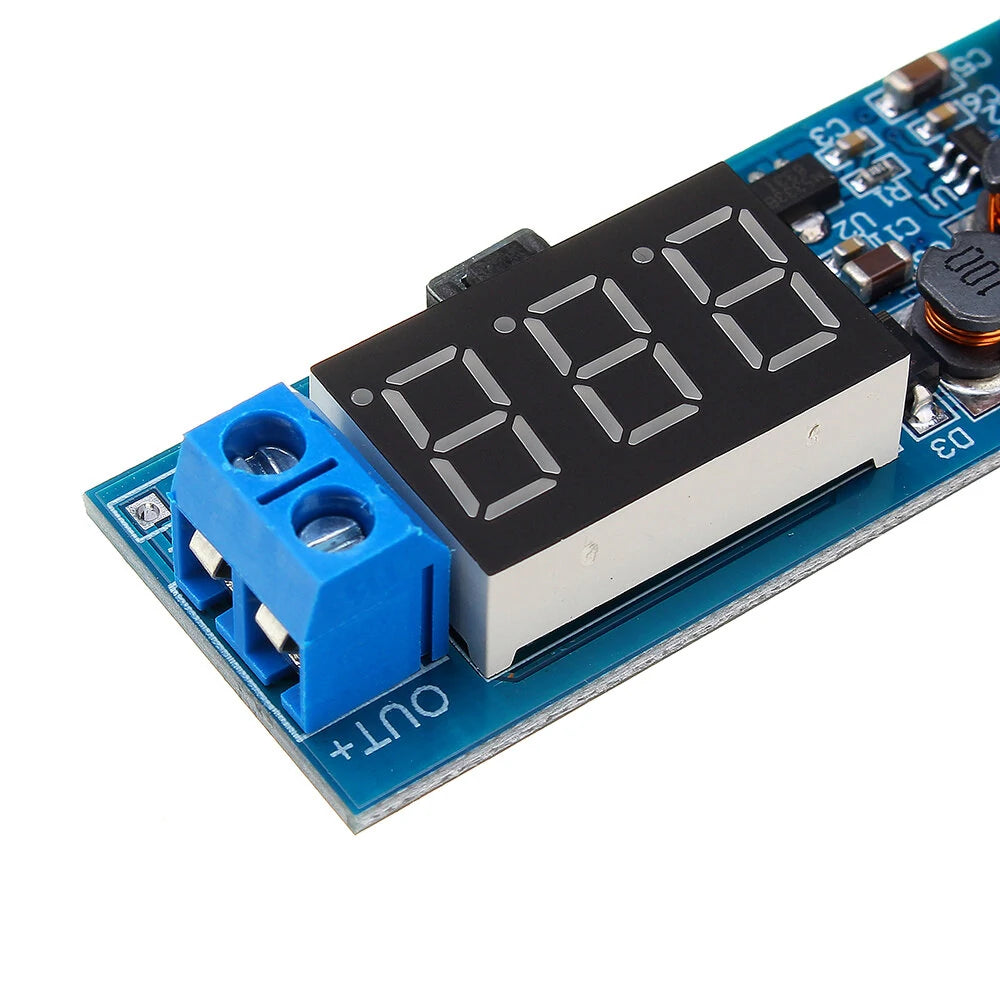

• Display: 3-digit digital display
• Size: 80 x 20 x 14 mm

Operating Instructions

1. Connect the input voltage via Standard USB, Micro USB, or 'VIN+' and 'VIN-'.
2. Turn on the display screen.
3. Adjust the potentiometer to achieve the desired voltage.
4. Attach the load.

Applications

• Ordinary power supply
• Battery charger
• LED drive power
• Instrument voltage display
• Test meter
• Circuit test
• Power conversion

Important Note

This module is not designed for high power applications. Please ensure usage within the specified power range.

Package Contents

• 1 x USB Boost/Buck Power Supply Module
