SA6 Mini Portable Spectrum Analyzer 35-4400MHz Wi-Fi CDMA Signal Tester & Generator

SA6 Mini Portable Spectrum Analyzer 35-4400MHz Wi-Fi CDMA Signal Tester & Generator

Regular price $131.99 USD
Regular price $0.00 USD Sale price $131.99 USD
Sale Sold out
Shipping calculated at checkout.
Color

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos
Product Description

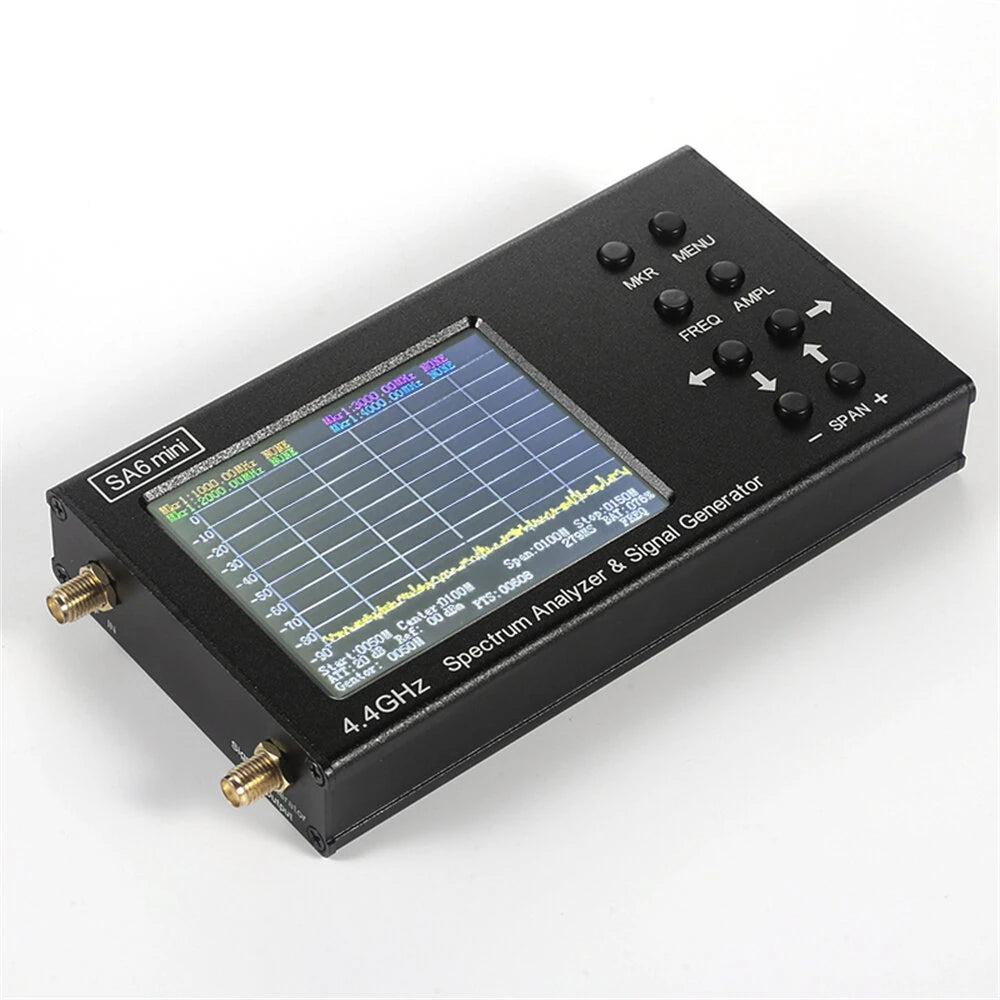

Mini Portable Spectrum Analyzer SA6

Specifications:

  • Frequency Range: 35-4400 MHz (displayed), 45-4400 MHz (measurement)
  • Dynamic Range: 75 dB (45-3000 MHz), 70 dB (3000-4400 MHz)
  • Maximum Bandwidth: 4355 MHz
  • IF Bandwidth (Fixed): 200 kHz
  • Speed over 100 MHz: 600 MHz/s
  • Measurement Time: Less than 0.25 seconds for 100 MHz span
  • Detectable Signal Duration: 20 ms at 10 MHz span
  • Noise Floor:
    • Less than -100 dBm (up to 3000 MHz)
    • Less than -95 dBm (3000-4500 MHz)
    • Less than -90 dBm (4500-6200 MHz)
  • Input Impedance: 50 ohms
  • SWR: Less than 1.5 in the operating frequency range
  • Internal Attenuator: 0-30 dB
  • Attenuation Error:
    • Up to 10 dB: 2 dB
    • 10 to 20 dB: 5 dB
    • 20 to 30 dB: 8 dB
  • Built-in Tracking Generator Frequency Range: 35-6200 MHz
  • Tracking Generator Output Power: -15 to 25 dBm
  • Accuracy of Signal Display within Dynamic Range: 2 dB

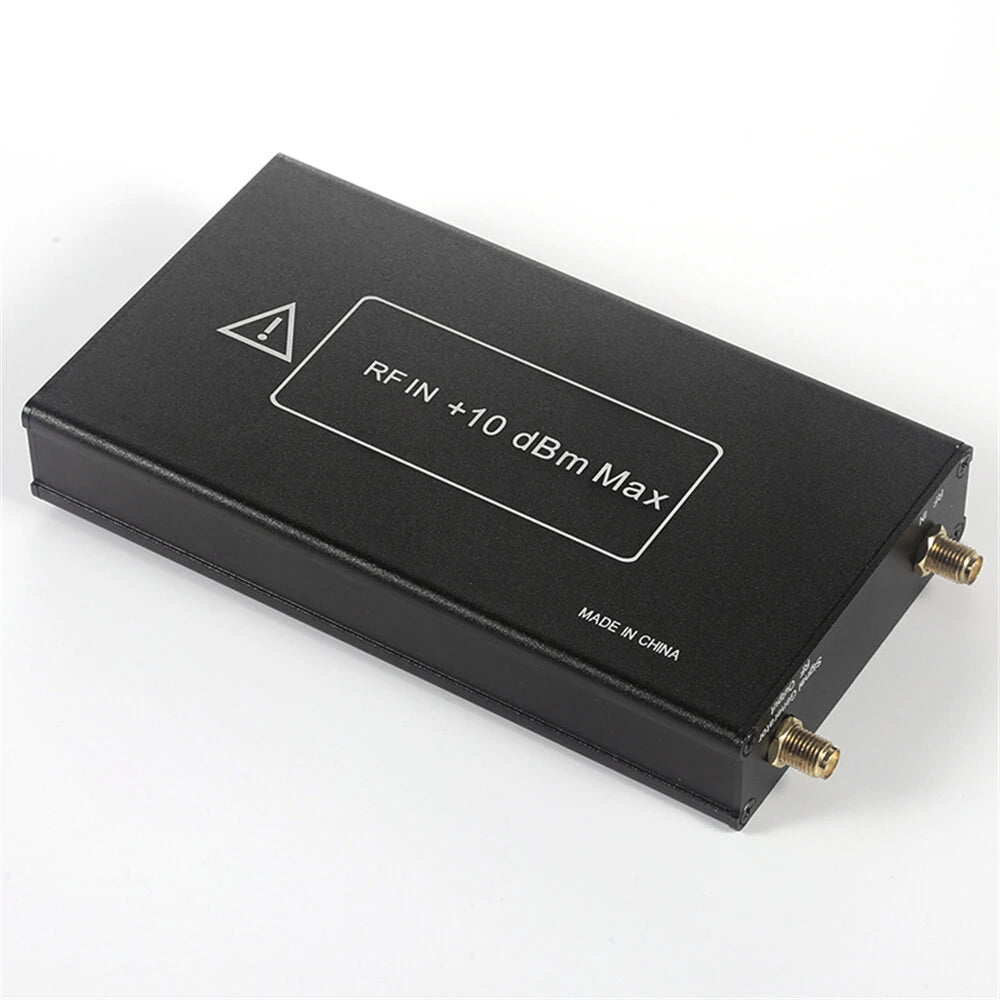

  • Maximum Input Power:
    • 0 dB Attenuator: +10 dBm
    • Greater than 20 dB Attenuator: +20 dBm
    • Measured Maximum Input Signal: +10 dBm
  • Maximum RF Input DC Voltage: 5V
  • Maximum Supply Current:
    • 450 mA (on battery)
    • 500 mA (USB charging mode)
  • Battery Capacity: 3000 mAh
  • Battery Continuous Operating Time: 3 hours
  • Battery Charging Time: About 4 hours
  • Dimensions: 155 x 81 x 27 mm
  • Weight: 0.49 kg
  • Color: Black
  • Material: ABS

Features:

  1. Wide Frequency Range: The SA6 Mini Portable Spectrum Analyzer covers a substantial frequency range from 35 to 4400 MHz, making it suitable for analyzing a broad spectrum of signals, including Wi-Fi and CDMA.
  2. High Dynamic Range and Sensitivity: Boasting a dynamic range of 75 dB up to 3000 MHz and 70 dB from 3000 to 4400 MHz, this device ensures accurate signal analysis even in environments with varying signal strengths.
  3. Built-in Tracking Generator: The built-in tracking generator operates within a 35-6200 MHz range, enabling users to generate and test signals over a wide frequency span, enhancing its utility in lab environments and field applications.
  4. Portable and Efficient Design: With compact dimensions of 155 x 81 x 27 mm and a weight of just 0.49 kg, the SA6 is highly portable. Its 3000 mAh battery provides up to 3 hours of continuous operation, while a quick 4-hour charging time keeps downtime to a minimum.
  5. User-Friendly Operation: Features such as a fixed IF bandwidth of 200 kHz, rapid speed over 100 MHz at 600 MHz/s, and a quick 0.25-second measurement time for 100 MHz spans make this spectrum analyzer not only efficient but also easy to use for rapid signal analysis and troubleshooting.

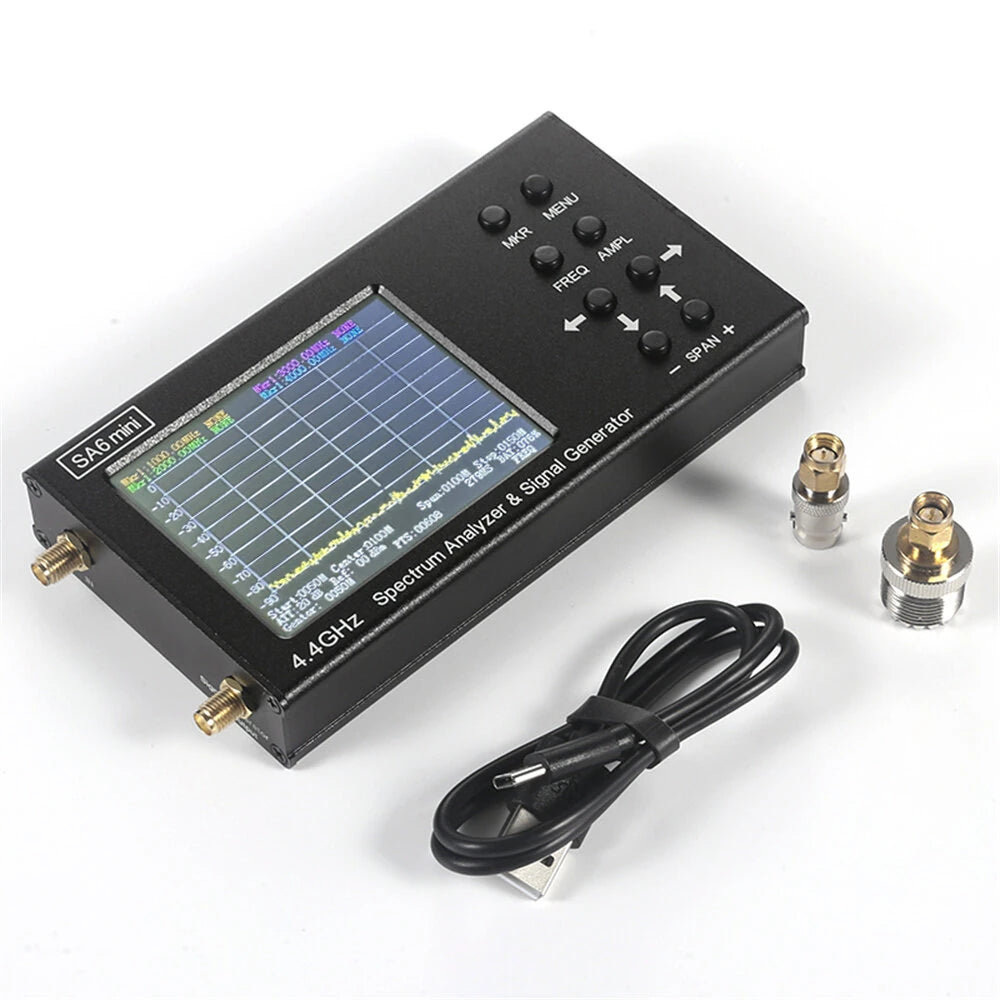

Package Includes:

  • 1 x Portable Spectrum Analyzer (SA6)
