Pocket Signal Generator: Adjustable 0-5V/0-10V, 4-20mA Voltage Current Calibrator

Product Description:

Introducing our versatile Signal Generator, designed to support a wide range of power operations and deliver high precision outputs.

Key Features:

• Supports external operating power of 15-30V and includes a 5V micro USB port along with a built-in lithium battery.
• Equipped with a 4-digit LED display for brighter visuals and two decimal points accuracy for precise readings.
• The output can be calibrated to achieve 0.01V and 0.01mA accuracy for high precision tasks.
• Offers rough and fine adjusting modes with a settable rotation turns for tailored control.
• Features a switching button for seamless transition between current and voltage output.
• Allows simultaneous current and voltage output with independently wired output terminals.
• Compatible with 2-wire, 3-wire, and 4-wire current outputs that support both active and passive modes.

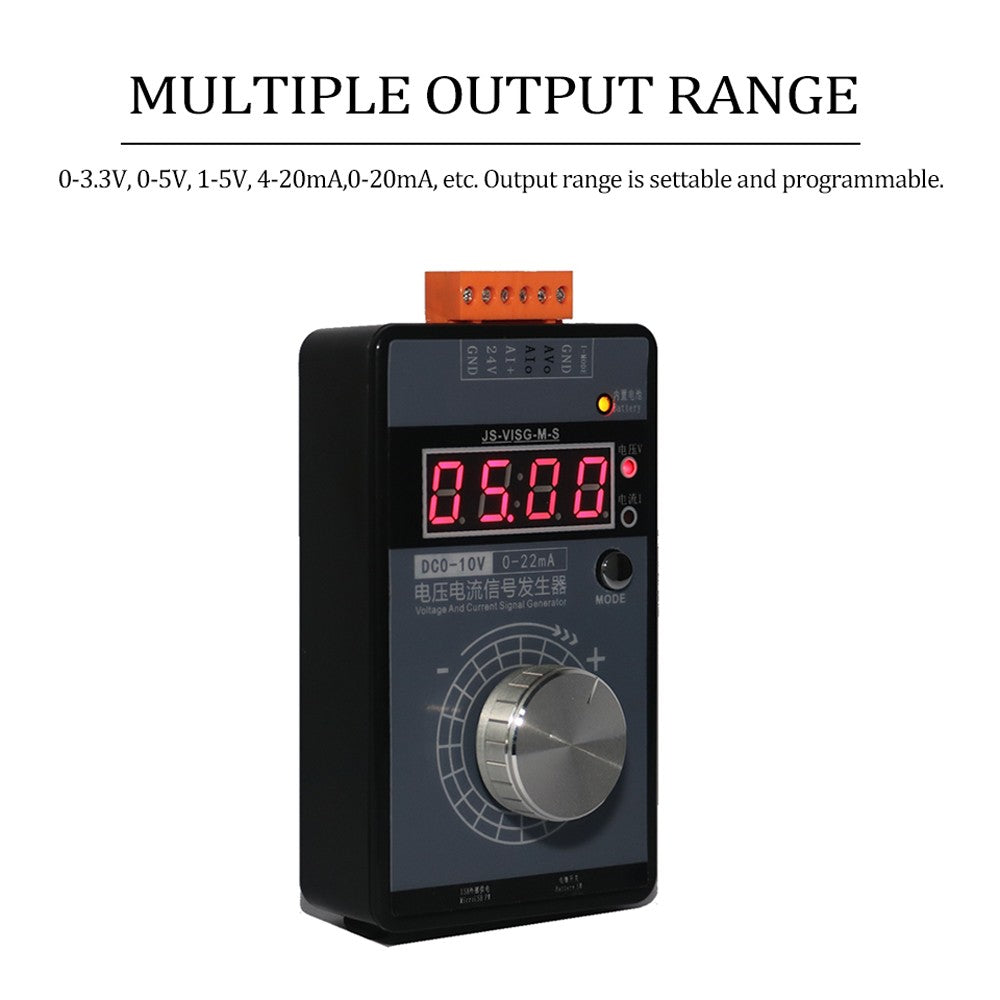

• Multiple output ranges, including 0-3.3V, 0-5V, 1-5V, 4-20mA, 0-20mA, ensuring adaptability and programmability.

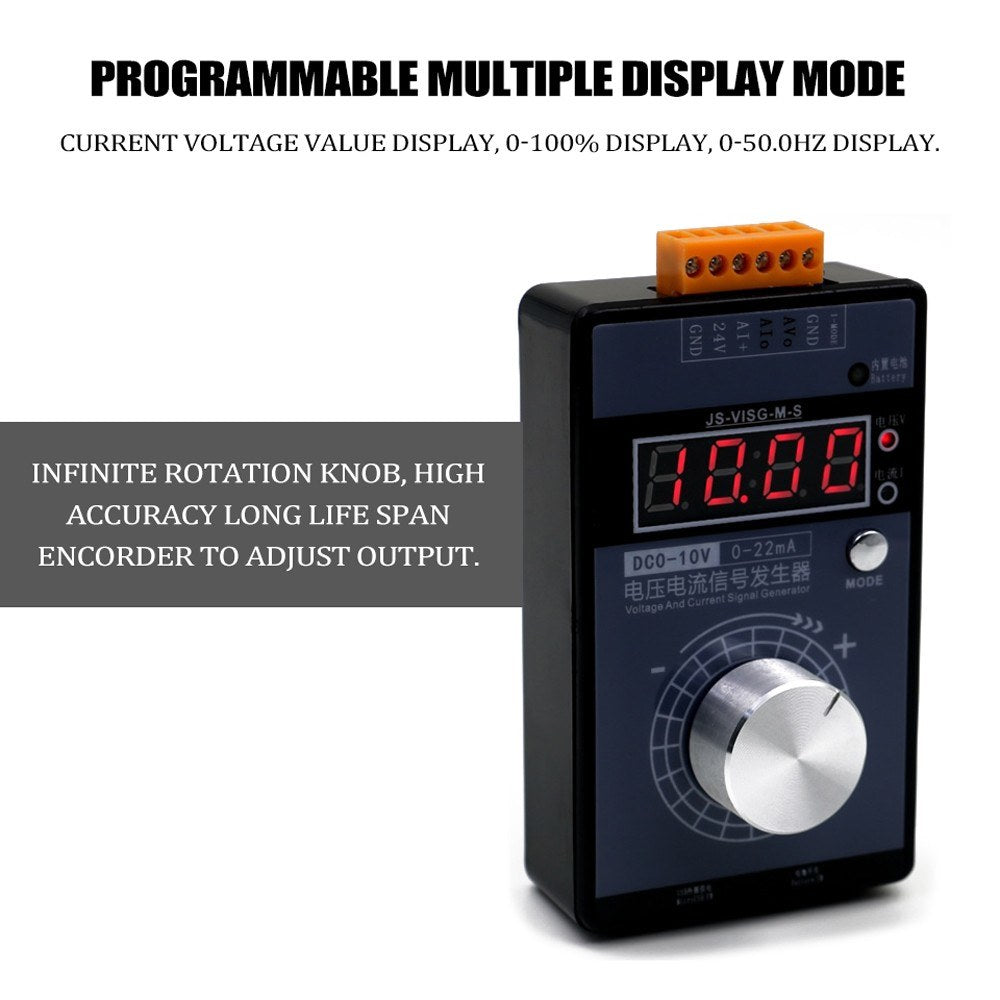

• Programmable display modes available for current-voltage value, 0-100% display, and 0-50.0Hz display.
• Equipped with short-circuit protection for output terminals and polarity reverse connection protection for power terminals.

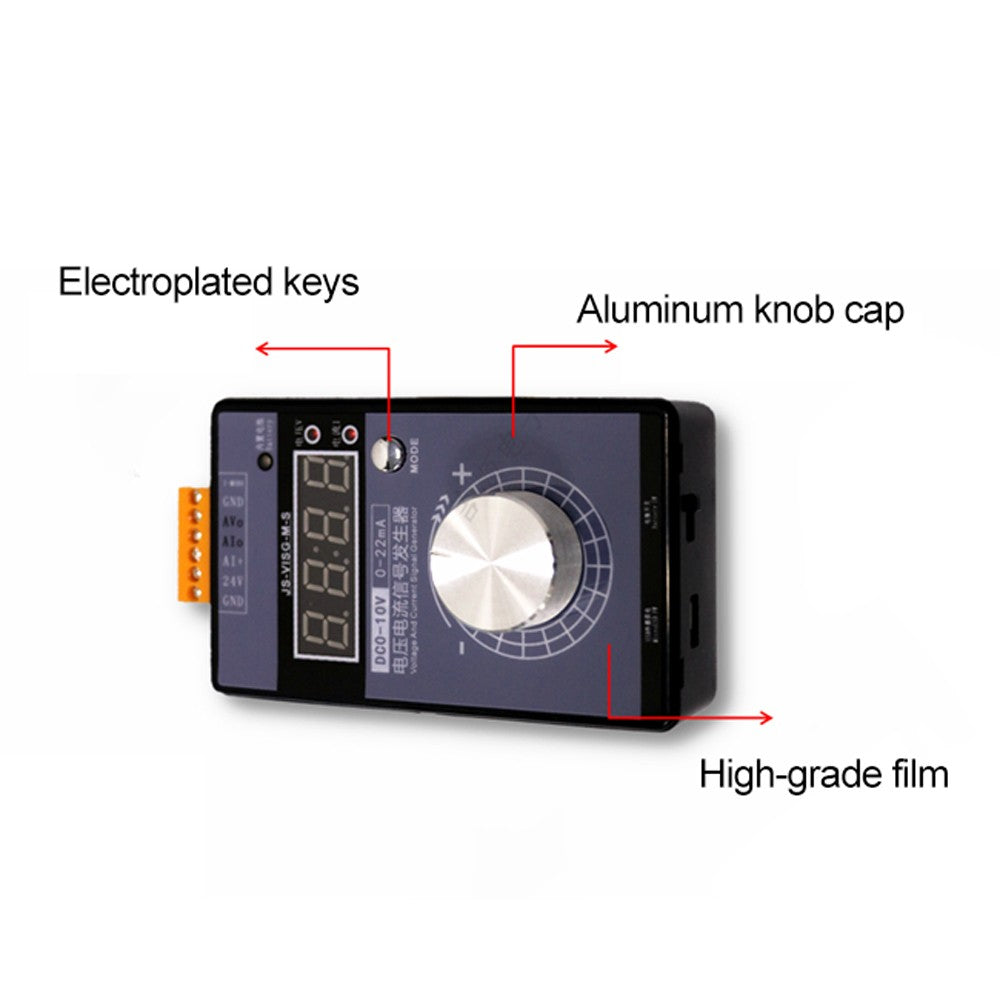

• Features an infinite rotation knob and a high-accuracy, long lifespan encoder for output adjustments.
• Compact and portable with a stylish alloy adjustable knob and elegant external case design, making it easy to carry.
• Includes pluggable wiring terminal blocks for easy and convenient wire connections.

Specifications:

• Current output range: 0-22mA adjustable
• Voltage output range: 0-10V DC adjustable
• Voltage output power: Max. 100mA
• Battery: 3.7V, 1000mAh
• Item dimensions: 100 x 60 x 25mm / 3.9 x 2.4 x 1.0in
• Item weight: 100g / 3.5 ounces
• Package dimensions: 100 x 60 x 25mm / 3.9 x 2.4 x 1.0in
• Package weight: 100g / 3.5 ounces

Package Includes:

• 1 x Signal Generator
