1.44/1.8 Inch RGB TFT LCD Display Screen Module 128x160/128x128 SPI ST7735 for Arduino STM32 DIY Kit

Product Specification

• Size: 1.8 inch
• Display Mode: a-TFT
• Display Format: Graphic 128RGB*160 Dot-matrix
• Input Data: SPI interface
• Drive IC: ST7735S
• Dimensional Outline: 35(W) x 56(H) x 3.45±0.1(T) mm
• Resolution: 128RGB*160 Dots
• LCD Active Area: 28.03(W) x 35.04(H) mm
• Pixel Size: 0.219(W) x 0.219(H) mm
• Viewing Direction: 12 o'clock
• Operating Temperature: -20°C to 70°C

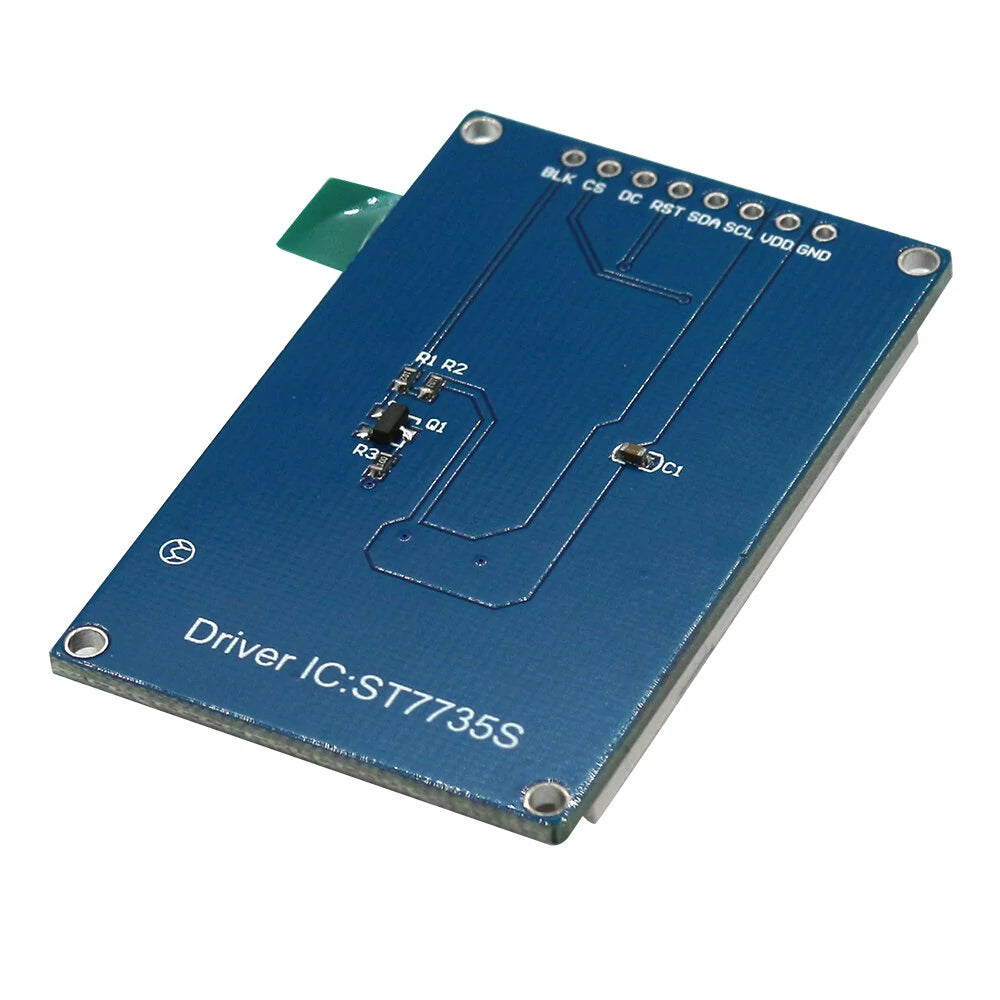

Pin Descriptions

1. GND: Ground
2. VCC: Power 3.3V
3. SCL: Serial clock pin
4. SDA: Serial data input
5. RES: LCM Reset pin. This pin is a reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin high during normal operation.
6. DC: Data/Command Control
7. CS: Chip Select
8. BLK: Backlight control pin

Package Includes

• 1× OLED Display Screen Module
