High-Performance RF Signal Analyzer

Unlock the full potential of RF signal analysis with our feature-rich and compact analyzer. This advanced device is designed to deliver exceptional performance and versatility for engineers and hobbyists alike. Explore its capabilities below:

Core Performance Features:

• Measurement Frequency Range: 50KHz to 4400MHz
• Adjustable RF Output Power: -12dBm to -42dBm in 1dB steps, with ±1dB error across the band
• Frequency Accuracy: ±1ppm, ±5KHz beyond 140MHz

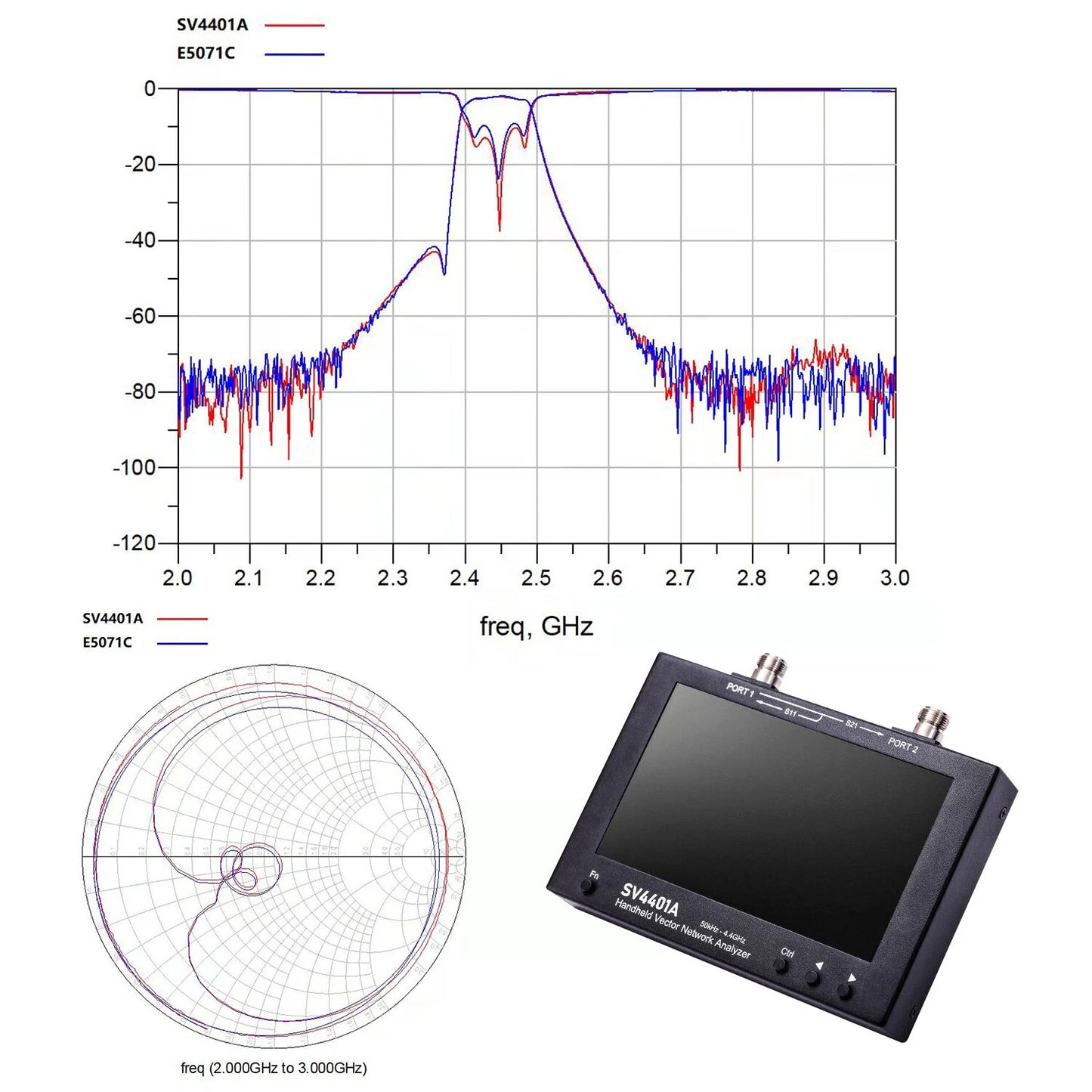

• S21 Dynamic Range: Up to 100dB below 1.3GHz with enhancements enabled
• S11 Dynamic Range: Over 50dB
• Port Return Loss: 30dB typical at 1.5GHz, 20dB minimum at 4.4GHz

Interface and Usability:

• USB Interface: USB Type-C with CDC (Serial) communication
• Selectable Calibration and Scanning Points: 101 to 1001
• Display Traces: Up to 7 concurrently
• Marker Control: 8 movable marker points

Convenience and Efficiency:

• Settings and File Management: Save up to 12 settings with automatic parameter recall
• High-Speed Scanning: Approximately 400 points per second
• Comprehensive Measurement Functions: Includes S parameters, VSWR, Smith chart, TDR, and more

Design and Display:

• 7-Inch IPS Touch Screen: High-brightness capacitive display with 180° viewing angle
• Durable Metal Case: Shields against electromagnetic interference
• Compact and Portable: 195mm x 150mm x 35mm; easily fits in your toolkit

Power and Connectivity:

• Power Options: Includes 6600mAh batteries with an upgrade option for extended life
• Flexible User Interface: Full touch screen with additional panel buttons
• Multilingual Support: Chinese and English menus available
• Easy Firmware Upgrade: Upgrade via virtual U disk using only a USB cable
• Additional Features: Power bank capability with 5V/1A output

Product Specifications:

• Charging: High current 2A charging IC for shorter times
• PC Integration: Use your computer as a display and operation interface
• Weights: Net weight: 1160 grams, Total package weight: 1590 grams
• Screenshot Capability: Capture and upload screenshots to your computer

Packing List:

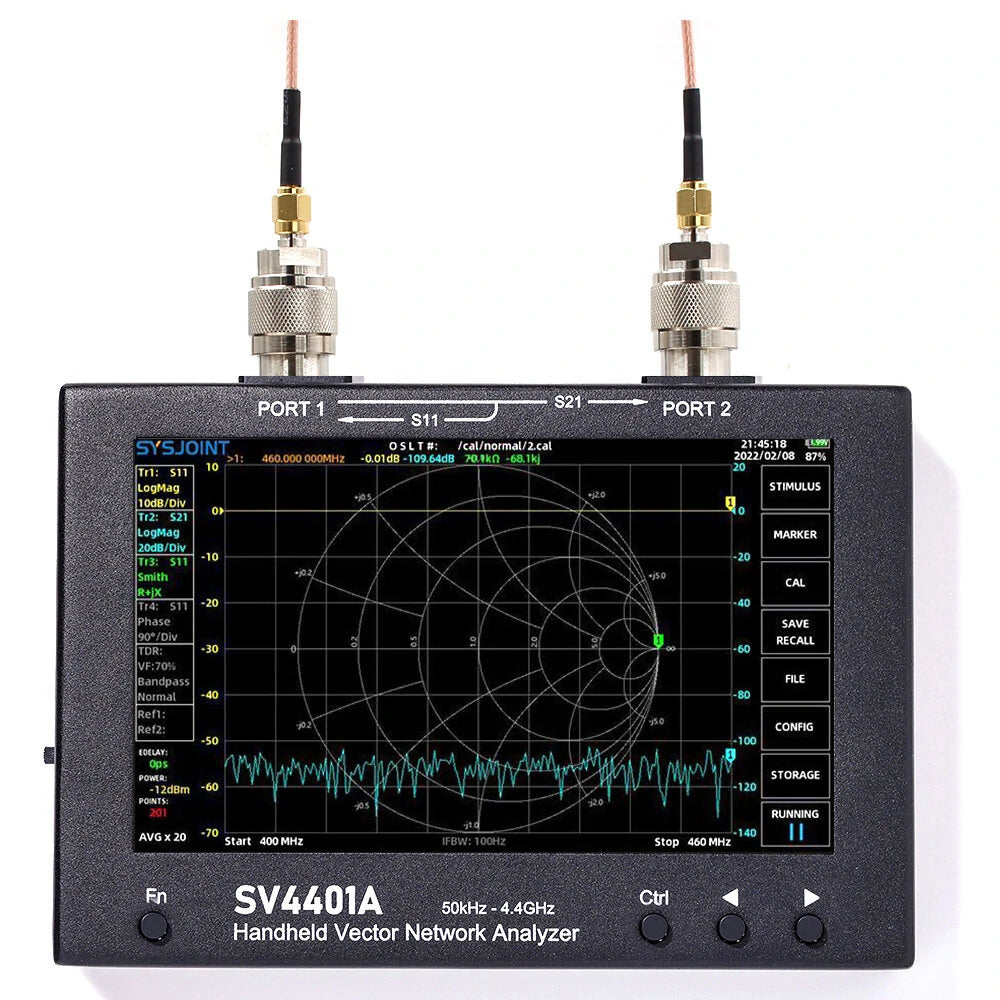

• SV4401A Host x1
• N to SMA Adapter x2
• SMA Open/Short/Load Calibration Kit x1
• SMA Double Female Straight Adapter x3
• 50cm RG316 Cable x2
• USB Type-C Data Cable x1

Operation Video and Firmware Upgrade:

For a detailed operation video, please visit the product page. To upgrade the firmware, connect to your computer using a data cable, follow the detailed steps provided in the user manual to ensure a smooth update.
