5-Pack 2S 3A 18650 Li-ion Lithium Battery Protection Charger BMS PCB Boards

Product Features

• High-accuracy voltage detection circuit
• Charger terminal utilizes high voltage devices
• Integrated three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit)

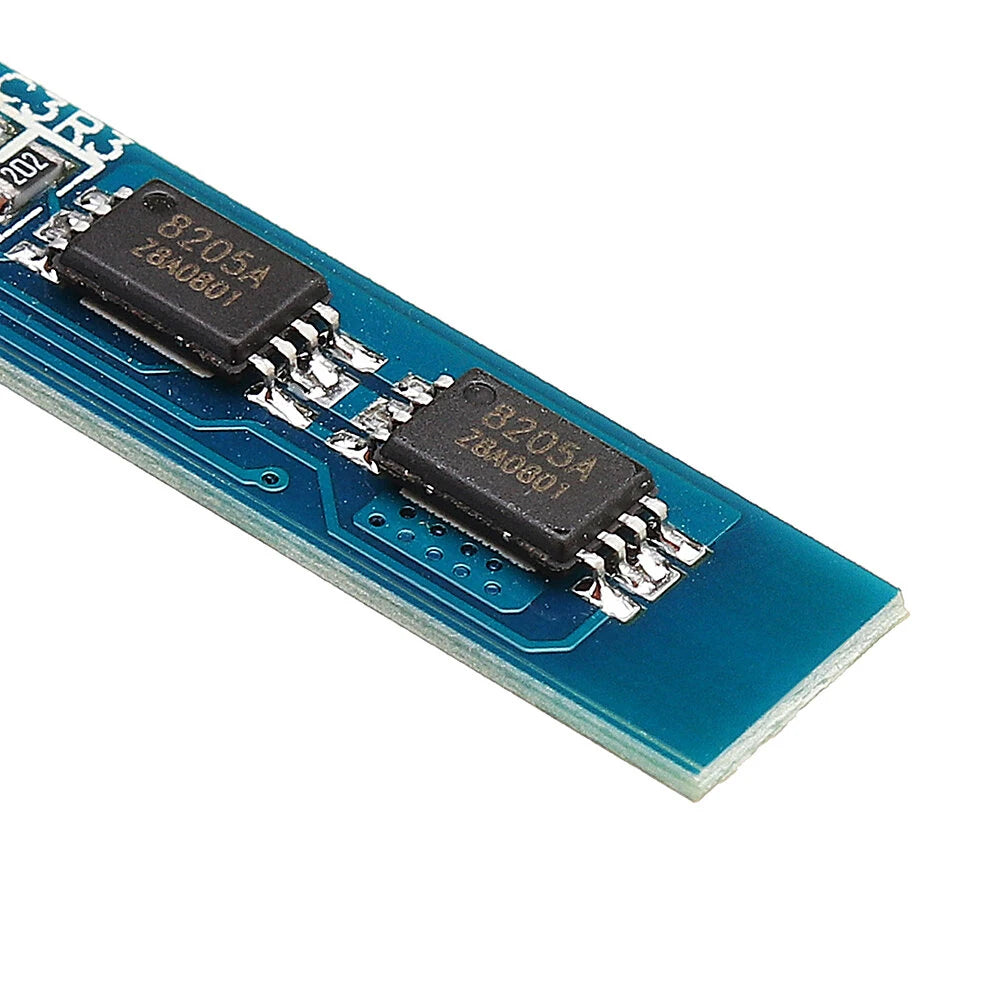

• MOS transistor for battery charge and discharge control
• Low standby current consumption

Specifications

• Over charge voltage: 4.25-4.35V ± 0.05V
• Over discharge voltage: 2.3-3.0V ± 0.05V
• Maximum continuous current: 3A
• Maximum peak current: 5A
• Operating temperature: -40°C to +50°C
• Storage temperature: -40°C to +80°C
• Small current consumption: less than 3μA
• Resistance: Less than 45mΩ
• Short circuit protection: Yes, charge can repair

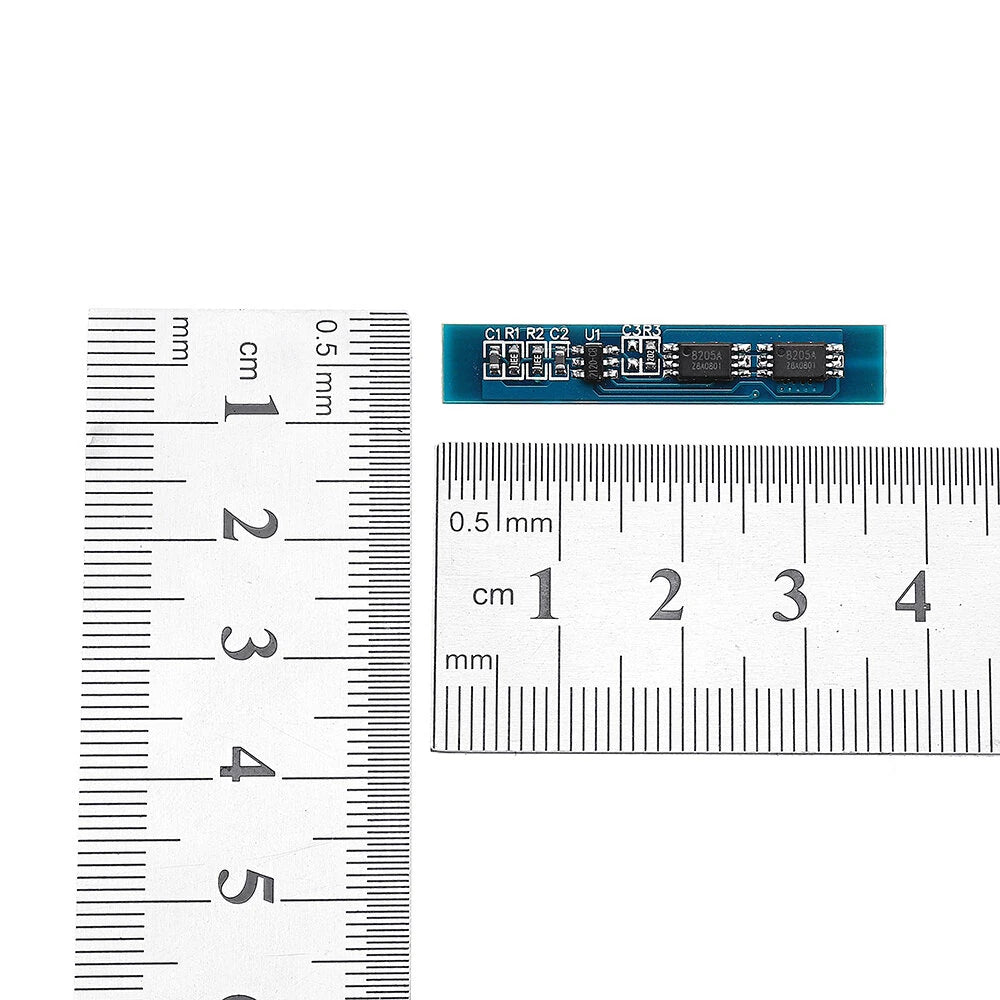

• Size: 36 x 6 x 1.0 mm

Package Includes

• 5 x 18650 Charger Protection Board
