YERTAI Digital Insulation Resistance Tester Megohmmeter 100V-2500V 0-100G Ohm Meter

YERTAI Digital Insulation Resistance Tester Megohmmeter 100V-2500V 0-100G Ohm Meter

Regular price $99.99 USD
Regular price $0.00 USD Sale price $99.99 USD
Sale Sold out
Shipping calculated at checkout.
Size

Shipping Icon Estimated Delivery: Monday, January 27th - Monday, January 27th

 More payment options

YTE216X Series Digital Insulation Resistance Tester

The YTE216X series is a versatile digital insulation resistance tester, expertly designed for field testing. With high precision, exceptional stability, and low power consumption, this instrument is user-friendly and ideal for various applications.

Use it to measure the insulation resistance of motors, transformers, cables, switches, electrical equipment, and insulating materials. It is a reliable tool for maintenance, testing, and verification of diverse electrical equipment.

Additional Functions

Along with insulation resistance measurement, the YTE216X series can also measure AC/DC voltage and small resistance.

Features

  • LCD display with backlight for easy use in low light conditions.
  • High voltage indicator light, buzzer prompt, and danger warning for safety.
  • Automatic discharge voltage feature.
  • Capability to calculate polarization index and absorption ratio.
  • AC/DC voltage and small resistance measurement options.
  • Data storage capacity of up to 100 sets.

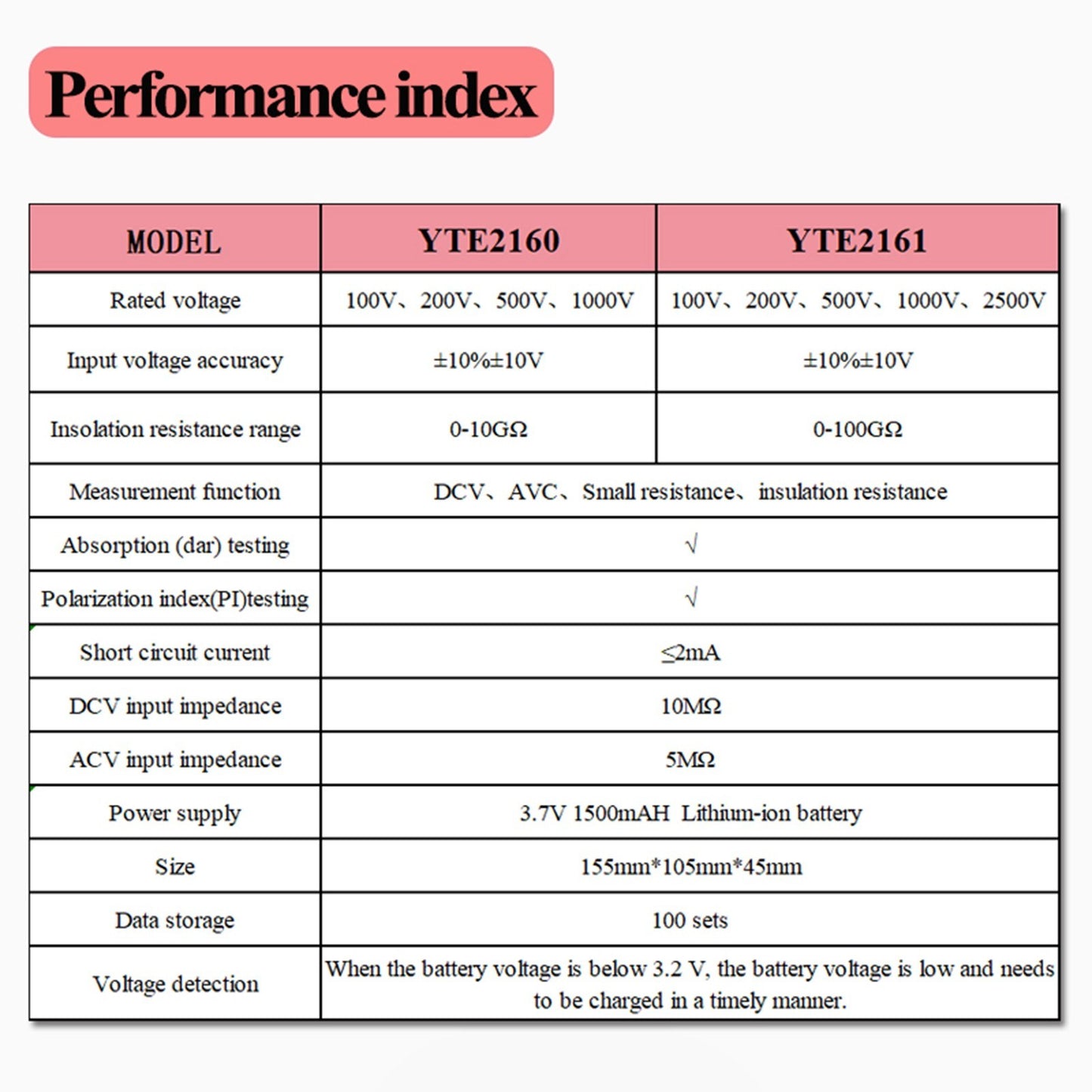

Specifications

  • Plug Options: EU / US / UK
  • Model: YTE2161
  • Material: High-Quality ABS
  • Rated Voltage Options: 100V, 200V, 500V, 1000V, 2500V
  • Input Voltage Accuracy: ±10% ±10V
  • Insulation Resistance Range: 0-100GΩ
  • Measurement Functions: DC voltage, AC voltage, small resistance, insulation resistance
  • Absorption (DAR) Testing: Supported
  • Polarization Index (PI) Testing: Supported
  • Short Circuit Current: ≤2mA
  • DC Voltage Input Impedance: 10MΩ
  • AC Voltage Input Impedance: 5MΩ
  • Power Supply: 3.7V 1500mAh Lithium-ion battery
  • LCD Display: Maximum reading 9999
  • Data Storage: Up to 100 sets
  • Voltage Detection: Alerts when battery voltage drops below 3.2V
  • Item Dimensions: 155 x 105 x 45mm / 6.10 x 4.13 x 1.77in
  • Item Weight: 346g / 0.76lb
  • Package Weight: 708g / 1.56lb
  • Package Dimensions: 24 x 17.5 x 13.5cm / 9.45 x 6.89 x 5.31in

Package Includes

  1. 1 Insulation Resistance Tester
  2. 2 Test Leads
  3. 2 Alligator Clips
  4. 1 Type-C Charging Cable
  5. 1 5V/1A Charger Adapter
  6. 1 User Manual (English)
