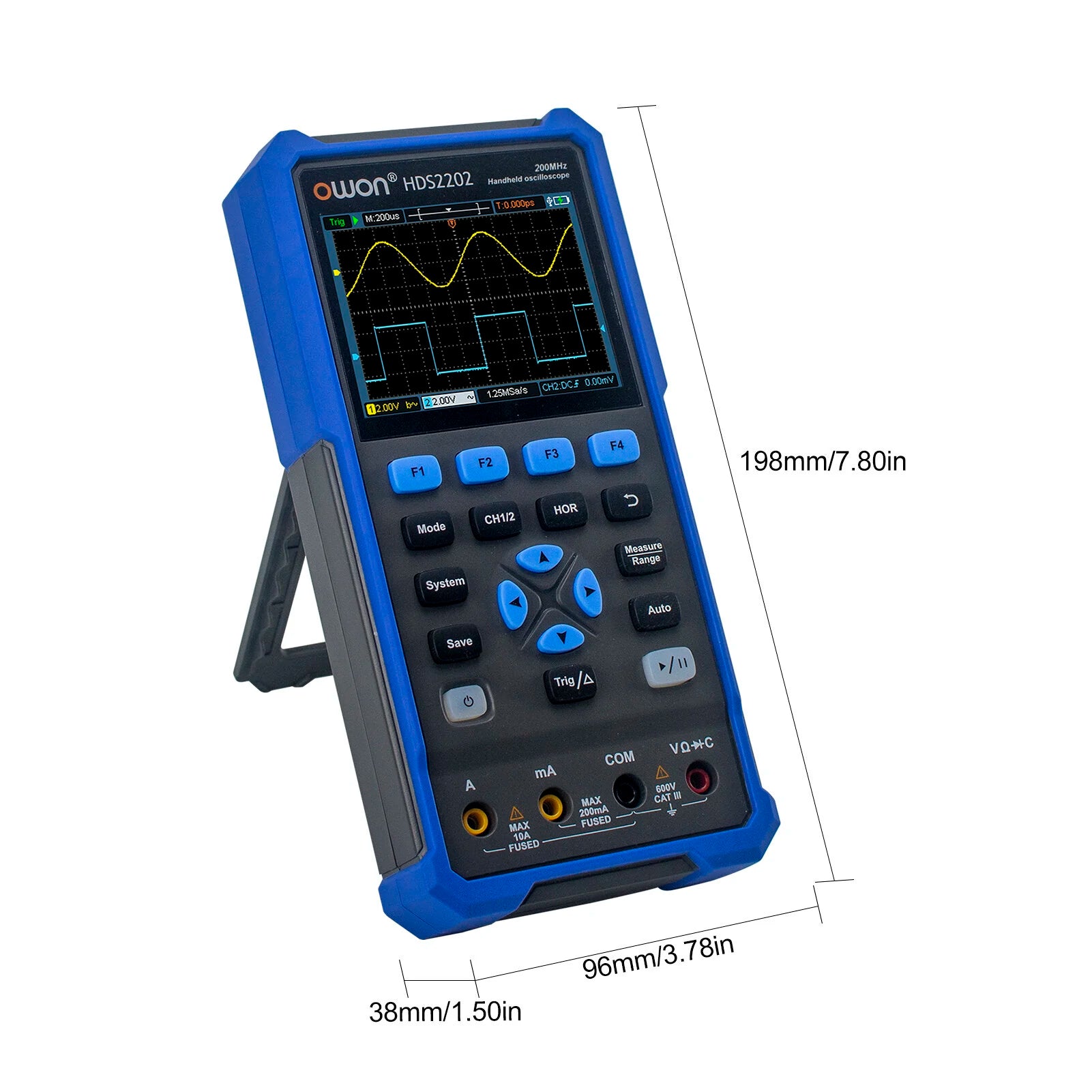

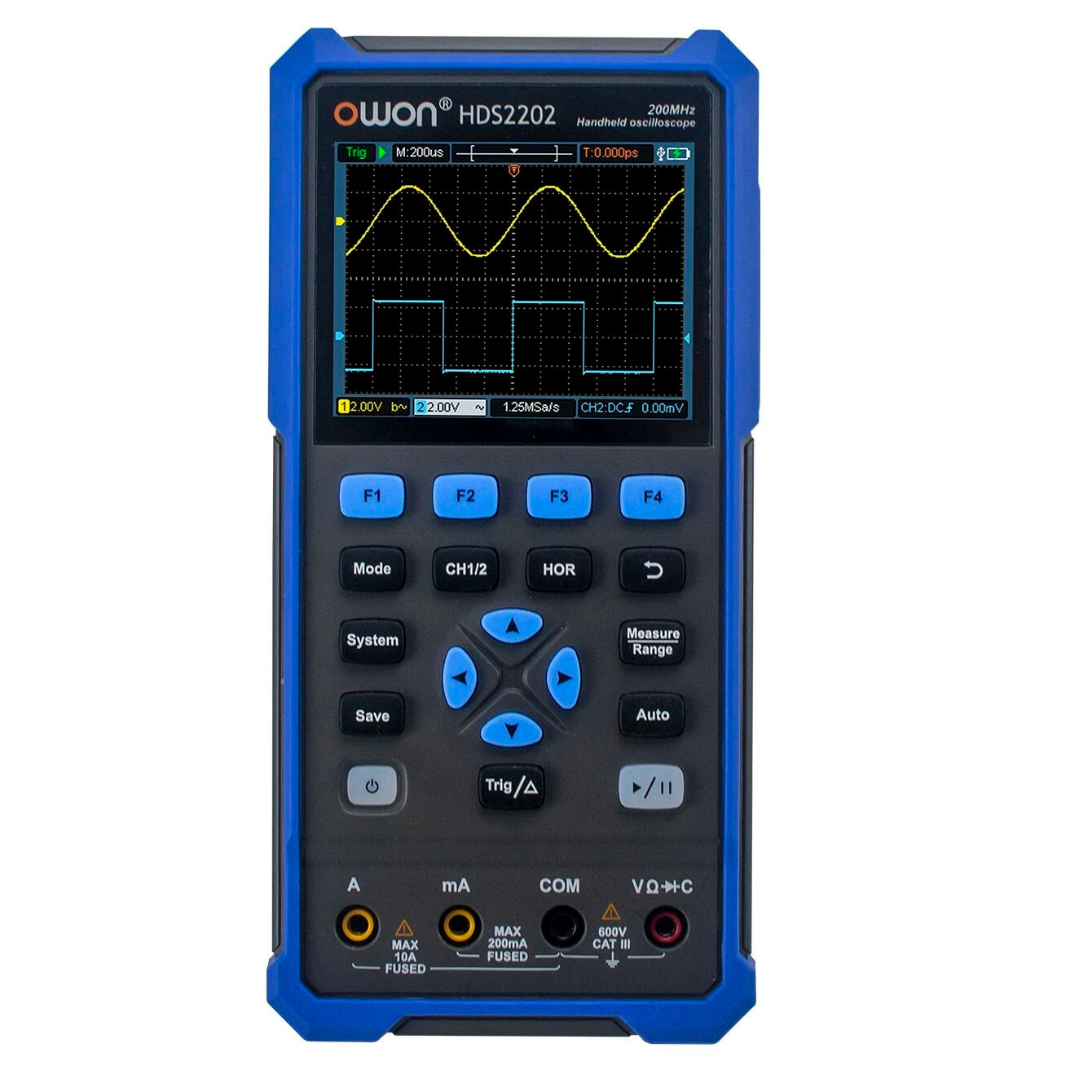

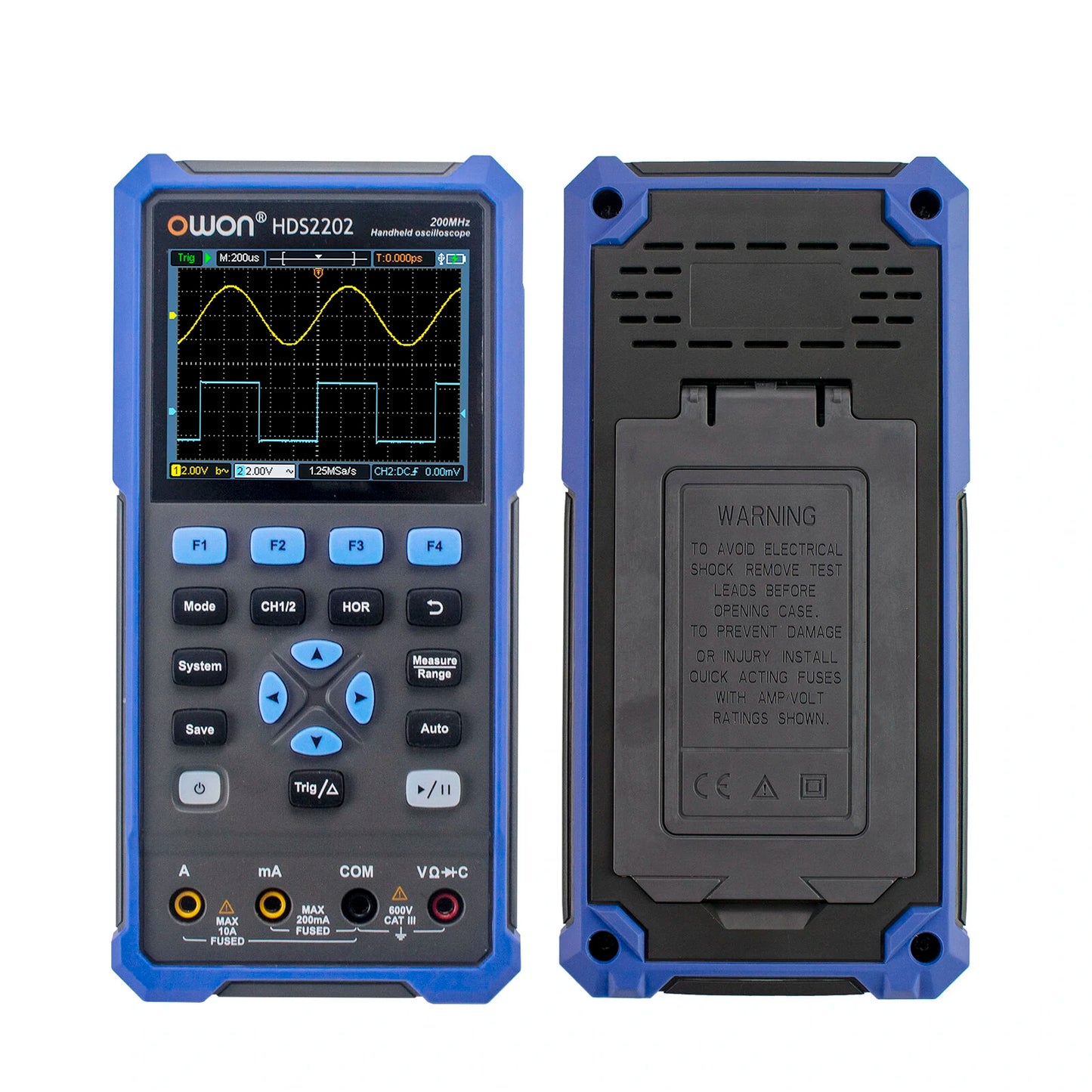

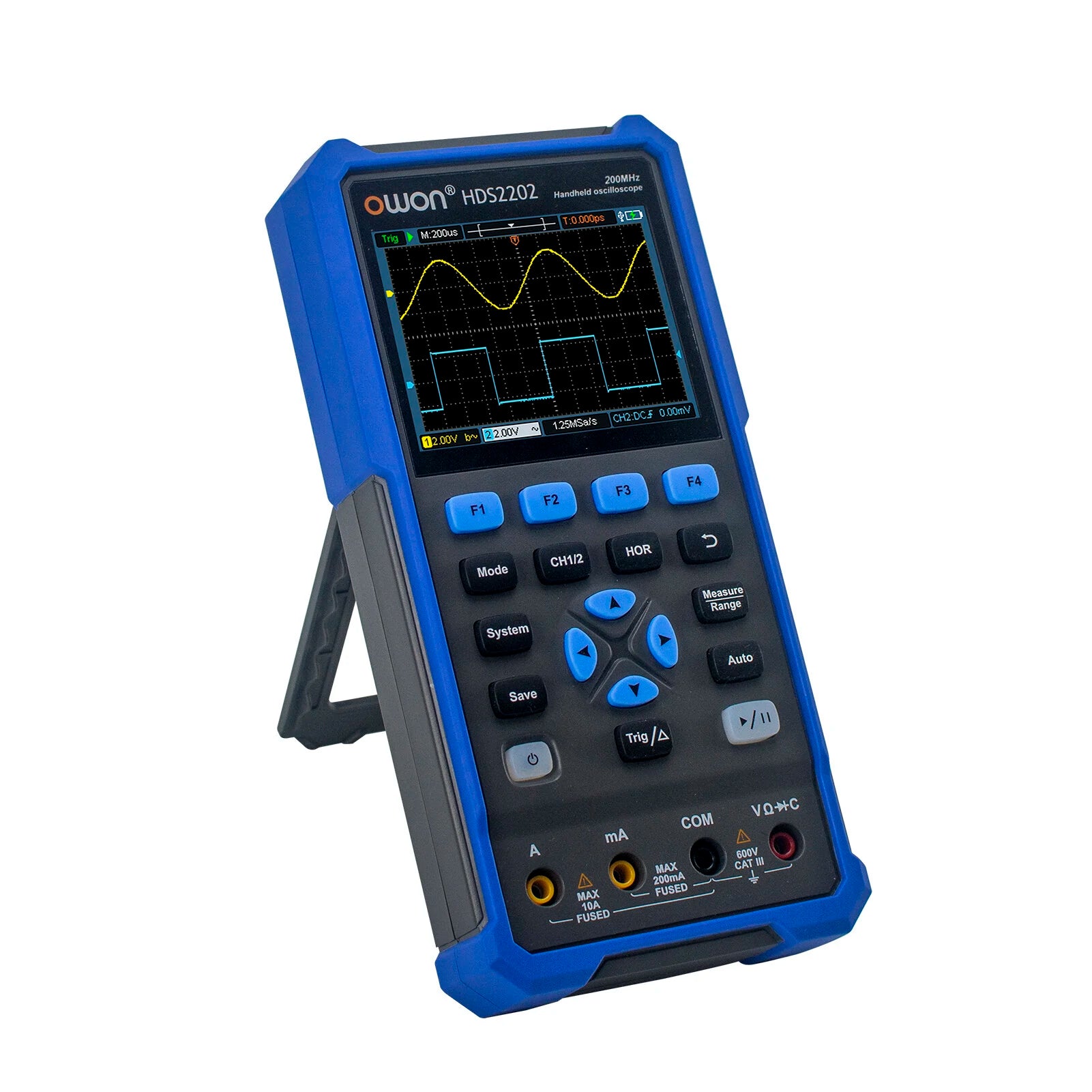

OWON 2CH Handheld Oscilloscope 200MHz, 20000 Counts Multimeter & Waveform Generator 3-in-1 for Automotive Maintenance & Power Testing (HDS2202 HDS2202S)

Product Description

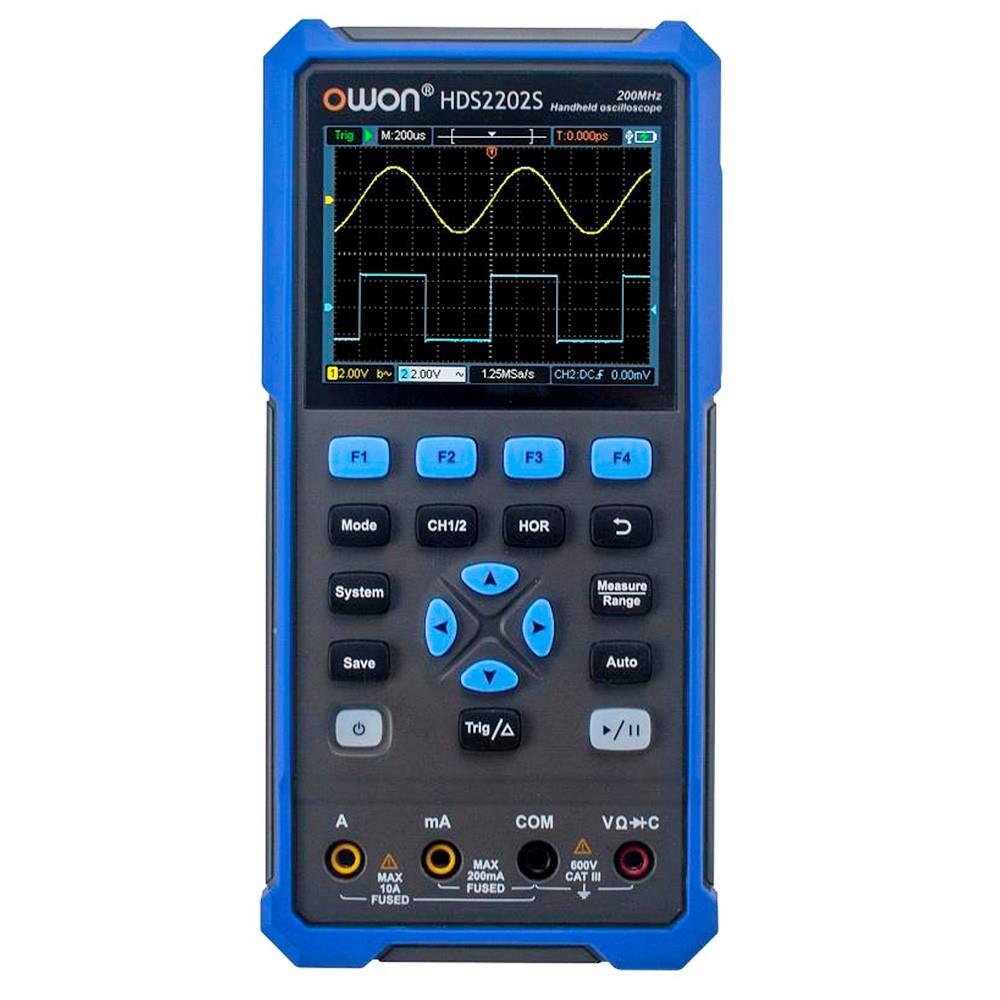

Model: HDS2202 & HDS2202S

Oscilloscope Specifications

• Bandwidth: 200MHz
• Channels: 2-CH Oscilloscope, 1-CH Generator
• Sample Rate: 1GSa/s
• Acquisition Modes: Normal, Peak Test
• Record Length: 8K
• Display: 3.5-inch LCD
• Waveform Refresh Rate: 10,000 wfrms/s
• Input Coupling: DC, AC, and Ground
• Input Impedance: 1 MΩ+2%, in parallel with 16pF+10pF
• Probe Attenuation Factors: 1X,10X,100X,1000X,10000X
• Max. Input Voltage: 400V (DC+AC, PK PK, 1MΩ input impedance) (10:1 probe attenuation)
• Bandwidth Limit (typical): 20MHz / Full bandwidth
• Horizontal Scale: 2ns/div - 1000s/div, step by 1-2-5
• Vertical Sensitivity: 10mV/div - 10V/div
• Vertical Resolution: 8 bits
• Trigger Type: Edge
• Trigger Modes: Auto, Normal, single
• Automatic Measurement: Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
• Cursor Measurement: △V, △T, △T & △V between cursors
• Communication Interface: USB Type-C

Multimeter (Standard)

• Max. Resolution: 20,000 counts
• Testing Modes: Voltage, Current, Resistance, Capacitance, Diode, and Continuity test
• Input Impedance: 10MΩ
• Max Input Voltage: AC 750V, DC 1000V
• Max Input Current: DC: 10A, AC: 10A
• Diode Testing: 0 - 2V

Waveform Generator (Only for HDS242S, HDS272S, HDS2102S, HDS2202S)

• Frequency Output: Sine 0.1Hz - 25MHz, Square 0.1Hz - 5MHz, Ramp 0.1Hz - 1MHz, Pulse 0.1Hz - 5MHz, Arbitrary 0.1Hz - 5MHz
• Sampling Rate: 125MSa/s
• Channel: 1-CH
• Amplitude Range (high impedance): 20 mVpp - 5 Vpp
• Waveform Length: 8K
• Vertical Resolution: 14 bits
• Output Impedance: 50Ω

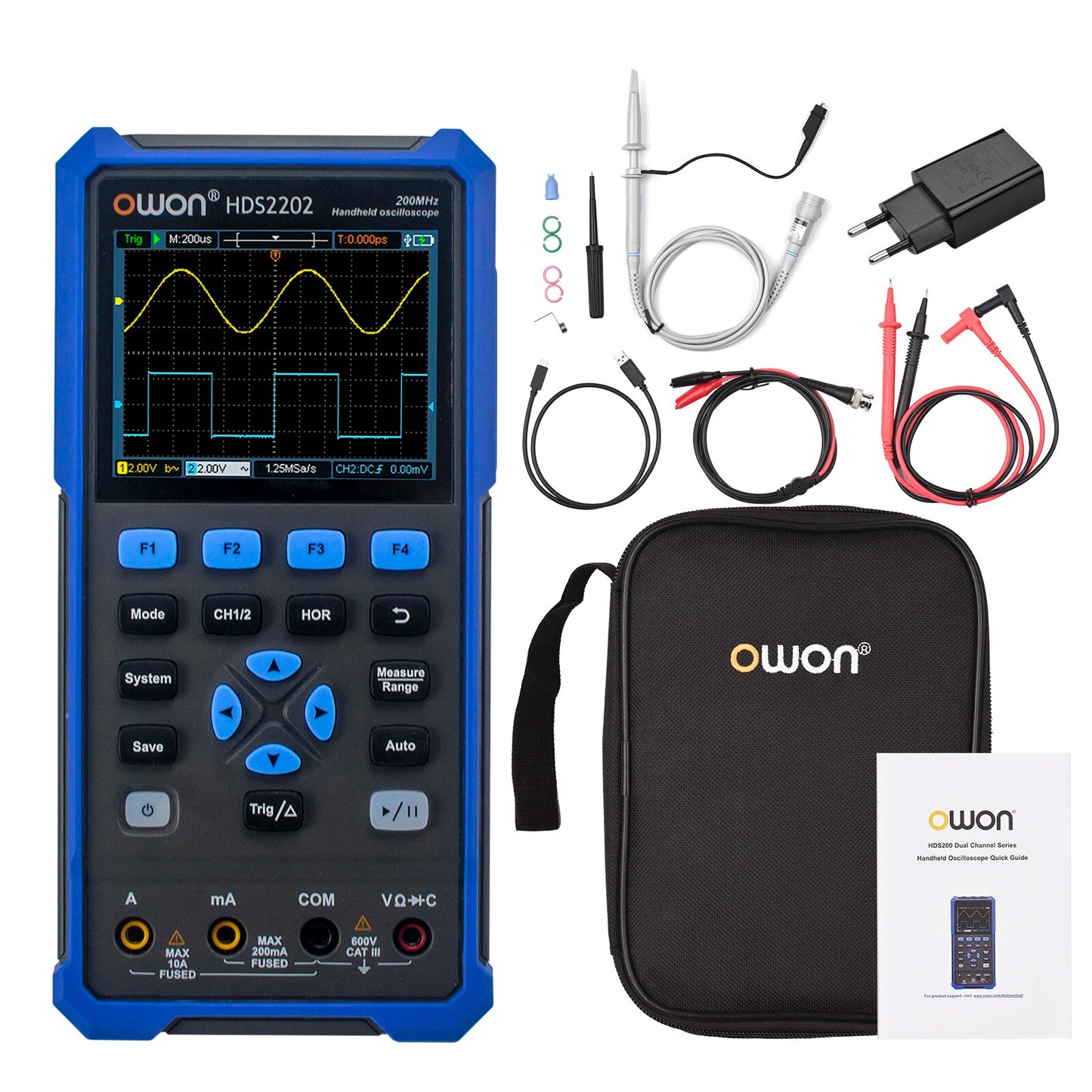

Package Includes:

Comprehensive set of cables, probes, and accessories to enhance your testing experience.
