RF Gain Amplifier

Specifications

• Power Supply: TYPE-C line
• Module Frequency Range: 10MHz - 6GHz
• Noise Figure: NF = 4-5dB (refer to the measured curve for specific frequencies)
• Gain: 10dB / 20dB / 30dB / 40dB (refer to the measured curve for different frequencies)
• Size: 4.5 x 3 x 1.4 cm (excluding protruding SMA)
• Weight: 66g (including host and TYPE-C cable)
• Current Consumption: Less than 100mA
• P1dB: +18dBm @ 2GHz
• Output Interface: SMA female, input-output impedance: 50 ohms

Features

• Wide Frequency Range: Covers a range of 10MHz to 6GHz, suitable for various applications like GPS, FM radio, and radar reception.
• Multiple Gain Options: Available in 10dB, 20dB, 30dB, and 40dB variants, easily adaptable to your specific needs.
• Low Noise Figure: Maintain signal integrity with a noise figure of 4-5dB, ensuring high performance.
• Compact and Lightweight Design: Small footprint of 4.5 x 3 x 1.4 cm and light weight of 66g make it easy to integrate.
• Reliable Power Supply: Operates with a Type-C power input and consumes less than 100mA of current.

Package Included

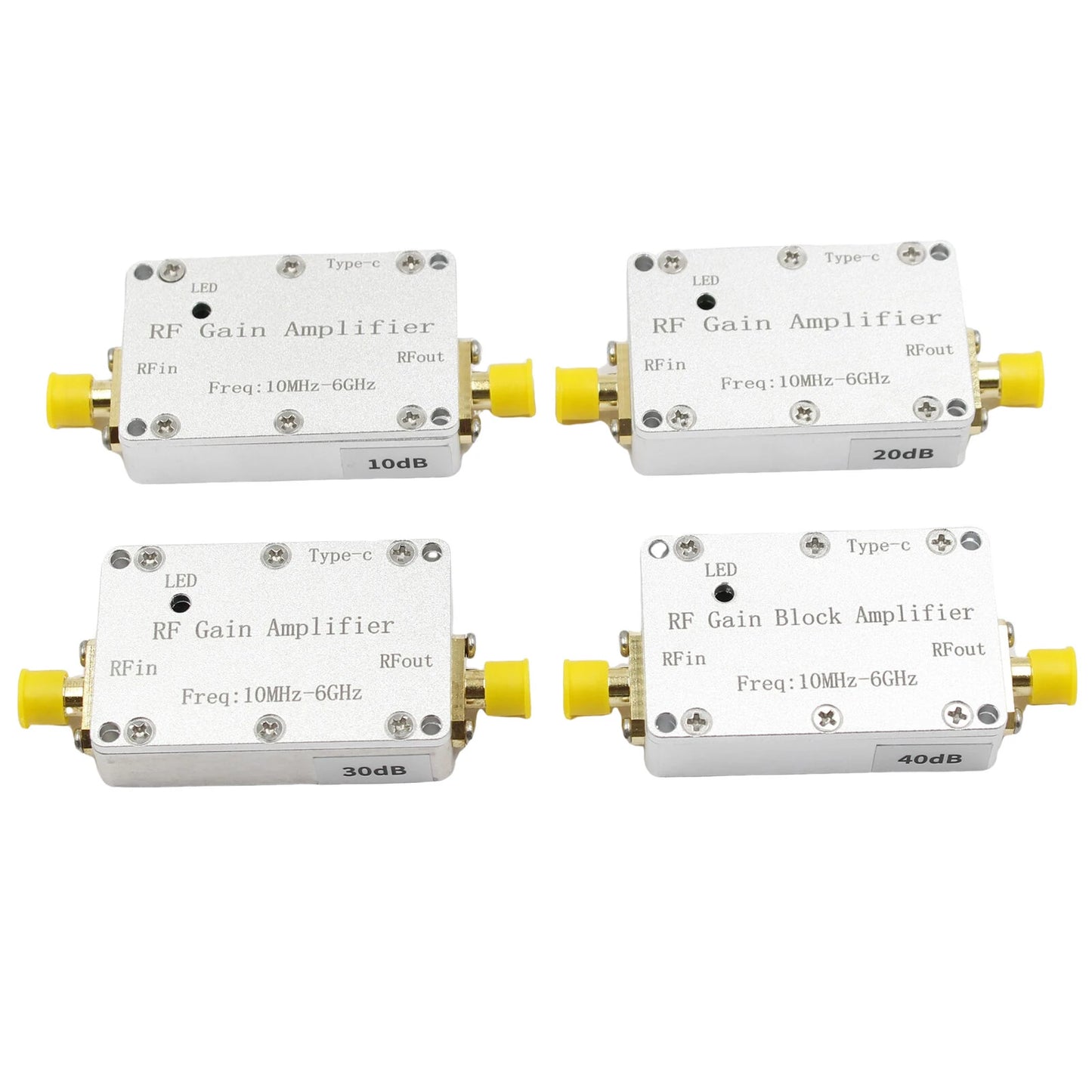

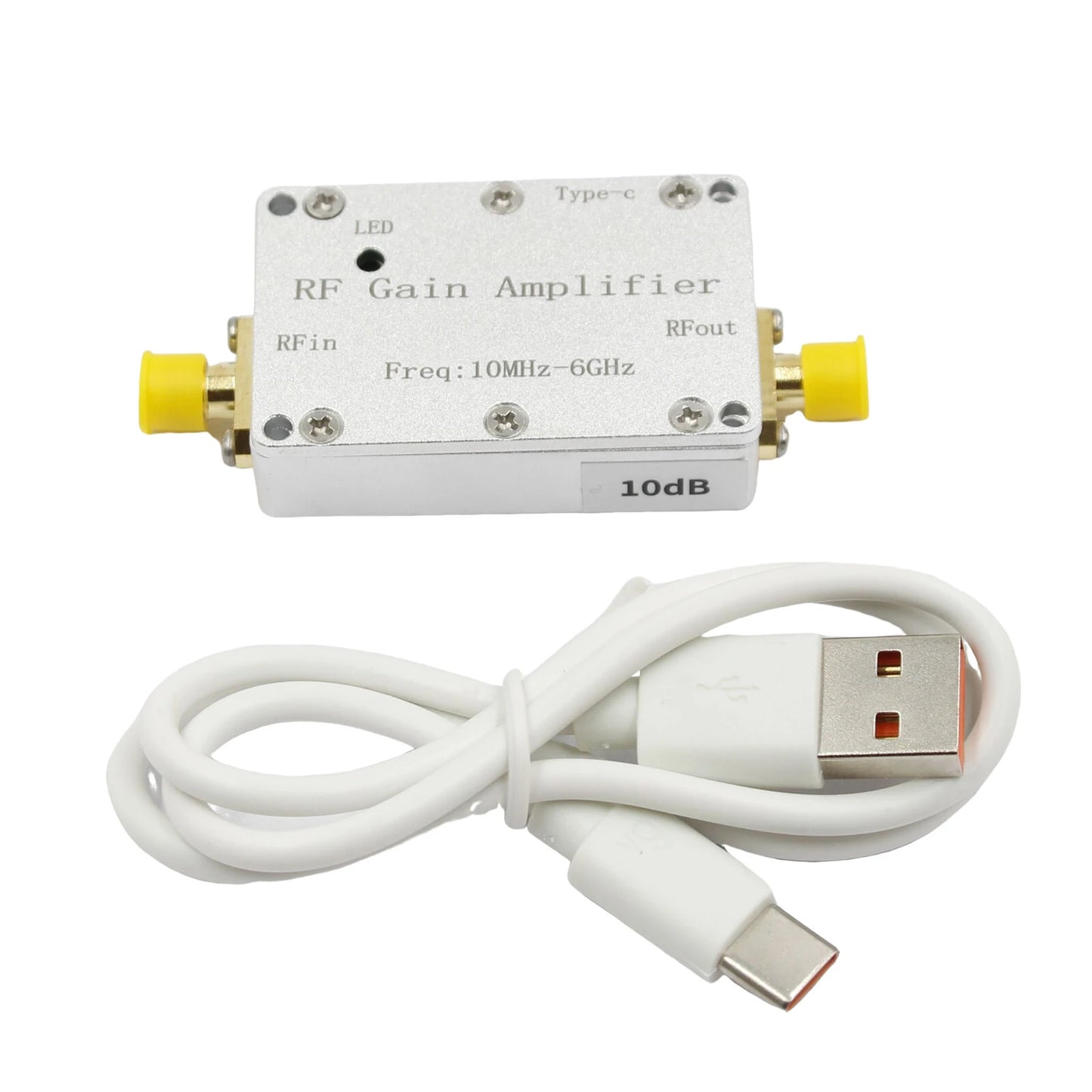

Type A:

• 1 x 10db RF Gain Amplifier
• 1 x TYPE-C Cable

Type B:

• 1 x 20db RF Gain Amplifier
• 1 x TYPE-C Cable

Type C:

• 1 x 30db RF Gain Amplifier
• 1 x TYPE-C Cable

Type D:

• 1 x 40db RF Gain Amplifier
• 1 x TYPE-C Cable
