Handheld tinySA Spectrum Analyzer 100k-5.3GHz, High Frequency Signal Generator with Built-in LNA & TFT Touchscreen, PC Connection Support

The tinySA Spectrum Analyzer supports an ultra-wide frequency range from 100kHz to 5.3GHz, addressing diverse analysis needs from low to high frequencies. As a handheld high-frequency signal generator, it provides:

• Sinewave outputs from 100kHz to 800MHz
• Squarewave outputs from 800MHz to 4.4GHz
• Frequency mixing signal outputs from 4.4GHz to 5.4GHz

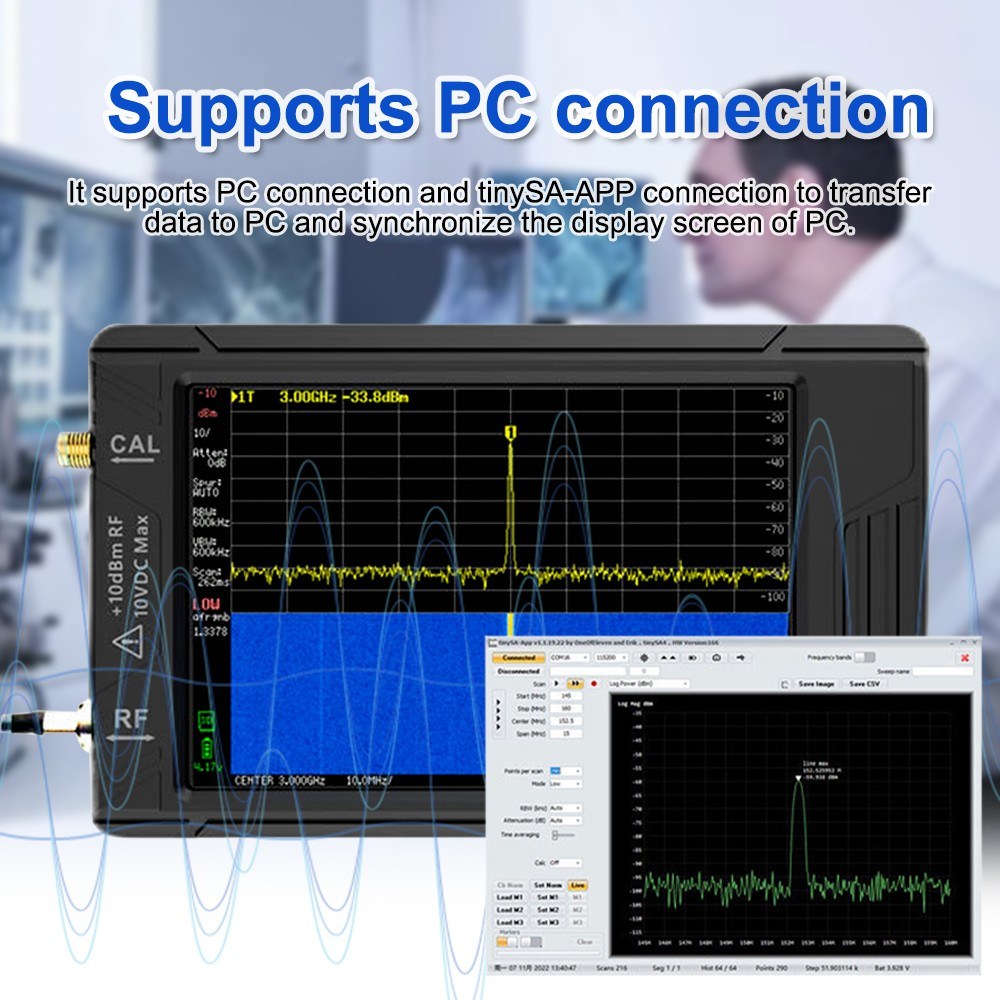

These features meet varied requirements and demonstrate superior application value in fields like communications, electronic R&D, and educational experiments. The device supports both PC connection and tinySA-APP connection for data transfer and synchronized display on a PC.

Features:

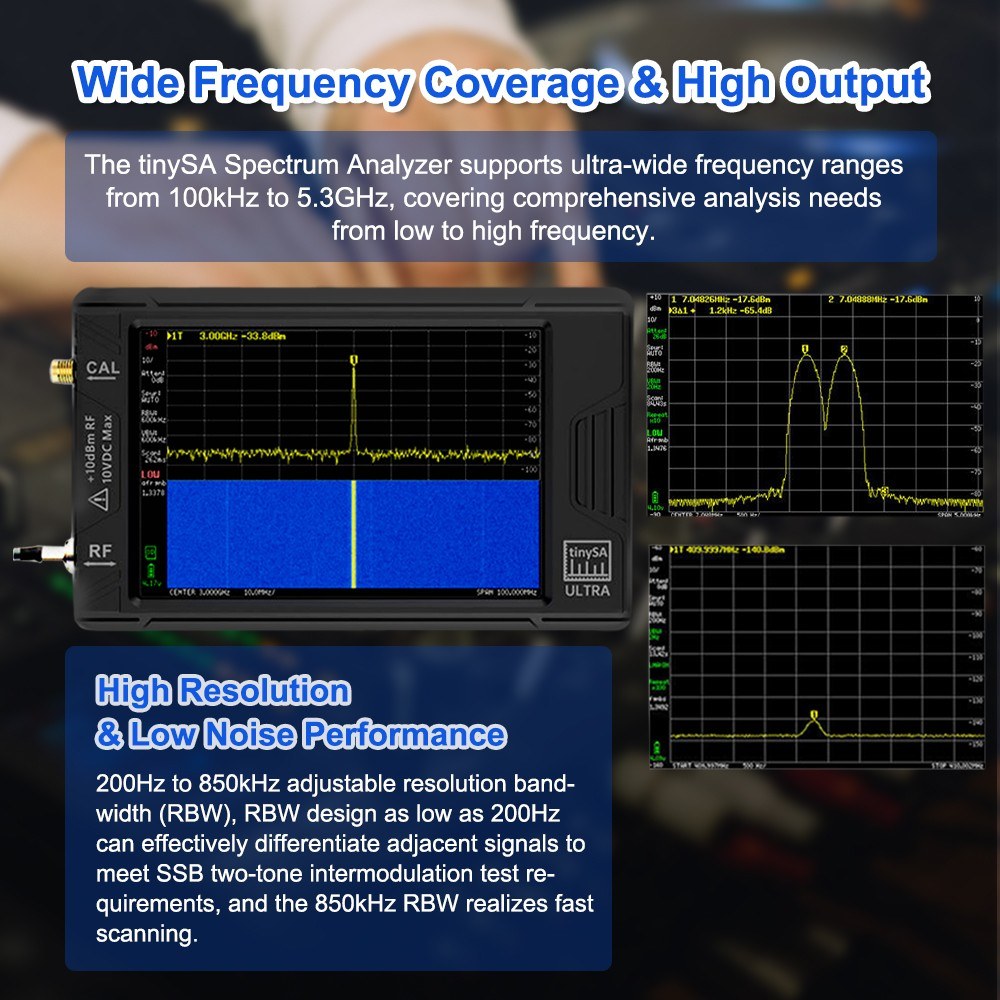

• Wide Frequency Coverage & High Output: Spanning from 100kHz to 5.3GHz, tinySA offers comprehensive analysis with versatile waveform outputs catering to diverse requirements.
• High Resolution & Low Noise Performance: Adjustable resolution bandwidth (RBW) from 200Hz to 850kHz enables precise signal differentiation, and the device can detect signals as low as -140dBm.

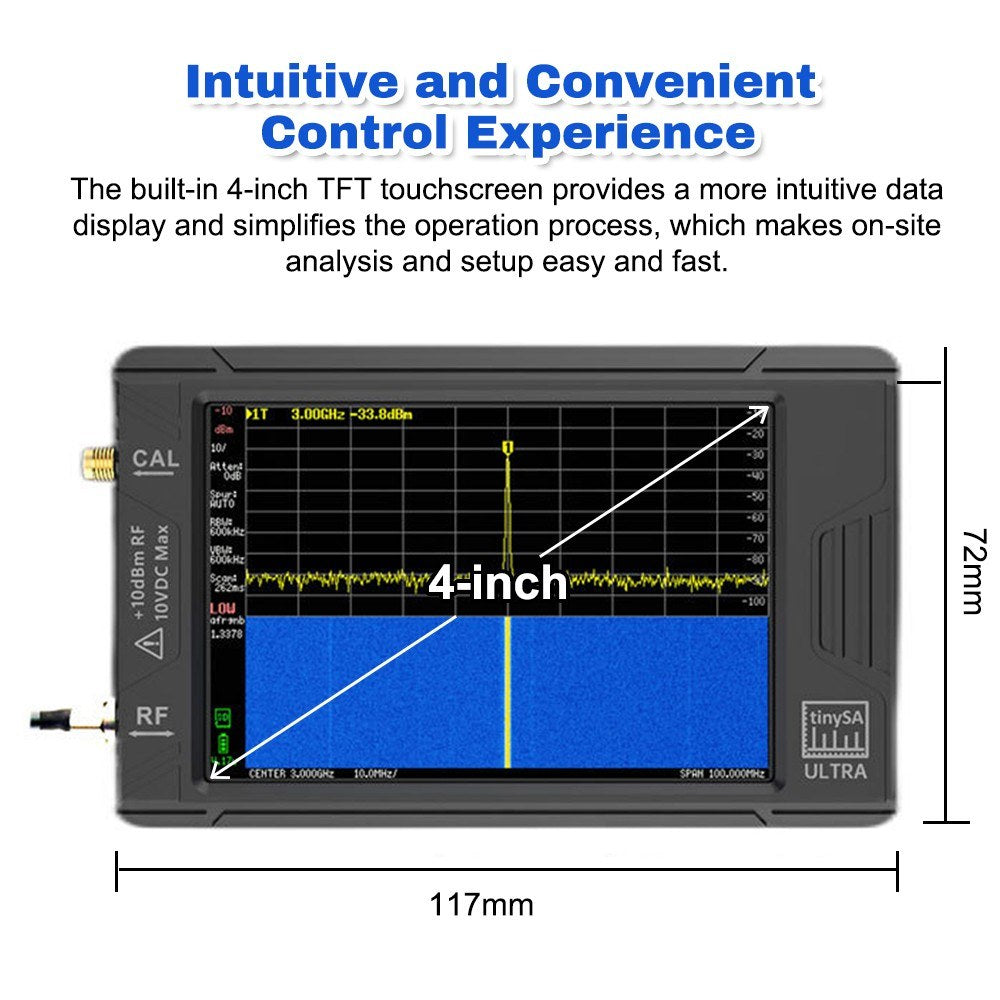

• Intuitive and Convenient Control Experience: A built-in 4-inch TFT touchscreen simplifies operation, with the ability to save screenshots to a memory card. It operates up to 8 hours on its 3000mAh battery, ideal for fieldwork.
• Flexible Data Management & Expandability: Wireless transmission to a PC and expanded memory storage improve data handling, enhancing efficiency and analysis flexibility.

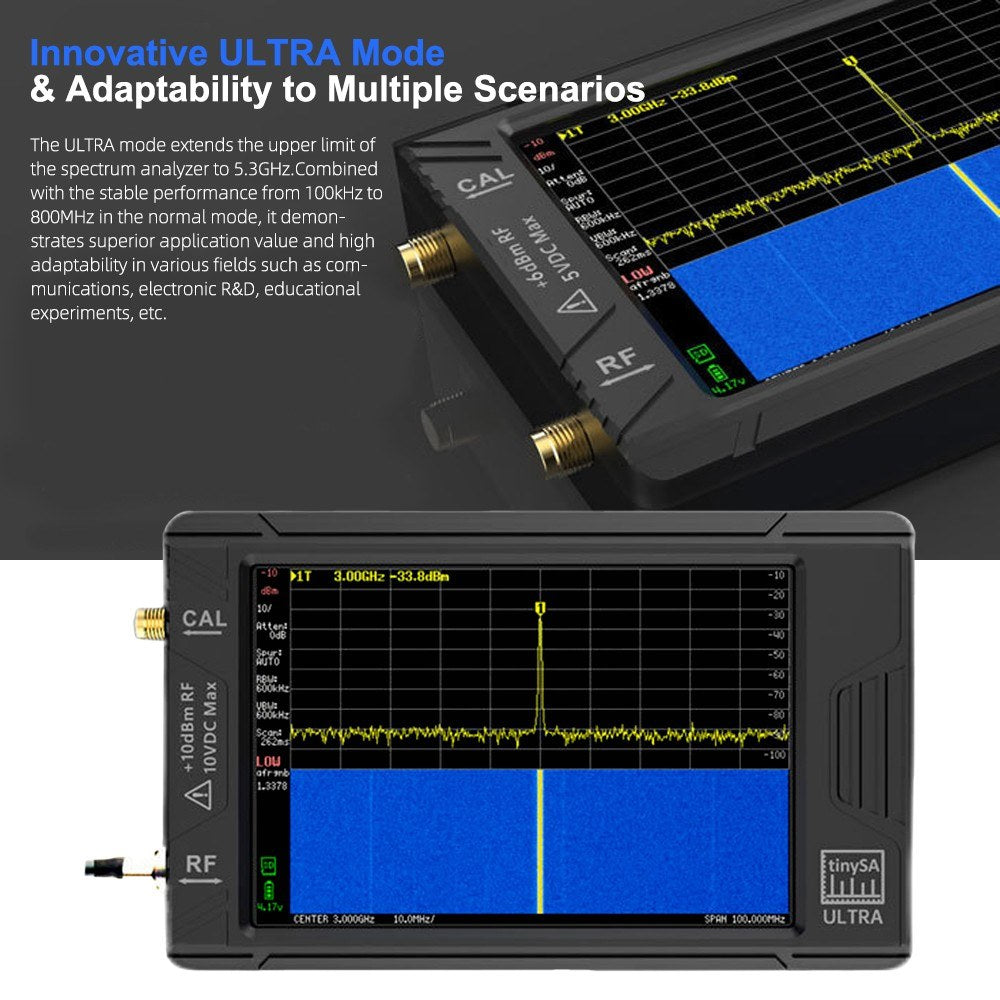

• Innovative ULTRA Mode & Adaptability: Extends the operation up to 5.3GHz, balancing stability and performance for various scenarios.

Specifications:

• Name: Spectrum Analyzer
• Material: Plastics
• Battery: 1 x 3.7V, 3000mAh Li-polymer battery (included)
• Display: 3.95-inch TFT LCD 480x320
• Maximum Output Frequency: Sinus up to 800MHz, Squarewave up to 4.4GHz
• Output Level: -104dBm to -16dBm
• Ultra Mode: Level calibrated up to 5.3GHz
• Internal LNA Gain: 20dB up to 4GHz
• Displayed Points per Scan: Max 450
• 0-350MHz Scan Time: 165ms
• DANL at 100MHz: -153dBm/Hz (LNA Off) / -169dBm/Hz (LNA On)
• DANL Degrading in Ultra Mode: 10dB above 2.5GHz, 25dB above 5.3GHz
• Phase Noise at 10kHz Offset: -92dBc/Hz
• Phase Noise at 100kHz Offset: 110dBc/Hz
• IIP3 without LNA: +18dBm (at least 2MHz apart) / 0dBm (500Hz apart)
• IIP3 with LNA: -8dBm (at least 2MHz apart)
• Frequency Stability: <1ppm (-10°C to +55°C)
• Audio Out: 3.5mm headphone plug
• FW Update Mode Activation: Push jog button before switch on
• Maximum Current Consumption: 330mA
• Maximum Charging Current: 1300mA
• Communication Interface: Type-C, UART-TTL (2.54mm Connector)
• Item Size: 117 x 72 x 23mm / 4.61 x 2.83 x 0.91in
• Package Size: 110 x 160 x 60mm / 4.33 x 6.30 x 2.36in
• Package Weight: 350g / 12.35oz

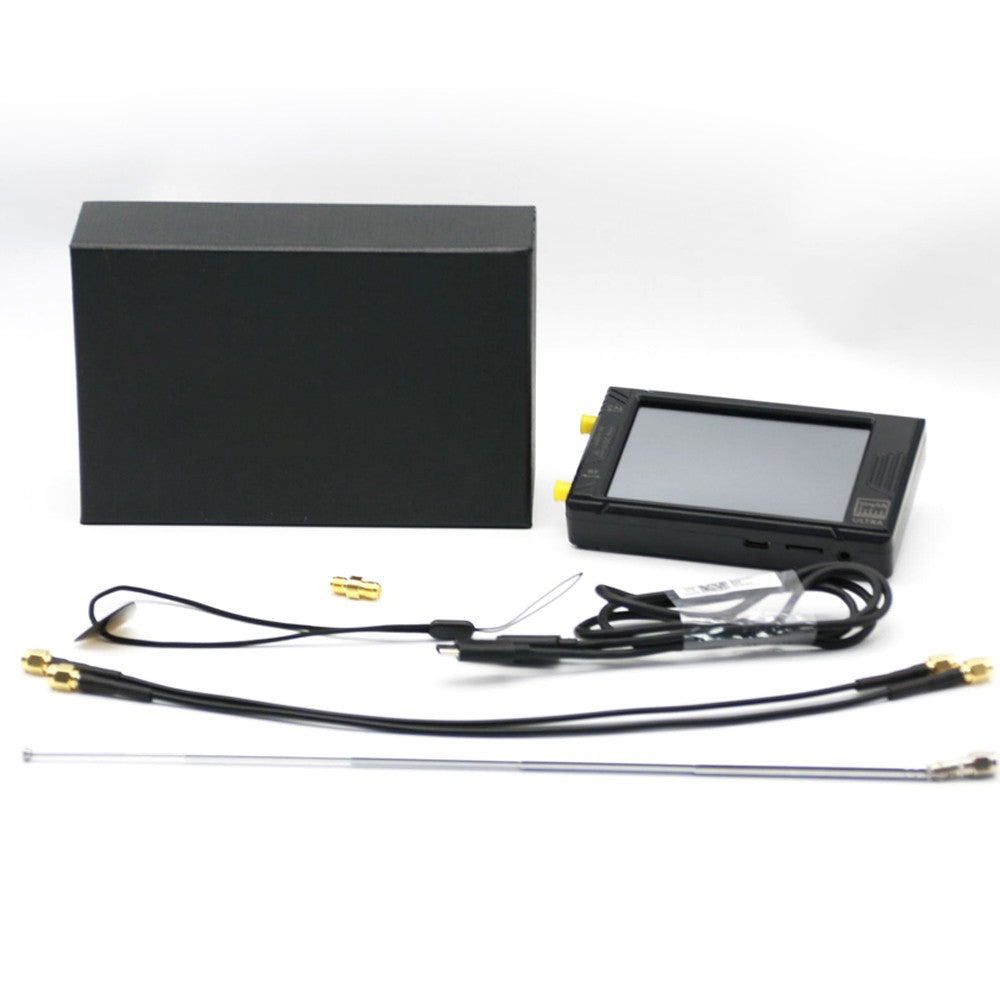

Packing List:

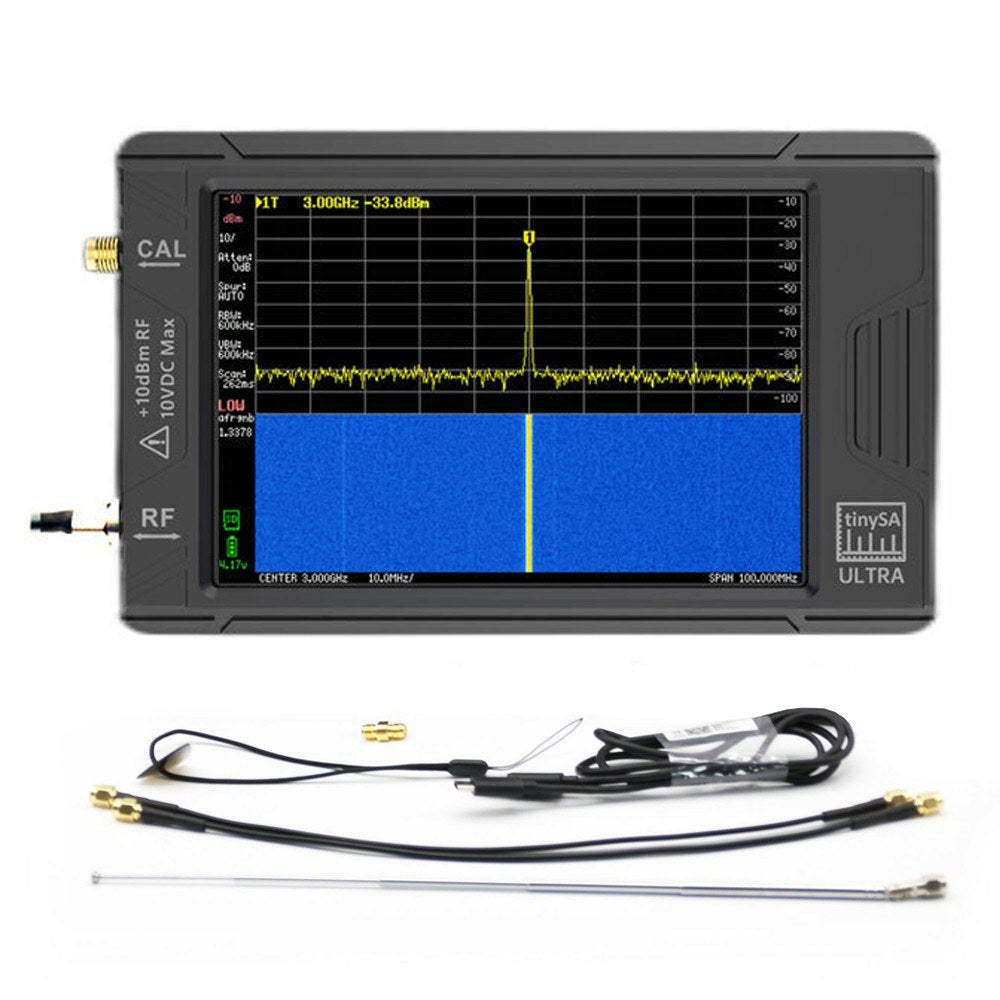

• 1 x Spectrum Analyzer
• 1 x Type-C Cable
• 2 x SMA Cable
• 1 x Antenna
• 1 x SMA-SMA Connector
