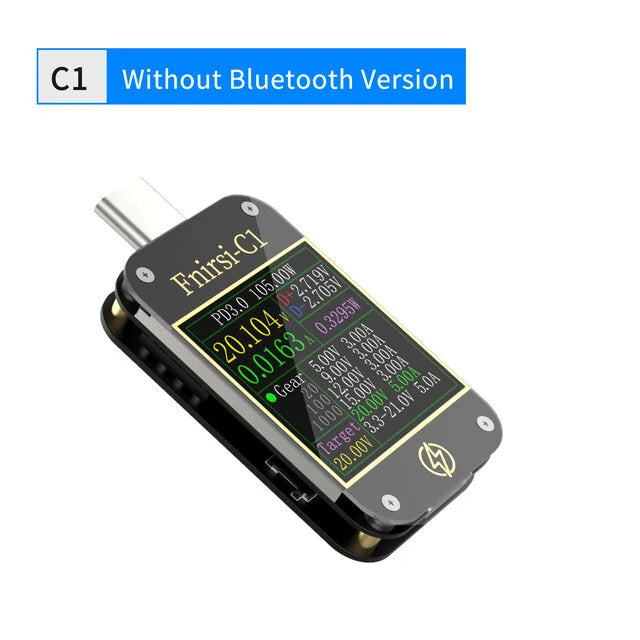

FNIRSI-C1 Voltmeter Ammeter Type-C PD Trigger Digital Multimeter

Product Data Download

• FNIRSI-C1 Product Manual
• FNIRSI UsbMeter PC Software
• FNIRSI UsbMeter PC Software Manual

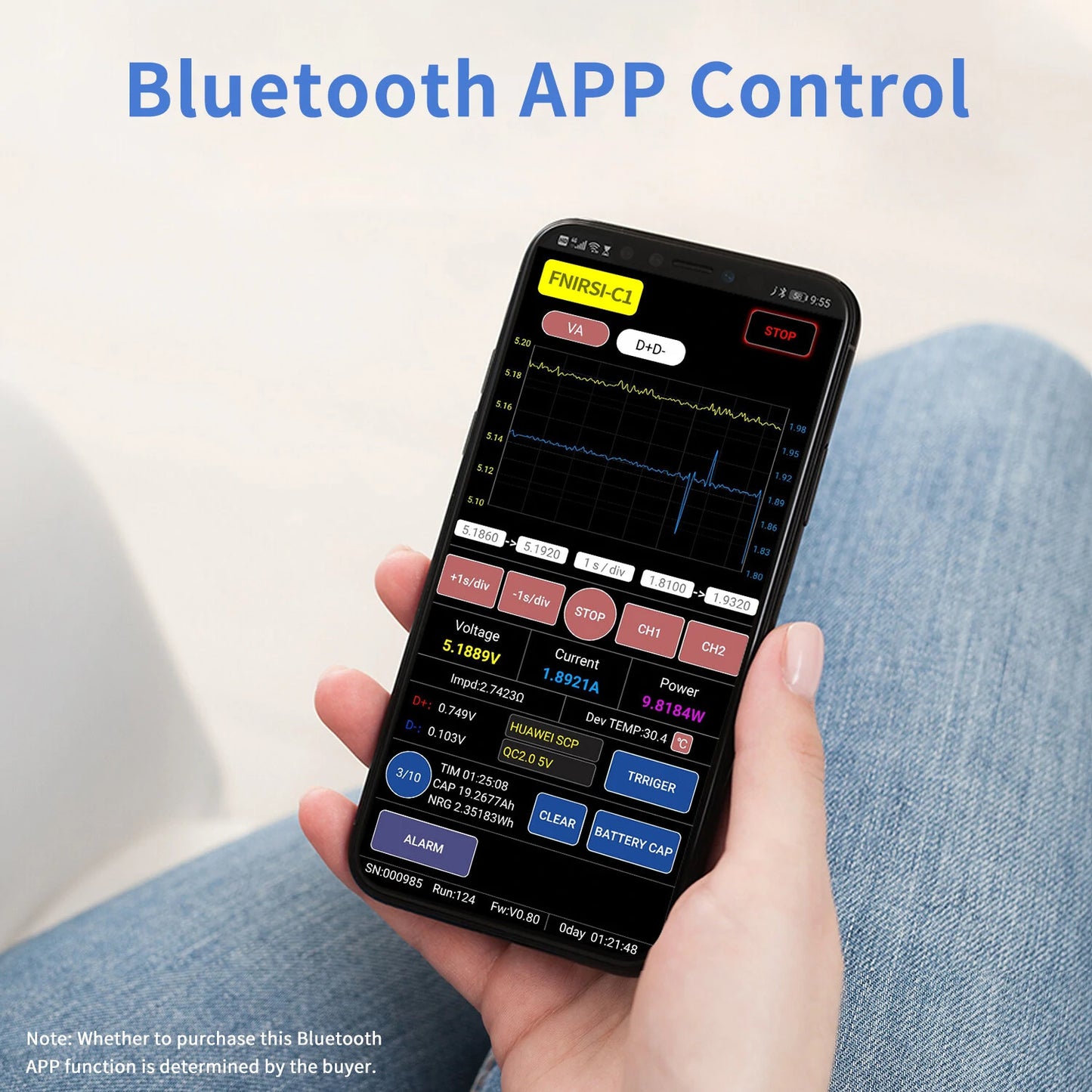

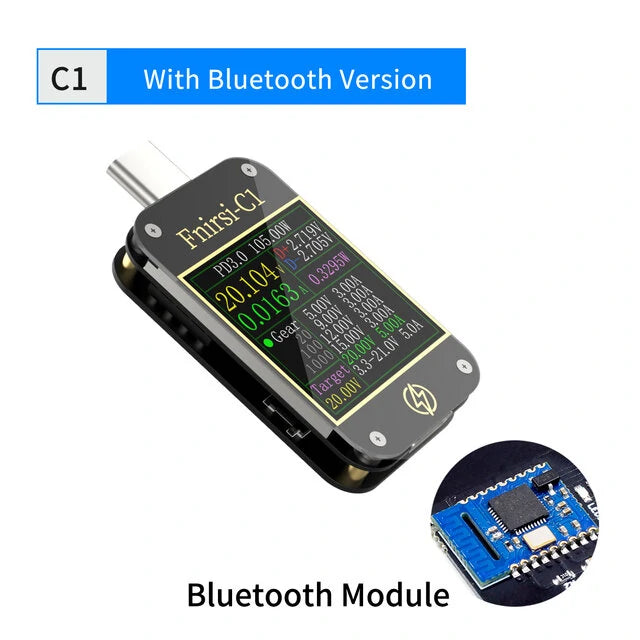

• FNIRSI-C1 Bluetooth APP
• FNIRSI-C1 Firmware-v0.70

Description

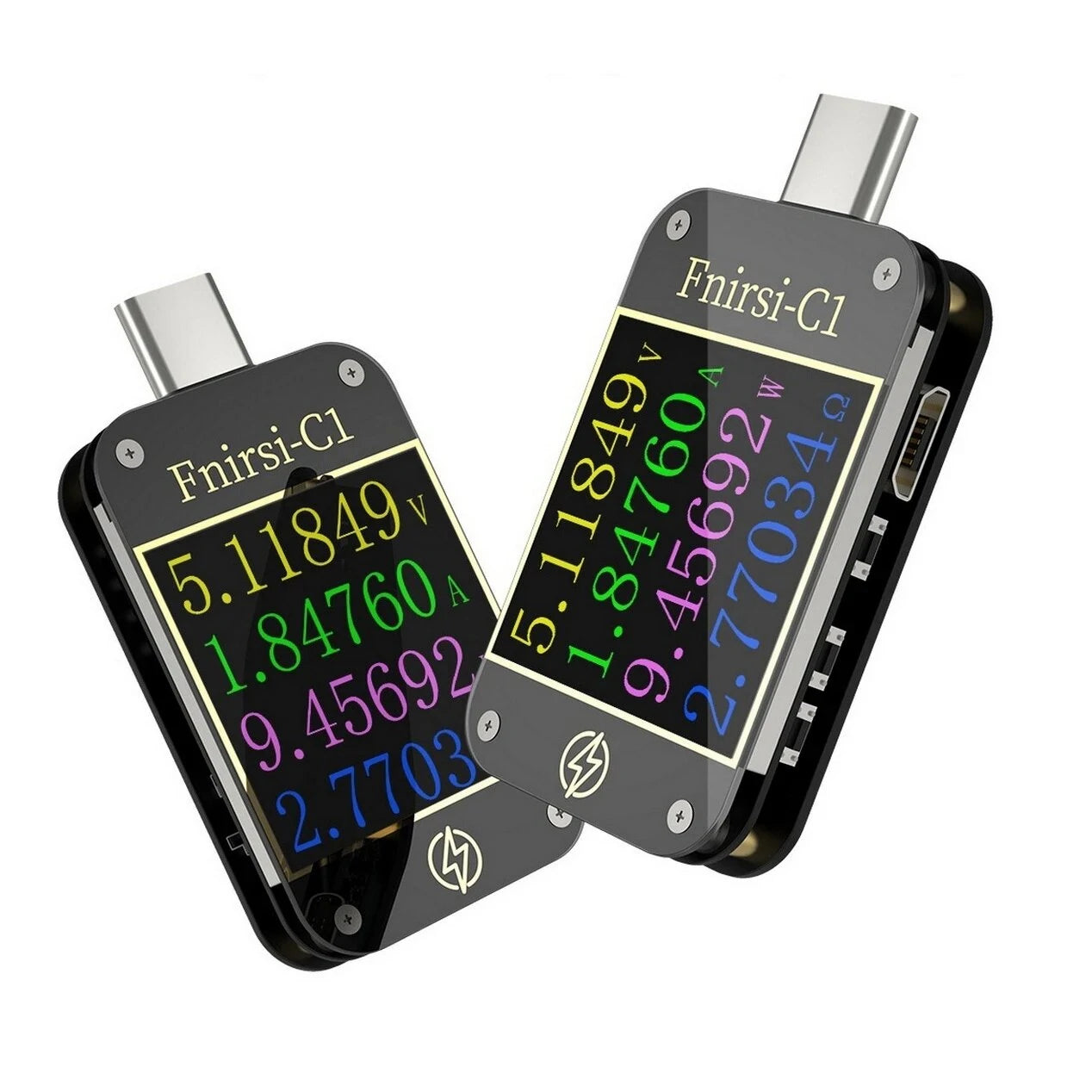

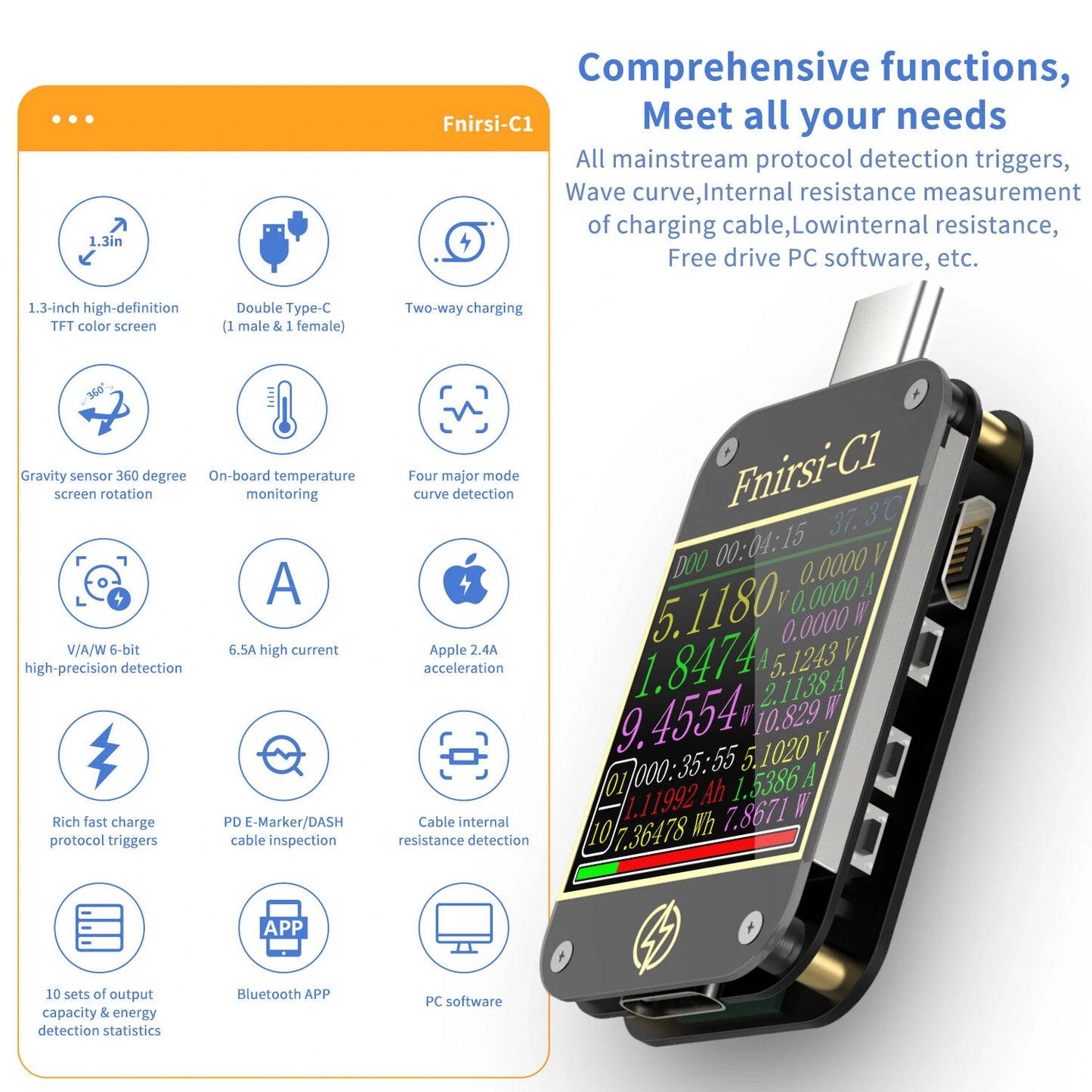

The FNIRSI-C1 is a small and portable Type-C multi-function tester, compact enough to fit within two fingers, perfect for easy transport.

The device features dual Type-C interfaces allowing direct input which eliminates the need for extra test wires. This significantly enhances test performance and reduces cost. It supports up to 6.5A high current tests and ensures long-term stable operation.

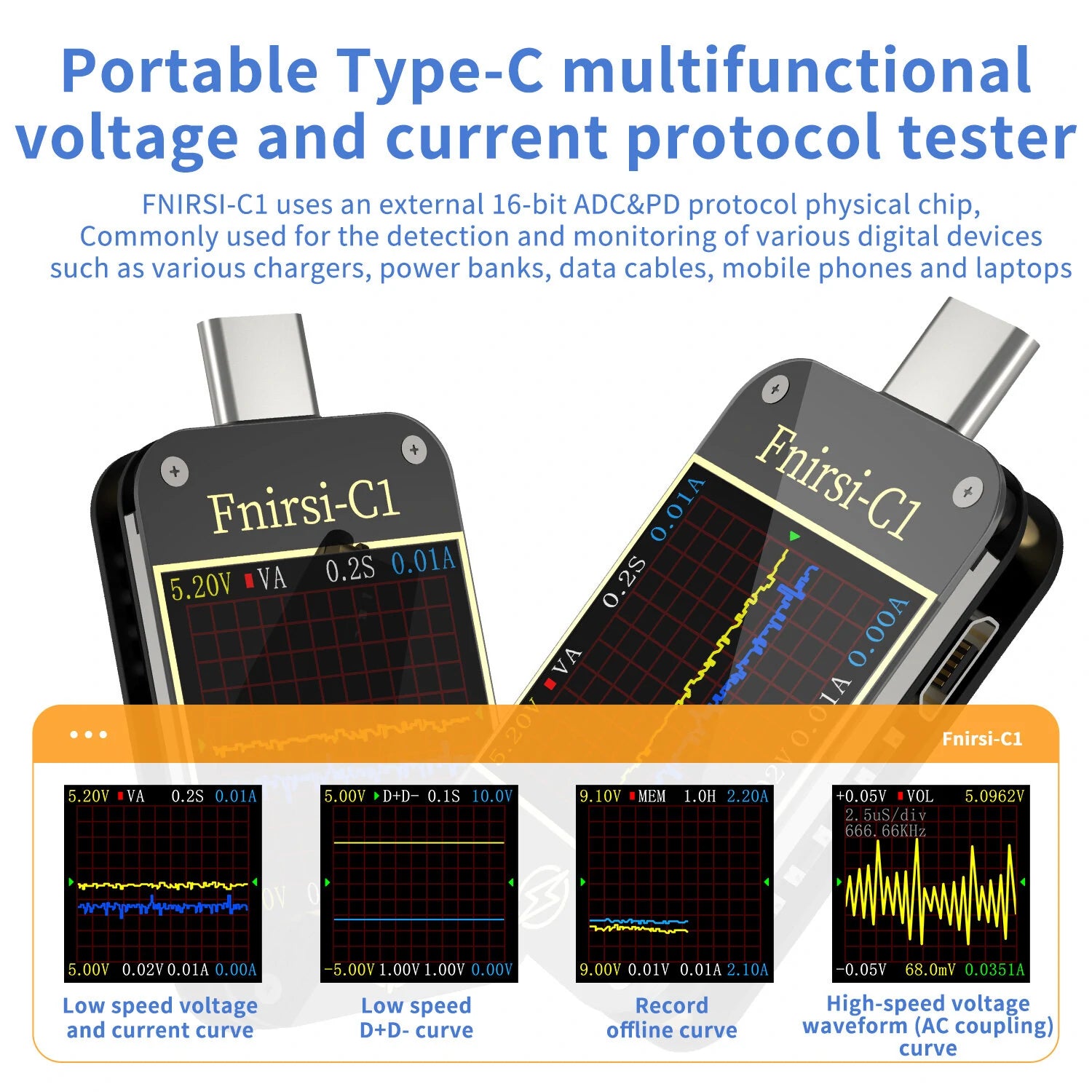

The FNIRSI-C1 supports all mainstream protocol detection and triggering, wave curve observation, line resistance measurement, and features low internal resistance and drive-free PC upgrades.

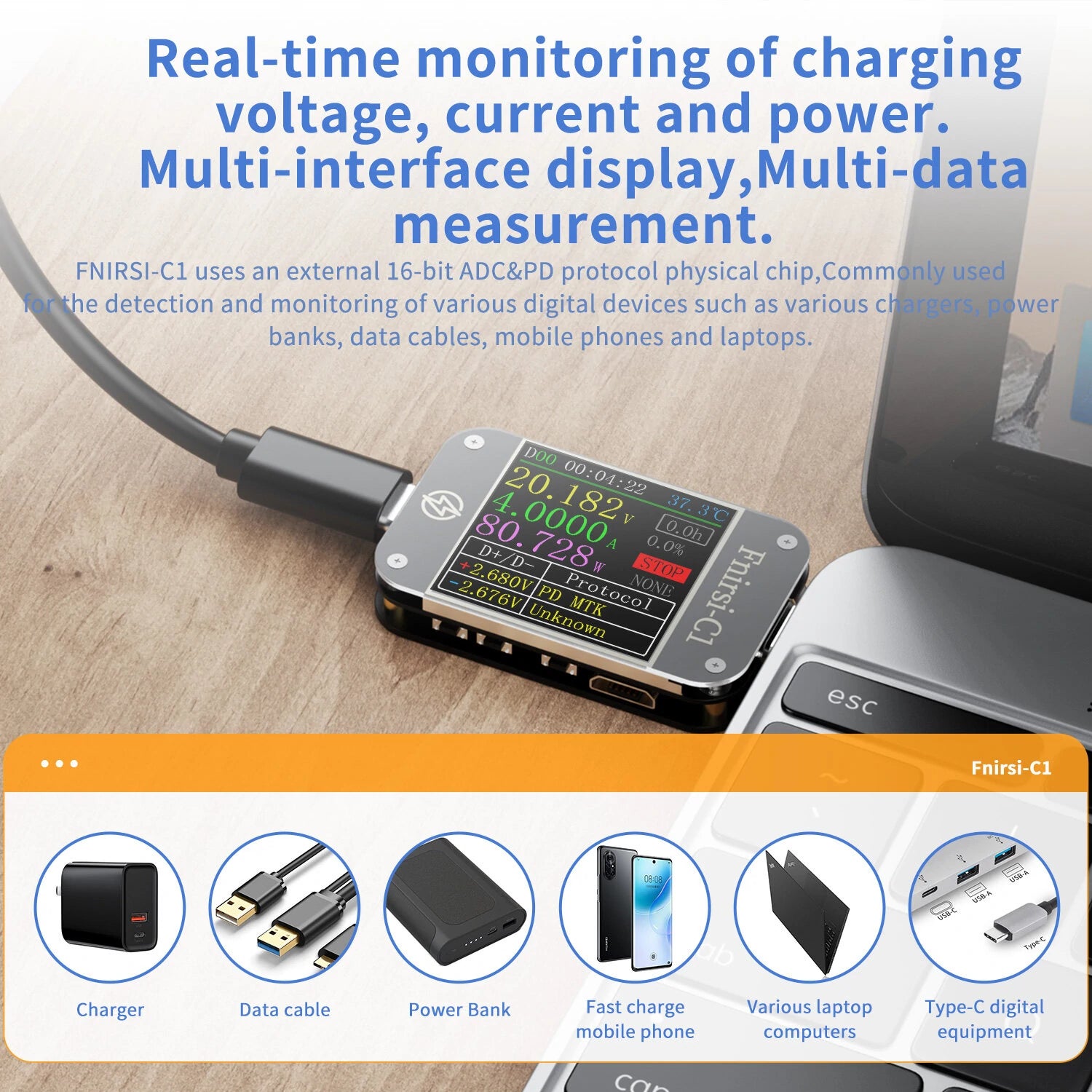

It also provides real-time detection of charging voltage, current, and power, with options for multi-interface display and multi-data measurement.

Automatic Detection and Triggering of Fast Charging Protocols:

• Protocol Trigger: QC2.0, QC3.0, Huawei FCP, Huawei SCP, PD protocol
• Protocol Detection: APPLE2.4A, QC2.0, QC3.0, Huawei FCP, Huawei SCP, and more

Specifications

• Monitoring Voltage: 4~24V
• Voltage Resolution: 0.00001V
• Voltage Accuracy: ±(0.2‰+2)
• Monitoring Current: 0~6.5A
• Current Resolution: 0.00001A
• Current Accuracy: ±(0.5‰+2)
• Display Power: 0~130W
• Power Resolution: 0.00001W
• Equivalent Load Resistance: 0~9999.9Ω
• Load Resistance Resolution: 0.0001Ω
• Resistance Accuracy: ±(0.5‰+2)
• Capacity: 0~9999.99Ah
• Usage Energy: 0~9999.99Wh
• Cable Resistance: 0~9999.9Ω
• D+/D- Voltage: 0~3.3V
• D+/D- Resolution: 0.001V
• D+/D- Accuracy: ±(1.0%+2)
• Temperature Measurements: ℃/℉

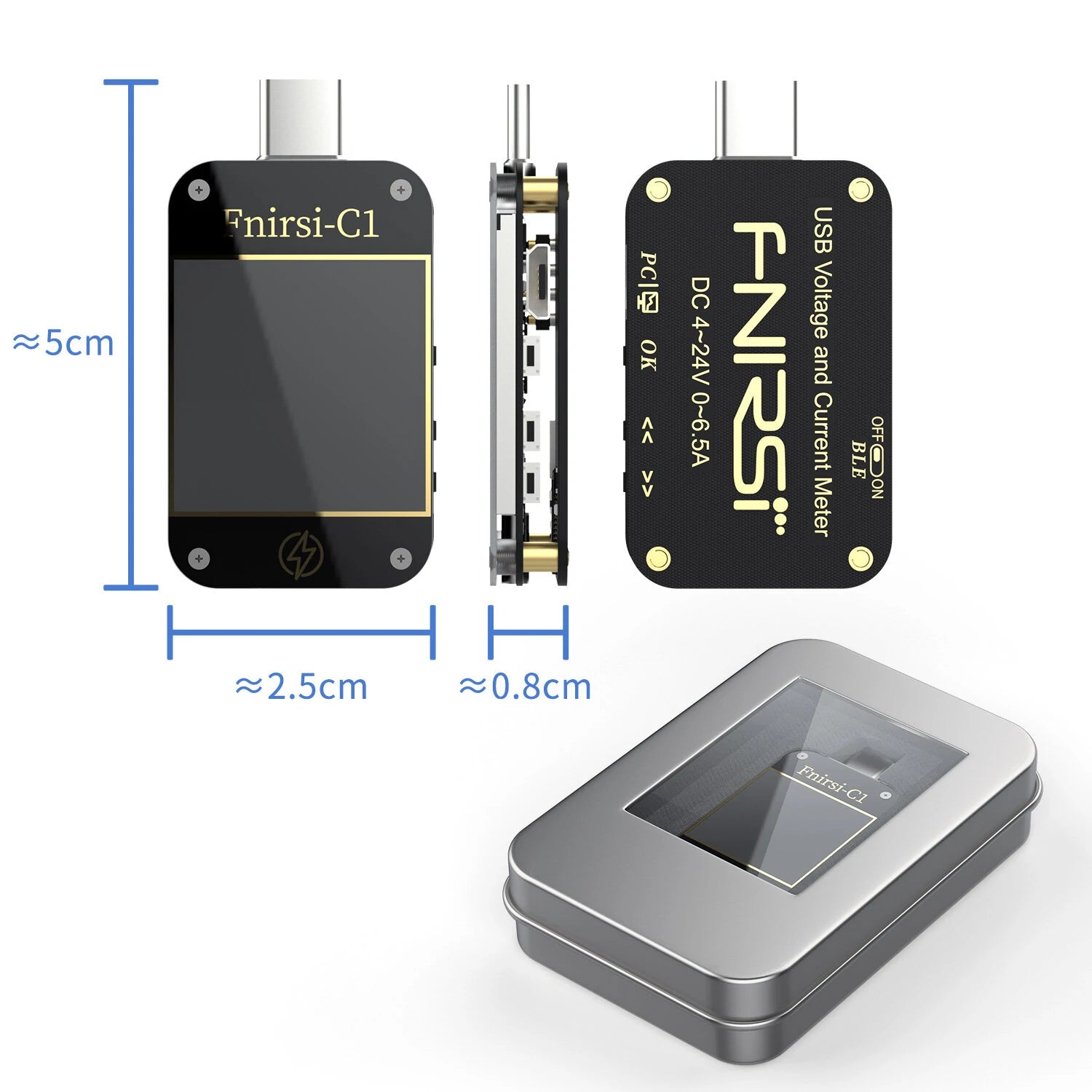

Product Dimensions

Package size: 50x25x8mm (1.97x0.98x0.31 inches)
Package weight: 47g (1.66oz)

Compatibility Issues

1. There may be compatibility issues between the PC software and some Windows systems. Please install and test the software before purchasing.

2. Given the variety of mobile phone models and operating systems, compatibility issues may arise. It is advisable to install and test the app before purchase.

3. Refunds will not be provided if the product works fine except for the PC software or APP, without prior testing.

4. It is important to install and test the app if using a mobile phone.

Package Includes

• 1 x FNIRSI-C1

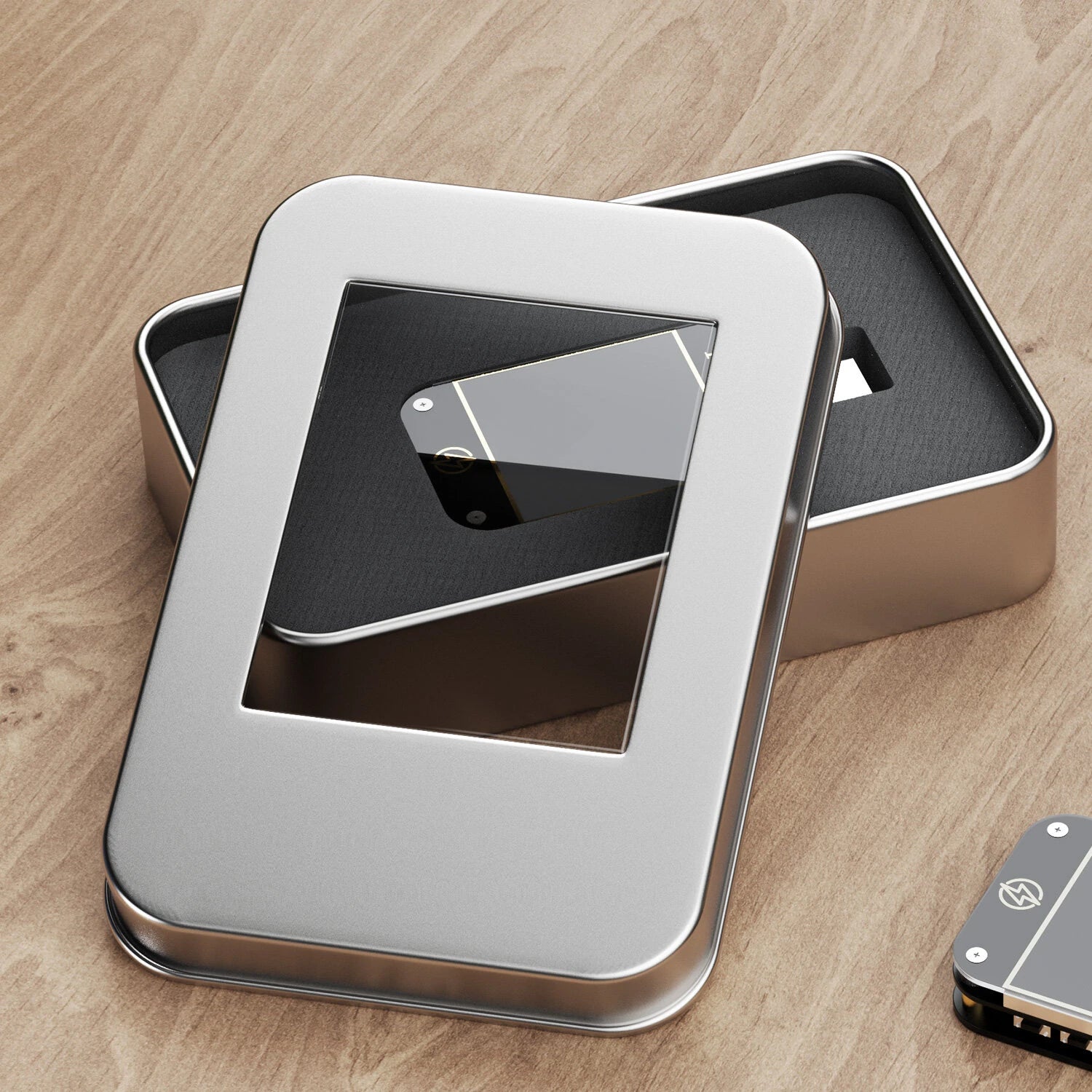

• 1 x Package Case
