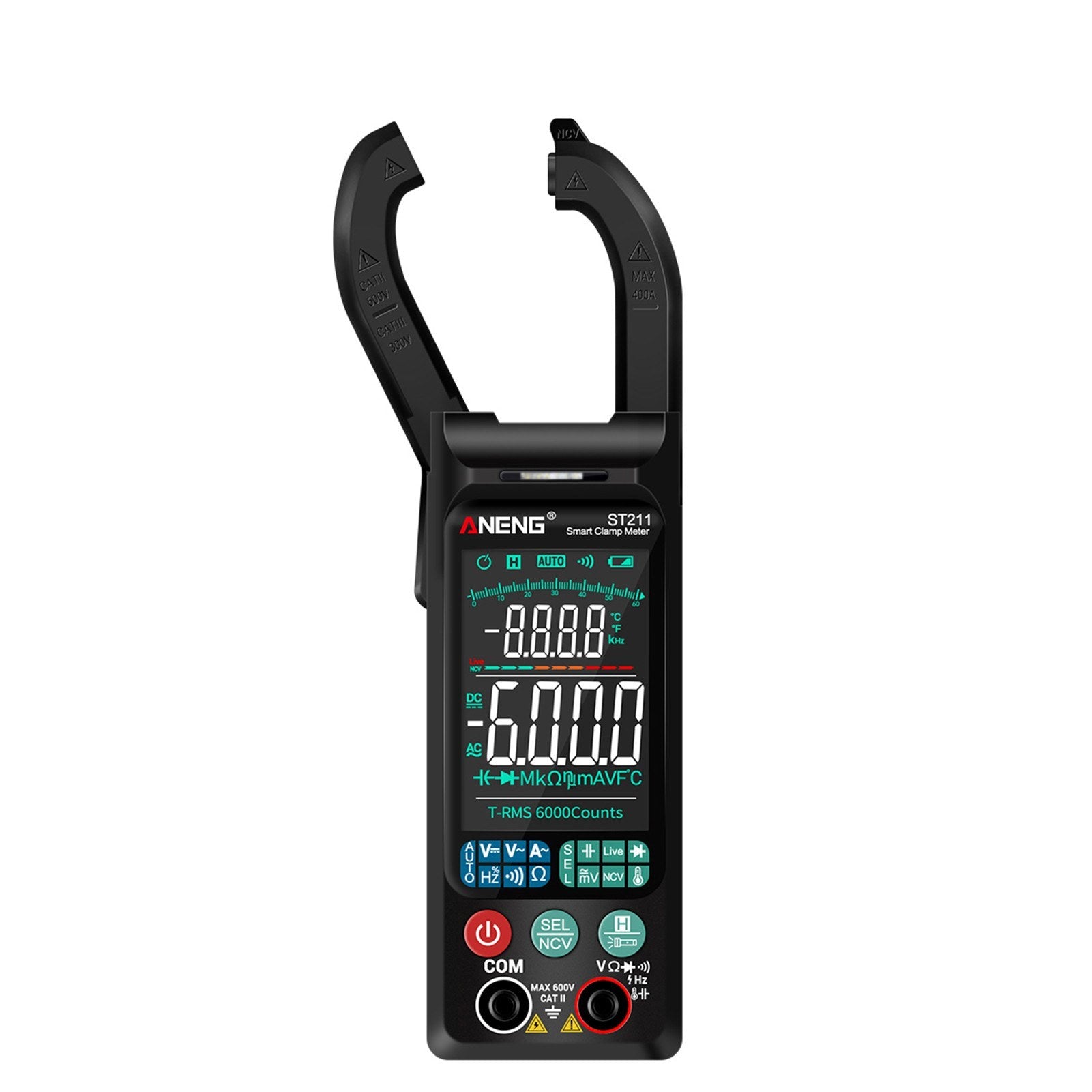

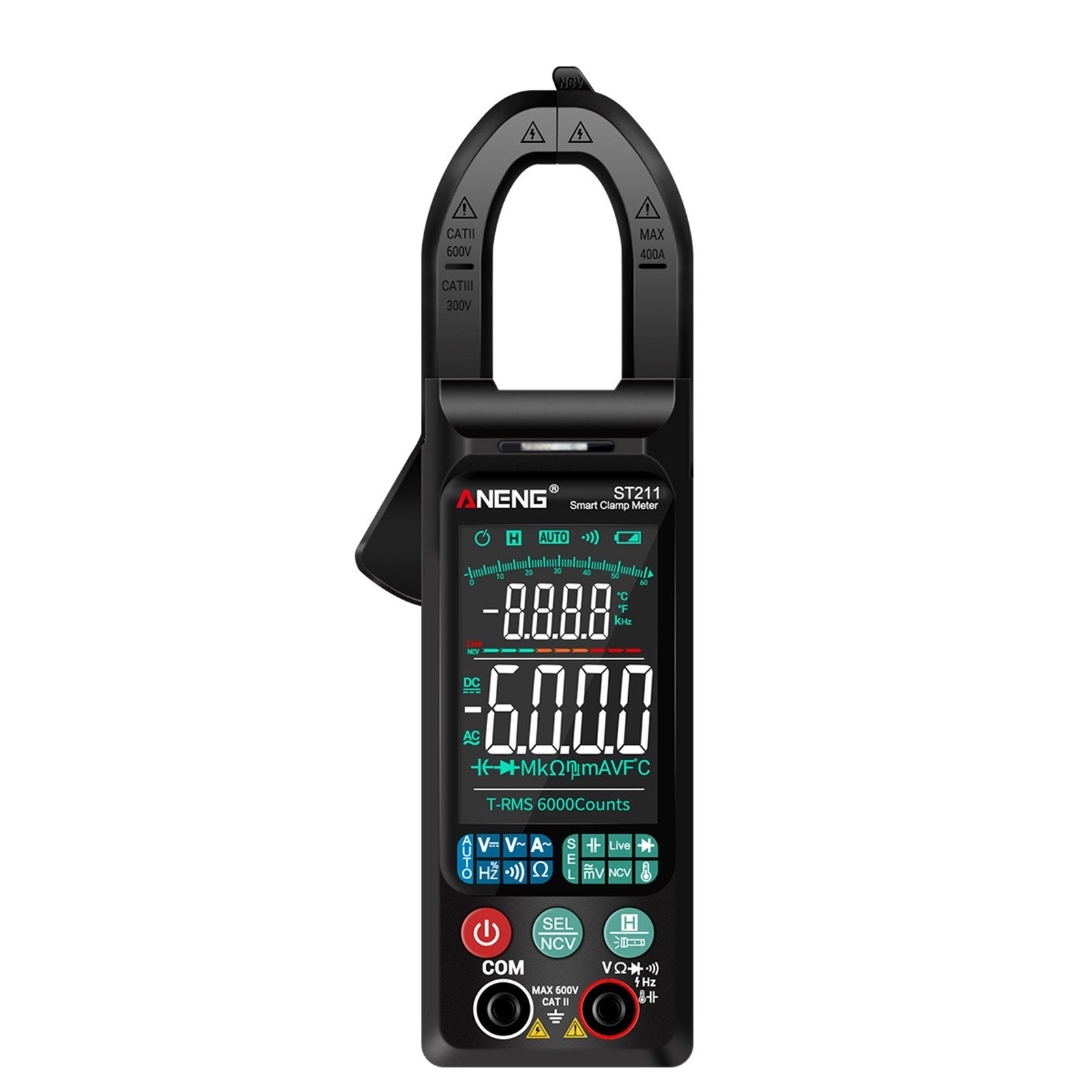

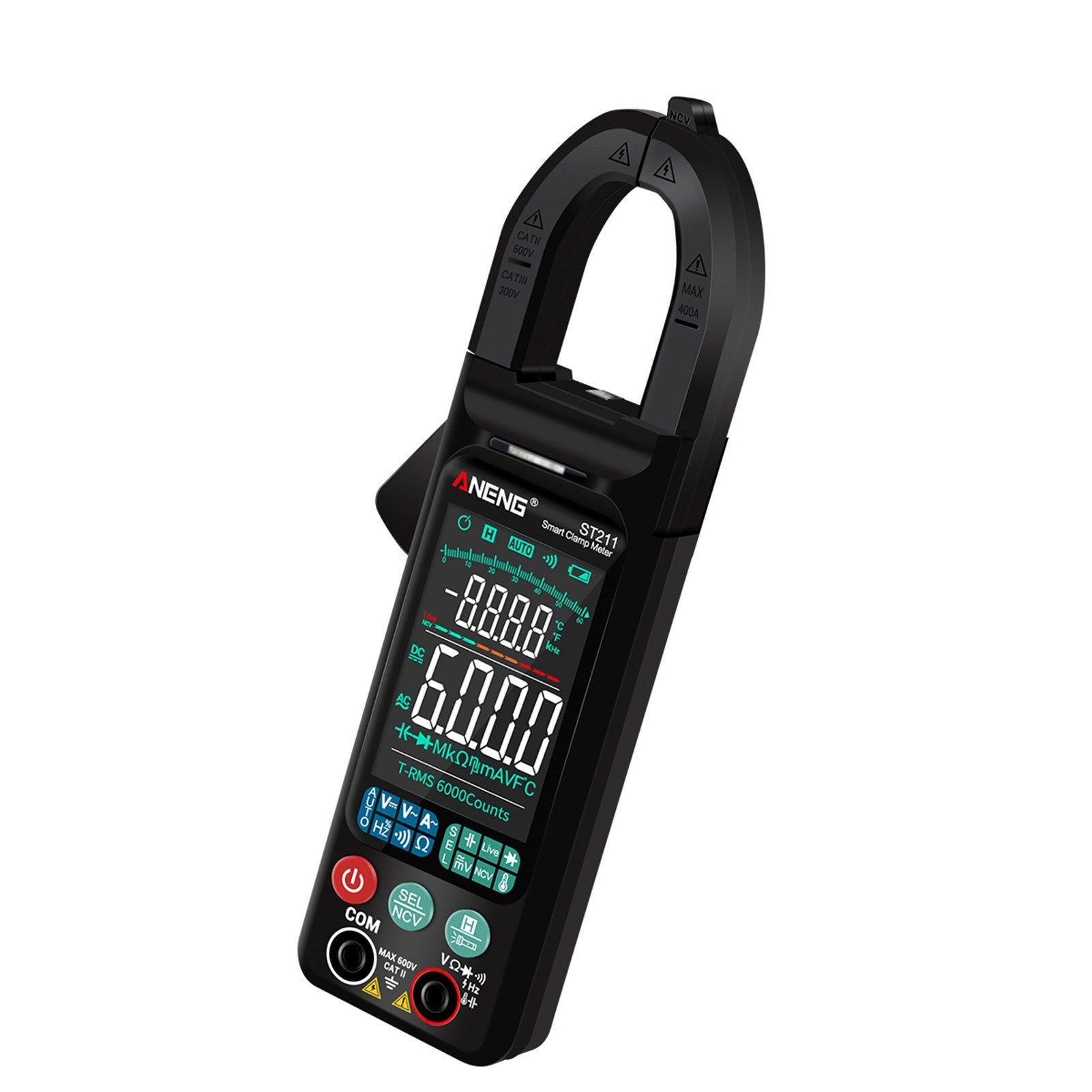

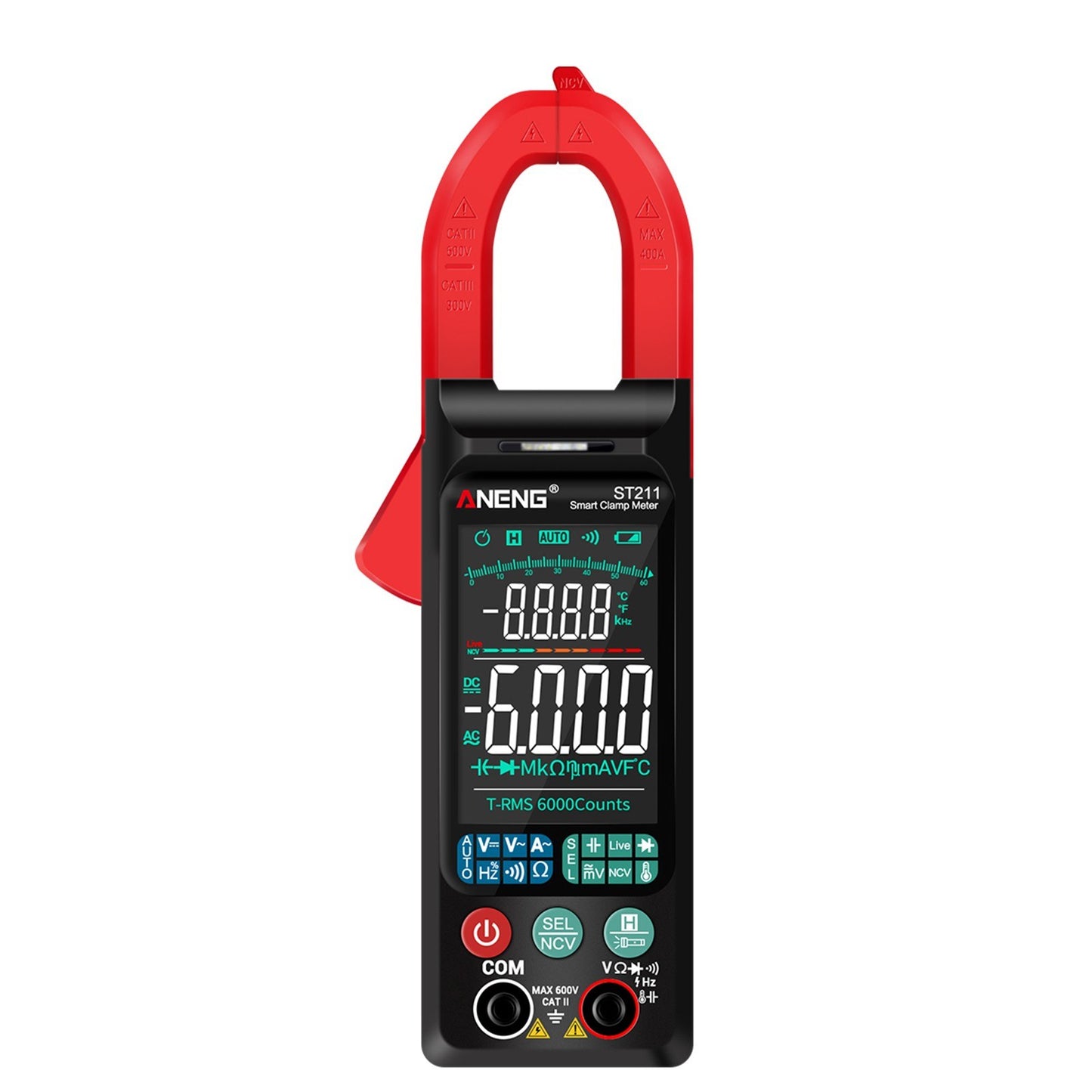

ANENG ST211 Digital AC Current Clamp Meter 400A, 6000 Counts Multimeter with Backlight, NCV Test, Temperature/Capacitance/Diode/Voltage/Resistance/Frequency Meter, Universal Clamp Ammeter, Red

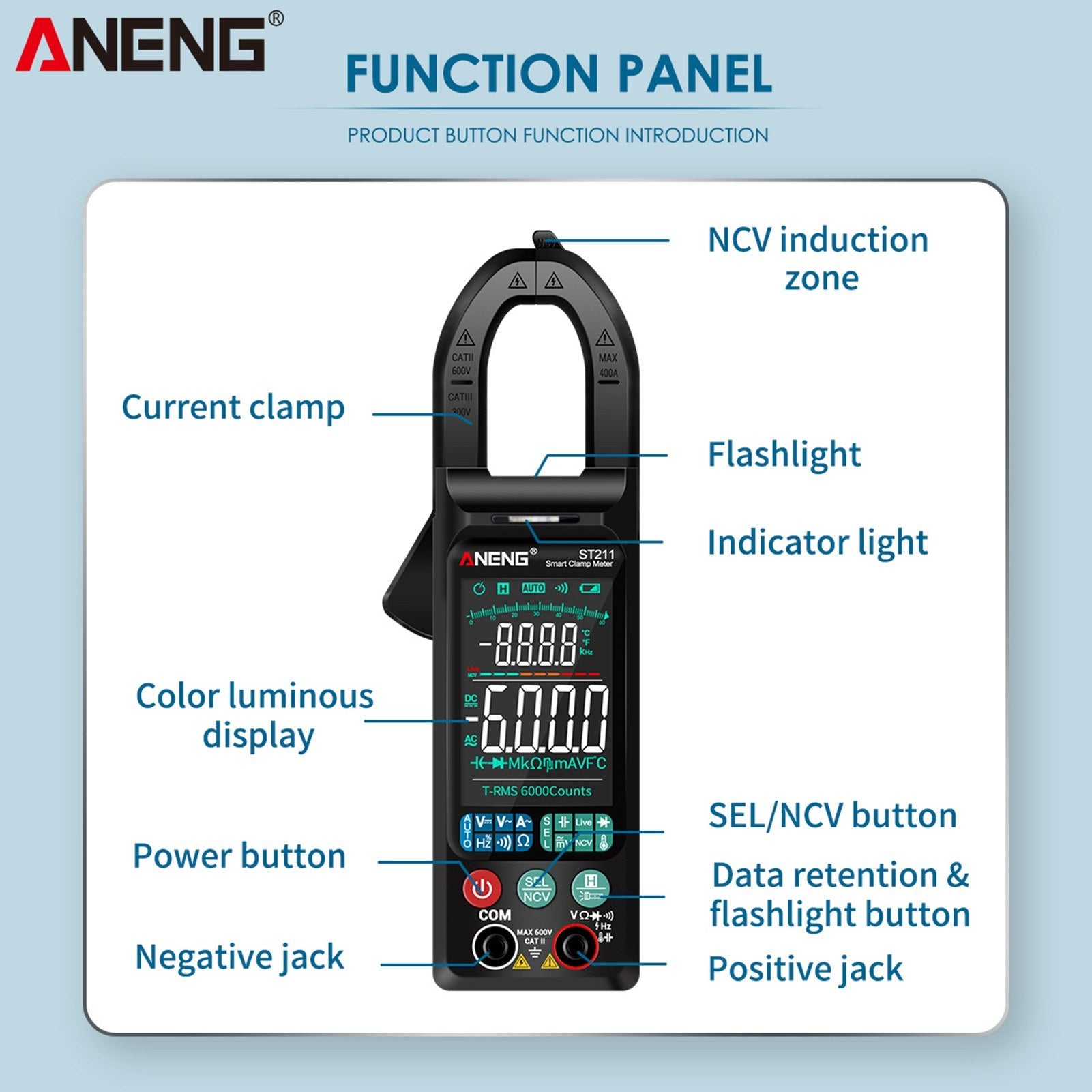

Features

• Portable Design: Compact size and lightweight make it easy to carry and operate with one hand.

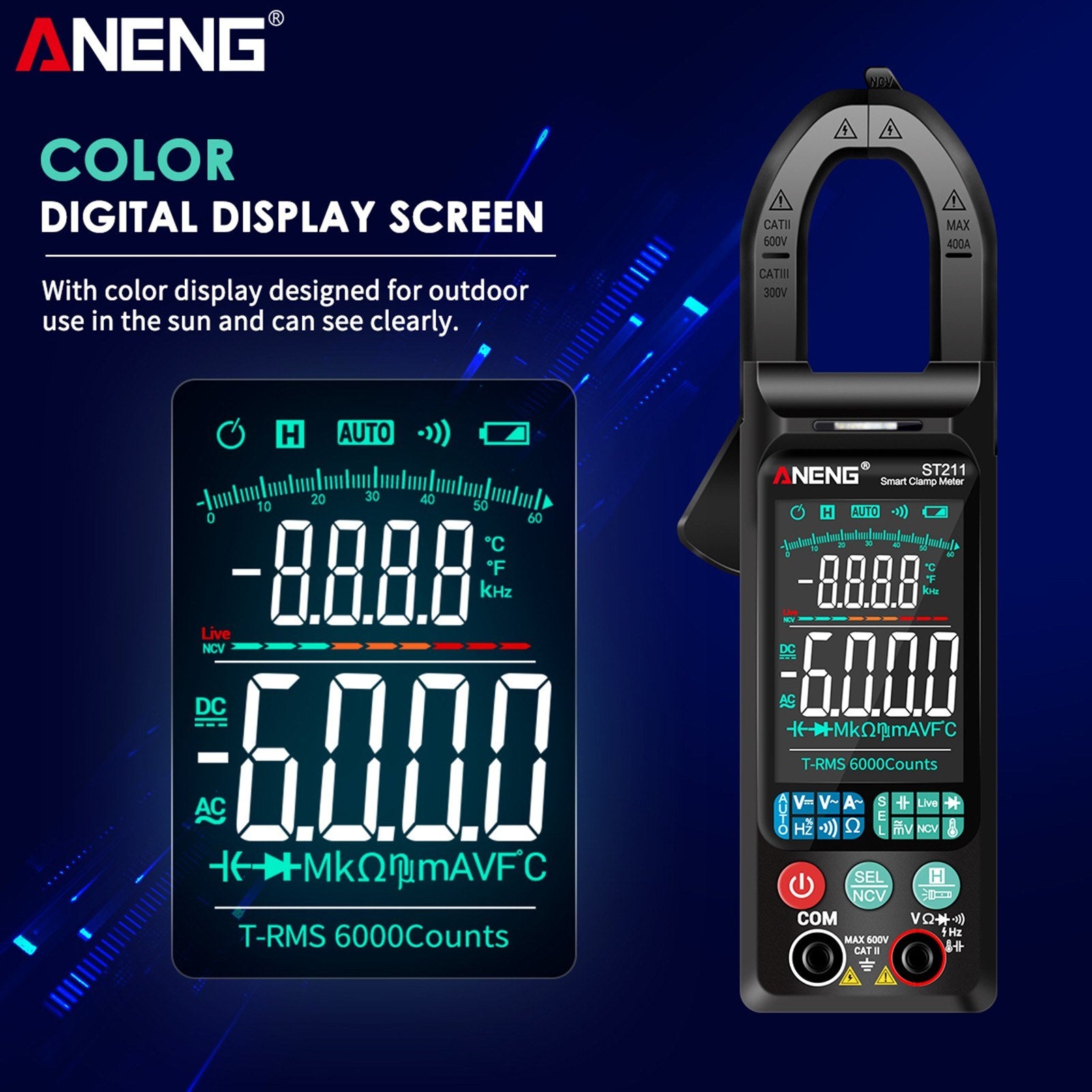

• Clear Display: LCD screen with backlight ensures clear data visibility, featuring data retention for easy data review.
• Easy Measurement: 25mm large jaw opening allows for measurement without touching or interrupting the circuit.

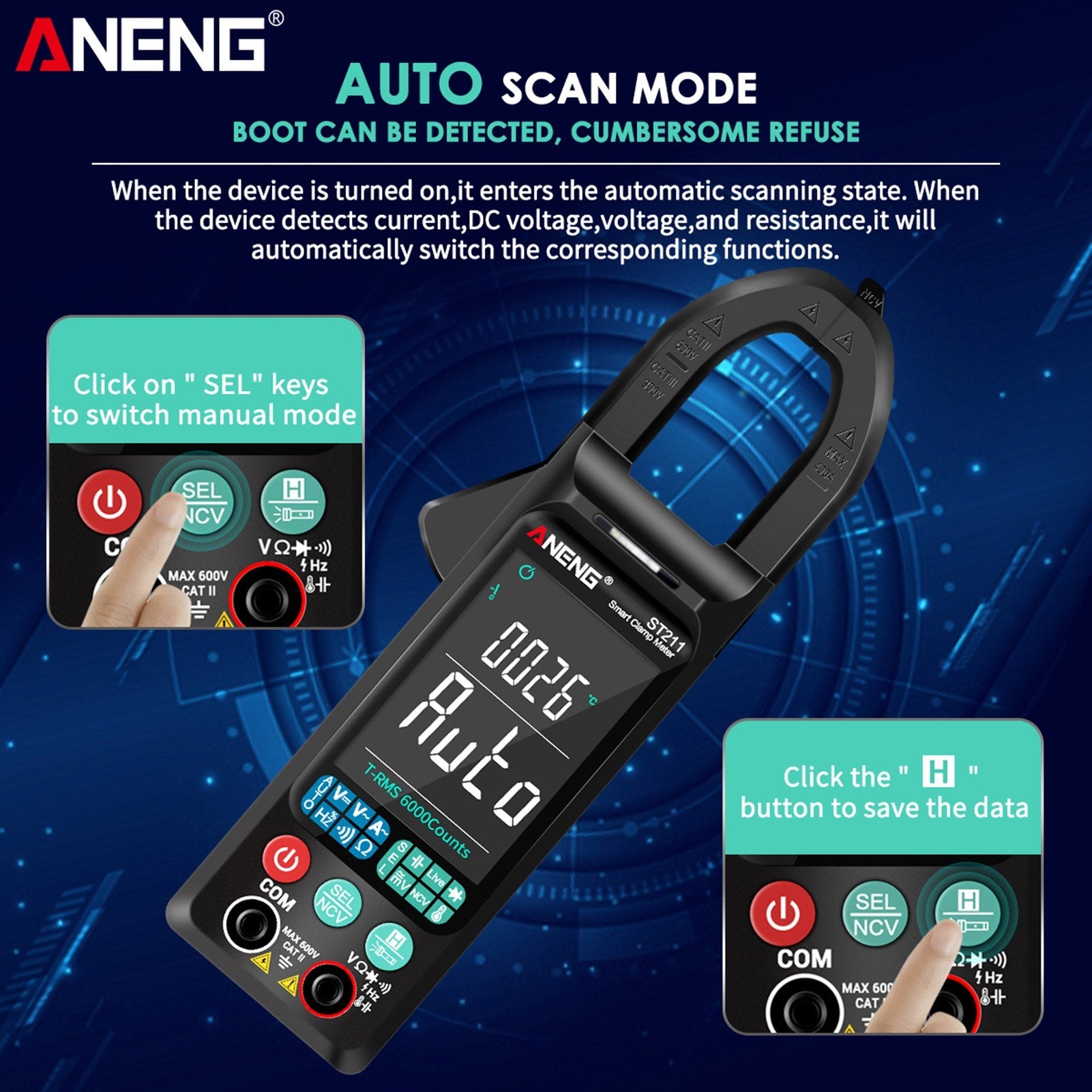

• Automatic Range Selection: Provides intelligent and efficient operation for more accurate results.
• Wide AC Current Range: Measures 0~400A±(2.5%+8), suitable for various wires, offering convenience and precision.

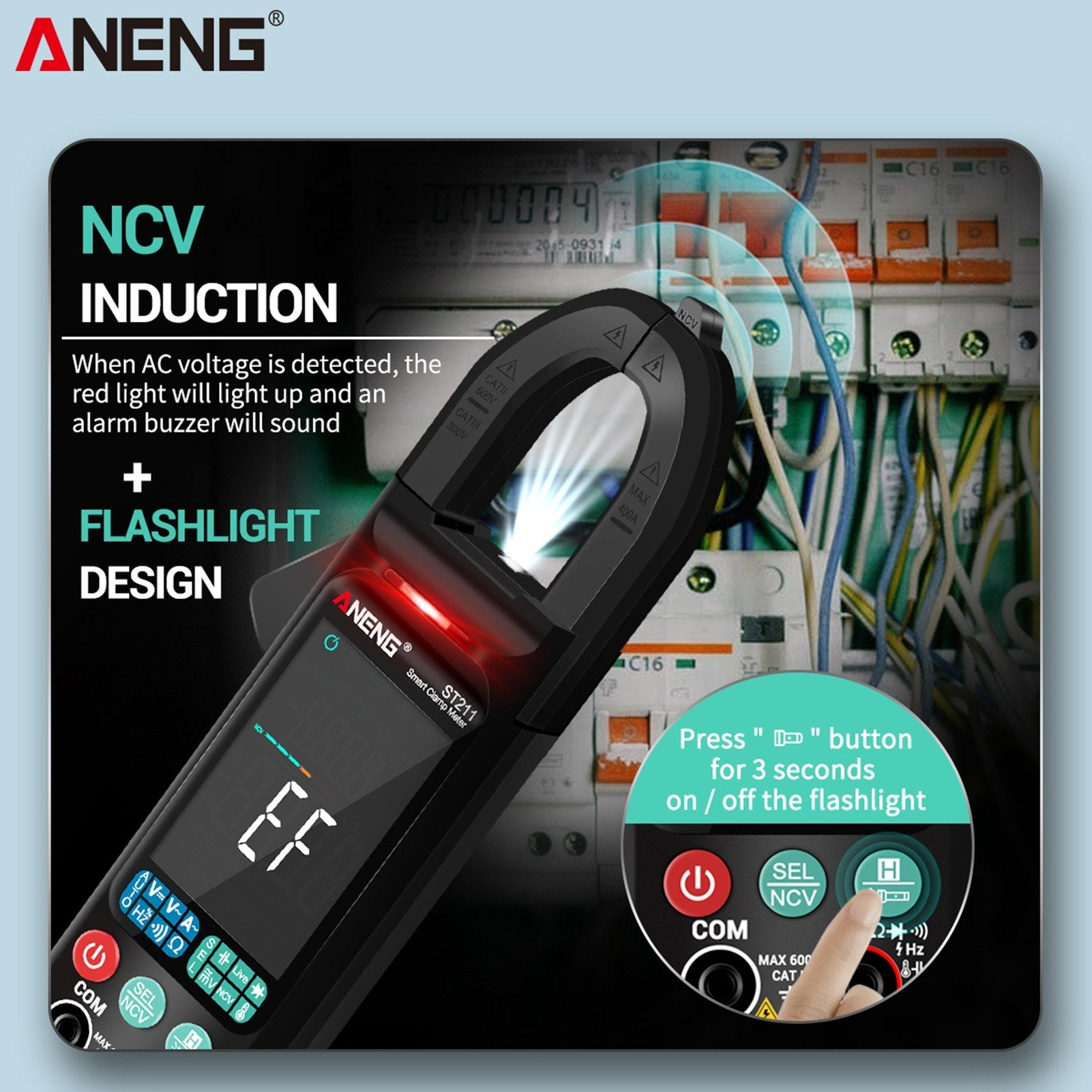

• NCV Non-contact Voltage Detection: Easily detects AC voltage or electromagnetic fields, with auditory and visual alerts.

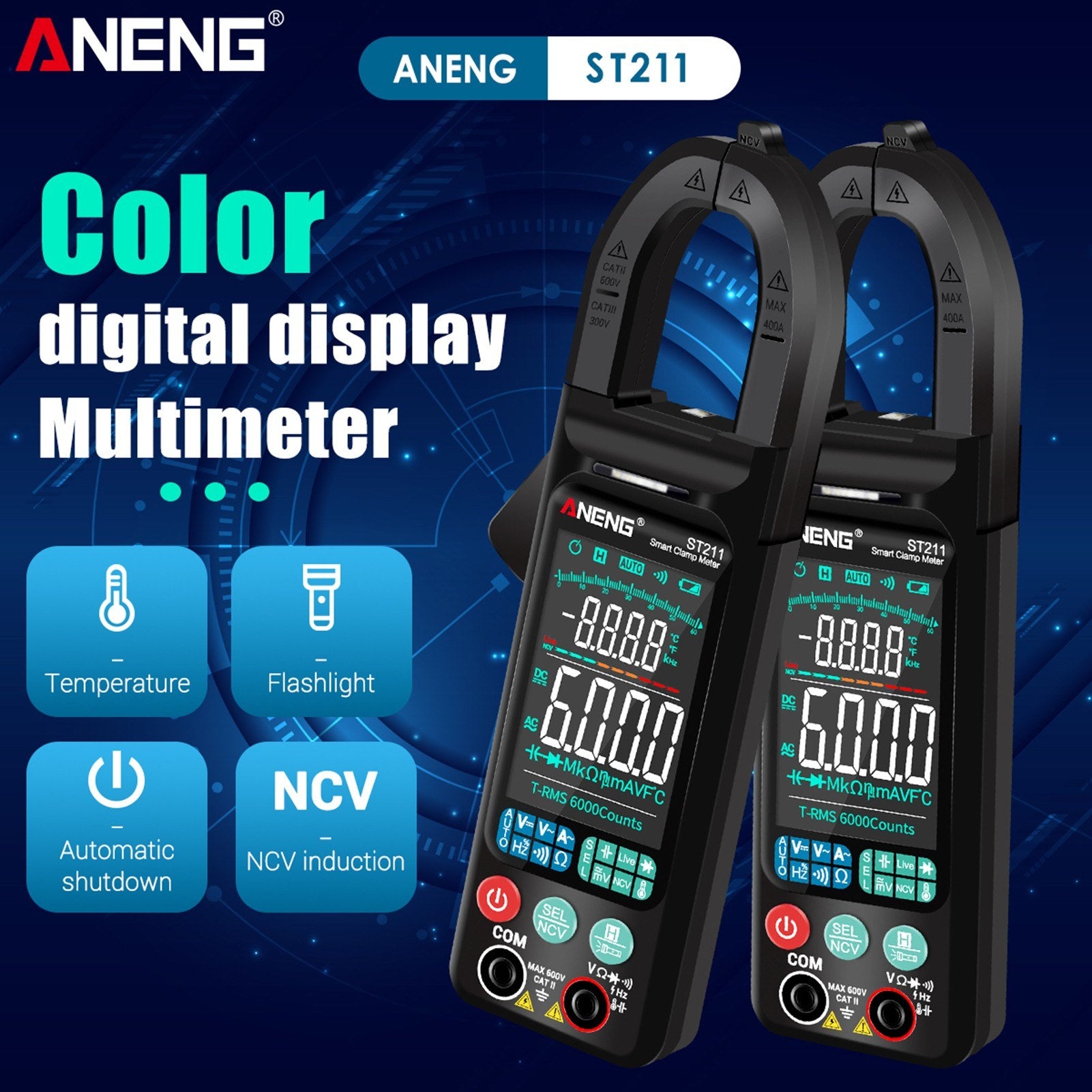

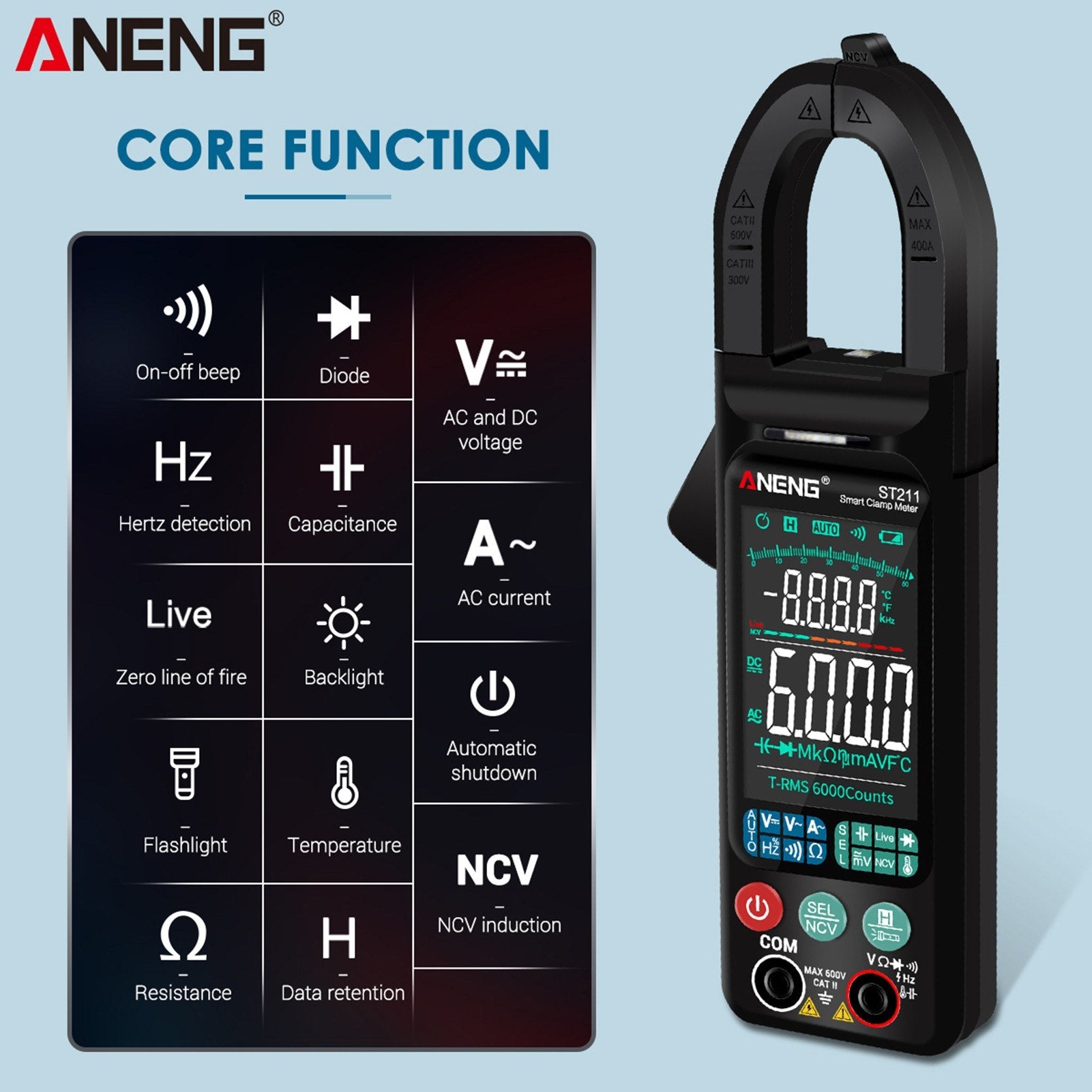

• Multifunctional Measurements: AC/DC voltage, AC current, resistance, capacitance, frequency, temperature, NCV induction, diode, on/off beep.

Specifications

• Model: ST211
• Material: ABS

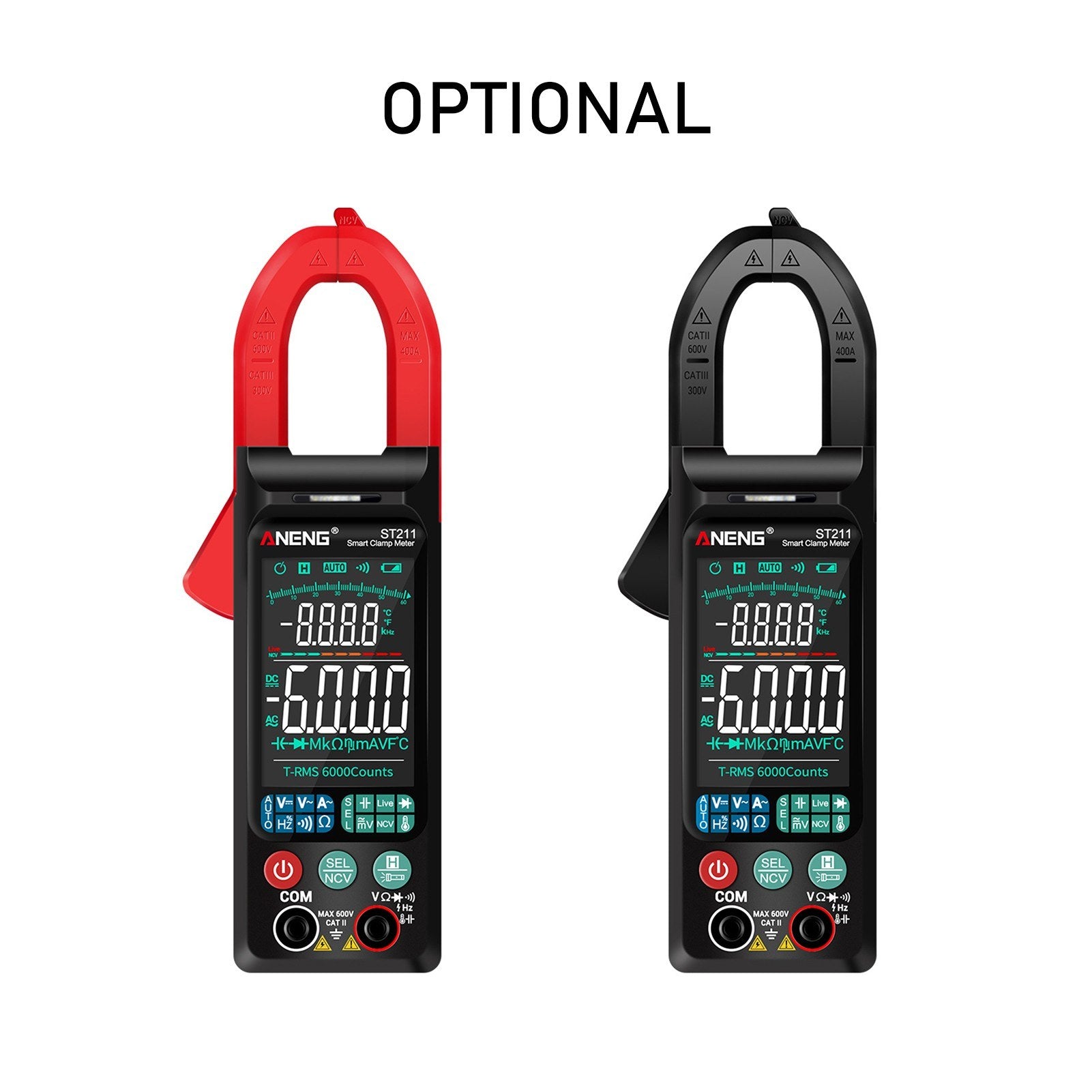

• Color Options: Black / Red
• Power Supply: 2 AAA batteries (not included)
• Display: LCD with 6000 maximum counts
• Jaw Opening: 25mm/0.98in
• Voltage Range:
  • DC: 0~600V ±(0.5%+3)
  • AC: 0~600V ±(0.8%+5)
• Current Range: 0~400A±(2.5%+8)
• Capacitance: 0~60mF±(2.5%+20)
• Resistance: 0~60MΩ±(0.8%+3)
• Frequency: 0~1000Hz±(1.0%+5)

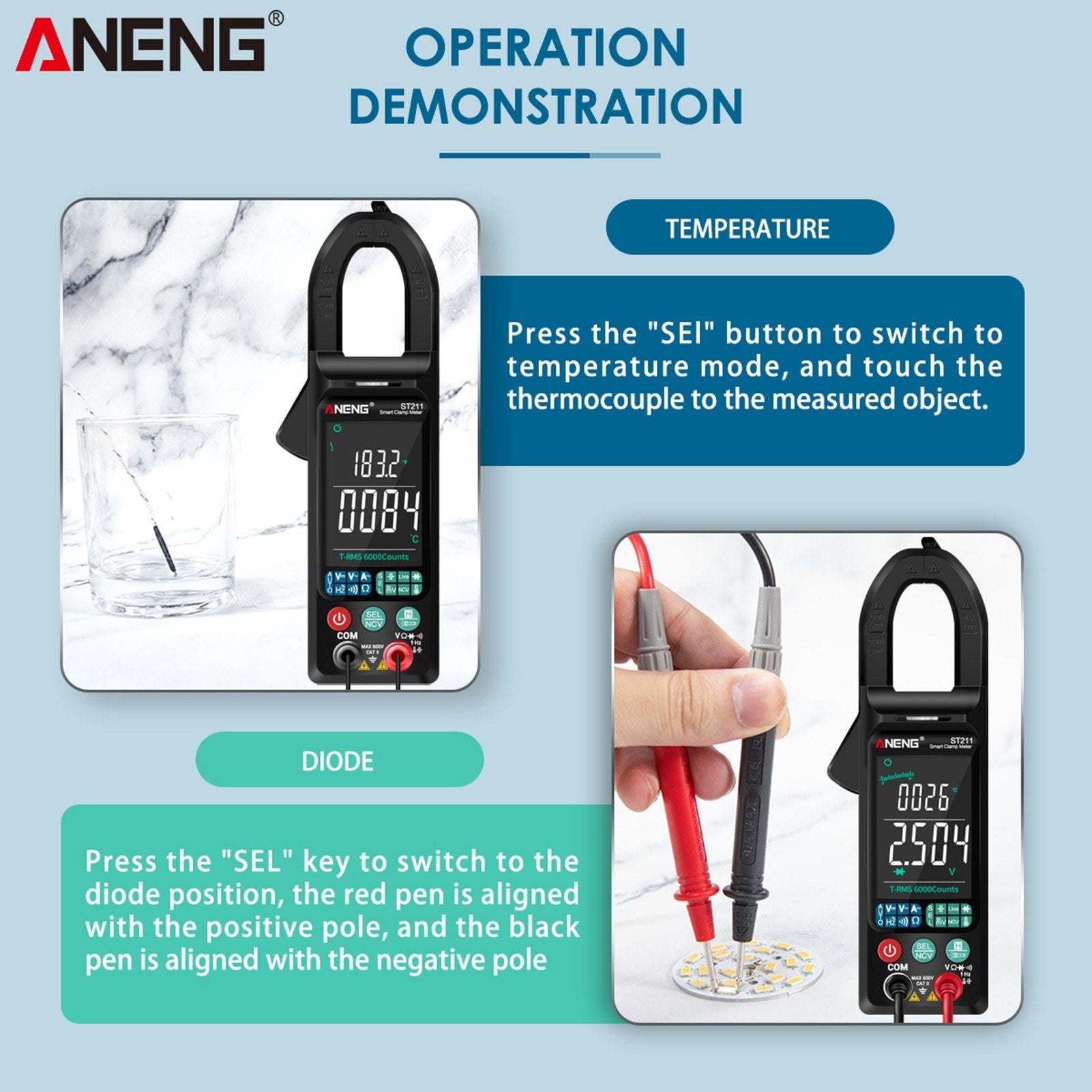

• Temperature: -40℃~+1000℃ (-40℉~+1832℉) ±(1.0%+3)

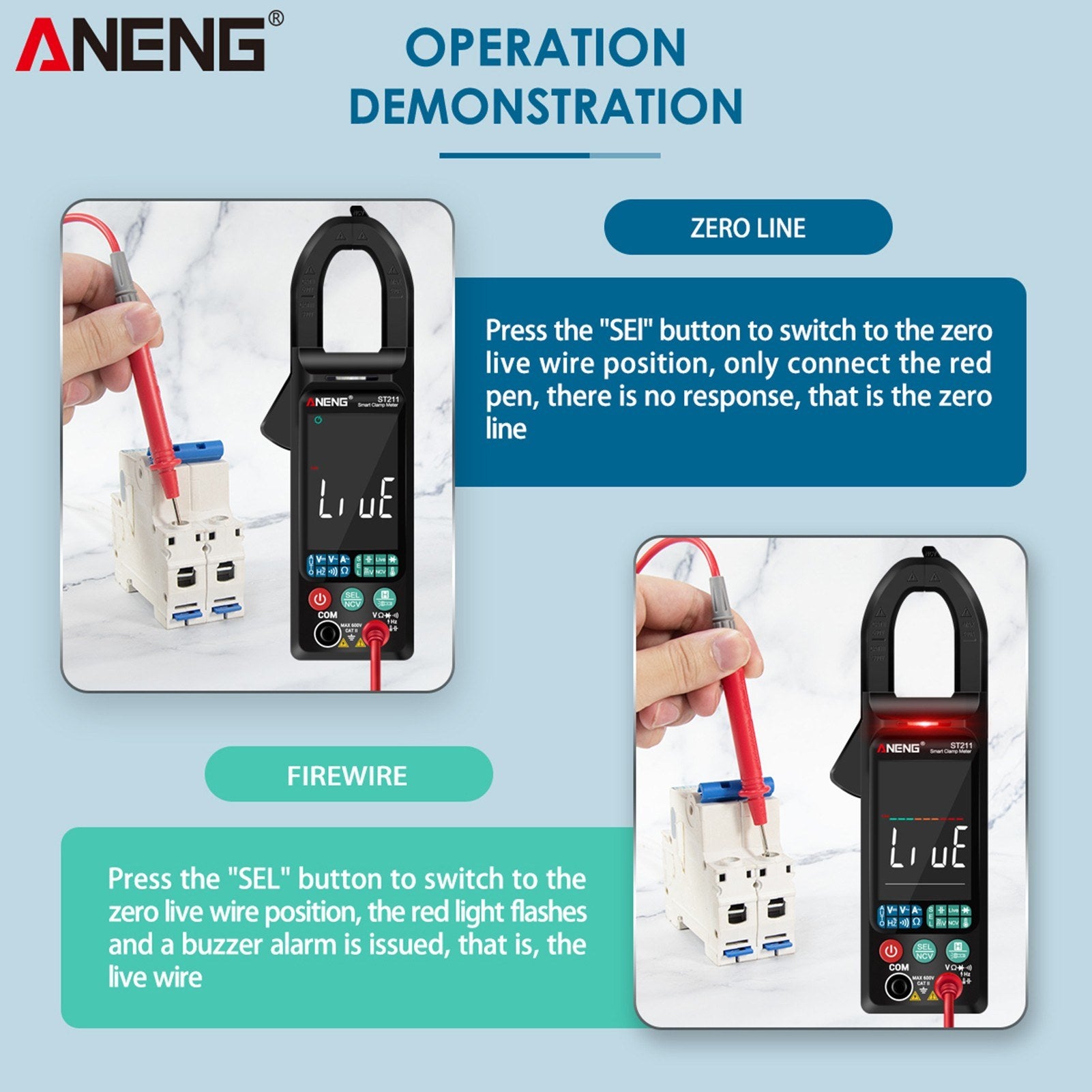

• Additional Features: Diode check, on-off beep, zero/fire line identification, NCV test, backlight, flashlight, data retention, automatic shutdown.

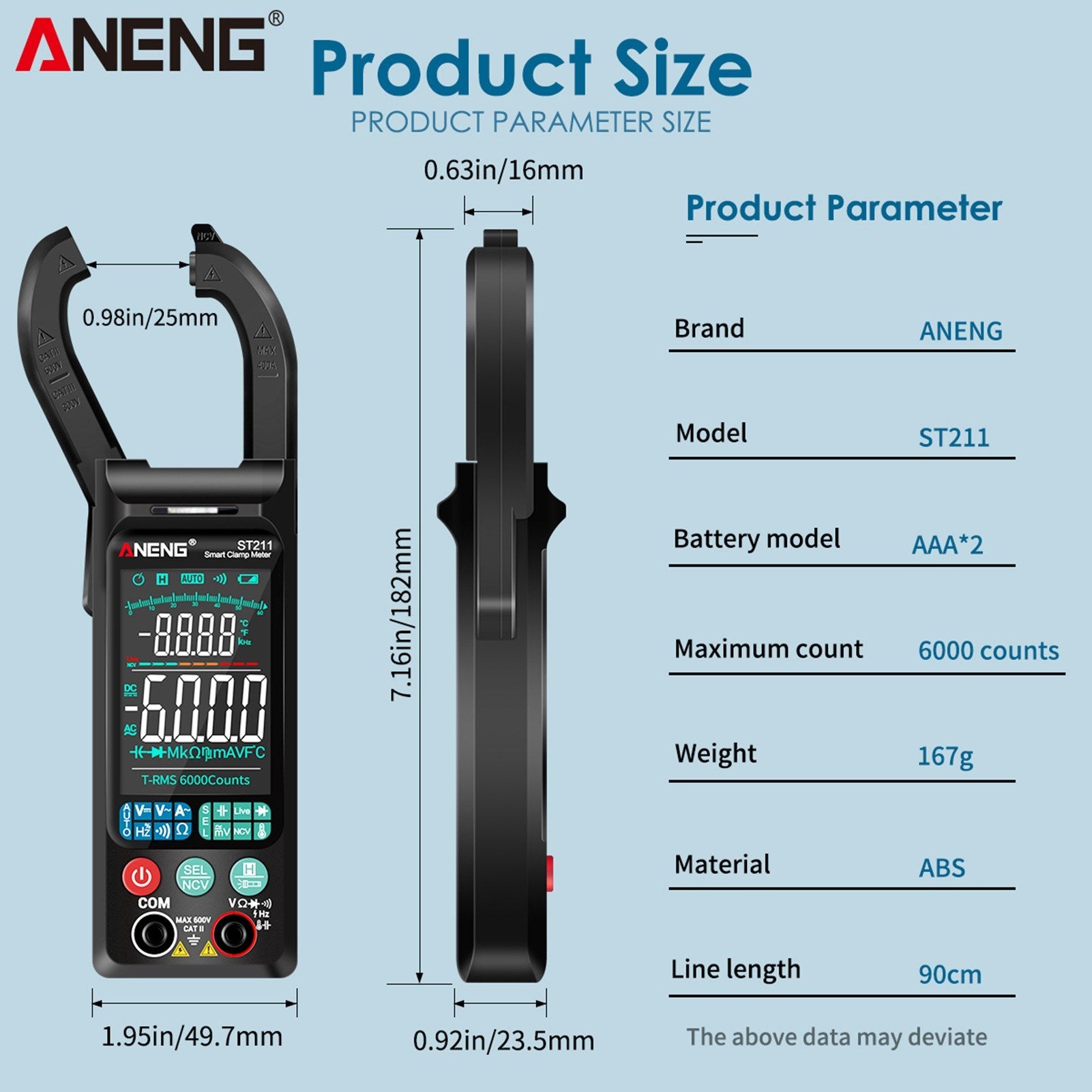

• Dimensions:
  • Line Length: 90cm / 35.43in
  • Item Size: Approx. 182*49.7*23.5mm / 7.17*1.96*0.93in
  • Item Weight: Approx. 167g / 5.89oz
  • Package Size: Approx. 217*86*44mm / 8.54*3.39*1.73in
  • Package Weight: Approx. 265g / 9.35oz

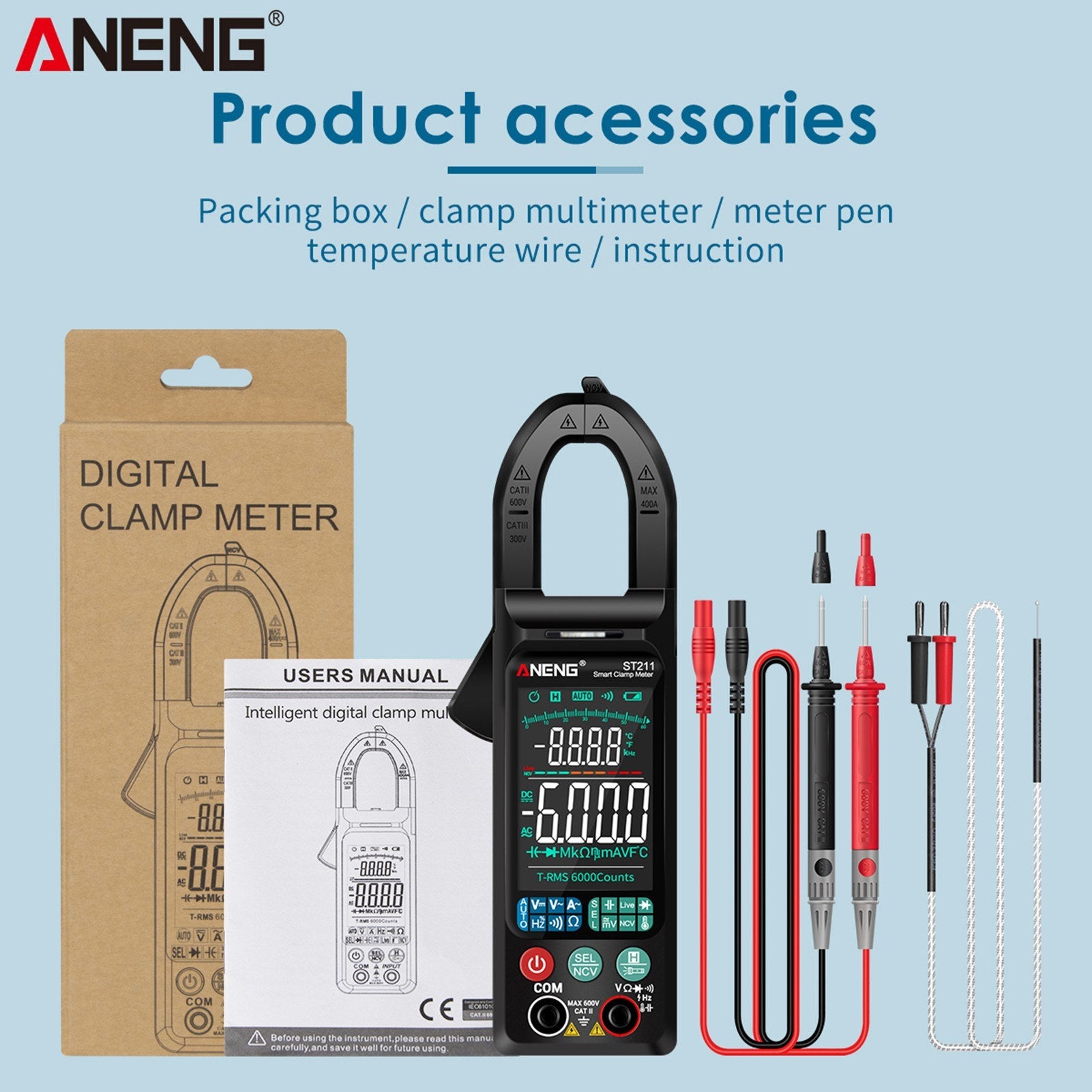

Packing List

• 1 x Clamp Meter

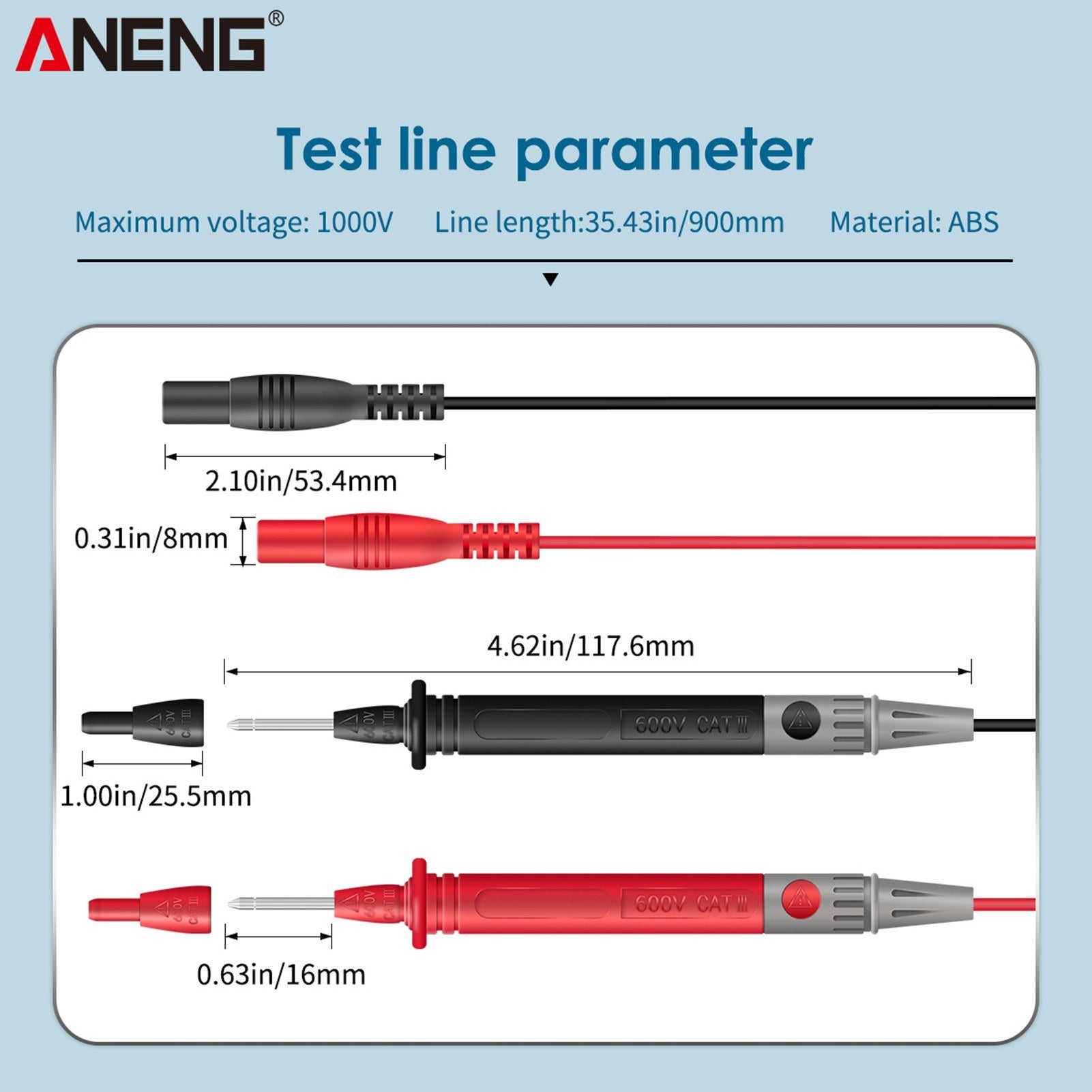

• 2 x Test Lines

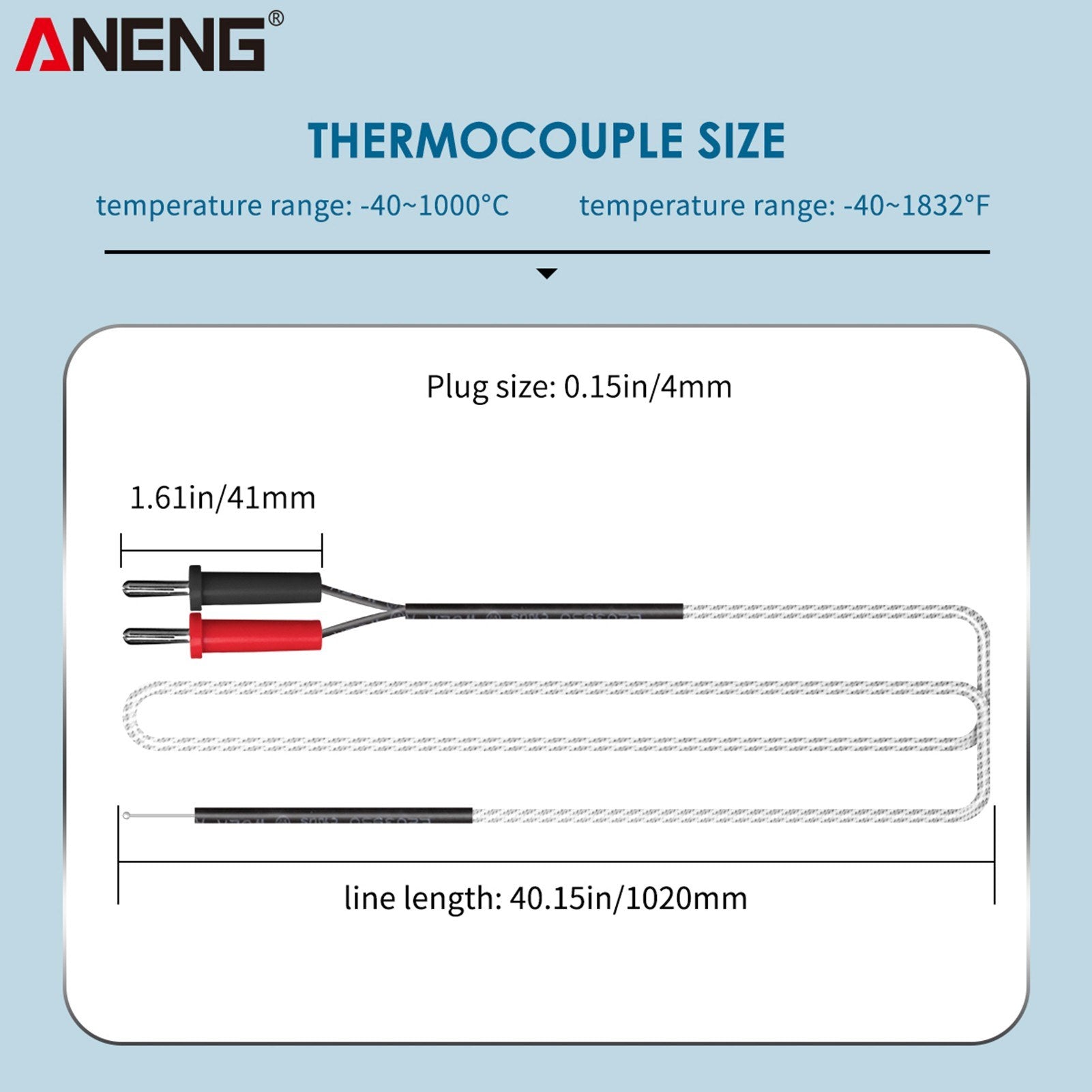

• 1 x Thermocouple
• 1 x User Manual (English)
