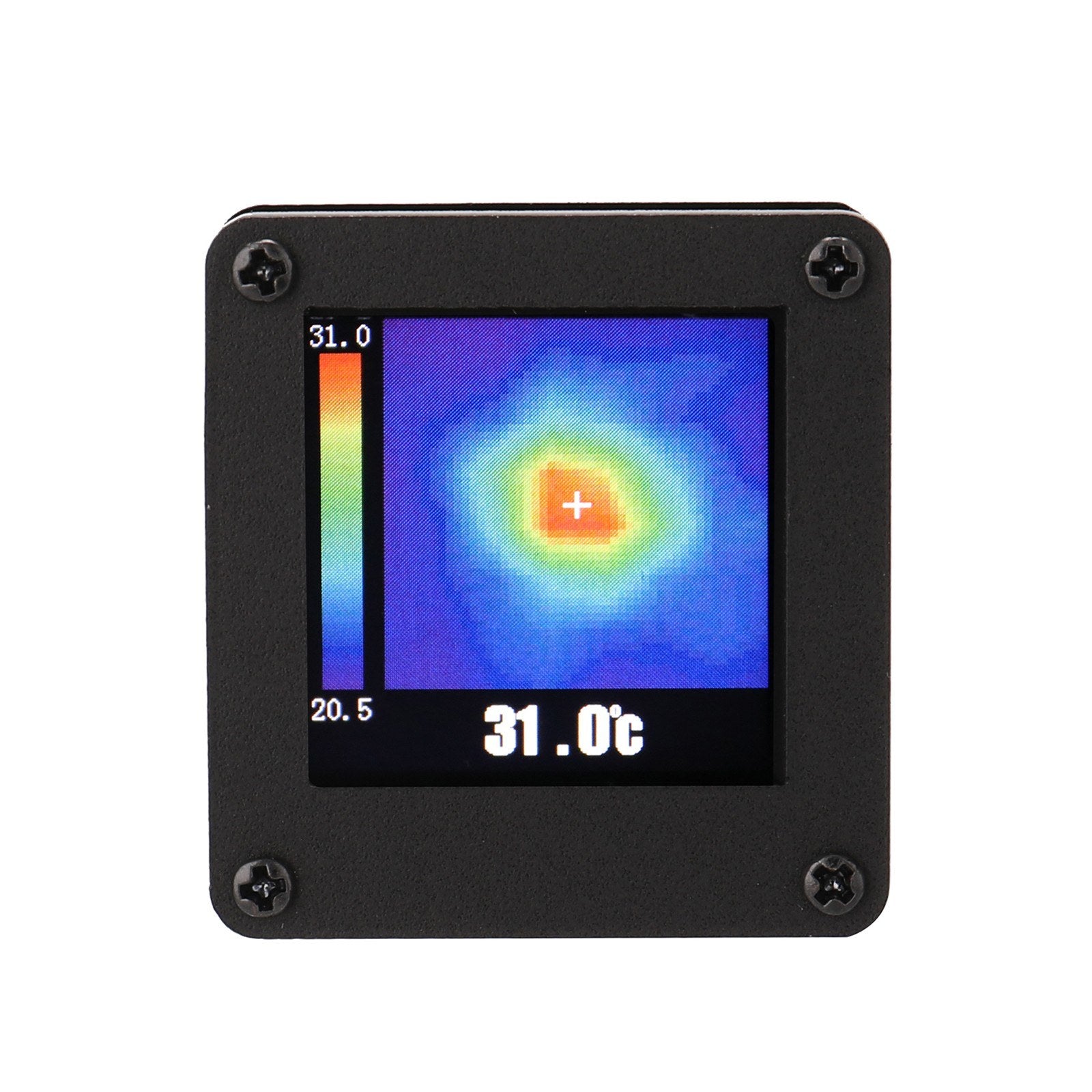

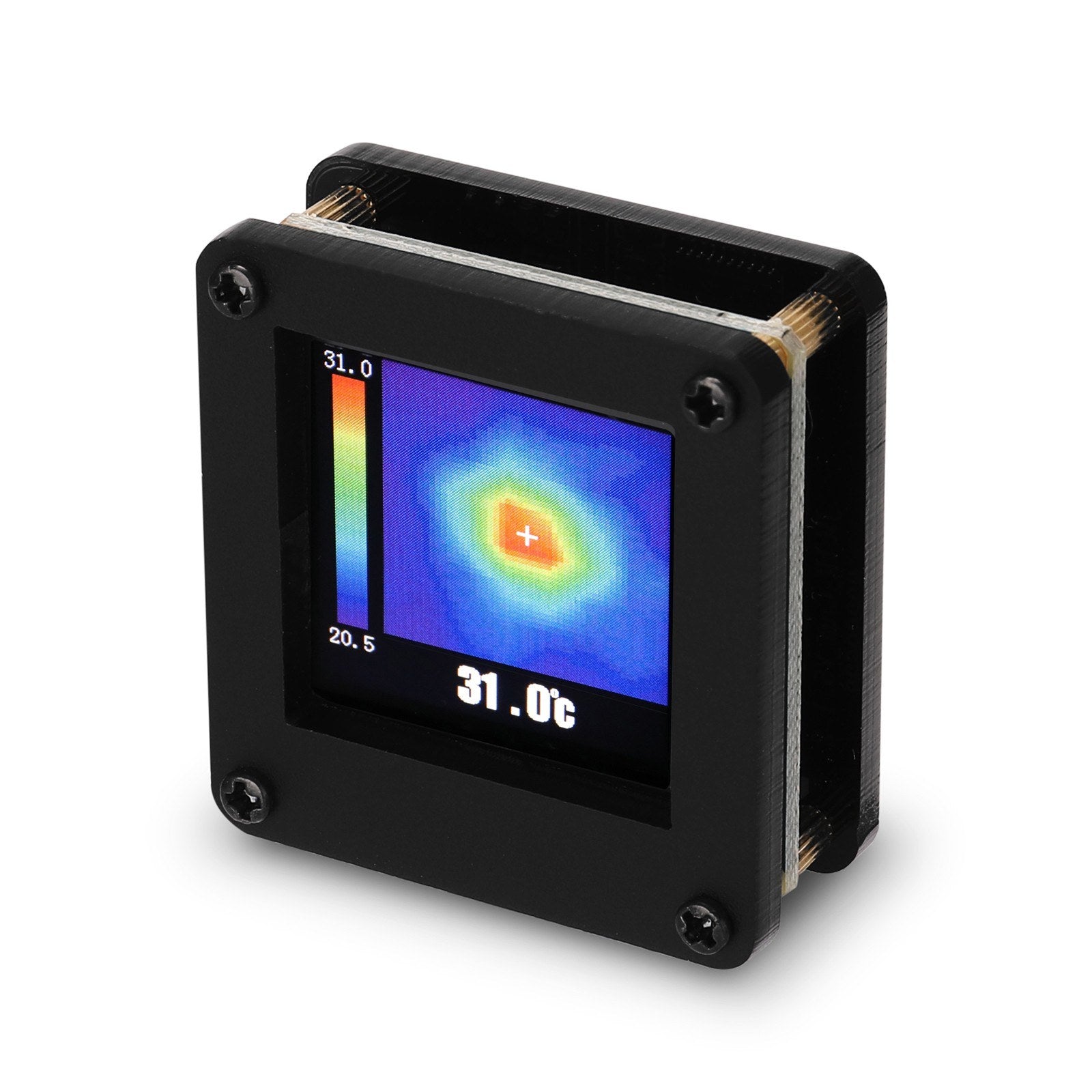

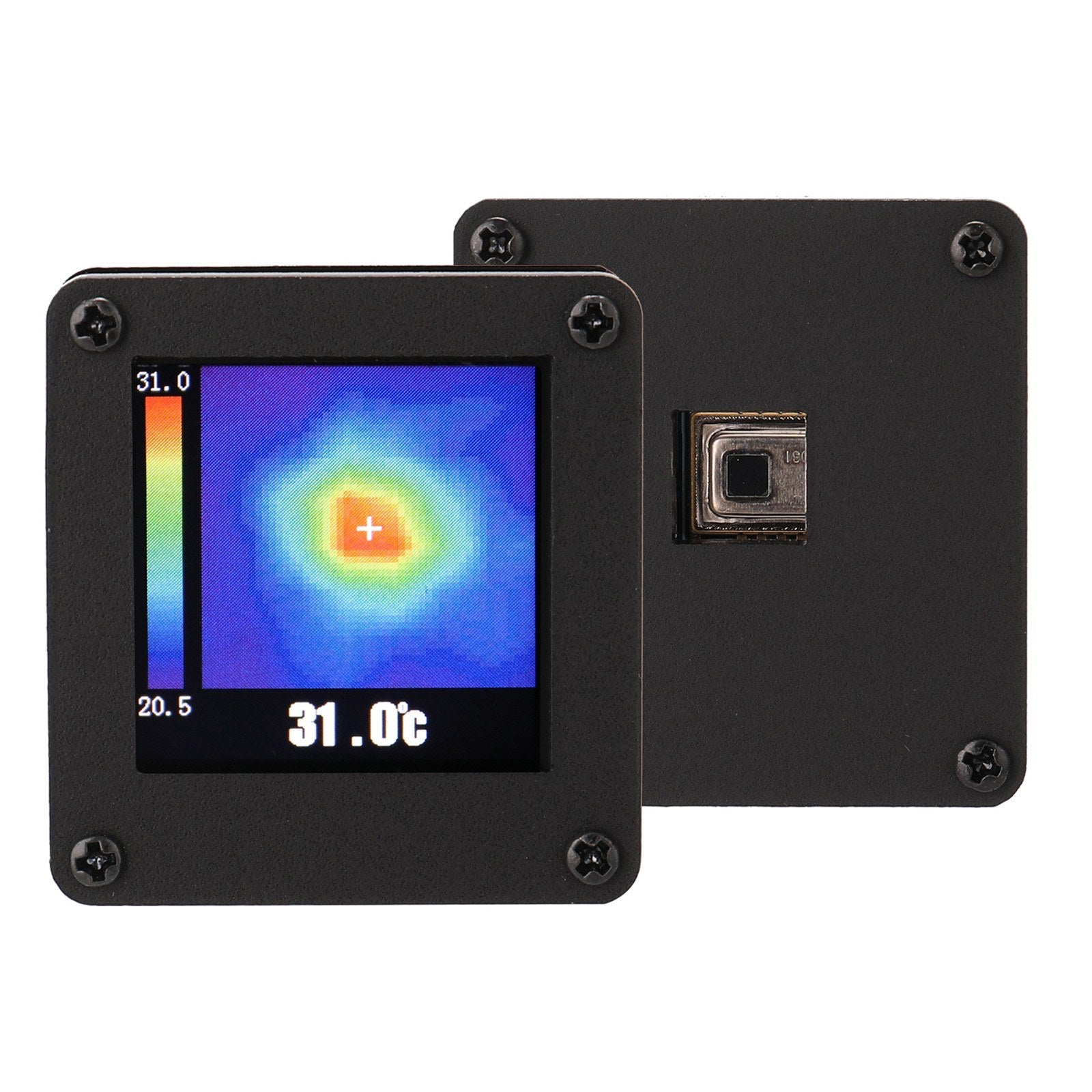

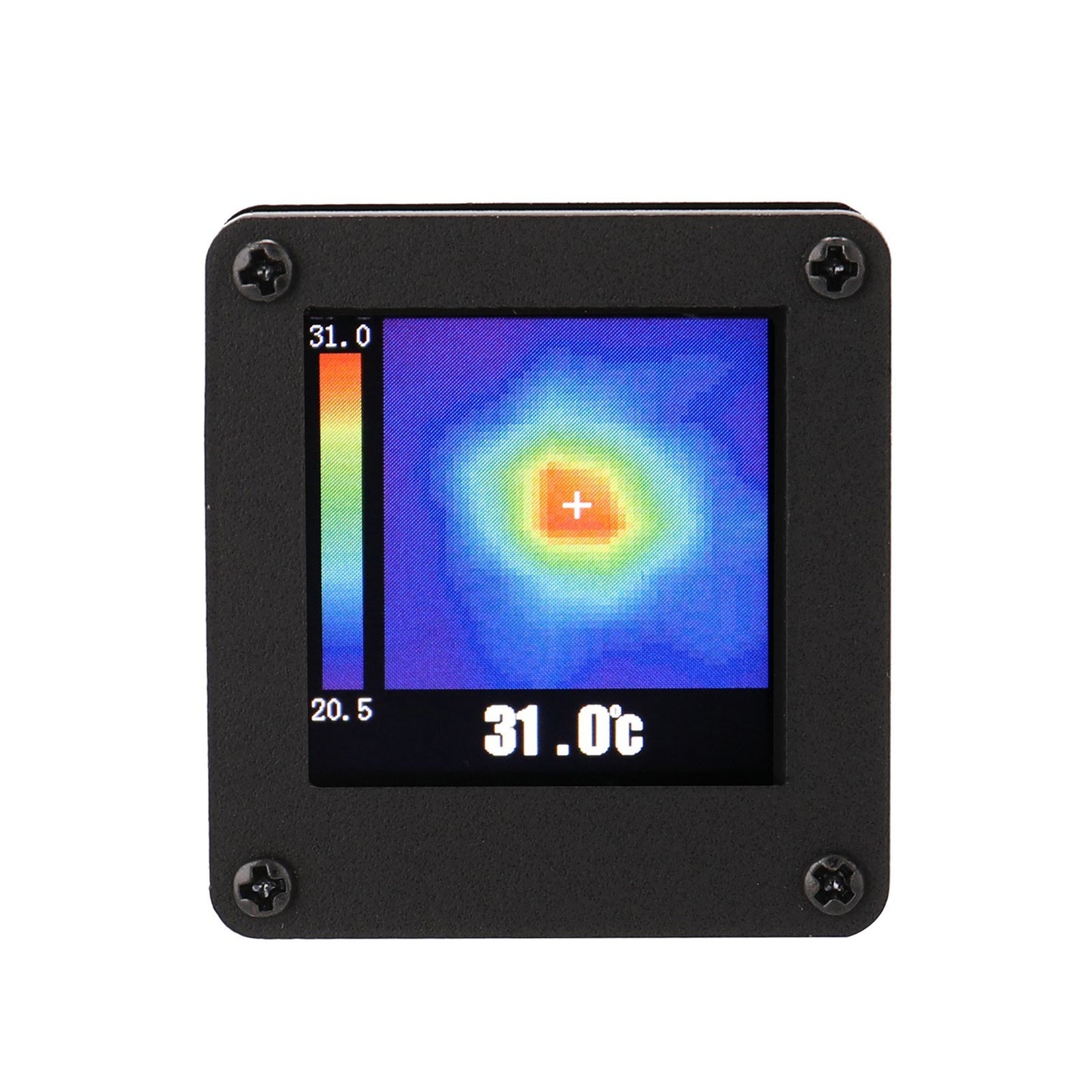

AMG8833 8x8 IR Infrared Thermal Imager Temperature Sensor Array

Experience the ultimate in thermal imaging with our advanced AMG8833 Thermal Imager. Built with premium quality materials, this device is not only practical but also incredibly user-friendly, offering a wide range of applications and a long-lasting service life.

Key Features:

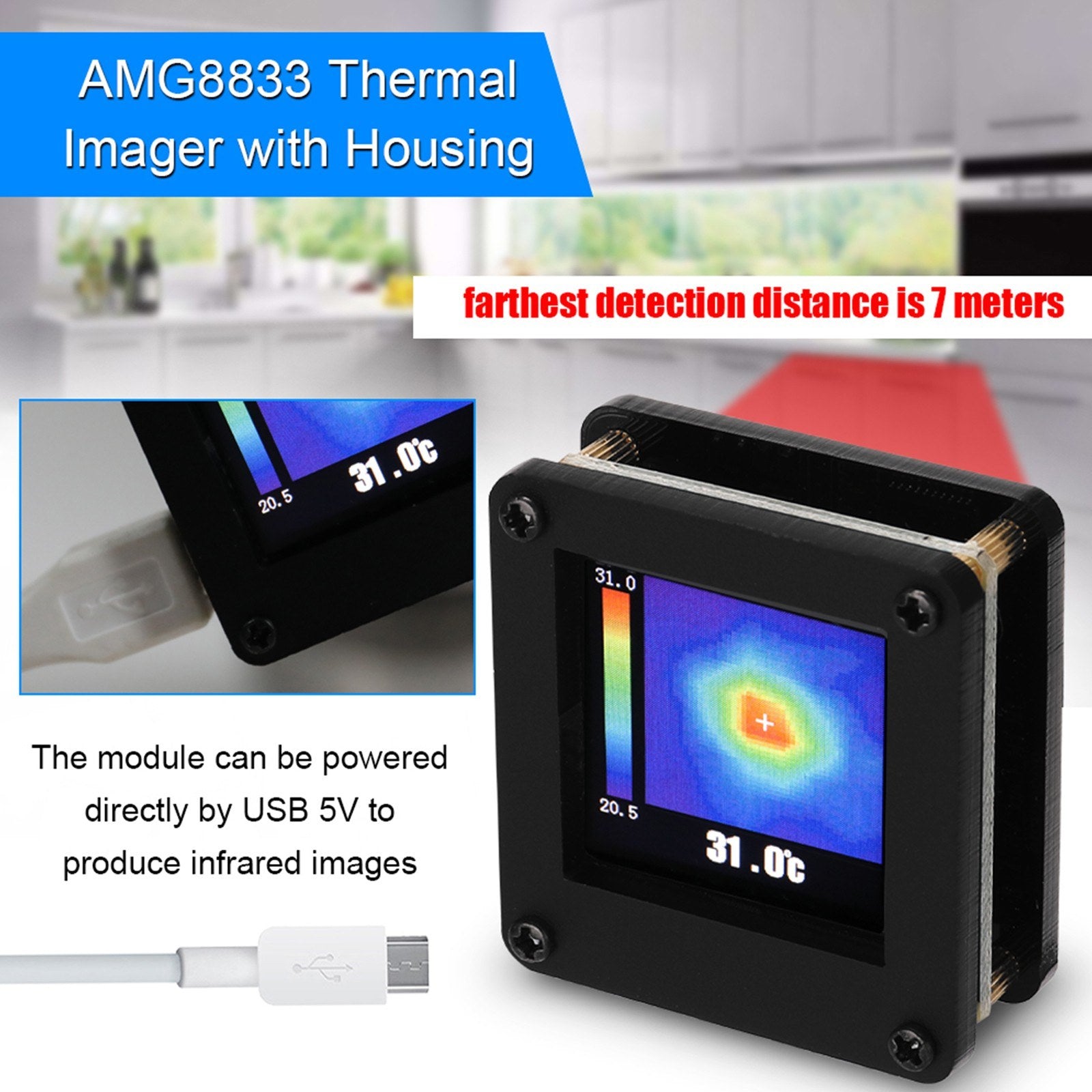

• USB Powered: Easily connect and power the module via USB 5V to generate precise infrared images.
• High Accuracy: Utilizes the AMG8833 infrared thermal sensor with an 8x8 resolution, allowing detection from distances up to 7 meters.
• Electronic Product Inspection: Ideal for assessing and checking electronic devices.
• Portable and Compact: Lightweight design without compromising high performance and ease of use.

Specifications:

• Material: PCB
• Temperature Accuracy:
  • High gain: ±2.5°C (±4.5°F)
  • Low gain: ±3.0°C (±5.4°F)
• Human Detection Distance: Up to 7 meters (22.966 ft)
• NETD:
  • Typ. 0.05°C at 1Hz
  • Typ. 0.16°C at 10Hz
• Viewing Angle: 60° typical
• Optical Axis Gap: Within ±5.6° typical
• Power Consumption:
  • Normal mode: 4.5mA
  • Sleep mode: 0.2mA
  • Stand-by mode: 0.8mA
• Setup Time:
  • 50ms to enable communication
  • 15s to stabilize output
• Resolution: 64 pixels (8x8 matrix)
• Interface: I²C (fast mode)
• Frame Rate: 10 frames/sec or 1 frame/sec
• Operating Modes: Normal, Sleep, Stand-by
• Output Mode: Temperature output
• Data Processing: No moving average or twice moving average
• Temperature Resolution: 0.25°C / 32.45°F
• Sensor Address: Two I²C slave addresses
• Thermistor Range: -20°C to 80°C (-4°F to 176°F)
• Thermistor Resolution: 0.0625°C / 32.1125°F

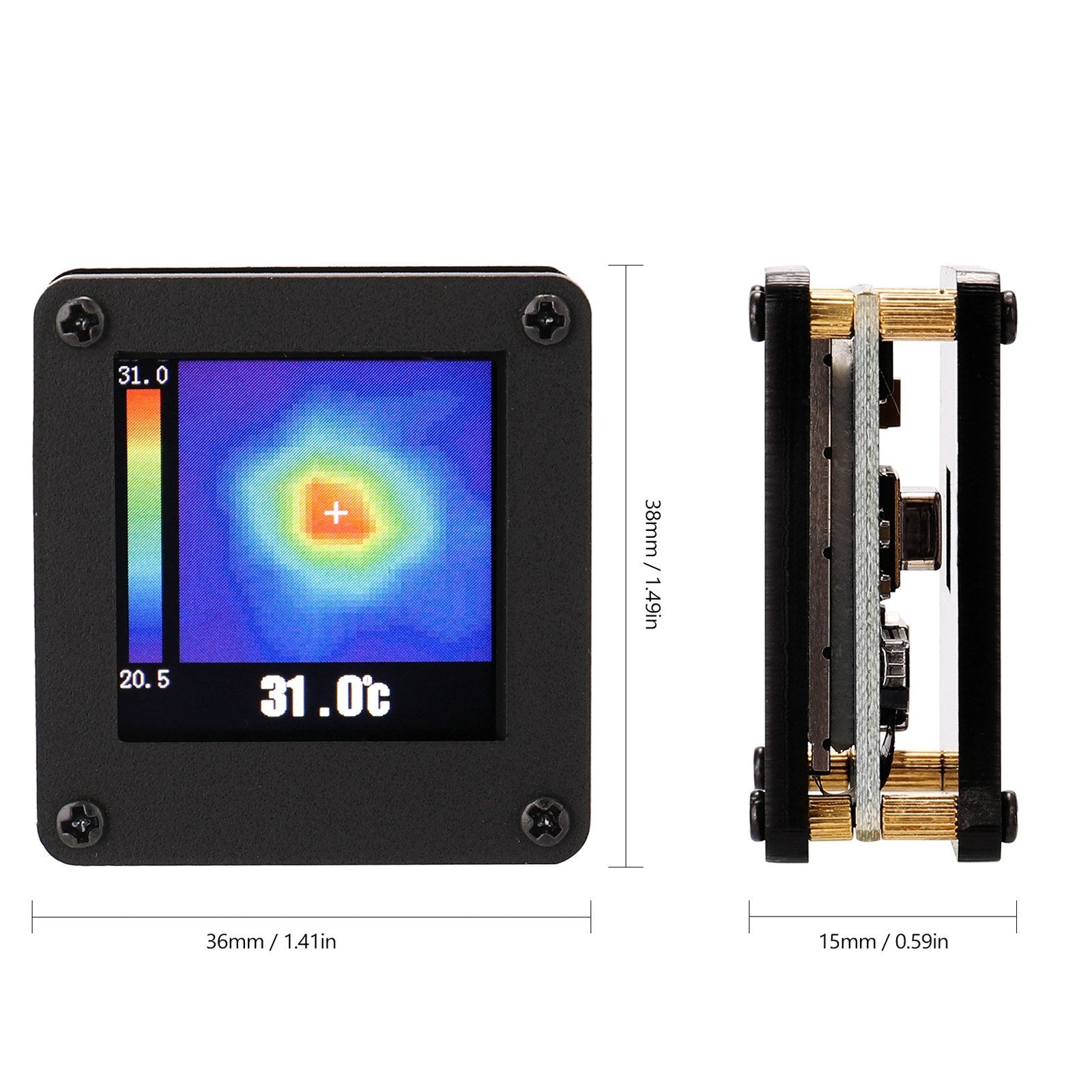

• Dimensions: 38 x 36 x 17mm (1.5 x 1.4 x 0.7in)
• Weight: 17g (0.6 ounces)
• Package Dimensions: 90 x 80 x 20mm (3.5 x 3.1 x 0.8in)
• Package Weight: 19g (0.7 ounces)

Package Includes:

• 1 x AMG8833 Thermal Imager with Housing
