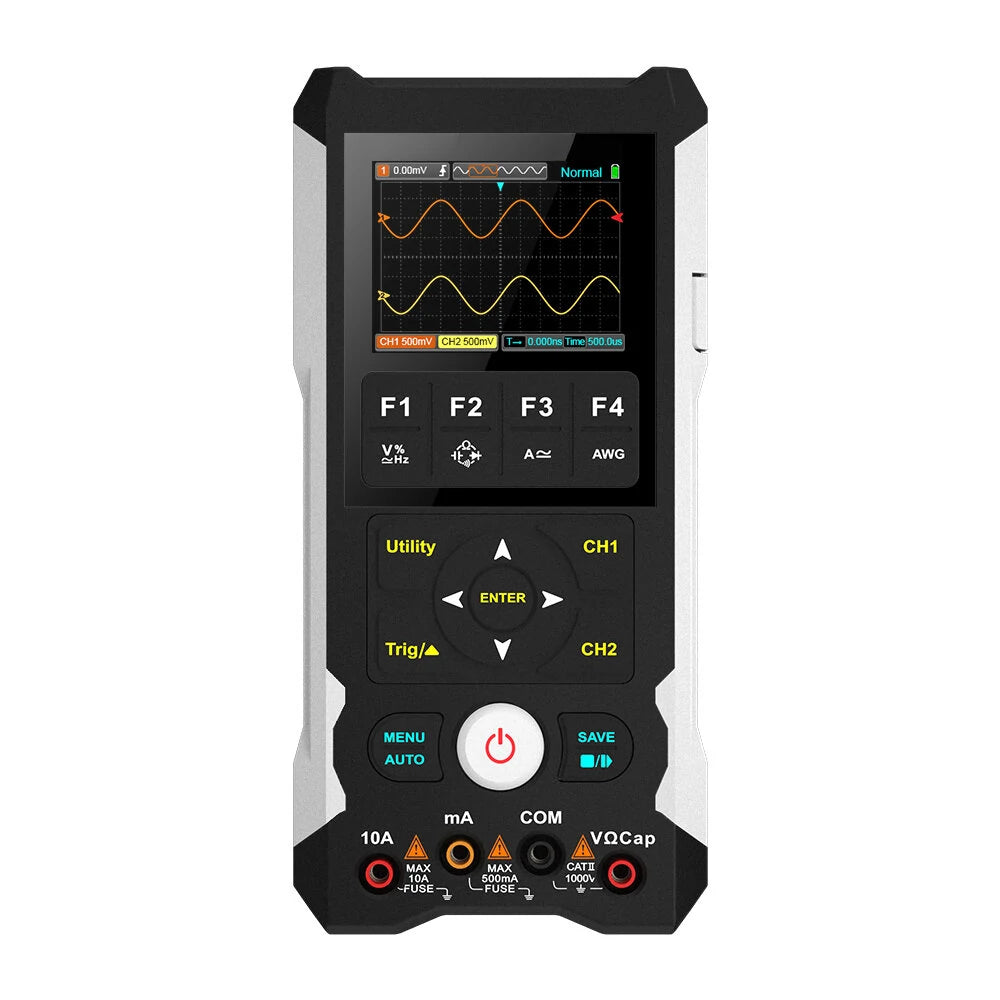

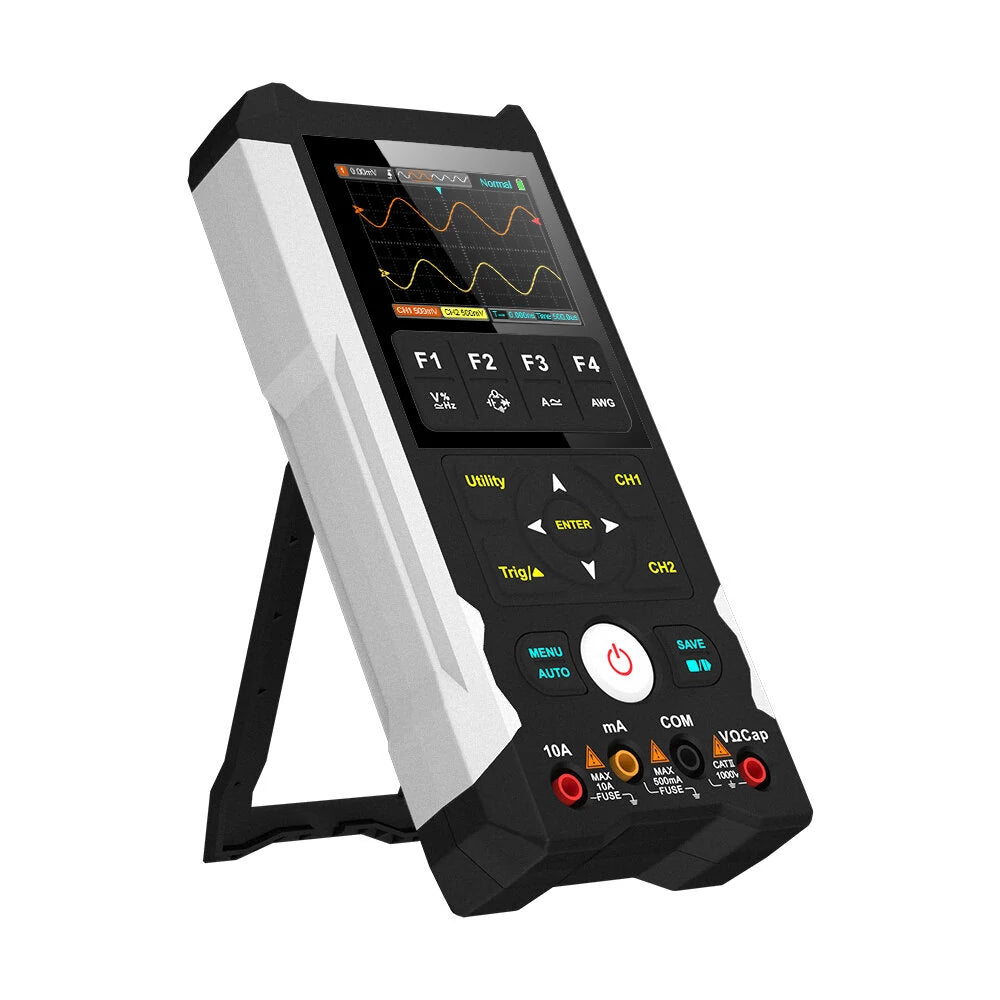

MUSTOOL MDS8209 3-in-1 Handheld Oscilloscope: 80MHz/50MHz Dual Channel, DMM, Waveform Generator with AI Preview & 15W Fast Charge

MUSTOOL MDS8209 3-in-1 Handheld Oscilloscope: 80MHz/50MHz Dual Channel, DMM, Waveform Generator with AI Preview & 15W Fast Charge

Regular price $119.99 USD
Regular price $0.00 USD Sale price $119.99 USD
Sale Sold out
Shipping calculated at checkout.
Color

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos
Product Description

Features

  • 3-in-1 Device: Oscilloscope, Multimeter, Waveform Generator
  • 80MHz Analog Bandwidth, 250MSa/s Sampling Rate
  • Afterglow Selection for Enhanced Display
  • AI Waveform Preview for Better Analysis
  • Self-Calibration Function Included
  • Supports 15W Fast DC Charging (Fast Charger Included)
  • Compatible with PC Software for Enhanced Analysis
  • 2.8-inch 320x240 TFT Color LCD Display
  • 6000 Counts True RMS Multimeter with Large Capacitance
  • Three Trigger Modes: Auto Mode, Normal Mode, Single Mode

Specifications

General Characteristics

  • Display Resolution: 320 x 240 pixels
  • Display Size: 2.8 inches (diagonal)
  • Adjustable Backlight Time and Brightness
  • Power Supply: AC 100V-240V, 50Hz-60Hz; DC 15W Fast Charge
  • Oscilloscope Power Consumption: ≤400mA
  • Multimeter Power Consumption: ≤200mA
  • Battery: 18650 Lithium Battery, 2000mAh x 2
  • Battery Level Indicator: Yes
  • Auto Sleep Function with Alerts
  • Sound Prompt Options Available
  • Usage Time: Approx. 10 hours (Oscilloscope), 20 hours (Multimeter)
  • Operating Environment: 0℃-40℃
  • Storage Conditions: -10℃ to 60℃
  • Dimensions: 100mm x 210mm x 40mm (L x W x H)
  • Weight: 480g

Oscilloscope

  • Channels: CH1, CH2
  • Analog Bandwidth: 80MHz (single), 50MHz (dual)
  • Max Real-Time Sampling Rate: 250MSa/s (single), 125MSa/s (dual)
  • Waveform Interpolation: (Sin x)/x
  • Record Length: Max 6K (single), 3K (dual)
  • Horizontal Scale Range: 5nS/div to 50S/div
  • AD Converter: 8-bit Resolution
  • Vertical Scale Range: 10mV/div to 10V/div
  • Optional Bandwidth Limit: 20MHz

Multimeter

  • DC Voltage Range: 600.0mV to 1000V
  • AC Voltage Range: 600.0mV to 750V (TRMS)
  • DC Current Range: 60.00mA to 10.00A
  • AC Current Range: 60.00mA to 10.00A (TRMS)
  • Resistance: 600.0Ω to 60.00MΩ
  • Capacitance: 10.00nF to 100.0mF
  • Frequency: 10.00Hz to 10.00MHz

Waveform Generator

  • Waveform Frequency: Sine 1Hz to 5MHz, Square/Triangular 1Hz to 500KHz
  • Amplitude: Max 5Vpp (50Ω)
  • Frequency Resolution: 0.2Hz
  • Channels: 1
  • Vertical Resolution: 8-bit

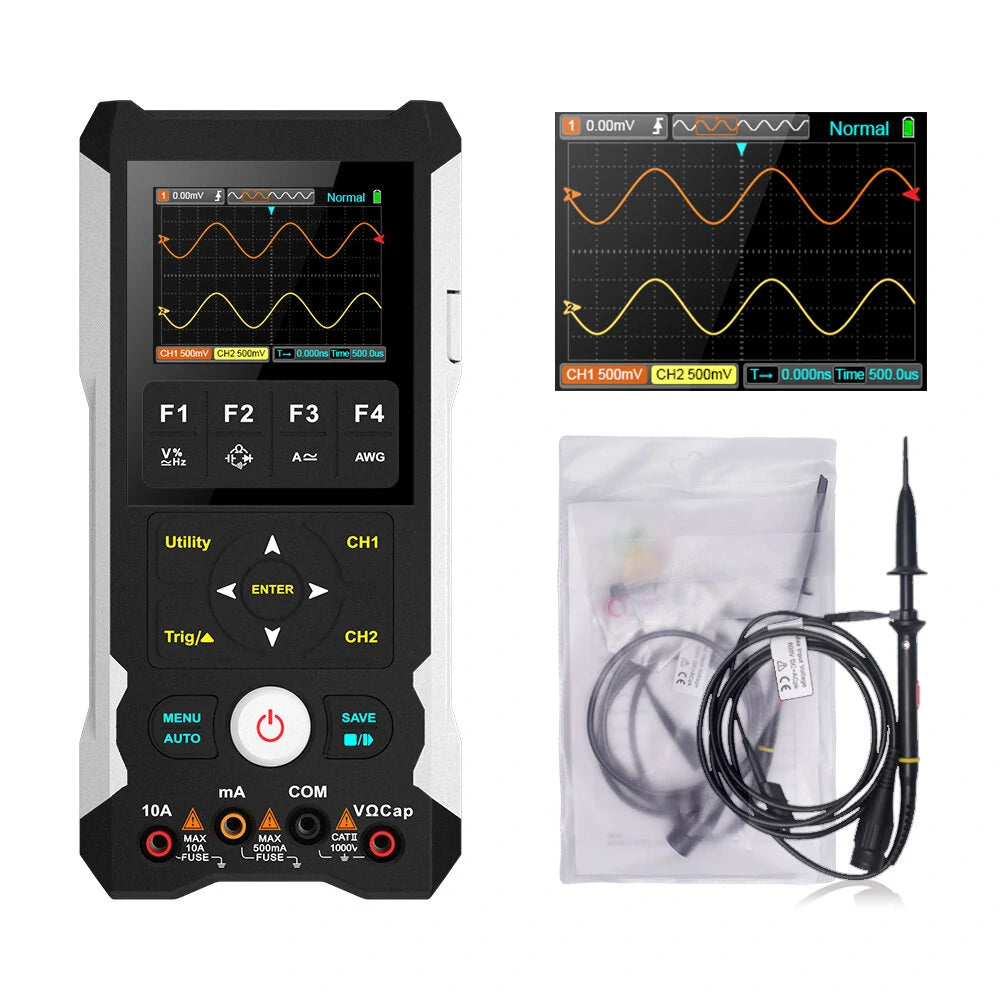

Package Includes

  • 1 x MDS8209 3-in-1 Oscilloscope
  • 1 x Dual Injection Test Lead
  • 1 x Scope Probe
  • 1 x Signal Output Clip Wire
  • 1 x Type-C USB Cable
  • 1 x User Manual
  • 1 x Cloth Bag
  • 1 x Color Box
