BSIDE S6 Smart Pen-Type Digital Multimeter | Auto-Range Tester for DC/AC Voltage, Capacitance, Ohm, NCV, Hz, Diode, Live Wire

Product Features

Intelligent Identification & Anti-Burn Protection: This advanced multimeter utilizes cutting-edge technology to identify various measurement needs while offering enhanced anti-burn safety. Eliminate the guesswork from your tasks for a worry-free experience.

Temperature Measurement Capabilities: Whether you're working in an industrial setting or simply checking room temperature, this multimeter delivers. Enjoy precise measurements ranging from -50℃ to 999℃.

LIVE ZERO FIRE LINE Detection: The LIVE mode quickly detects fire lines, indicated by a red screen and buzzer, ensuring straightforward and safe testing.

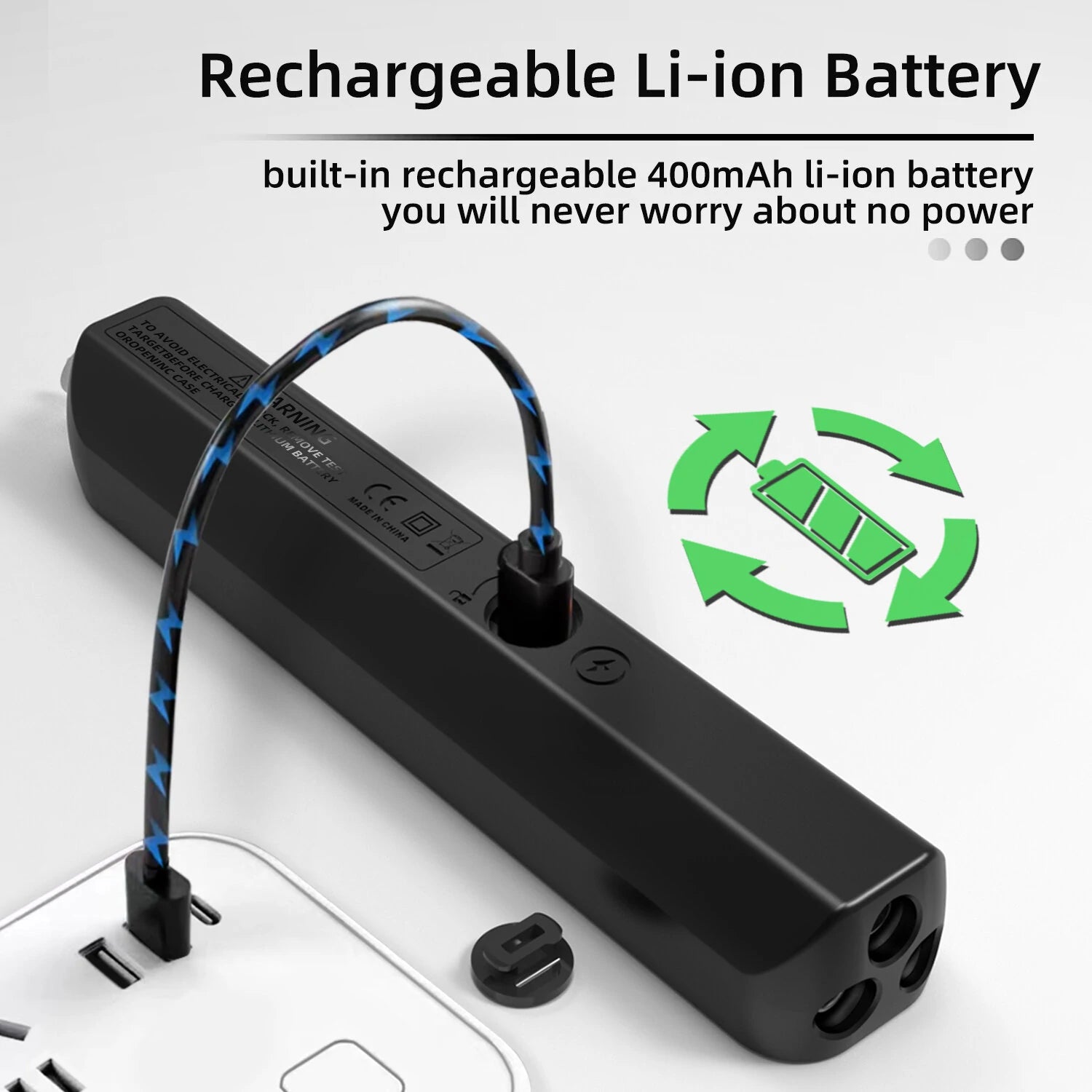

Rechargeable Li-ion Battery: Equipped with a 400mAh battery, this multimeter won't quit mid-task. Its rechargeable feature helps save money and the environment.

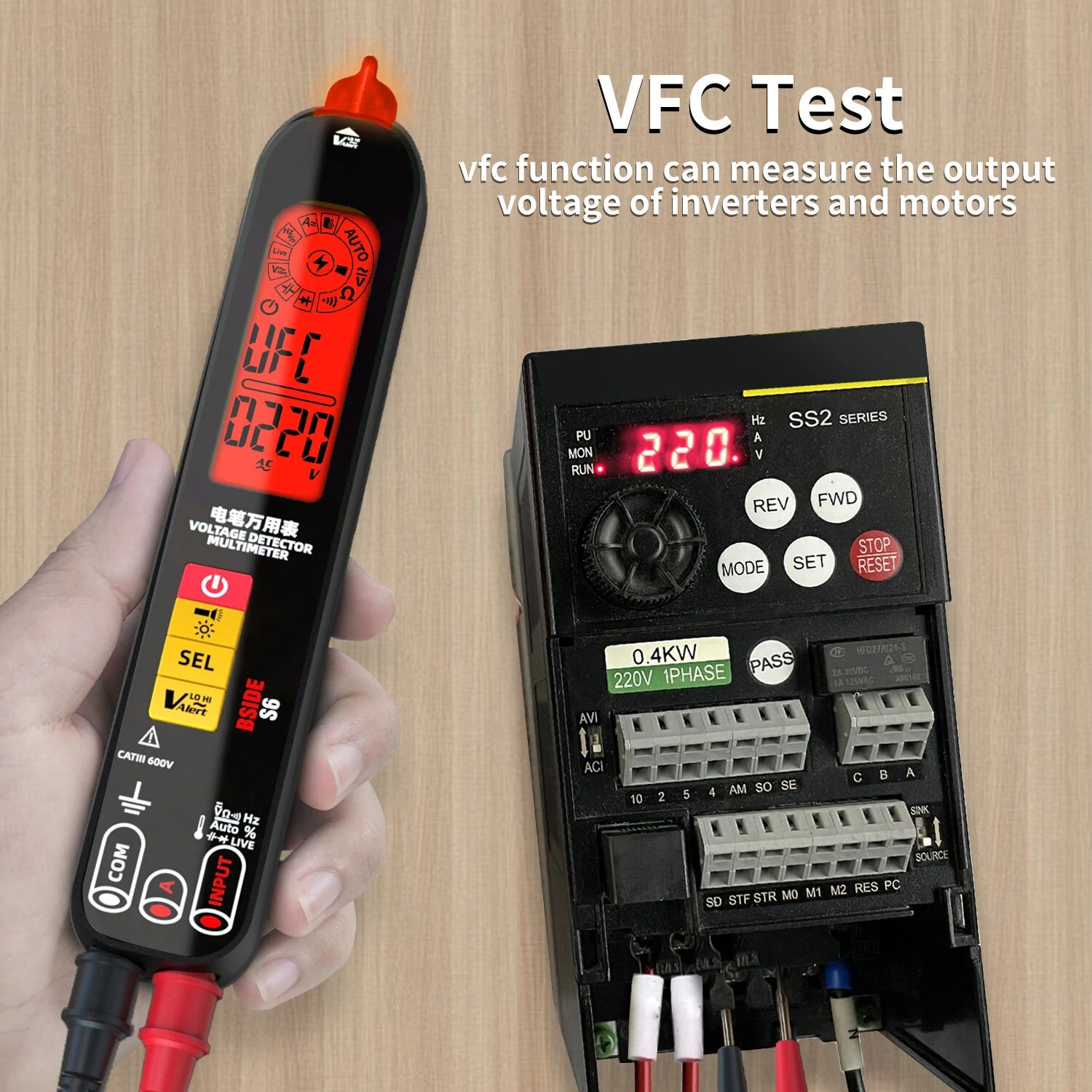

VFC Test Function: Ideal for professionals dealing with inverters and motors, the VFC function facilitates effortless voltage measurement of these devices.

Specifications

Voltage Measurement: DC Voltage: 0 to 620V with 0.001V resolution and ±(0.8%+3) accuracy; AC Voltage with a similar range and 0.001V resolution, ±(1.2%+5) accuracy.

Current Measurement: DC Current auto mode: 1.0 to 610mA with 0.1mA resolution and ±(1.5％+3) accuracy; AC Current with the same range and accuracy.

Resistance & Capacitance: Measure resistance from 0.0Ω to 60MΩ with 0.1Ω resolution and ±(3.5％+8) accuracy. Capacitance ranges from 1nF to 60mF.

Frequency: Ranges from 1Hz to 9.999MHz with 0.001Hz resolution. Measurement range is 900mVrms to 20Vrms with ±(1.5％+2) accuracy.

Temperature: Ranges from -50℃ to 999℃ with 1℃/°F resolution. Ambient temperature ranges from 0 to 50℃ with 1℃ resolution and ±2℃ accuracy.

Additional Features: Includes diode measurement capability up to 3.0V. A buzzer will sound for continuity testing when resistance is 50Ω.

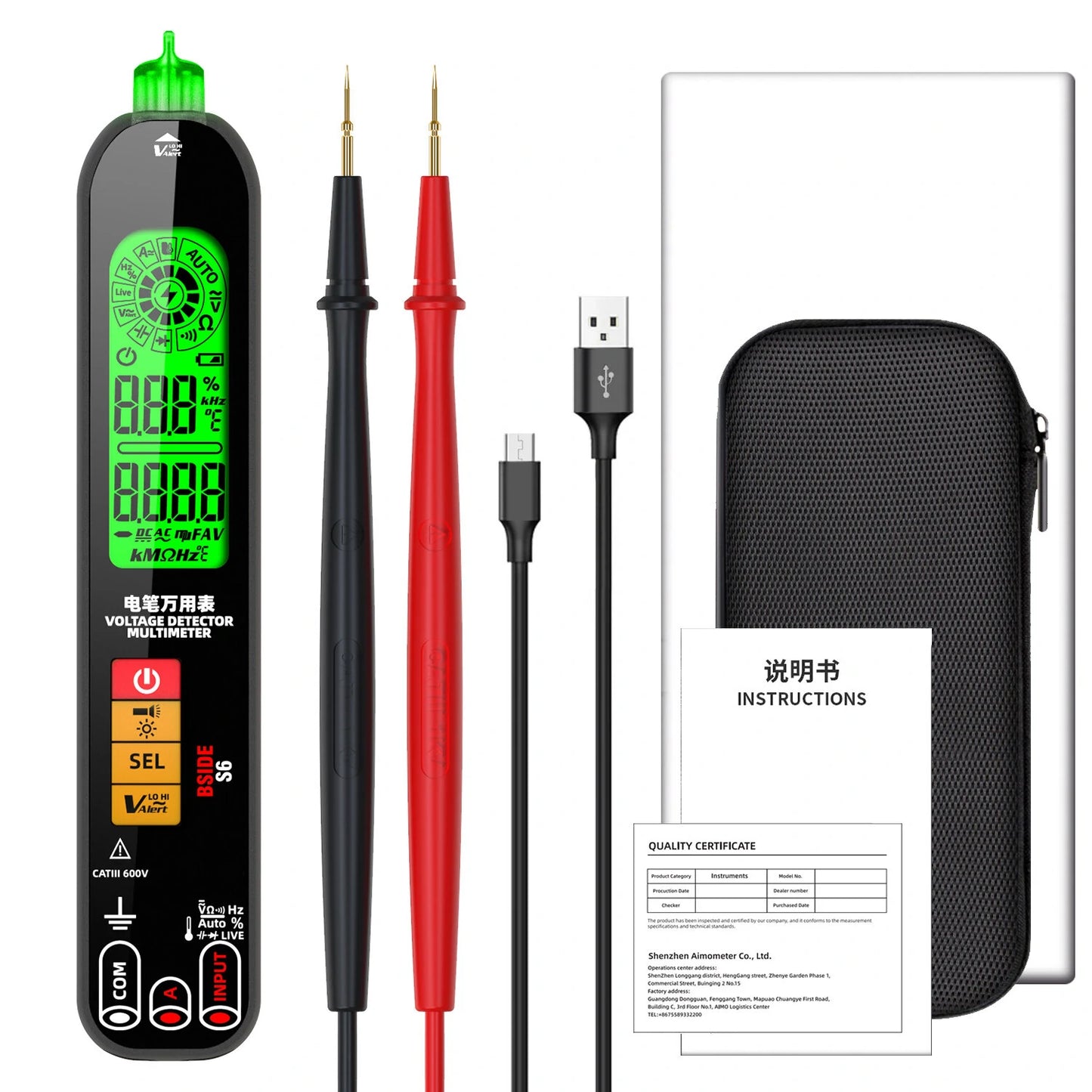

Package Includes

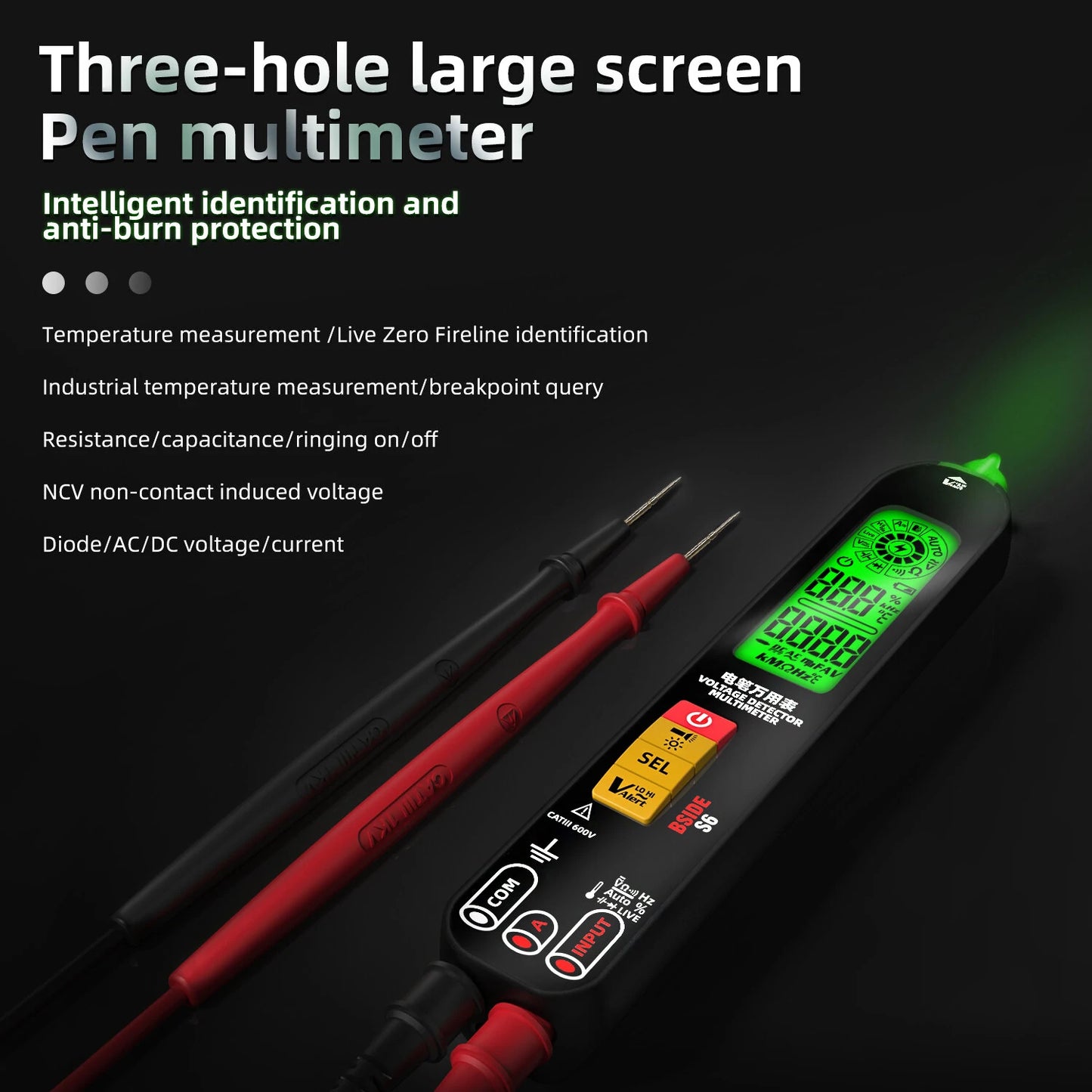

1 x Three-hole large screen pen multimeter

1 x Rechargeable 400mAh li-ion battery

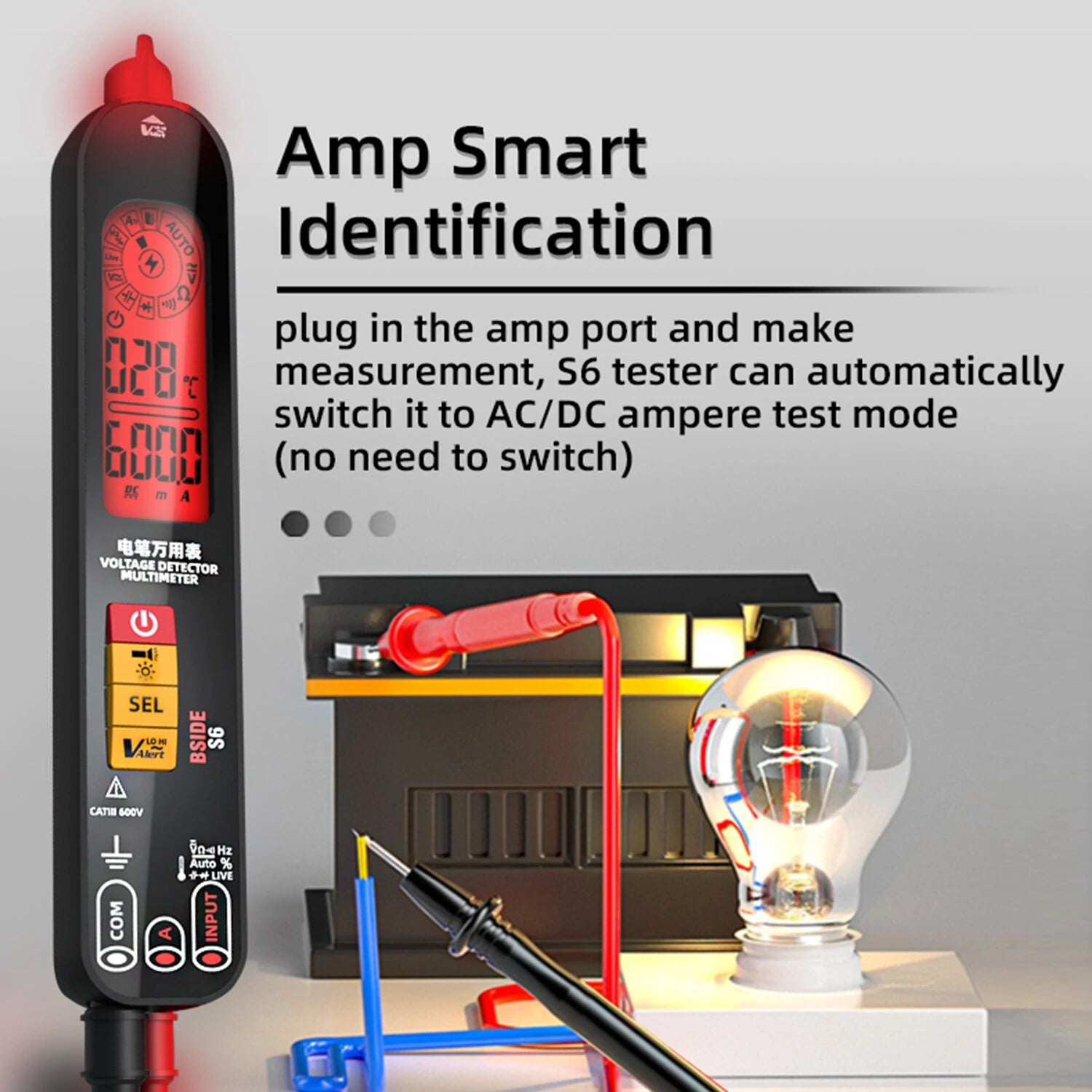

1 x Amp Smart Identification

1 x User manual
