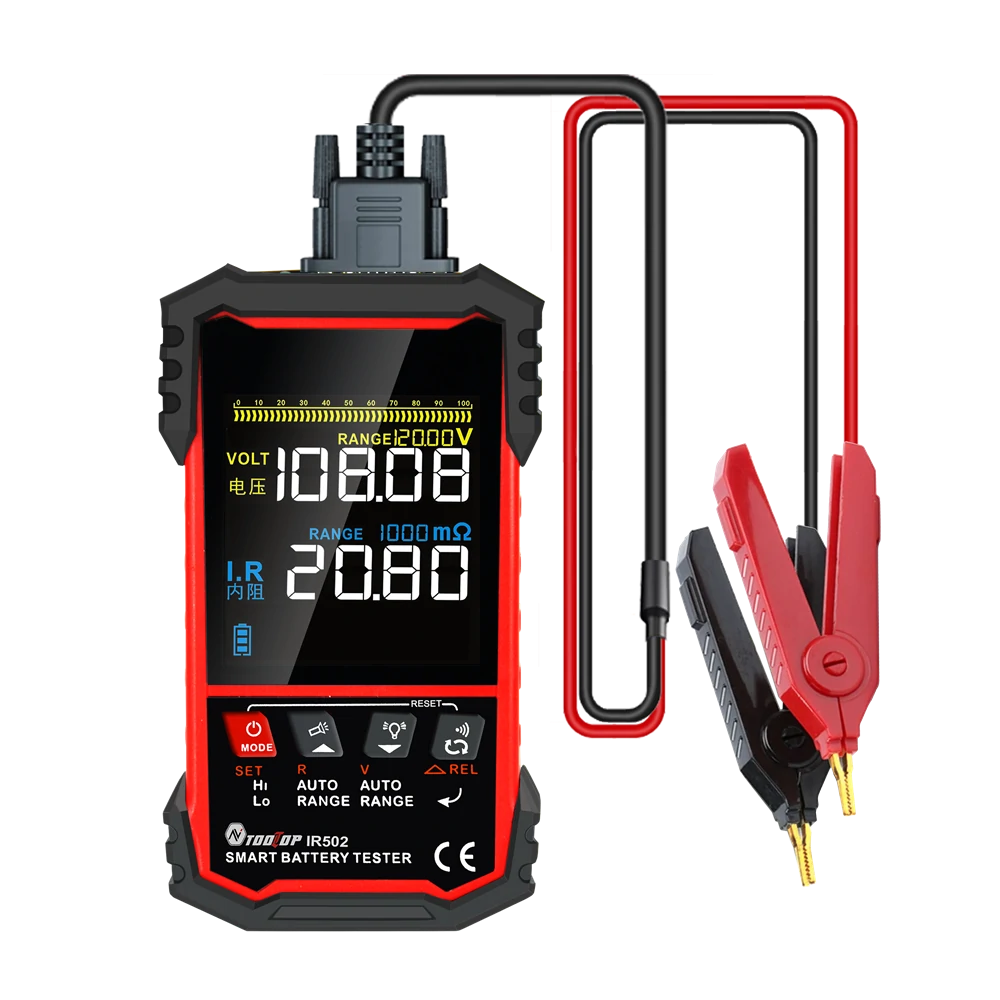

MUSTOOL IR502/IR500 Battery Internal Resistance Tester ±120V 500Ω 4-Wire Kelvin for Lead-acid, Lithium, Nickel-cadmium Batteries

MUSTOOL IR502/IR500 Battery Internal Resistance Tester ±120V 500Ω 4-Wire Kelvin for Lead-acid, Lithium, Nickel-cadmium Batteries

Regular price $35.99 USD
Regular price $0.00 USD Sale price $35.99 USD
Sale Sold out
Shipping calculated at checkout.
Model

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos

IR502/IR500 ±120V 500Ω Battery Internal Resistance Tester

This versatile tester is ideal for analyzing the internal resistance and voltage of various battery types, including lead-acid, lithium, nickel-cadmium, and alkaline batteries.

Features:

  • Wide Measurement Range: Measures battery voltage up to ±120V and internal resistance up to 500Ω, accommodating a broad range of battery types.
  • Automatic Switching: The 6 resistance range feature automatically adjusts to suit different battery resistance ranges, offering convenience and ease of use.

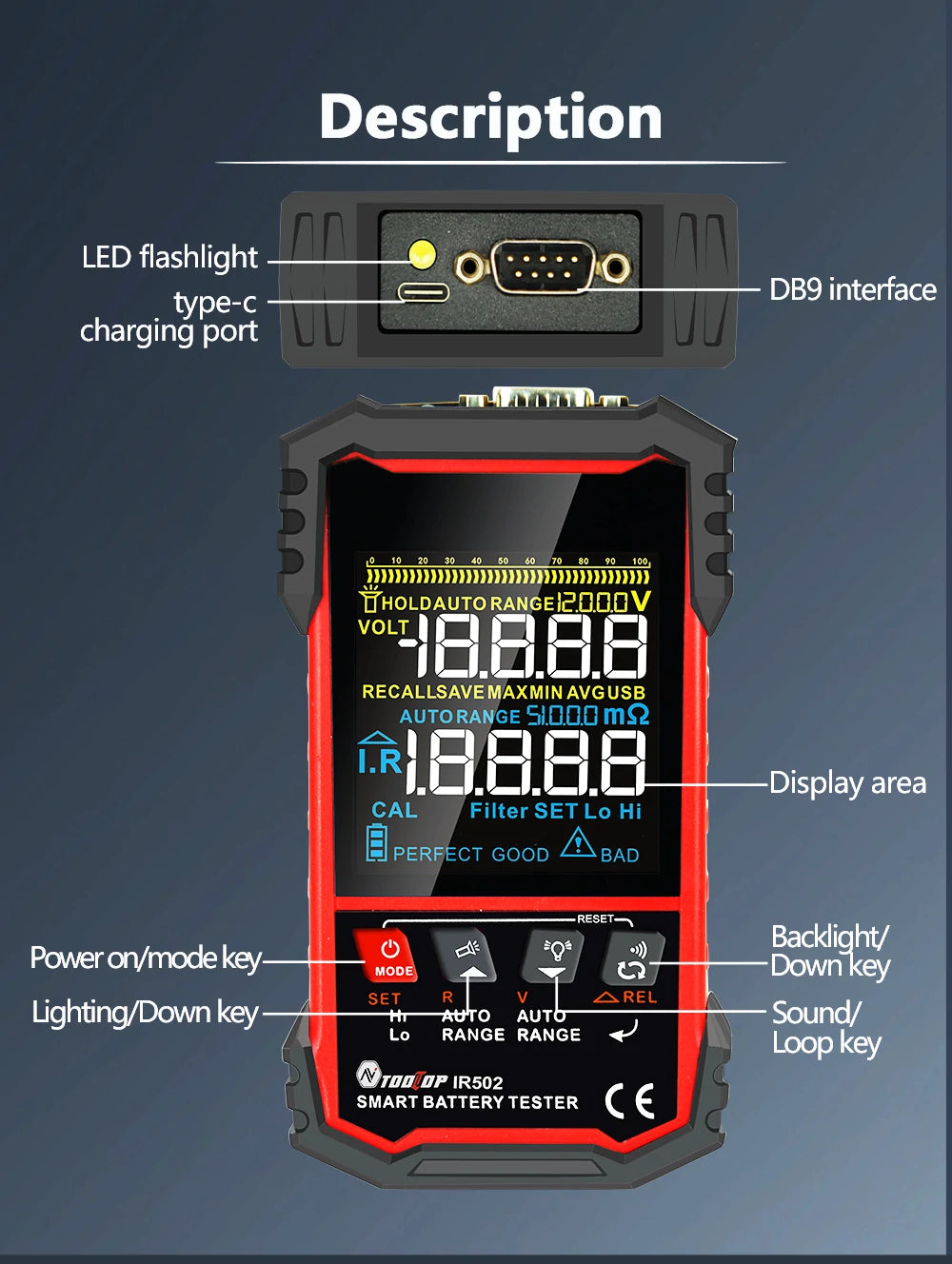

  • Dual Display: The large 3.2" screen displays dual-digit readings simultaneously for enhanced clarity of test results.
  • Self-Calibration: Users can calibrate the device themselves to maintain high precision and accuracy.

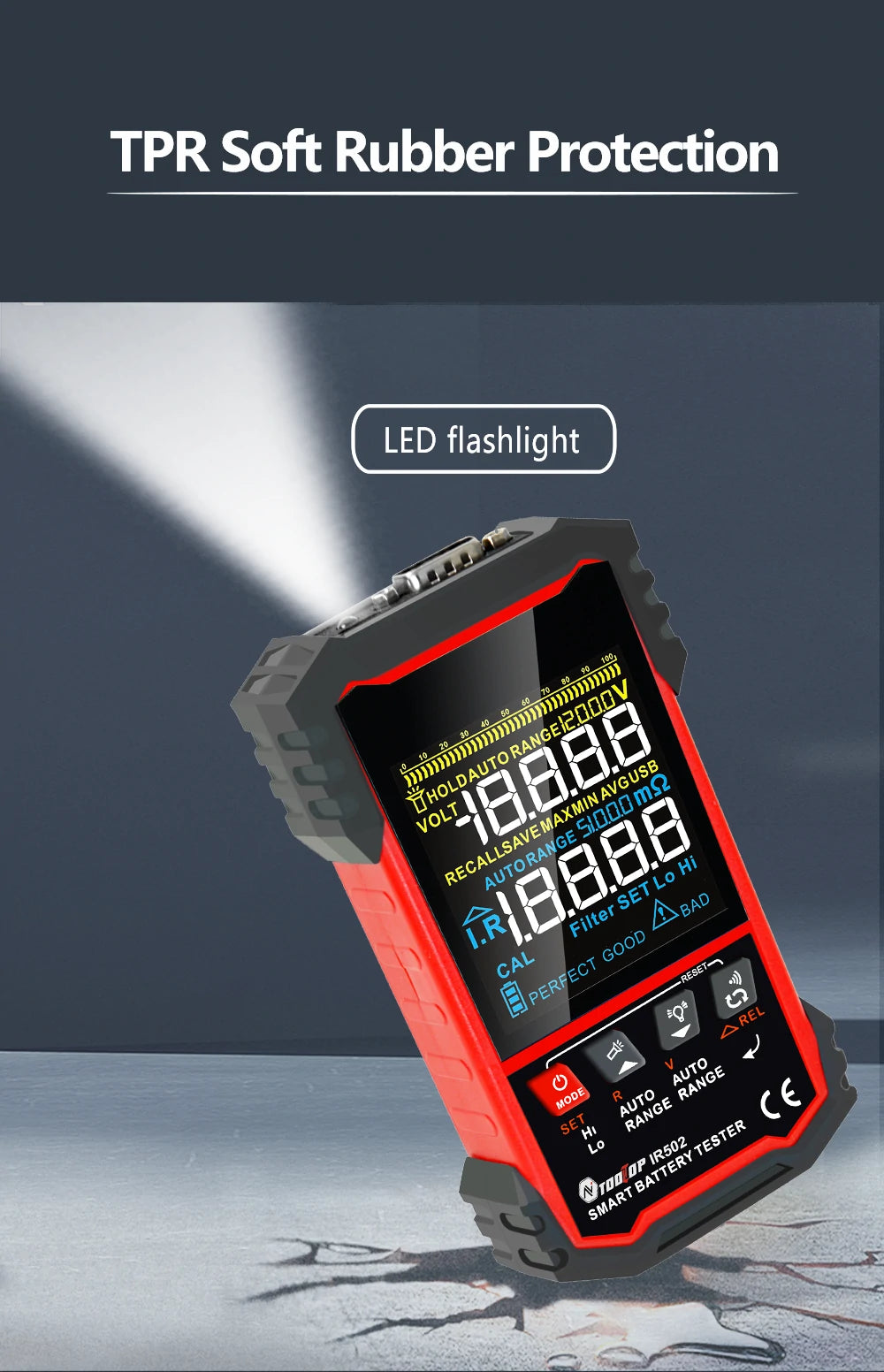

  • Enhanced Visibility: With a backlight display and LED flashlight, the tester is perfectly suited for operations in dimly lit environments.
  • Long Battery Life: Equipped with a 1200mAh lithium battery, this device is both economical and eco-friendly, ensuring prolonged use and convenience.

Specifications:

  • Brand: AV TOOLTOP
  • Models: IR500 / IR502
  • Voltage Measurement: 0.00V to ±120V
  • Internal Resistance Measurement: 0.000mΩ to 500Ω
  • Maximum Input Voltage: DC120V (not suitable for AC)
  • Measuring Current: 50mA to 50μA
  • Measurement Speed: 3 times per second
  • Signal Frequency: 1KHz
  • Voltage Range Selection: Automatic/Manual
  • Connection Option: √ (Four-line Kelvin testing method)
  • Self Calibration and Factory Recovery:
  • Battery Compatibility: Lead-acid, Lithium, Nickel-cadmium, Alkaline
  • Screen Size: 55x57mm (TN black and white for IR500, VA color for IR502)
  • Power Supply: 3.7V lithium battery
  • Lighting:

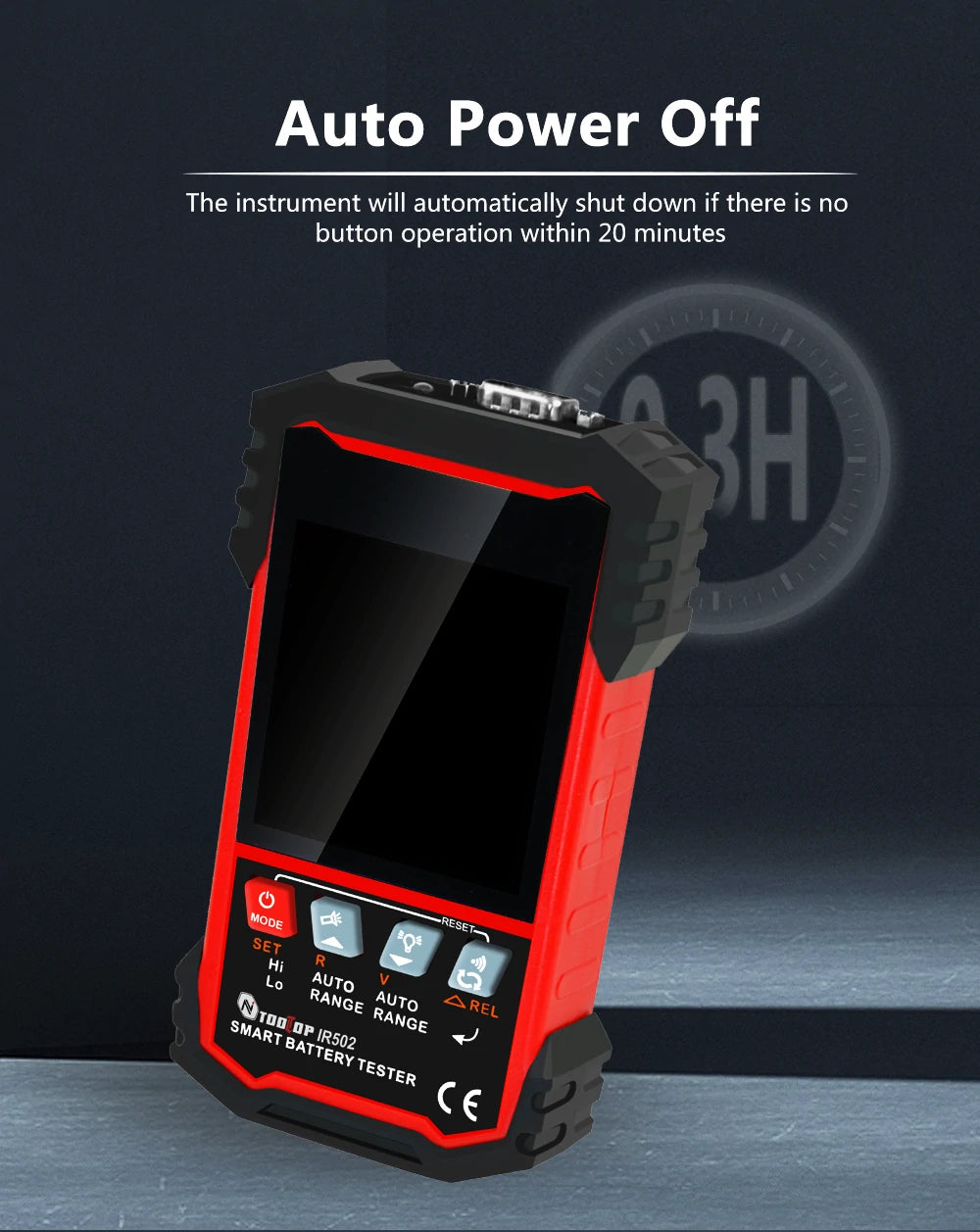

  • Additional Functions: Low voltage detection, automatic shutdown

Package Options:

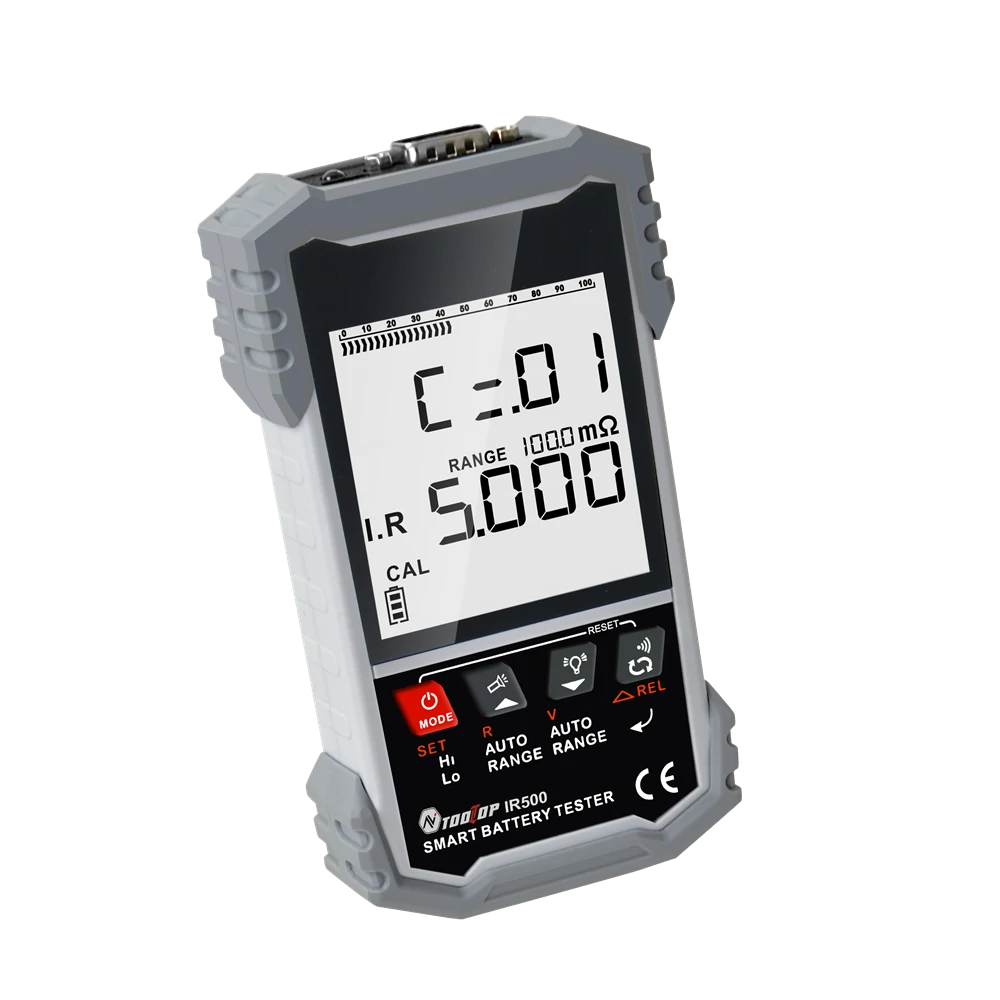

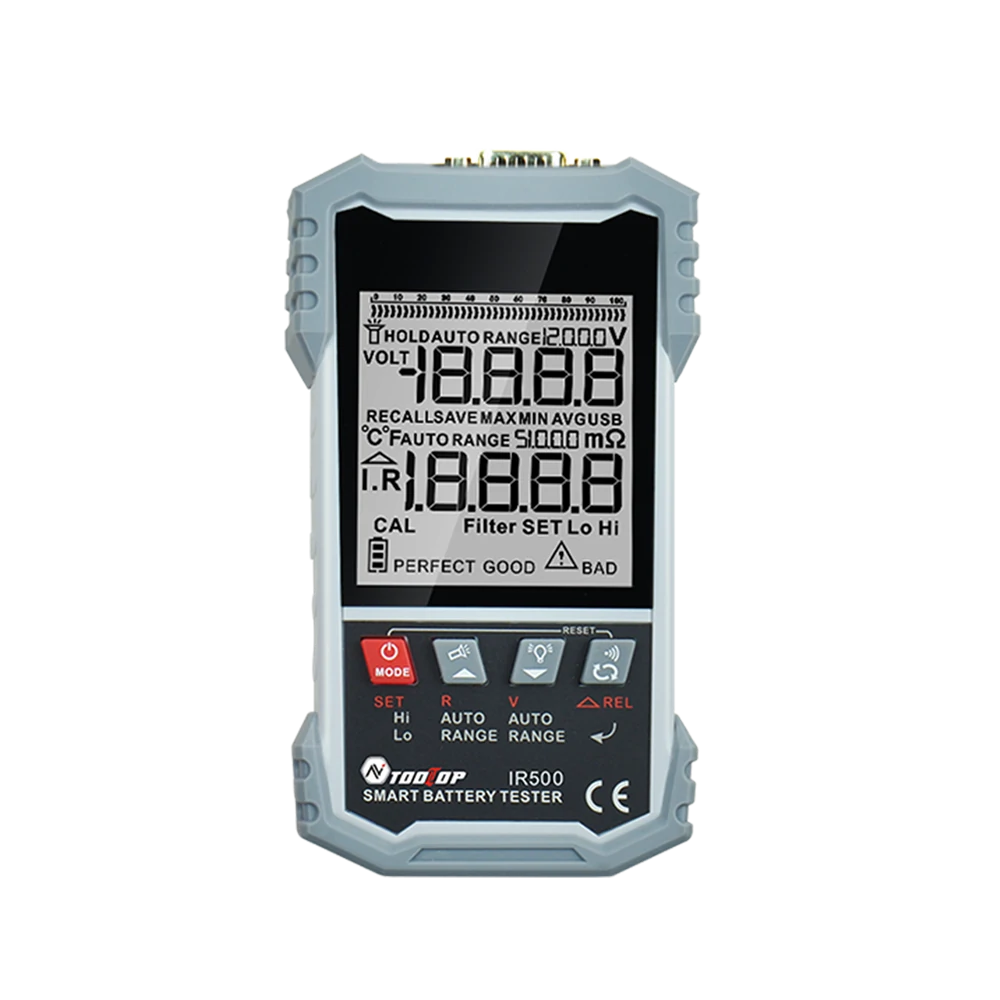

Type A: IR500

  • 1 x IR500 Battery Tester
  • 1 x English User Manual
  • 1 x Charging Cable
  • 1 x Color Package Box

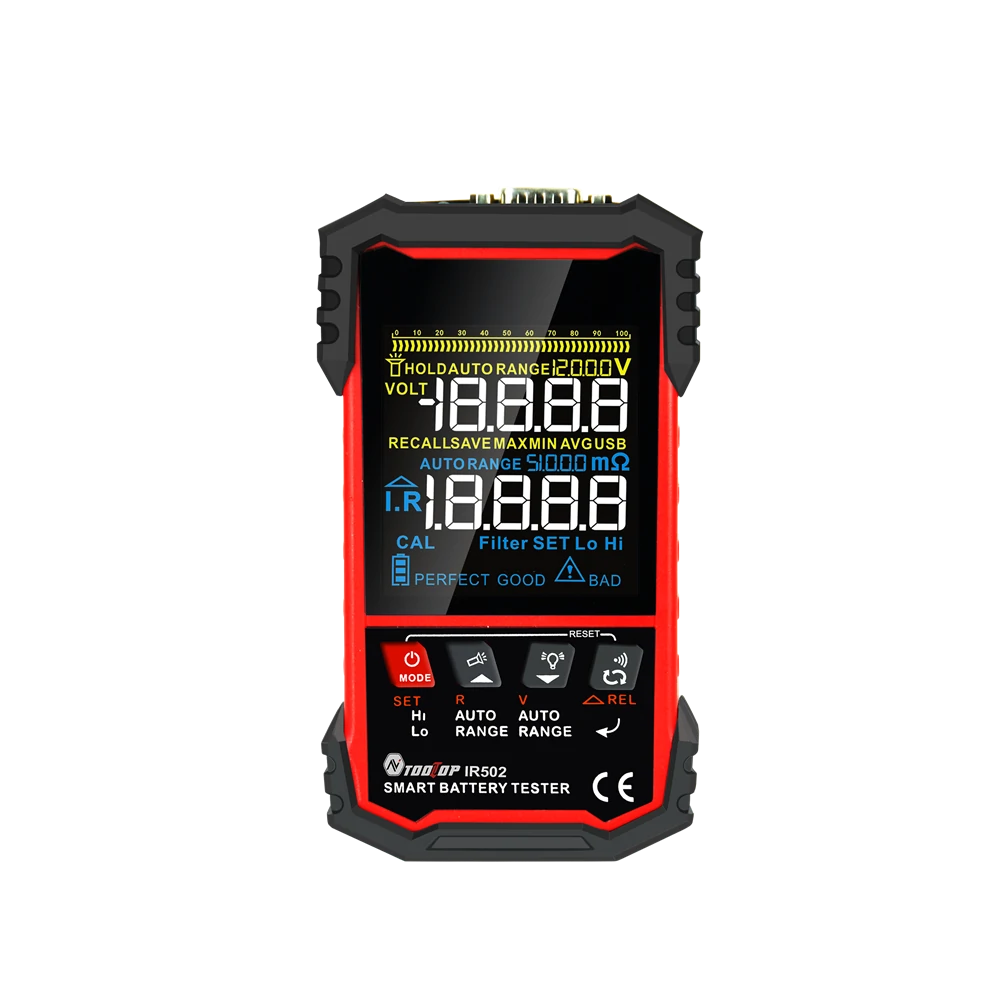

Type B: IR502

  • 1 x IR502 Battery Tester
  • 1 x English User Manual
  • 1 x Charging Cable
  • 1 x Storage Cloth Bag
  • 1 x Color Package Box
