MUSTOOL MDS120M Digital Oscilloscope, 120MHz Bandwidth, 500MS/s, 320x240 LCD, Waveform Storage, Backlit

Description:

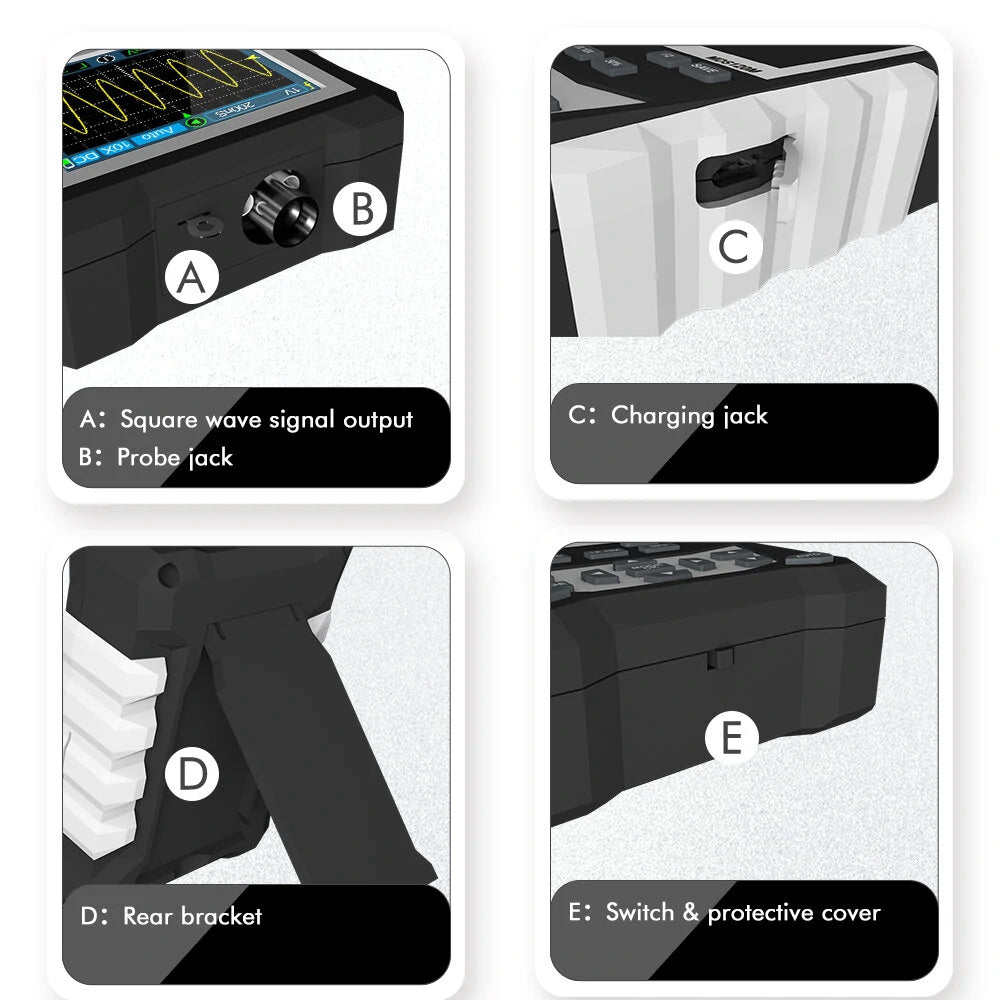

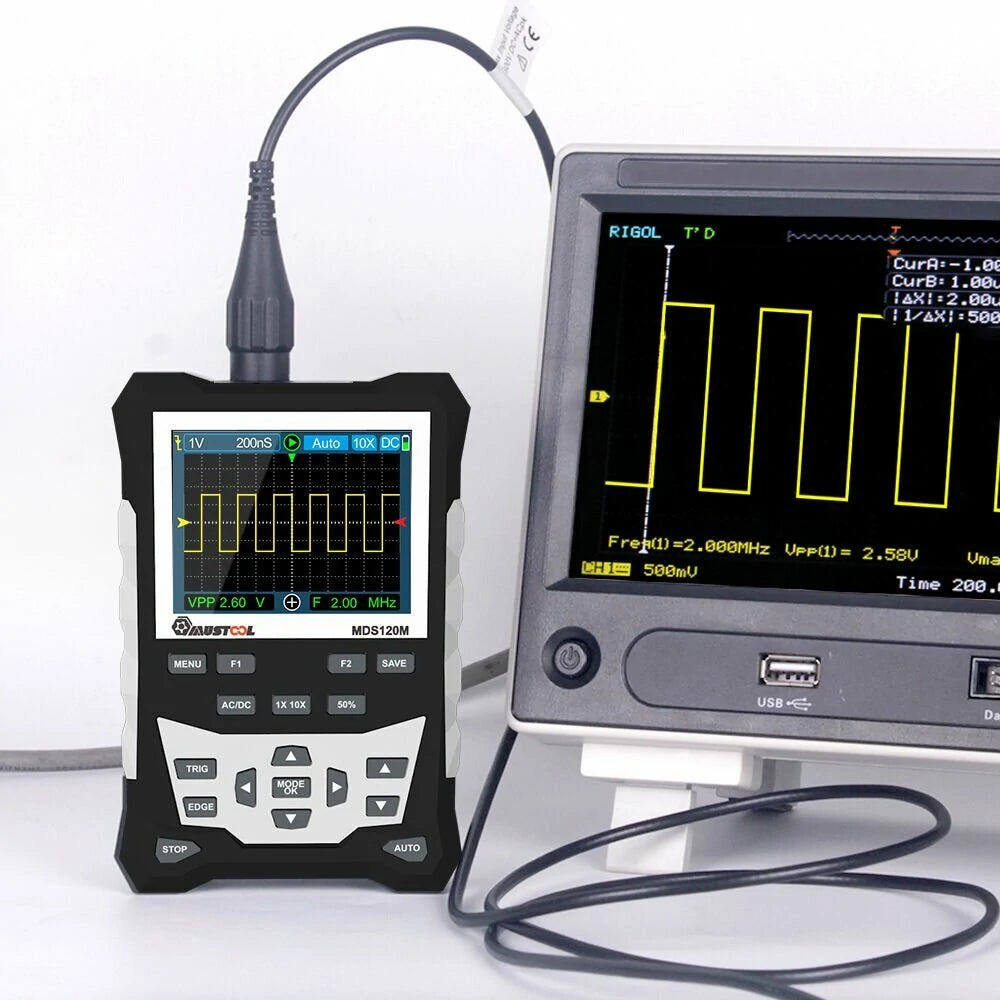

Introducing the professional oscilloscope crafted by the MUSTOOL Team. With a bandwidth of 120MHz and a sampling rate of 500MSps, this oscilloscope delivers exceptional performance. Not only does it function as an oscilloscope, but it also features four square wave signal output speeds: 1kHz, 10kHz, 100kHz, and 1MHz.

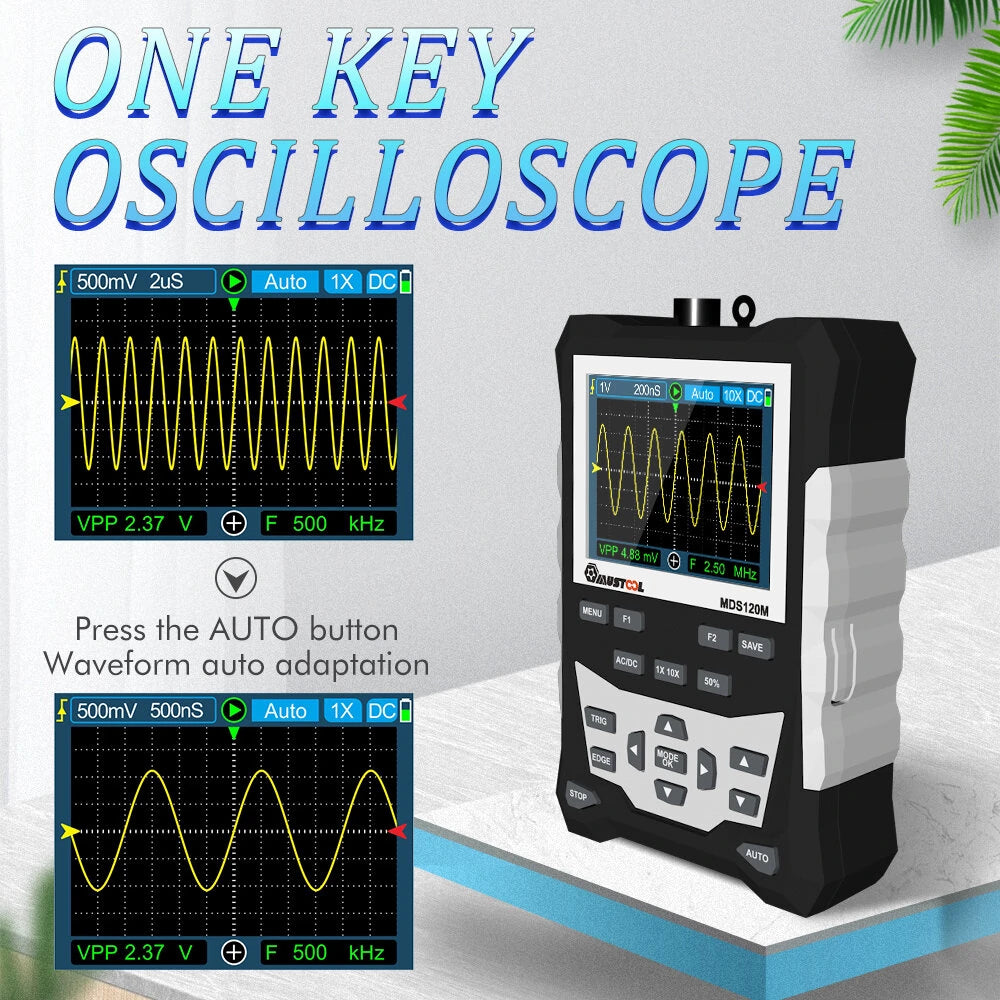

This portable, hand-held device provides a battery life of up to 6 hours. It includes a one-touch automatic waveform measurement feature and comes equipped with one X1/X10 oscilloscope probe.

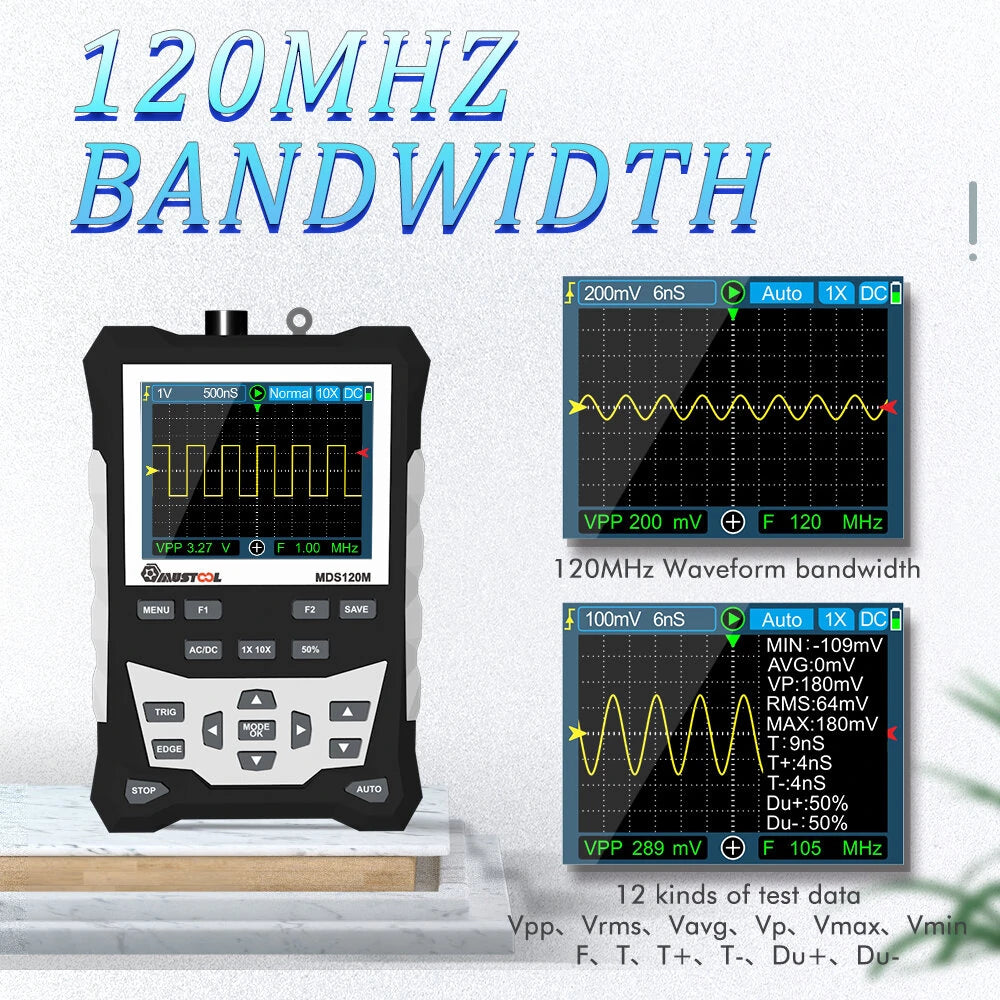

The oscilloscope is capable of measuring 12 different parameters, including Vpp, Vrms, Vavg, Vp, Vmax, Vmin, F, T, T+, T-, Du+, and Du-.

Specifications:

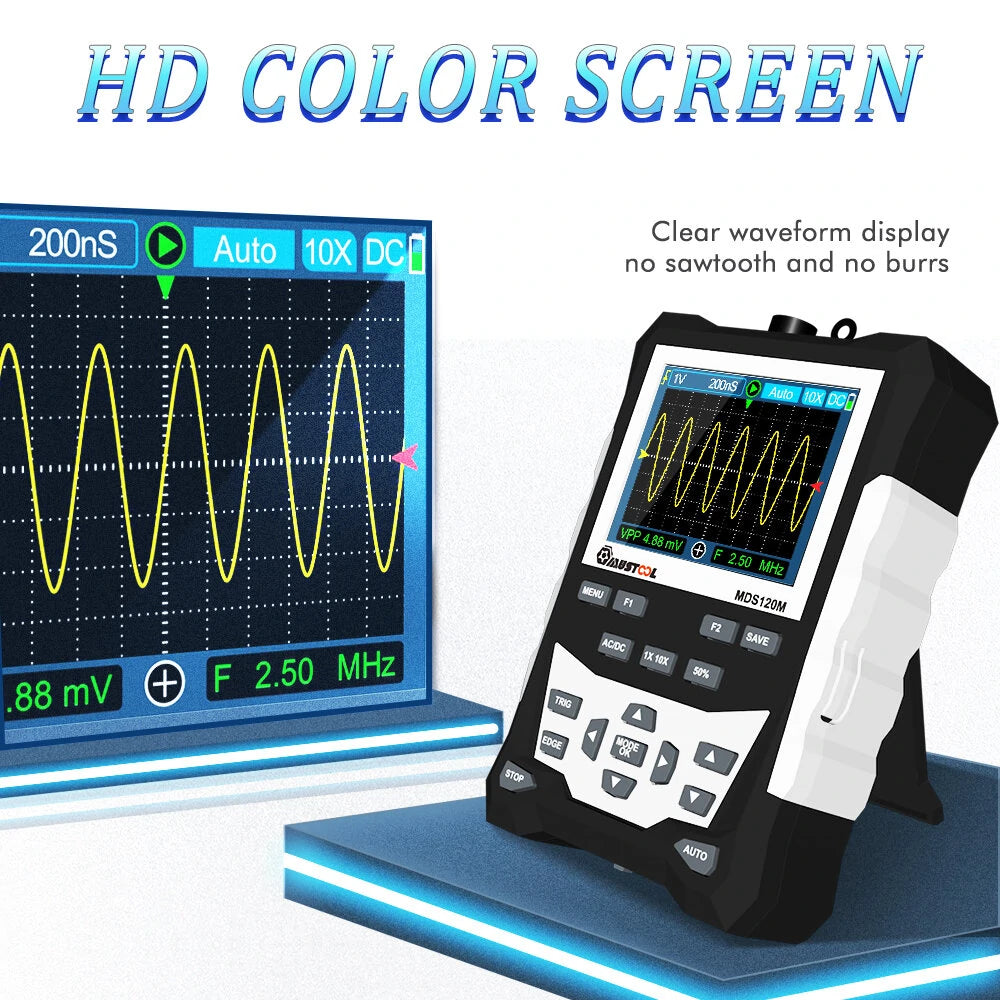

• Display: 320x240 LCD screen
• Display Area: 50mm x 40mm
• Backlight: White, brightness adjustable
• Impedance: x1: 1MΩ / x10: 10MΩ
• Battery: 18650 lithium battery
• Auto Shutdown: No operation for 15 minutes
• Storage: Can store 2500 DSO waveforms

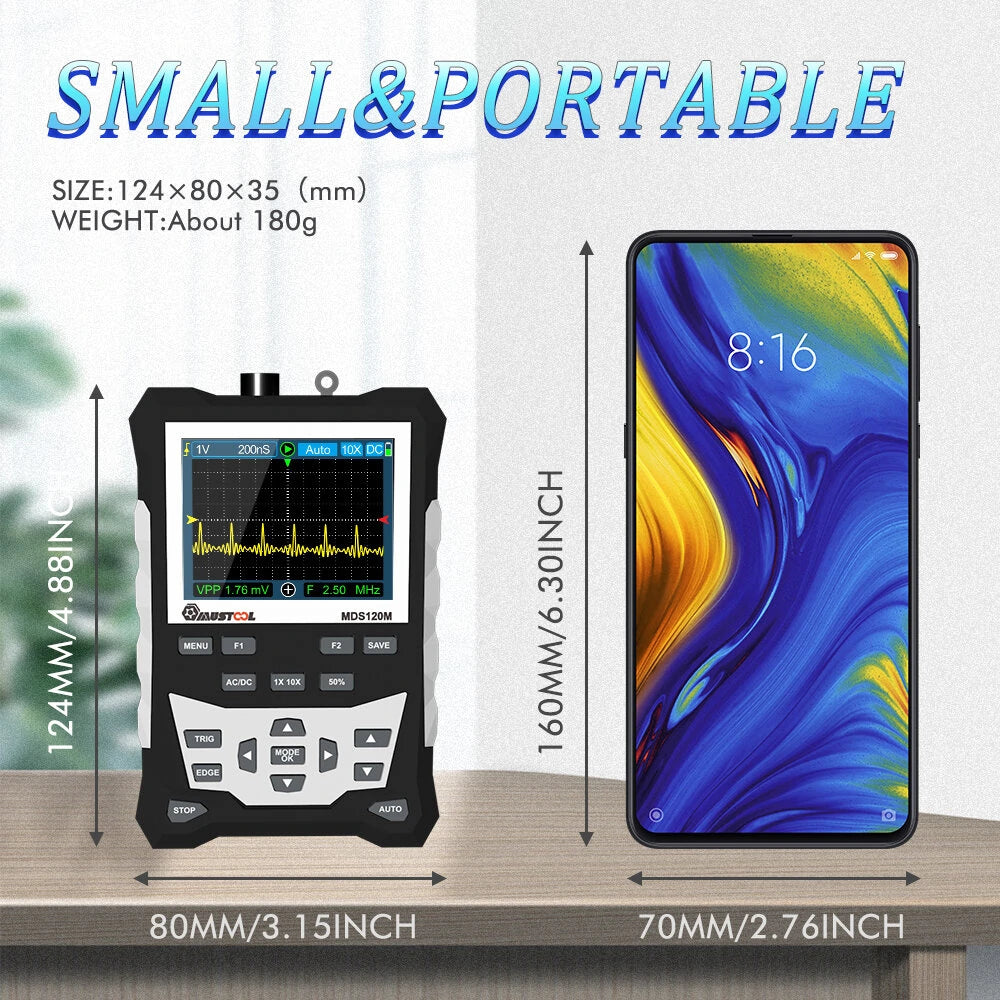

• Size: 124mm x 80mm x 35mm
• Operating Conditions: 0°C to +40°C
• Storage Conditions: -10°C to +60°C
• Analog Bandwidth: 120MHz
• Vertical Resolution: 8 bits
• Vertical Accuracy: ±(5% + 0.2div)
• Auto Zero Reference: During DC measurement
• Trigger Level: ±3.8div (0.1div per step)
• Trigger Position: ±6div (0.1div per step)
• Cursor Function: △V, △t, 1/△t
• Measurement Accuracy: ±(5% + 0.2div)
• Non-linearity: ±1 bit
• Coupling Method: DC/AC
• Division: Vertical: ±3.8, Horizontal: 12
• Time Base Range: 6ns/div to 50s/div
• Time Base Accuracy: ±(0.01% + 0.1div)
• Scan Mode: Auto/Single/Normal
• Trigger Slope: Rising/Falling
• Record Length: 12div
• Maximum Real-time Sampling Rate: 500MSps
• Auto Configuration: Automatically sets time base and vertical amplitude
• Automatic Measurement Function: Vpp, Vrms, Vavg, Vp, Vmax, Vmin, F, T, T+, T-, Du+, Du-
• Vertical Sensitivity Range: x1: 50mV/div to 10V/div; x10: 500mV/div to 100V/div

Package Includes:

• 1 x Oscilloscope
• 1 x Probe
• 1 x English Manual
• 1 x USB Cable
