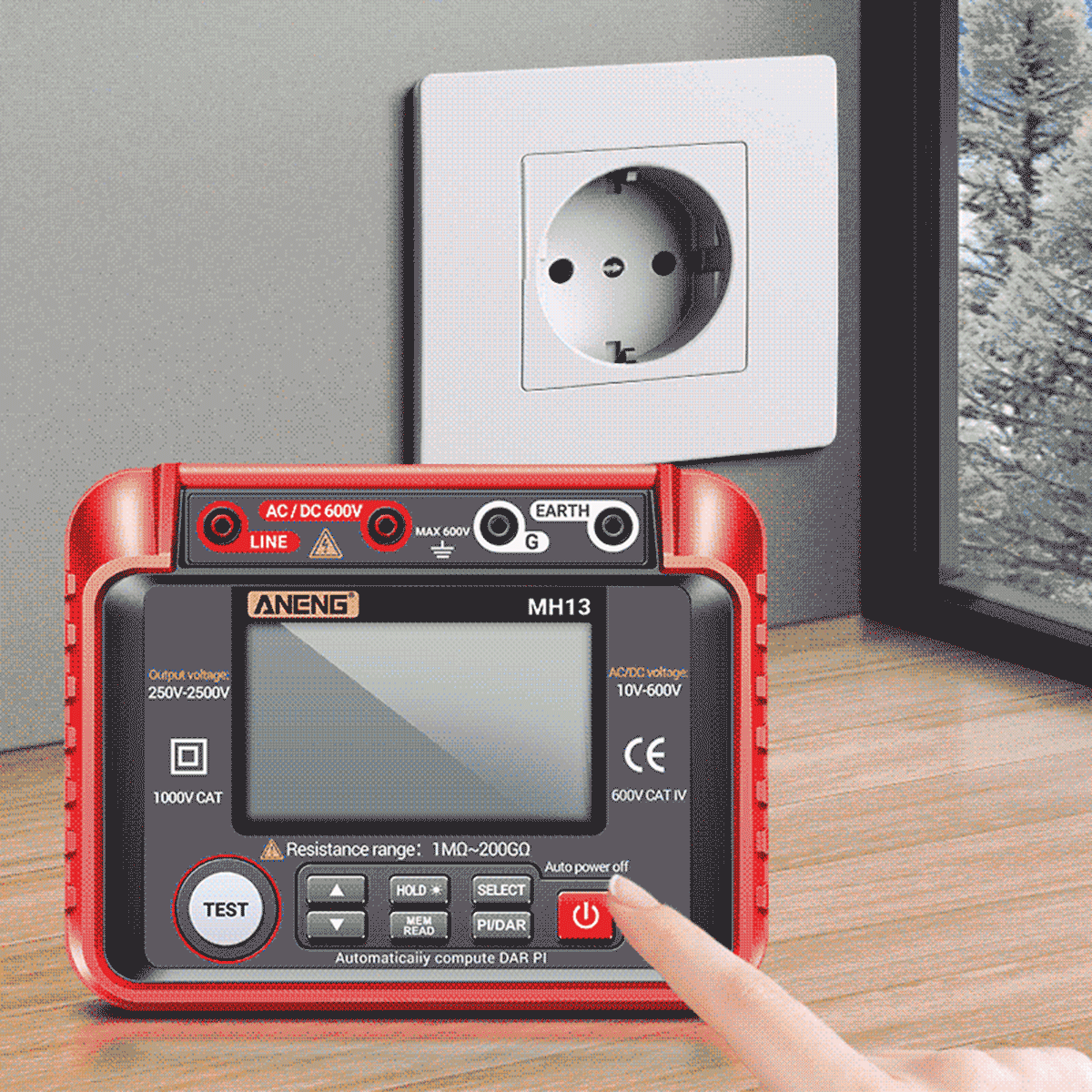

ANENG MH13 Digital Insulation Resistance Tester 250V-2500V, 1MΩ-200GΩ Megohm Meter, Auto Range, 2000 Counts LCD, 10V-600V AC/DC Voltmeter, 100 Data Storage

Product Features

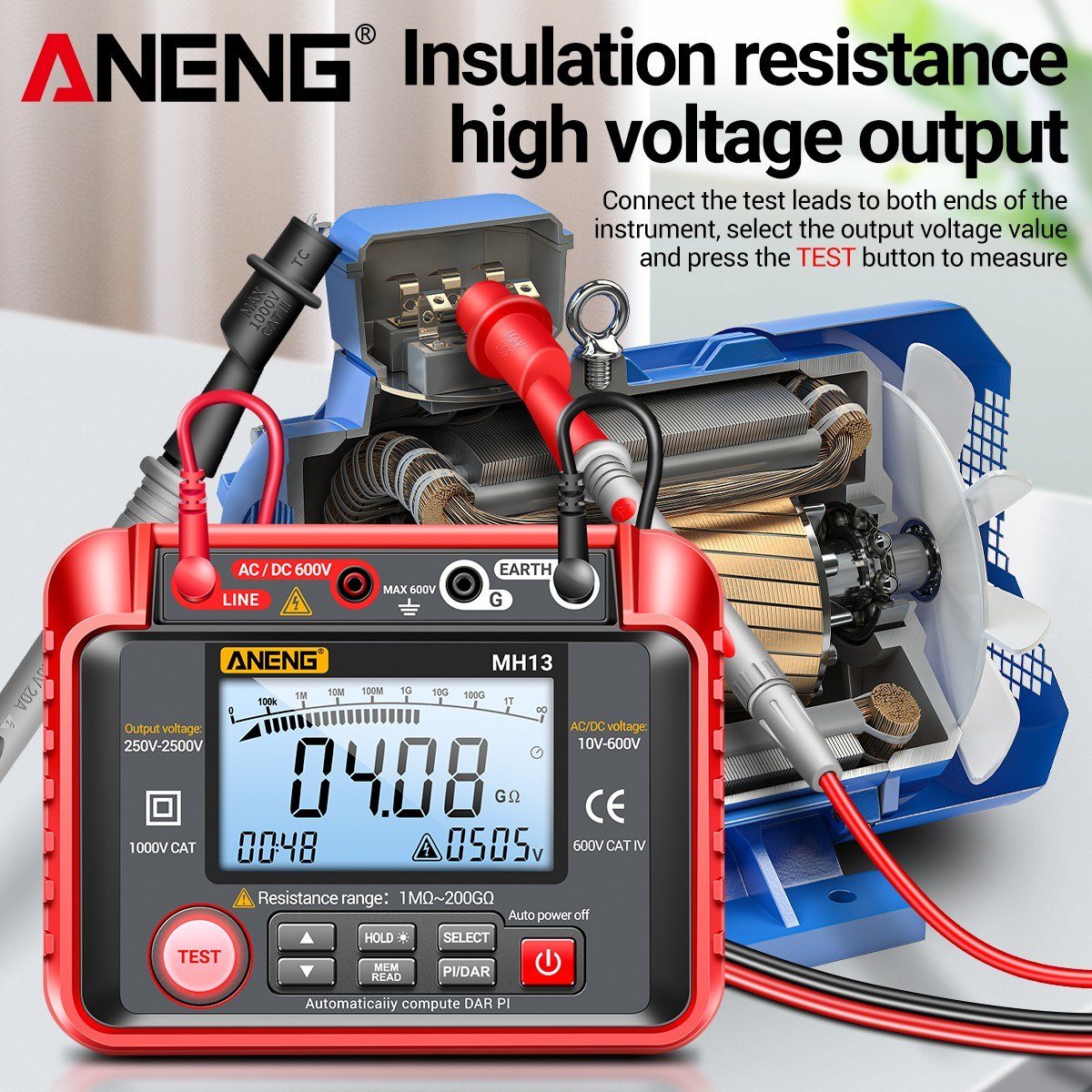

• Insulation Resistance Tester: This instrument features an automatic voltage release function, delivering high stability and reliability. It supports a maximum of 2000 counts, 100 groups of data storage, and offers a 1MΩ-200GΩ insulation resistance measuring range.

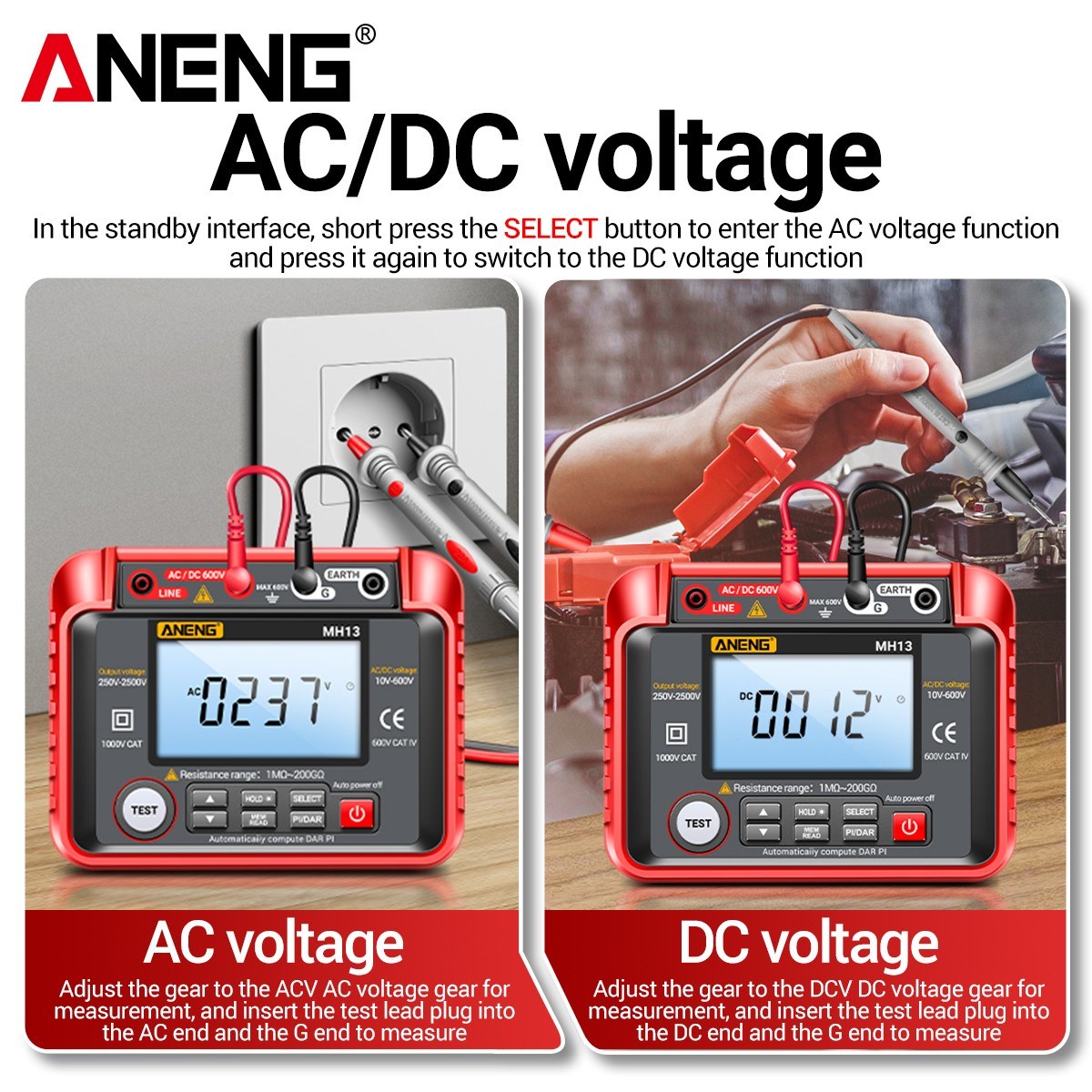

• AC/DC Voltage Measuring: With a variable rated output voltage, easily switch between 250V, 500V, 1000V, 2000V, and 2500V using the up/down button. Capable of measuring AC and DC voltage within 10V-600V. Battery-operated, with a large digital LCD backlit display for easy reading.
• Versatile Applications: Ideal for measuring the insulation resistance of electrical equipment and materials, including transformers, motors, cables, switches, and appliances. Designed for maintenance, repair, and testing tasks.
• Safe Operation & Portability: Equipped with high voltage and low battery indicators to ensure safe operation and timely battery replacements. The instrument boasts a fashionable design with a dustproof and moisture-proof construction, suited for outdoor use. Includes a zipper storage bag for easy portability.

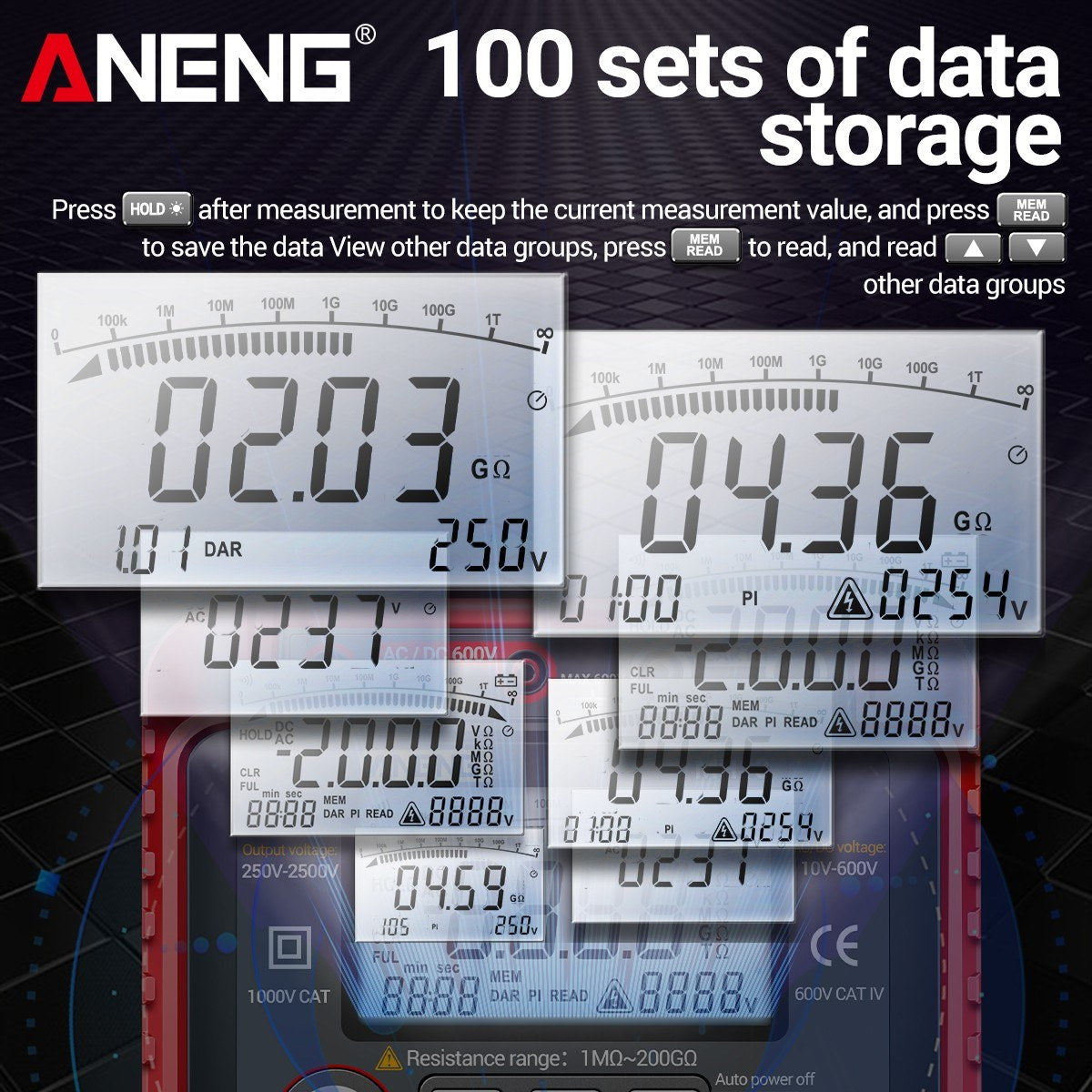

• Data Hold & Storage: Features a data hold function for convenient data review, with the ability to store up to 100 sets of measured values. Data browsing and deletion are also straightforward.

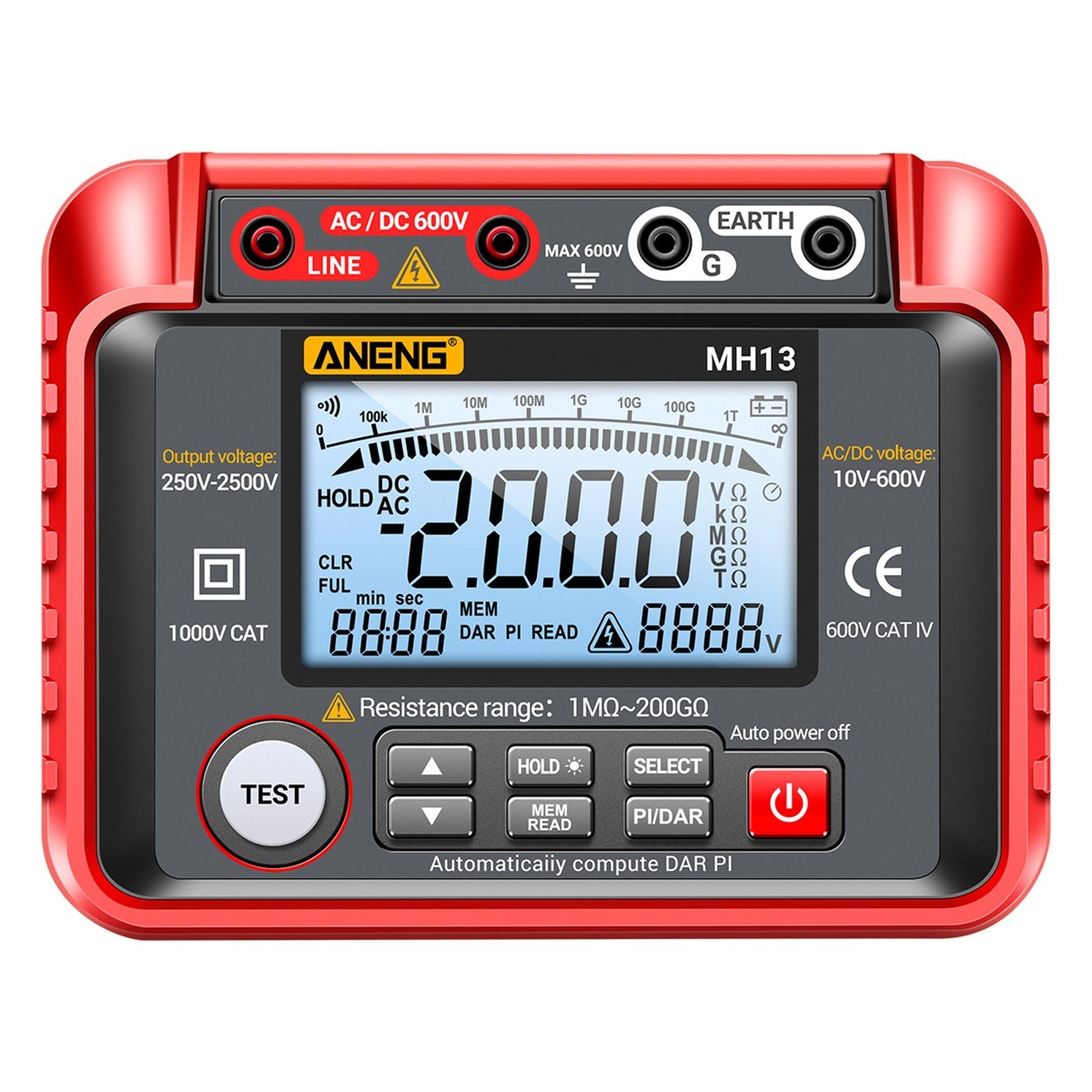

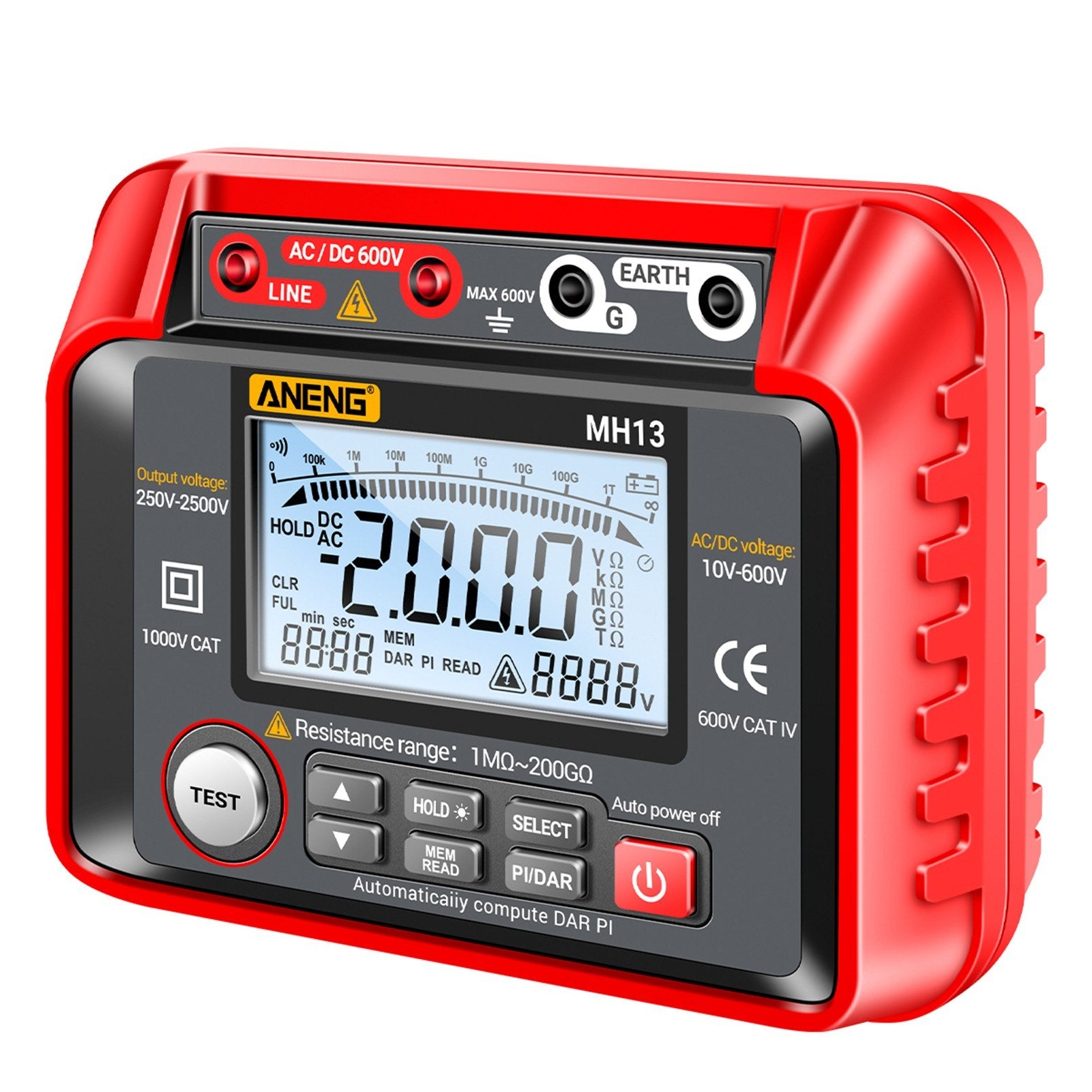

• Large LCD Screen & Easy Control: Operate seamlessly with soft push buttons and a large, bright backlit LCD display, making it easy to view measured data even in dimly-lit environments.

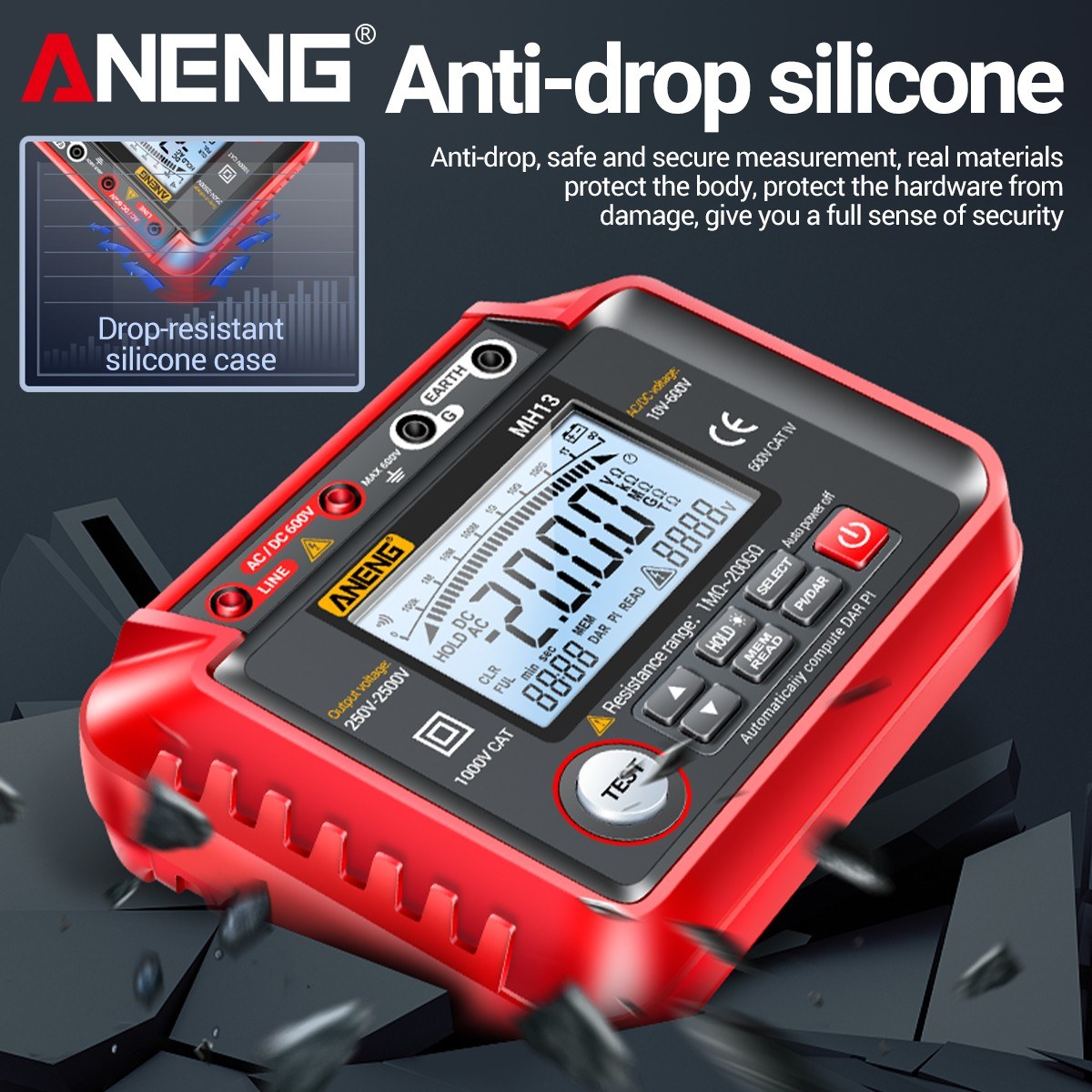

• Durable Silicone Protective Case: Comes with a soft silicone cover, offering protection against falls and scratches, allowing usage in various conditions without worries.

Specifications

• Output Voltage: 250V, 500V, 1000V, 2000V, 2500V
• Measurement Range:
  • 250V: 1MΩ-10GΩ
  • 500V/1000V: 2MΩ-20GΩ
  • 2000V/2500V: 5MΩ-40GΩ
• AC Voltage: 10V-600V
• DC Voltage: 10V-600V
• Resistance: 1MΩ-200GΩ

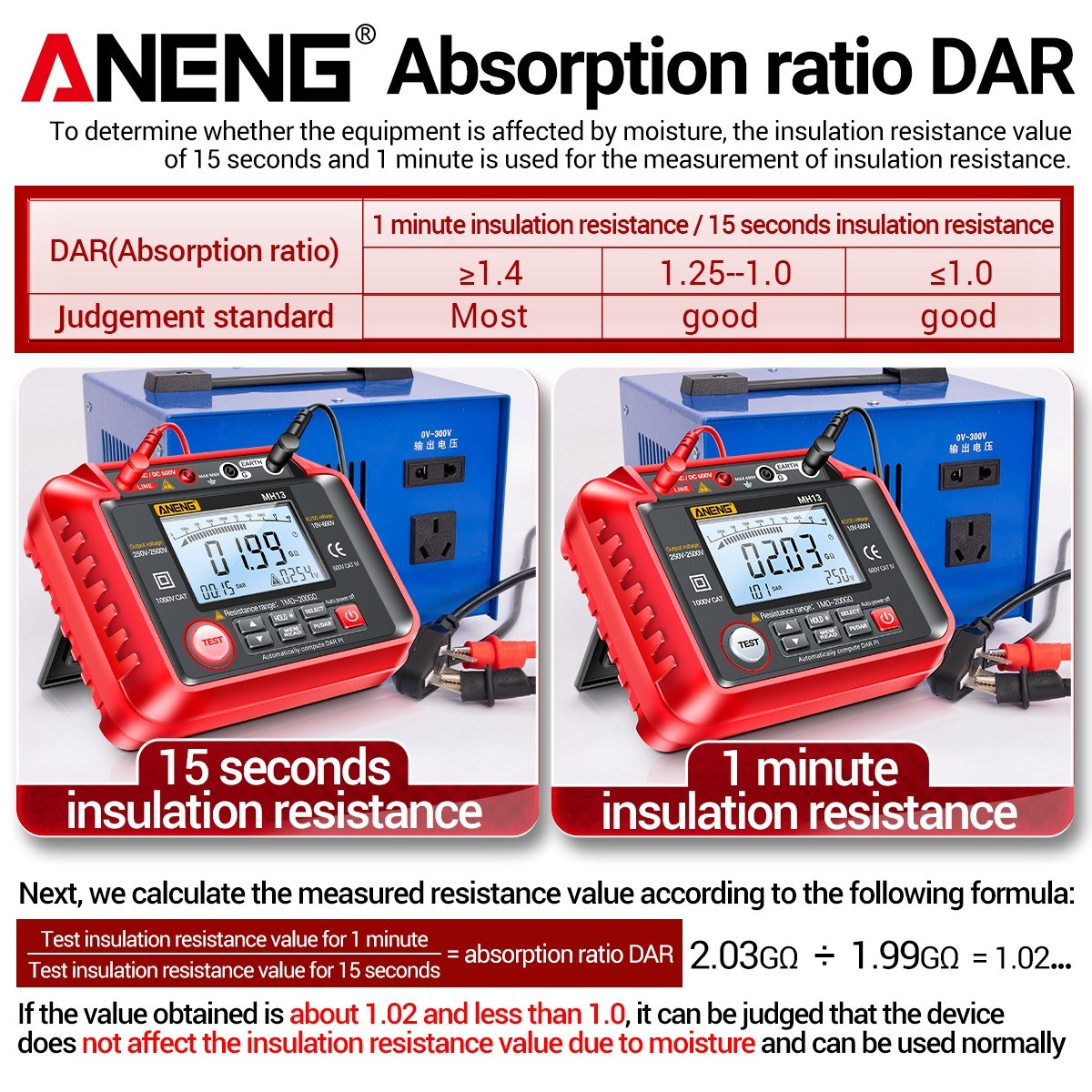

• Other Features: Absorption Ratio, Polarization Index, Automatic Discharge, Test Voltage Display, High Voltage Indication, Measurement Time Display
• Material: ABS
• Max Display: 2000 counts
• Data Storage: 100 sets
• Range: Auto range
• Operating Altitude: 2000m
• Operating Temperature: 0-35°C
• Storage Temperature: -10-50°C
• Storage Humidity: <75%RH

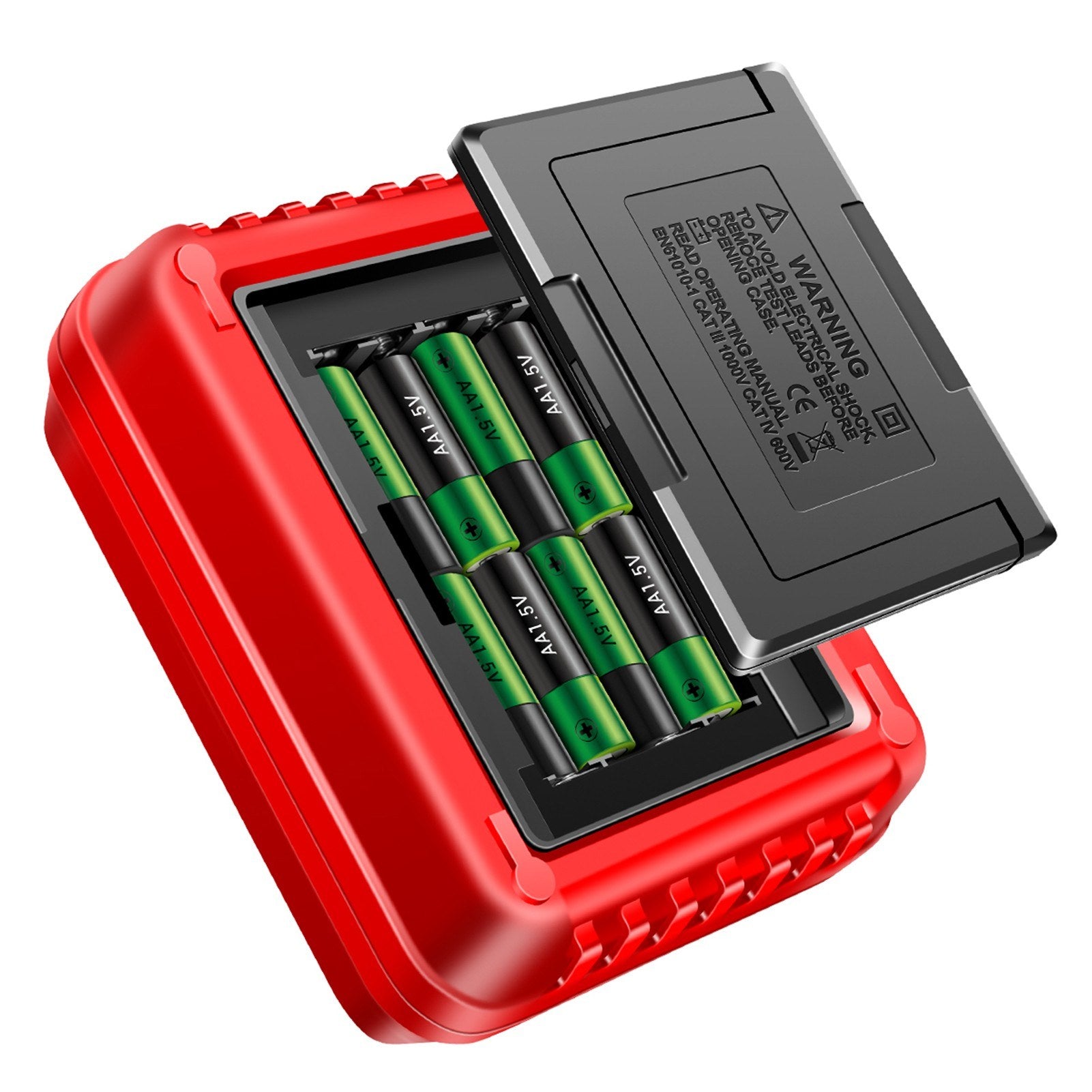

• Power Supply: 8 x 1.5V AA batteries (not included)

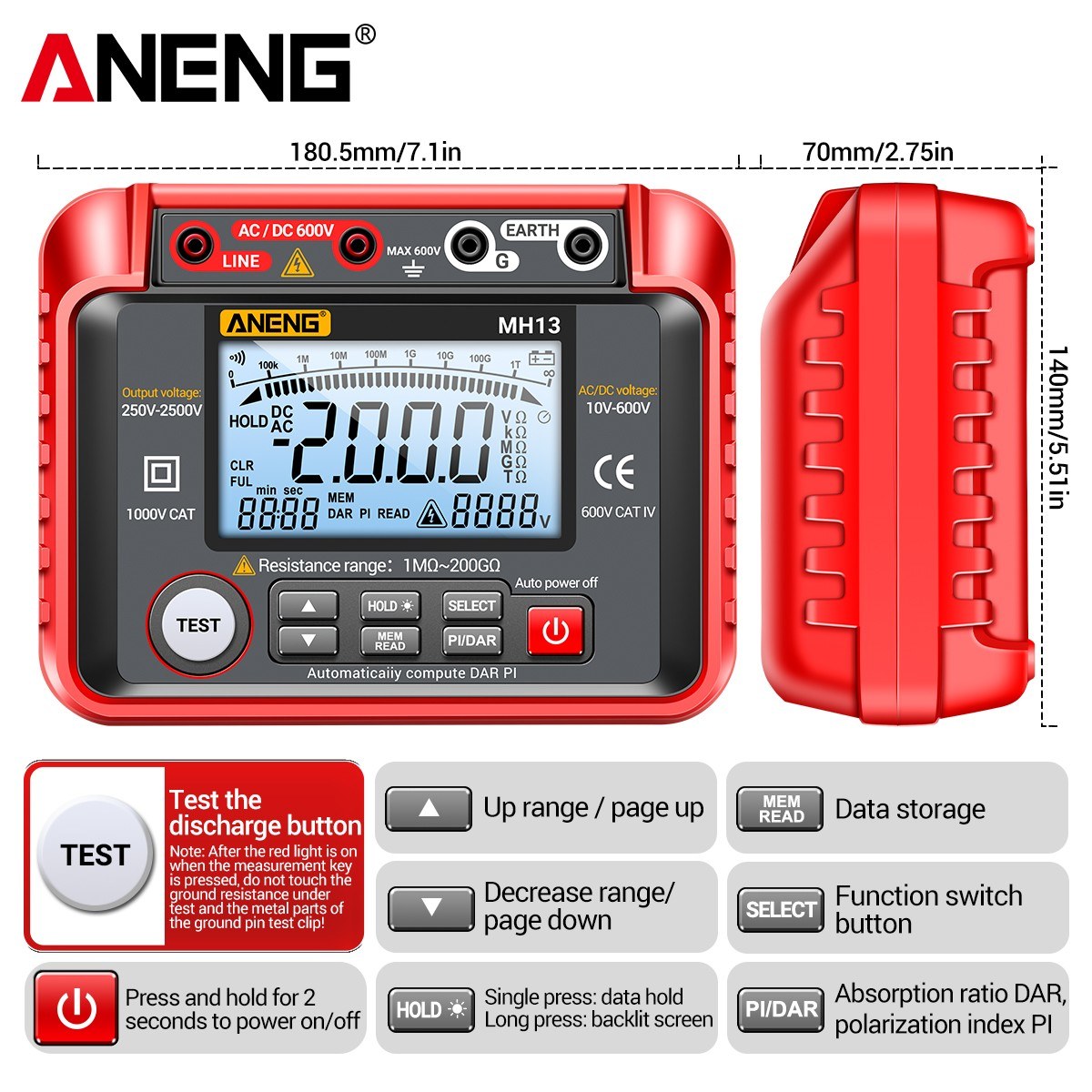

• Item Size: 180 x 140 x 70mm / 7.09 x 5.51 x 2.76in
• Item Weight: 640g / 22.58oz
• Package Weight: 978g / 34.50oz
• Package Size: 21 x 17.8 x 7.8cm / 8.27 x 7.01 x 3.07in

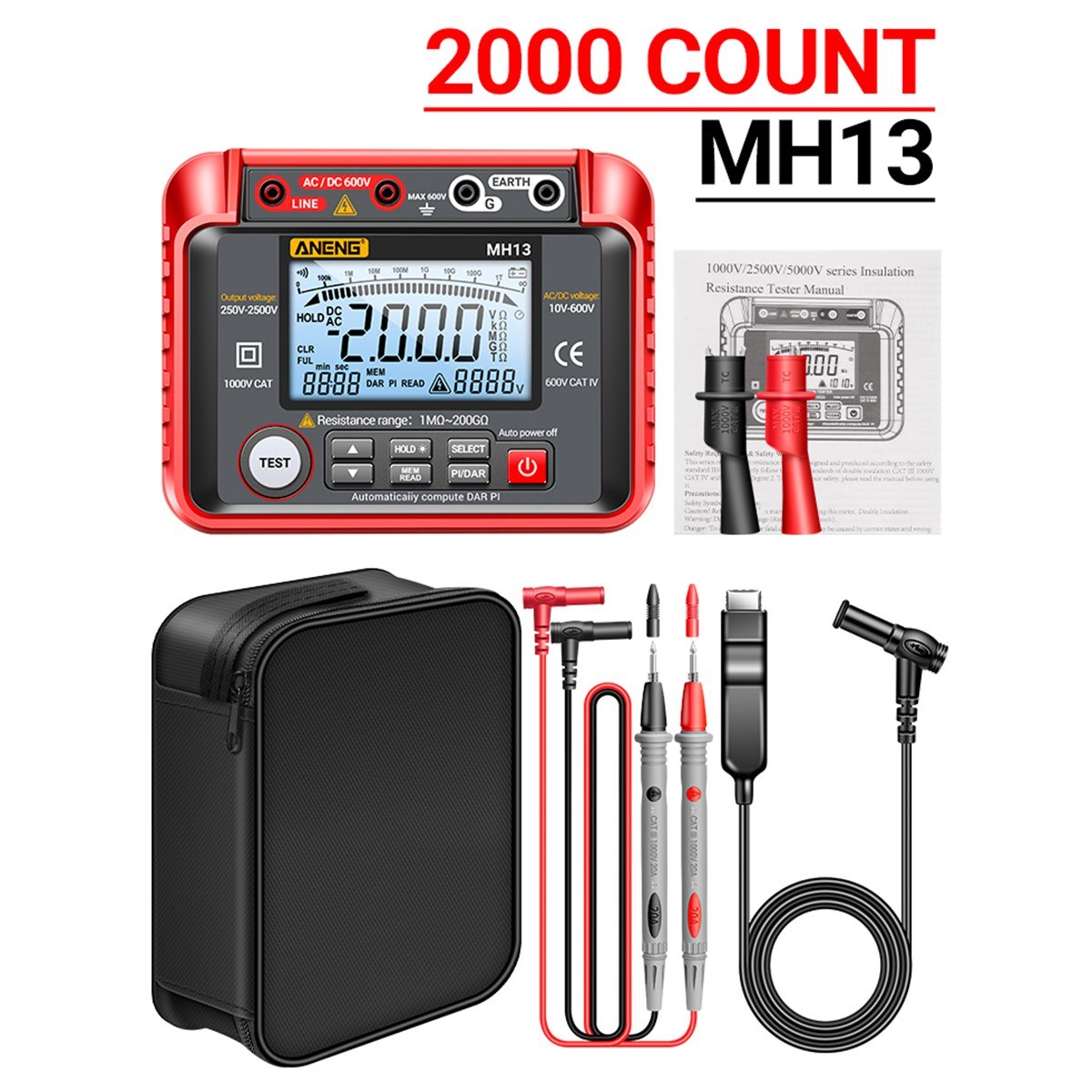

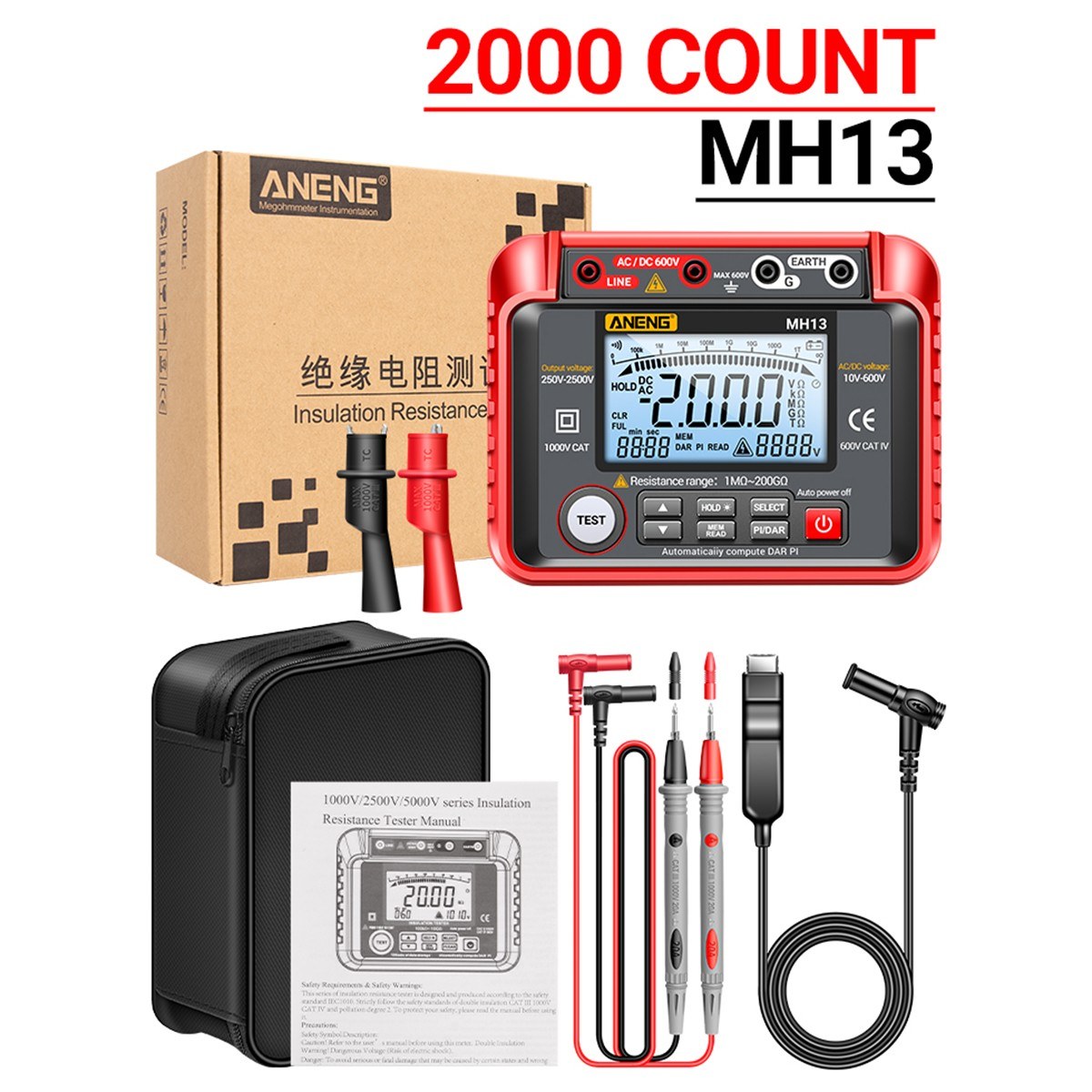

Package List

• 1 x Insulation Resistance Tester
• 1 x Signal Shielding Wire
• 2 x Test Lead
• 2 x Alligator Clip
• 1 x Storage Bag
• 1 x Manual (English)
