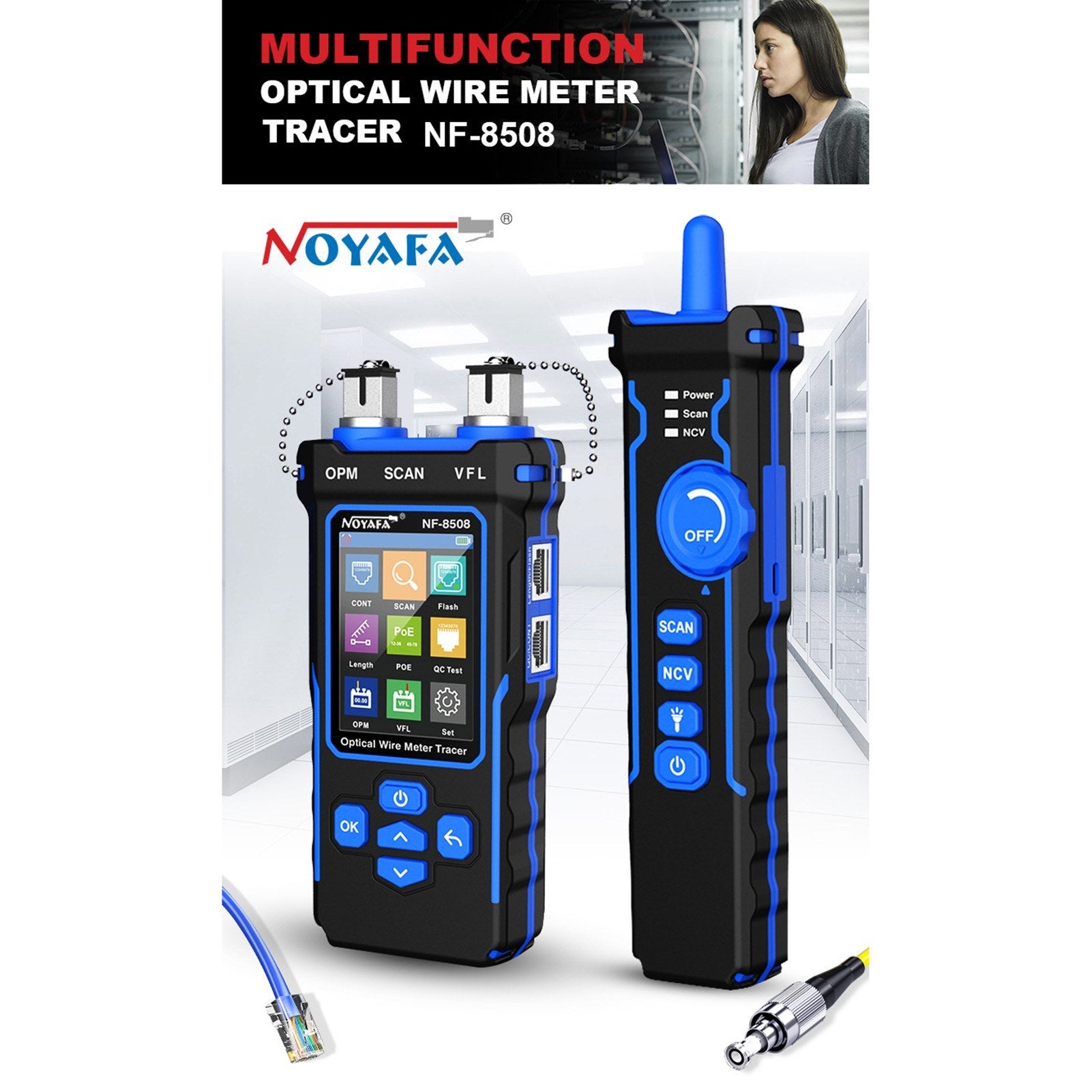

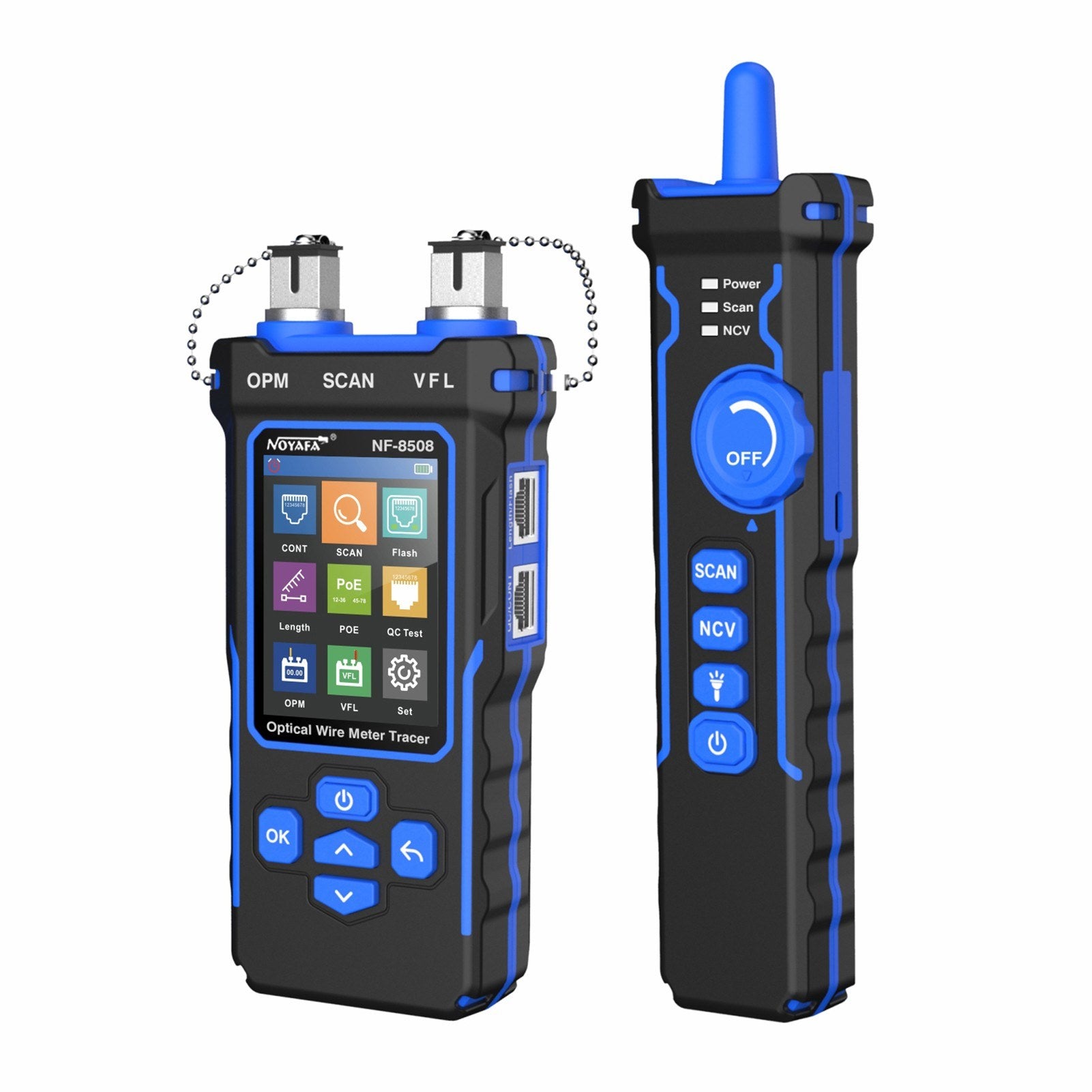

NOYAFA LCD Digital Optical Wire Tracer & Network Cable Tester

Product Features

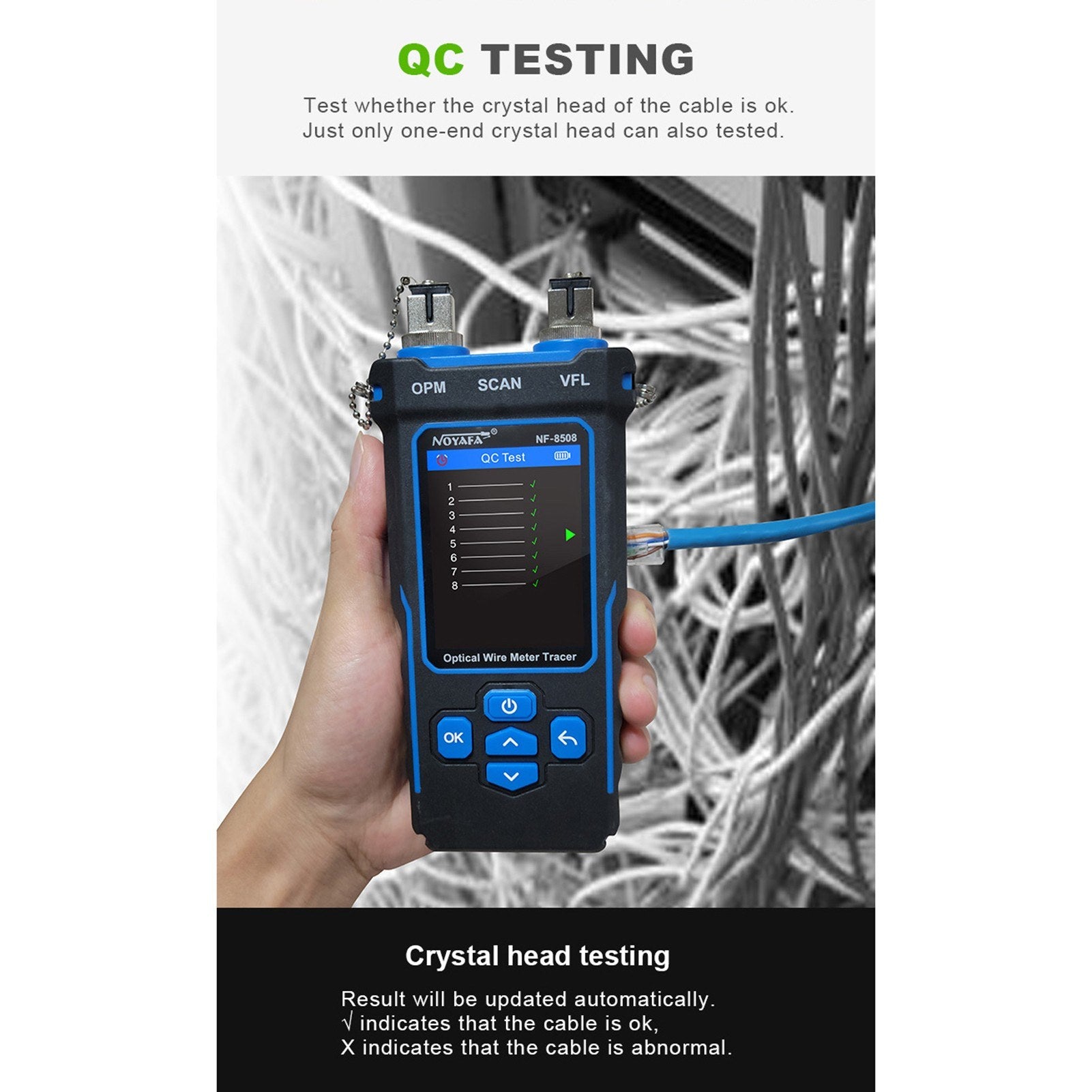

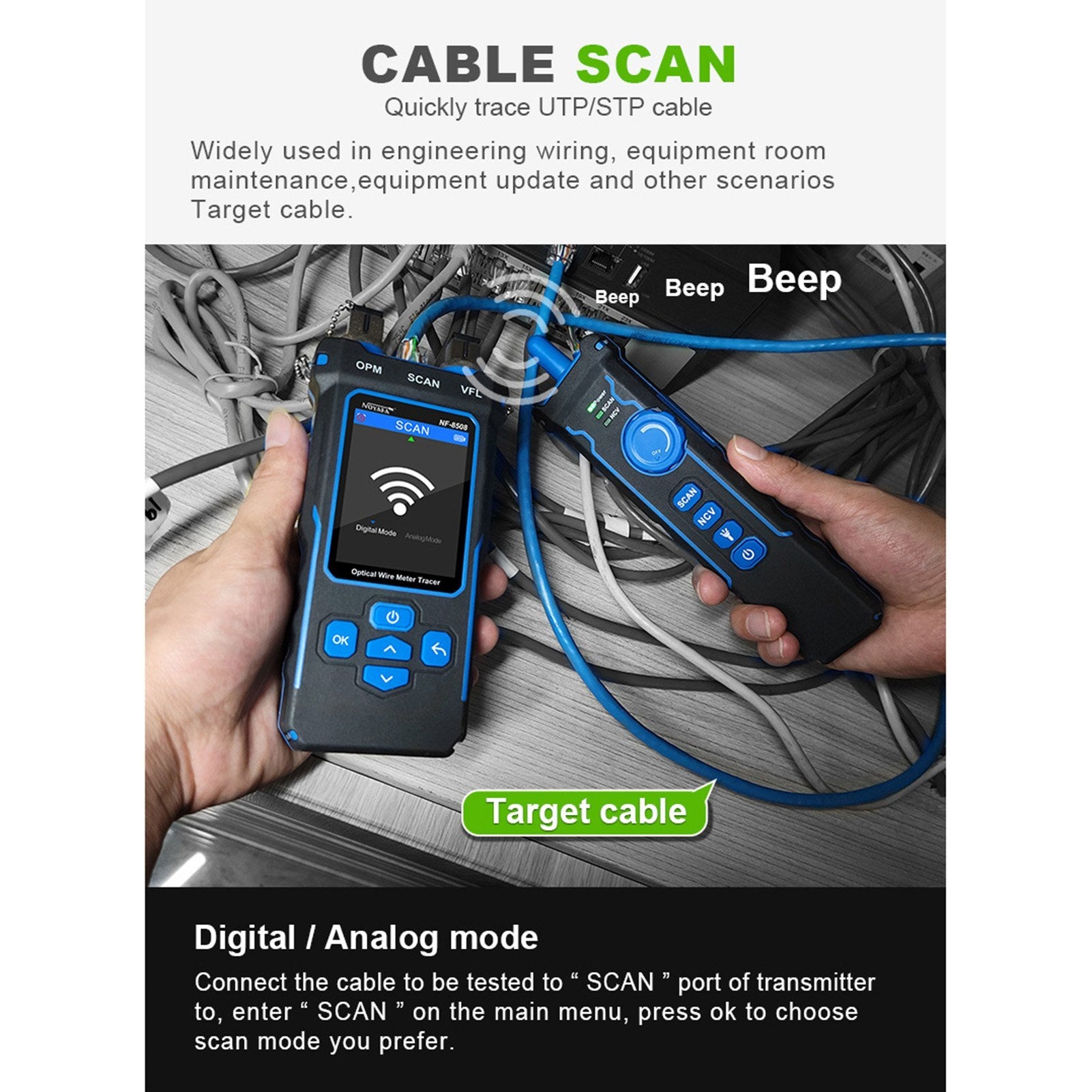

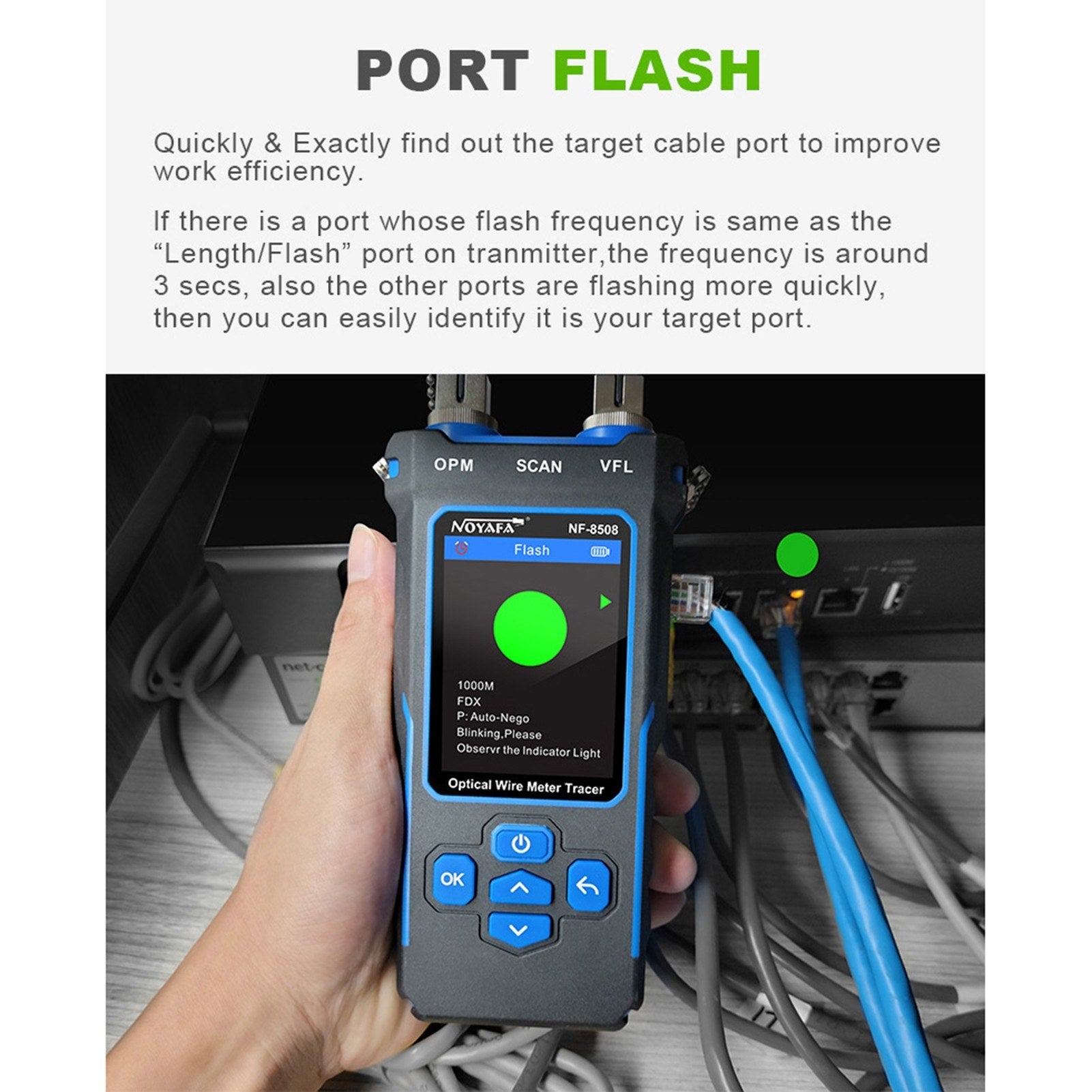

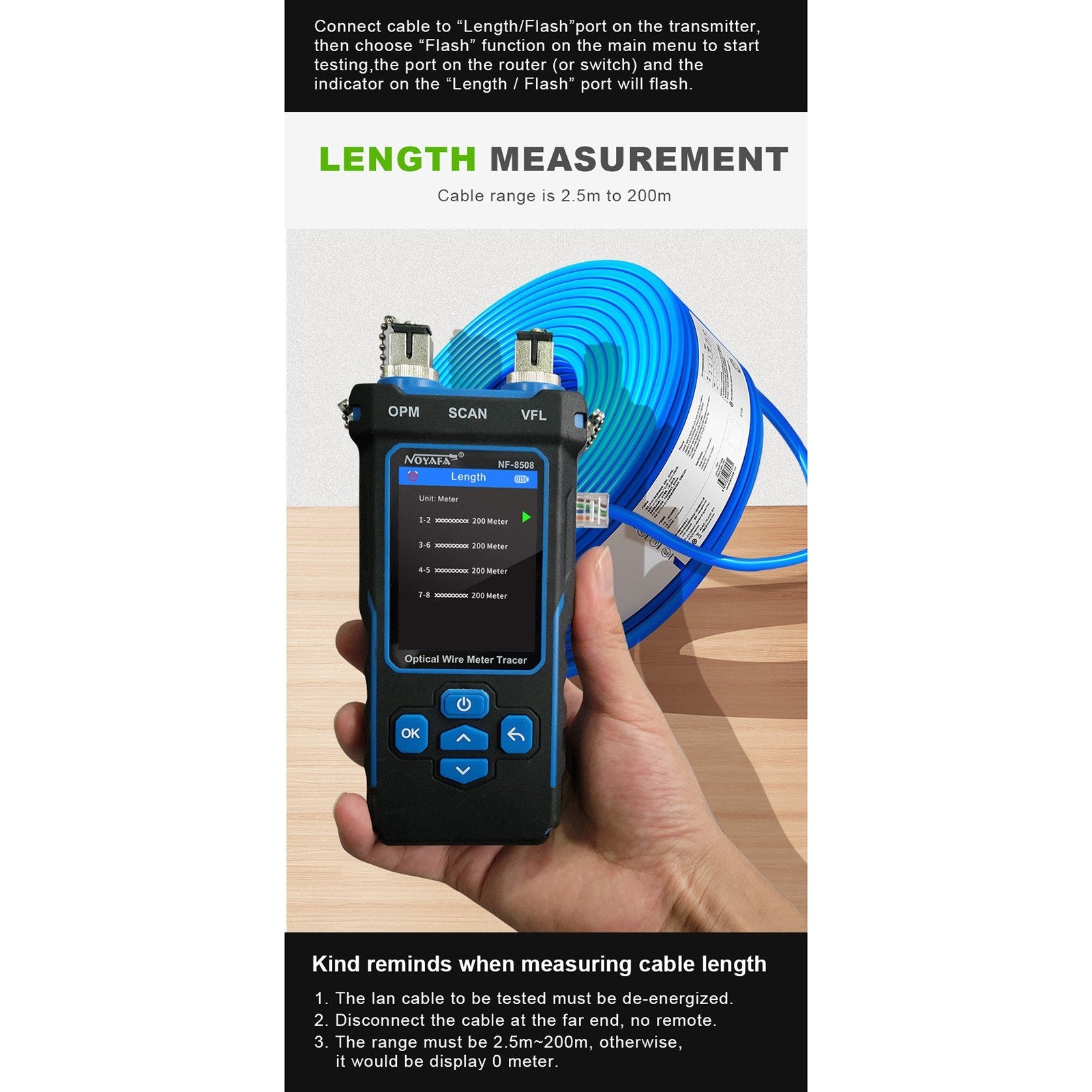

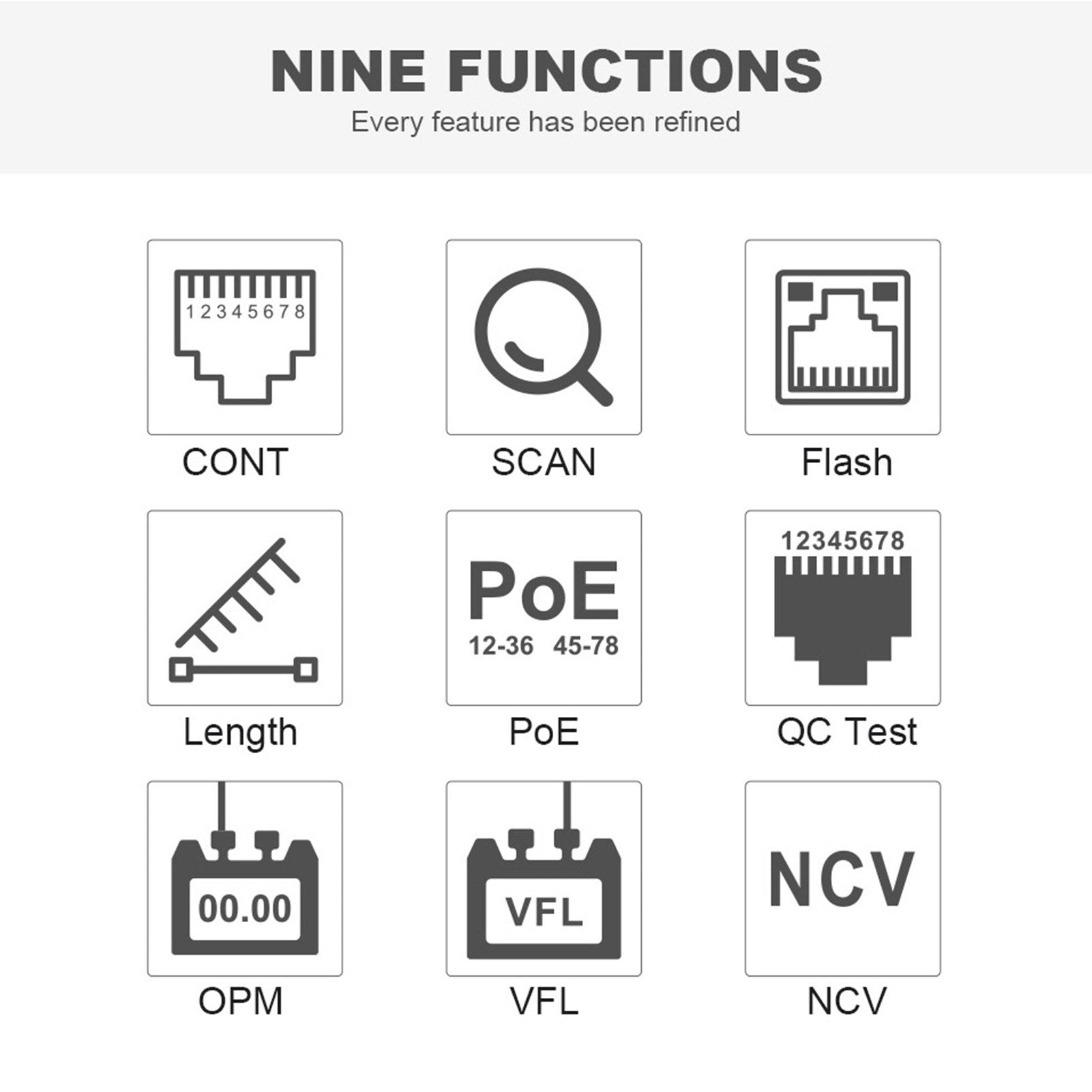

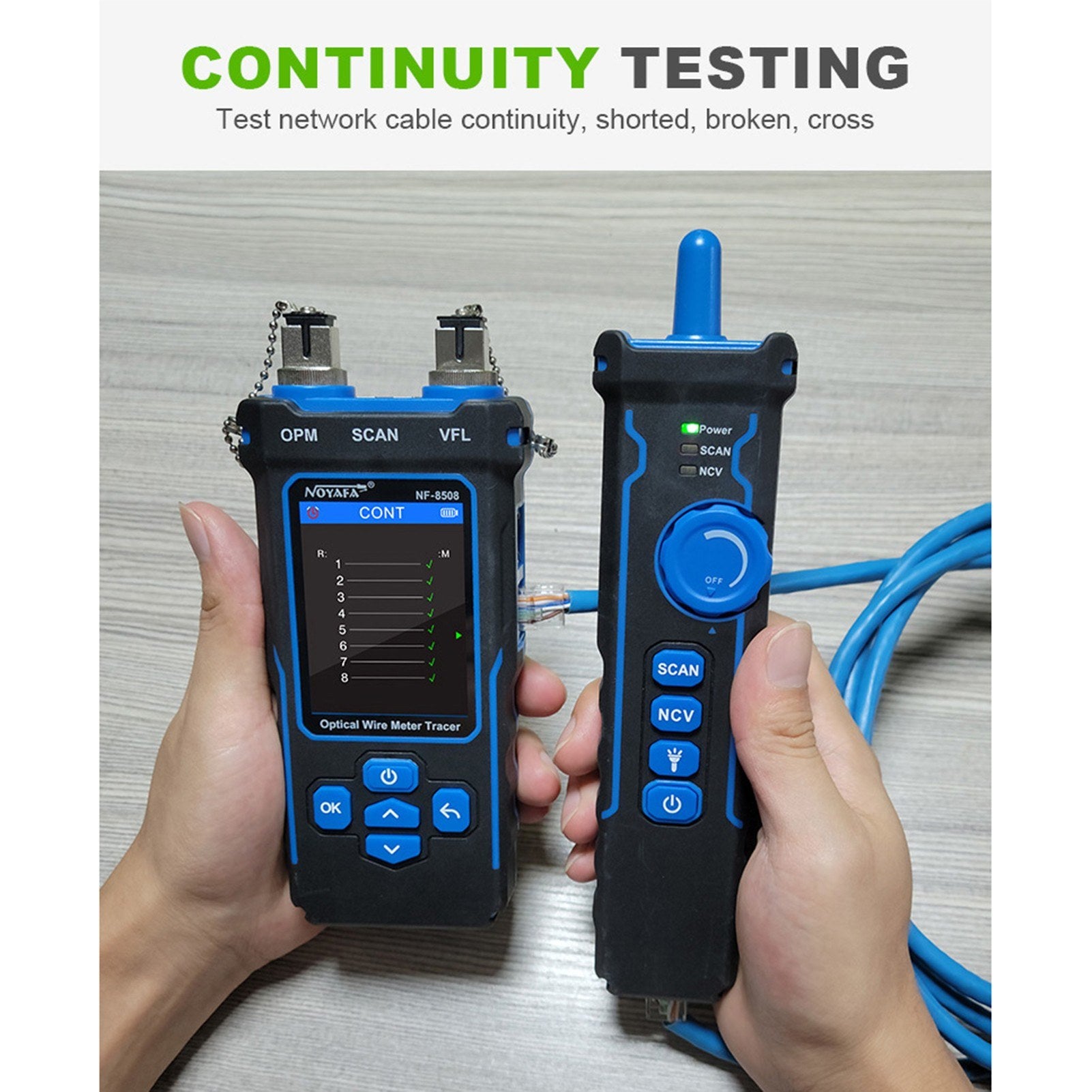

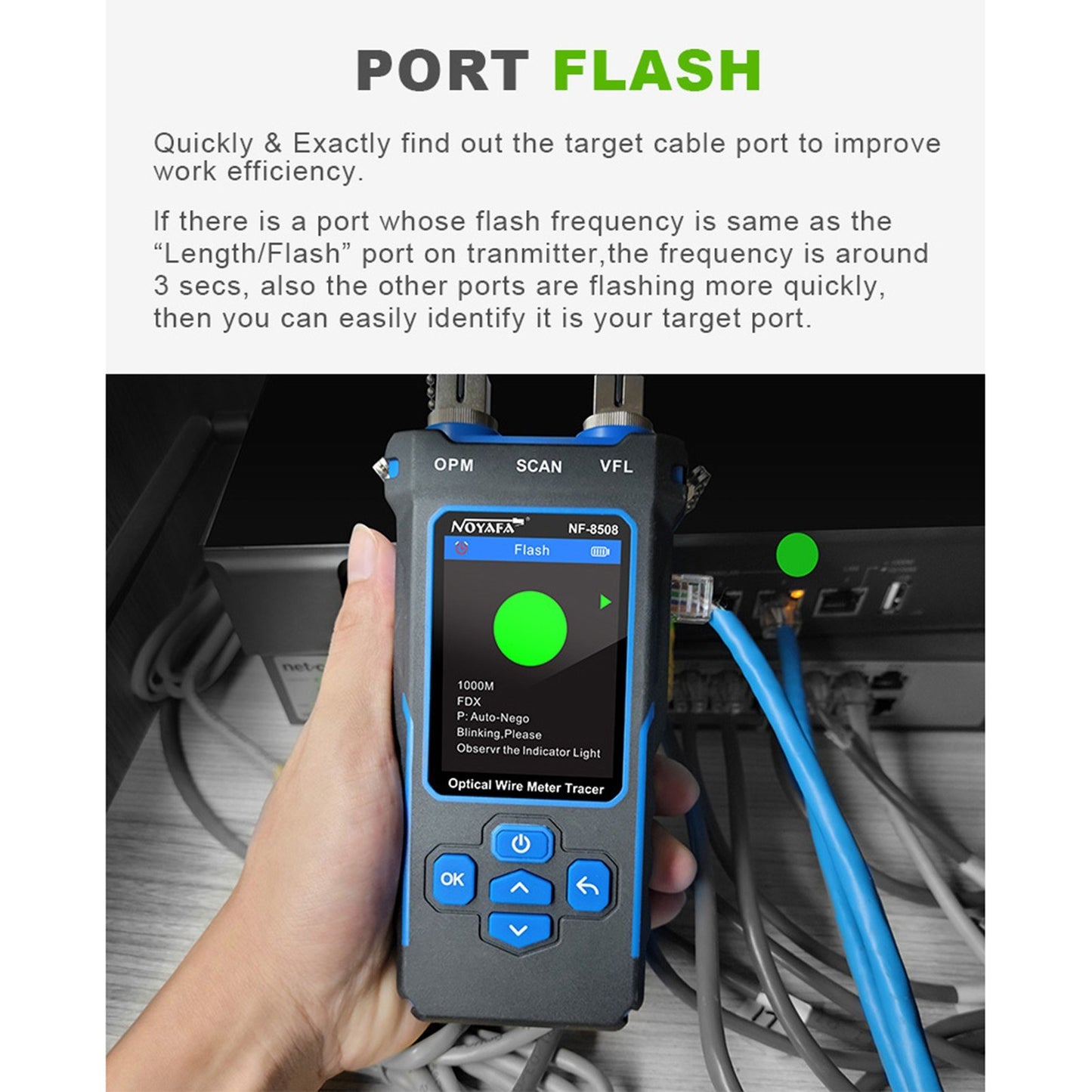

• Transmitter Testing Function: Includes capabilities such as cable continuity testing, cable scan, port flashing, cable length measurement, PoE testing, and QC testing for crystal heads. Also features Optical Power Meter (OPM) and Visual Fault Location (VFL) functions.

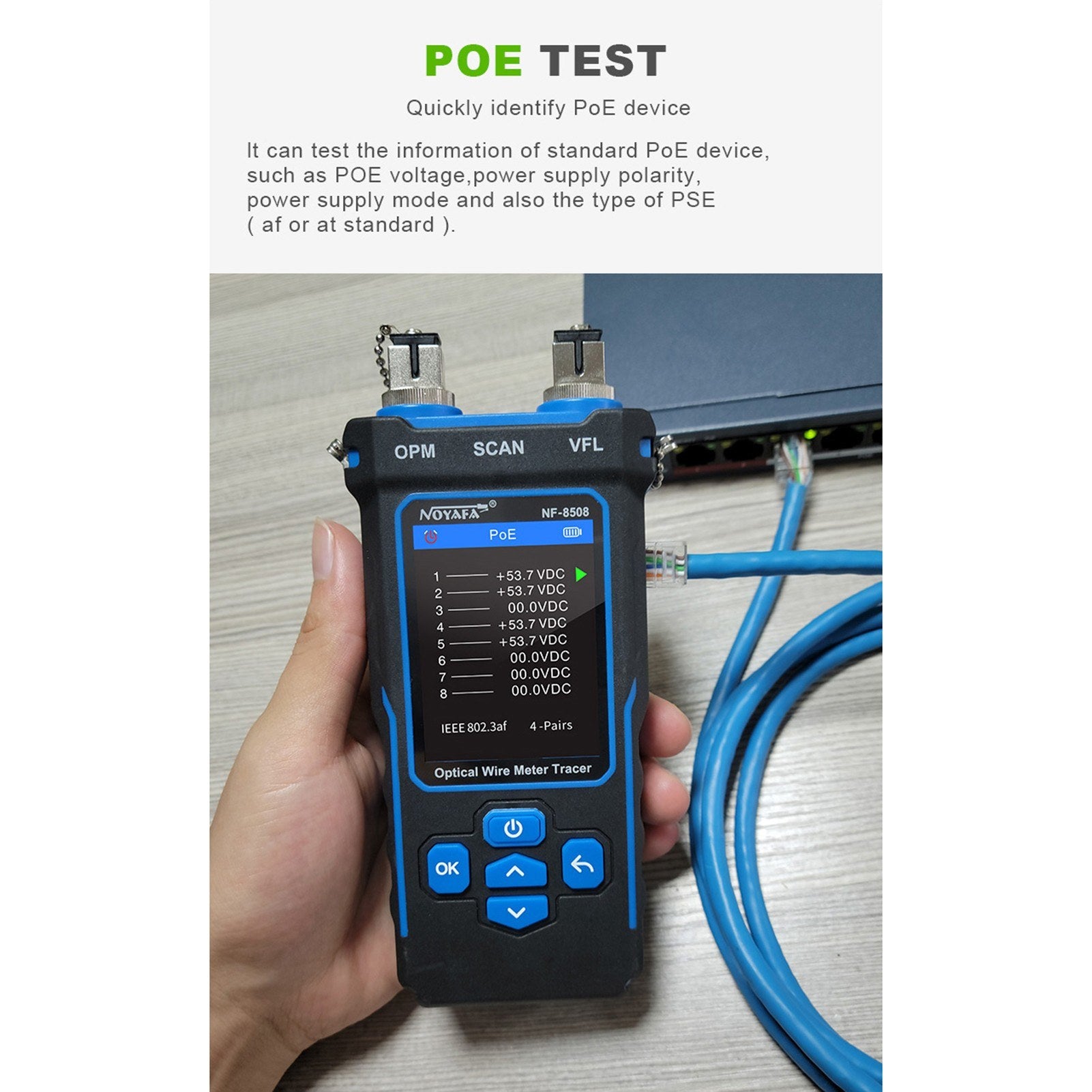

• PoE Test: Automatically identifies midspan, endspan, and power by 8 cores. It also distinguishes between standard and nonstandard devices.

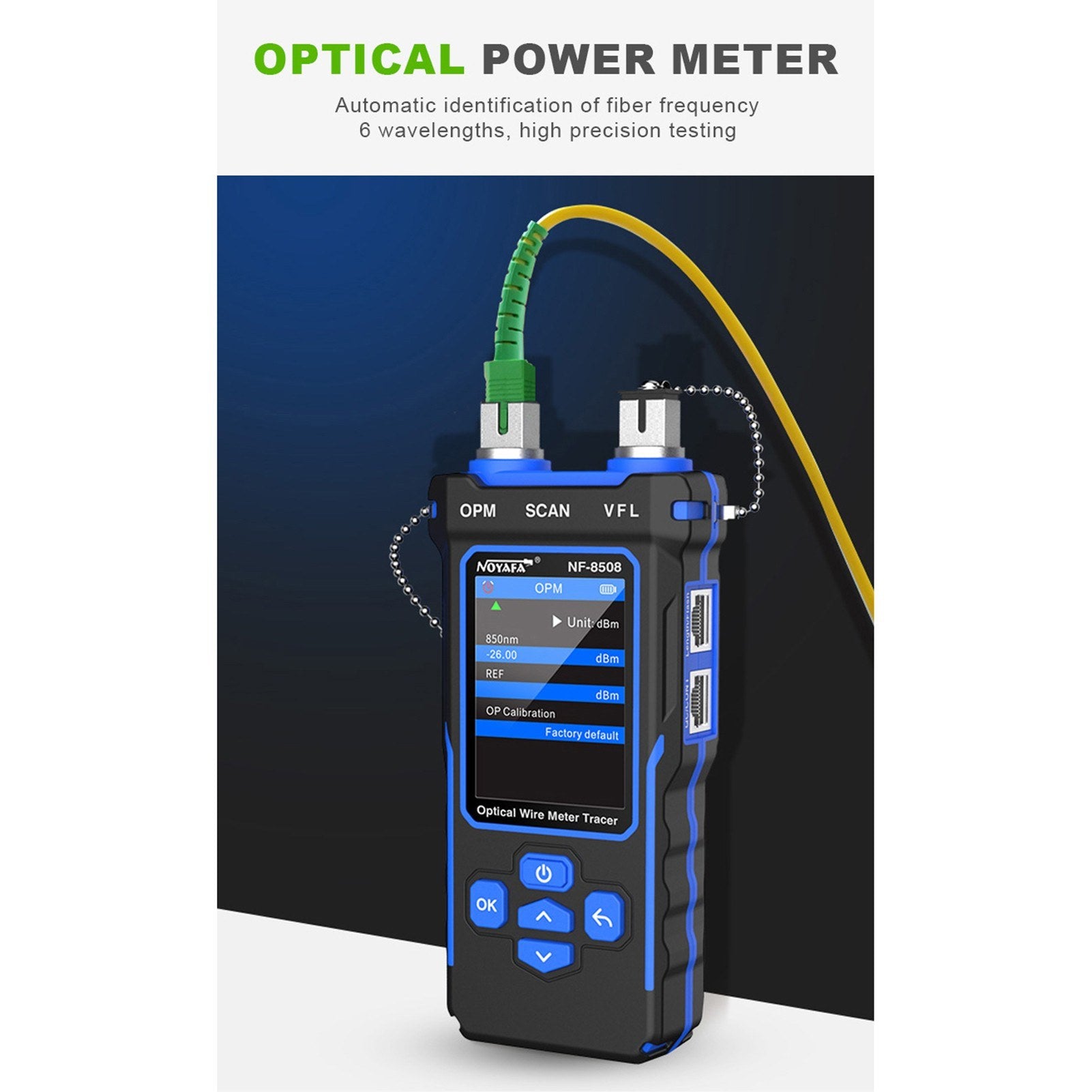

• Optical Power Meter: Offers wavelength switching for 850/1300/1310/1490/1550/1625nm, with units available in dBm, dB, mW, µW, and nW. Also includes a REF switch.

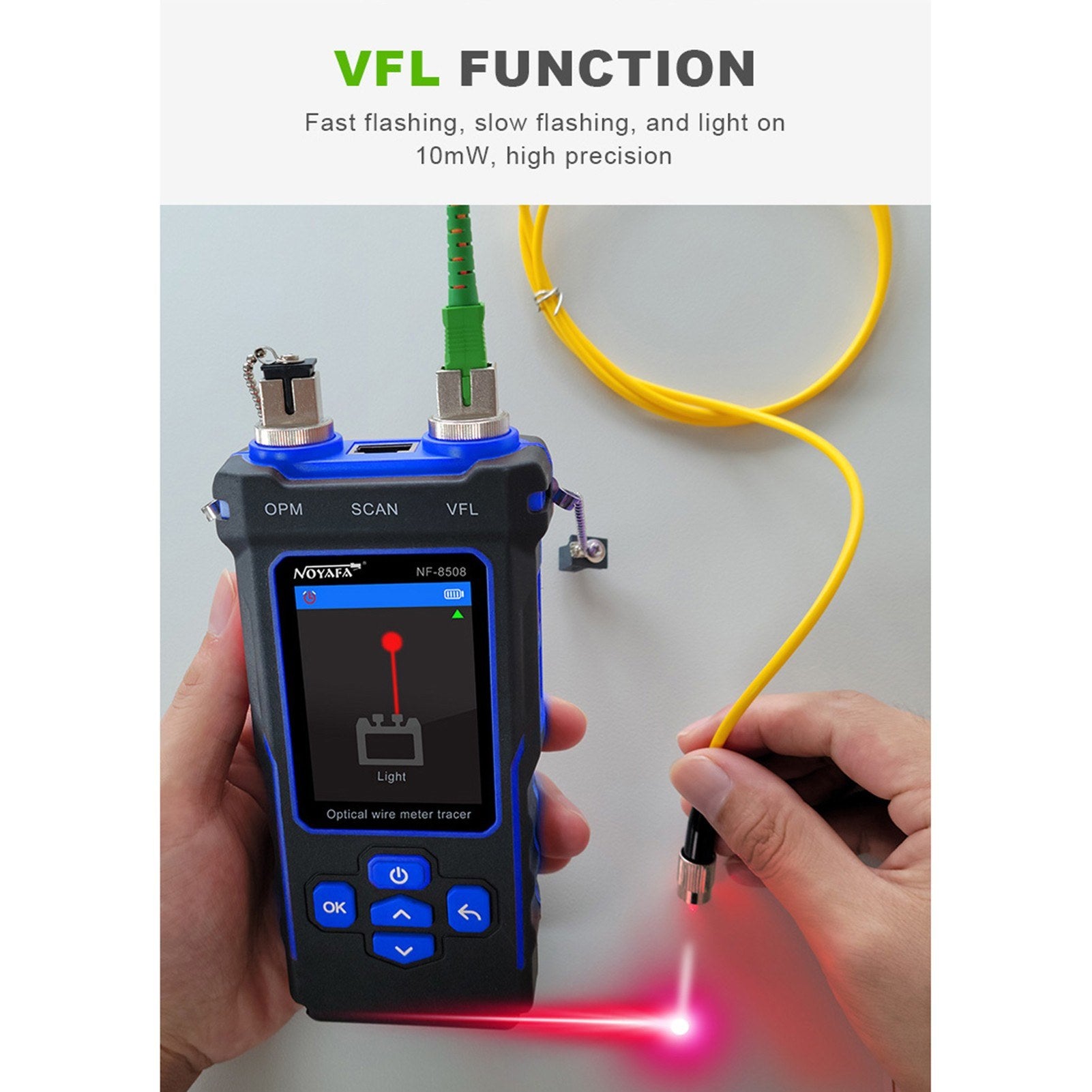

• Visual Fault Location Function: Detects and locates fiber breaks, poor connections, fiber bends, or cracks.
• Receiver Function: Features sensitivity adjustment, 300m no-load shielded network cable support, NCV detection, and a lighting function for better visibility.

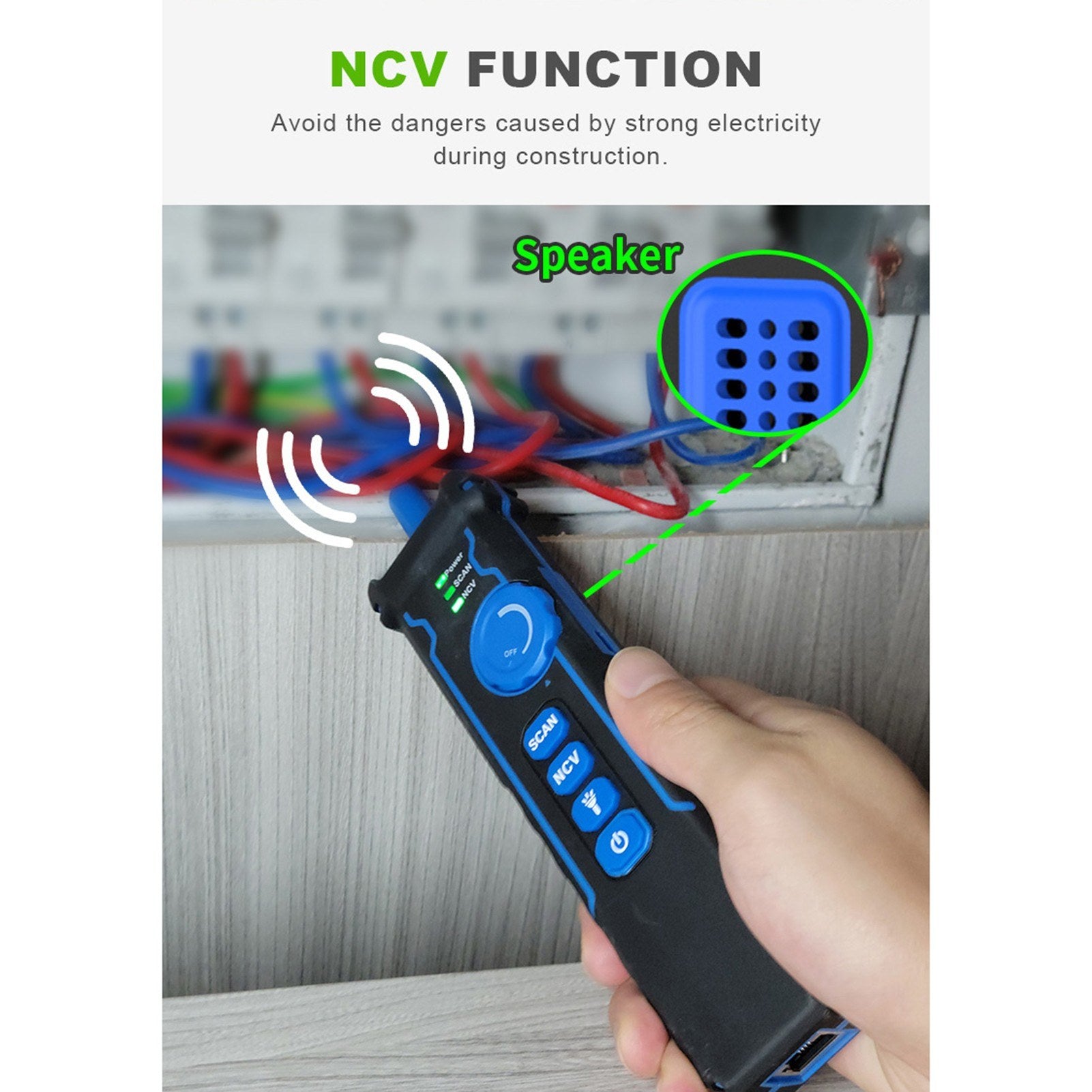

• Non-contact Voltage Detecting: The receiver can detect AC voltage in household electrical wiring.
• Illumination Function: Equipped with a lamp for auxiliary lighting during operation.

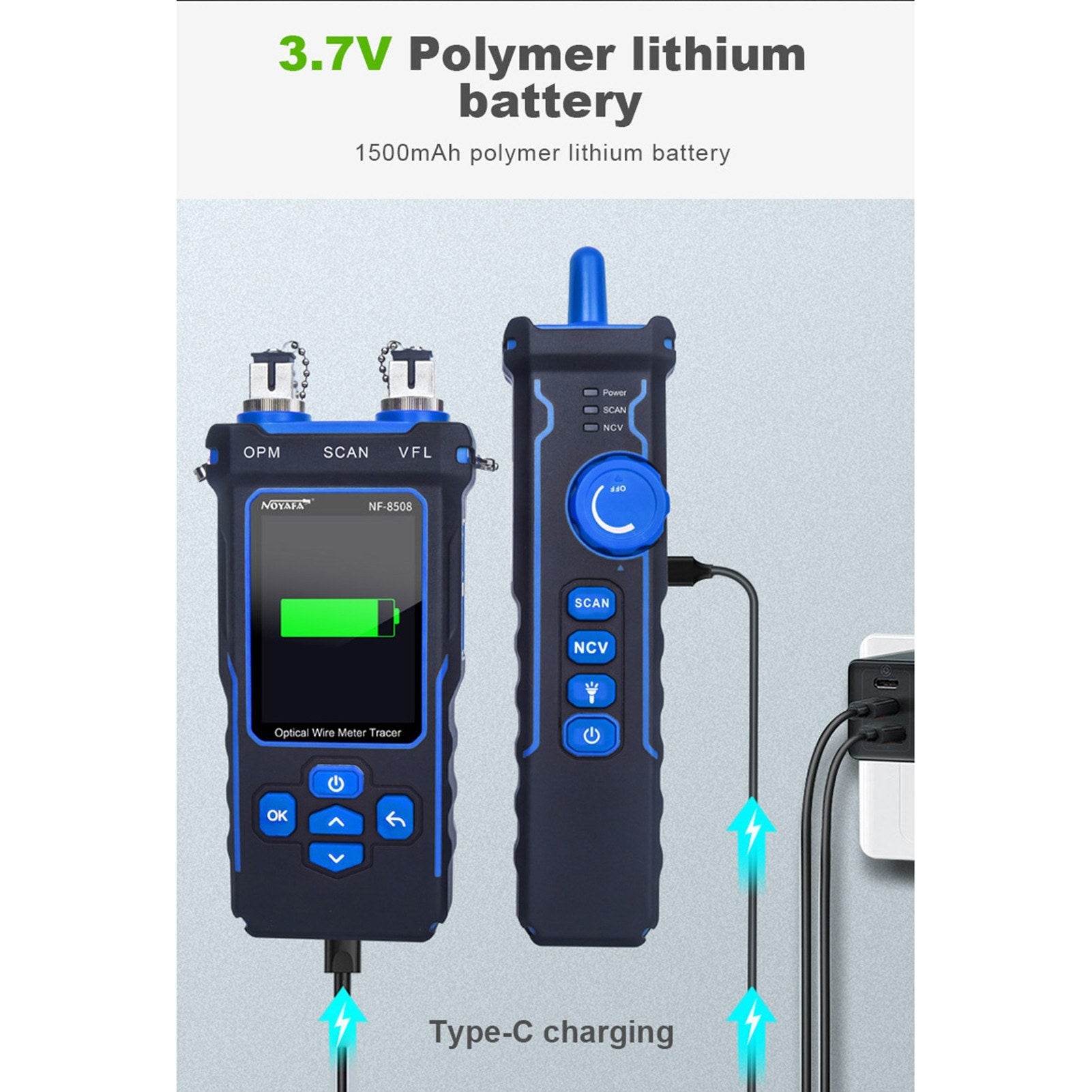

• Battery Operated: Both the transmitter and receiver include a 1500mAh polymer battery, eliminating the need to change batteries. Features Type-C charging with charging and low battery indicators.
• Other Settings: Includes adjustable backlight brightness and time, auto-off settings, and flashing red light options under VFL function.
• Wide Applications: Suitable for network line engineering and maintenance in telecommunication, computer, and other metal conductor tasks.

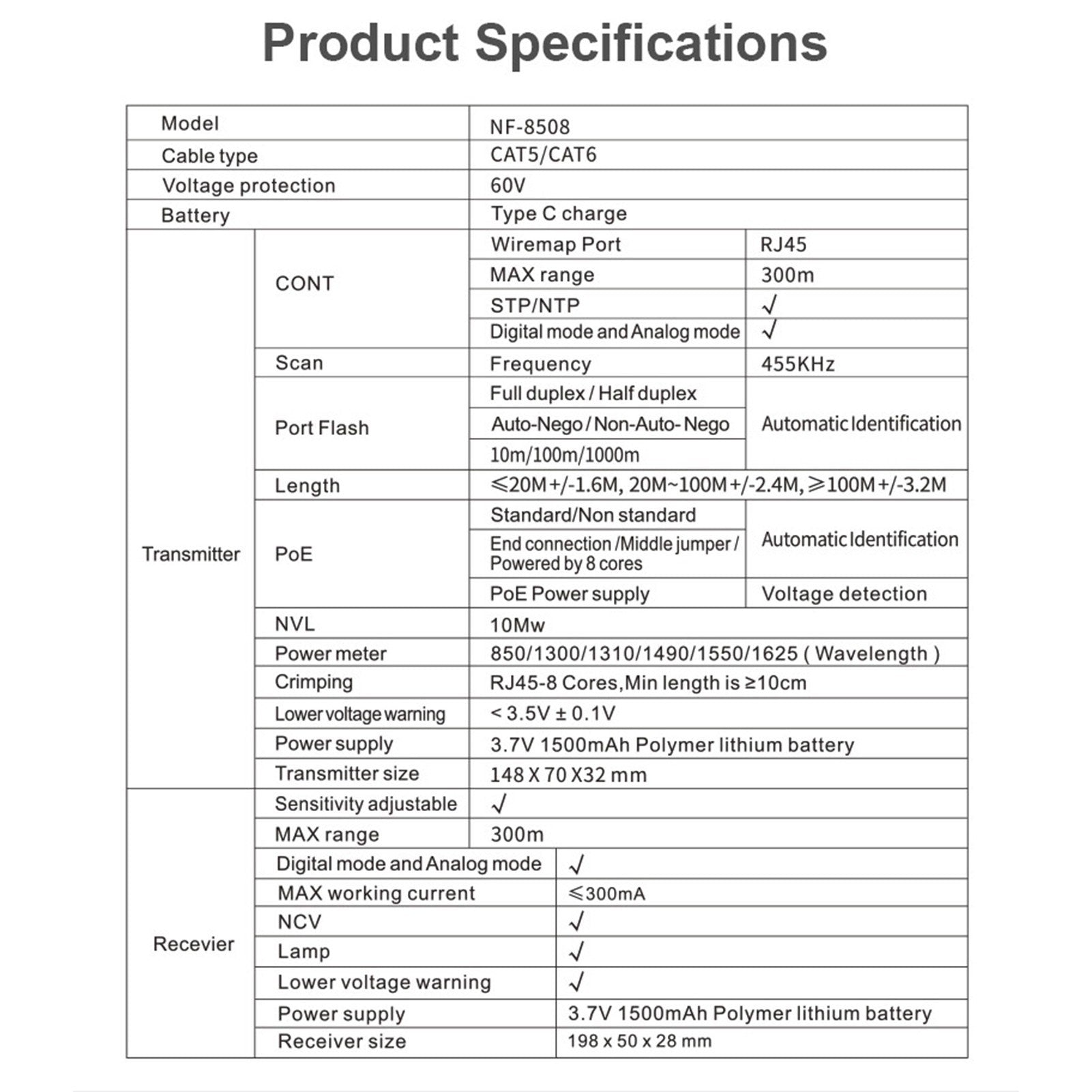

Specifications

• Material: ABS
• Cable Type: CAT5/CAT6
• Voltage: 60V
• Package Weight: 586g / 20.67oz
• Package Size: 24 x 16.5 x 5.5cm / 9.45 x 6.50 x 2.17in

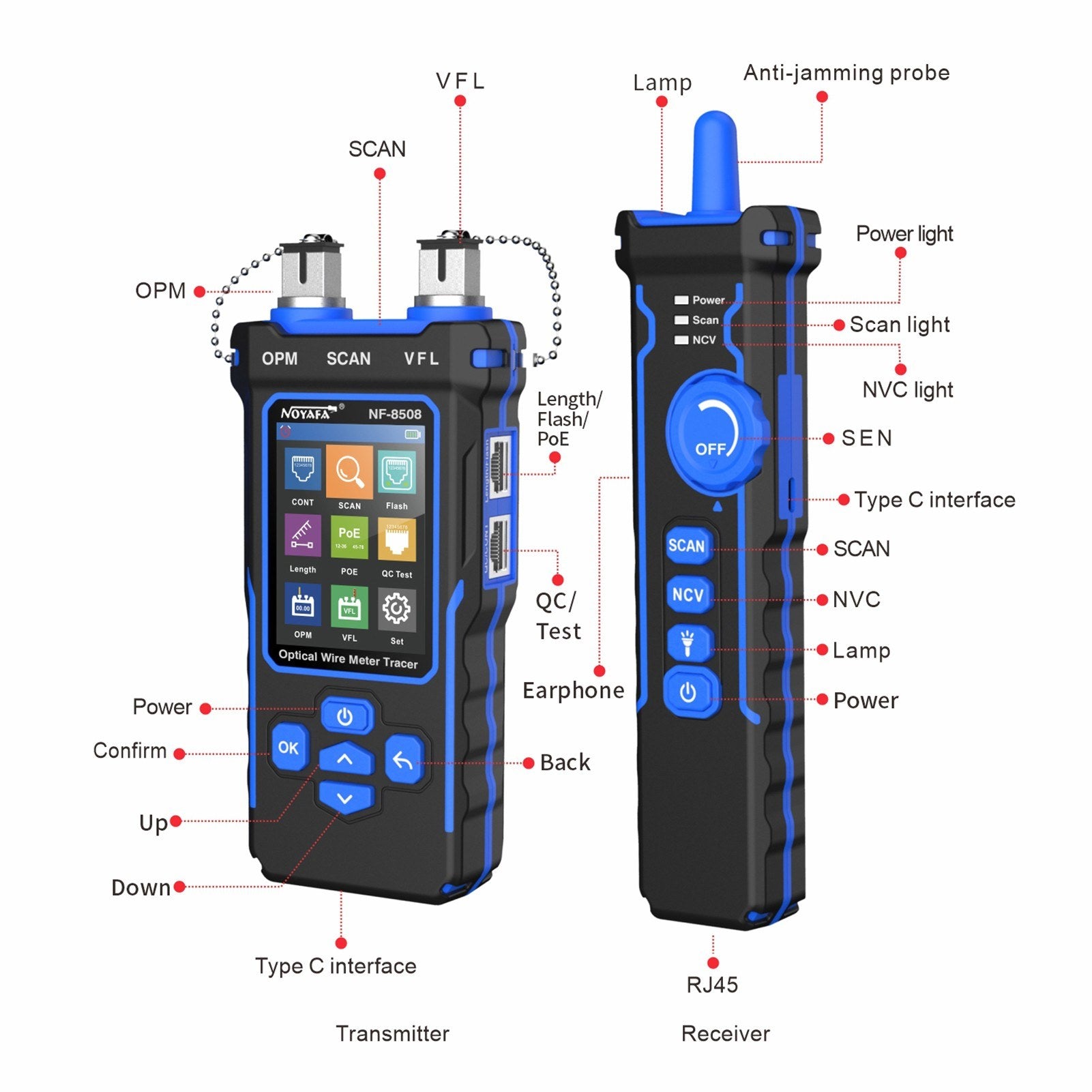

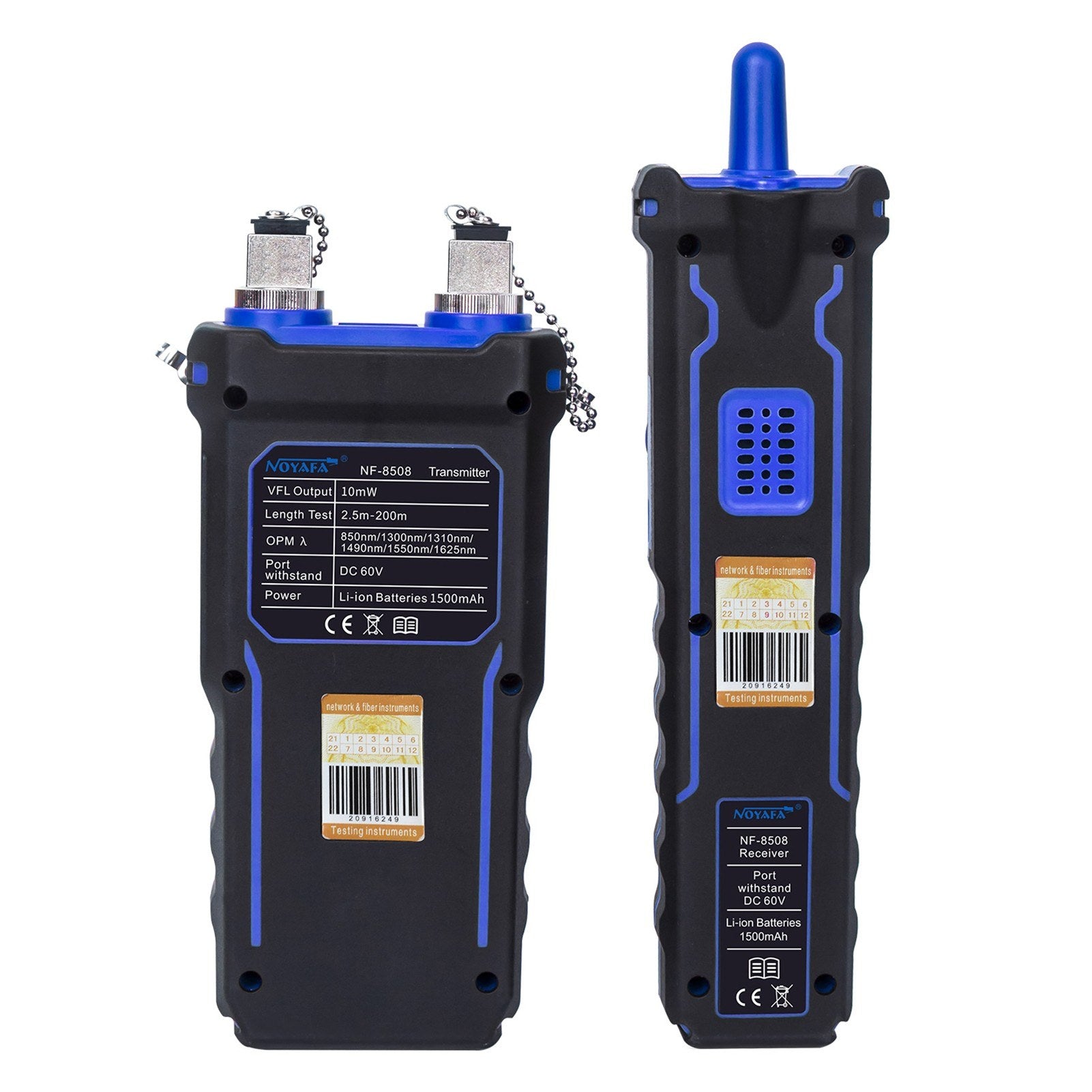

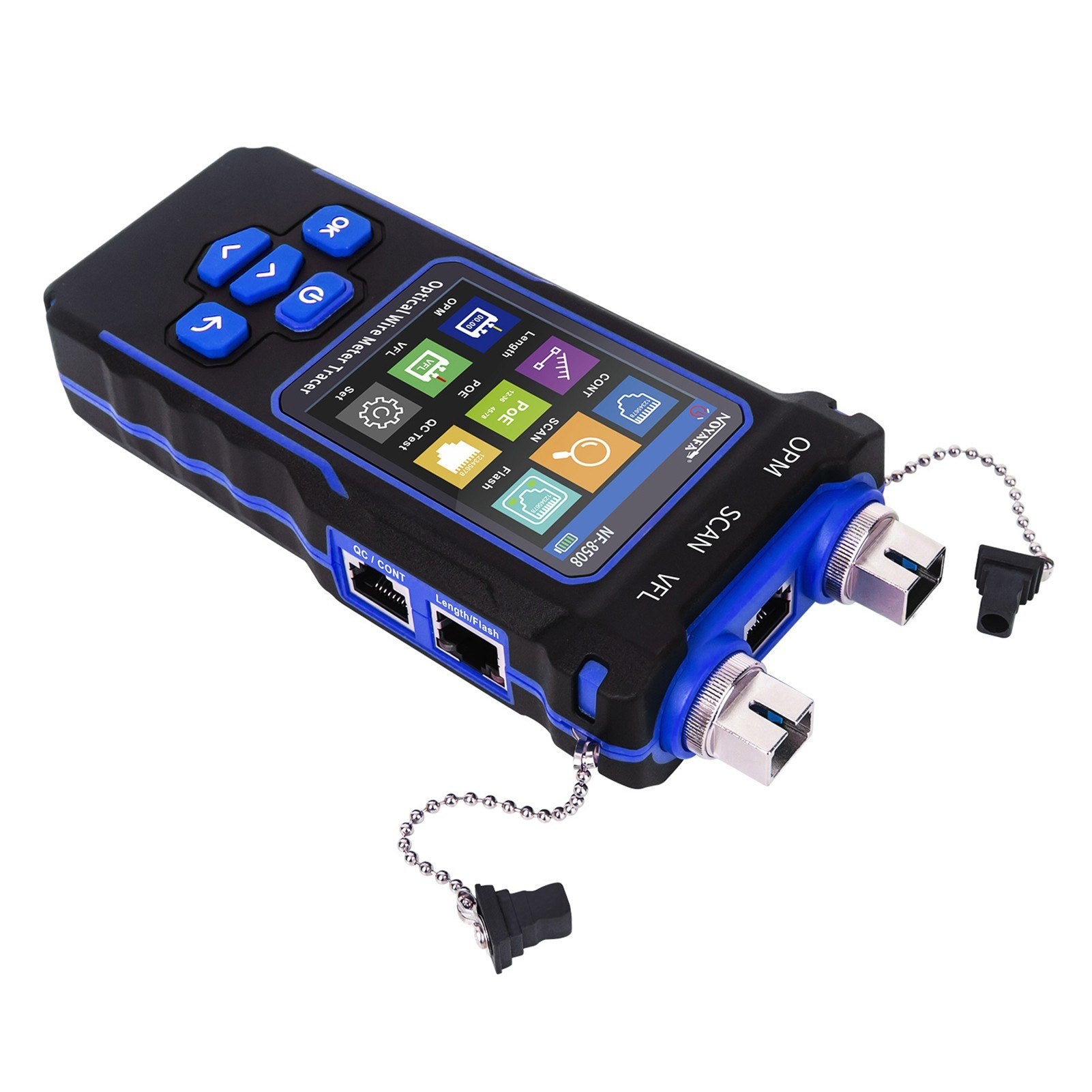

Transmitter

• Wiremap Port: RJ45
• Remote Continuity: ≥300m
• Cable Sequence and Fault Test: Yes
• STP/NTP: Yes
• Short Circuit Reminder: Yes
• Anti-jamming and Normal Mode: Yes
• Audio Transmission Frequency: 455KHz
• Audio Transmission Distance: RJ45 300m
• NVL: 10mW
• Power Meter: 850/1300/1310/1490/1550/1625nm (wavelength)
• Crimping: RJ45-8 cores, min length ≥10cm
• Low Voltage Prompt: <3.5V±0.1V, power indicator flashes
• Power Supply: 3.7V 1500mAh polymer lithium battery

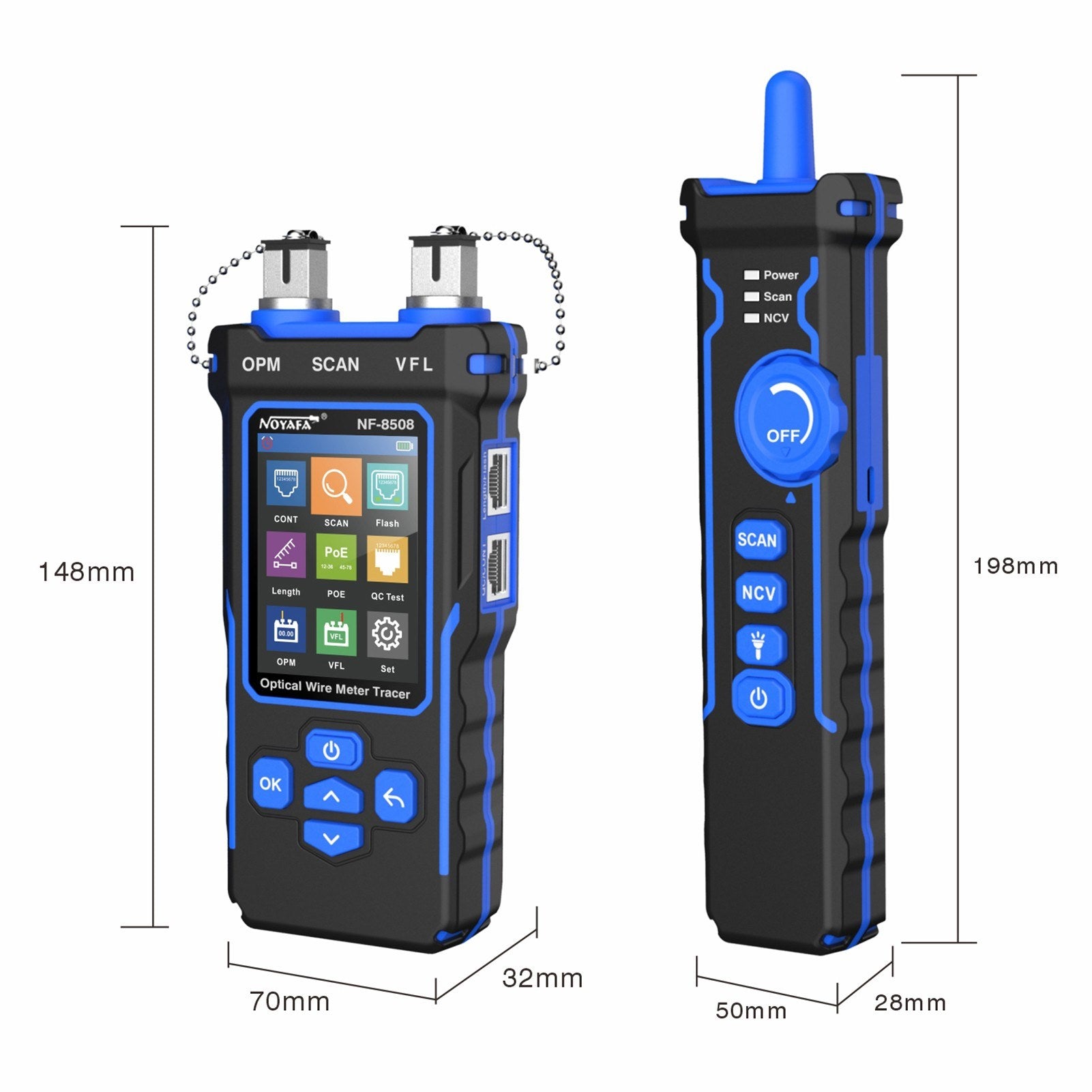

• Size: 148 x 70 x 32mm / 5.83 x 2.76 x 1.26in

Receiver

• Scan Current: ≤300mA
• Remote Continuity: ≥300m
• NCV Detection: Yes
• Lamp: Yes
• Low Voltage Prompt: Yes
• Power Supply: 3.7V 1500mAh polymer lithium battery
• Size: 198 x 50 x 28mm / 7.80 x 1.97 x 1.10in

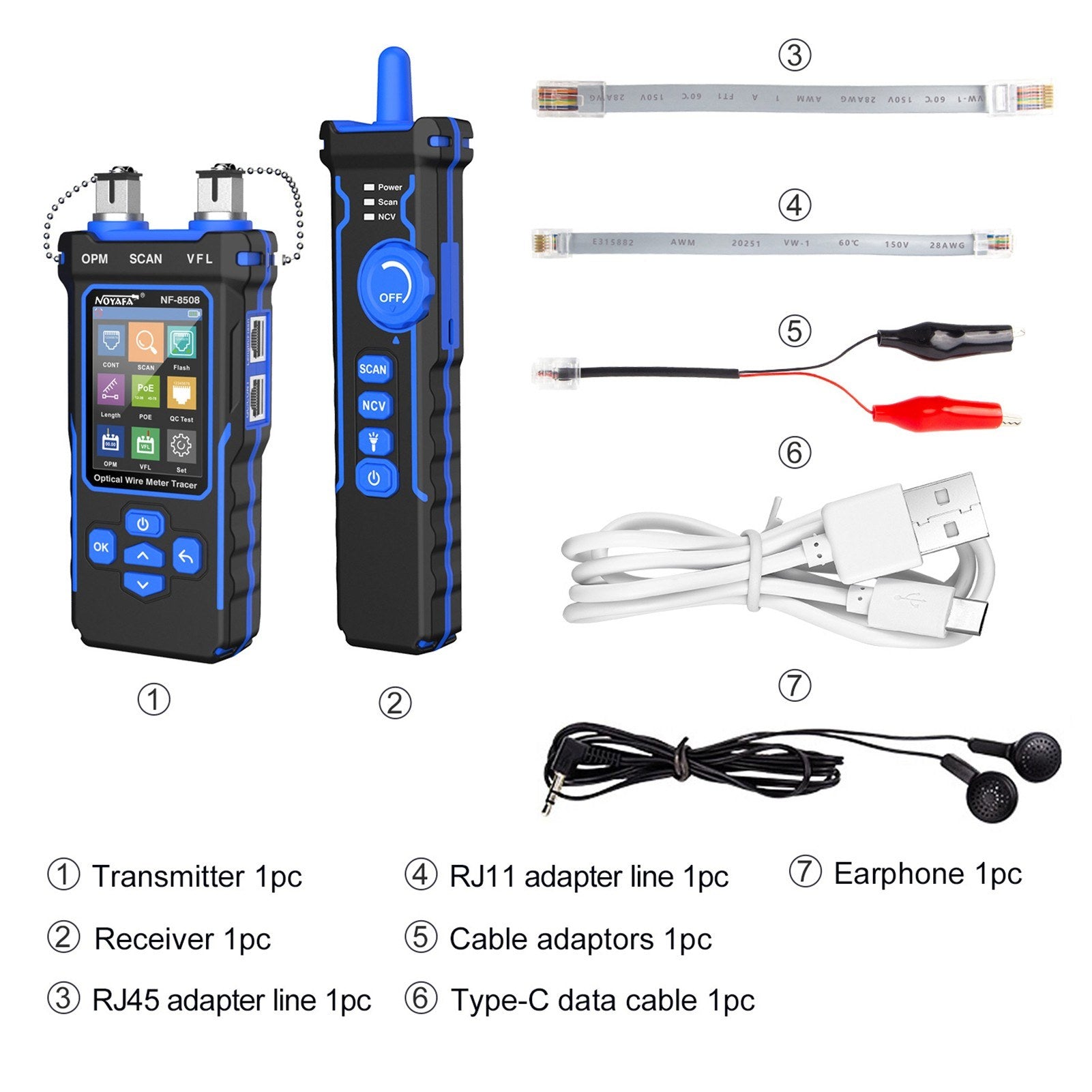

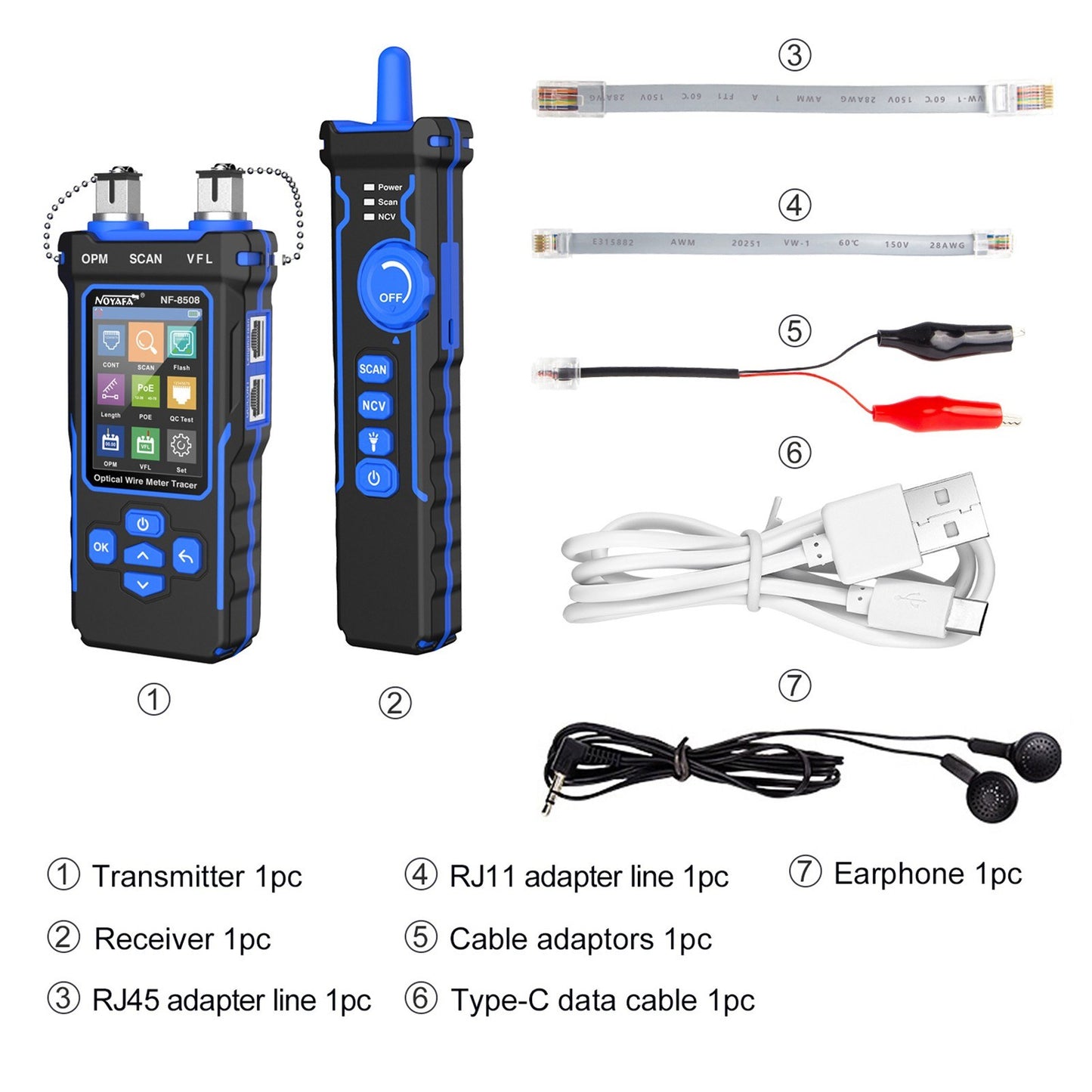

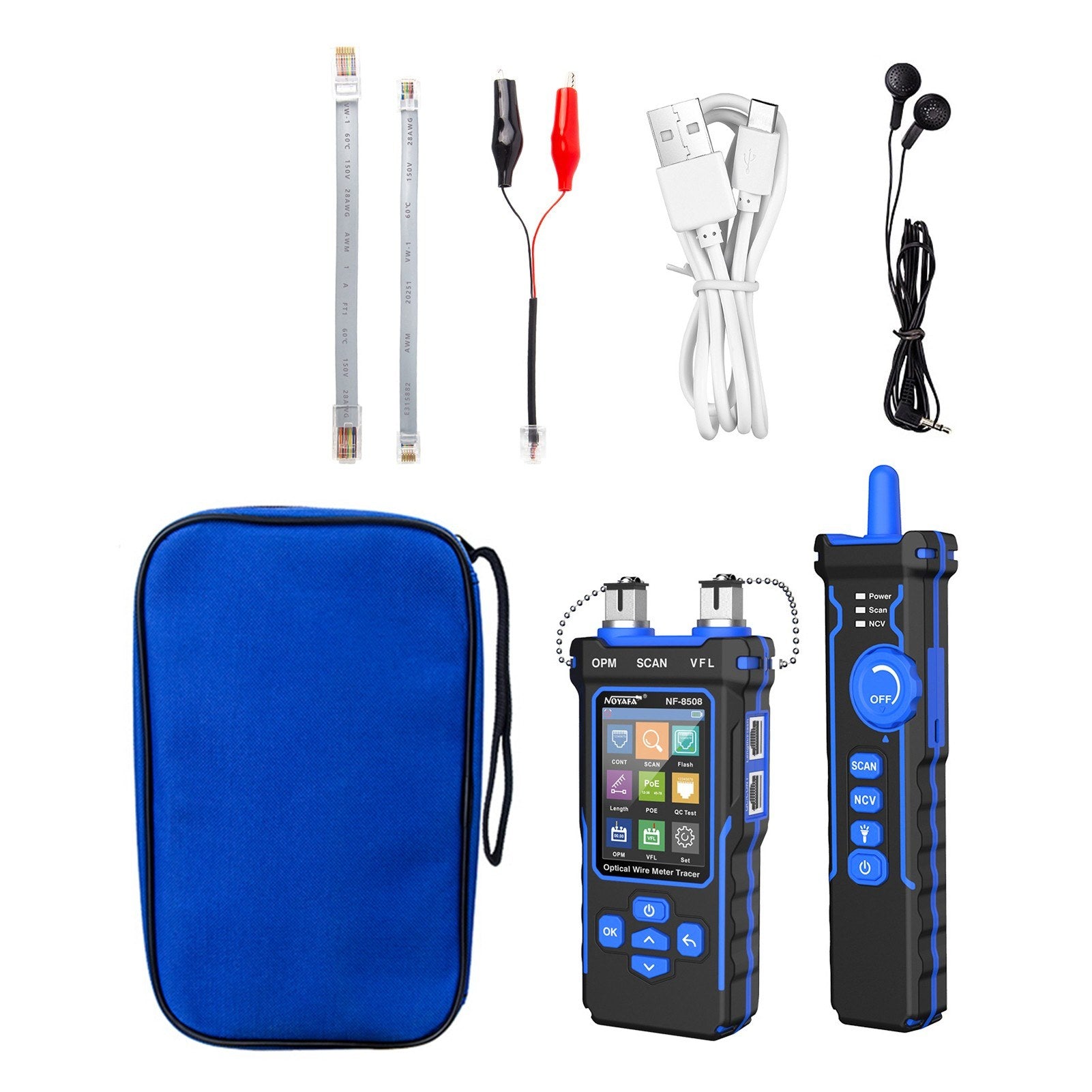

Package List

• 1 x Transmitter
• 1 x Receiver
• 1 x RJ45 Adapter Line
• 1 x RJ11 Adapter Line
• 1 x Crocodile Clip Test Line
• 1 x Type-C Data Cable
• 1 x Earphone
• 1 x Carry Bag
• 1 x Manual (English)
