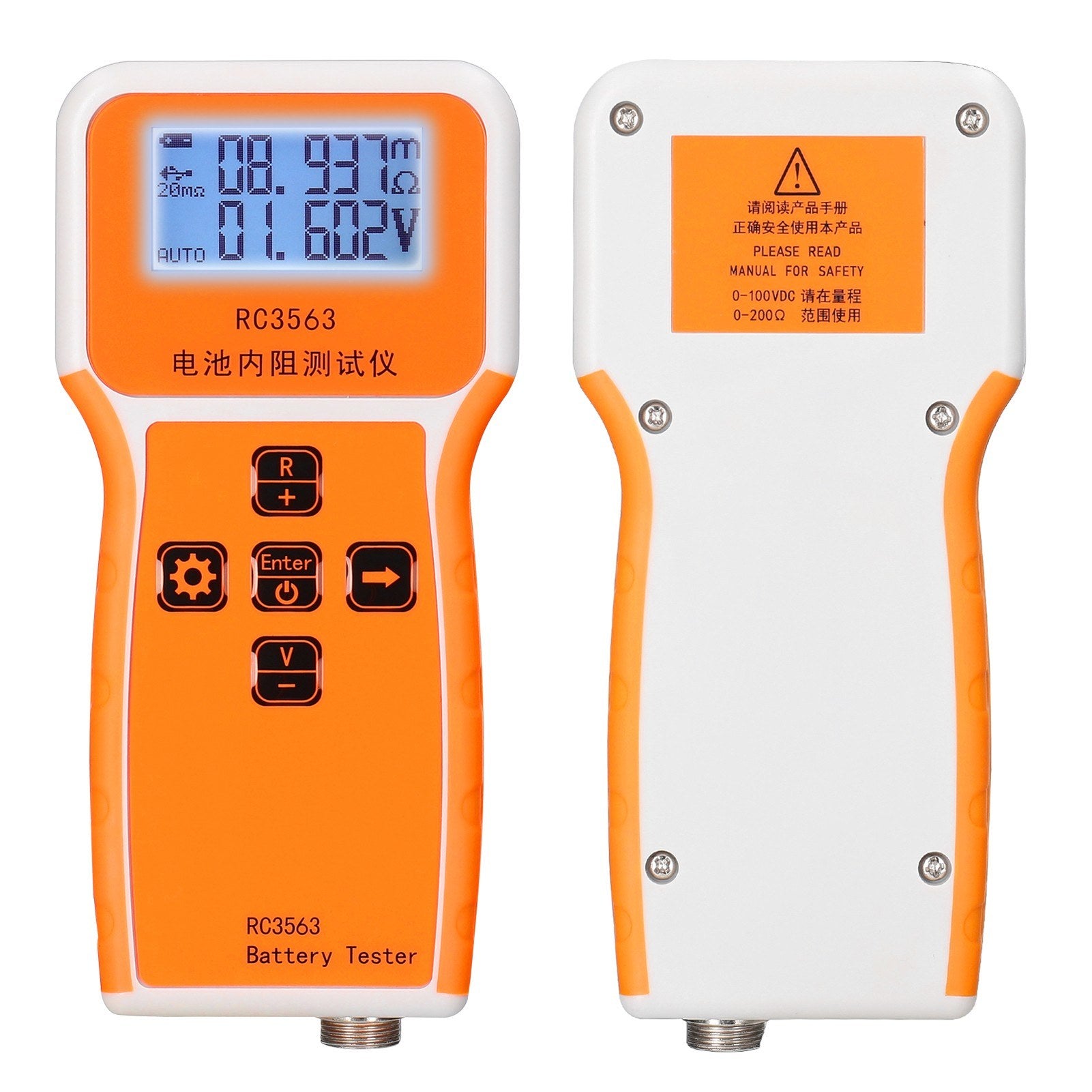

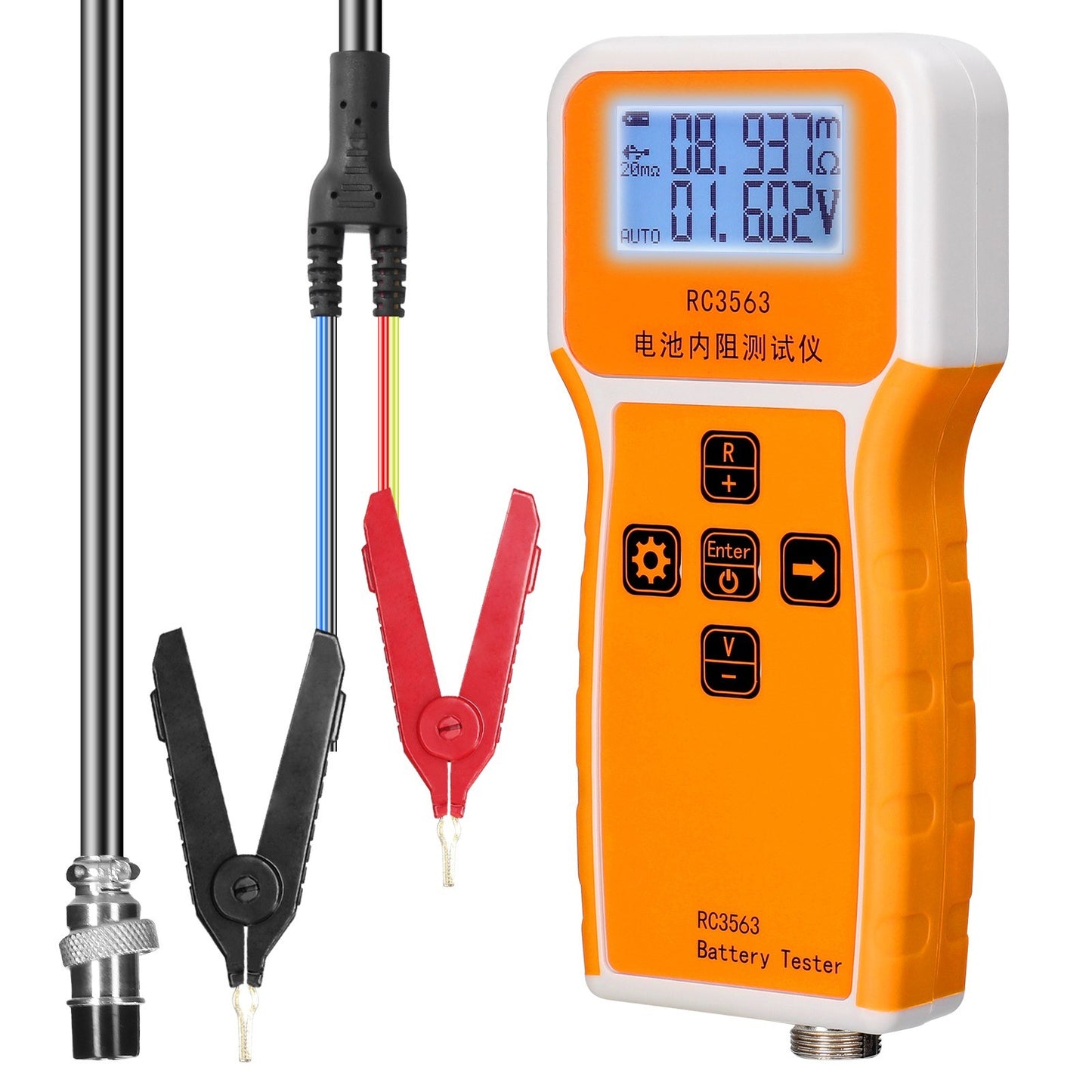

RC3563 High-Precision 200Ω 100V Battery Internal Resistance & Voltage Tester – Portable 3-Digit Display for Lithium/Lead-Acid Batteries, True Four-Wire AC Detector

The Battery Internal Resistance Tester is a versatile and essential tool for measuring both battery internal resistance and voltage simultaneously. It features a four-wire test clamp system to minimize the effects of contact and wire resistance, ensuring precise measurements. Whether for routine maintenance, scientific research, or battery production, this tester is a reliable choice.

Features:

• Simultaneous measurement of battery internal resistance and voltage.

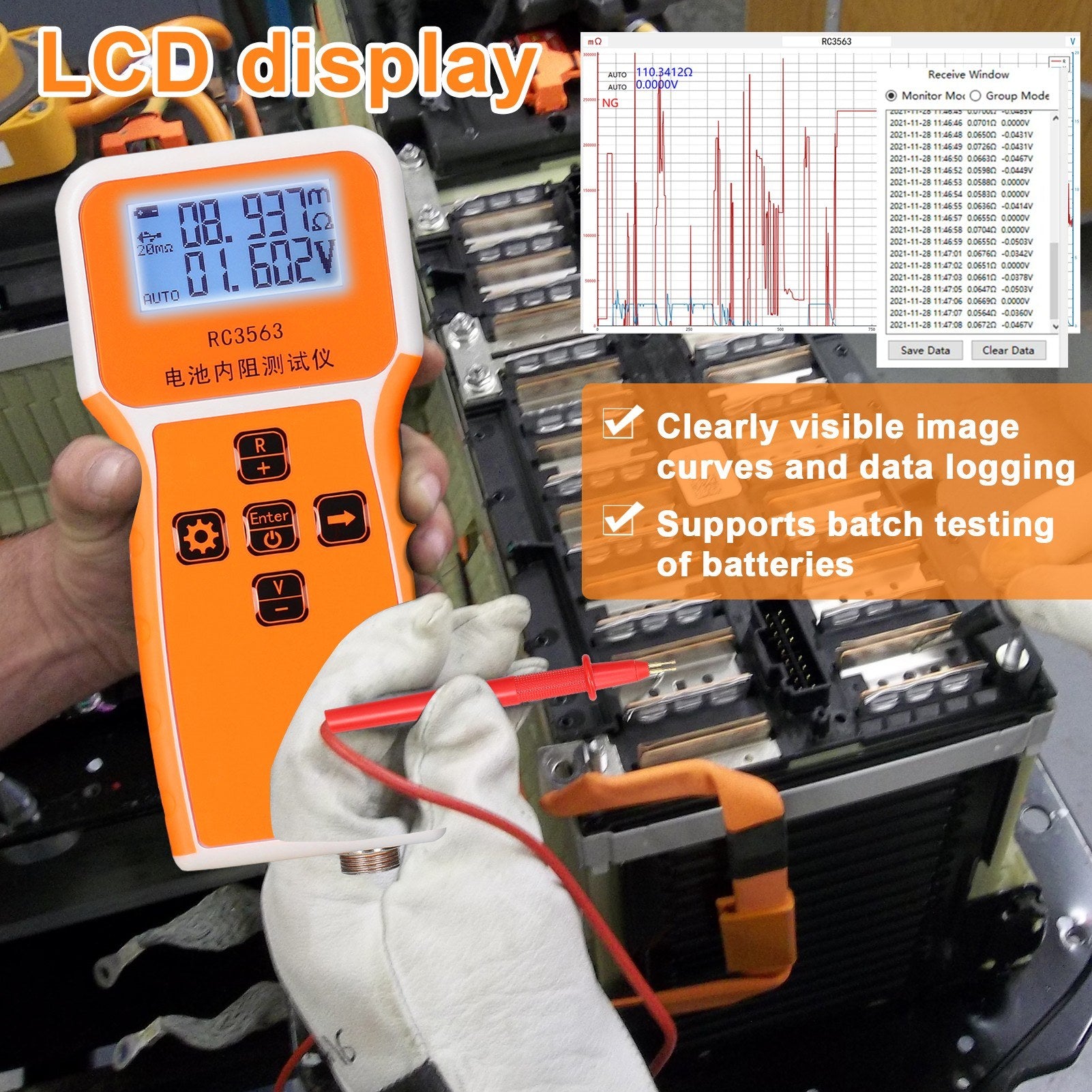

• Equipped with intelligent control, LCD display, and Kalman filter algorithm for enhanced efficiency and energy savings.
• Widely applicable for use in various industries including battery production, testing, and scientific research laboratories. It is also suitable for measuring AC resistance in resistors and low-resistance precision applications.
• Built-in 1000mAh rechargeable lithium battery for extended use.
• Compact and portable, easy to carry for on-the-go usage.

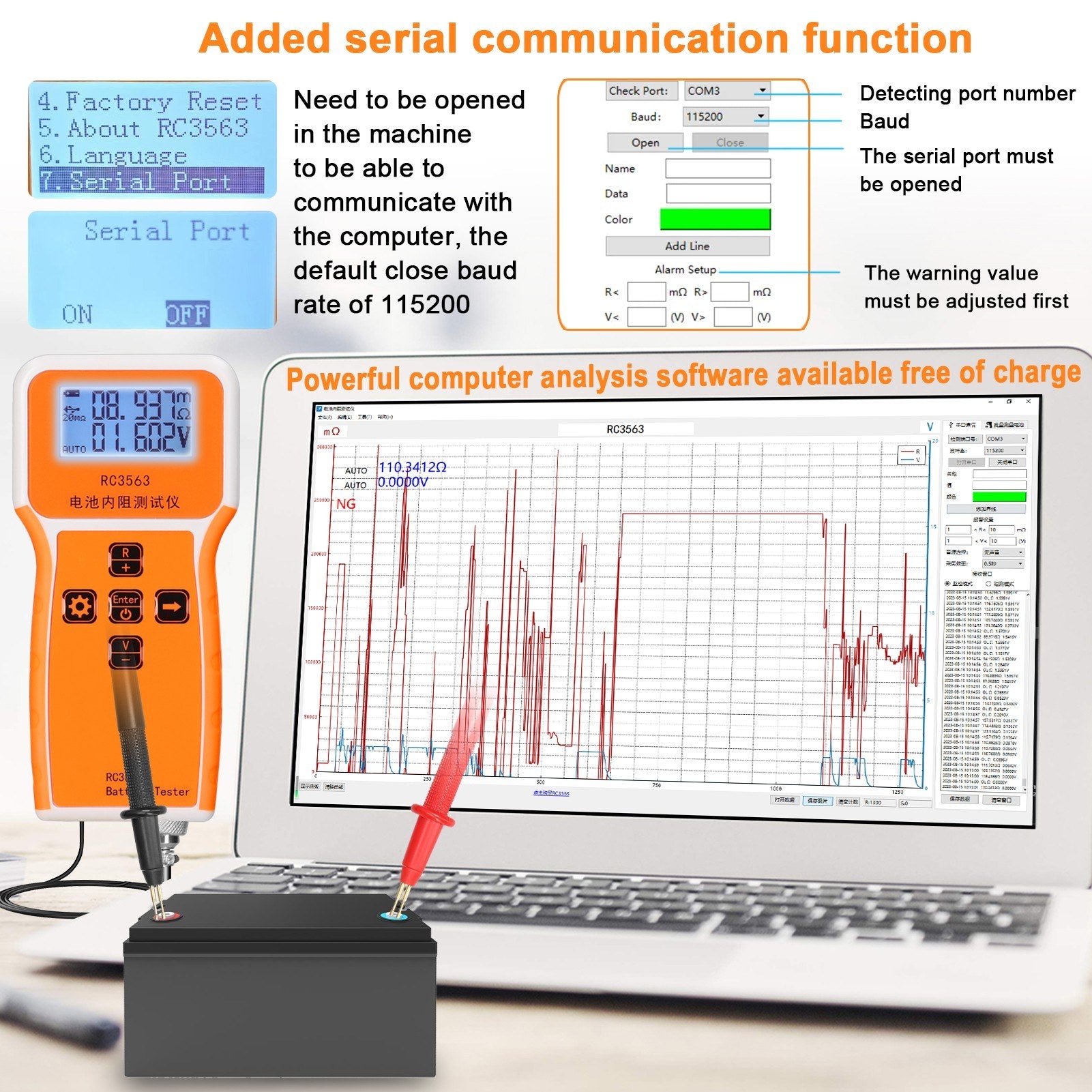

• Includes serial port communication with a baud rate of 115200 for computer connectivity.
• Offers free, powerful computer analysis software; communication needs to be enabled on the device.

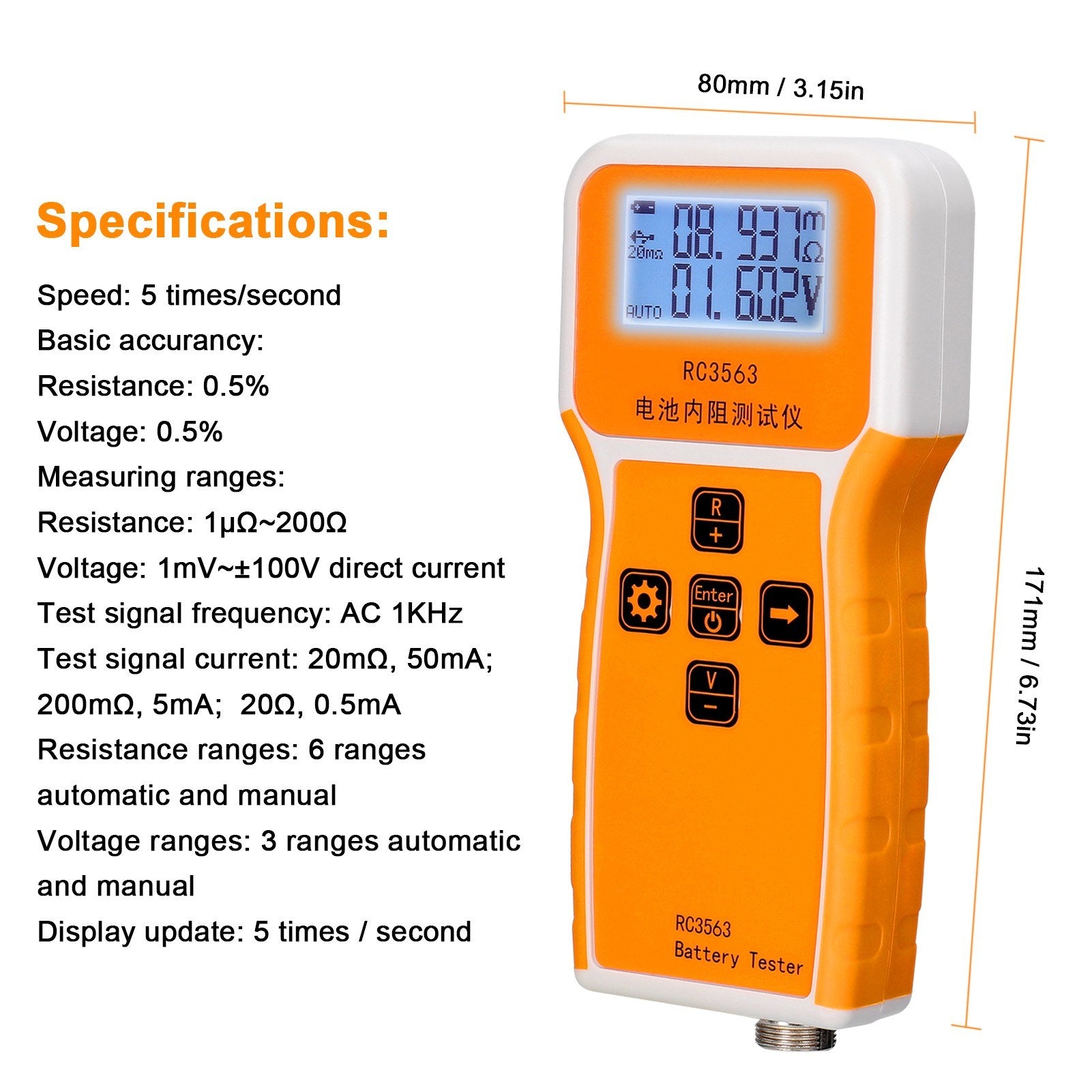

Specifications:

• Material: ABS
• Available Types: 3 options (Tester+probe, Tester+clip, Tester+probe+clip)
• Battery: 1 lithium battery, 1000mAh (included)
• Measurement Speed: 5 readings per second
• Adjustment: Correction available for resistance and voltage independently
• Basic Accuracy:
  • Resistance: 0.5%
  • Voltage: 0.5%
• Measuring Ranges:
  • Resistance: 1μΩ to 200Ω
  • Voltage: 1mV to ±100V DC
• Test Signal Frequency: AC 1KHz
• Test Signal Current:
  • 20mΩ: 50mA
  • 200mΩ: 5mA
  • 20Ω: 0.5mA
• Resistance and Voltage Ranges: 6 resistance and 3 voltage ranges, both automatic and manual
• Display Update: Refreshes 5 times per second
• Auto Shutdown: Powers off automatically after 10 minutes of inactivity
• Language Options: Switchable between Chinese and English
• Item Size: 171 x 80 x 29mm (6.73 x 3.15 x 1.14 inches)
• Package Size: 180 x 90 x 35mm (7.09 x 3.54 x 1.38 inches)
• Package Weight: 330g (11.64 ounces)

Packing List:

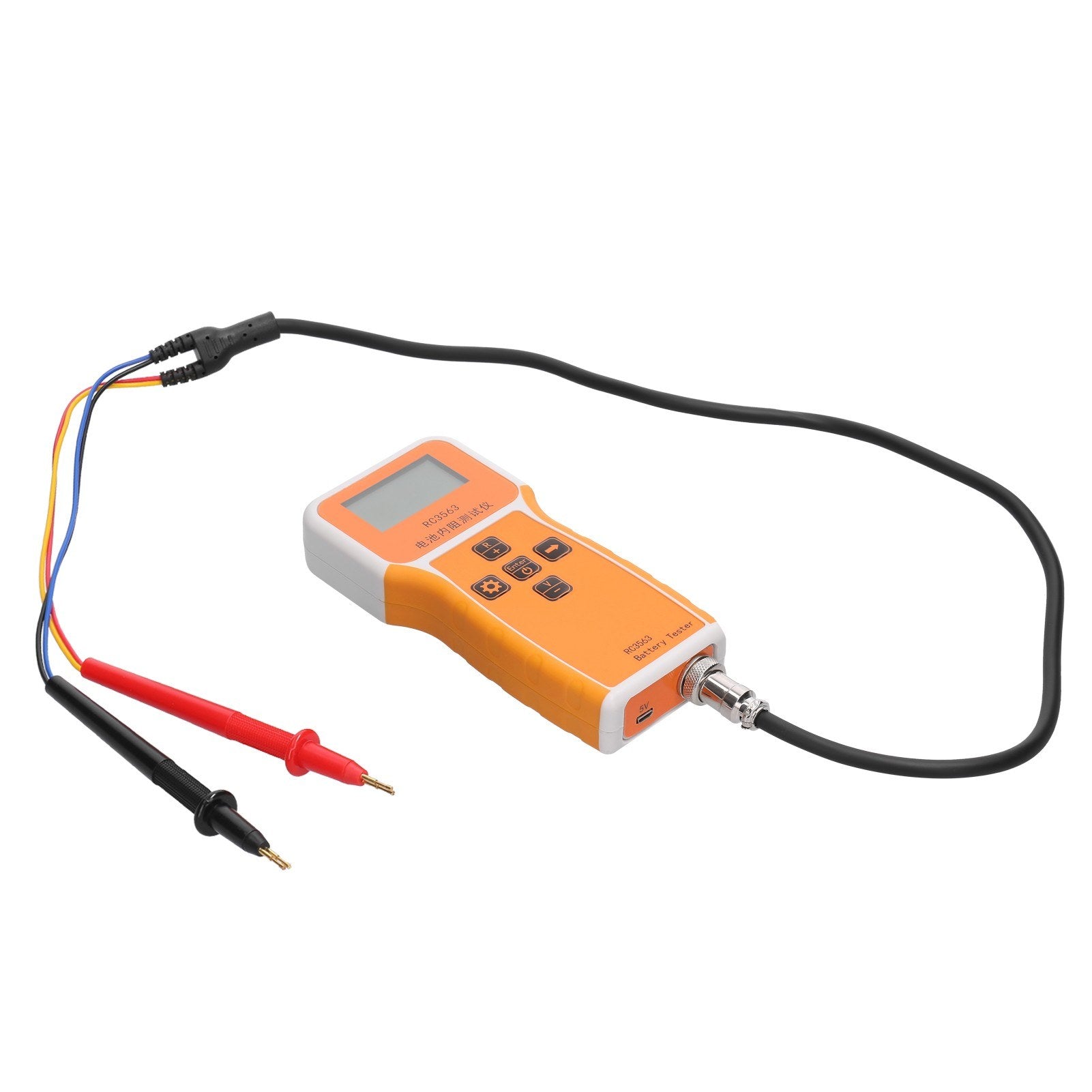

Type 1:

• 1 Tester
• 1 Probe

OR

Type 2:

• 1 Tester
• 1 Clip

OR

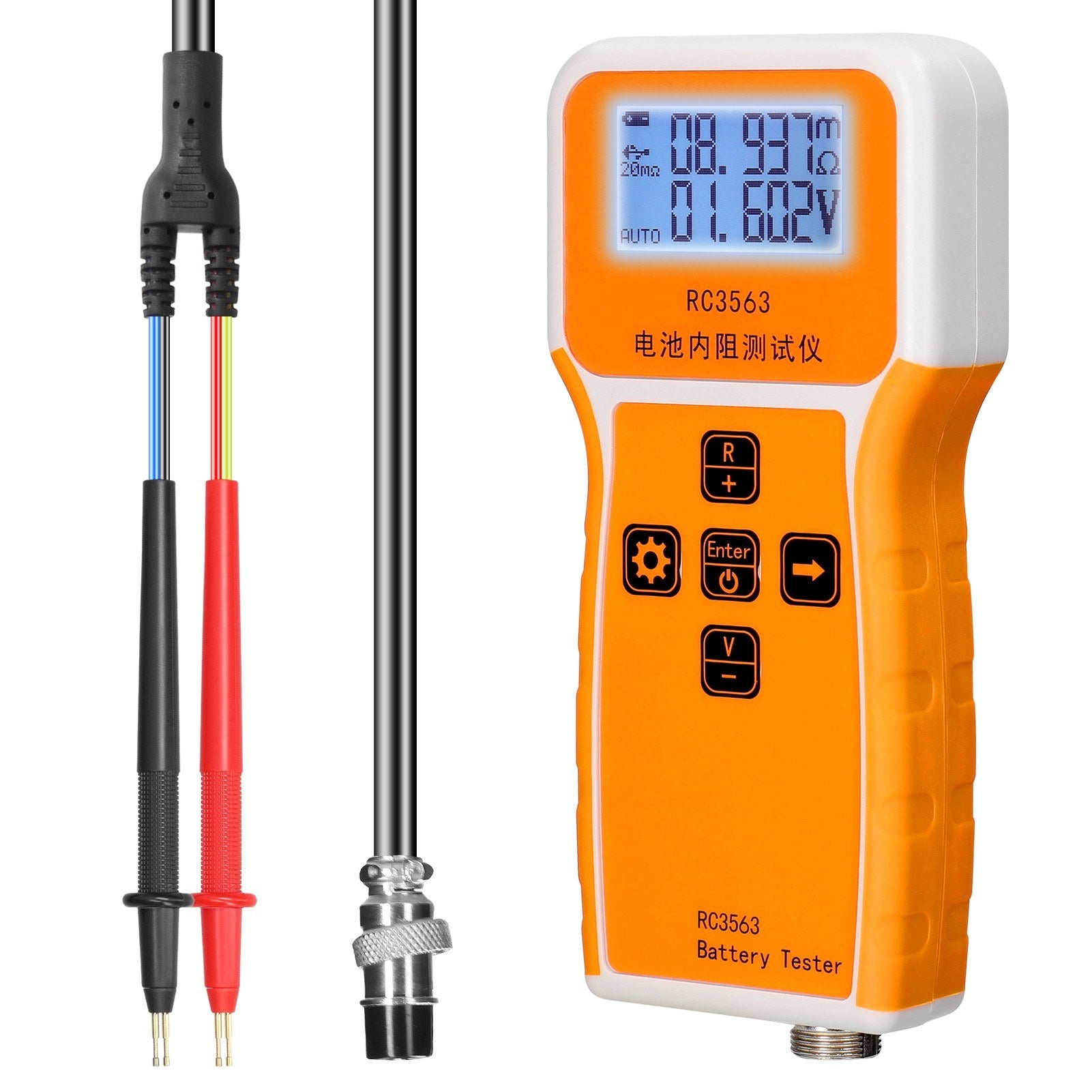

Type 3:

• 1 Tester
• 1 Probe
• 1 Clip
