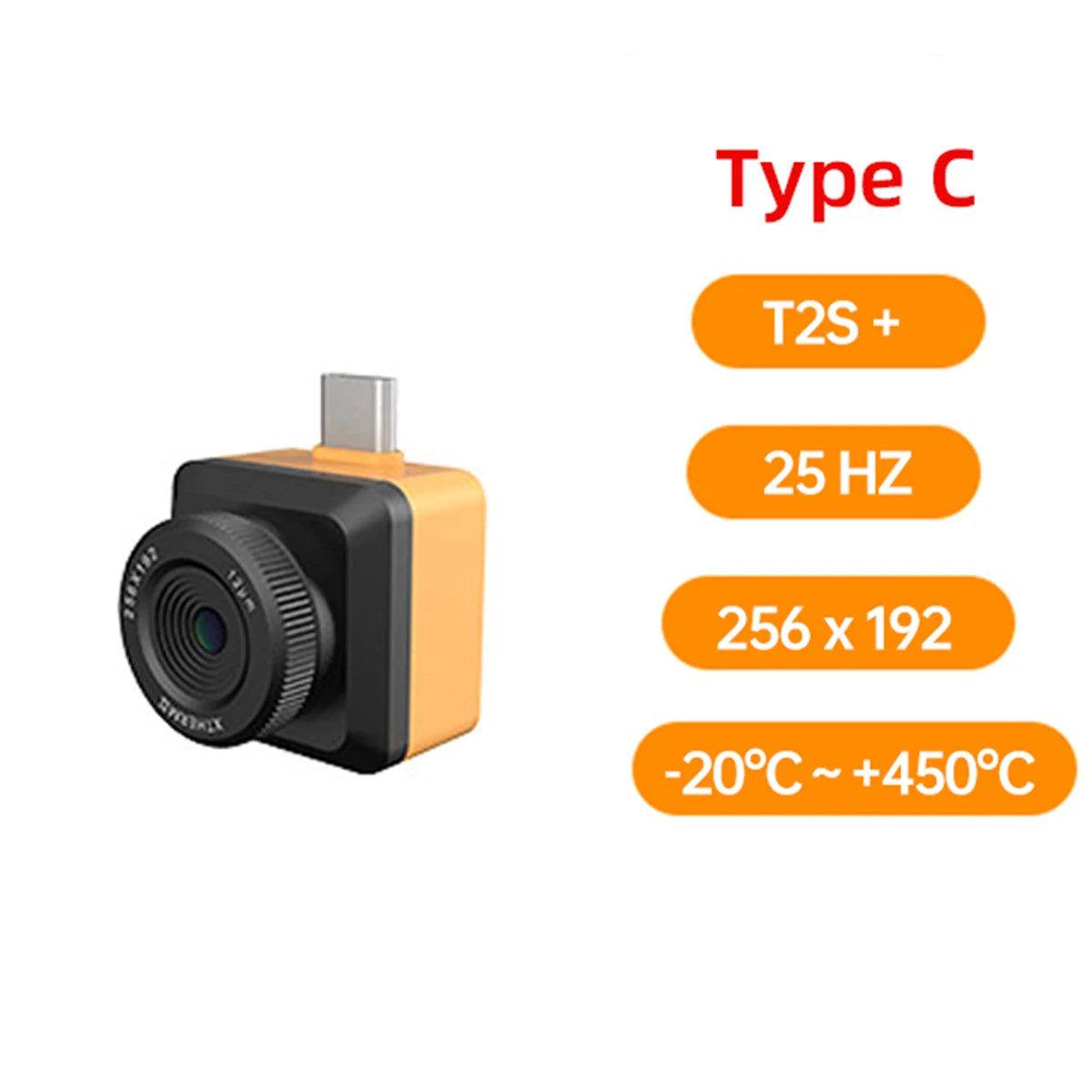

INFIRAY T2S+ Smartphone Thermal Imaging Camera 256×192 Type-C | PCB Floor Heat Inspection Infrared Imager

Smartphone Thermal Imager - Model T2S

Product Description:

• Name: Smartphone Thermal Imager
• Model: T2S

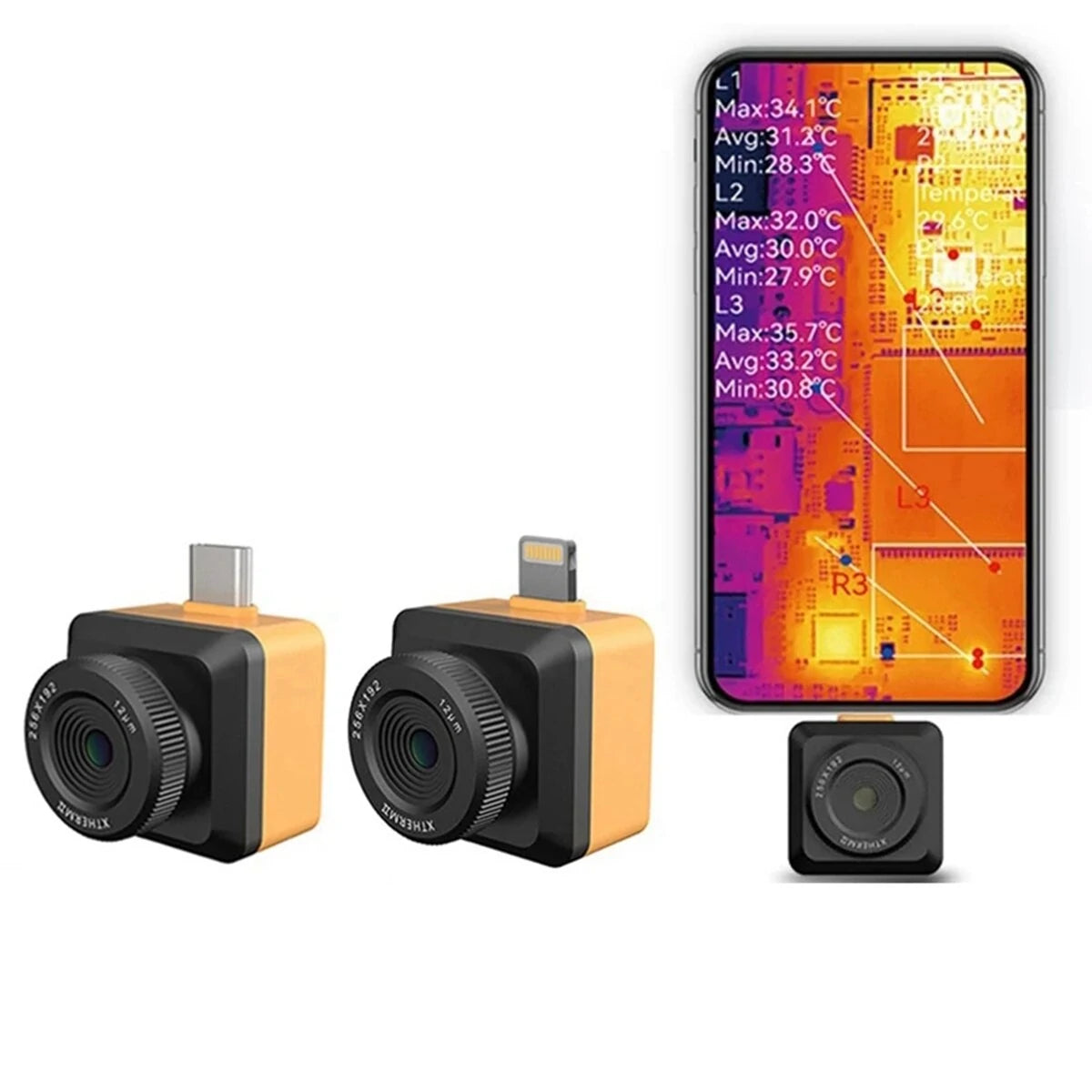

• Compatibility:
  • Android System (Type C interface)

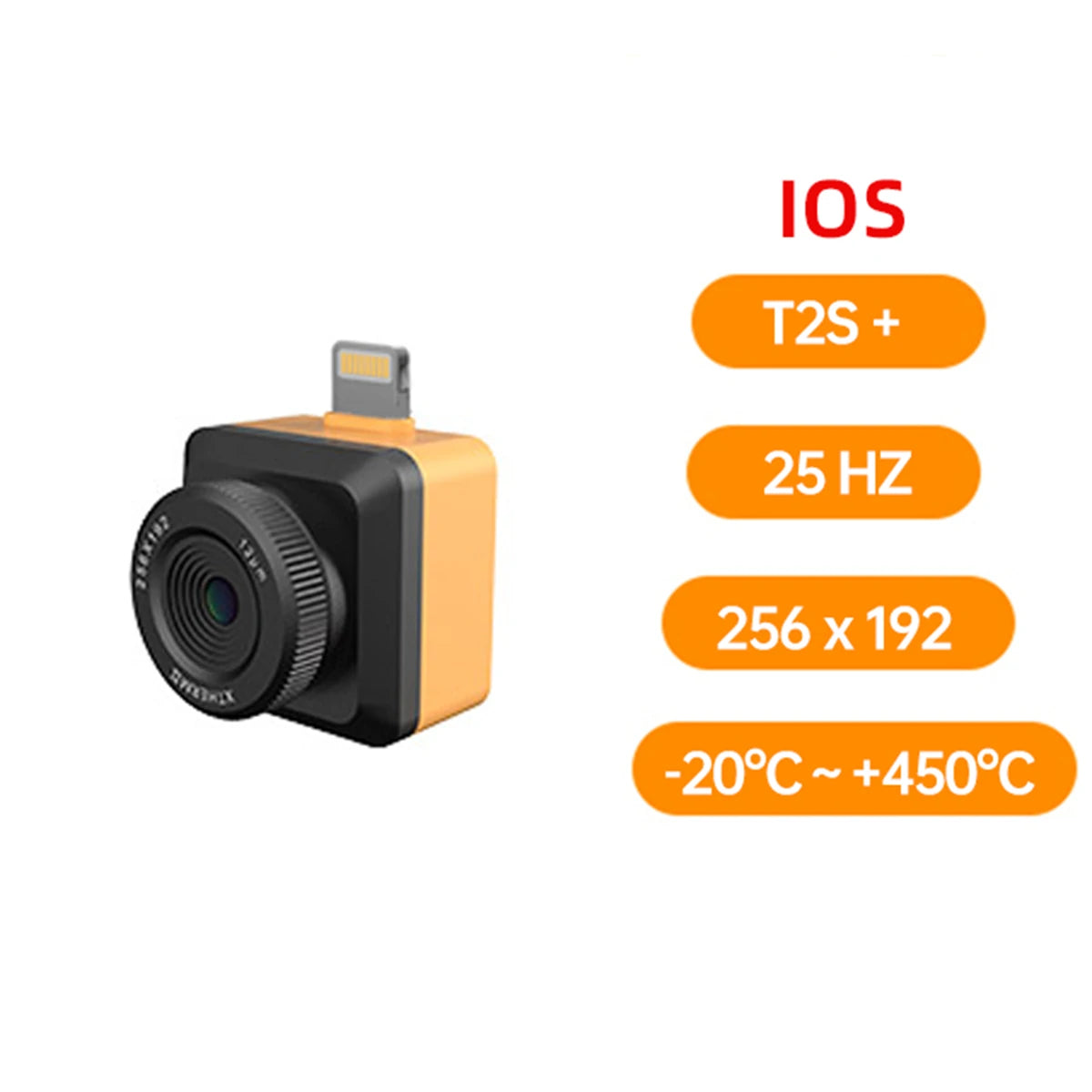

  • iOS System

Applications:

• Identify heat loss and assess insulation condition.
• Diagnose electrical problems and water damage.
• Explore the natural world in the dark.
• Utilize night vision in total darkness to uncover new insights.

Specifications:

• Macro: 8mm
• Resolution: 256×192
• Temperature Measurement Range: -20℃ to +450℃
• Pixel Pitch: 12μm
• Field of View: 44.9° × 33.4°
• Image Frame Rate: 25Hz
• NETD: ≤60mK
• MRTD: ≤500mK
• Temperature Measurement Accuracy: ±2℃
• Temperature Correction: Manual/Automatic
• Dimensions: 26 x 26 x 24.2 mm
• Image Correction: Manual
• Color Palette: White Hot/Black Hot/Multiple False Color Plates

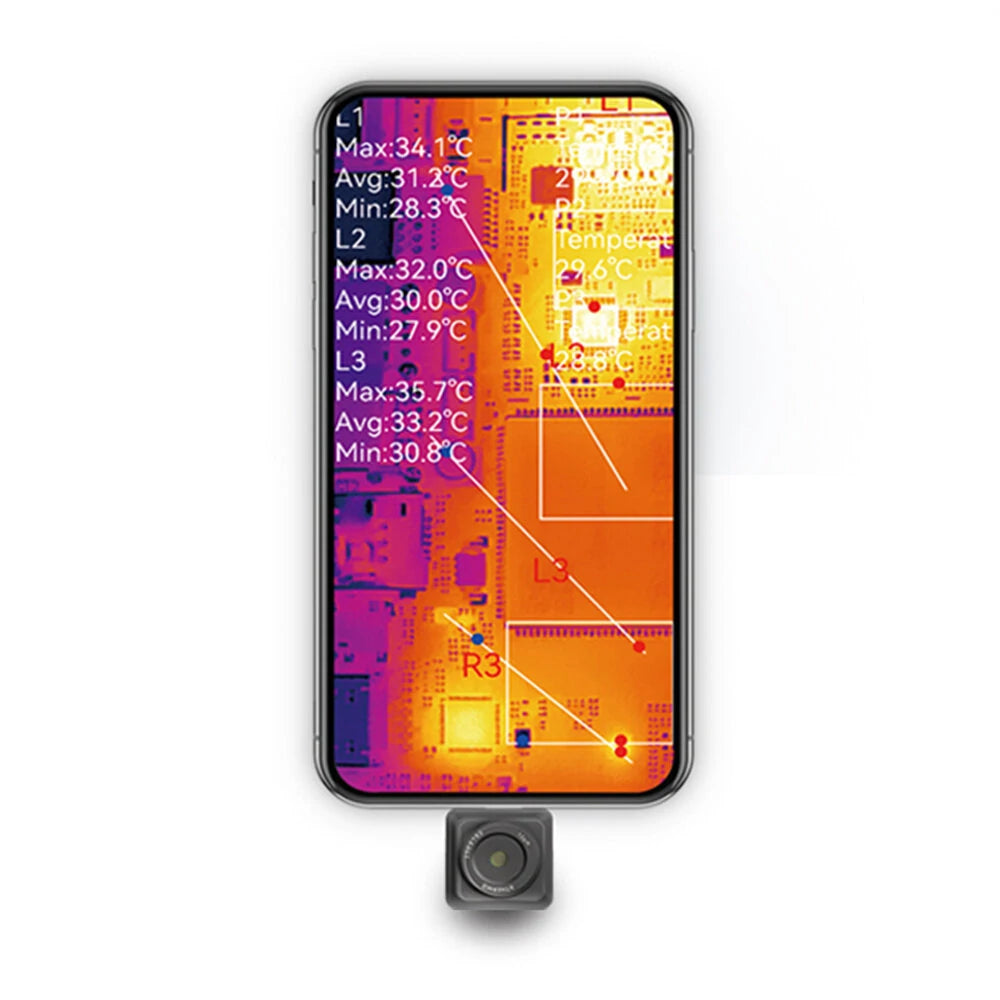

• Temperature Measurement Statistics: Supports maximum, minimum, and center temperature display; includes statistical and analysis functions for points, lines, and regions.

Package Includes:

• 1 x Thermal Imager
• 1 x USB Cable
• 1 x User Manual
