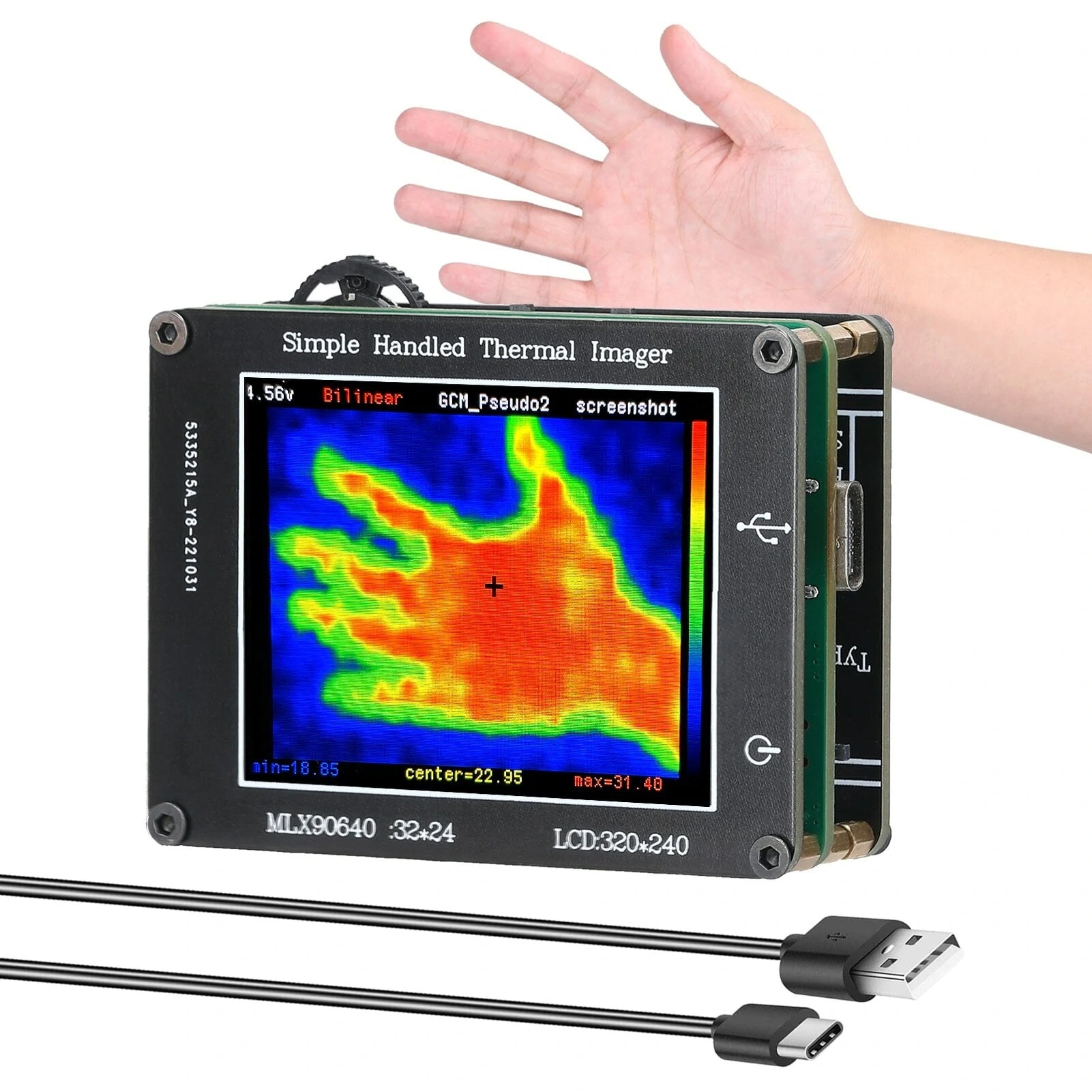

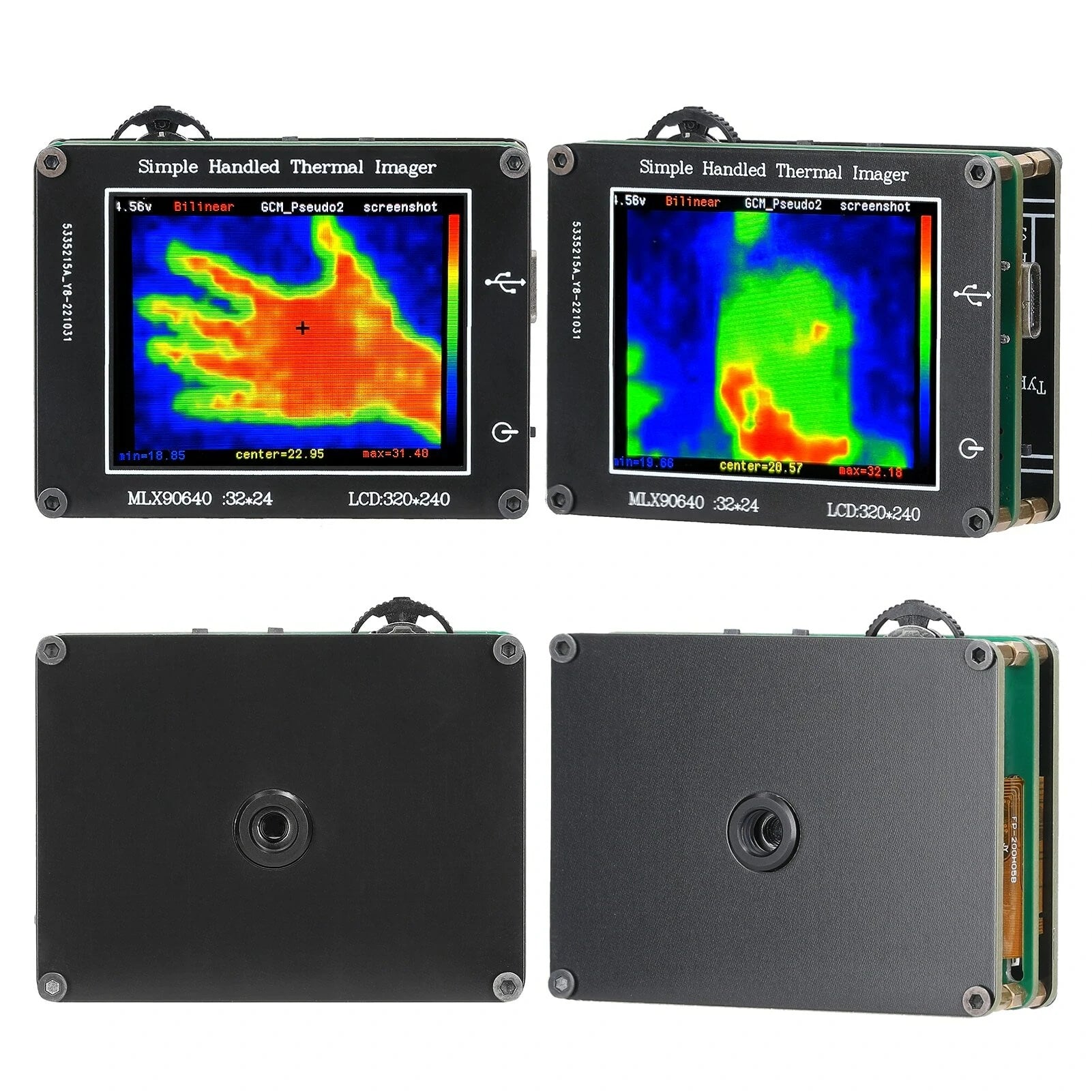

2.0 LCD Infrared Thermal Imager Camera, 240x320 Resolution, -40℃ to 300℃, 24x32 Pixel Sensor, Clear Definition

Compact and Versatile Thermal Imager

Experience the precision and ease of a handheld, multifunctional thermal imager that's both compact and lightweight. Designed for both household and industrial use, this essential tool employs an advanced infrared sensor and a 32x24 pixel far infrared array for clear imaging.

Key Features

• Combines surface temperature measurement with real-time thermal imaging.
• Perfect for contactless temperature measurement, human and ambient temperature detection, and industrial part assessment.
• Compact, portable design with an FR4 epoxy outershell for enhanced durability.
• 2.0-inch LCD color screen with 240x320 resolution effectively displays maximum, minimum, and center point temperatures.
• Measures from -40℃ to 300℃ with an 8Hz refresh rate for quick and accurate readings.
• USB analog U-disk function with a 16MB capacity for convenient data storage.
• Built-in lithium-ion battery with a USB Type-C charging interface for extended usage and fast recharging.

Wide Applications

• Precise contactless and body temperature measurement.
• Intelligent ambient temperature monitoring for building control.
• Automotive inspections, including car repairs and parts temperature detection.
• Temperature control for appliances like microwave ovens and ovens.
• Industrial parts temperature monitoring and circuit board thermal inspection.
• Inspection and maintenance of floor heating systems.

Specifications

• Name: Thermal Imager
• Materials: Epoxy sheet printed circuit board
• Battery: 1 x 3.7V, 600mAh lithium-ion battery (included)
• Infrared sensor: MLX90640ESF-BAB
• Hardware resolution: 32x24 pixel far infrared array
• Display: 2.0-inch LCD
• Screen resolution: 240x320 pixels
• Temperature range: -40℃ to 300℃
• Measurement accuracy: ±2℃
• Refresh rate: 8Hz
• Field of view: 55° horizontal x 35° vertical
• Charging interface: Type-C
• USB U-disk capacity: 16MB
• Item size: 62 x 50 x 20mm / 2.44 x 1.97 x 0.79in
• Item weight: 70g / 2.47oz
• Package size: 110 x 80 x 50mm / 4.33 x 3.15 x 1.97in
• Package weight: 80g / 2.82oz

Package includes:

• 1 x Thermal Imager
• 1 x Cable
