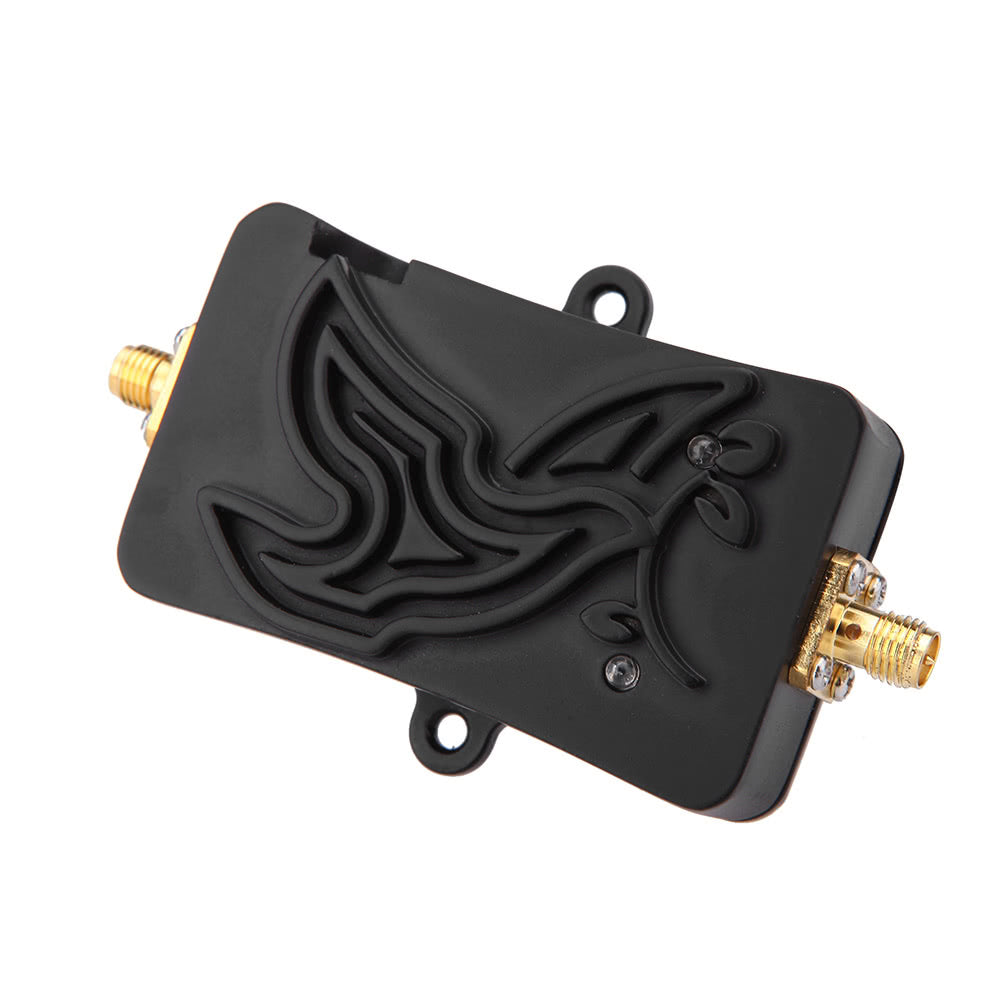

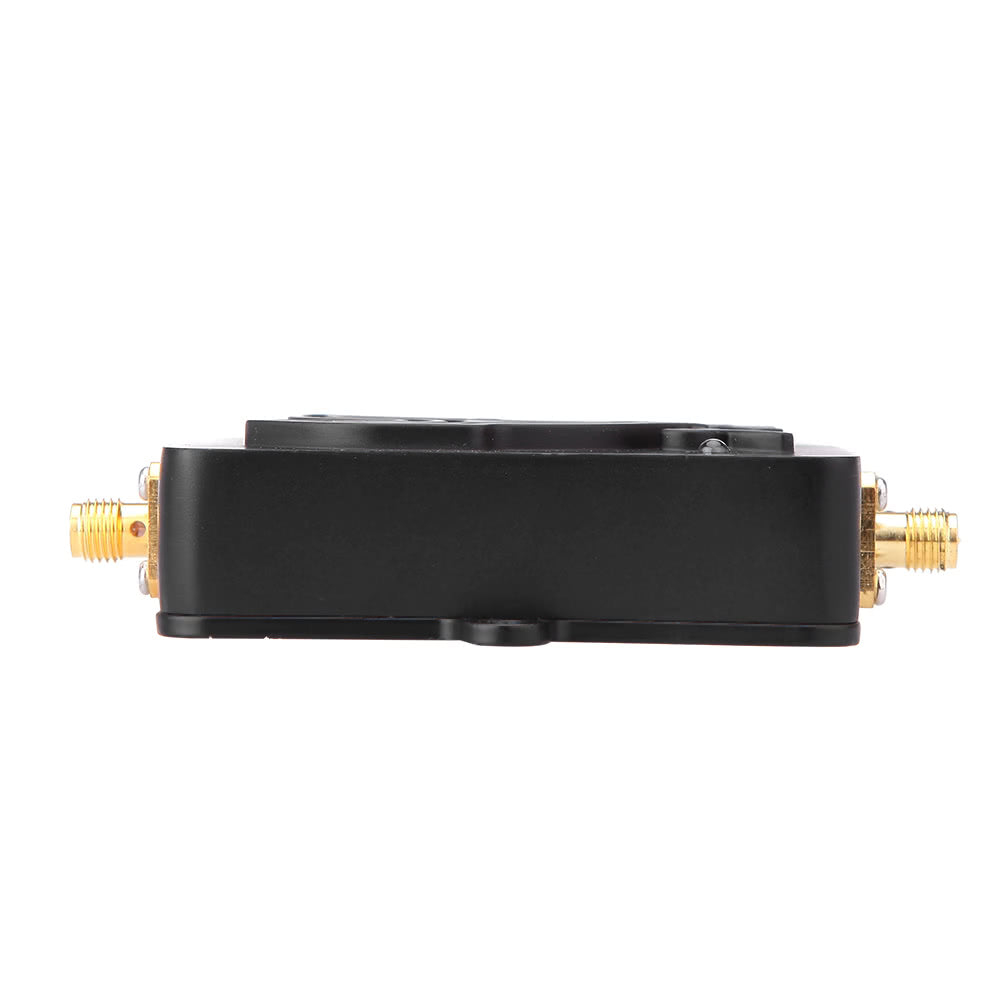

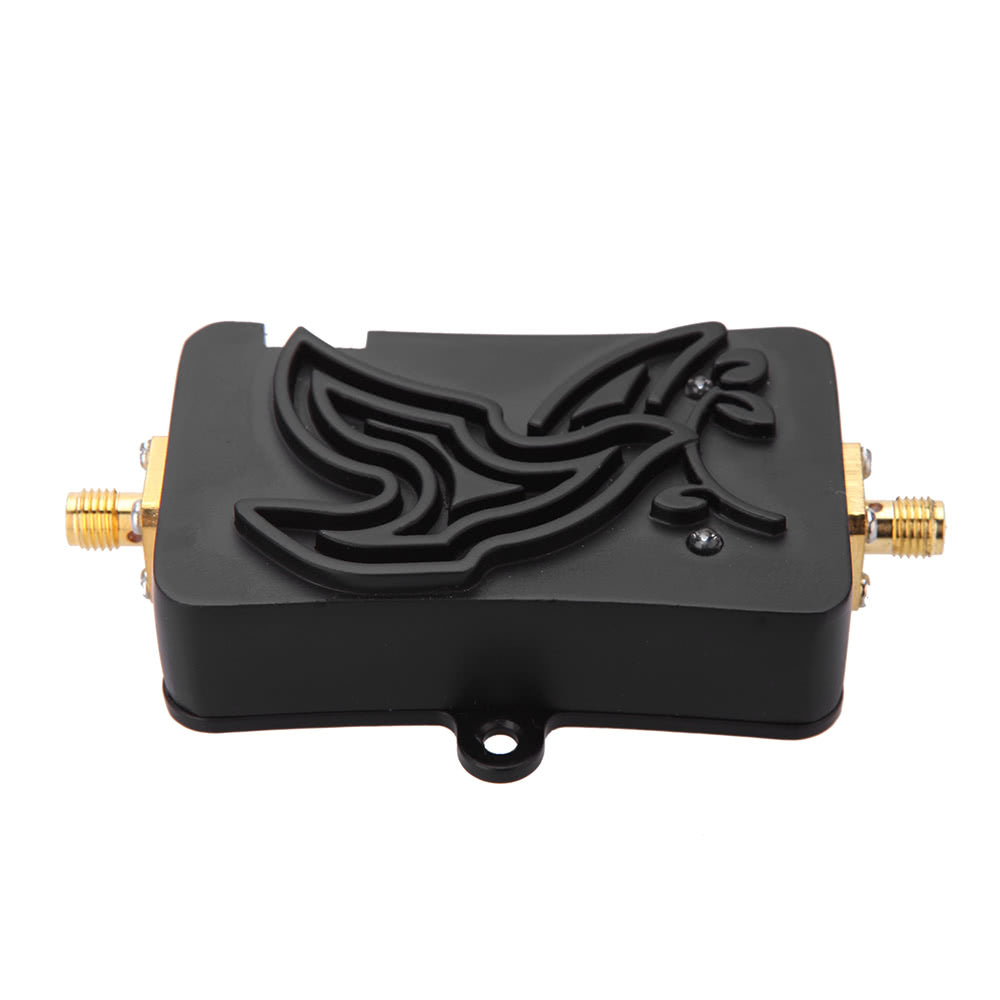

802.11b/g/n 2.4GHz WiFi Wireless Amplifier Router with Antenna - 4000mW Signal Booster & ZigBee BT Compatibility

2.4 GHz WLAN Signal Booster

Enhance your wireless network experience with our advanced 2.4 GHz WLAN Signal Booster. Specifically designed for IEEE 802.11b/g/n wireless LAN applications, this booster adopts cutting-edge technologies like Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) to ensure superior performance.

Compatible with the Time-Division Duplexing (TDD) method, it uses rapid microwave detection technology for high linearity amplification. Perfectly suited to work with most WLAN/WiFi devices, Bluetooth, and ZigBee systems, it significantly boosts signal strength, resulting in extended coverage and a more stable transmission rate.

Features

• 20X power boost for improved link quality and coverage for certified WLAN devices.
• Ultra-low noise level at 2.5dB.
• Wide operating input range from 6-16V.
• Compatible with certified IEEE 802.11b/g/n wireless LAN devices.
• Simple plug-and-play setup with no additional software required.

Specifications

• Frequency Range: 2.4-2.5GHz
• Operating Voltage: 6-16V
• Receiving Gain: 10dB ±1
• Transmission Gain: 13dB ±1
• Input Trigger Power: 3dBm (min), 20dBm (max)
• Max Output Power (P1dB): 36dBm (4W)
• EVM: 3% @ 28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
• DC Supply Current: 435mA @ Pout 28dBm 9V
• Noise Figure: <2.5dB
• TX/RX Switch Time Delay: <1us
• LED Indicator: Transmitter (green), receiver (red)
• Operating Ambient Temperature: -40°C to 70°C
• Operating Humidity: Up to 95% relative humidity
• Item Size: 8.2 x 5 x 2.1 cm (3.22 x 1.96 x 0.82 in) (L x W x H)
• Item Weight: 181g (6.39oz)
• Package Size: 21 x 12.5 x 5 cm (8.26 x 4.92 x 1.96 in) (L x W x H)
• Package Weight: 381g (13.43oz)

Applications

• Wireless LAN 802.11b/g/n access point clients
• 2.4GHz WLAN wireless base stations
• 2.4GHz WLAN wireless bridges
• Indoor distribution systems (multi-play) in combiners
• Wireless devices based on ZigBee and Bluetooth protocols

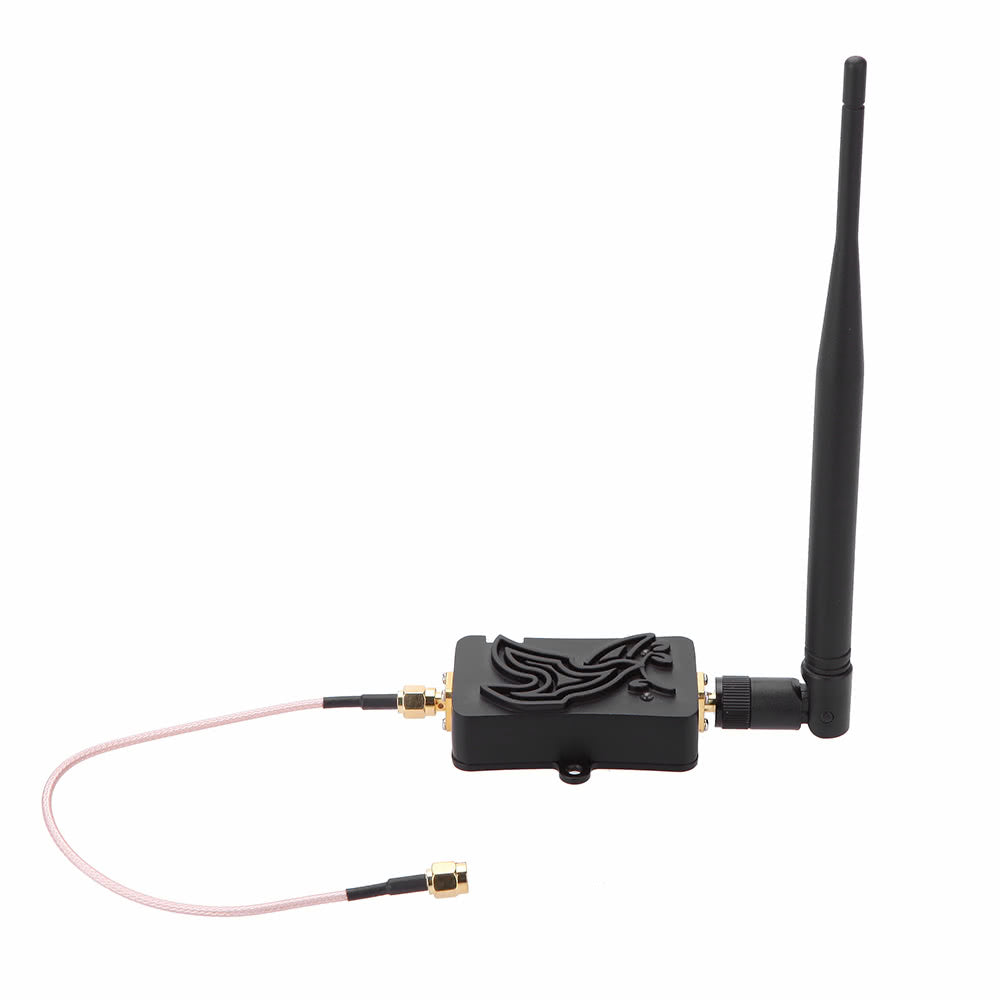

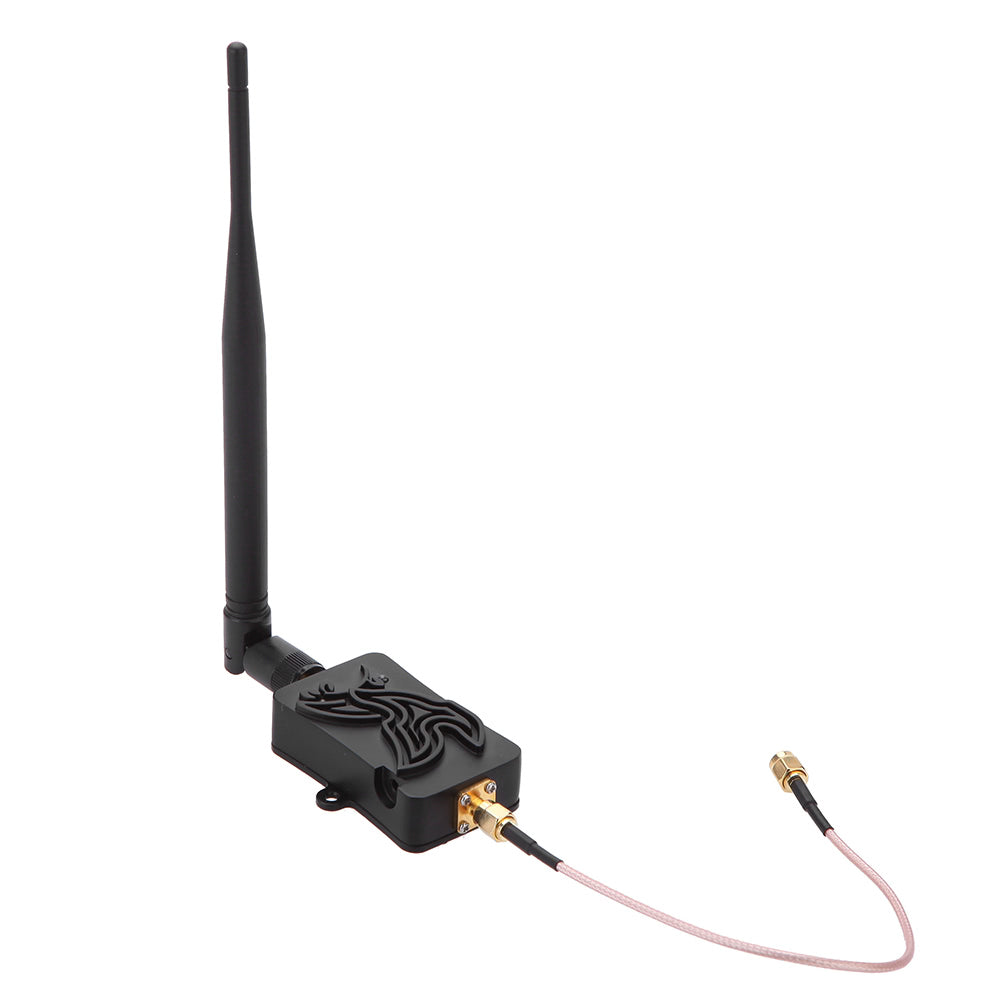

Installation Instructions

1. Disconnect the power supply to your AP/Router.
2. Detach the antenna from your certified wireless AP/Router.
3. Connect the included RG316 cable to the booster and the AP/Router.
4. Attach the antenna to the output end of the booster.
5. Connect the power supply to the booster first, then to the AP/Router.

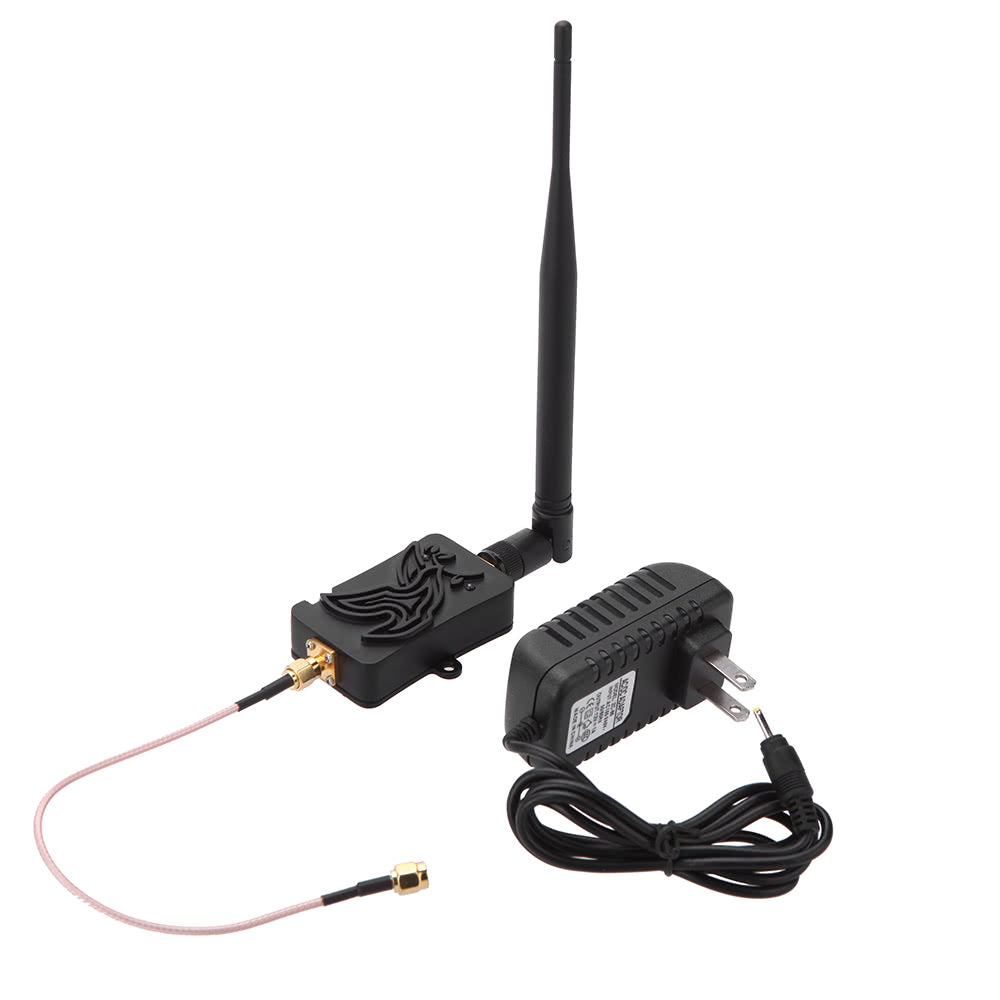

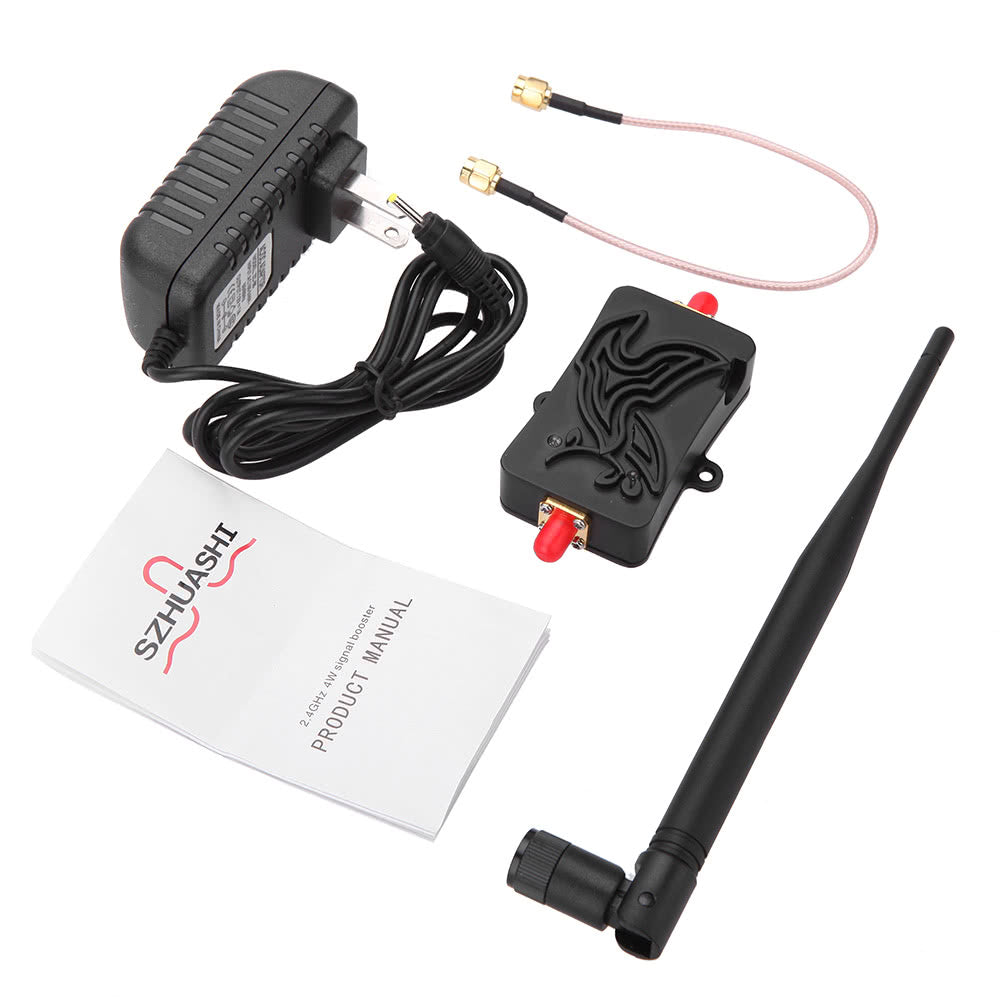

Package Includes

• 1 x 4W Signal Booster
• 1 x Power Adapter

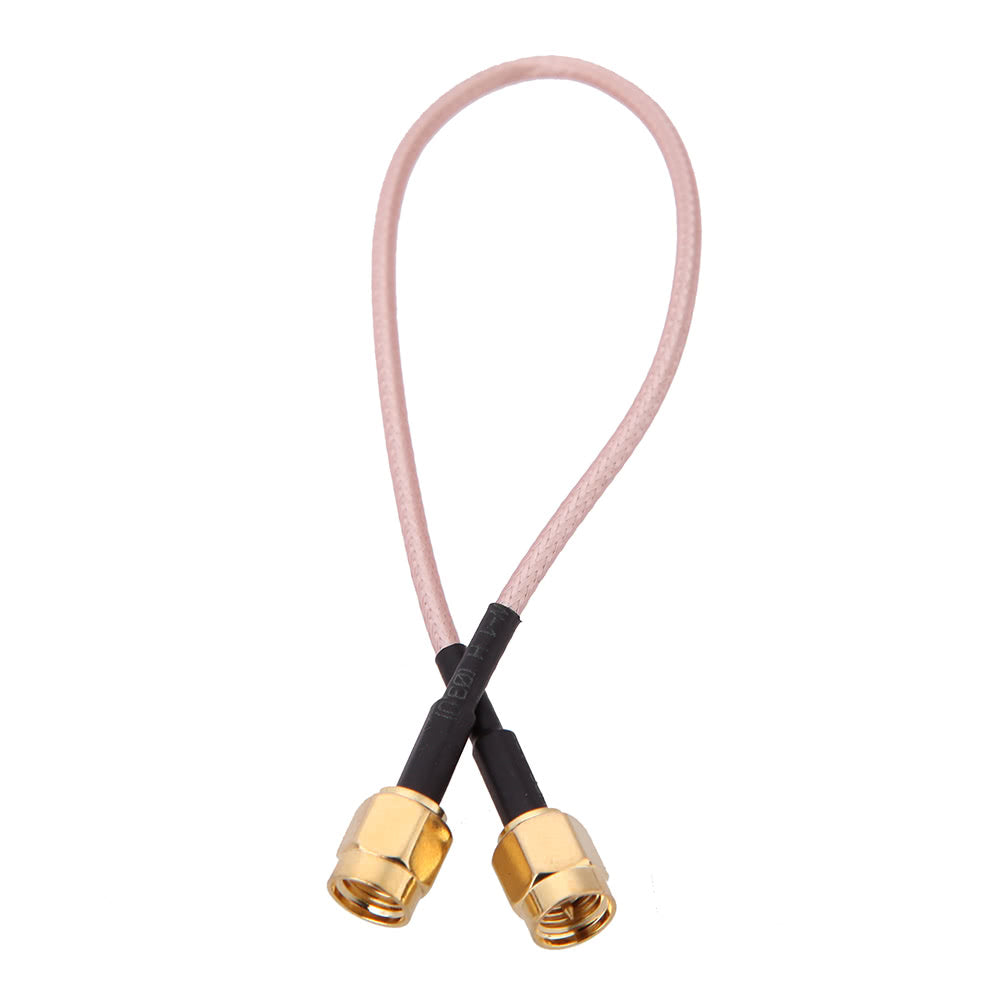

• 1 x 20cm RG316 Cable
• 1 x 5dBi Antenna
• 1 x User Manual (English)
