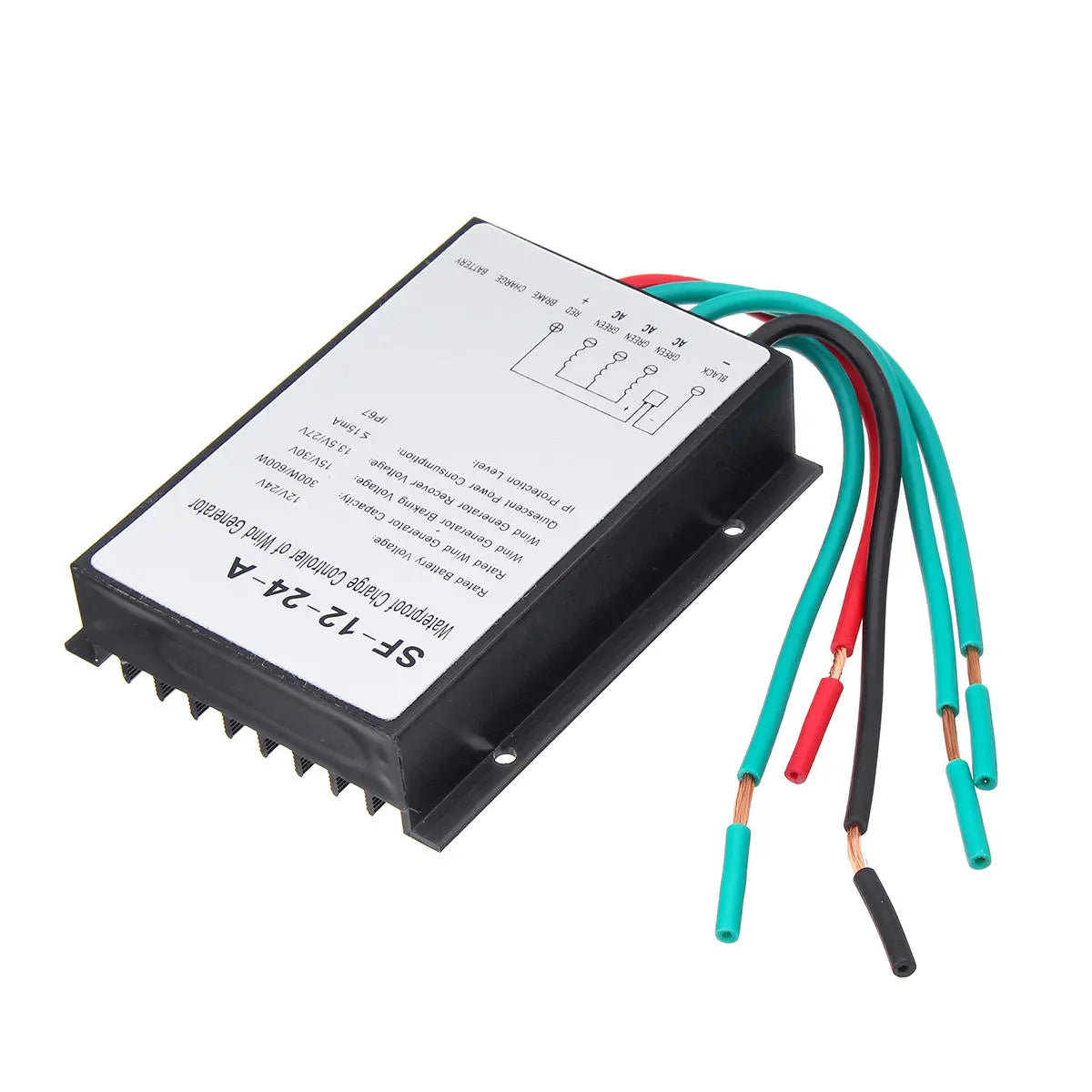

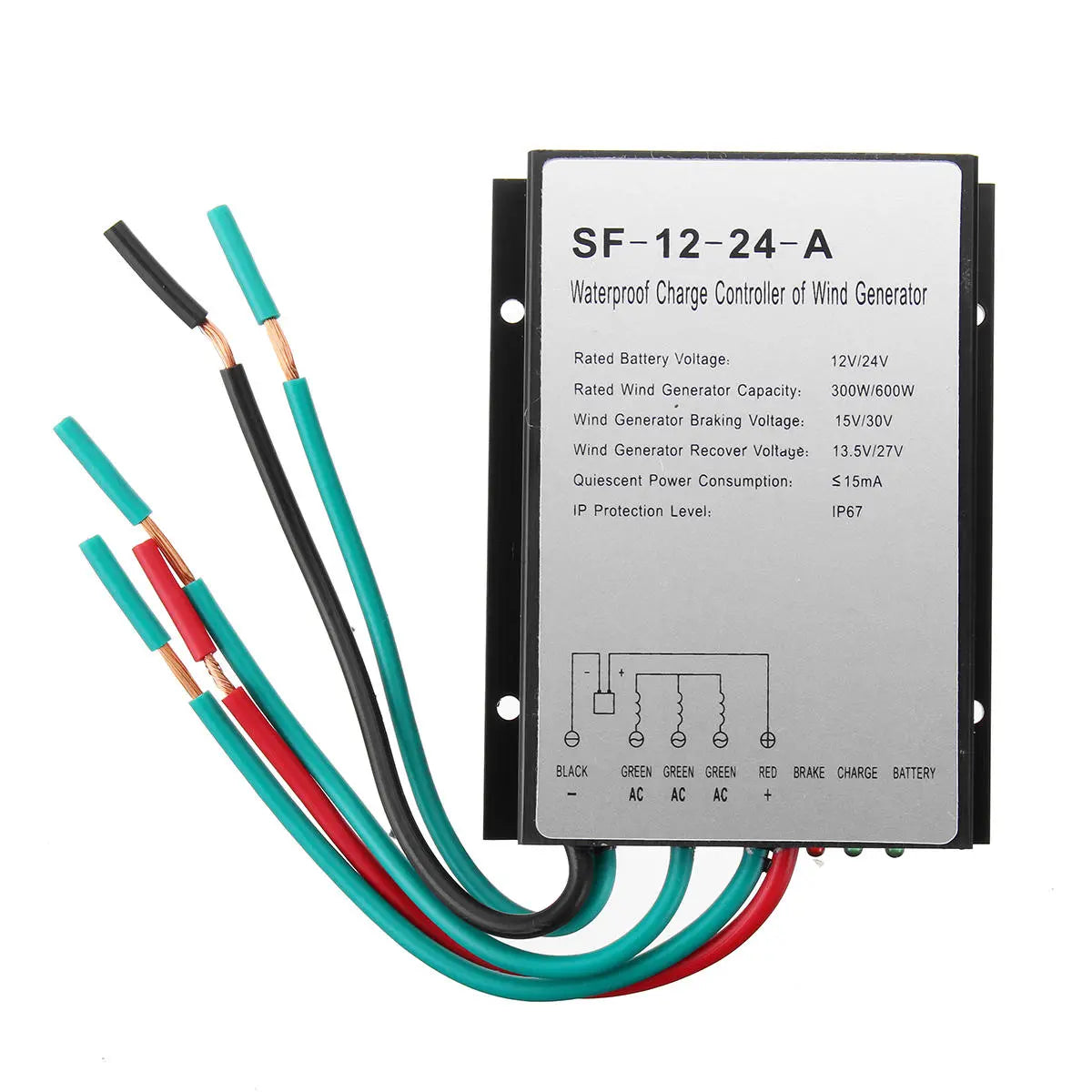

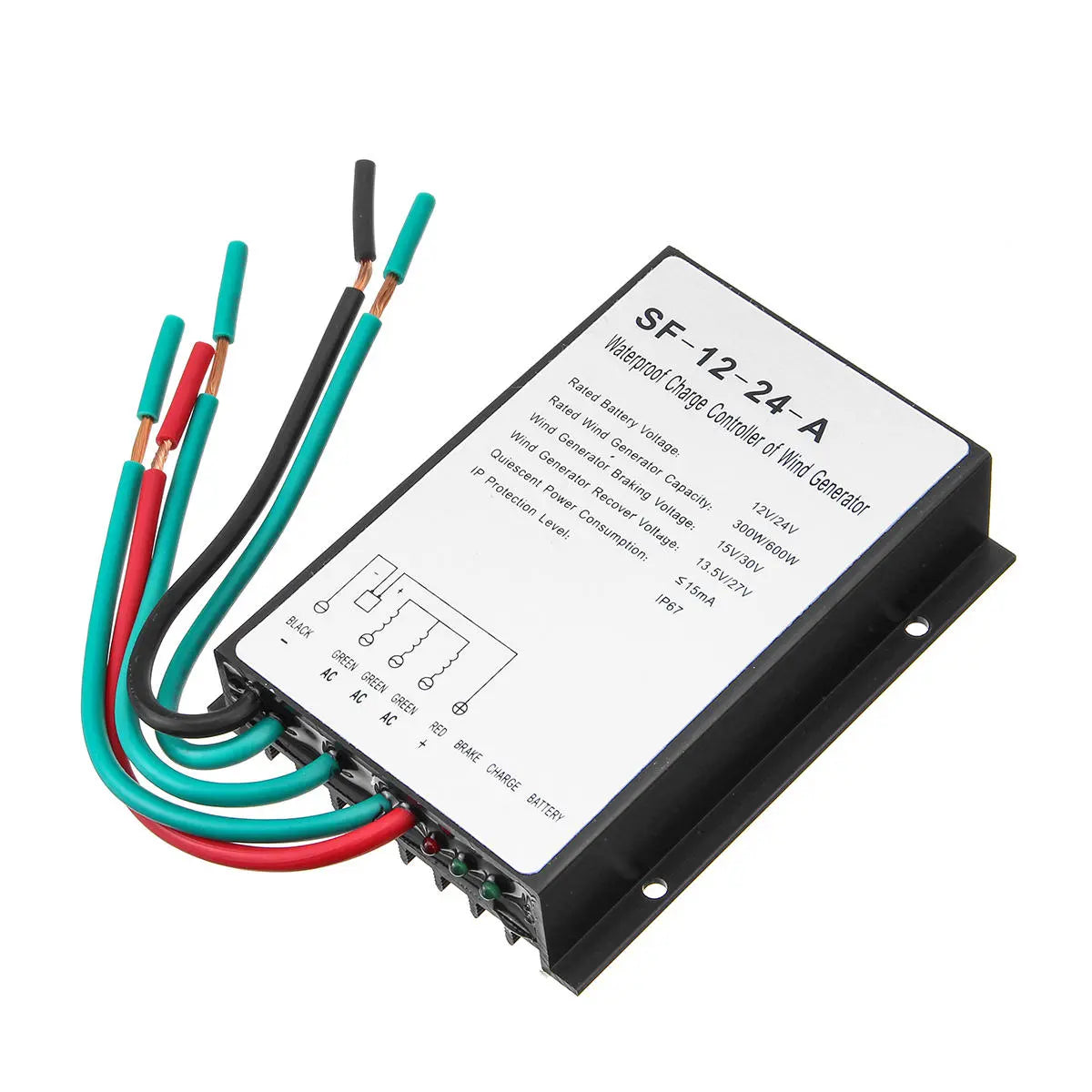

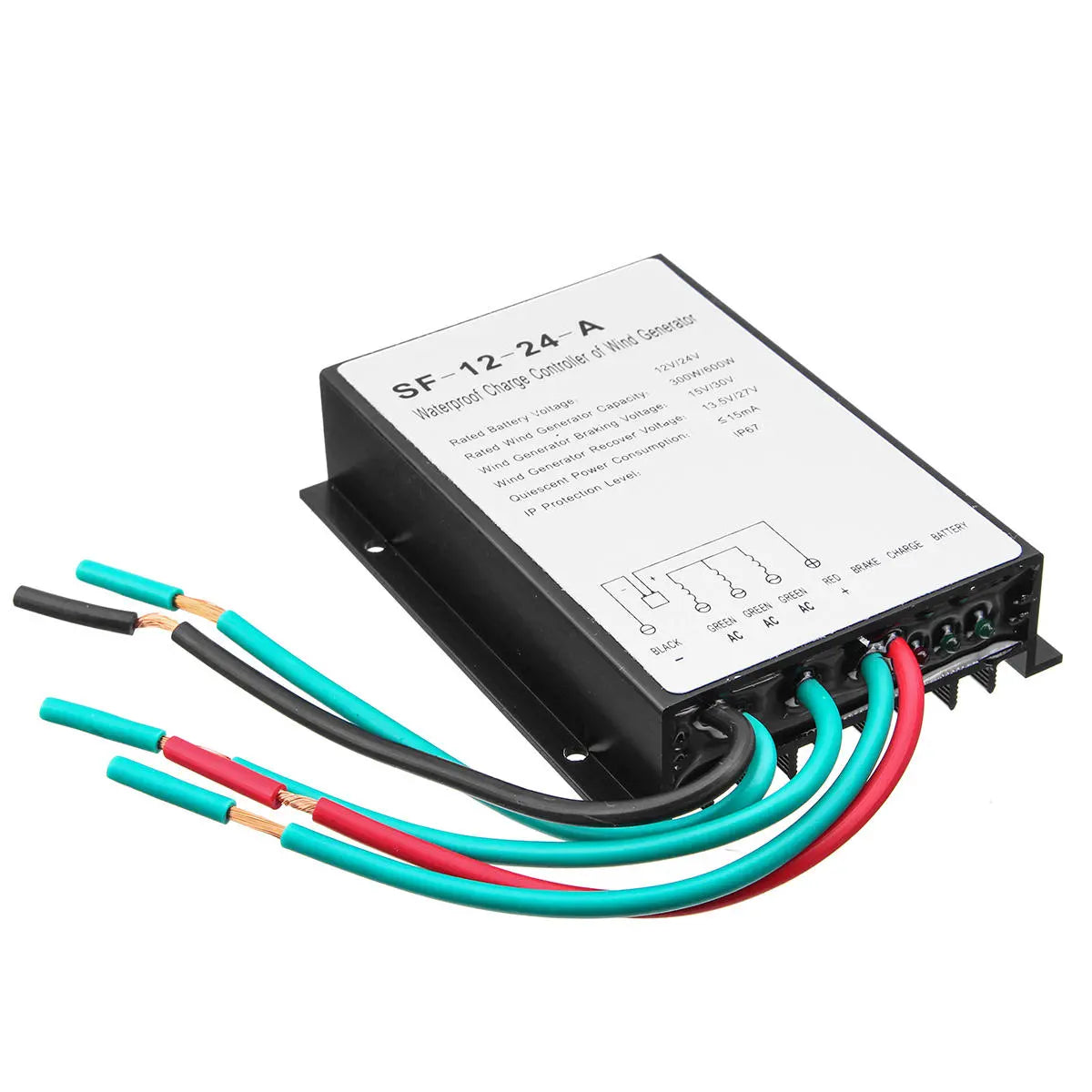

Waterproof Wind & Solar Hybrid Charge Controller 300W/600W for 12V/24V Systems

Specification:

• Name: 12V/24V 300W/600W Waterproof Charge Controller For Wind Generator
• Model: B26386

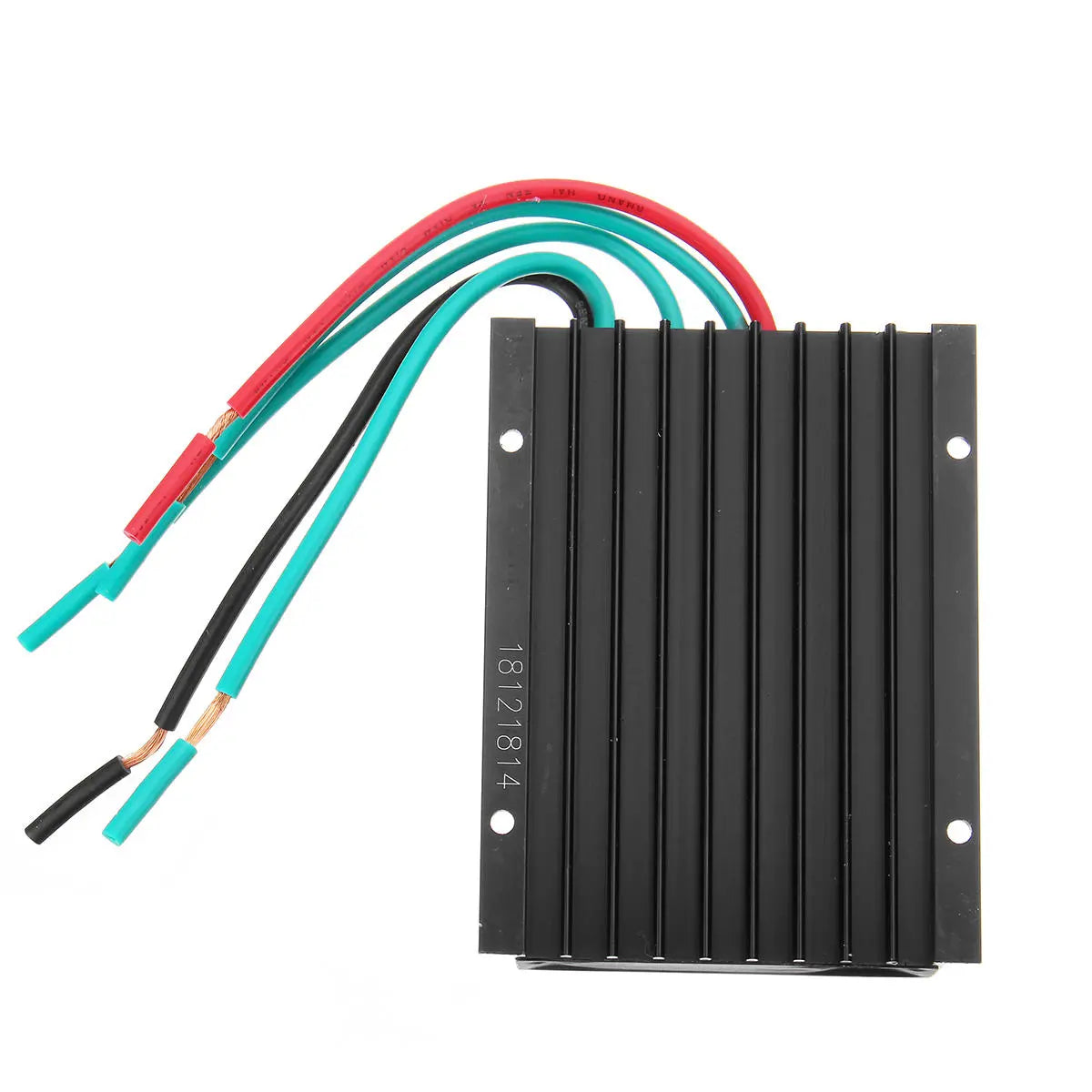

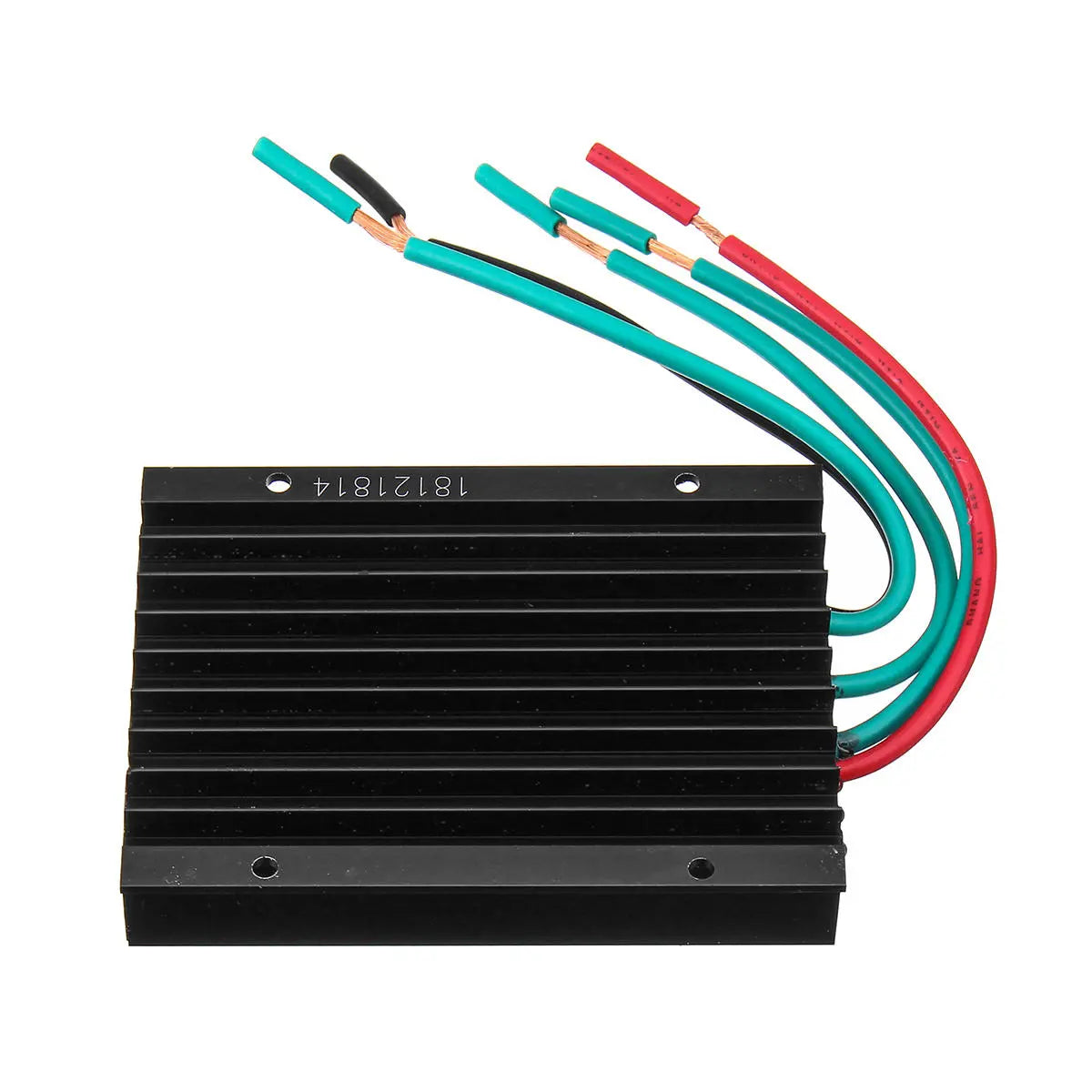

• Material: Aluminium Alloy
• Application: Wind Power Photovoltaic Controller
• Color: Black
• Product Model: SF-12-24-A
• Battery Nominal Voltage: DC 12/24V
• Rated Power of Wind Turbine: 300W/600W
• Lock Voltage of Wind Turbine: 15V/30V
• Skid Recovery Voltage (Factory Set Value): 13.5V/27V
• Working Temperature And Humidity Range: -35~+75℃
• The Static Current: ≤20 mA
• Size: approx. 76mm × 102mm × 23mm
• Level of Protection: IP67

Note:

1. The wind generator output voltage and rated voltage of the battery should be the same.
2. Follow this connection procedure: First, connect the battery's two polarities (positive and negative), then connect the three-phase voltage wind turbines.
3. Strictly follow the instructions to connect the batteries and wind turbines properly to the controller. Incorrect polarity or misconnection can cause malfunction or complete damage to the controller.

Features:

• Automatic battery charging controller that controls the wind generator. When the battery is full, internal circuits automatically brake the system. When the battery voltage drops to the recovery voltage, the wind turbine resumes operation, protecting both the generator and battery.
• Comprehensive waterproof protection with a full seal design. Achieves protection grade IP67 or above, ensuring long-term normal use even underwater and improving reliability.

Performance:

• Reliability: Features intelligent, modular design with a simple structure and robust functions. Made with industrial-grade, high-quality components and strict manufacturing techniques, suitable for harsh environments. Offers reliable performance and long service life.

Connection Method:

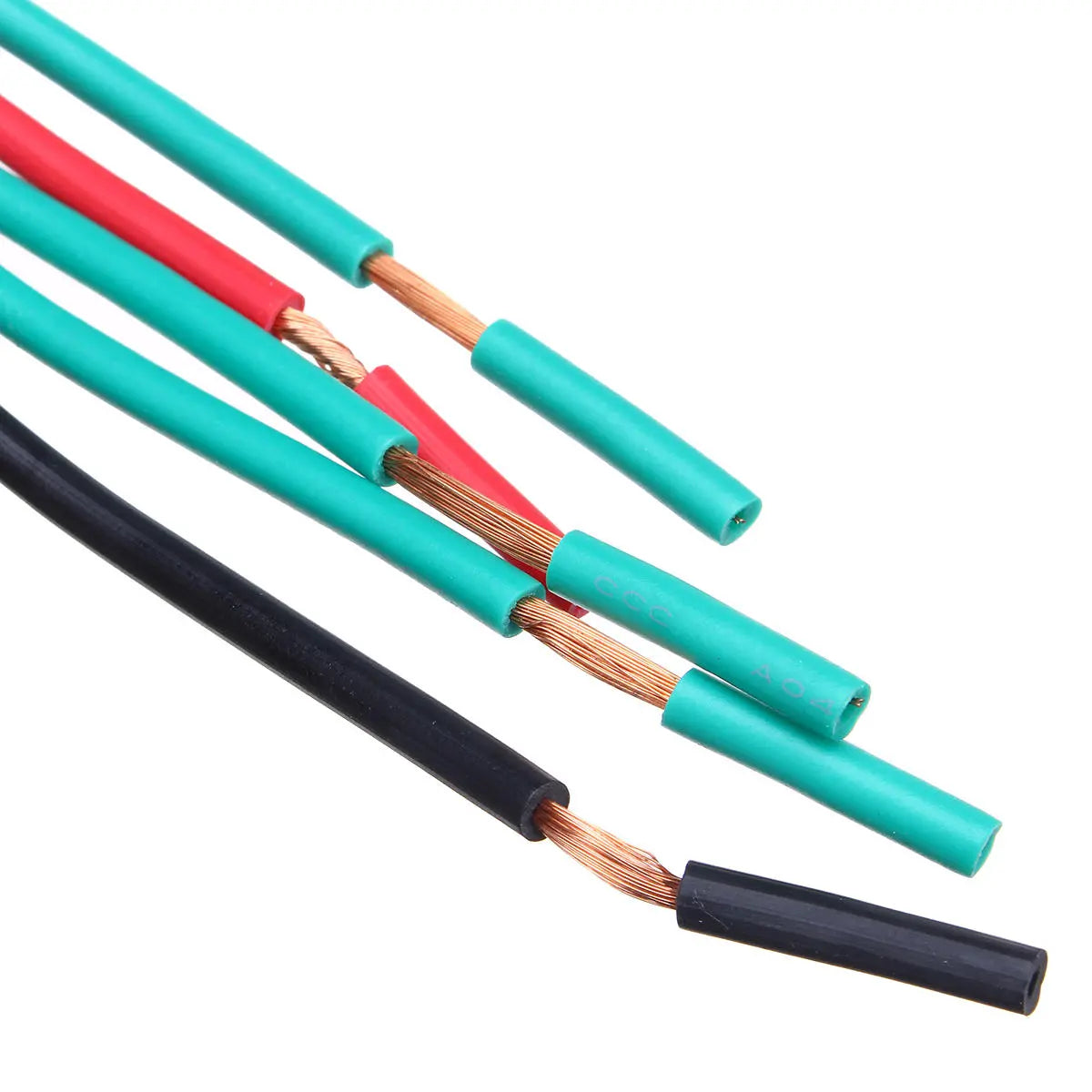

1. Connect the positive (red) and negative (black) terminals of both the battery and the controller.
2. Connect the wind turbine's three-phase AC voltage to the controller's three-phase input terminal (green line).

Package Included:

• 1x Wind and Light Hybrid Controller
• 1x Manual
