Product Description

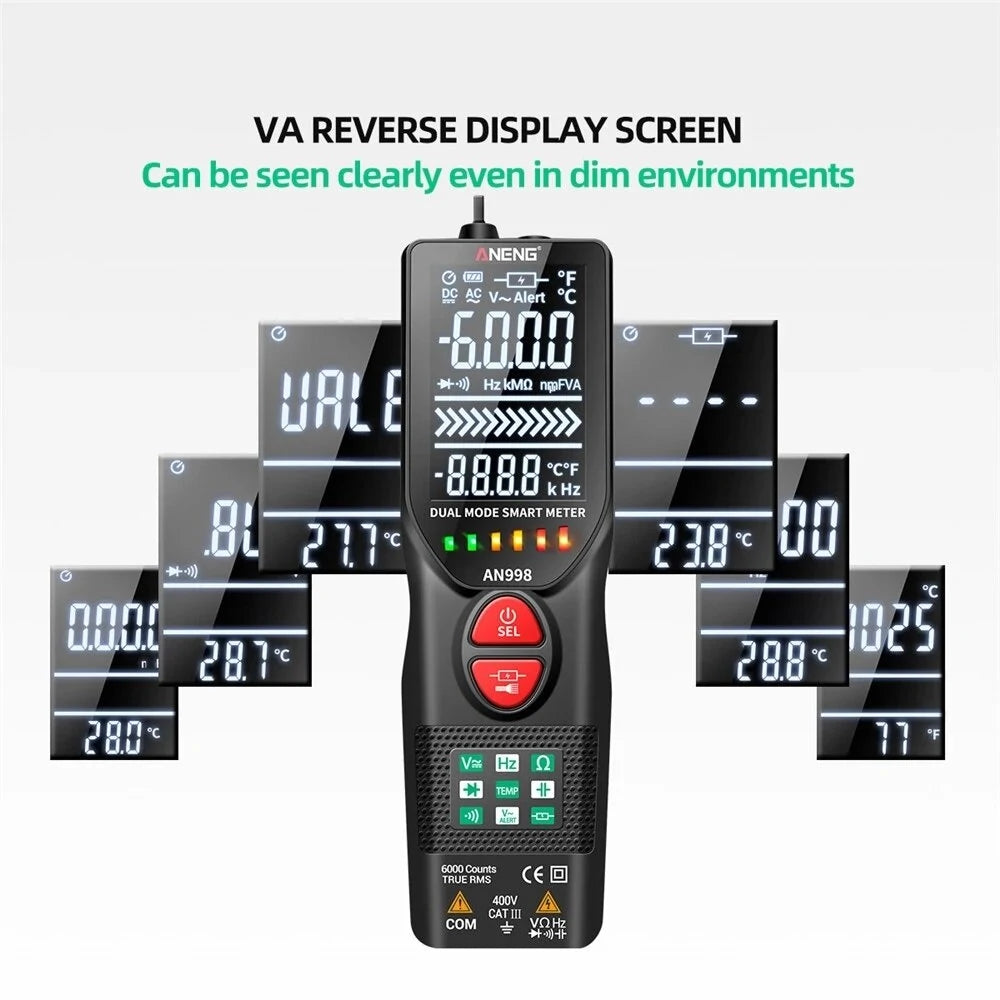

The multimeter is a portable, professional measuring instrument equipped with an easy-to-read LCD digital display and a backlight for clear data visibility. Its design allows for one-handed operation of the range switch, making measurements convenient. The device features overload protection, a low battery indicator, and is ideal for professionals, factories, schools, hobbyists, and families looking for a multifunctional instrument.

Key Features

• Measures AC/DC Voltage, True RMS, duty cycle, resistance, capacitance, frequency, and more.
• Includes a diode test, temperature measurement, and firing line detection.
• Automatic range function for ease of use.
• Reading hold function for reviewing data.
• Automatic shutdown to conserve battery life.

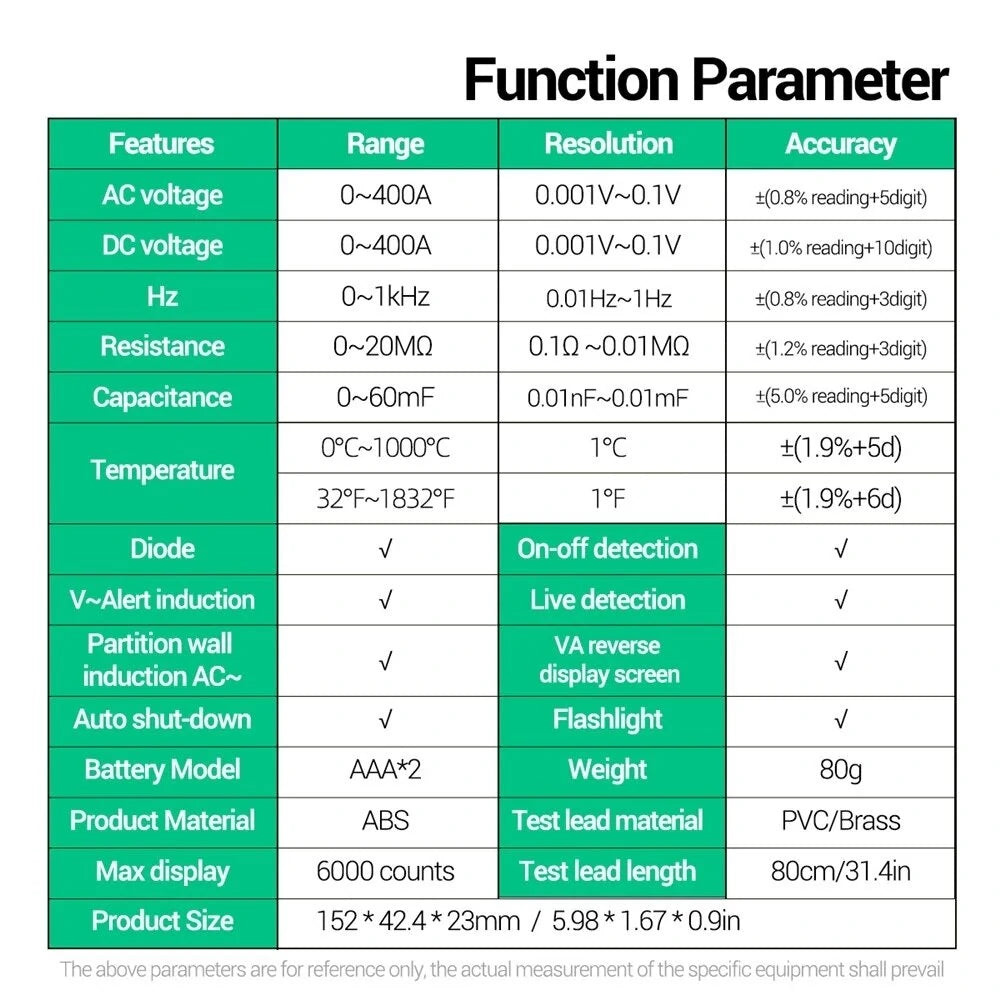

Specifications

Function and Range

• DC Voltage: 6V (±0.5% reading + 5 digits), 60V (±0.5% reading + 5 digits), 400V (±0.8% reading + 5 digits)
• AC Voltage: 6V/60V (±0.8% reading + 3 digits), 400V (±1.0% reading + 10 digits)
• Resistance: 600Ω/6kΩ/60kΩ/600kΩ (±0.8% reading + 3 digits), 6MΩ/20MΩ (±1.2% reading + 3 digits)
• Capacitance: 60nF to 60mF (Various accuracies, up to ±5.0% reading + 5 digits)
• Frequency: 10Hz, 100Hz, 1kHz (±0.8% reading + 3 digits)

Additional Features

• Diode Test: Yes
• Circuit on-off Test: Yes

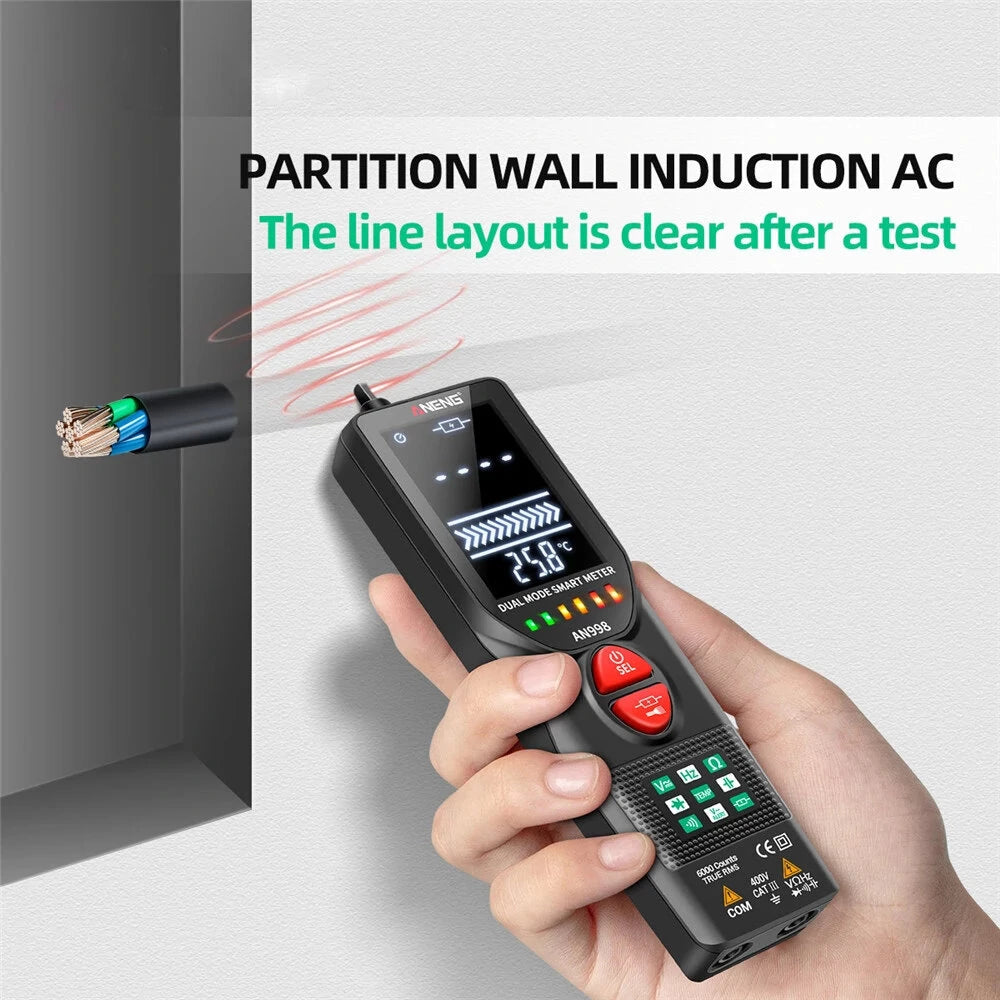

• Live Wire Measurement: Yes
• Temperature Measurement: 0℃-1000℃ and 32℉-1832℉ (Varies per range and accuracy)

Package Includes

• 1 x Multimeter
• 2 x Test Lead Wires
• 1 x Thermocouple
• 1 x User Manual
• 1 x Storage Bag
