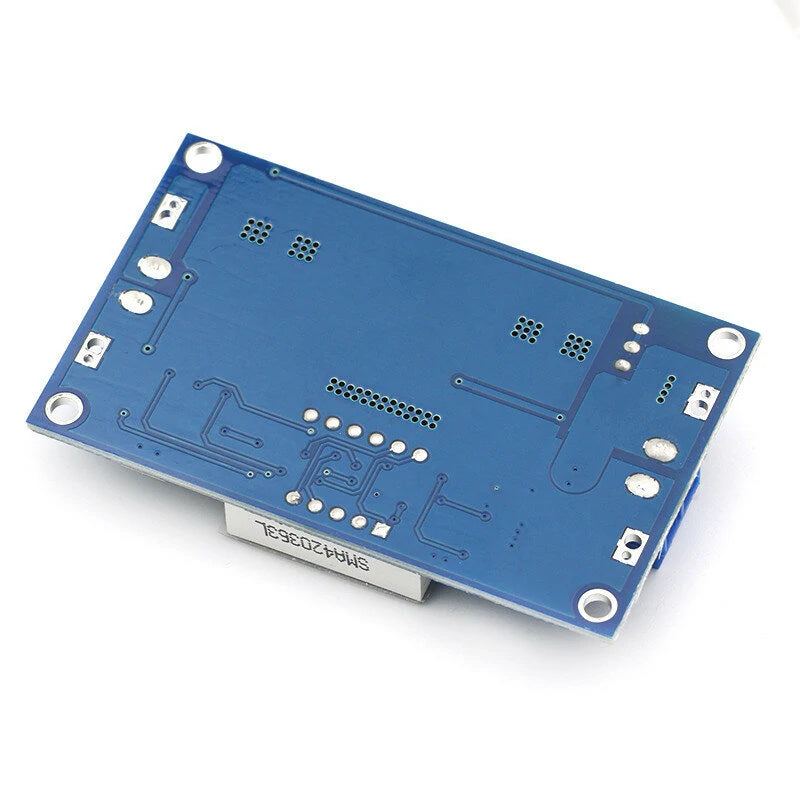

Boost Converter Module

Product Details

• Input Voltage: DC 3~35V (Note: Input voltmeter fails below 4V)
• Input Current: Max 9A
• Output Voltage: DC 3.5~35V (Output should exceed input voltage)
• Output Current: Max 6A
• Output Power: 75W (up to 128W when both input and output exceed 20V)
• Conversion Efficiency: Up to 96.7%
• Voltmeter Range: 4~40V, with ±0.1V error
• Short Circuit Protection: Yes, current limit 14A (Tip: Power on first before connecting load)
• Input Reversal Protection: Not included (consider using a high-current diode)

Features

• Advanced voltmeter microprocessor and imported boost controller for enhanced efficiency, reaching up to 96.4%
• High-power, low resistance MOSFET ensures high current and efficiency with low temperature rise
• Ultra-wide voltage range, supporting up to 128W output power under certain conditions
• Durable high-efficiency components, including low-ESR capacitors, reduce output ripple

Package Includes

• 1 × 100W Booster Module
