4-Channel Portable DJ Mixer: High-Fidelity Sound for Live & Studio Use

4-Channel Audio Mixer

Features

• Versatile Connectivity: Equipped with XLR, USB, and OTG inputs/outputs, seamlessly connect to PCs, smart devices, and more. Ideal for studio recordings, live performances, and DJing.

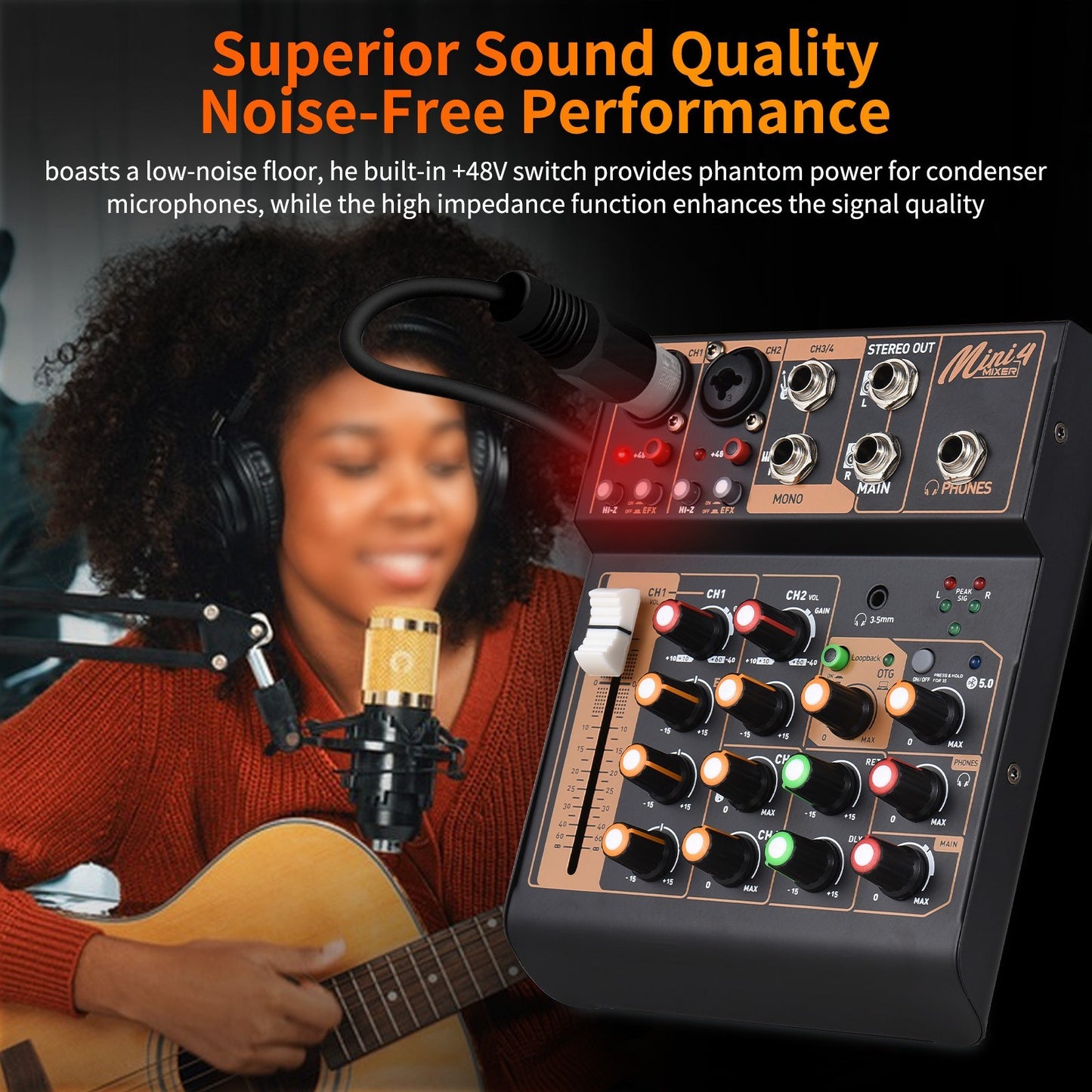

• Superior Sound Quality: High-quality chips and amplifiers deliver clear audio. Includes +48V phantom power for condenser mics and a high impedance function for enhanced signal quality. A 3-band EQ provides precise control over highs, mids, and lows.
• Portable and User-Friendly Design: Operates on a 5V power supply, convenient for power bank usage, and features a compact, lightweight design. BT 5.0 ensures wireless playback of high-quality music with an intuitive control layout.
• Multi-Purpose Applications: Connect various devices for lossless recording and live mixing. Provides 4-channel configuration, plenty of inputs for microphones and instruments.
• Noise-Free Performance: Low-noise floor ensures minimal interference. Uses cutting-edge technology for superior audio quality, eliminating background noise and distortion.

Specifications

Input/Output: 6.35mm
Balanced Microphone Input Type: XLR, balanced, split input
Frequency Response Range: 20Hz-22KHz ± 1dB
Distortion (T.H.D&N): 0.01% at+4dB, 1kHz, bandwidth 80kHz
Decibel Signal-to-Noise Ratio: 110dB/112dB
Gain Range: +10dB-60dB input
Impedance: Approximately 2.60 kΩ balanced
Line Input: Balanced Input (type: 1/4" TRS electronic balance connector)
Frequency Response Range: 10Hz-60KHz ± 3dB
Distortion (T.H.D&N): 0.01% at+4dB, 1kHz, bandwidth 80kHz
Signal to Noise Ratio: ≥ 90dB
Input Impedance: Approximately 20 kΩ balanced, 10 kΩ unbalanced
Line Output: 6.35mm dual channel and mono output (type: 1/4" TRS connector electronic balance, 1/4" TS connector unbalanced)
Output Impedance: Approximately 240 Ω symmetric/120 Ω unbalanced
DSP Core: ARM Cortex-M3
Converter: Dual channel 20 bit Delta ADC, signal-to-noise ratio ≥ 90dB
Two Stereo Lines: IIS Digital Audio Output/Input
BT 5.0 Support: Yes
Support Sampling Rate: 192kHz
Total Harmonic Distortion: Less than 0.03% @ 1kHz
Maximum Input Level of Microphone: 16dBu
Maximum Input Level of Line: 30dBu
Maximum Input Level of Stereo Sound: 20dBu
Earphone Output: (2002) 300mW
Other Outputs: 20dBu
Equalizer: High frequency: 12KHz, ±15dB; Low frequency: 80Hz, ±15dB
Power Consumption: 10W
Power Input: 100-240V AC03A50/60Hz
Product Size: 15 * 17.7 * 4cm/5.9 * 7 * 1.6inch

Note

The real color of the item may differ slightly from the images due to factors such as monitor brightness and light conditions. Please allow slight manual measurement deviations.

Package List

• 1 x Mixing Console
• 2 x USB Cable
• 1 x Instructions
