Multi-function MT-6500 OTDR Series
The Multi-function MT-6500 OTDR series is an indispensable tool for fiber length, network, and camera testing. It precisely measures and displays the power of returned signals concerning distance. This information is crucial for confirming the transmission quality of fiber optic links, making this device widely used in maintenance, construction, and cable line monitoring.
The MT-6500 OTDR can measure optical fiber length, transmission attenuation, splice loss, and detect failure locations. Additionally, its built-in camera tester supports maintenance and installation of IP, analog, and HD coaxial cameras, as well as other security equipment. Using this all-in-one OTDR enhances safety and boosts productivity.
Features

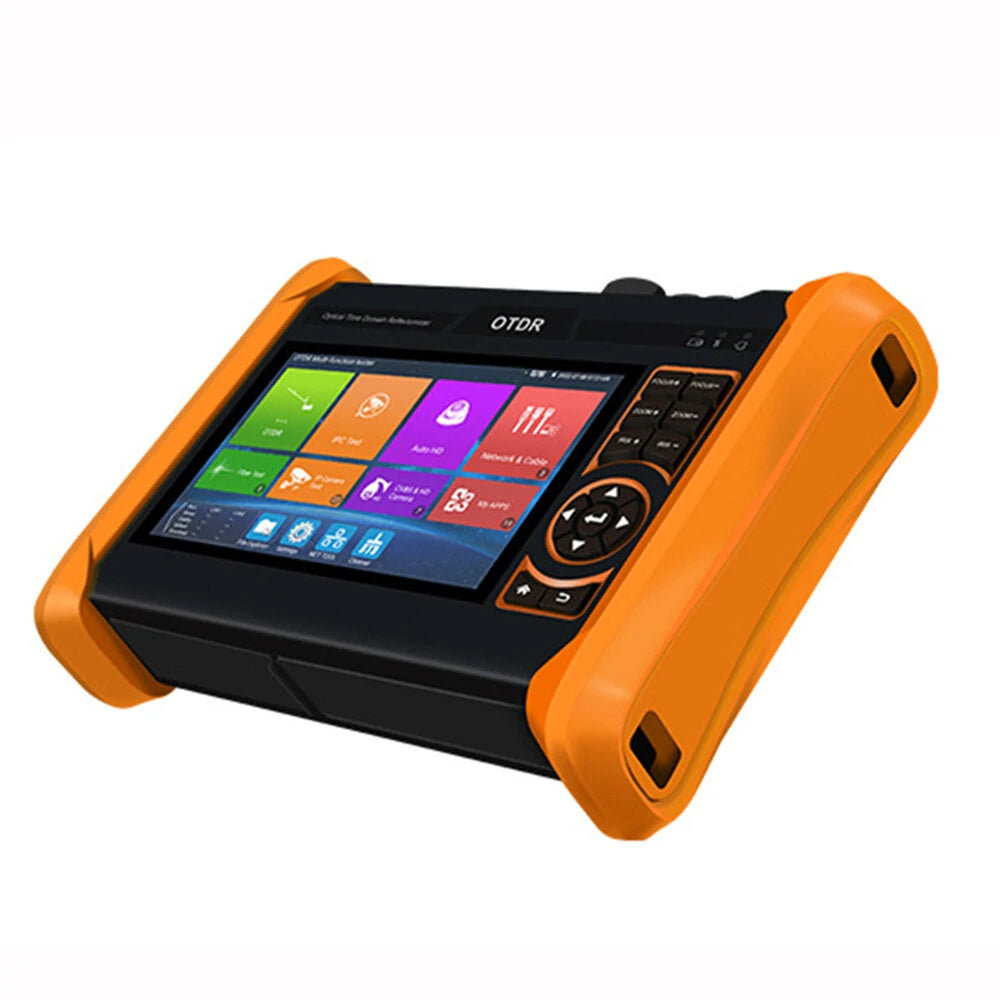

- 5.4-inch IPS touch screen with 1920x1152 resolution
- Optional wavelengths: 1310/1550/1610, with dynamic ranges from 26 to 34dB, max test range 150KM*
- Stable laser source supporting multiple frequencies
- Test fiber’s length, loss, attenuation parameters, and event map
- Automatic analysis of various link events and fusion points
- Save, view, and zoom in on testing curves with a storage capacity of over 30,000 pieces
- Create comprehensive testing reports in Excel, PDF, or screenshot formats
- Detect optical or component loss values
- Camera testing capabilities, including support for 4K H.265 video display
- Supports major camera brands with ONVIF app access
- Wireless camera display and creation of Wi-Fi hotspots
- Advanced cable testing, fault detection, and reporting
- Comprehensive power and network management tools
- 7.4V 5200mAh Li-ion battery with 11 hours of working time
Specifications

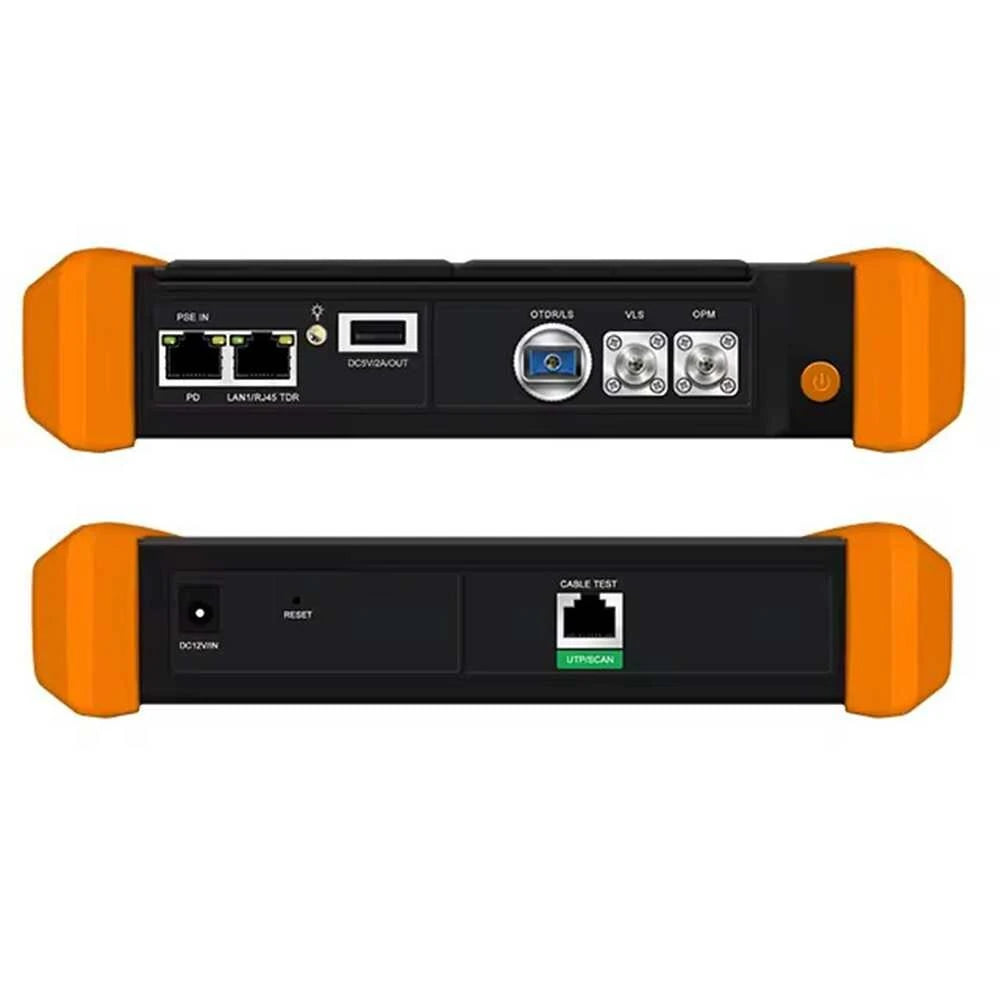

- Network Port: One 1000M LAN port, 10/100/1000M auto adapt
- Wi-Fi: Built-in 2.4G Wi-Fi, speeds up to 150M
- Camera test support: 500 brands IP camera test and auto-scan capabilities
- Power Output: 48V PoE, 24V2A, 12V 3A, 5V 2A
- Operating environment: -10℃ to +50℃ temperature, 30% to 90% humidity
- Electroscope with voltage range: AC12-1000V, CAT.III 1000V / CAT.IV 600V
- Visual Fault Locator with test range: 8KM
- Optical power meter for multiple wavelengths
Package Includes

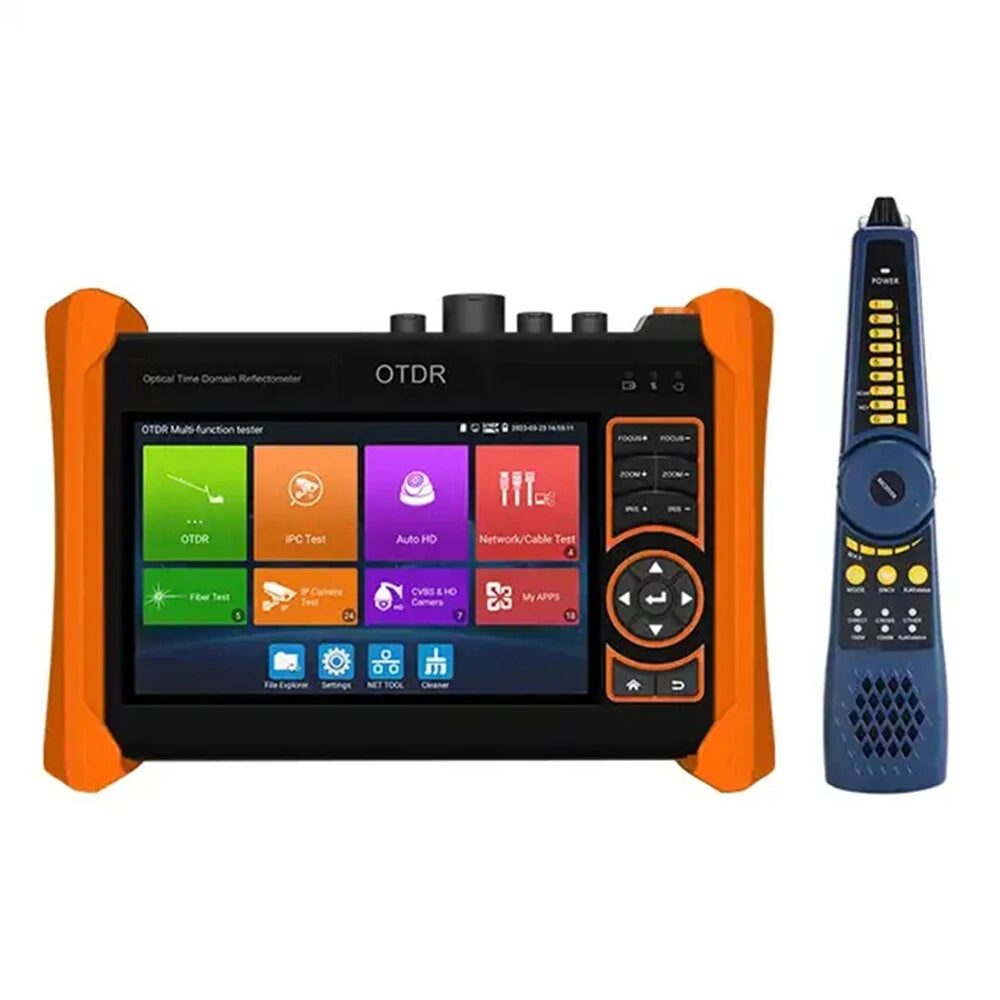

- 1 x MT6005 Tester (Model Type as chosen)
- 1 x Network cable tracer
- 1 x Charger (Plug Type as chosen)
