Audio Signal Digital Noise Reducer with Low Pass Filter for HF Shortwave Radio (Non-DSP)

Audio Signals Digital Noise Reducer & Low Pass Filter for HF Radio Shortwave
Enhance your radio experience without DSP

Key Specifications:

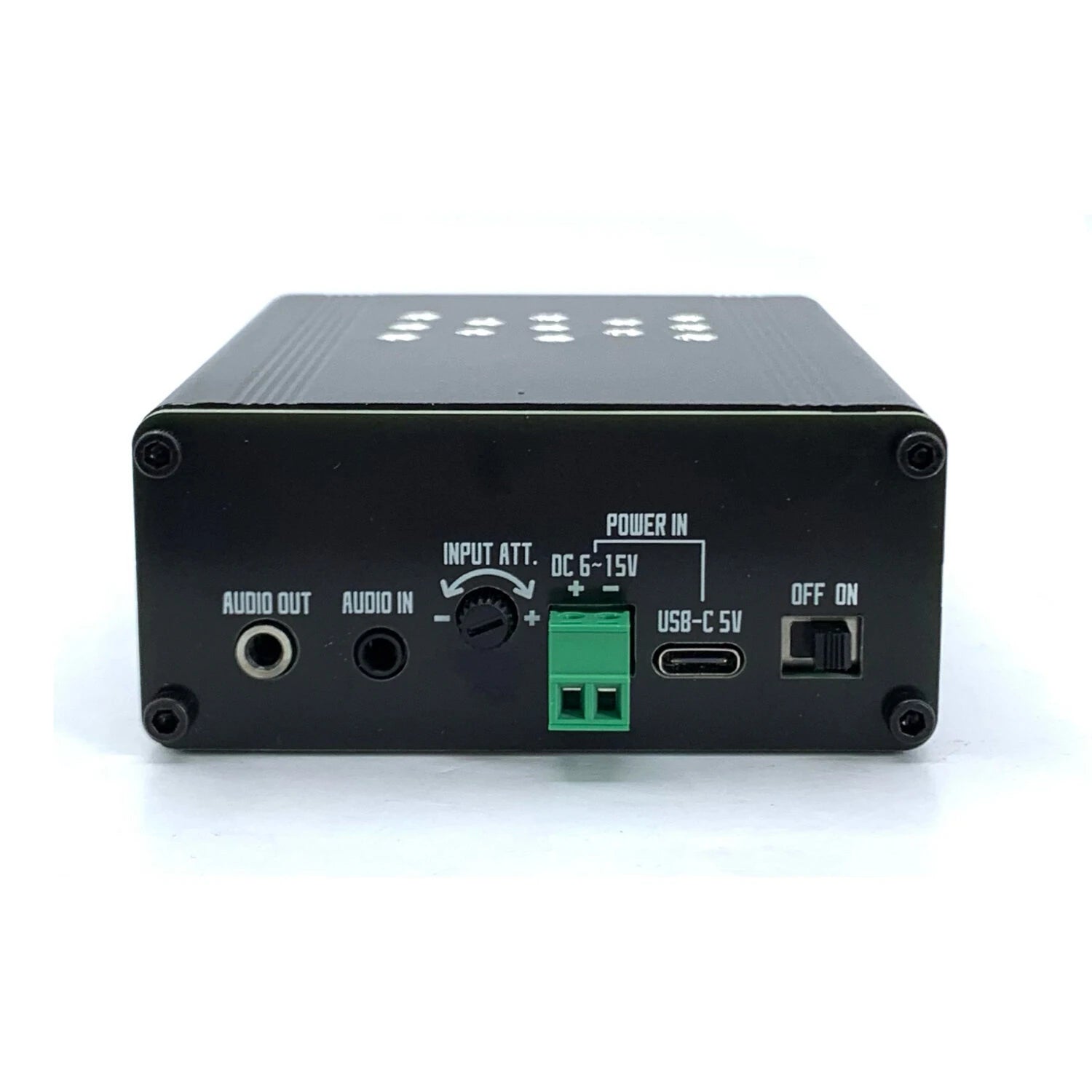

• Power Supply: USB-C 5V or 6~15V DC
• Power Consumption: Maximum 4W
• Built-in Speaker Output: Maximum 3W

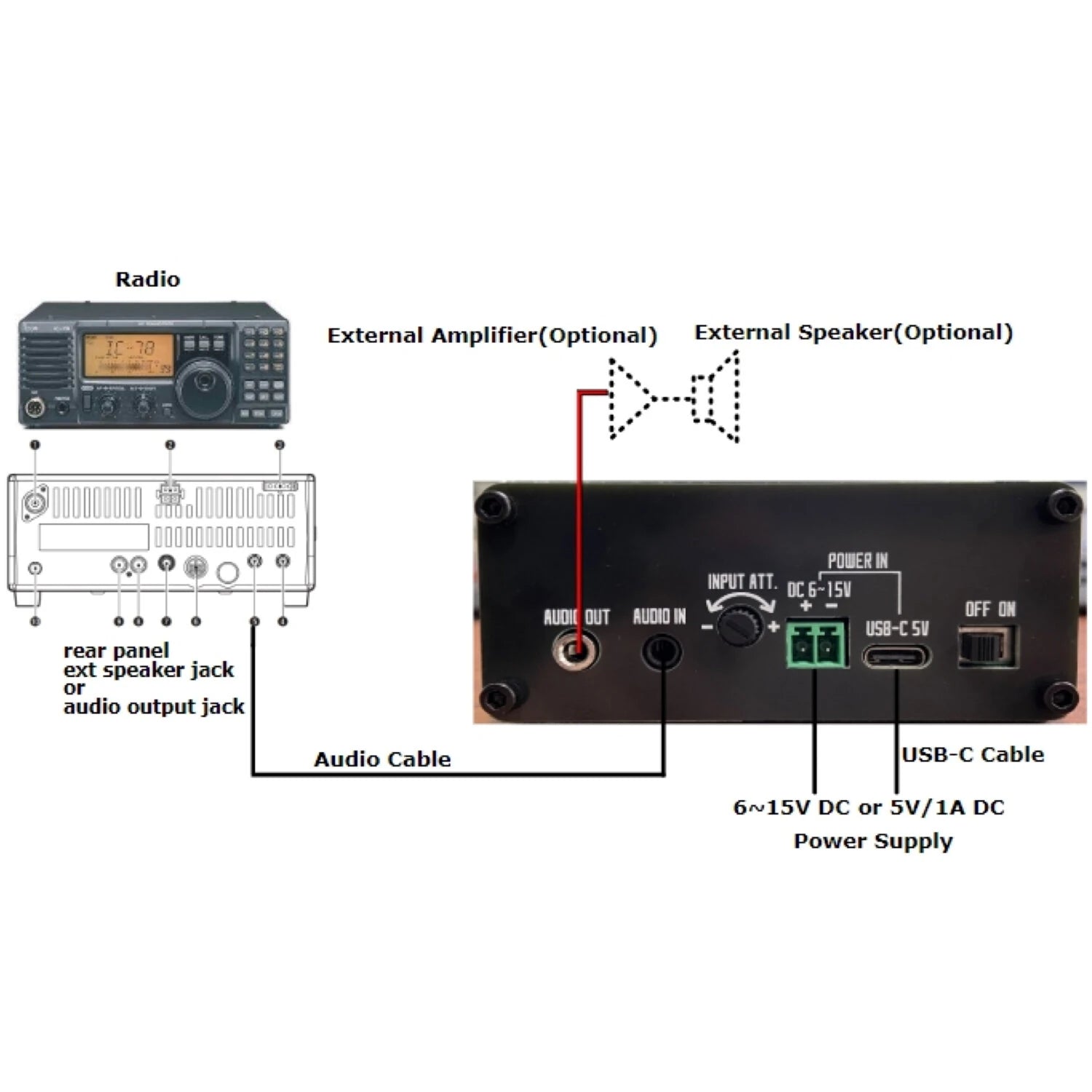

• Signal Input: 3.5mm audio jack
• Signal Input Level: Maximum 5 Vp-p
• Noise Reducer Level: 10 levels (OFF to 9)
• Low Pass Filter Level: 10 levels (OFF, 6KHz to 200Hz)

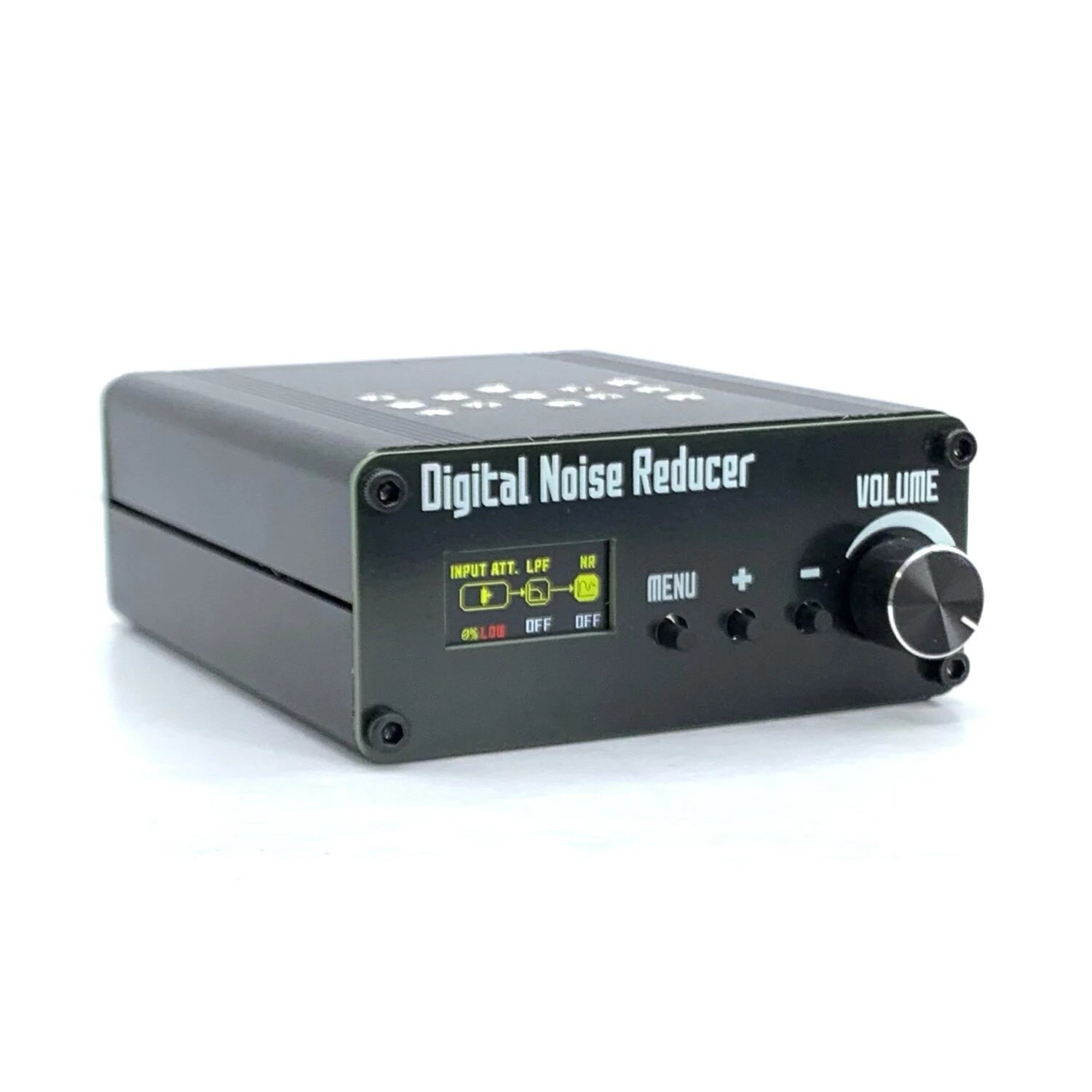

• Display: 0.96 inch TFT screen
• Dimensions: 88mm (W) x 38mm (H) x 100mm (L)
• Weight: 230g

Product Functions:

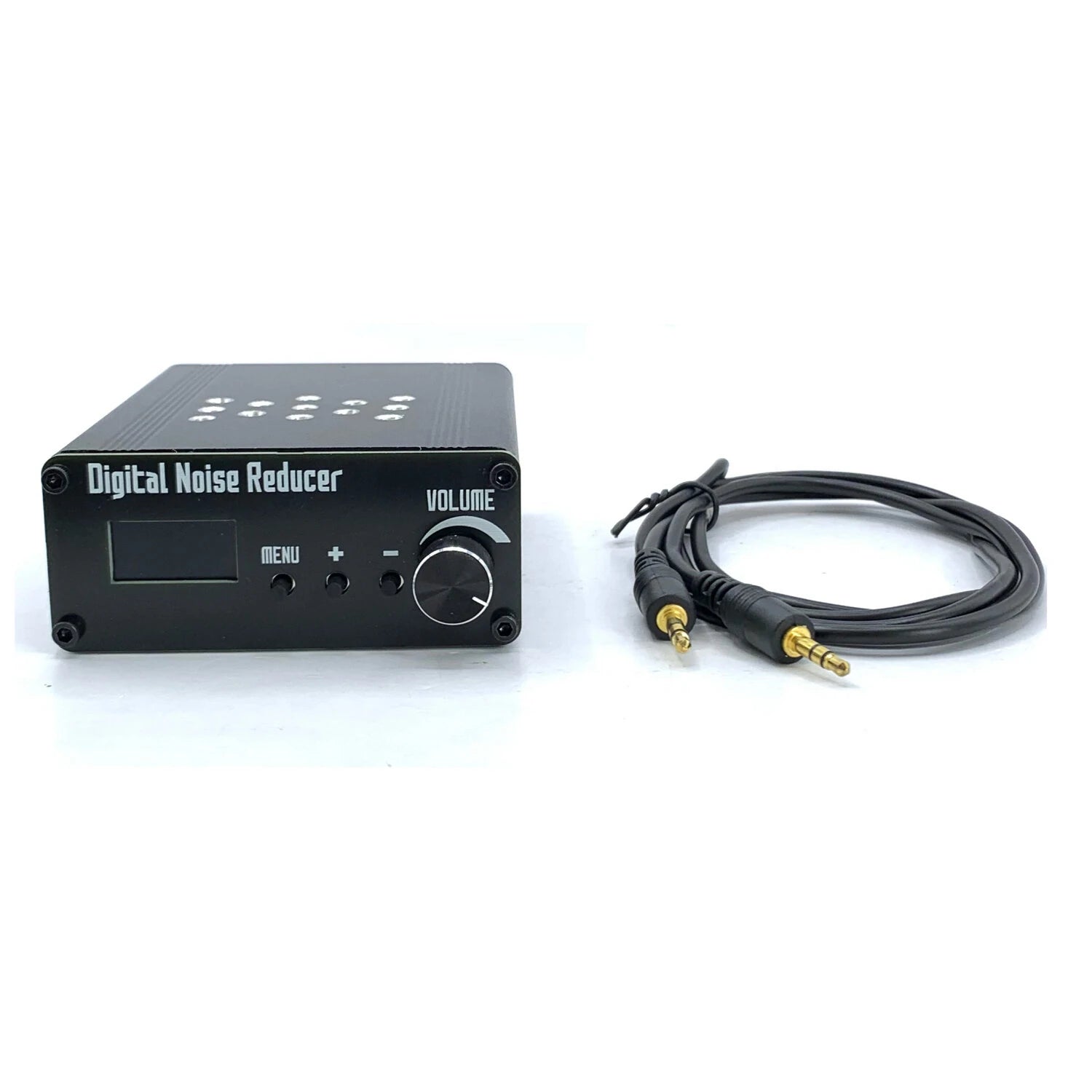

This versatile device is designed to process audio signals with both a Digital Noise Reducer (NR) and a Digital Low Pass Filter (LPF). It is ideal for use with shortwave radios lacking DSP technology, significantly enhancing your communication experience during QSOs.

Package Includes:

• 1 x Digital Noise Reducer
• 1 x Type-C Cable
• 1 x Signal Input Cable

Transform your audio experience and enjoy clearer sound with our Audio Signals Digital Noise Reducer and Low Pass Filter.
