Multi-Functional LCD Network Cable & PoE Tester with Inline Voltage/Current Checker and Illuminated Wire Tracker

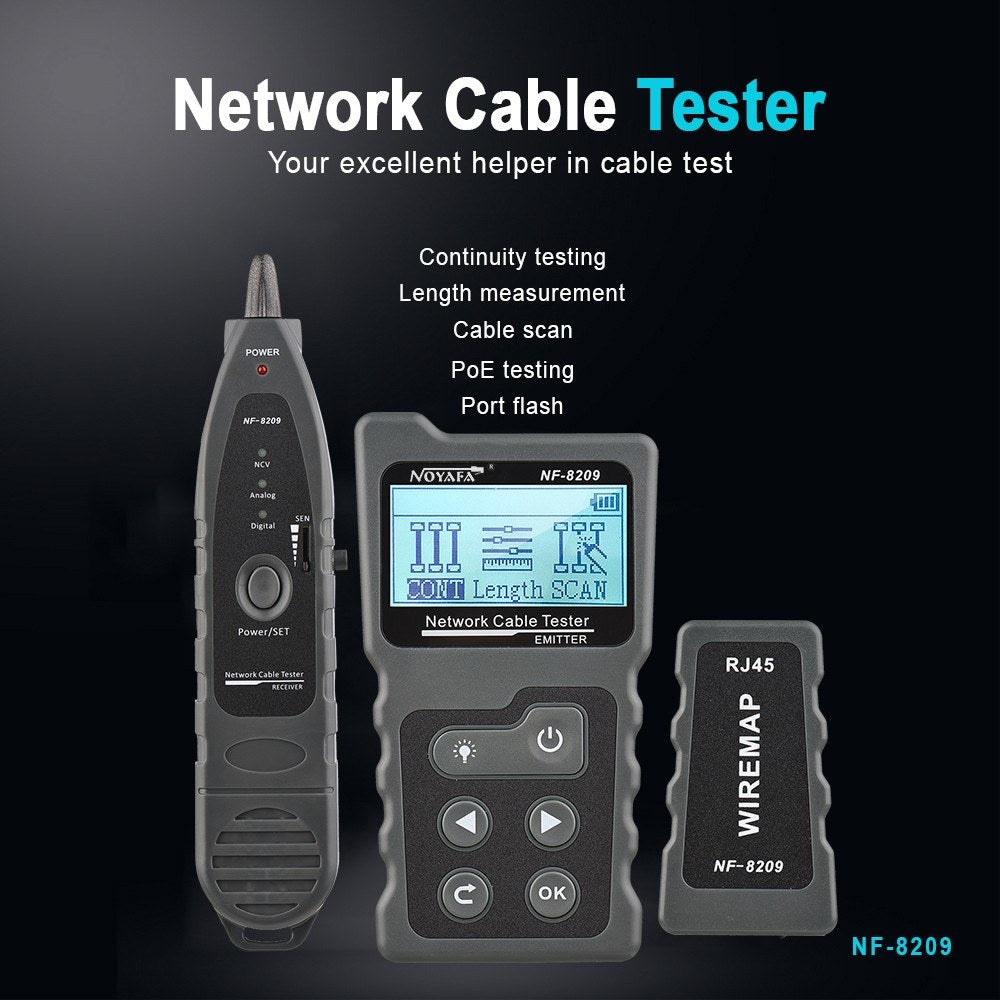

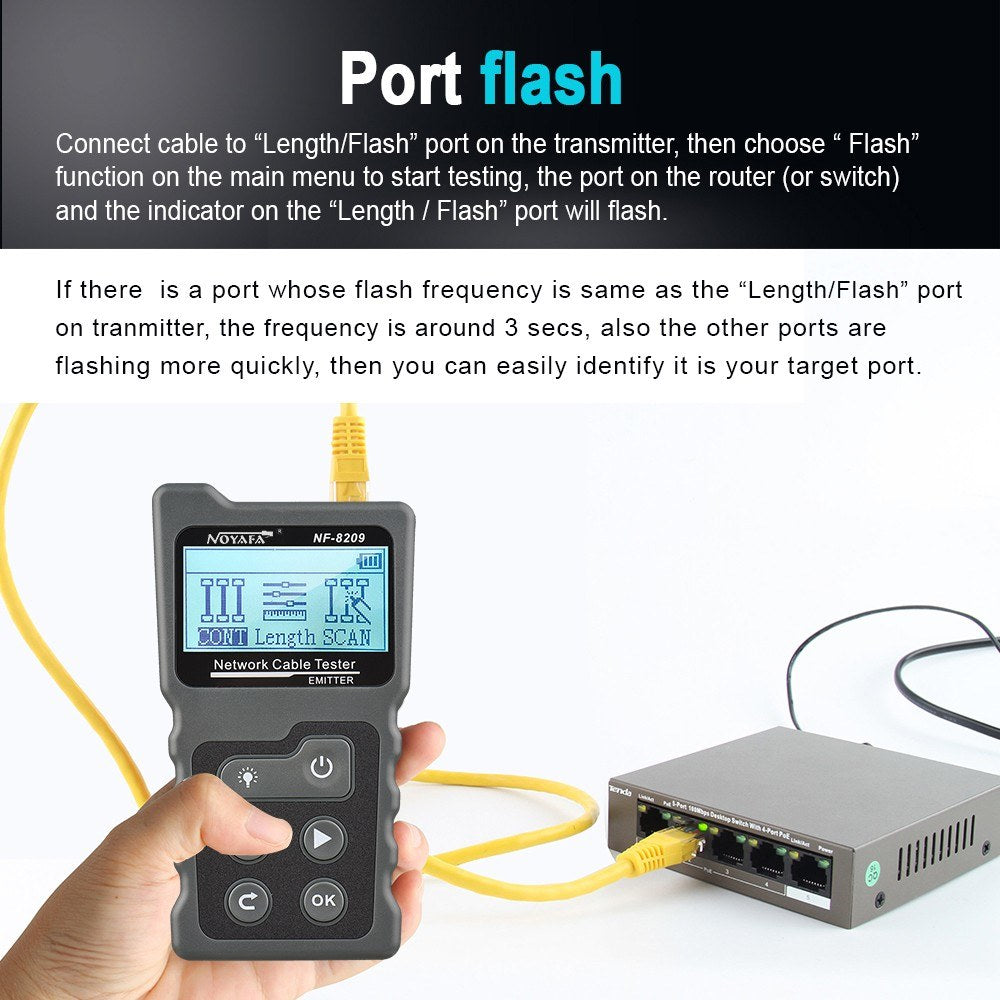

Introducing our advanced cable tester, a must-have tool for cabling engineers, designed with versatile functionalities to cater to any work environment. The tester offers three modes - digital, analog, and PoE - allowing seamless cable tracking using state-of-the-art location technologies. Additionally, it features cable length measurement, cable fault testing, PoE testing, hub blink, and non-contact voltage (NCV) detection.

Key Features:

• Emitter Testing Function: Conducts cable continuity testing, measures cable length, scans cables, and tests PoE.

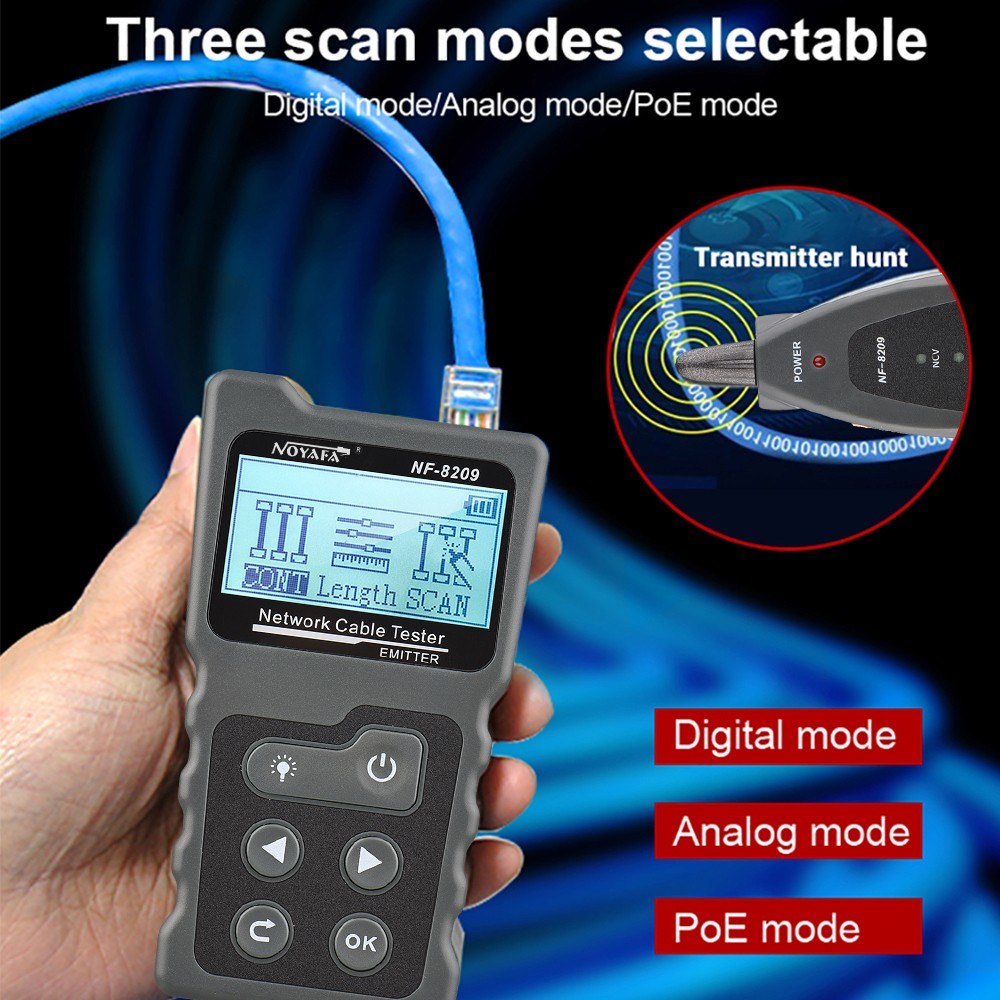

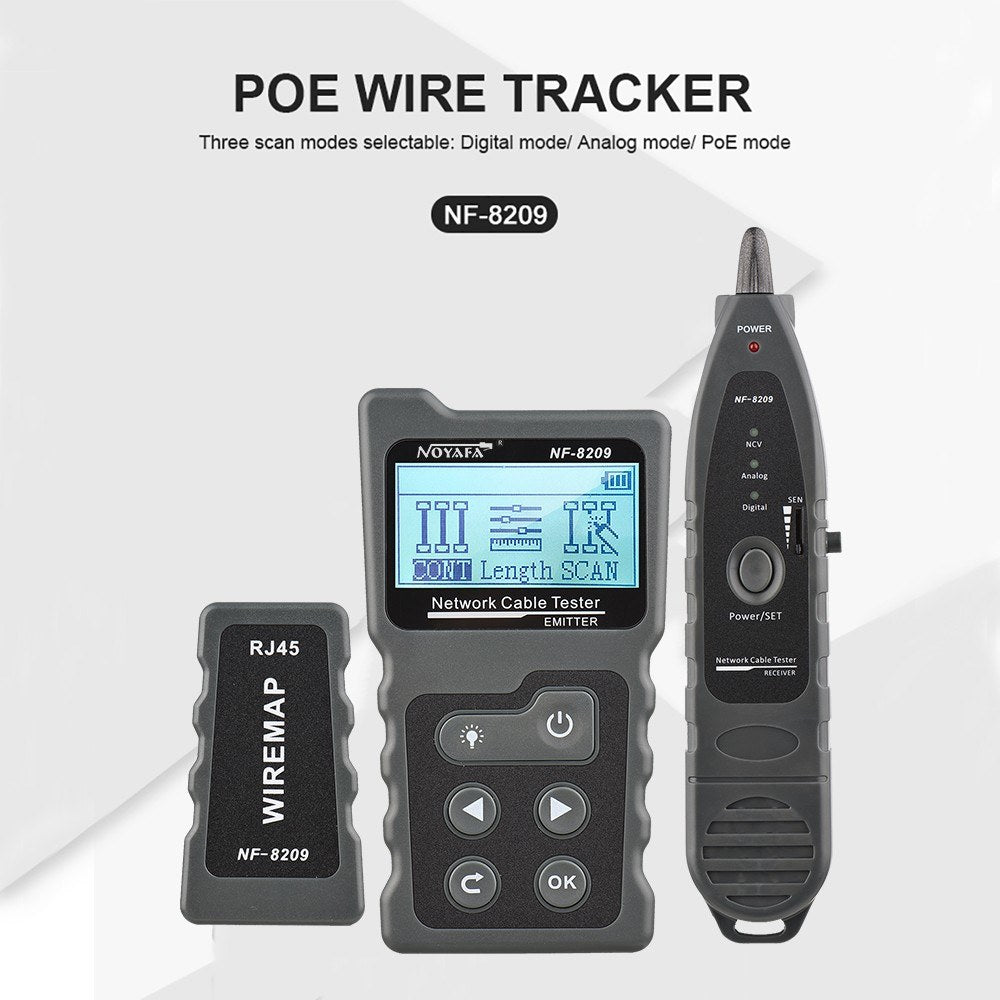

• Three Scan Modes: Switch between digital, analog, and PoE modes for flexible cable tracking.
• PSE Type Distinguish: Identifies PSE type, compatible with AF or AT standards.
• POE Test Range: Tests DC5~60V standard and non-standard PoE devices.

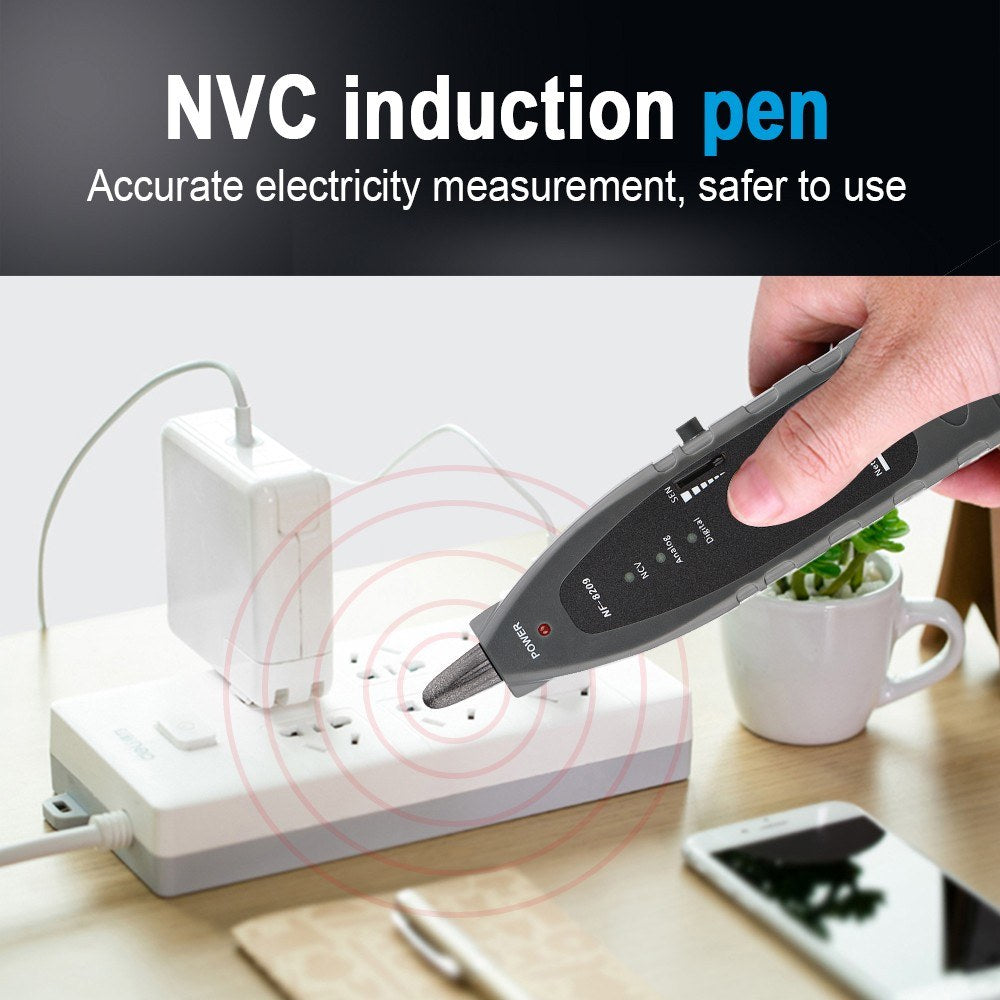

• Non-contact Voltage Detection: Detects AC voltage in household electrical wiring.

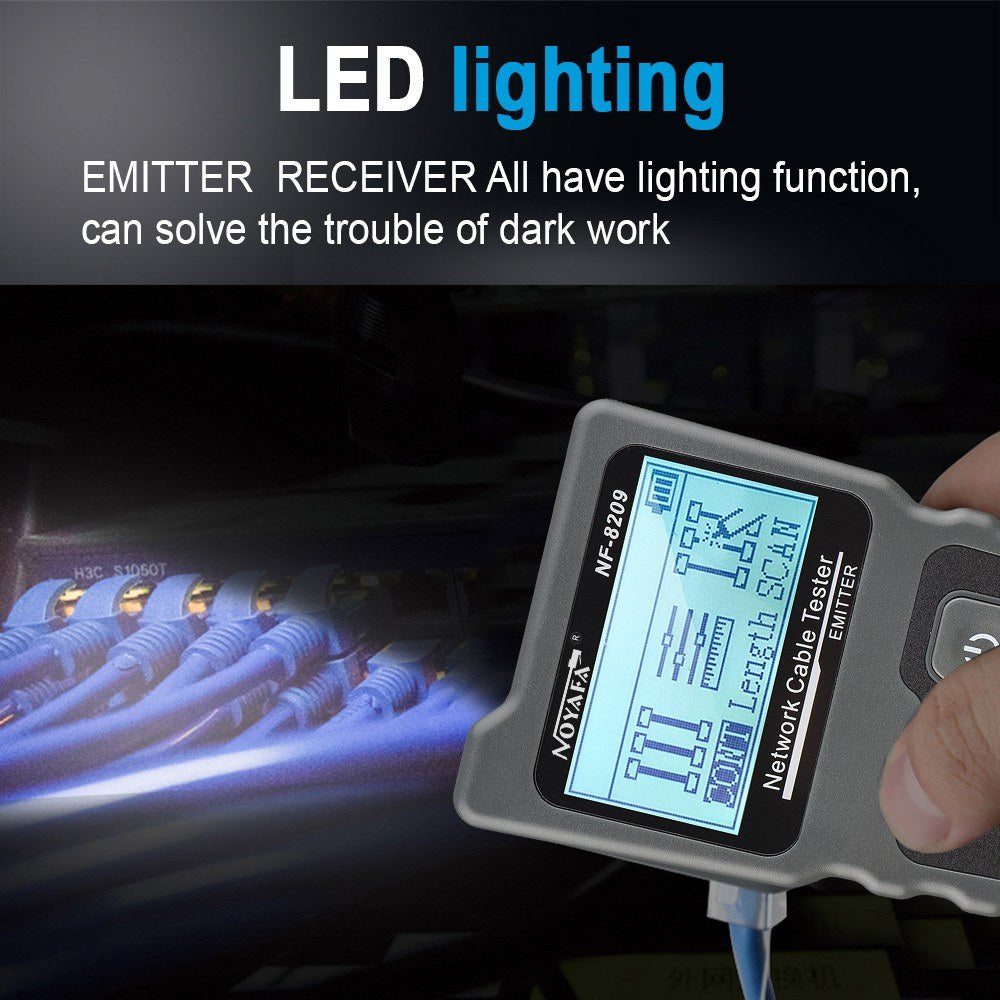

• Illumine Function: Built-in lamps on both the emitter and receiver illuminate work areas.
• Other Settings: Includes backlight adjustments, auto-off timings, contrast adjustments, and version checking.

Specifications:

• Material: ABS
• Package Weight: 500g / 17.64oz
• Package Size: 23 x 17 x 5cm / 9.06 x 6.69 x 1.97in

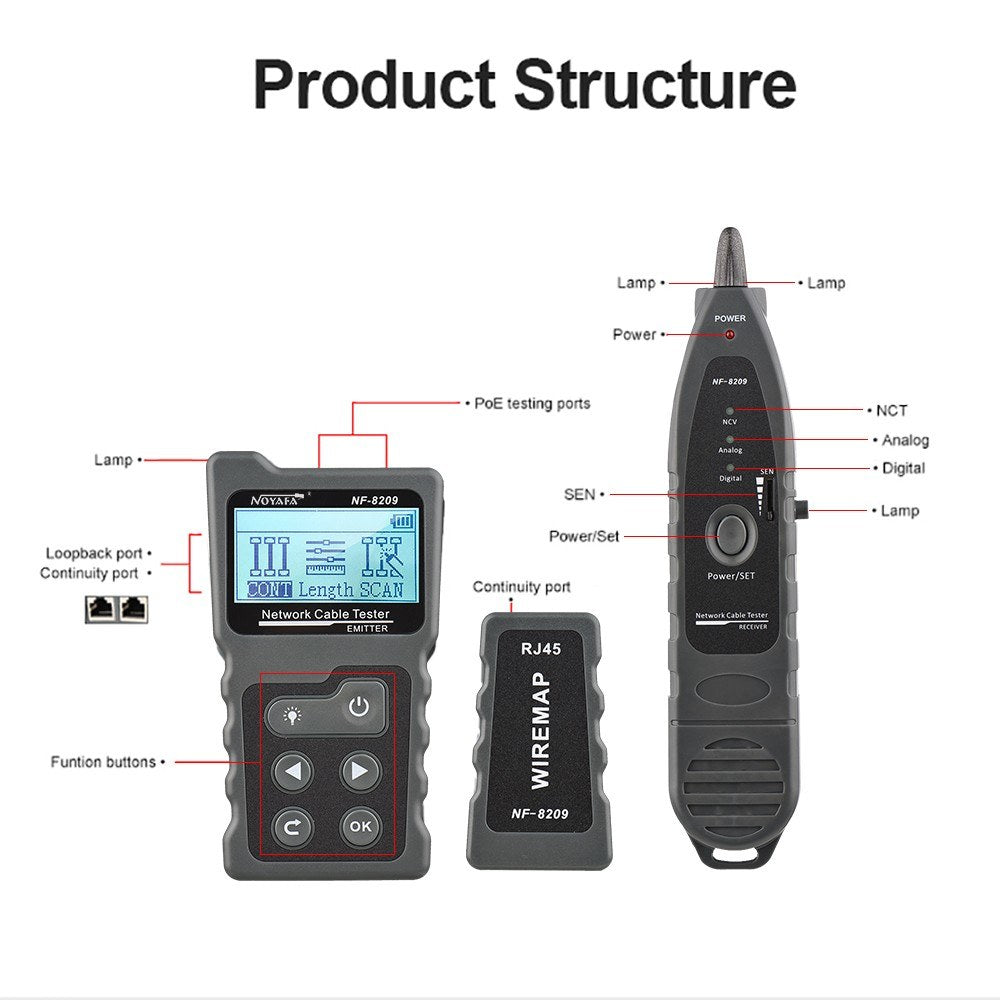

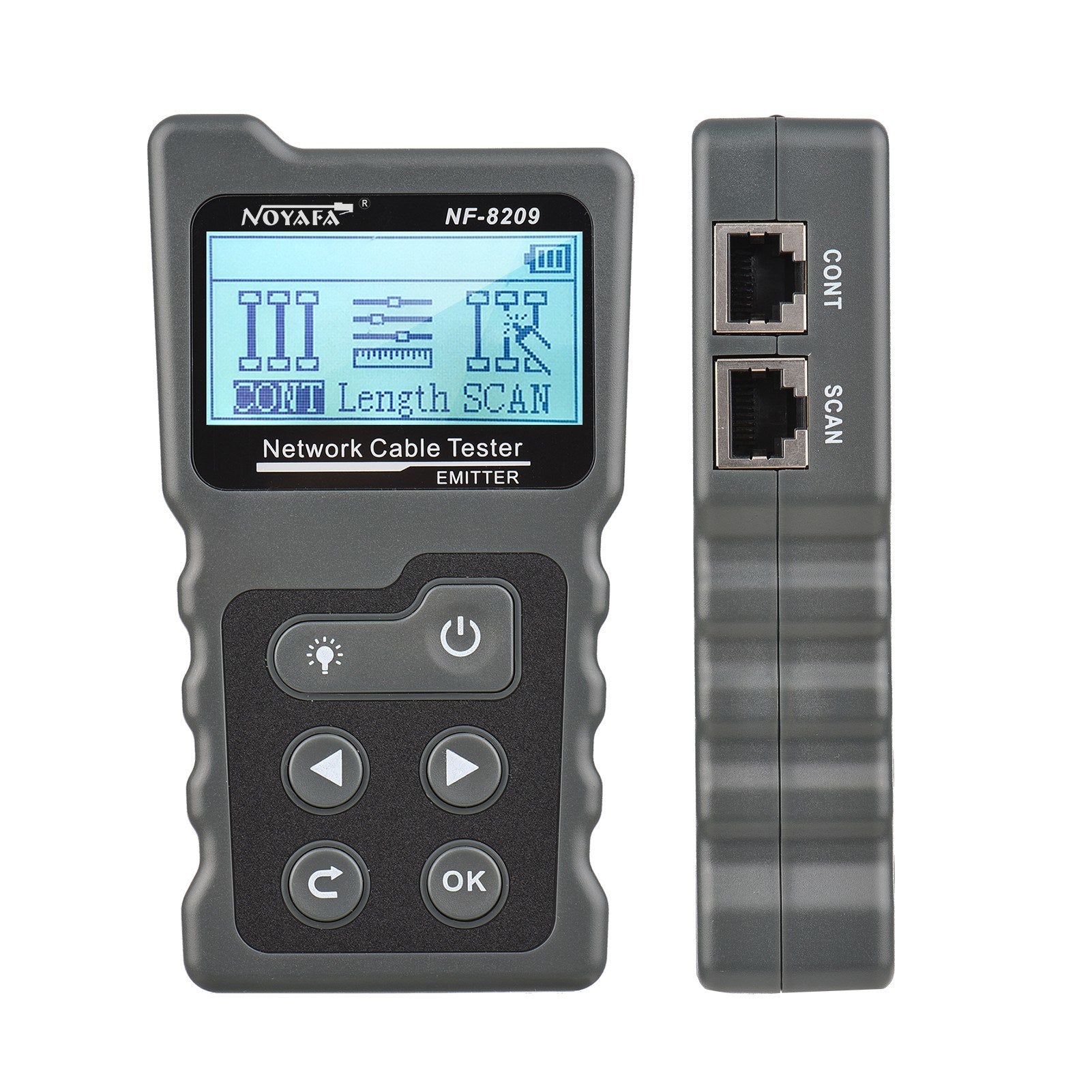

Emitter Parameters & Functions:

• LCD Display: 128x64 dot-matrix with backlight
• Power Supply: 3 x 1.5V AAA batteries (not included)
• Low Battery Warning: 2.7V
• Auto-off Time: 15min/30min/60min/OFF
• Voltage Protection: DC48V, 5mA
• Max Working Current: <150mA
• Size: 130 x 70 x 28mm / 5.12 x 2.76 x 1.10in

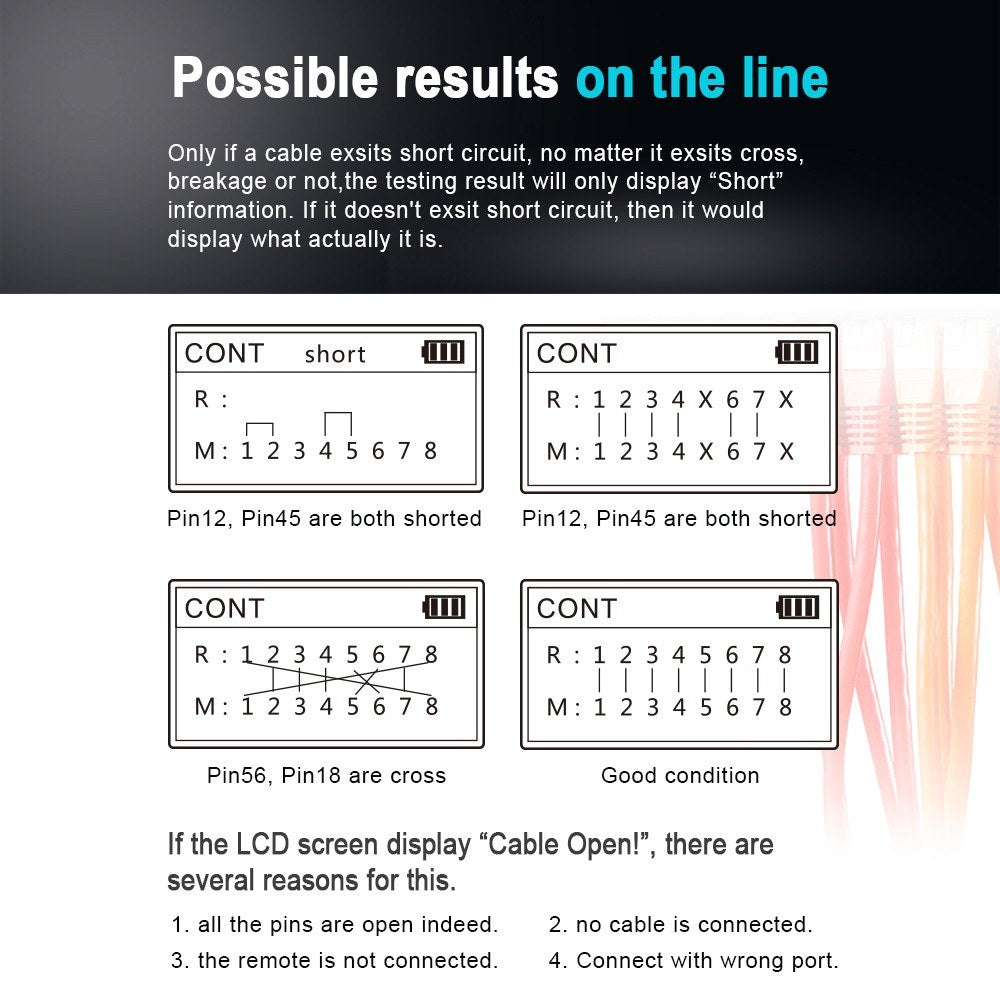

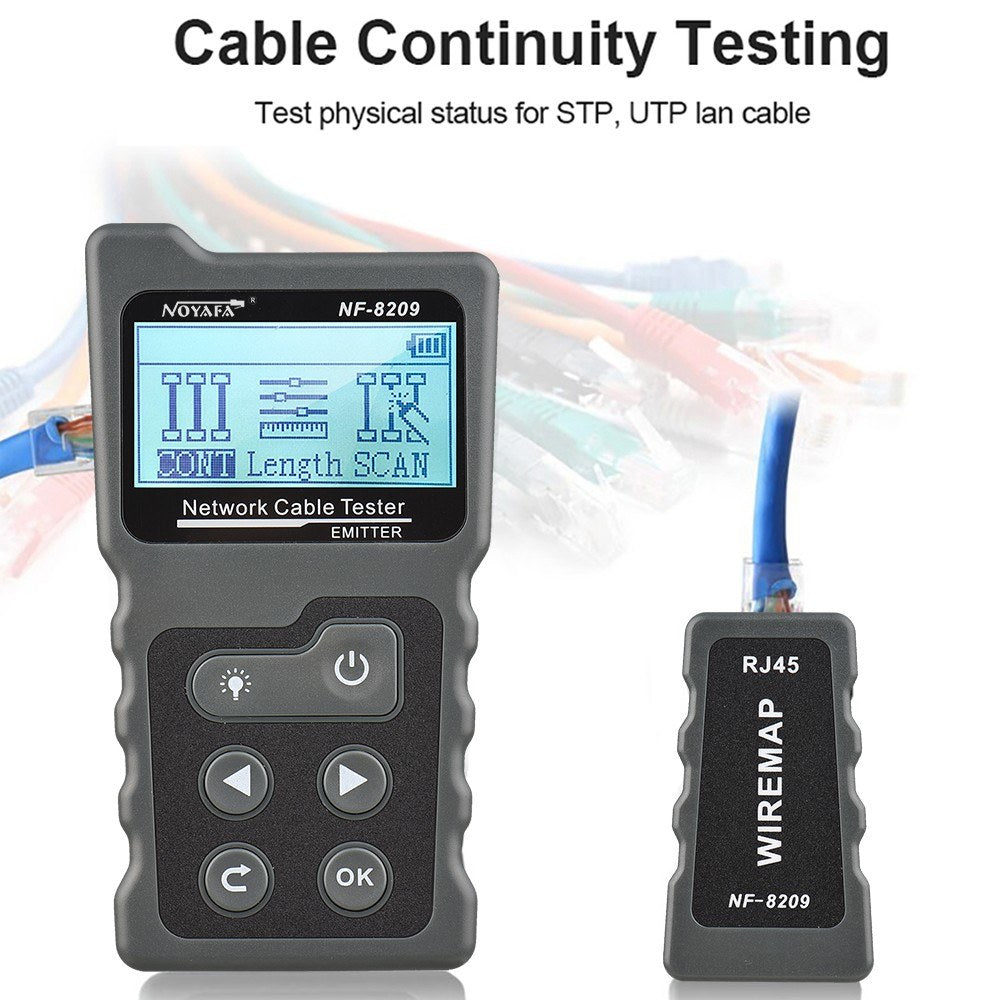

WIREMAP TEST:

• Cable Type: CAT5e, CAT6, CAT6a (STP & UTP)
• Test with Switch Directly: Yes
• Max Range: 600m

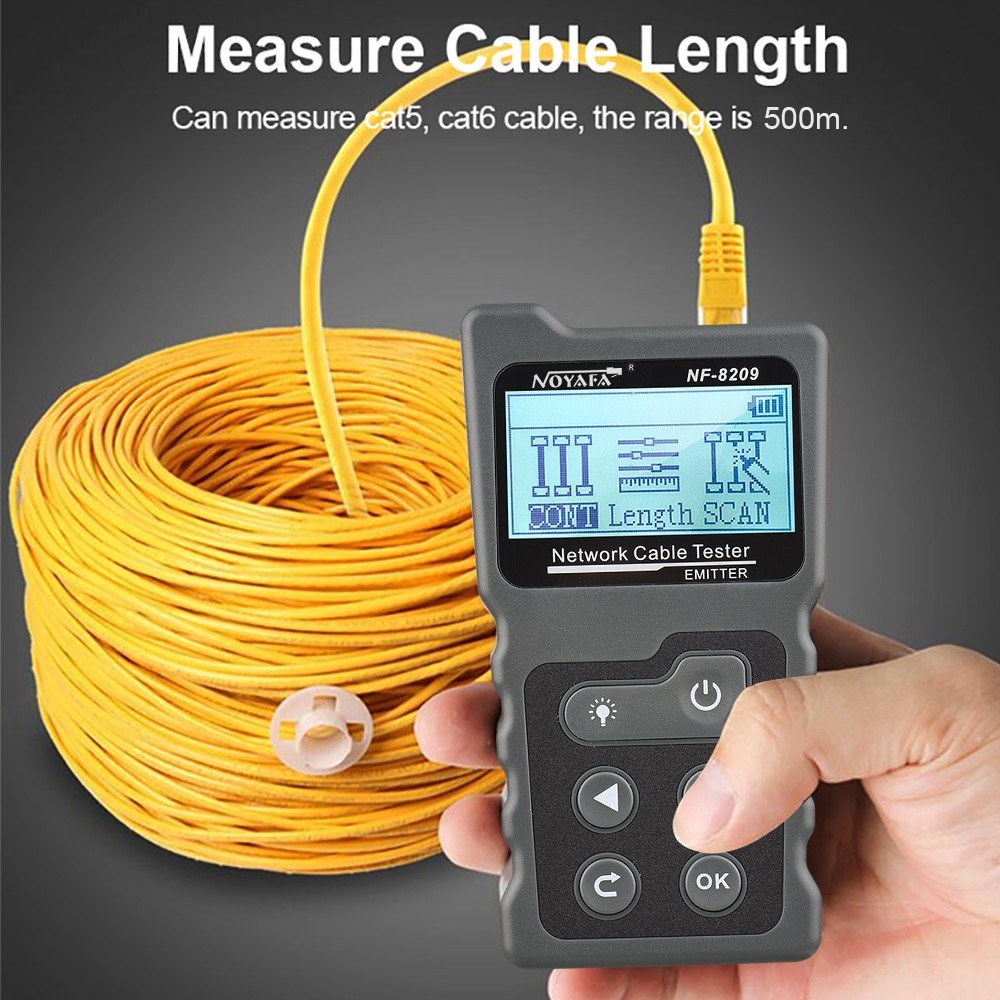

LENGTH TEST:

• Cable Type: CAT5e, CAT6, CAT6a (STP & UTP)
• Test Range: 2.5~500m
• Accuracy: ±1.6m
• Breakage Location: Yes

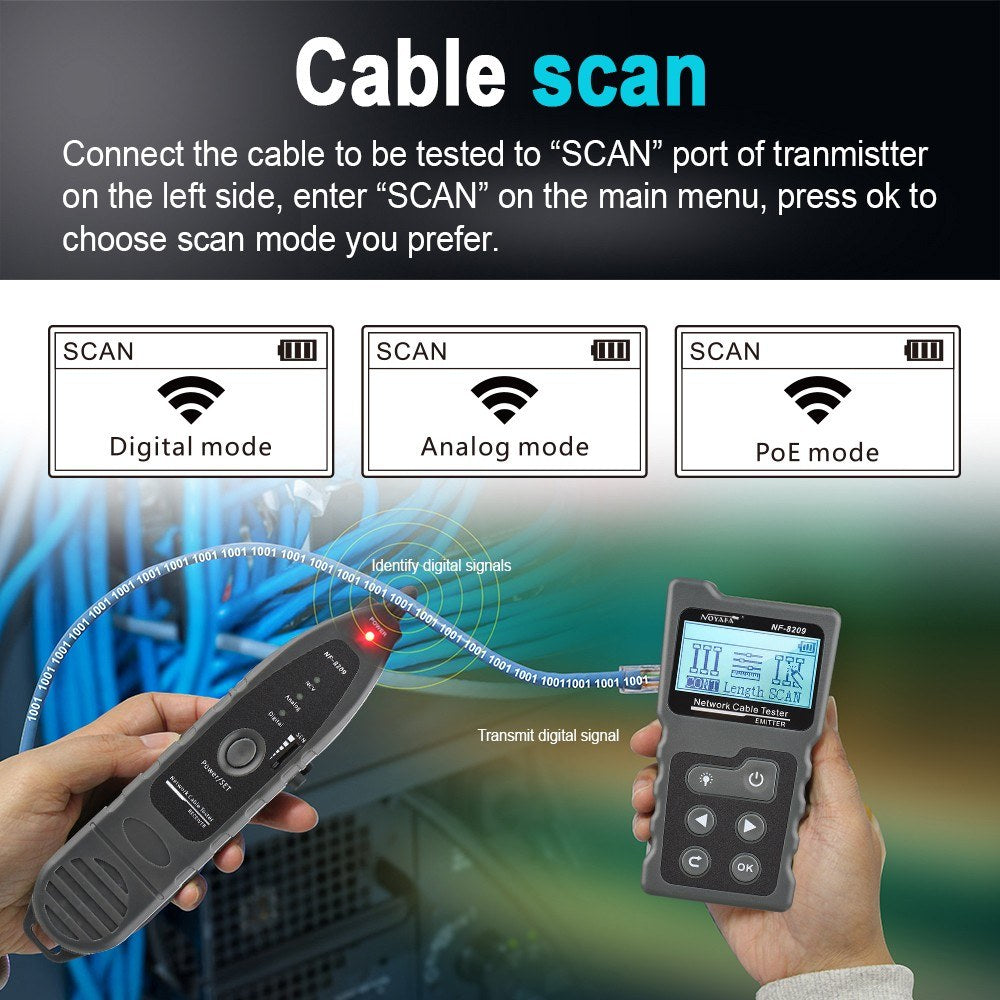

SCAN TEST:

• Cable Type: CAT5e, CAT6, CAT6a (STP & UTP)
• Max Signal Voltage: 9±1Vp-p
• Frequency: 130KHz
• Analog/Digital Mode: Yes
• Max Range: 600m

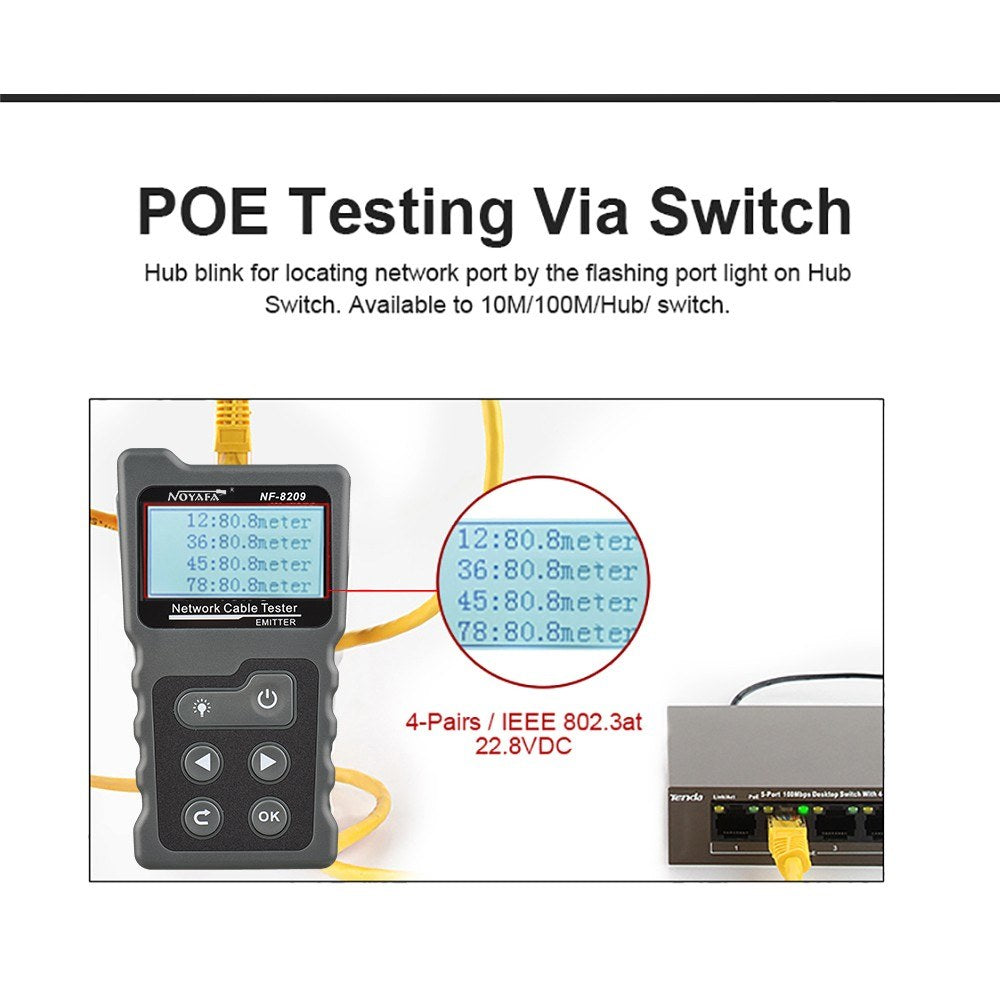

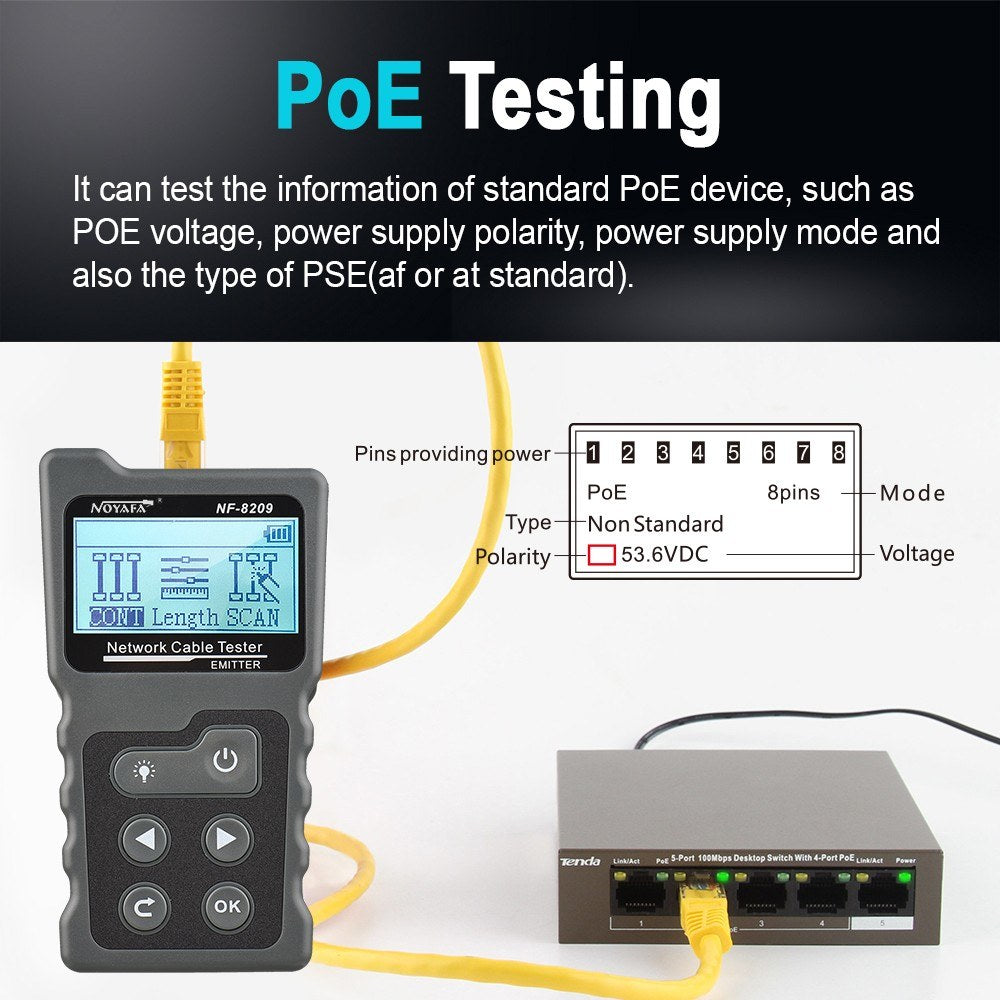

POE TEST:

• Test Range: DC5~60V standard / non-standard PoE switch
• Voltage Display: Yes
• PSE Type: Standard: IEEE 802.3af/at; Non-standard

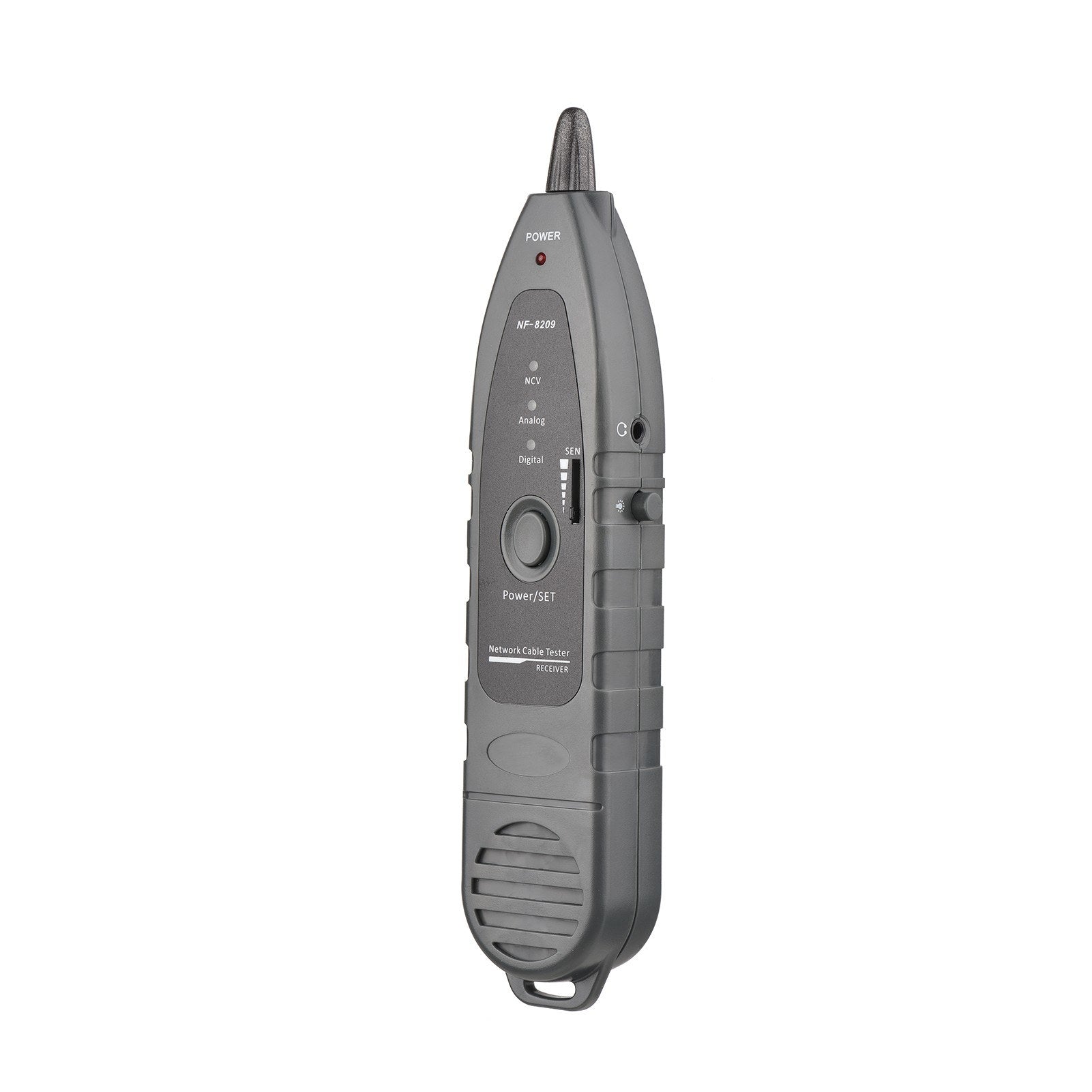

Receiver Parameters:

• Sensitivity Adjustable: Yes
• AC Voltage Detecting: Yes
• Lamp: Yes
• Battery Type: 1 x 9V battery (not included)
• Low Battery Warning: 6±0.5V
• Max Working Current: <100mA
• Size: 210 x 43 x 27mm / 8.27 x 1.69 x 1.06in

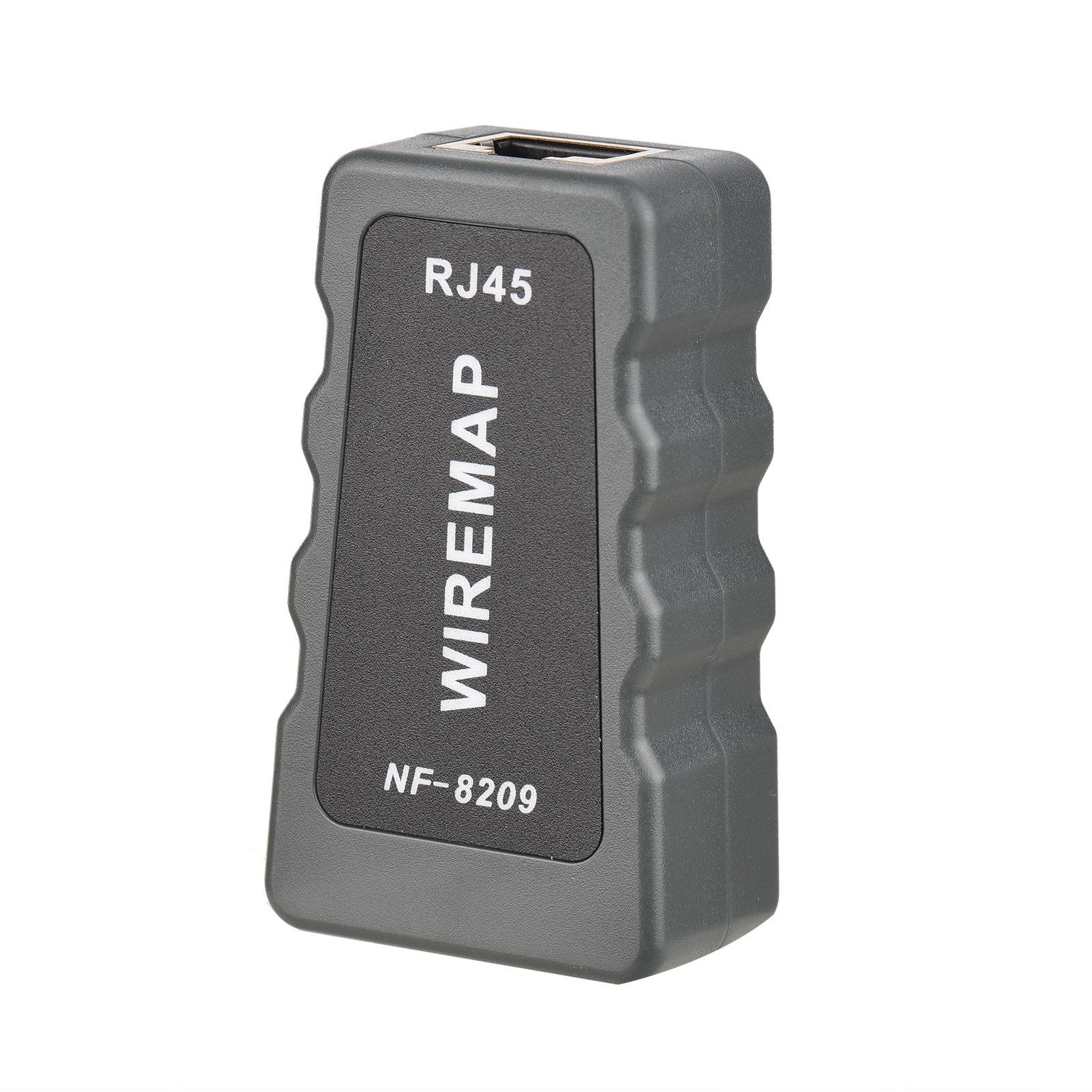

Remote Parameters:

• Wiremap Port: RJ45
• Voltage Protection: DC48V, 5mA
• Size: 65 x 37 x 23mm / 2.56 x 1.46 x 0.91in

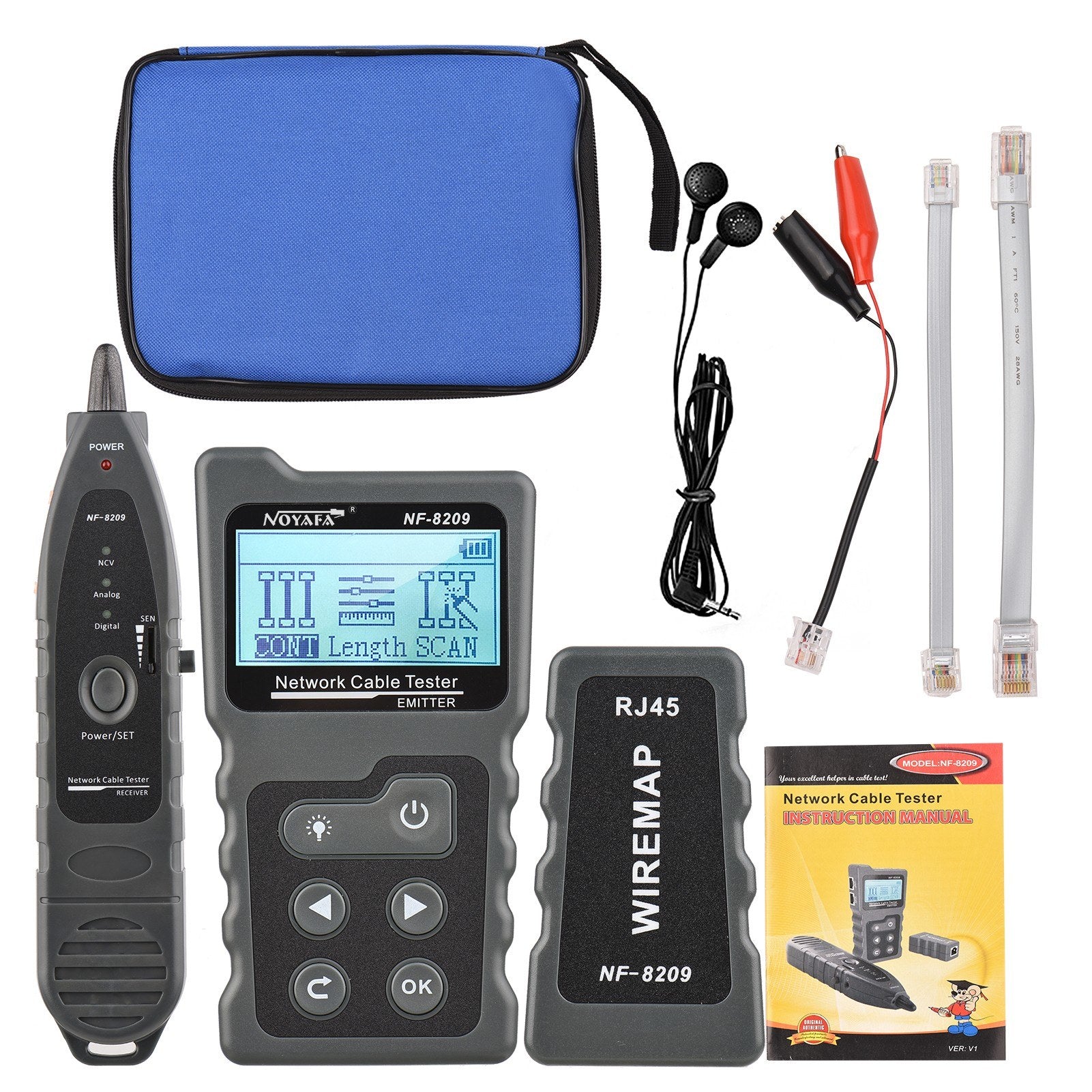

Packing List:

• 1 x Emitter
• 1 x Receiver
• 1 x Remote
• 1 x Earphone
• 1 x Crocodile Clip Test Line
• 2 x Cable Lead
• 1 x Carry Bag
• 1 x Manual (English)
