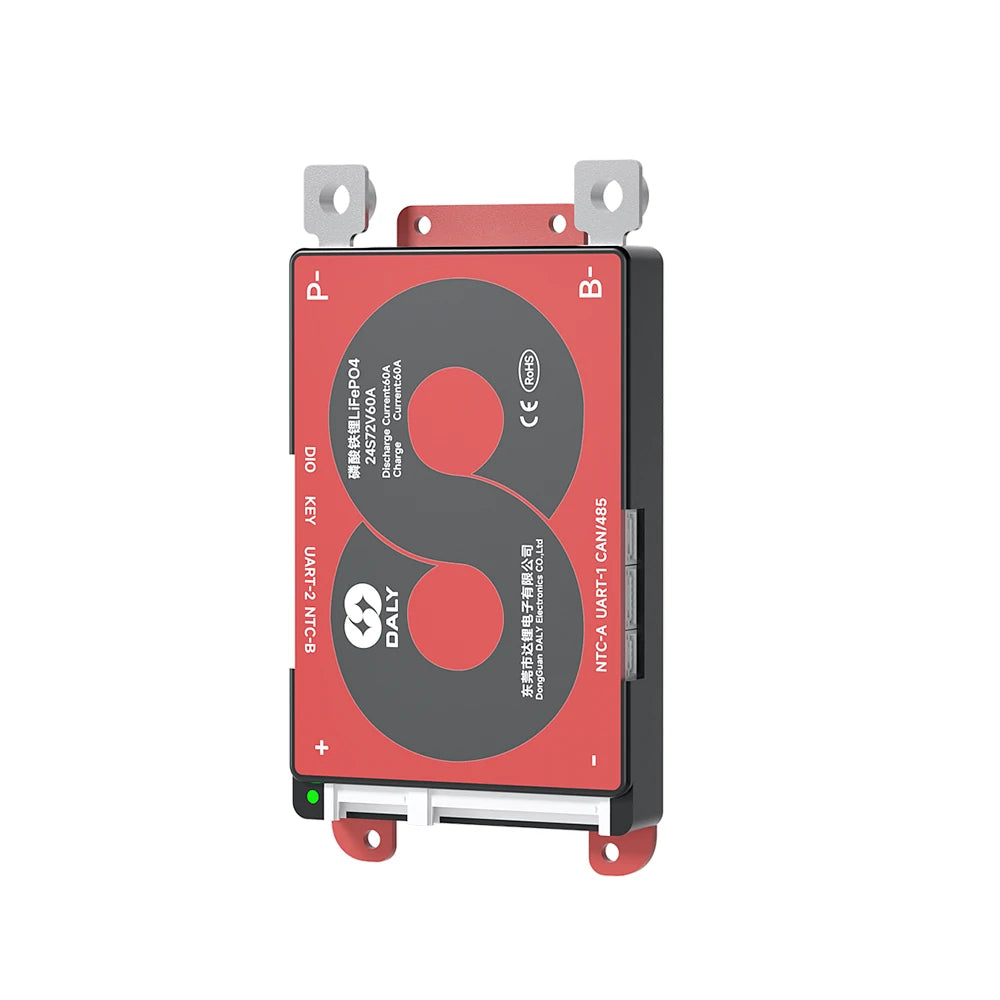

Smart BMS Board for Ternary Lithium Battery: Balance, Bluetooth, RS485, CAN, 3-24 Series, K-Type, Parallel Module

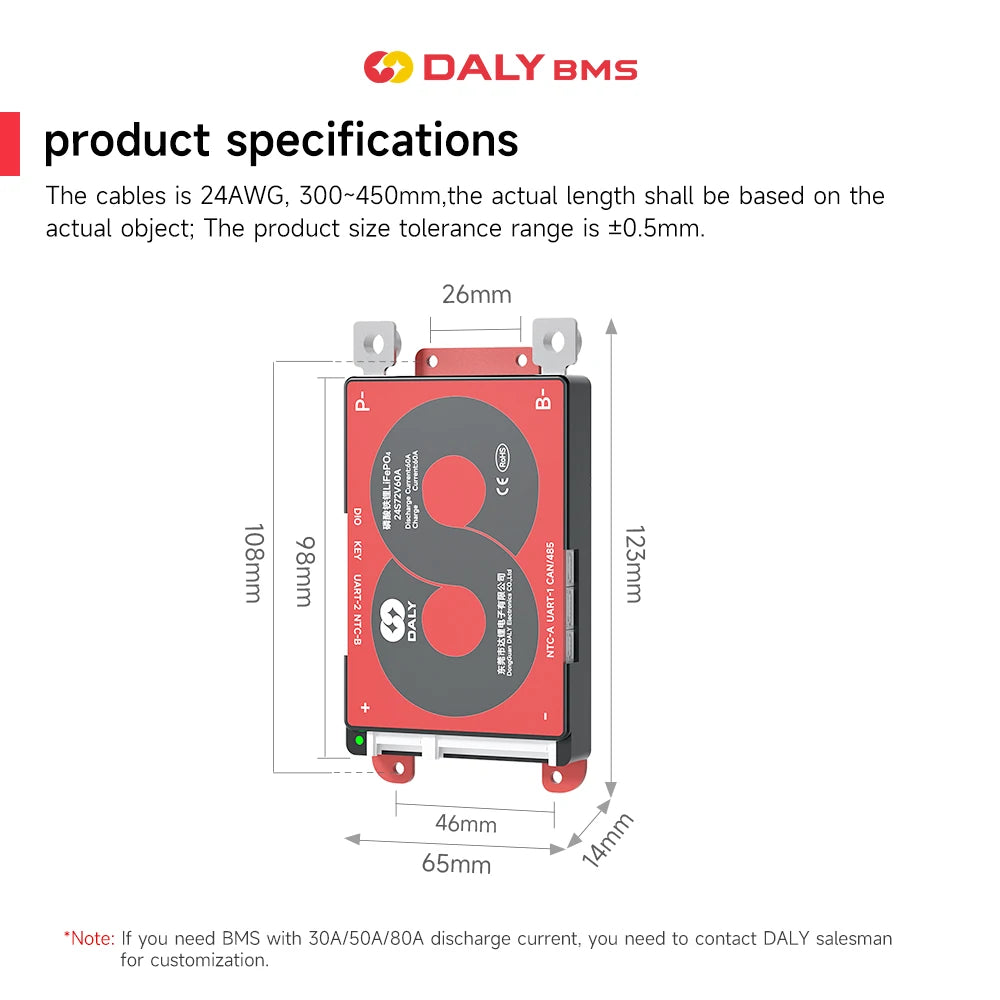

Product Specifications

Charging Voltage (V):
- Li-ion: N(Battery string) * 4.2V

Discharge Current (A):
- Options: 40, 60, 100

Discharge Overcurrent Protection (A):
- Values: 60, 90, 150

Charging Current (A):
- Options: 40, 60, 100

Charge Overcurrent Protection (A):
- Values: 60, 90, 150

Main Circuit Characteristics:
- On-Resistance:
- Passive Equalization Function: 100 ± 30mA
- Turn-on Voltage for Equalization (V): Li-ion: 4.0 (configurable)
- Opening Differential Pressure (mV): 20 (configurable)
- Balance Current (mA): Li-ion: 100 ± 15

Short Circuit Protection:
- Conditions: External Load Short Circuit
- Protection Delay (μS): 10-500
- Release: Remove Load Release

Single Cell Overcharge Protection:
- Protection Voltage (V): Li-ion: 4.25 ± 0.05 (configurable)
- Protection Delay (S): 1 ± 0.8
- Recovery Voltage (V): Li-ion: 4.15 ± 0.05

Single Cell Over-discharge Protection:
- Protection Voltage (V): Li-ion: 2.7 ± 0.05 (configurable)
- Protection Delay (S): 1 ± 0.8
- Recovery Voltage (V): Li-ion: 2.8 ± 0.05

Charge/Discharge Overcurrent Protection:
- Protection Delay (S): 1 ± 0.8

Temperature and Current Specifications:
- Operating Temperature (°C): Charging: -35 to 75, Discharge: -35 to 75 (configurable)
- Storage Temperature (°C): -40 to 85
- Current Consumption: Working and Resting Current Provided

Installation and Wiring in 3 Easy Steps:

1. Solder the Sampling Cables:
   - First cable (black) to battery's negative terminal.
   - Second cable (red) to positive terminal of the first battery string.
   - Continue for all cables.
2. Check the Cables:
   - Measure voltage between each pair of adjacent cables to ensure correct connections.
3. Connect the Output Wires:
   - B- wire to total negative terminal of the battery pack.
   - Connect BMS and ensure voltage parity between B+ & B- and P+ & P-.

Activate the BMS:
The BMS activates automatically with first use. To reactivate a dormant BMS:

• Use key switch.
• Press buttons on Bluetooth module or SOC indicator.

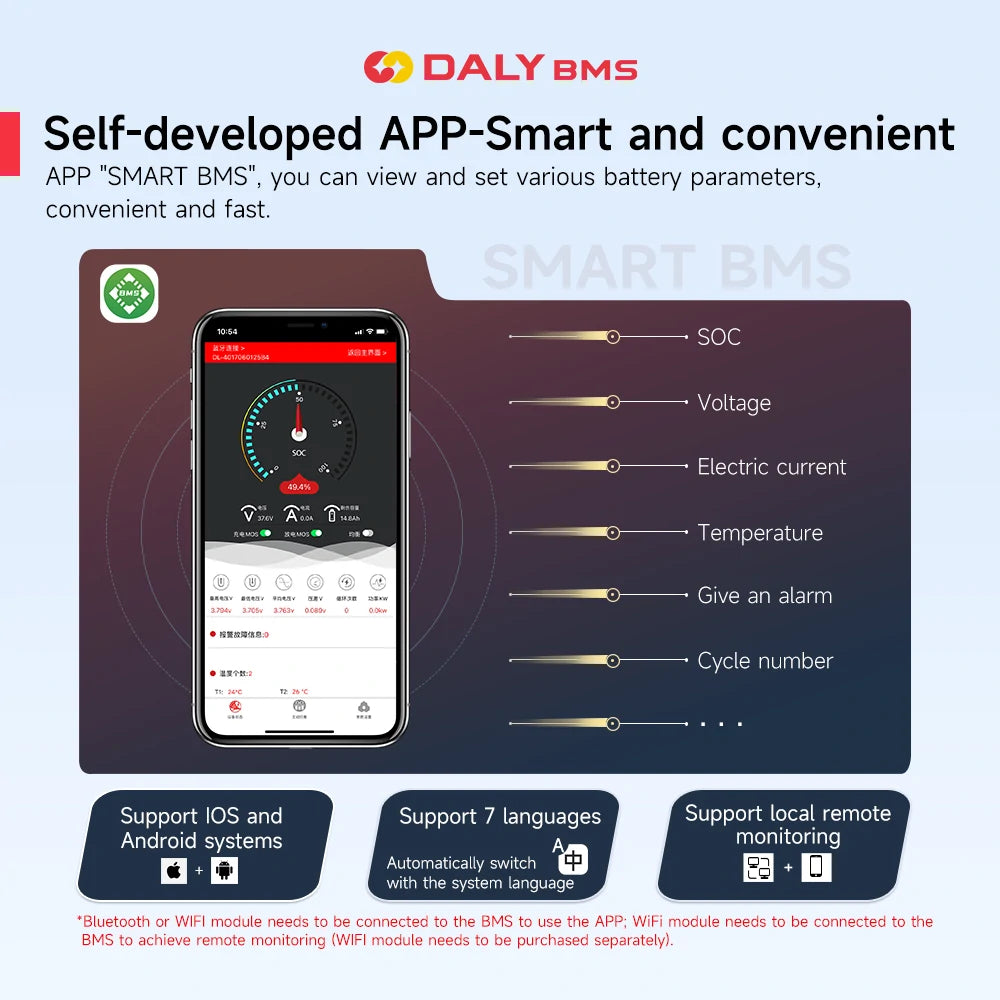

• Use CAN/RS485 communication or connect via Bluetooth to Mobile APP.
• Charge or discharge the battery.

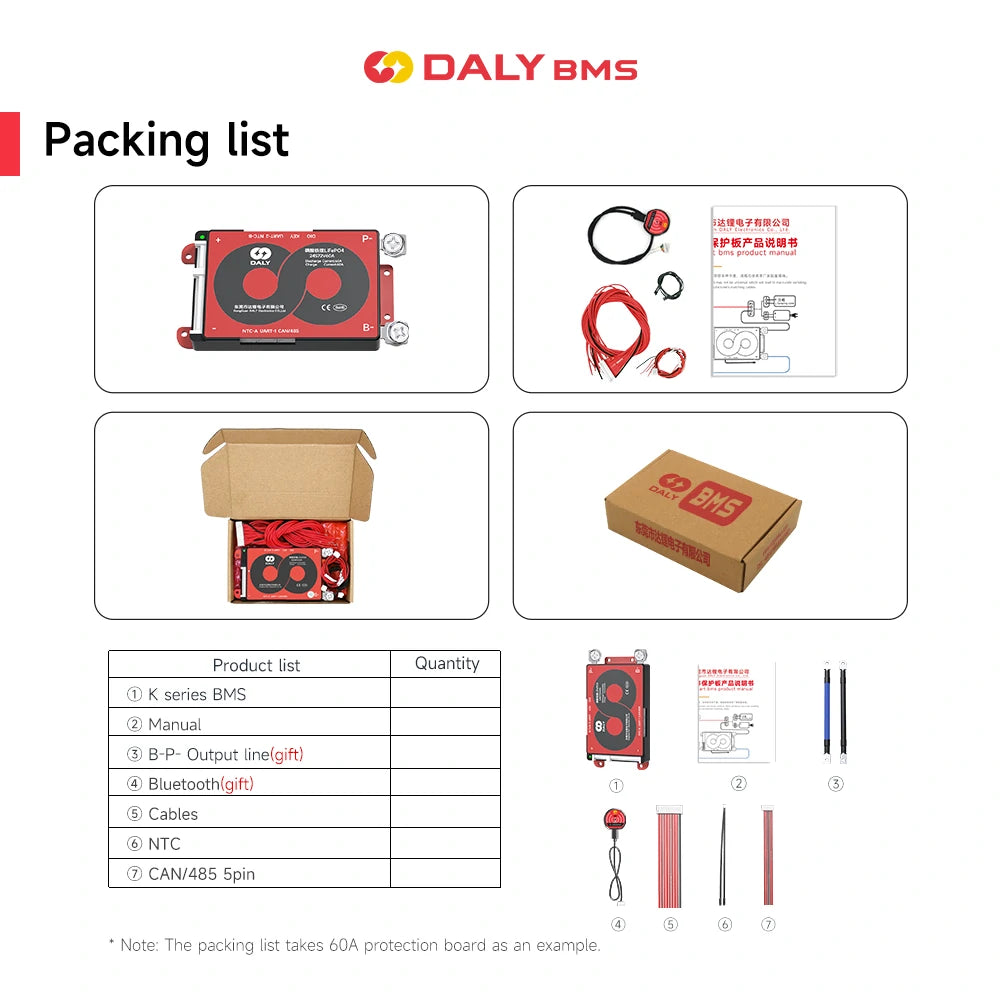

Package Includes:

• 1 x Smart BMS
• 1 x Cable
• 1 x Bluetooth Module
• 1 x NTC
• 1 x CAN/485 5pin

Please note: The data above are temperature test results from DALY laboratory, provided for reference only. Customized services are available - please consult customer service for details.
