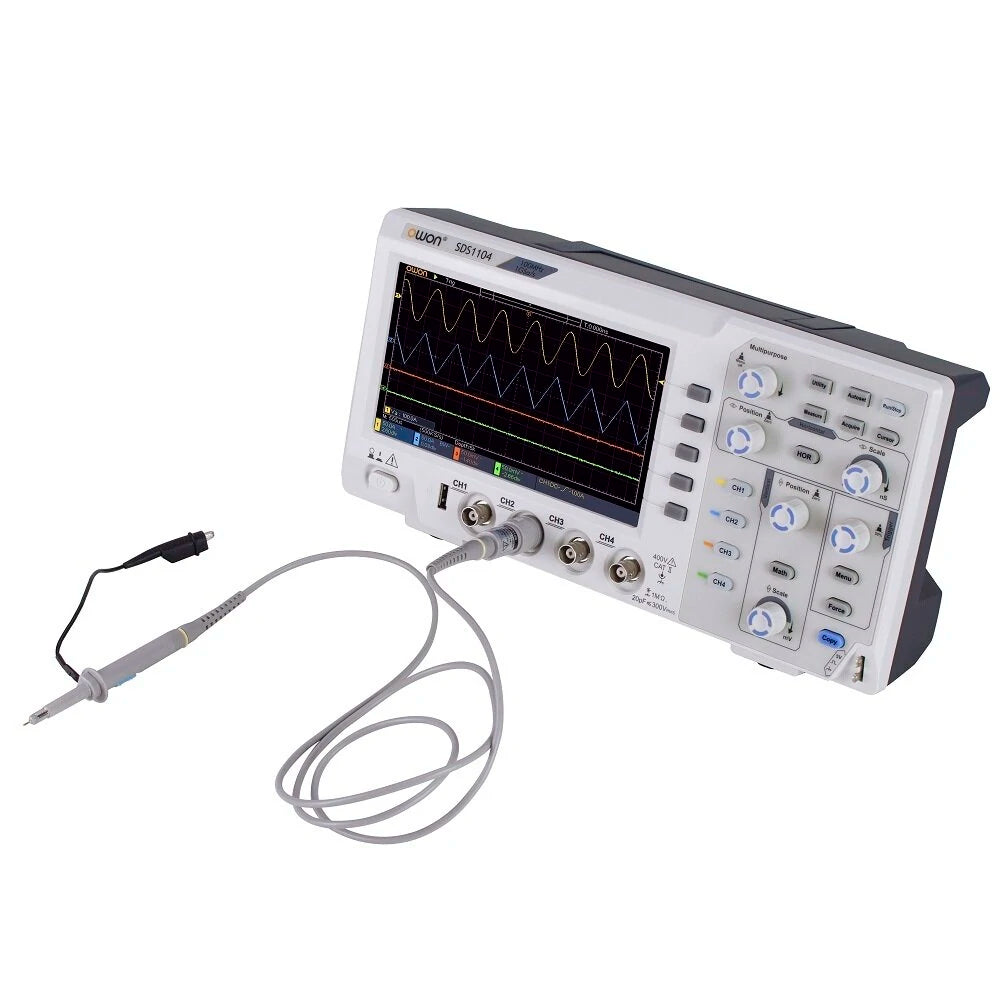

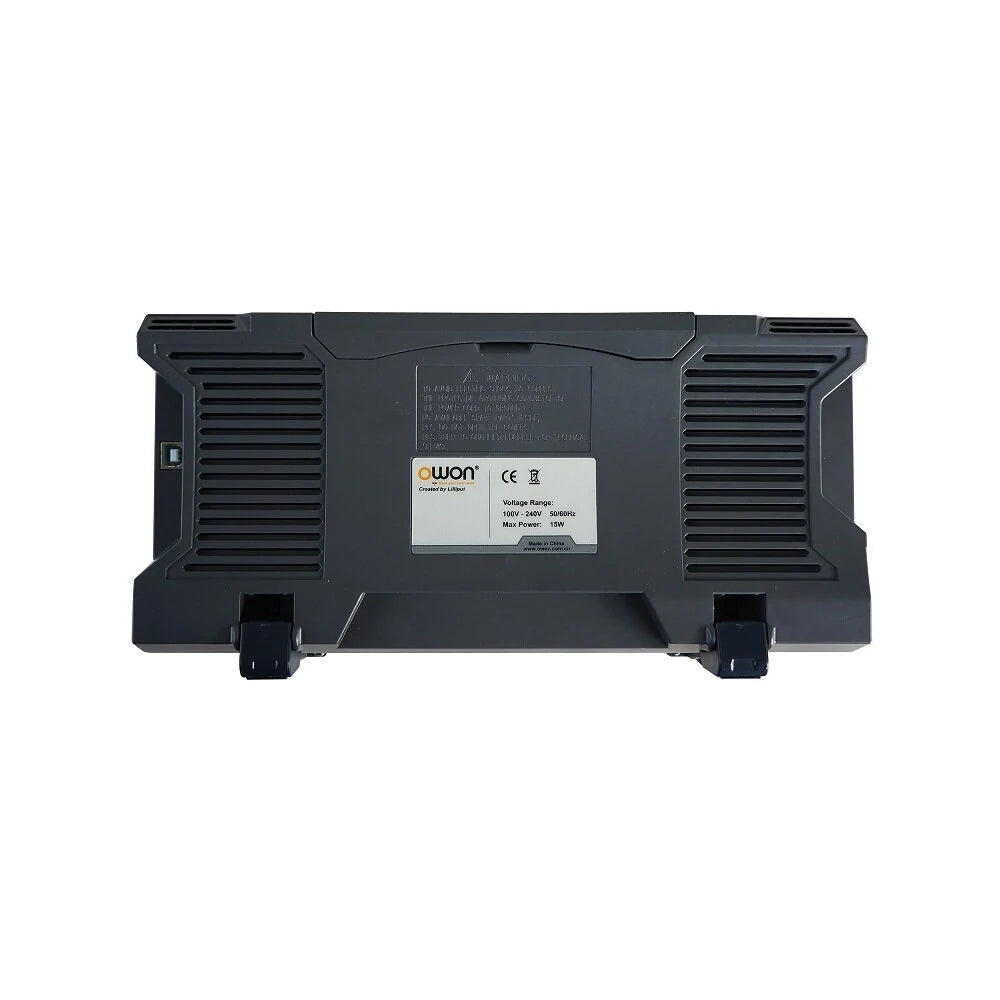

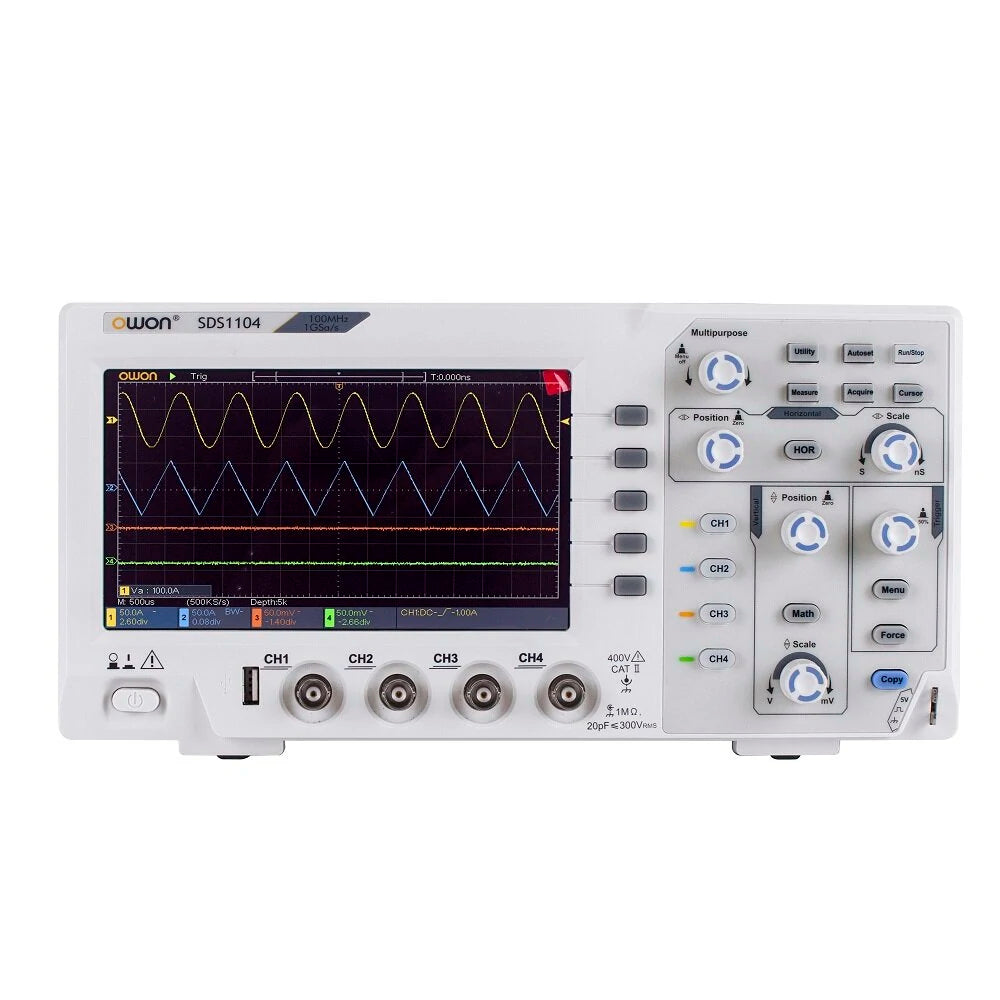

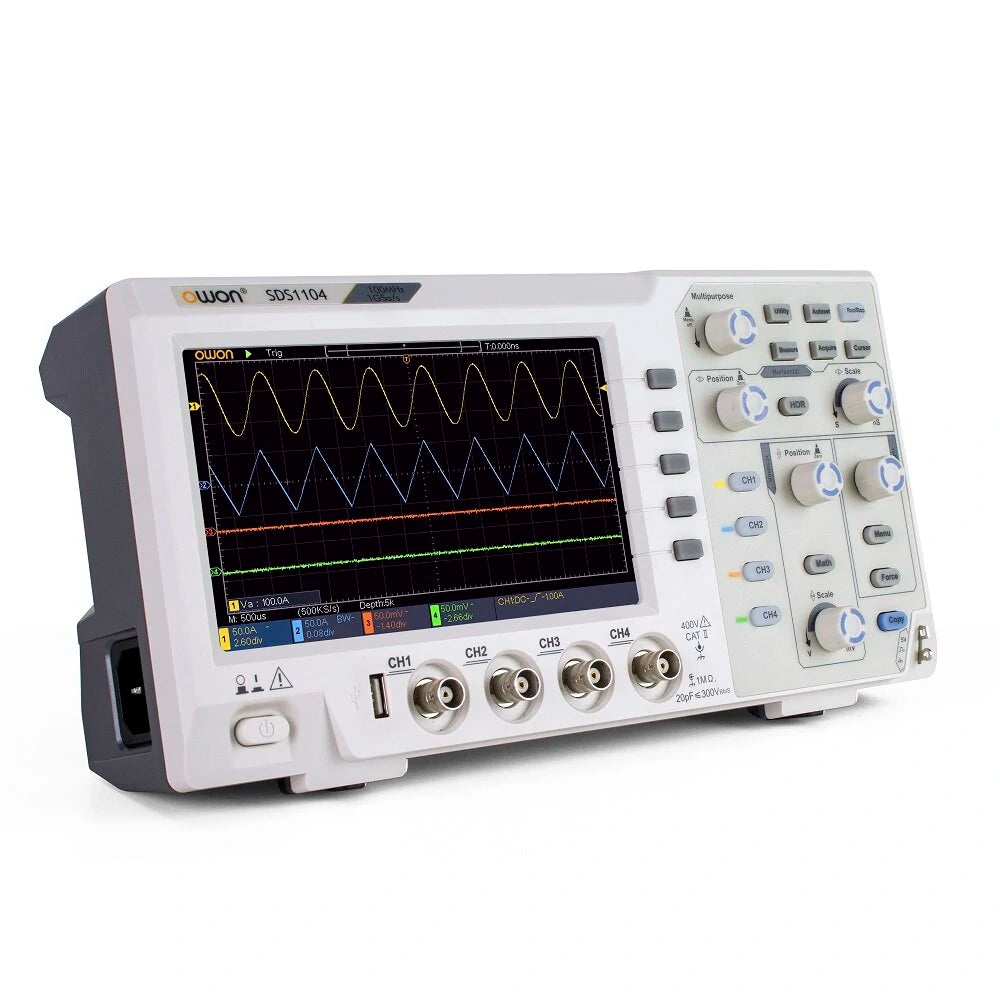

OWON SDS1104 100MHz 4-Channel Oscilloscope, 1GS/s, 7 LCD for Circuit Debugging & Testing

$229.99 USD

~~$0.00 USD~~ $229.99 USD

Sale Sold out

Shipping calculated at checkout.

Plug EU Plug US Plug

Estimated Delivery: -

Quantity

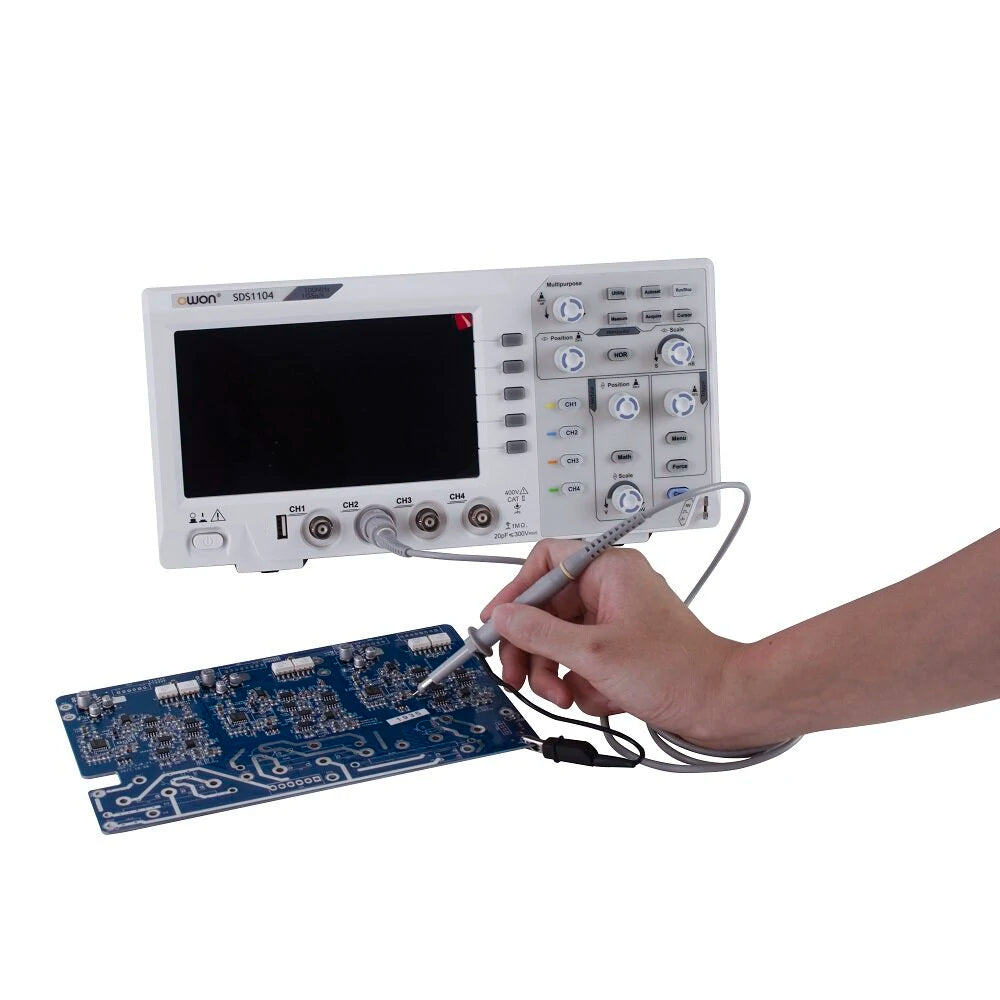

Features:

High Performance: The OWON SDS1104 oscilloscope offers a 100MHz bandwidth and a 1GS/s sample rate, ensuring accurate and high-resolution signal observations.
Four Channels: This device features a 4-channel configuration, allowing a broader range of signal tracking and compatibility with various testing and debugging requirements.
Advanced Display: Equipped with a 7-inch, high-resolution LCD, it provides clear and easy-to-read measurements.
Special Features: With support for SCPI and LabVIEW, the device enhances functionality and versatility for users.

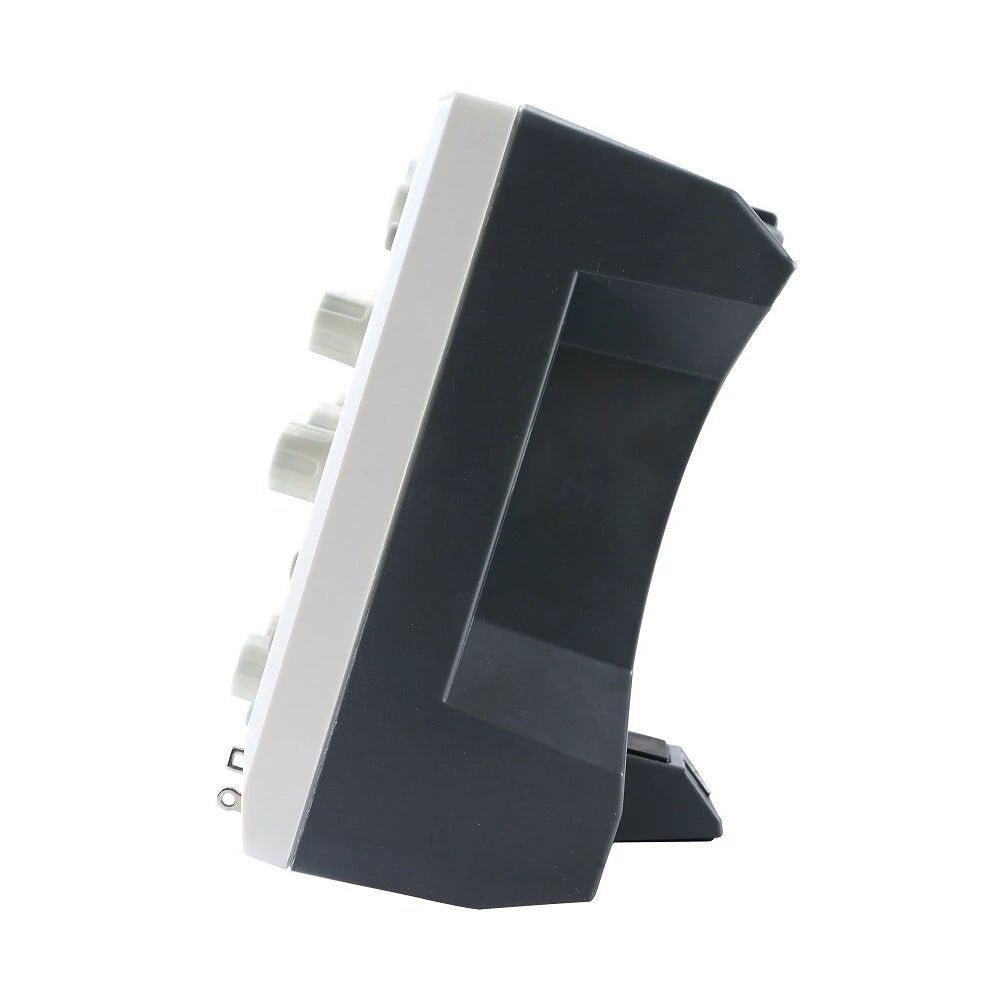

Thin Design: Despite its powerful performance, the device maintains a thin body, making it convenient for carrying and handling.

Specifications:

Model	SDS1104
Bandwidth	100MHz
Sample Rate	1GS/s
Horizontal Scale (s/div)	2ns/div - 1000s/div, step by 1 - 2 - 5
Rise Time (at input, typical)	≤3.5ns
Channel	4
Display	7" color LCD, 800 x 480 pixels
Input Impedance	1MΩ ± 2%, in parallel with 20pF±5pF
Max Input Voltage	400V (PK - PK) (DC+AC, PK - PK)
DC Gain Accuracy	±3%
Record Length	20K
DC Accuracy (average)	Average≥16：±(3% reading + 0.05 div) for △V

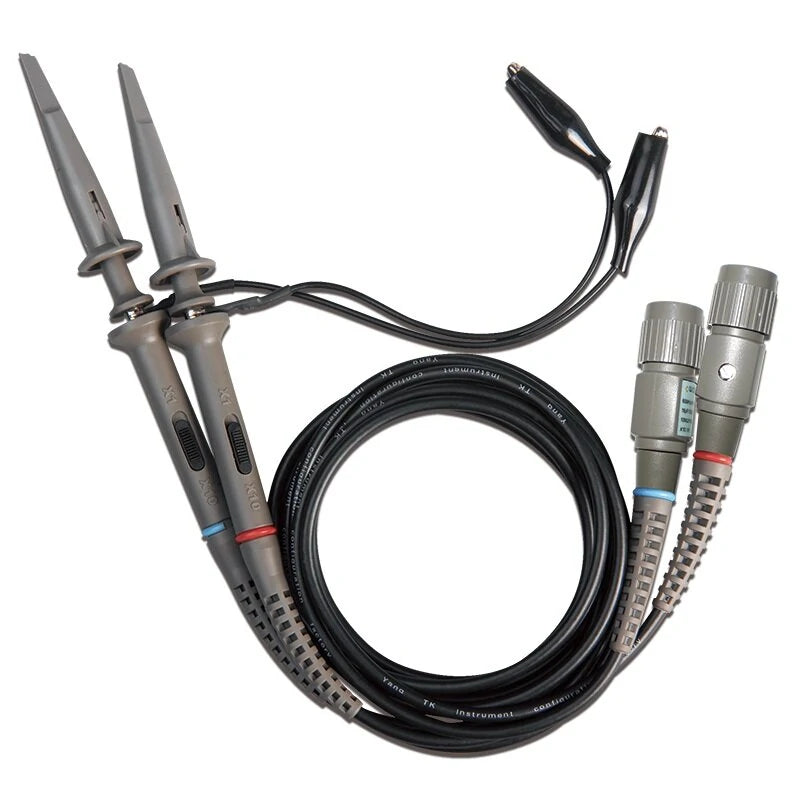

Probe Attenuation Factor	1X, 10X, 100X, 1000X
LF Respond (AC, -3dB)	≥10Hz (at input, AC coupling, -3dB)
Sample Rate / Relay Time Accuracy	±100ppm
Interpolation	sin (x) / x
Interval (△T) Accuracy (full bandwidth)	Single: ±(1 interval time + 100ppm x reading + 0.6ns), Average>16: ±(1 interval time + 100ppm x reading + 0.4ns)
Input Coupling	DC, AC, and GND
Vertical Resolution (A/D)	8 bits (2 channels simultaneously)
Vertical Sensitivity	5mV/div - 5V/div (at input)
Trigger Type	Edge, Video
Trigger Mode	Auto, Normal, and Single
Trigger Level	±5 divisions from screen center
Line / Field Frequency (video)	NTSC, PAL and SECAM standard
Cursor Measurement	△V, and △T between cursors
Automatic Measurement	Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→B, Delay A→B, area, cycle area, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Waveform Math	＋, －, x, ÷, invert, FFT
Waveform Storage	16 waveforms
Lissajous Figure Bandwidth	Full bandwidth
Phase Difference	±3 degrees
Communication Interface	USB host, USB device
Frequency Counter	Available
Power Supply	100V - 240V AC, 50/60Hz, CAT II
Power Consumption	＜15W
Fuse	2A, T class, 250V
Dimensions (W x H x D)	301 x 152 x 70 mm
Device Weight	1.10 kg
