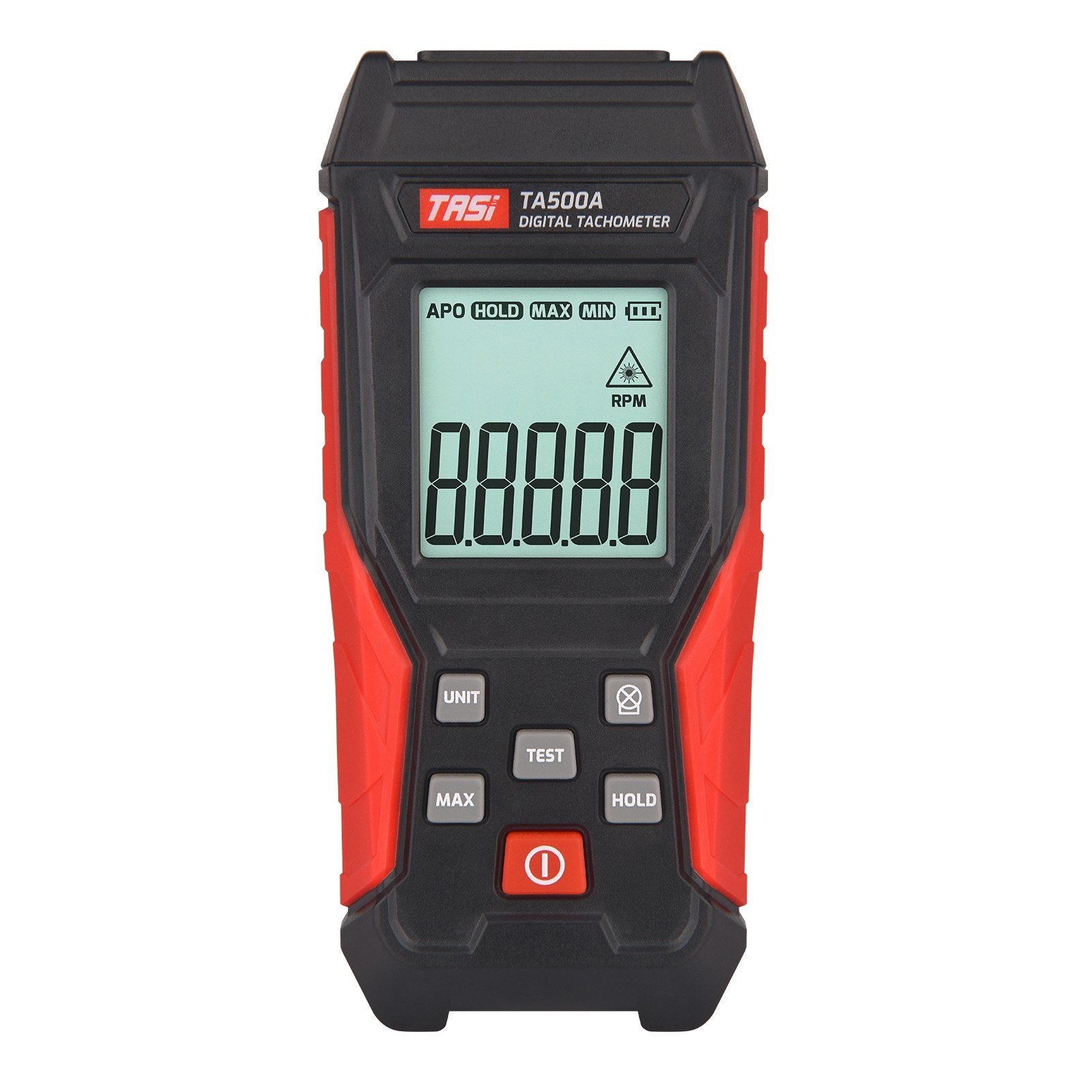

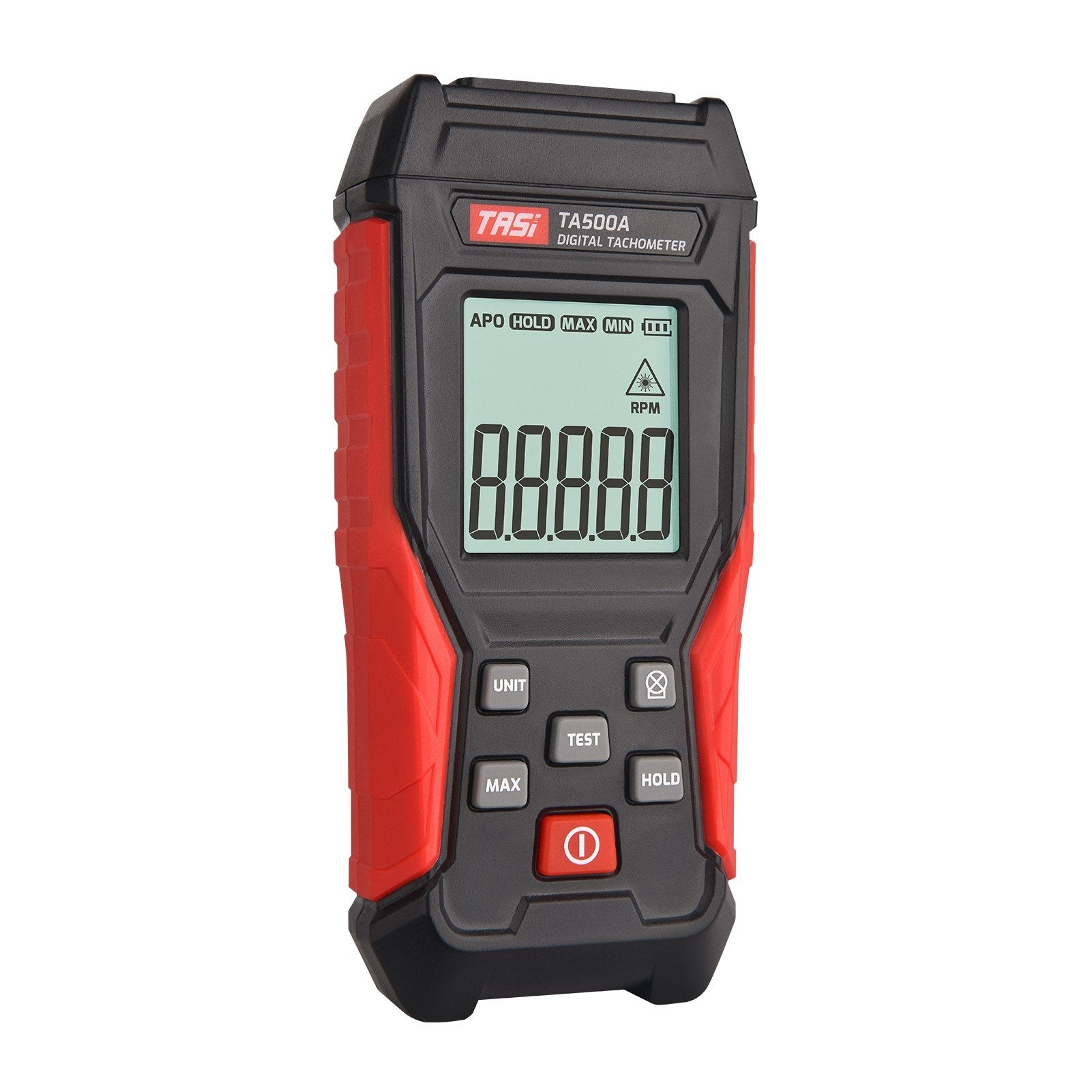

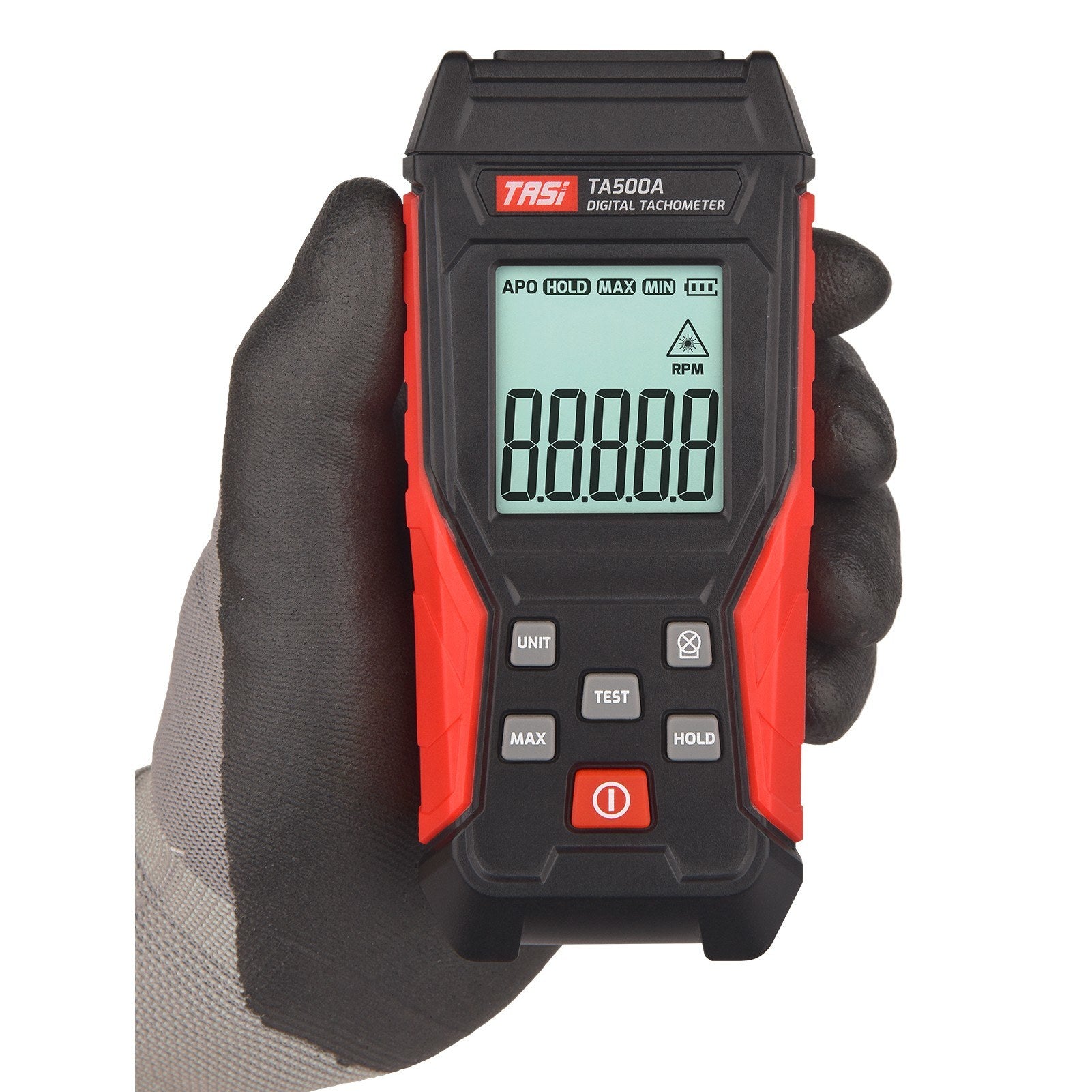

TA500 Series Digital Tachometer

The TA500 series digital tachometer is designed to measure RPM or surface speed and distance, ideal for various industries such as electric power, steel, petrochemical, aviation, fan manufacturing, pipeline ventilation systems, and underground warehouses.

Features

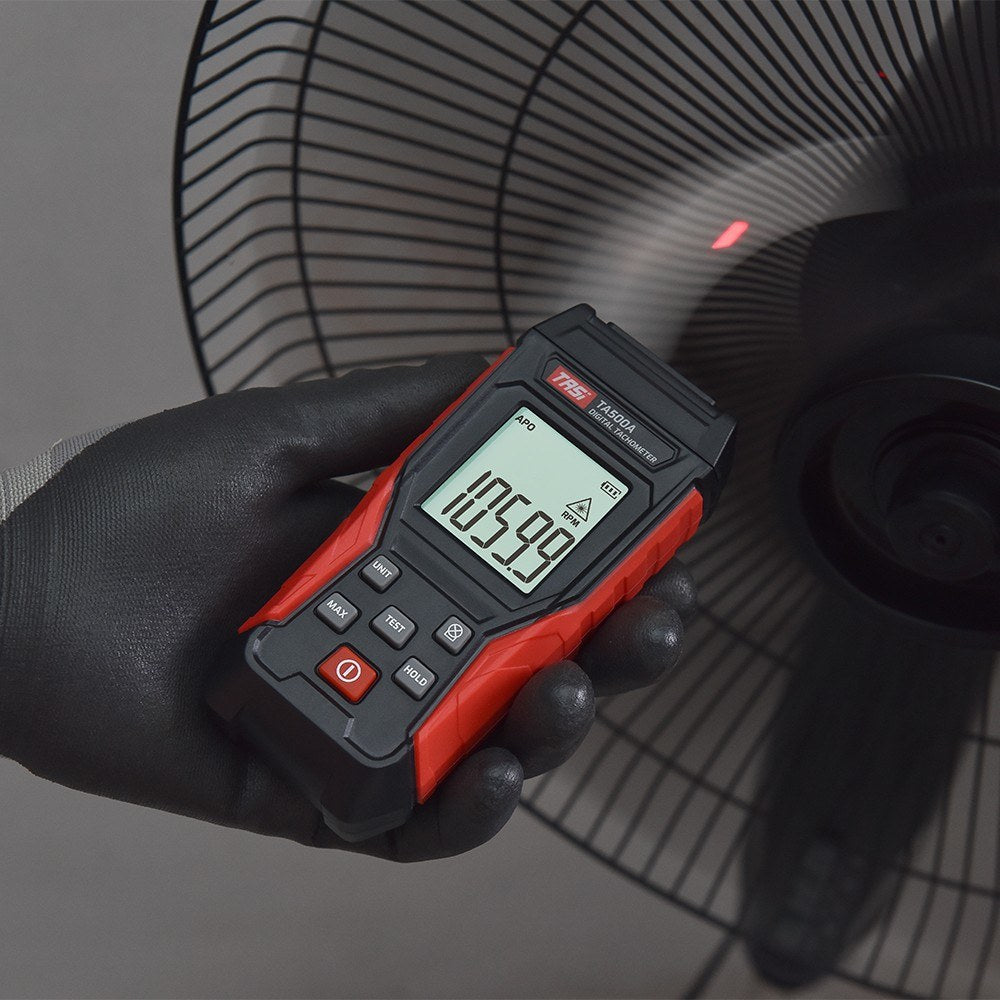

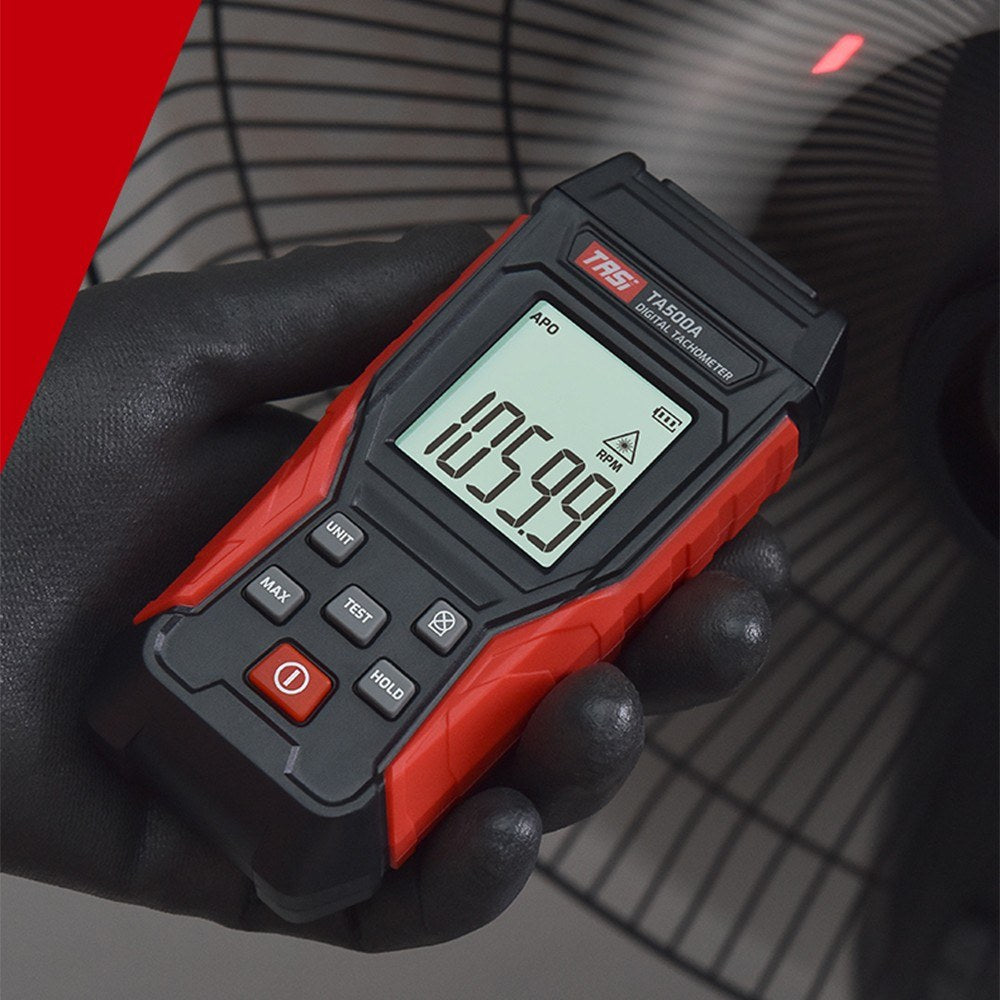

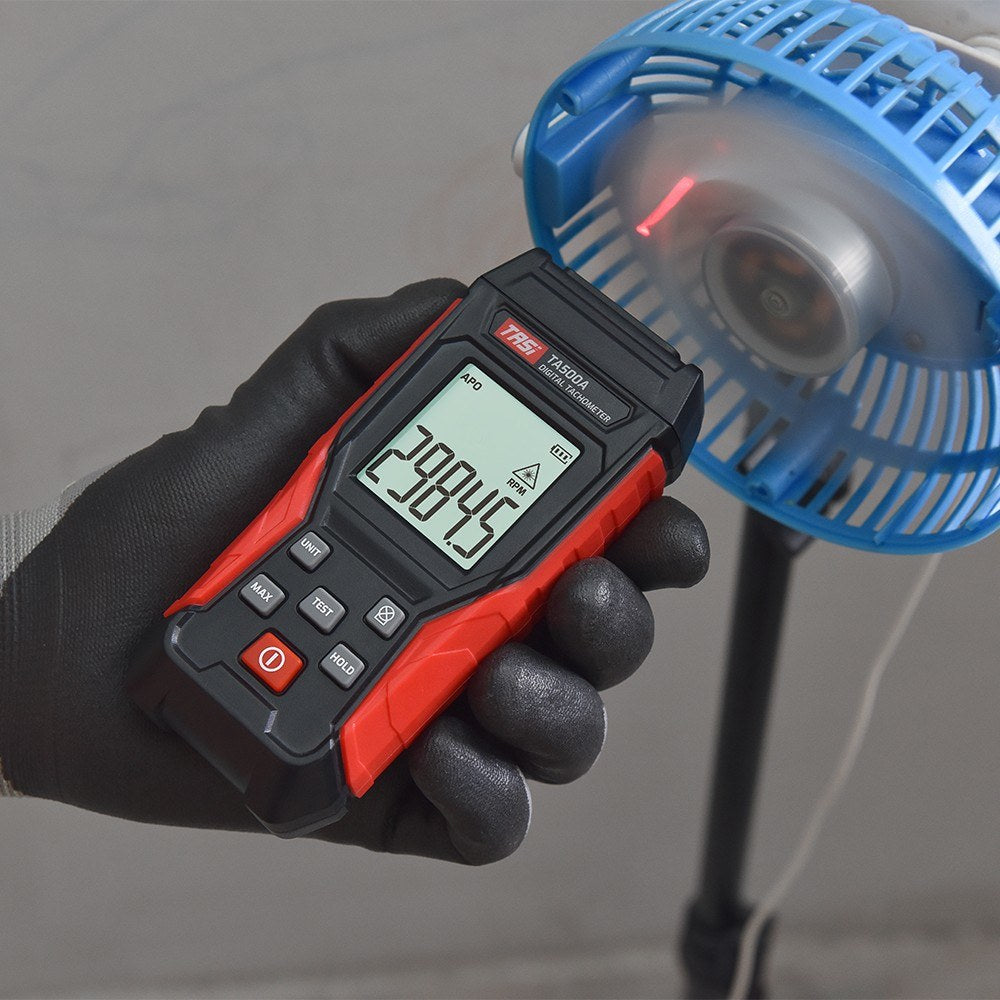

• Accurate RPM Meter: This handheld tachometer offers high accuracy with noncontact measurement. It features a wide measuring range from 3 RPM to 100,000 RPM and a resolution of 0.1 RPM or 1 RPM, providing precise rotational speed readings from a distance.
• Contact & Non-contact Options: The digital tachometer integrates two measurement methods: contact type and photoelectric laser non-contact type, enabling photoelectric speed measurement, light source flicker frequency measurement, contact RPM measurement, and contact line speed measurement.
• Enhanced Speed Range: The digital non-contact tachometer displays rotation speeds from 3-100,000 RPM, while contact type tachometers measure from 3-19,999 RPM, 0-99,999 meters, 0-1,999.9 meters/min, and 0-9,999.9 feet/min.
• Multi-Functionality: This tool can record max and min values. Additionally, it features data hold and automatic shutdown functions.

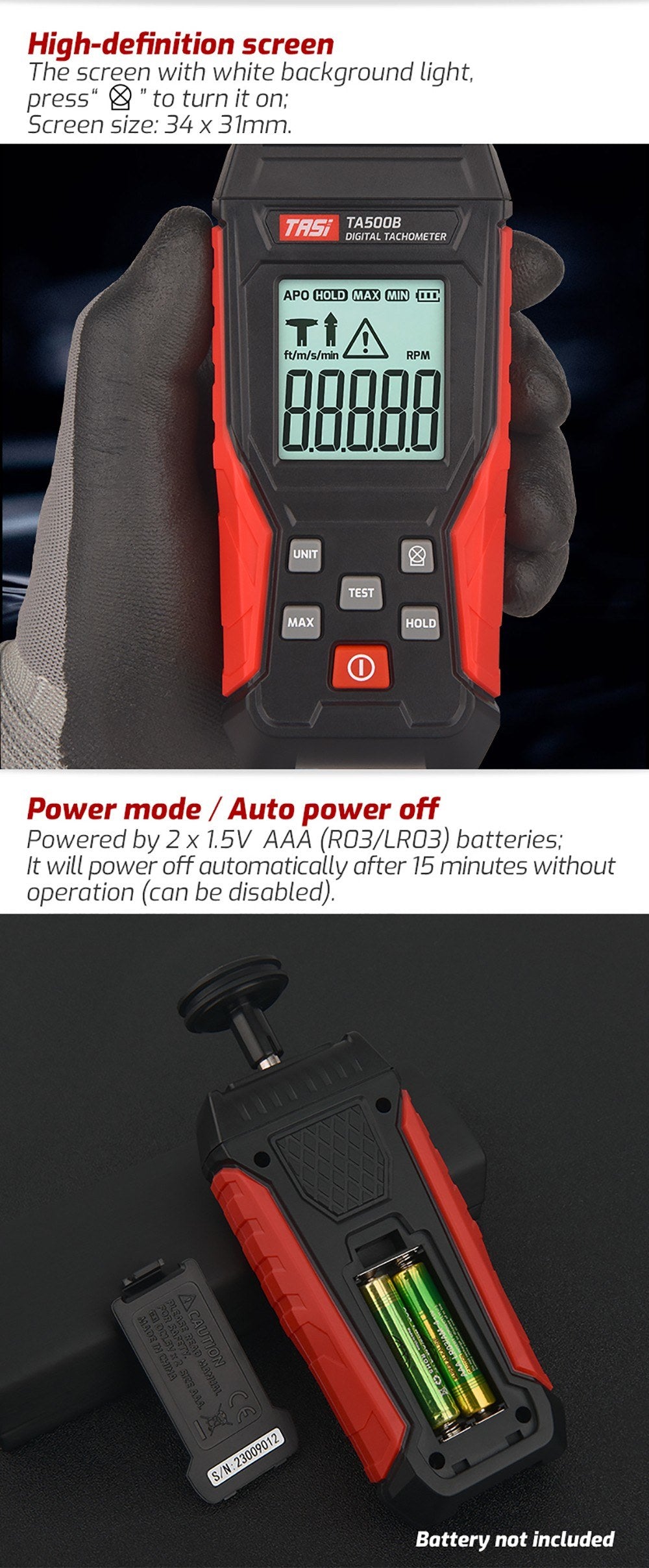

• HD Backlit Display: Equipped with a high-definition LCD backlit display, ensuring easy readability even in low-light conditions.
• Wide Applications: Suitable for use in motor, fan, paper, plastic, chemical fiber, and other manufacturing industries.

Specifications

• Models: TA500A, TA500B, TA500C (Optional)
• Measurement Methods: Non-contact / Contact / Combination (Optional)
• Material: ABS
• Range:

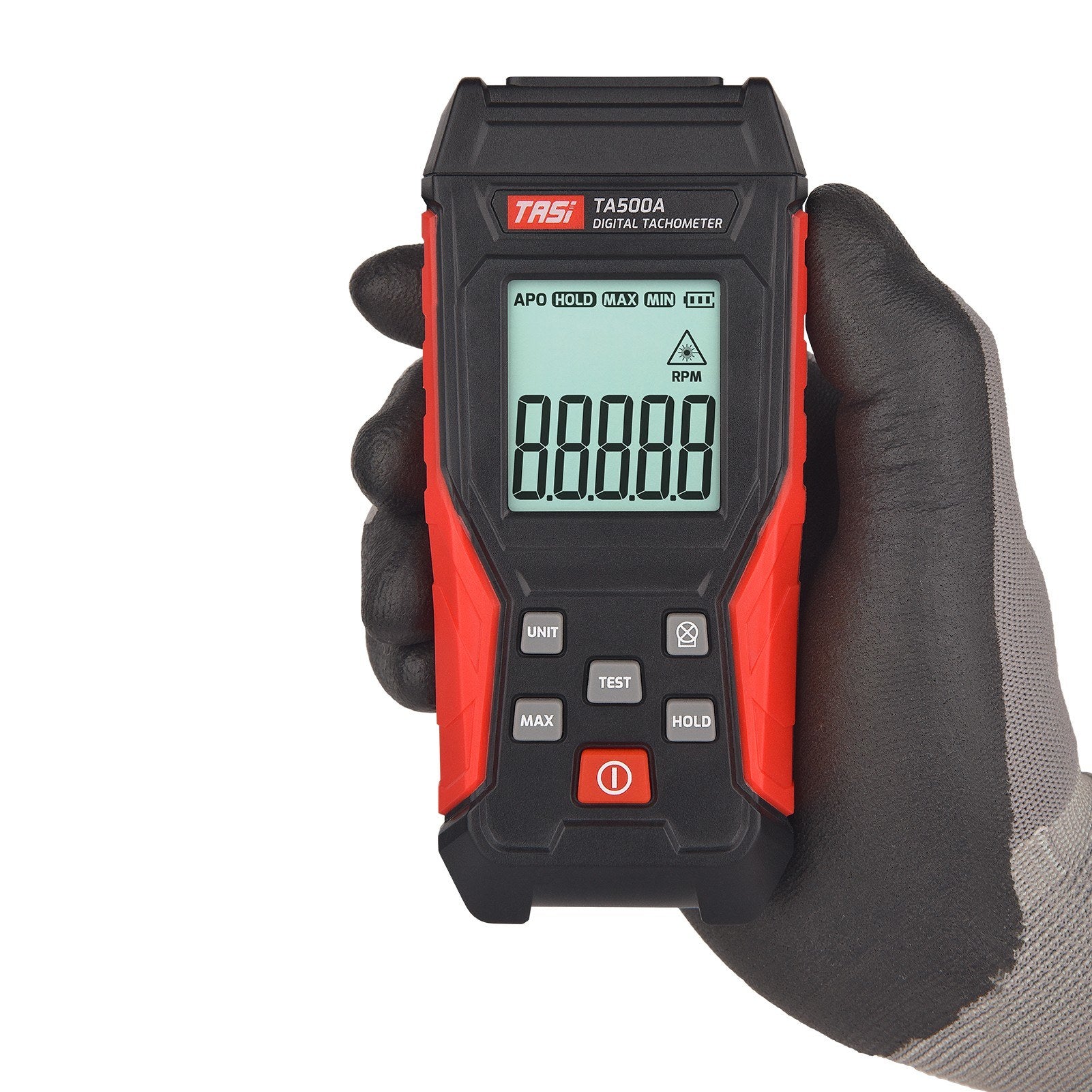

  • TA500A: Non-contact: 3~100,000 RPM

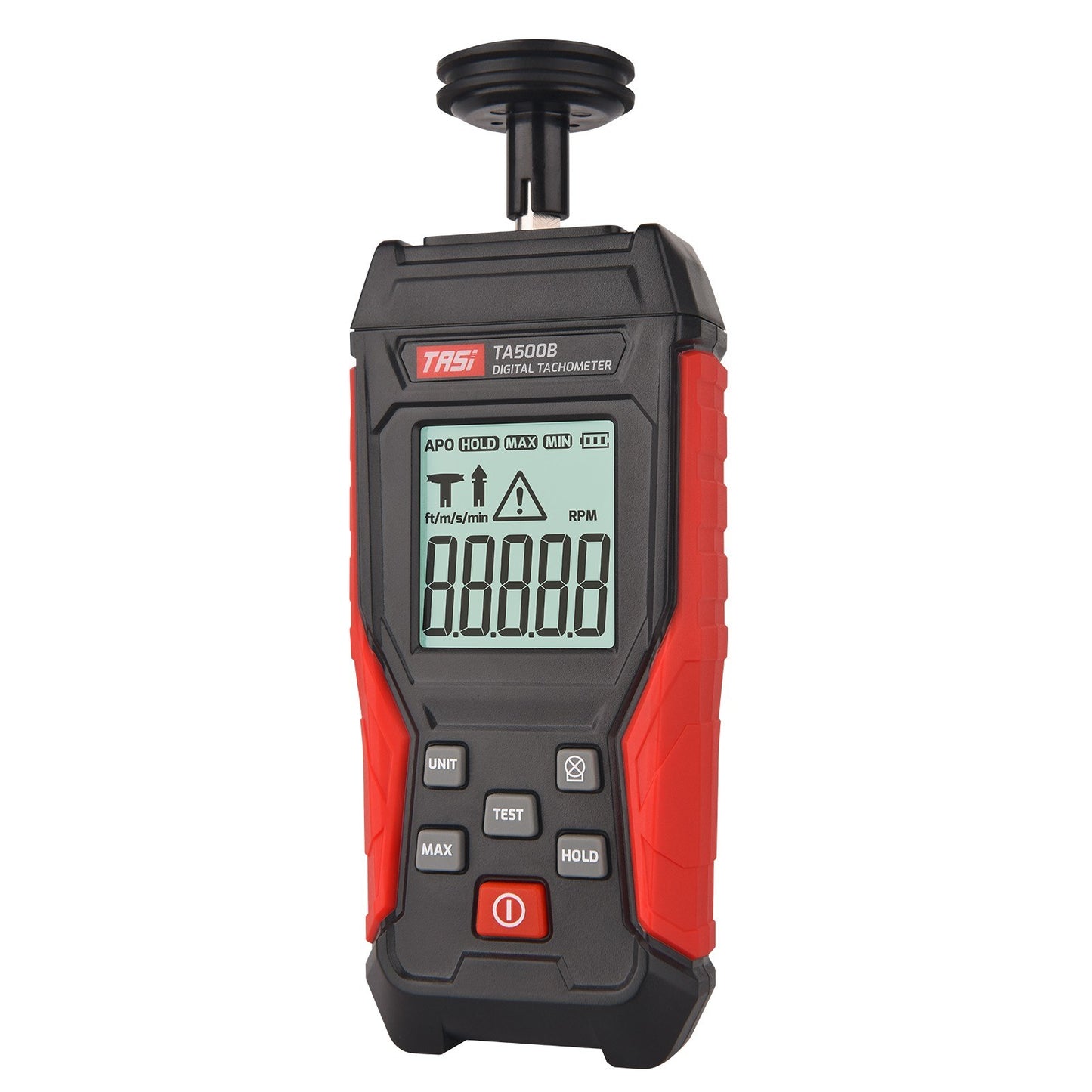

  • TA500B: Contact: 3~19,999 RPM, 0~99,999 m, 0~1,999.9 m/min, 0~9,999.9 ft/min

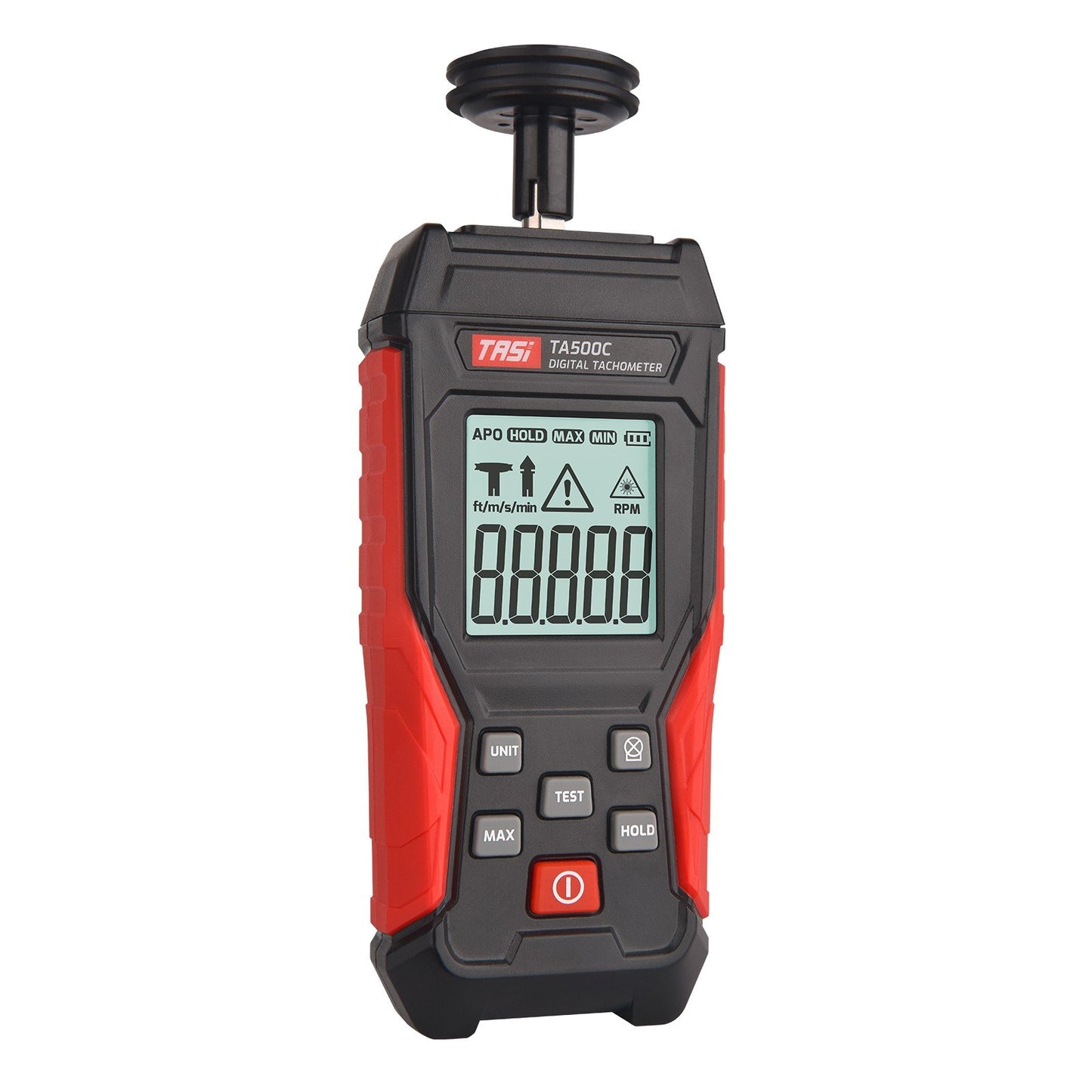

  • TA500C: Non-contact: 3~100,000 RPM; Contact: 3~19,999 RPM, 0~99,999 m, 0~1,999.9 m/min, 0~9,999.9 ft/min
• Accuracy:
  • TA500A: ±0.05%FS + 1RPM
  • TA500B: ±0.1%FS + 1RPM; ±0.1%FS + 0.2m; ±0.1%FS + 0.2m/min; ±0.1%FS + 0.6ft/min
  • TA500C: Non-contact: ±0.05%FS + 1RPM; Contact: ±0.1%FS + 1RPM
• Resolution:
  • TA500A: RPM: <10,000: 0.1; ≥10,000: 1
  • TA500B and TA500C: RPM: <10,000: 0.1; ≥10,000: 1, m: <10,000: 0.1; ≥10,000: 1, m/min: <200: 0.1, ft/min: <1,000: 0.1
• Display: 6 digits, max 99,999

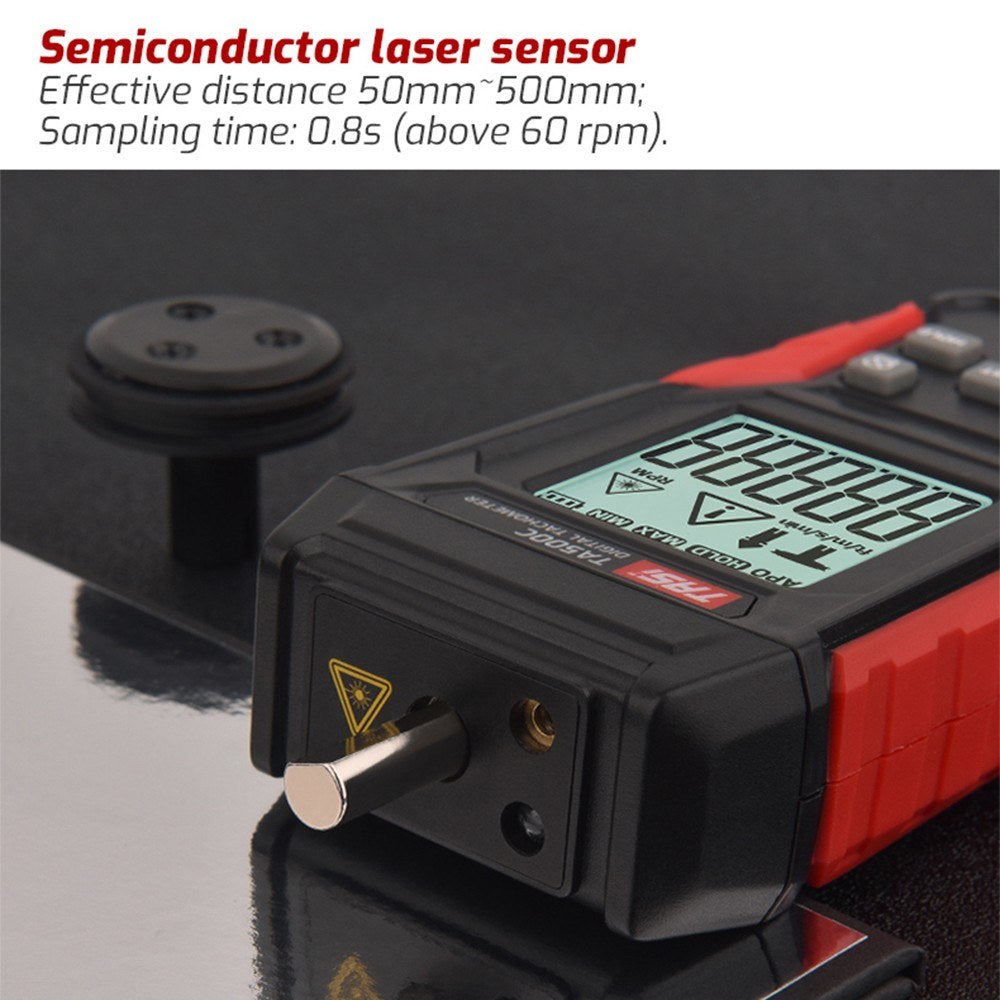

• Effective Measuring Distance: 50mm~500mm
• Sampling Time: 0.8s (above 60 rpm)
• Working Environment: -10~50℃, max 80% RH, indoor altitude <2,000 m
• Storage Environment: -10~50℃, max 70% RH (battery removed)
• Power: 2 x 1.5V AAA (R03/LR03) (Not included)

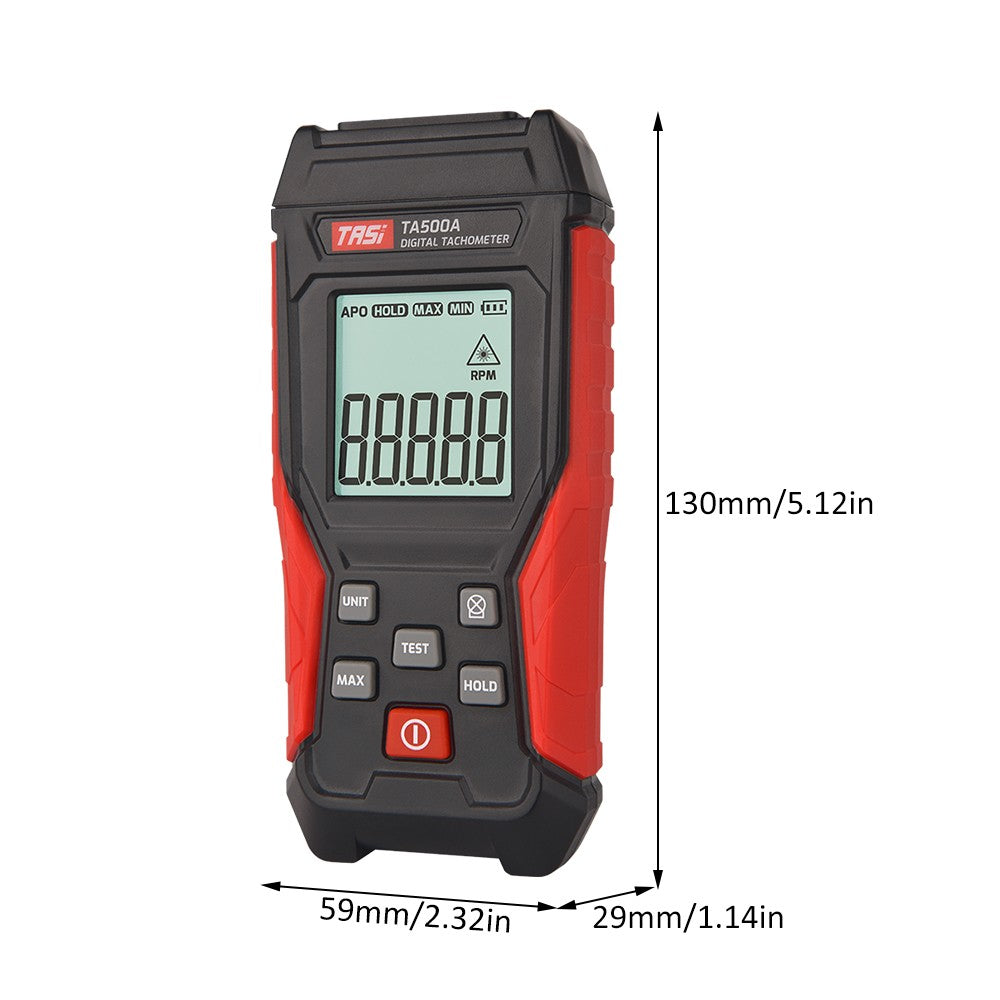

• Item Size: 146 x 59 x 29 mm / 5.75 x 2.32 x 1.14 in
• Item Weight: 120 g / 4.23 oz
• Package Weight: 188 g / 6.63 oz
• Package Size: 20 x 7.5 x 4 cm / 7.87 x 2.95 x 1.57 in

Package List

• 1 x Digital Tachometer
• 2 x Reflective Tape
• 4 x Accessories
• 1 x User Manual (English)
