Regulated DC Power Supply with Adjustable Brightness & Firmware Upgrade, 1.54 LCD

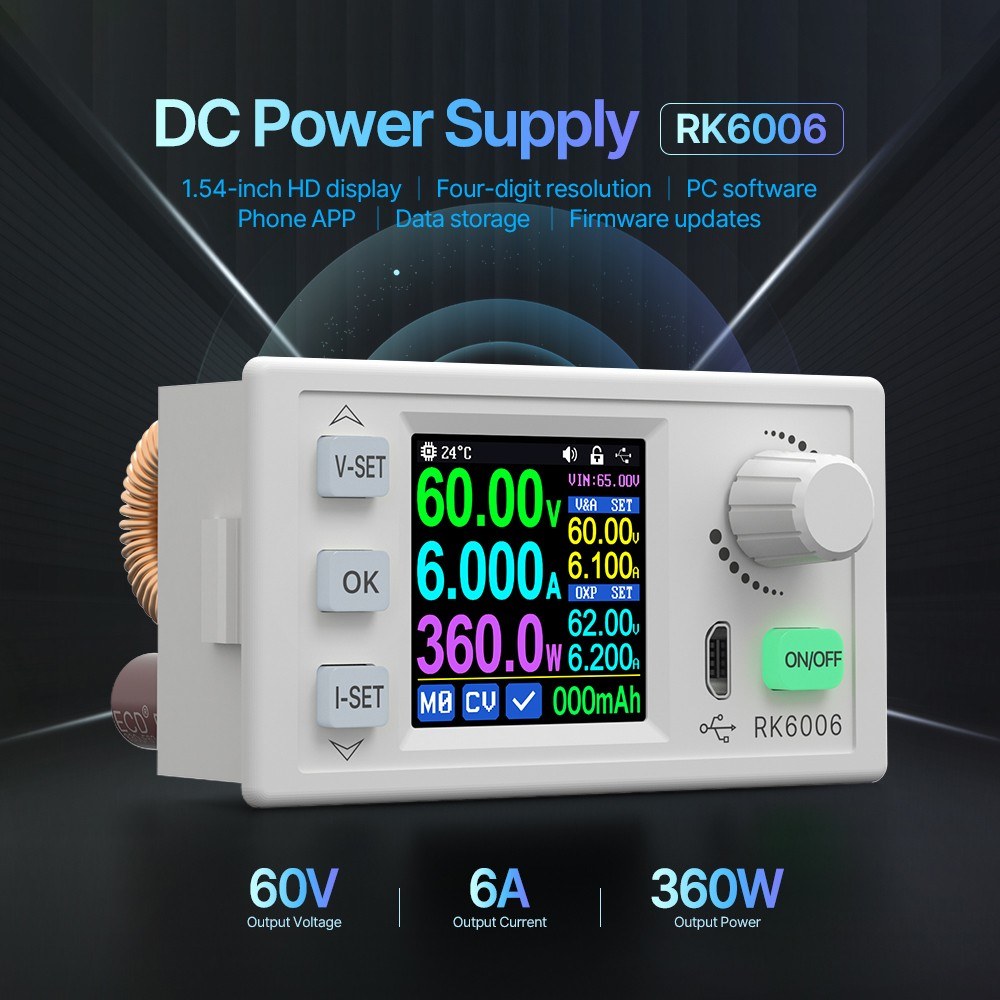

Introducing the RK Series Power Supply

The RK Series Power Supply is a versatile, constant voltage and current device perfect for maintenance and experimentations. Available in two models, RK6006 and RK6006-BT, it offers sophisticated features to meet diverse needs.

Key Features:

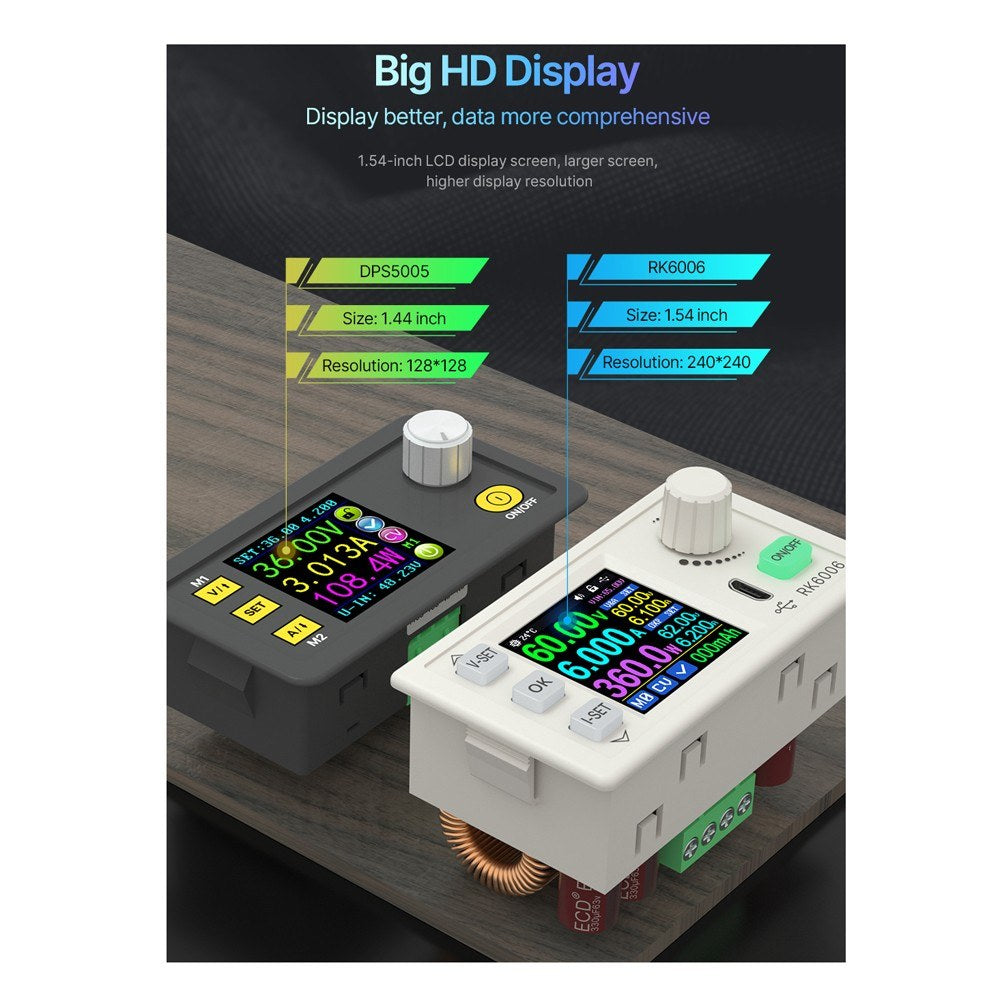

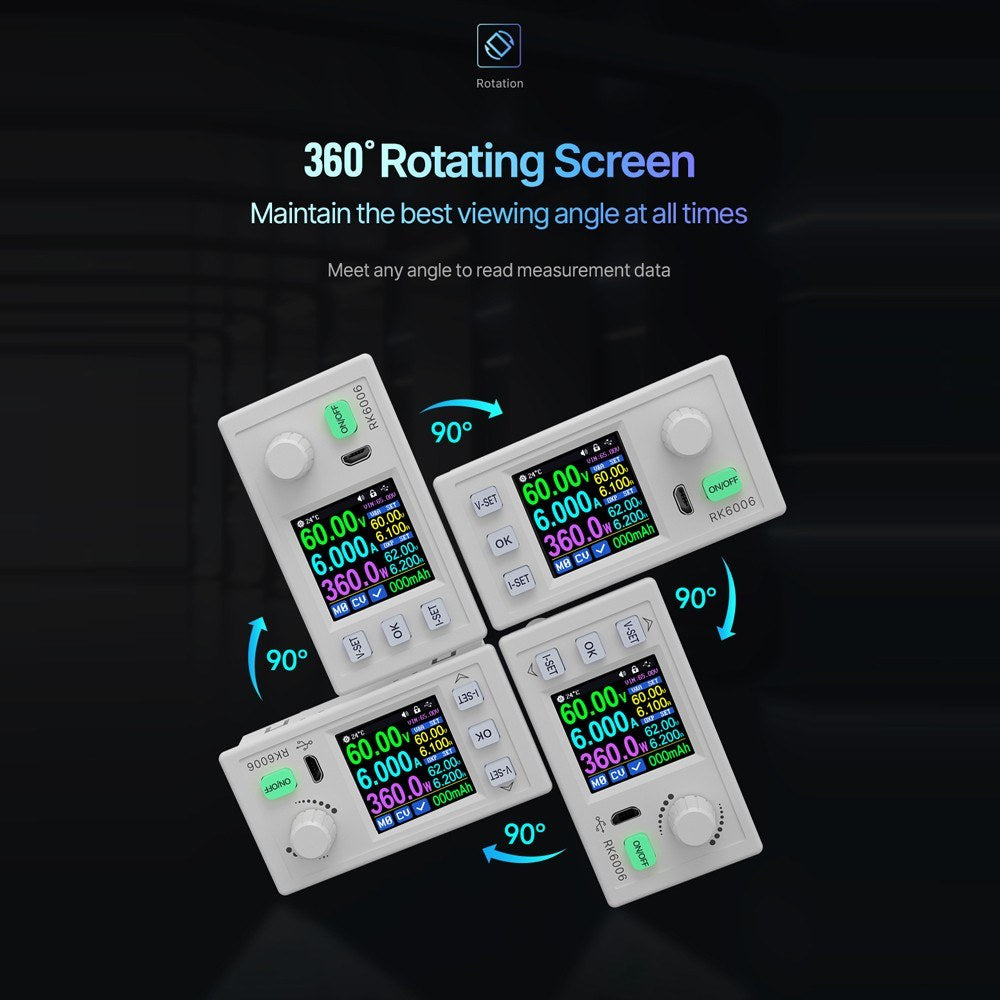

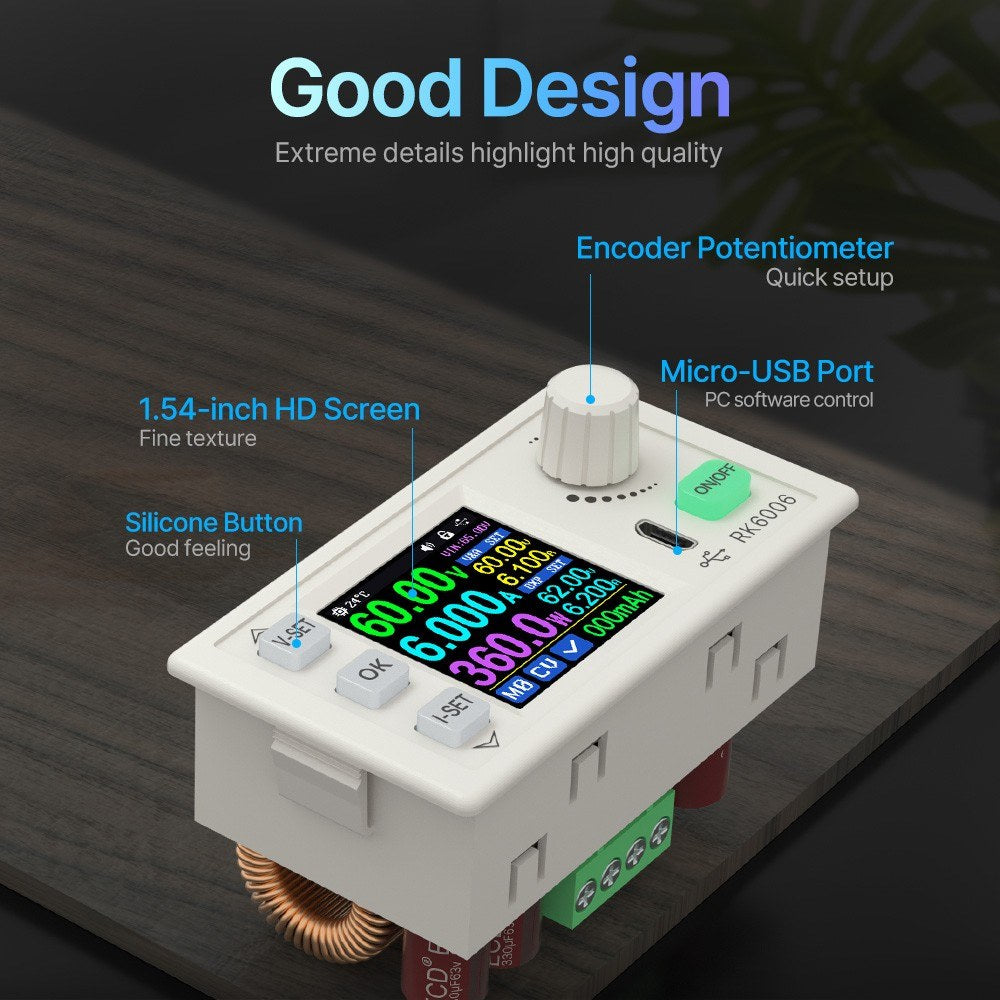

• Cutting-Edge LCD Display: 1.54-inch LCD screen with a 240x240 resolution. Enjoy adjustable brightness (0-5 levels) and a 360-degree screen rotation for effortless data reading from any angle.

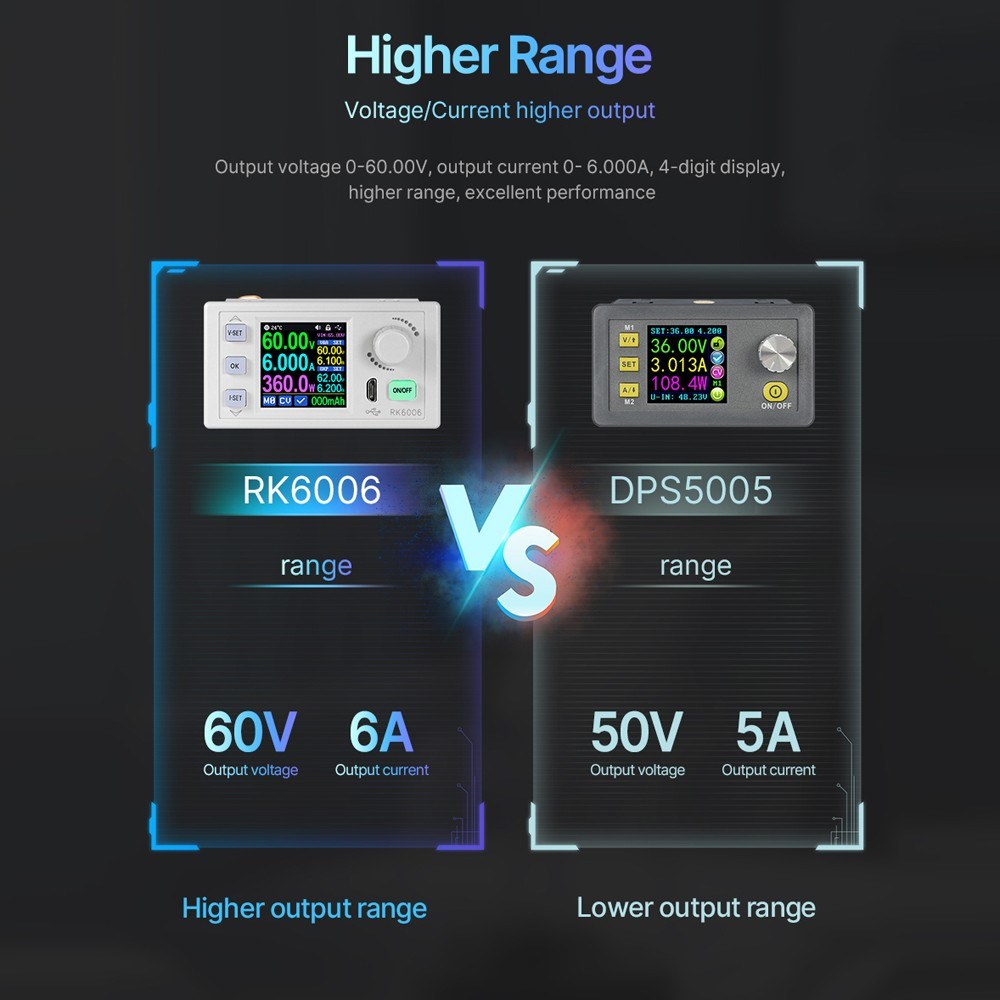

• Expansive Measurement Range: Benefit from a wide voltage range of 0-60.00V and current range of 0-6.000A with a power output of 360W. Four precise digital displays ensure accurate measurements every time.
• Flexible Model Options: Choose the model that suits you:
  • RK6006: Supports USB communication.
  • RK6006-BT: Includes both USB and Bluetooth (BT) communication for enhanced usability.

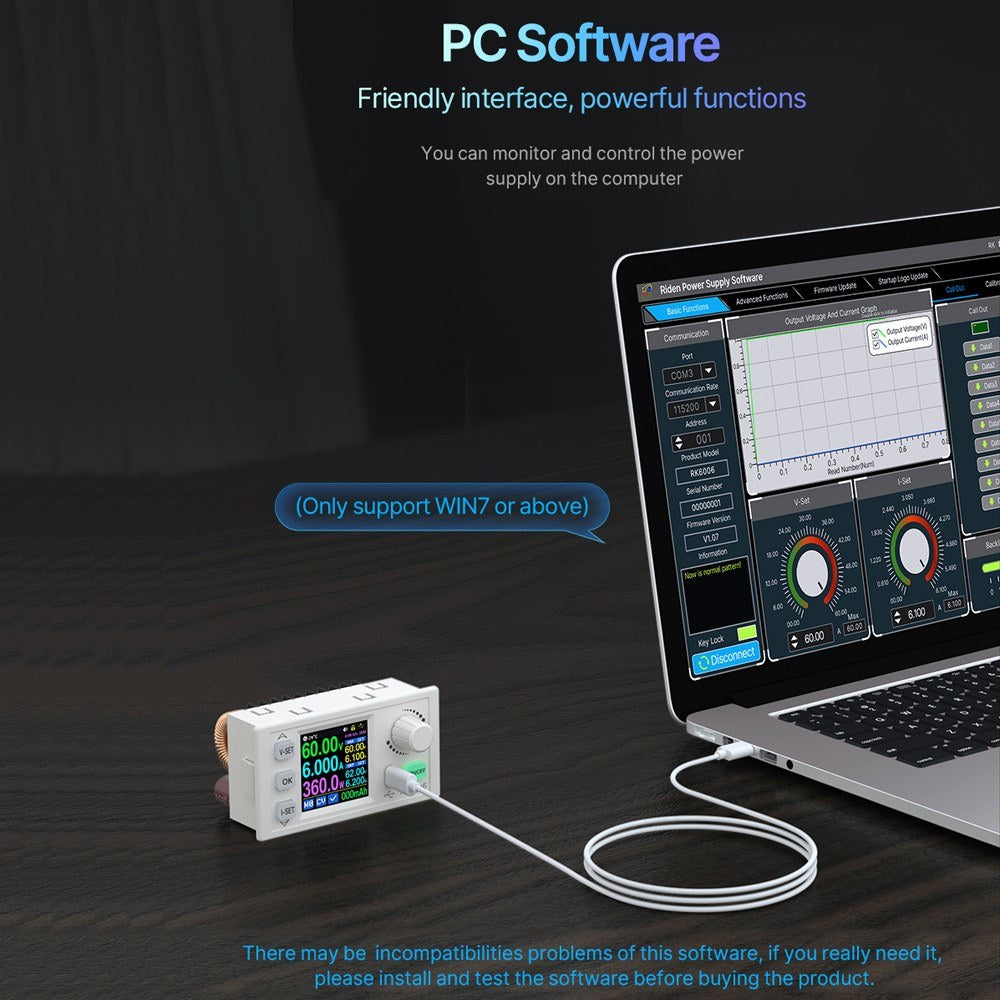

• Advanced PC Interface: Use the USB connection for seamless PC control, compatible with Win7-Win10 systems for convenient device management.
• Mobile App Control (RK6006-BT): Enjoy the flexibility of mobile app control with data storage capabilities. Compatible with iOS 10.0-16.0 and Android 5.0-12.0 systems.
• Comprehensive Protection: Equipped with over-voltage, over-current, and over-temperature protections to ensure robust and safe operation. Designed to handle constant current scenarios efficiently.

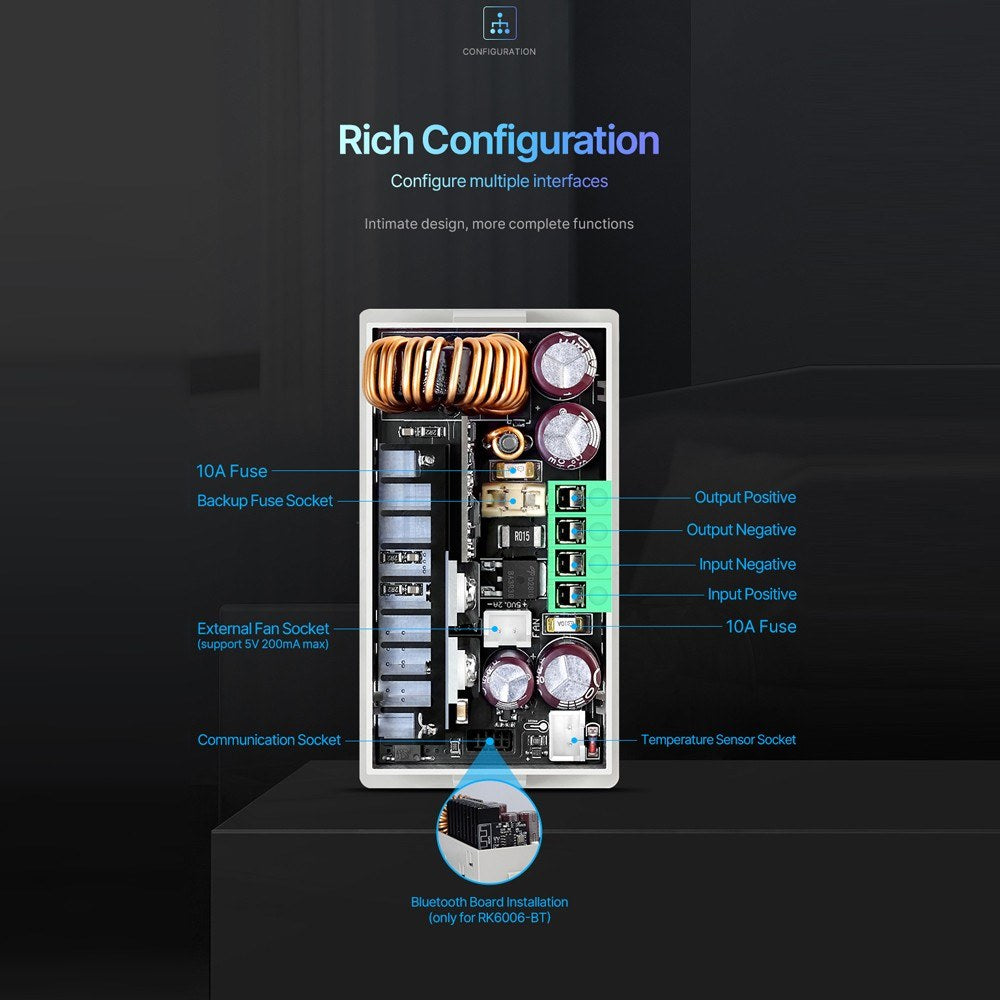

• Versatile Interface Design: Multiple interfaces available, including an external fan, communication, and temperature sensor connections, to support a variety of expansions.
• Future-Ready with Firmware Upgrades: Keep your device updated with the latest features and improvements through easy firmware upgrades, even in boot mode if necessary.

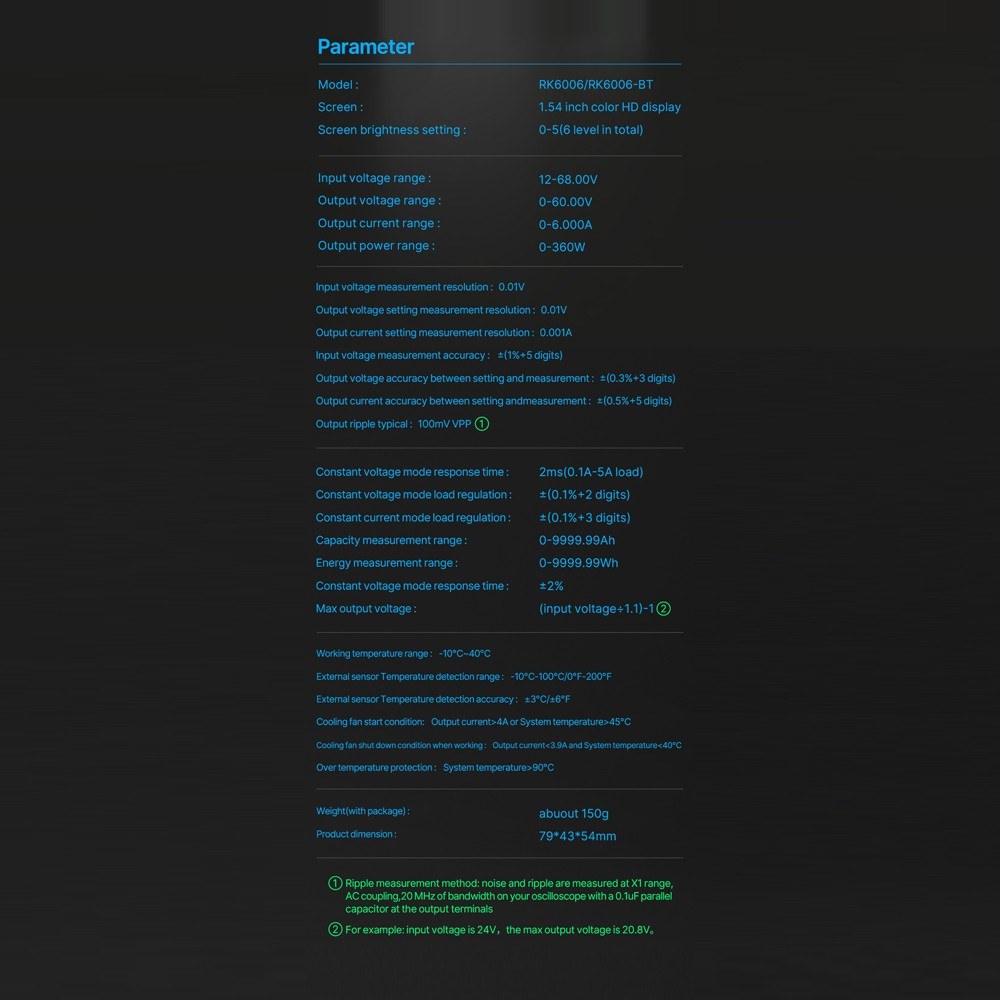

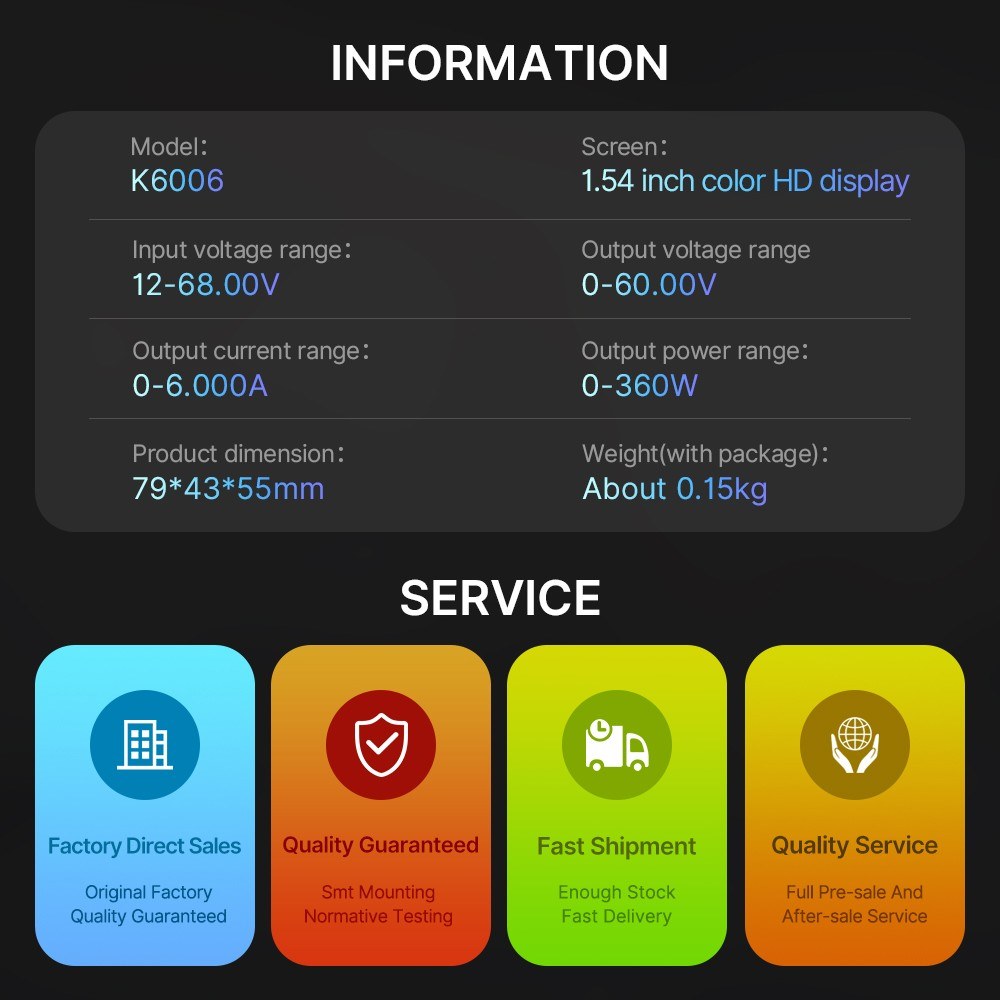

Specifications:

• Name: Stabilized Power Source
• Material: Plastics
• Model: RK6006, RK6006-BT (optional)
• Display: 1.54-inch color LCD display
• Screen Brightness: Adjustable (0-5 levels)
• Input Voltage Range: 12-68.00V
• Output Voltage Range: 0-60.00V
• Output Current Range: 0-6.000A
• Output Power Range: 0-360W
• Resolution and Accuracy Specifications:
  • Voltage Measurement Resolution: 0.01V, Accuracy: ±(1%+5 words)
  • Current Measurement Resolution: 0.001A, Accuracy: ±(0.5%+5 words)
• Typical Output Wave: 100mV VPP
• Operating Temperature Range: -10°C to 40°C
• Temperature Sensor Range: -10°C to 100°C (measurement error: ±3°C)
• Cooling System: Activates at >4A output current or >45°C system temperature

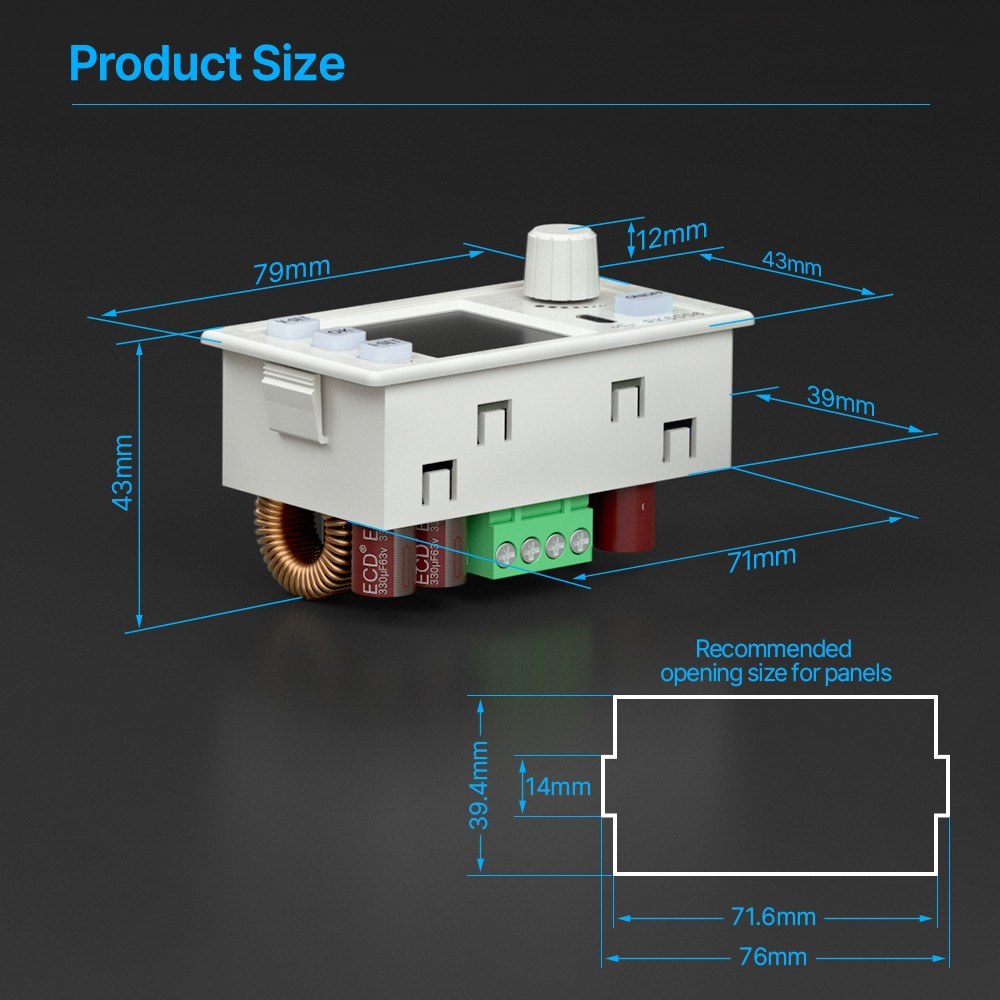

• Item Dimensions: 79x43x55mm
• Item Weight: 147g
• Package Dimensions: 134x68x65mm
• Package Weight: 200g

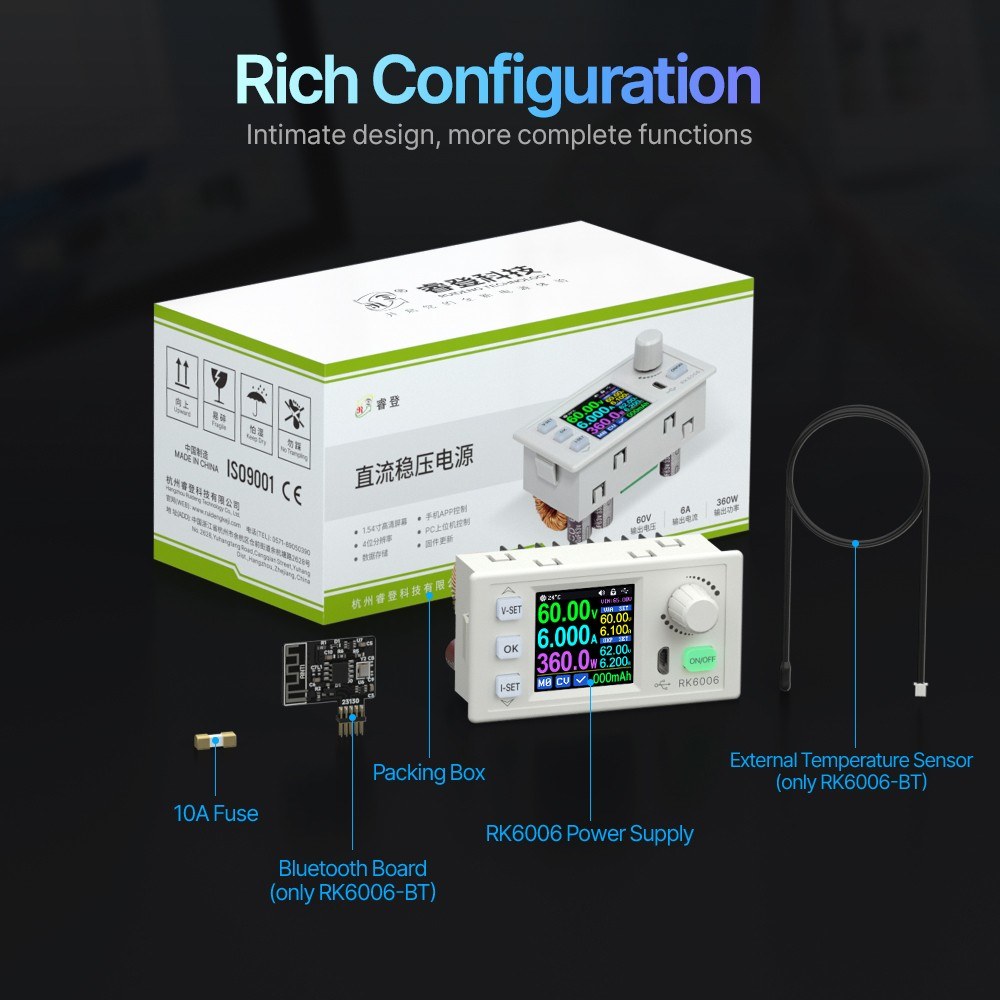

Packing List:

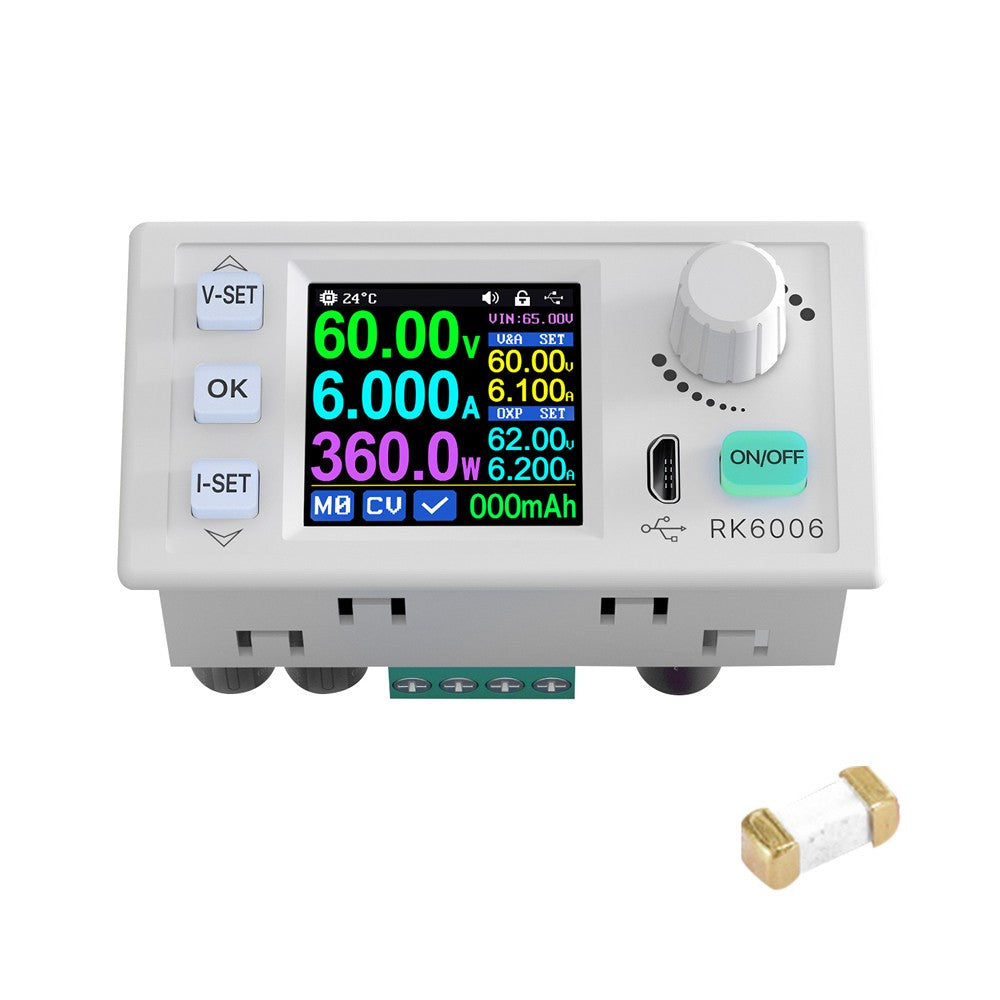

For RK6006:

• 1 x Stabilized Power Source
• 1 x 10A Fuse

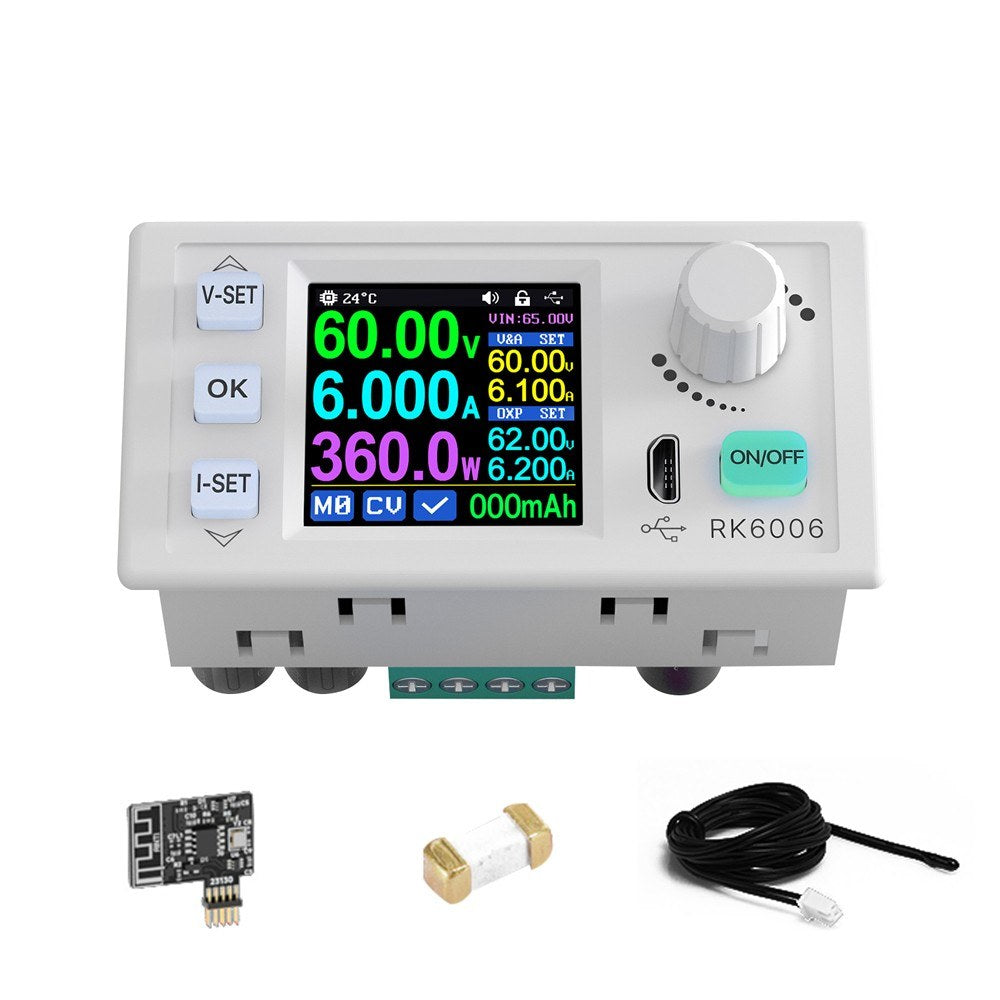

For RK6006-BT:

• 1 x Stabilized Power Source
• 1 x BT Communication Board
• 1 x Temperature Control Cable
• 1 x 10A Fuse
