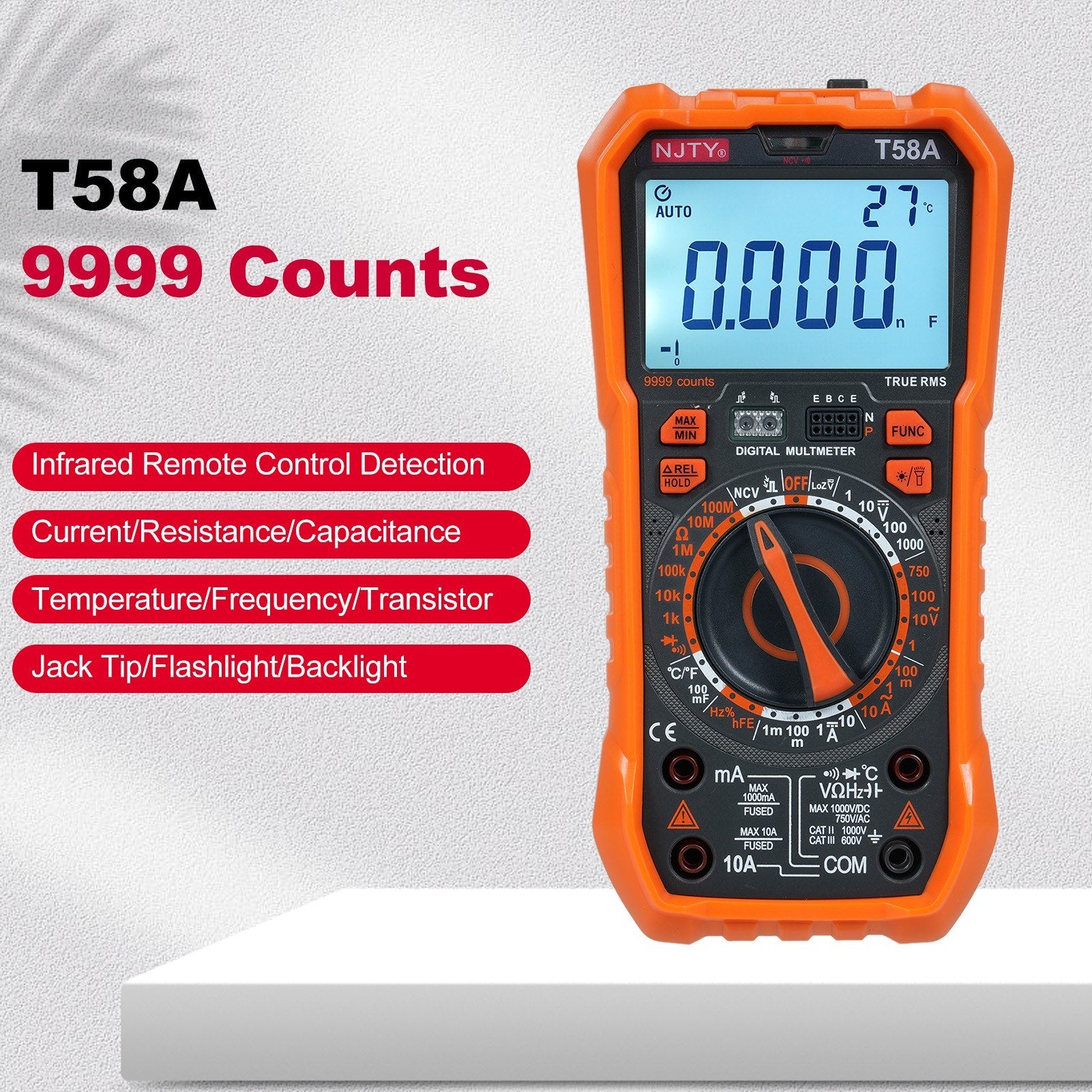

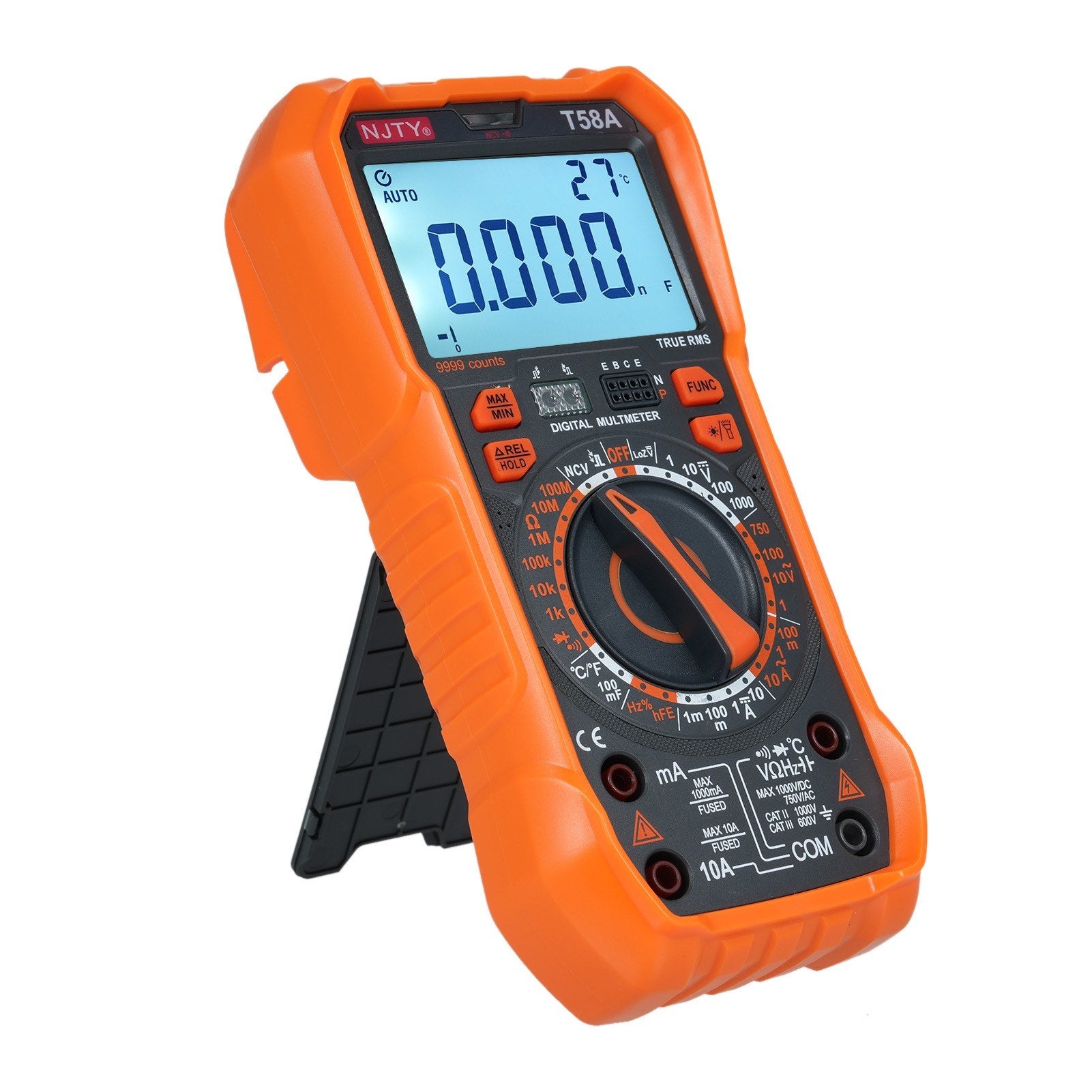

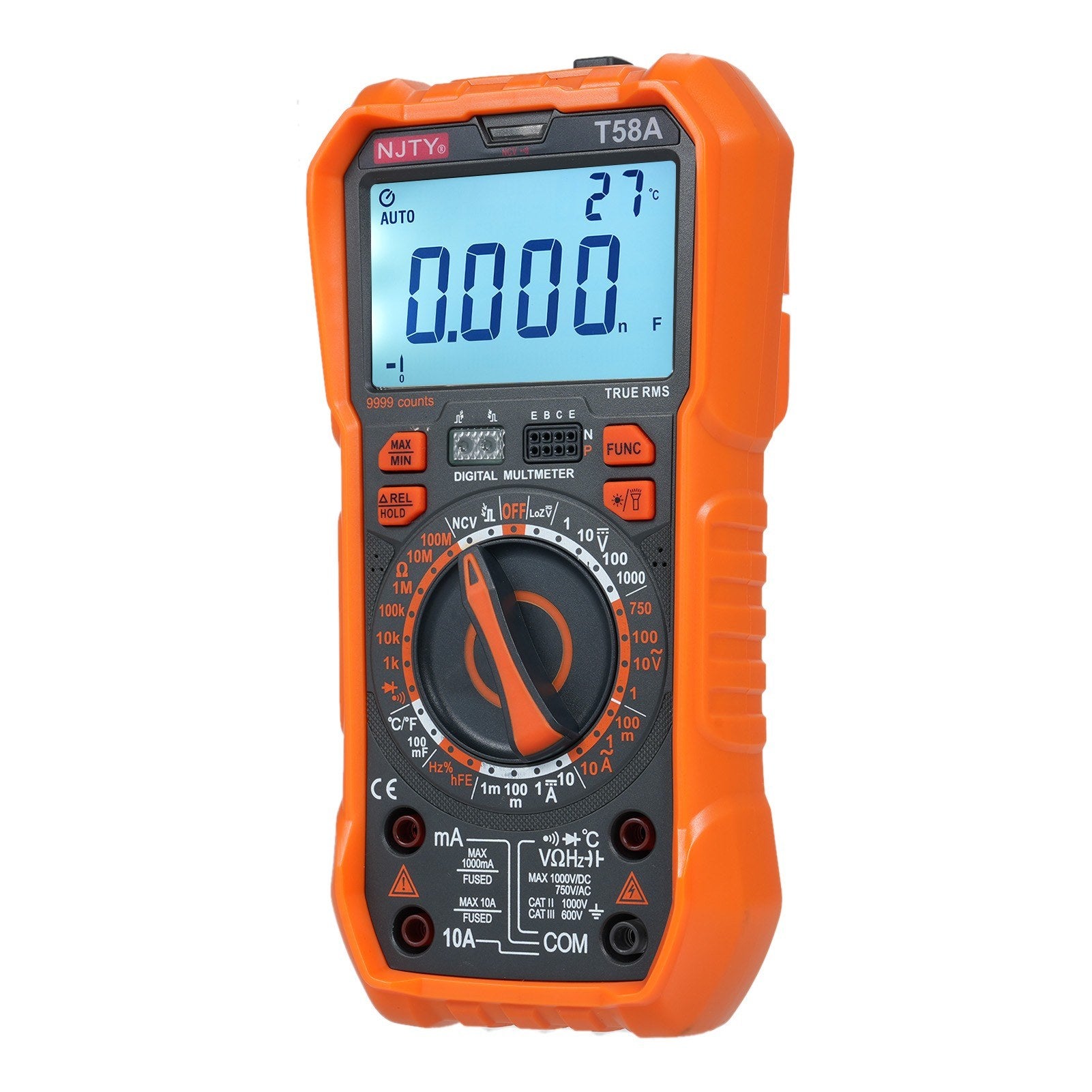

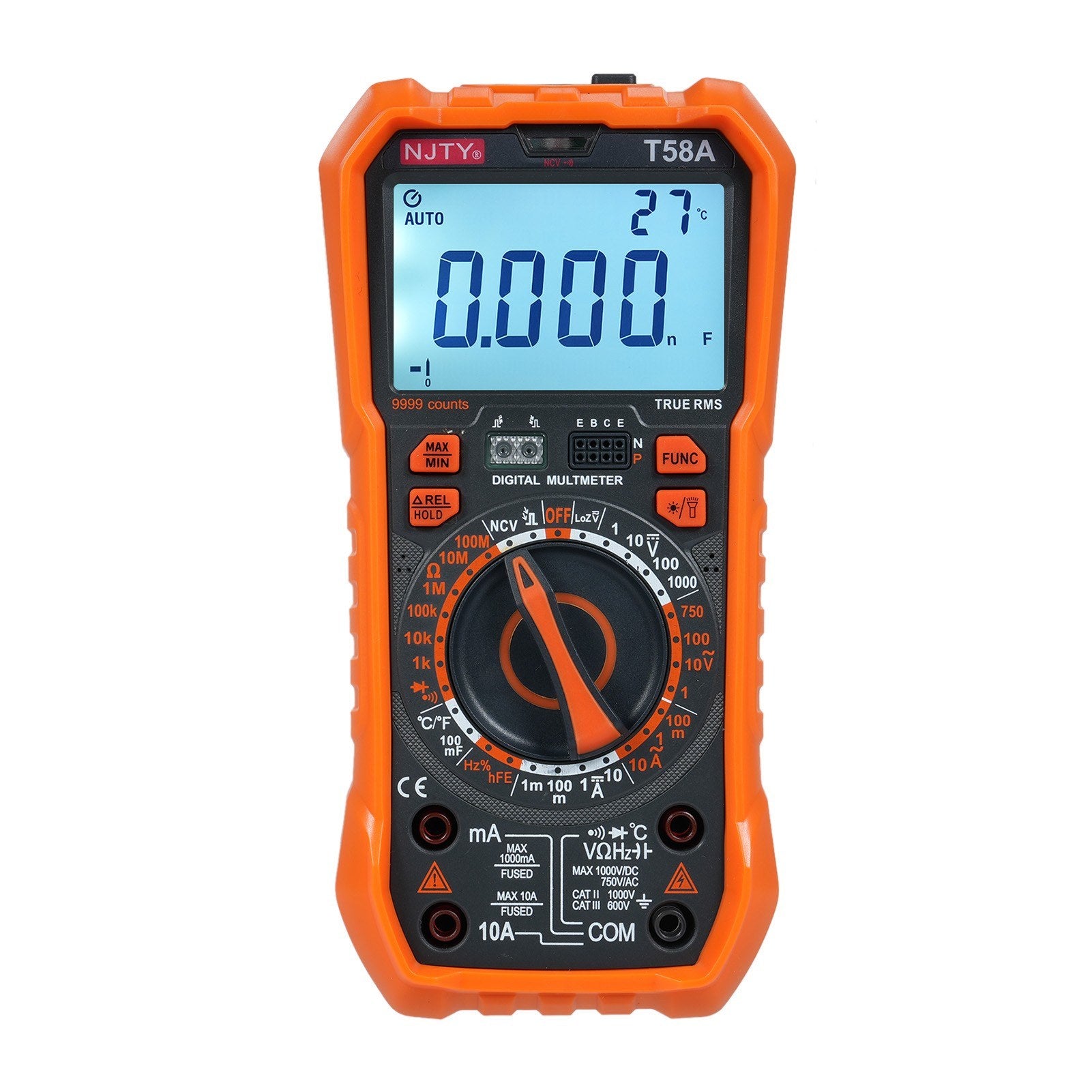

NJTY T58A 9999 Counts Digital Multimeter - Professional AC/DC Voltage, Capacitance Electrician Tool

NJTY T58A 9999 Counts Digital Multimeter - Professional AC/DC Voltage, Capacitance Electrician Tool

$28.49 USD
$0.00 USD $28.49 USD
Sale Sold out
Shipping calculated at checkout.
Color

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos
Digital Multimeter Product Description

Features:

  • Digital Multimeter: Accurately measure AC/DC voltage, AC/DC current, frequency, resistance, capacitance, and diodes. It is a versatile tool for solving industrial and household electrical issues, perfect for applications such as testing household sockets, automotive circuits, batteries, and electronic systems.

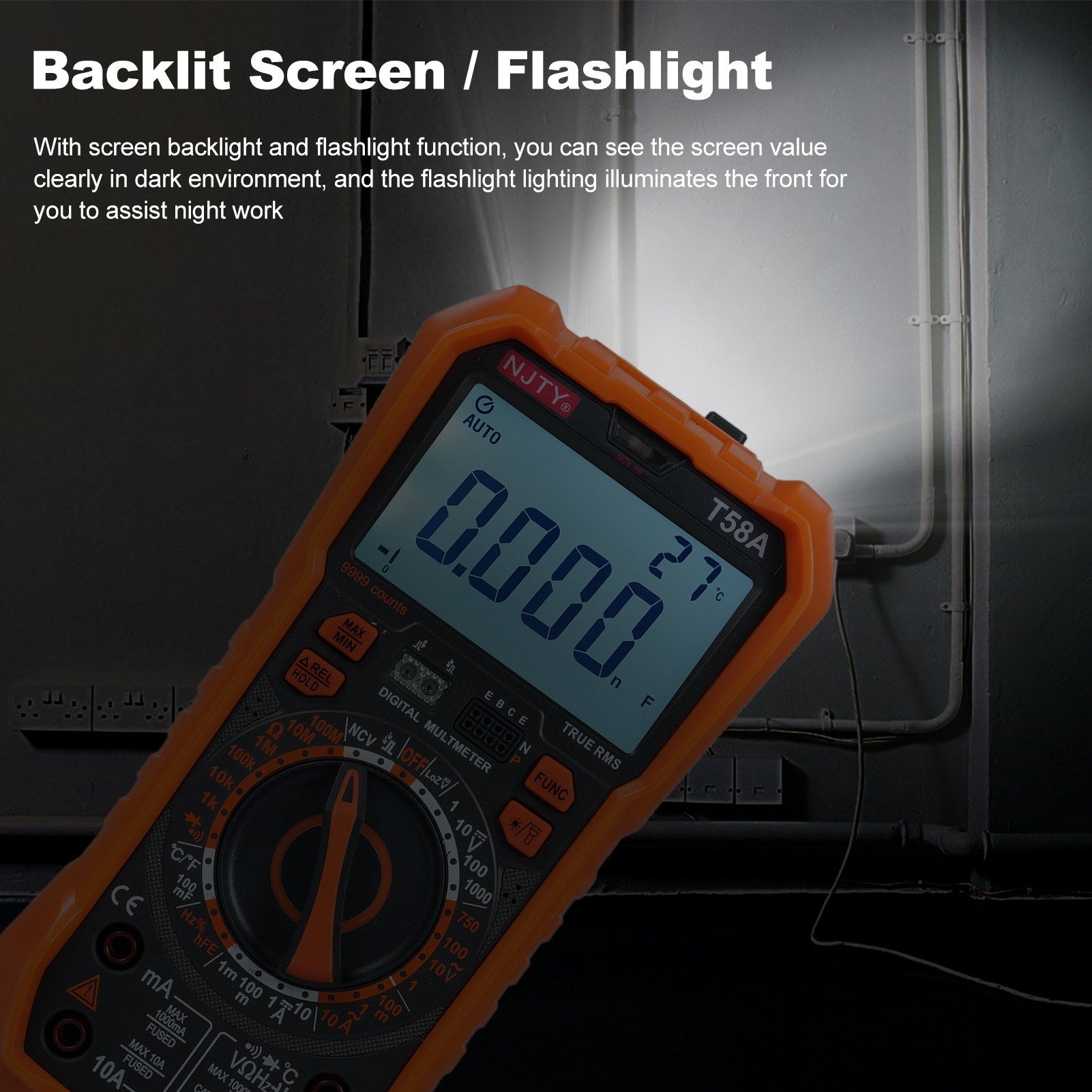

  • Easy to Use: Handheld design with True RMS value. Features a large 60000 counts LCD for clear readings, automatic backlight adjustment, and LED lighting for improved visibility.

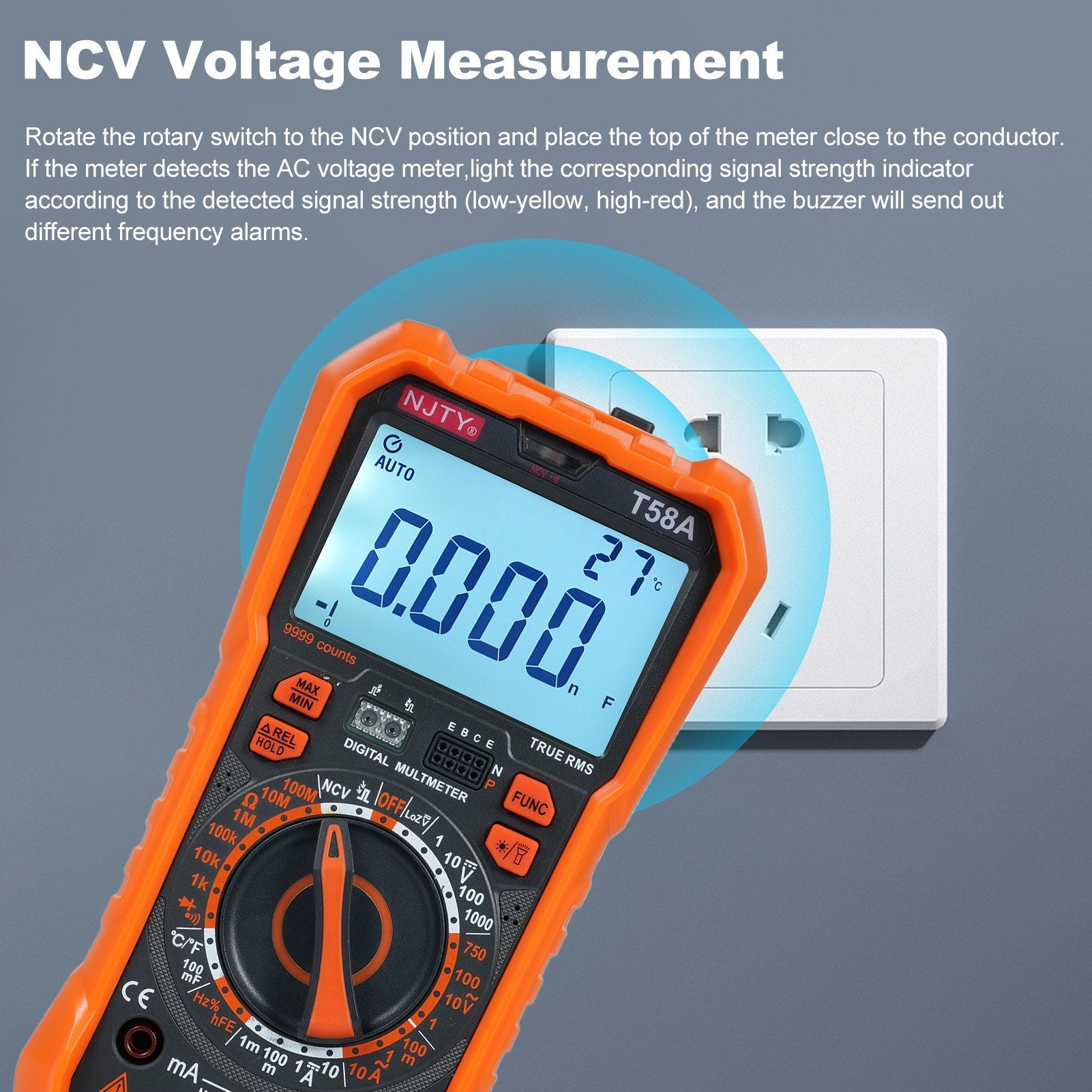

  • NCV Test: An easy test of AC voltage detection by placing the meter near a conductor, with visual (low-yellow, high-red) and audible signal strength alerts.

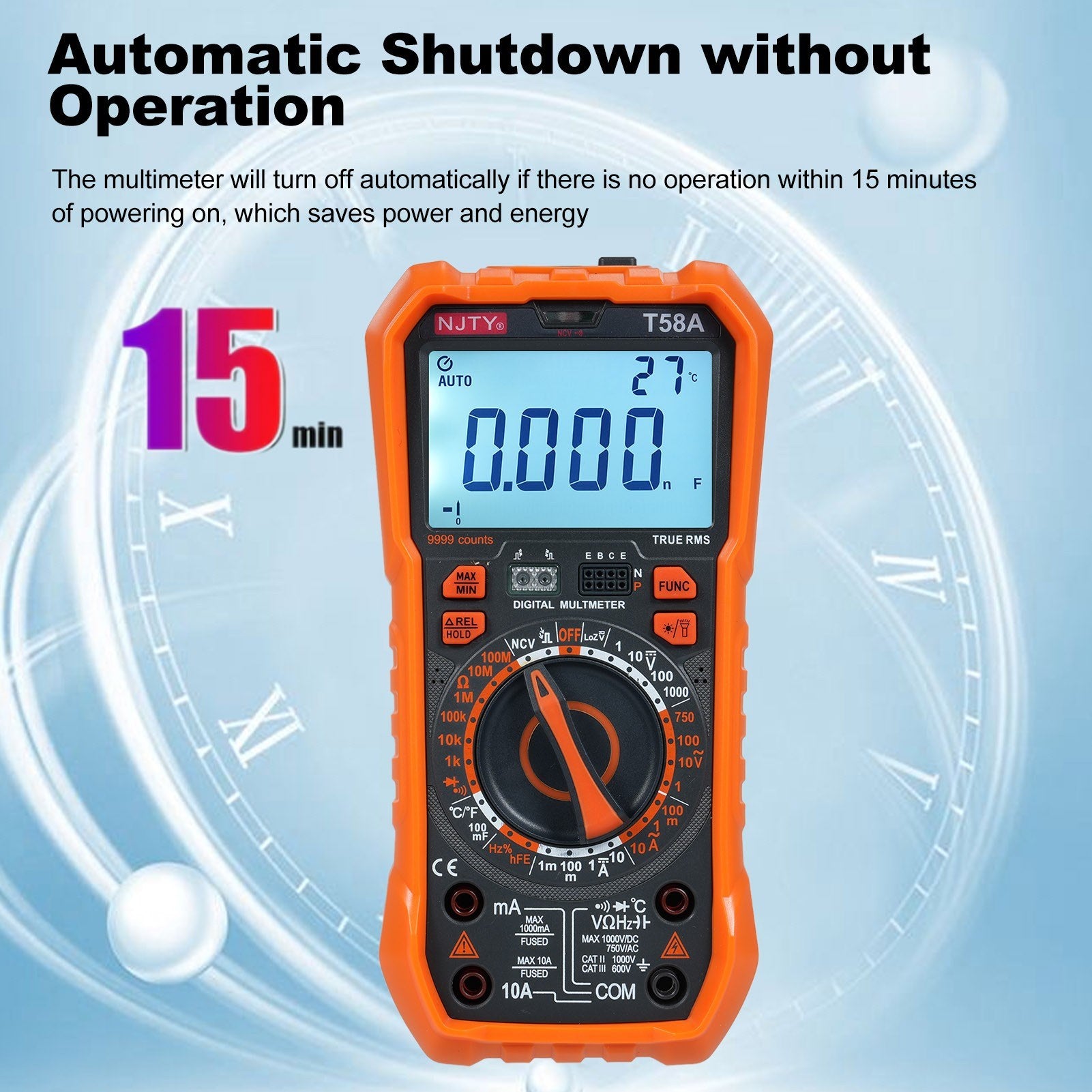

  • Auto Power Off: The device powers off automatically after 15 minutes of inactivity, with an alert and a quick restart by any key press.
  • Additional Tip: Designed for tackling a variety of automotive and home electrical problems, it is ideal for DIYers and hobbyists looking for a reliable tool.

Specifications:

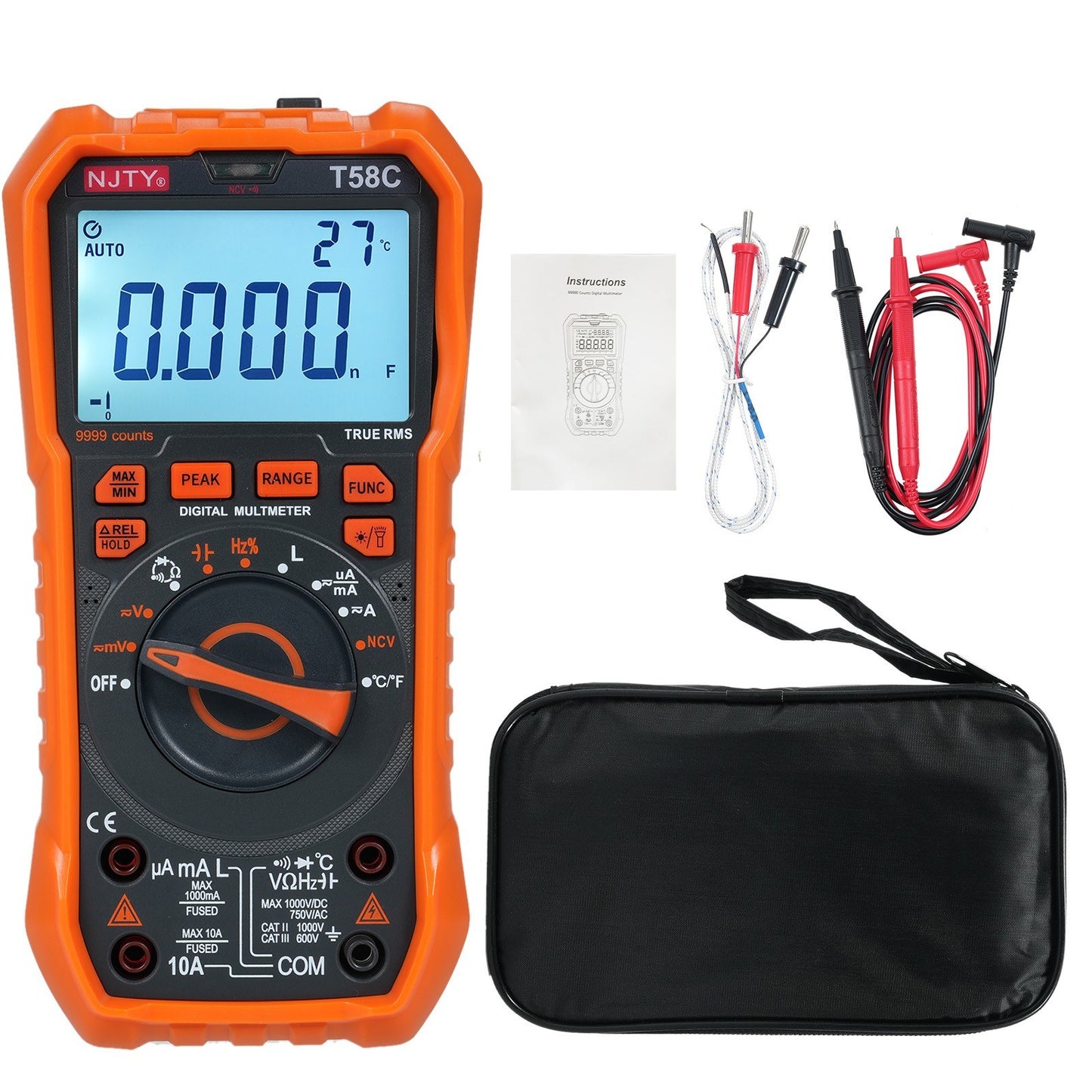

Model Options: T58A / T58B / T58C / T58D

Material: ABS

T58A / T58B / T58C Parameters:

  • 600V CAT III and 1000V CAT.II
  • Pollution Grade: 2
  • Operational Height: under 2000m
  • Working Temperature: 0-40℃ (<80%RH, not considered <10℃)
  • Storage Temperature: -10~60℃ (<80%RH, battery removed)
  • Calibration Ambient: 20℃±2℃
  • Max Voltage Between Measurement End and Ground: 1000V VDC or 750VAC
  • Fuse Protection: mA (F 600mA/250V), A (F 10A/250V)
  • Conversion Rate: Approximately 3s/second
  • Display: 9999 counts LED display
  • Overload Display: 'OL' displayed
  • DC Voltage: 1V, 10V, 100V, 1000V
  • AC Voltage: 1V, 10V, 100V, 750V
  • DC Current: 1mA, 100mA, 1A, 10A
  • AC Current: 1mA, 100mA, 1A, 10A
  • LoZ: 750V (ACV), 1000V (DCV)
  • Frequency: 10Hz to 10MHz
  • Resistance: 1kΩ to 100MΩ
  • Capacitance: 1nF to 100μF
  • Inductance L (T58C only): 10mH to 100H
  • Temperature: -55℃~1000℃ / -67℉~1832℉
  • Diode Test: Yes
  • Buzzer: Yes
  • Transistor hFE (T58A only)

T58D Parameters:

  • 600V CAT III and 1000V CAT.II
  • Pollution Grade: 2
  • Operational Height: under 2000m
  • Working Temperature: 0-40℃ (<80%RH, not considered <10℃)
  • Storage Temperature: -10~60℃ (<80%RH, battery removed)
  • Calibration Ambient: 20℃±2℃
  • Max Voltage Between Measurement End and Ground: 1000V VDC or 750VAC
  • Fuse Protection: mA (F 600mA/250V), A (F 10A/250V)
  • Conversion Rate: Approximately 3s/second
  • Display: 60000 counts LED display
  • Overload Display: 'OL' displayed
  • DC Voltage: 100mV to 1000V
  • AC Voltage: 100mV to 750V
  • DC Current: 600μA to 10A
  • AC Current: 600μA to 10A
  • Frequency: 100Hz to 25MHz
  • Resistance: 600Ω to 60MΩ
  • Capacitance: 6nF to 60mF
  • Temperature: -50℃~1000℃ / -58℉~1832℉
  • Diode Test: Yes
  • Buzzer: Yes

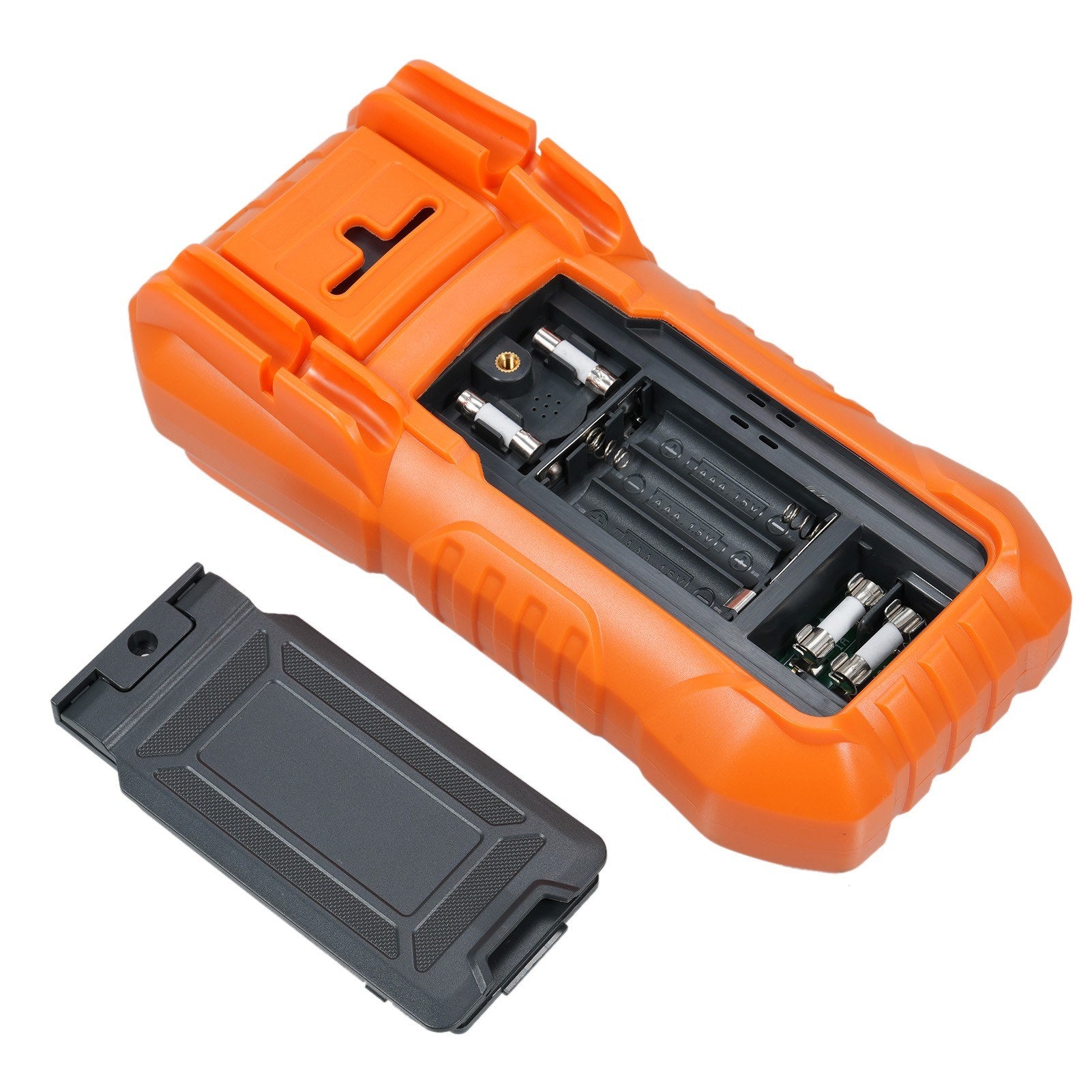

Power Supply: 3 * 1.5V AAA batteries (Not included)

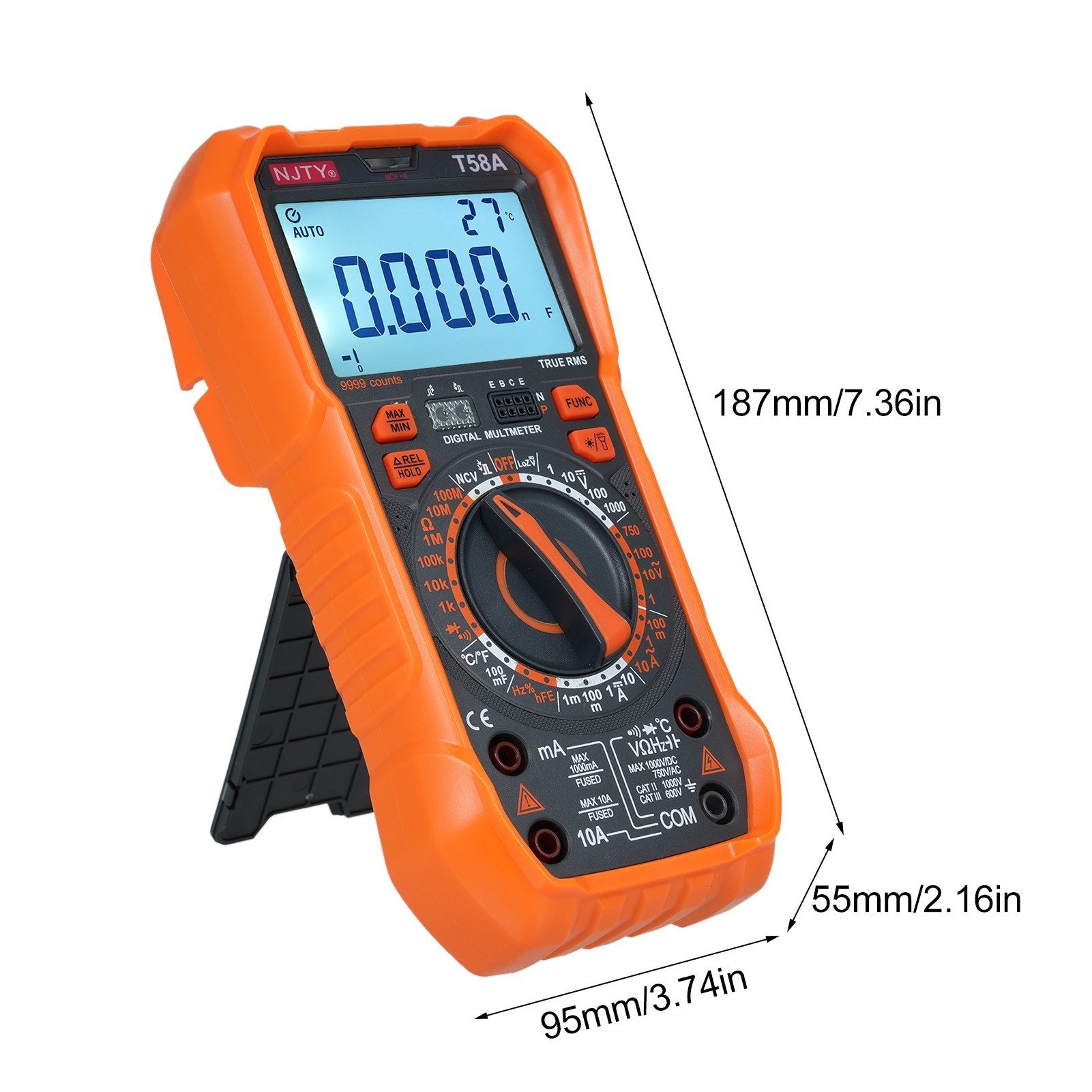

Dimensions: 187 * 95 * 55mm (7.36 * 3.74 * 2.16 inches)

Weight: Item: 331g (11.67oz), Package: 606g (21.37oz)

Package Size: 22.5 * 13.5 * 6.5cm (8.85 * 5.31 * 2.56 inches)

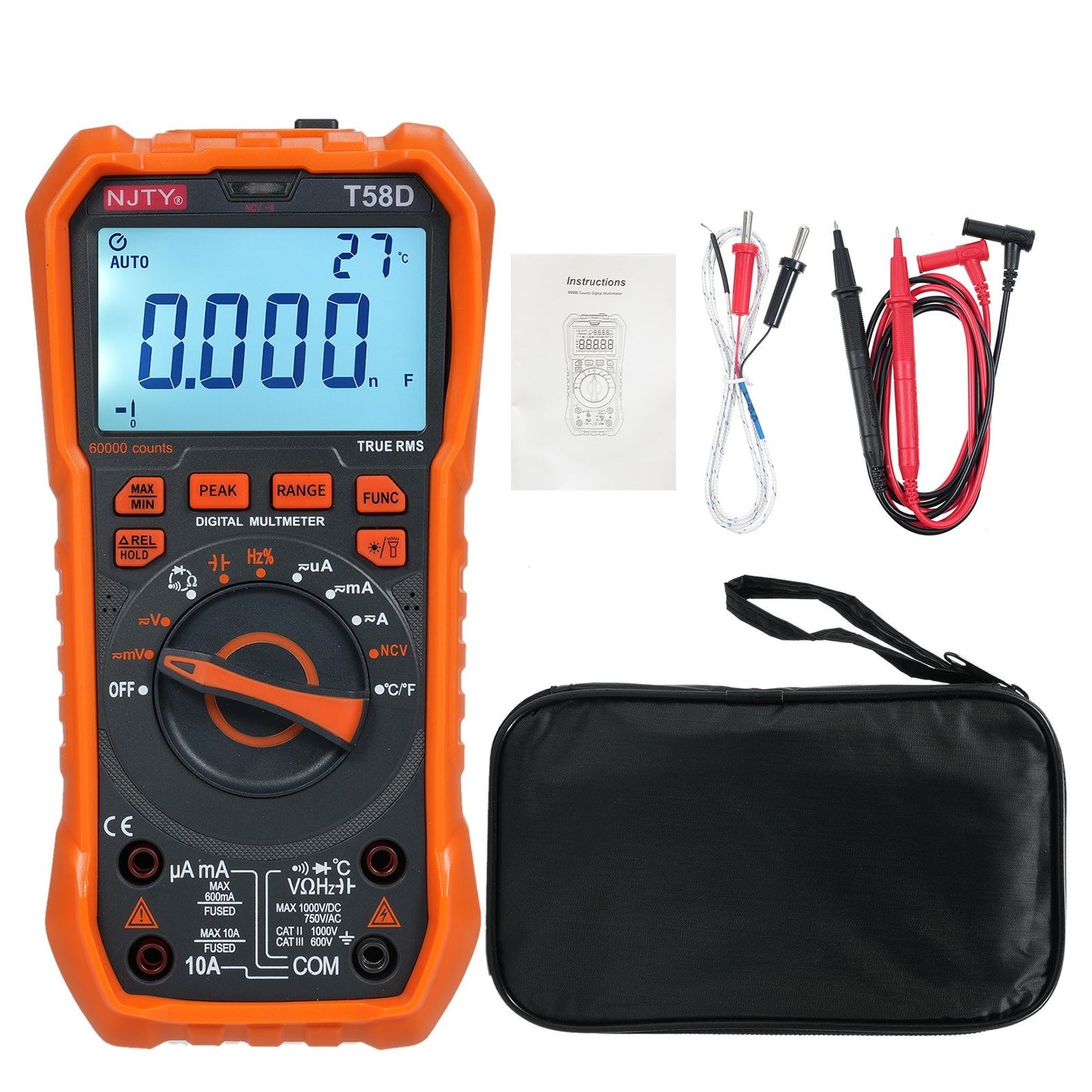

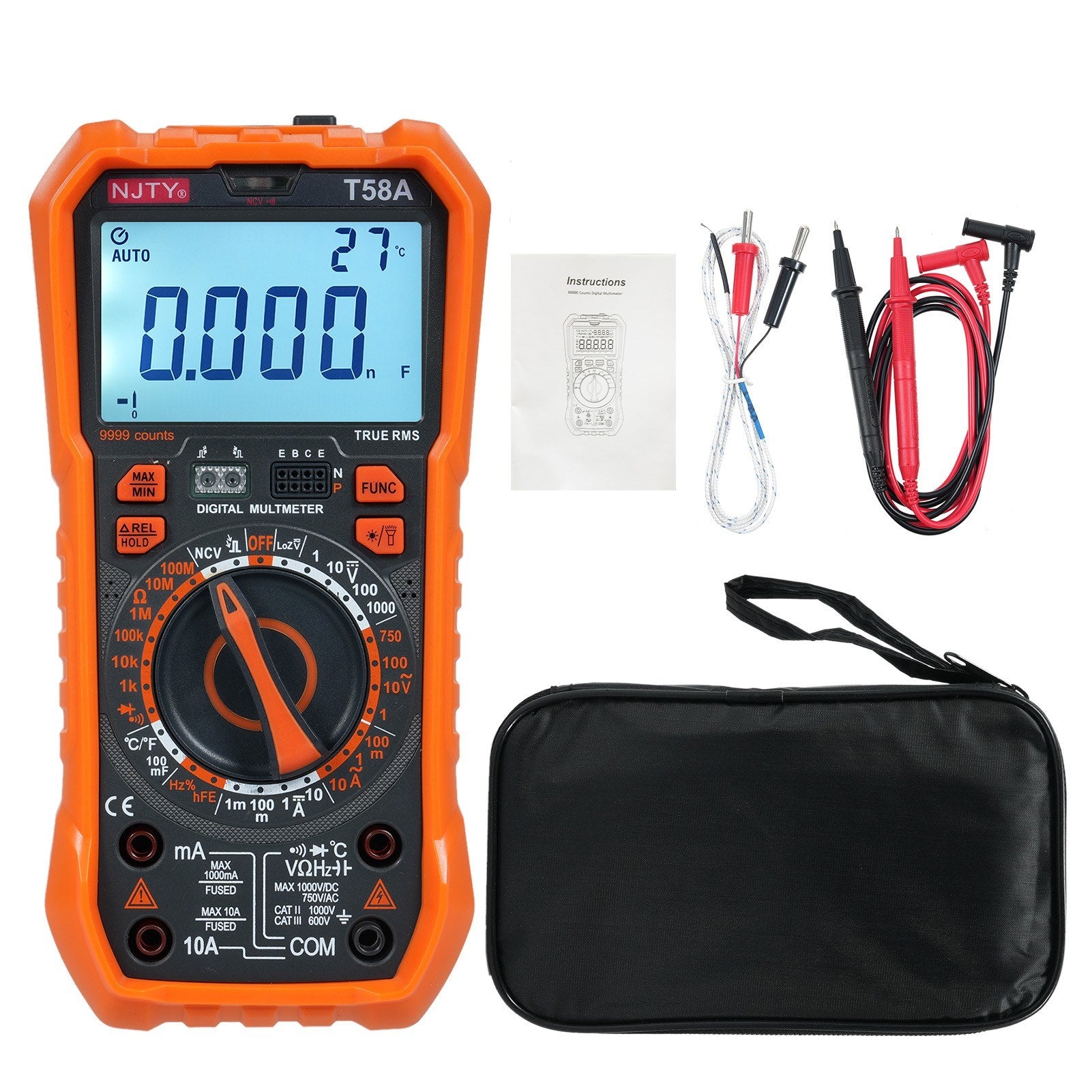

Package List:

  • 1 * Multimeter

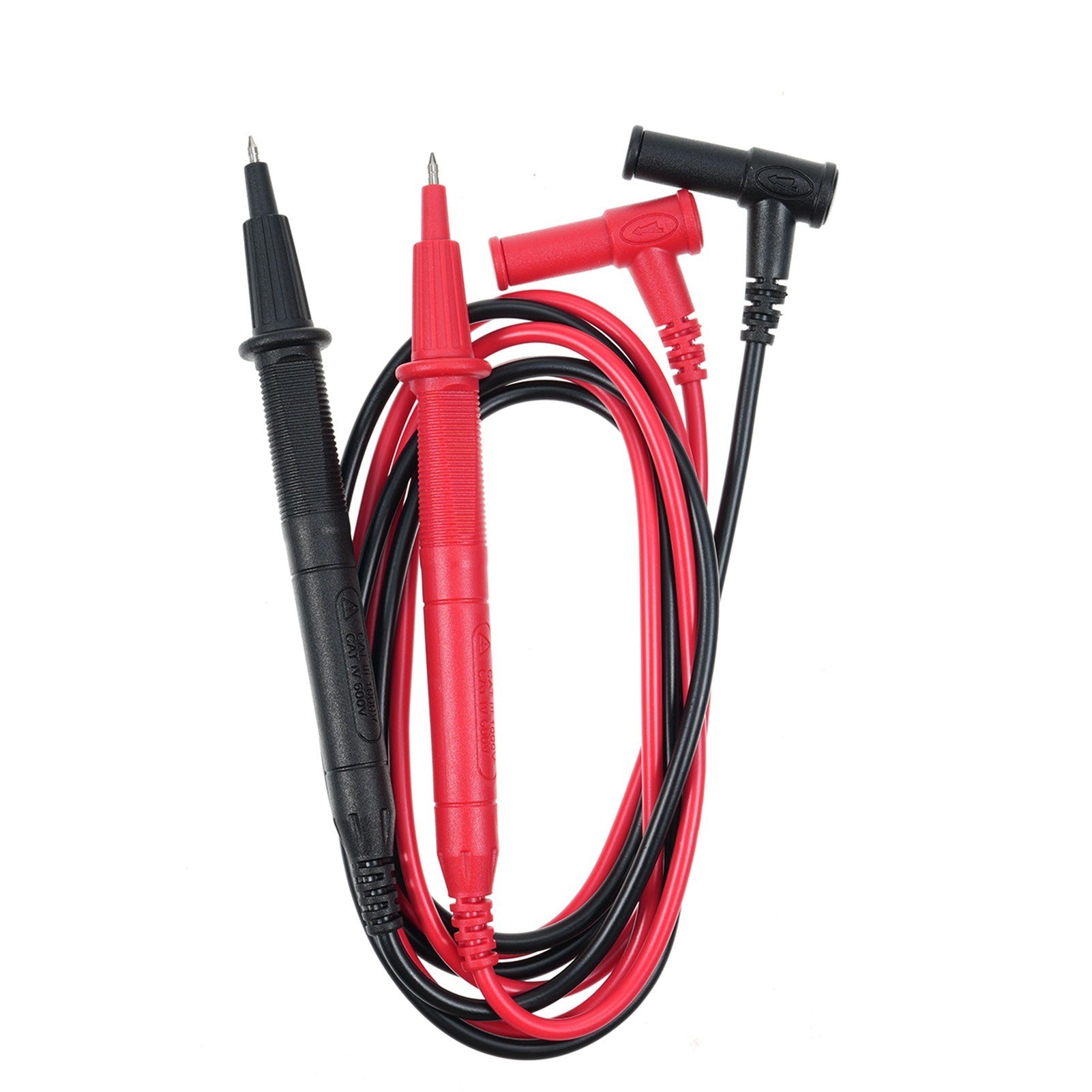

  • 1 * Pair of Test Pen

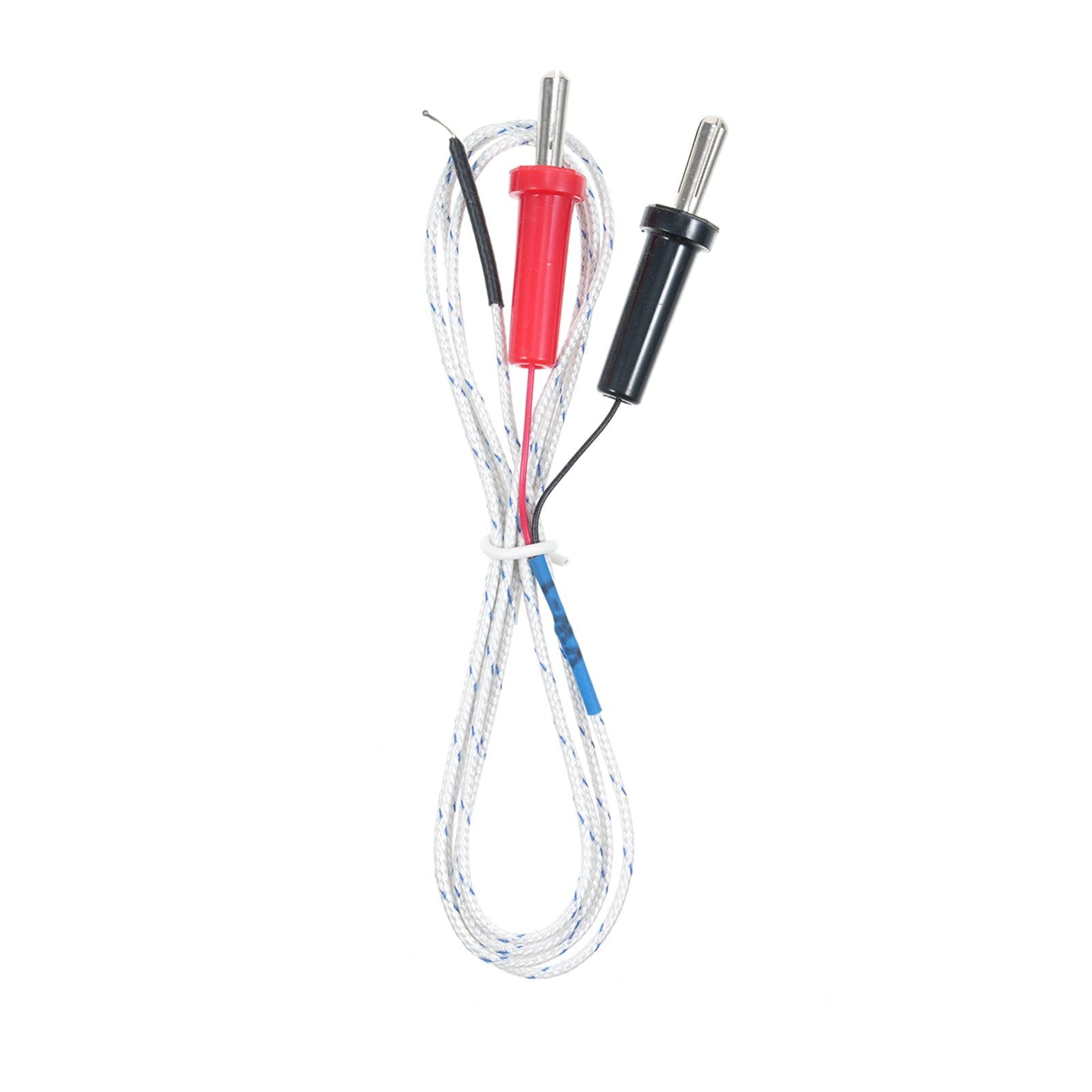

  • 1 * Thermocouple

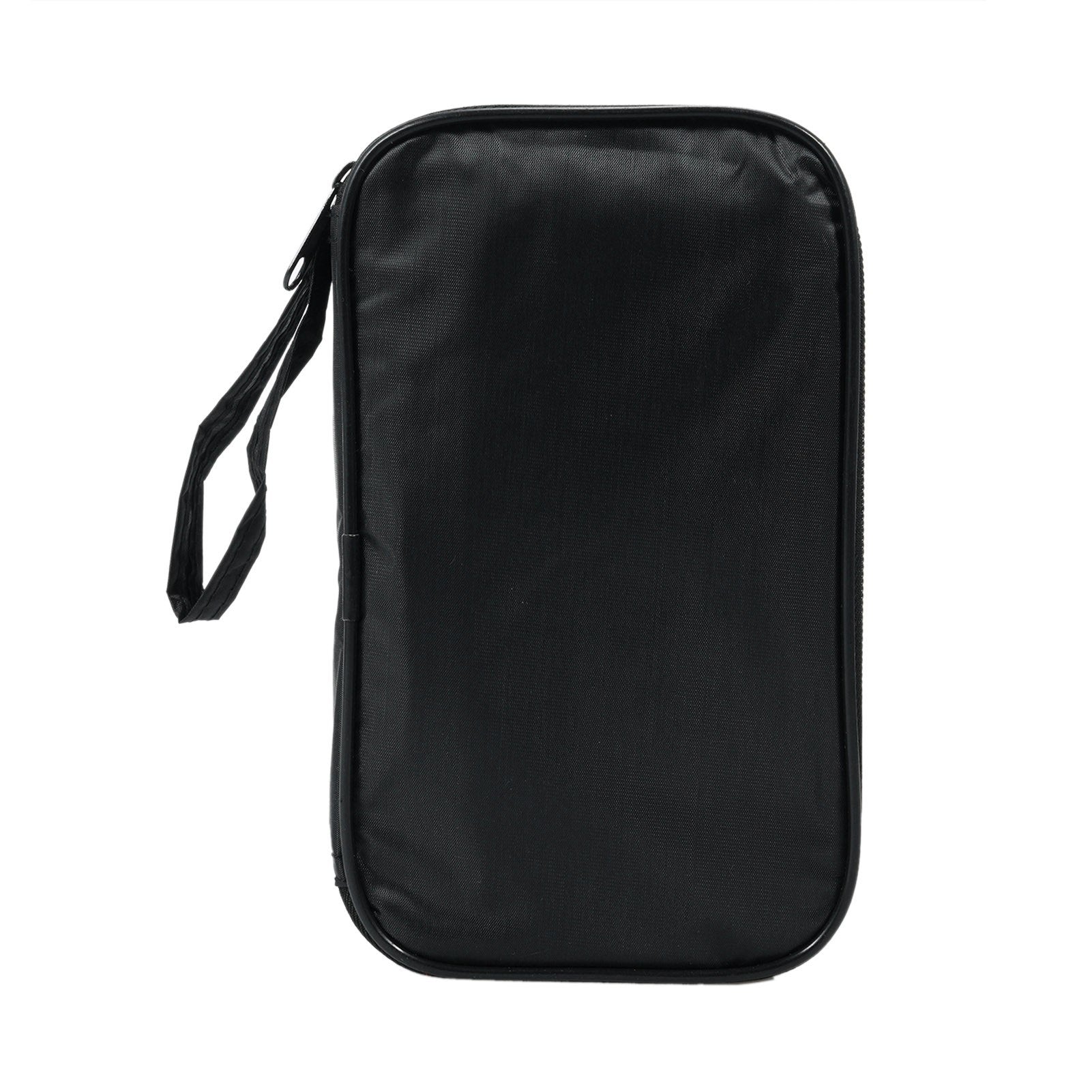

  • 1 * Canvas Bag
  • 1 * User Manual (English)
