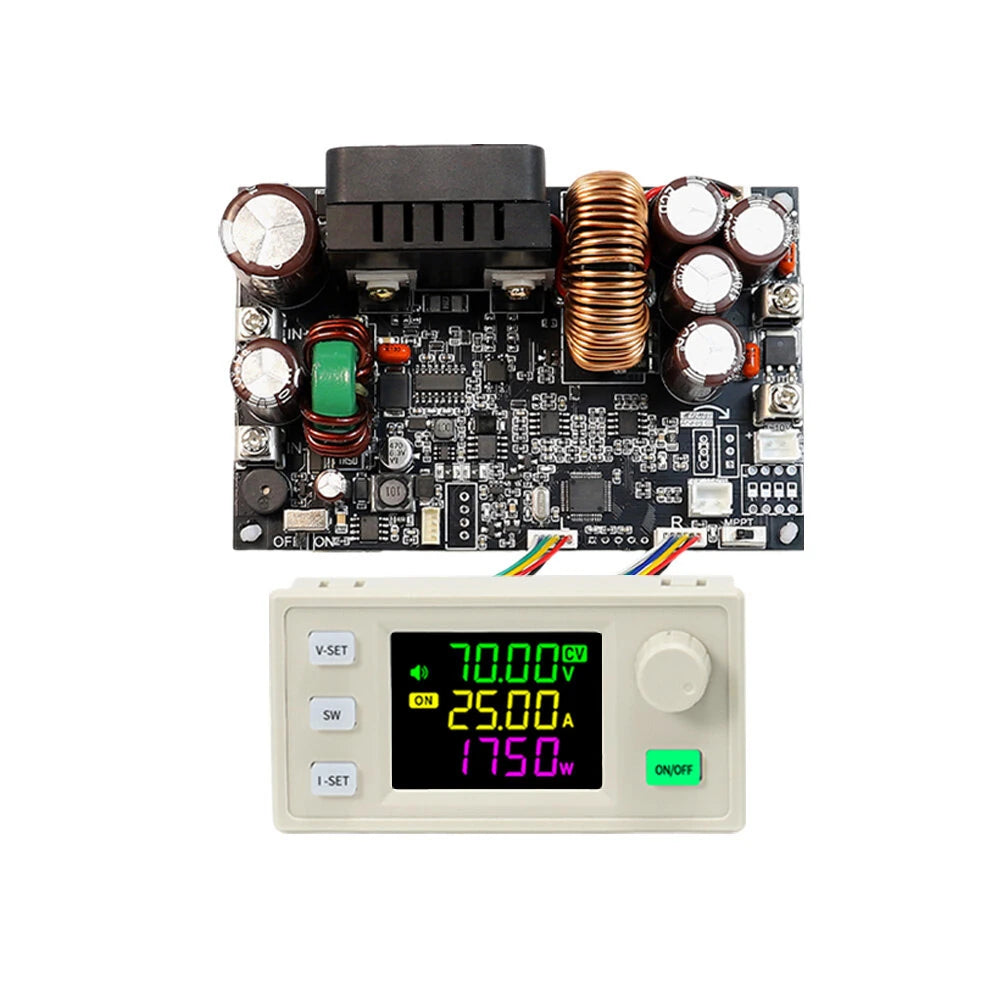

Sinilink XY7025 Adjustable DC Buck Power Supply Module 70V 25A 1750W with LCD Display for Solar Charging

Specifications

• Product Name: DC Buck Power Supply
• Model: XY7025
• Input Voltage: 12.00 - 85.00V
• Output Voltage: 0 - 70.00V
• Output Current: 0 - 25.00A
• Voltage Accuracy: ±0.5% + 1 word
• Power Output: 1750W
• Current Accuracy: ±0.5% + 3 words
• Voltage Resolution: 0.01V
• Current Resolution: 0.01A
• Storage Data Groups: 10 groups
• Soft Start: Yes
• Screen Size: 1.8-inch LCD (38 x 29 mm viewable area)
• Output Ripple (Typical): Vpp-150 mv
• MPPT Function: Supports MPPT solar charging
• Buzzer: Yes
• Conversion Efficiency: About 95%
• Number of Buttons: 5
• Bare Board Size: Screen instrument 111 x 72 x 45 mm, bare board 86 x 45 x 50 mm
• Bare Board Weight: 203g
• Bare Board Package: Product package 142 x 107 x 46 mm, 172 x 95 x 60 mm with packaging
• Product Weight: 250g, 310g with packaging
• Protection Mechanisms:
  • Under-voltage (LVP): Adjustable 10-95V, default 10V
  • Over-voltage (OVP): Adjustable 0-72V, default 72V
  • Over-current (OCP): Adjustable 0-27A, default 27A
  • Over-power (OPP): Adjustable 0-2000W, default 1800W
  • Over-temperature (OTP): Adjustable 0-110°C, default 95°C
  • Over-time (OHP): 1 minute - 99 hours 59 minutes, off by default
  • Over-capacity (OAH): Adjustable 0-9999Ah, disabled by default
  • Over-energy (OPH): Adjustable 0-4200KWh, off by default

Precautions

1. The input cannot be connected to AC power or 220V mains power.
2. The maximum input voltage must not exceed 90V. It's recommended to use within 85V, with correct polarity.
3. The output has no reverse current protection. Ensure the output voltage is higher than the battery voltage when connecting a battery, or use a series diode.
4. Avoid reversing polarity when connecting batteries to the output.
5. This product is a DC buck power supply. The maximum output voltage is input voltage multiplied by 0.945.

Features

• Advanced Voltage and Current Control: Offers precise control with high accuracy, making it ideal for applications needing precise specifications.
• Highly Efficient Power Conversion: With an efficiency of about 95%, it minimizes energy loss and is suitable for long-term use.
• Comprehensive Protection Mechanisms: Features adjustable protections against various electrical issues, securing your devices.
• Versatile Input and Output Range: Supports a broad range of voltage and current, suitable for diverse applications.
• User-Friendly Interface: Includes an intuitive LCD screen for monitoring and adjusting settings easily.

Package Included

Choose from two package options:

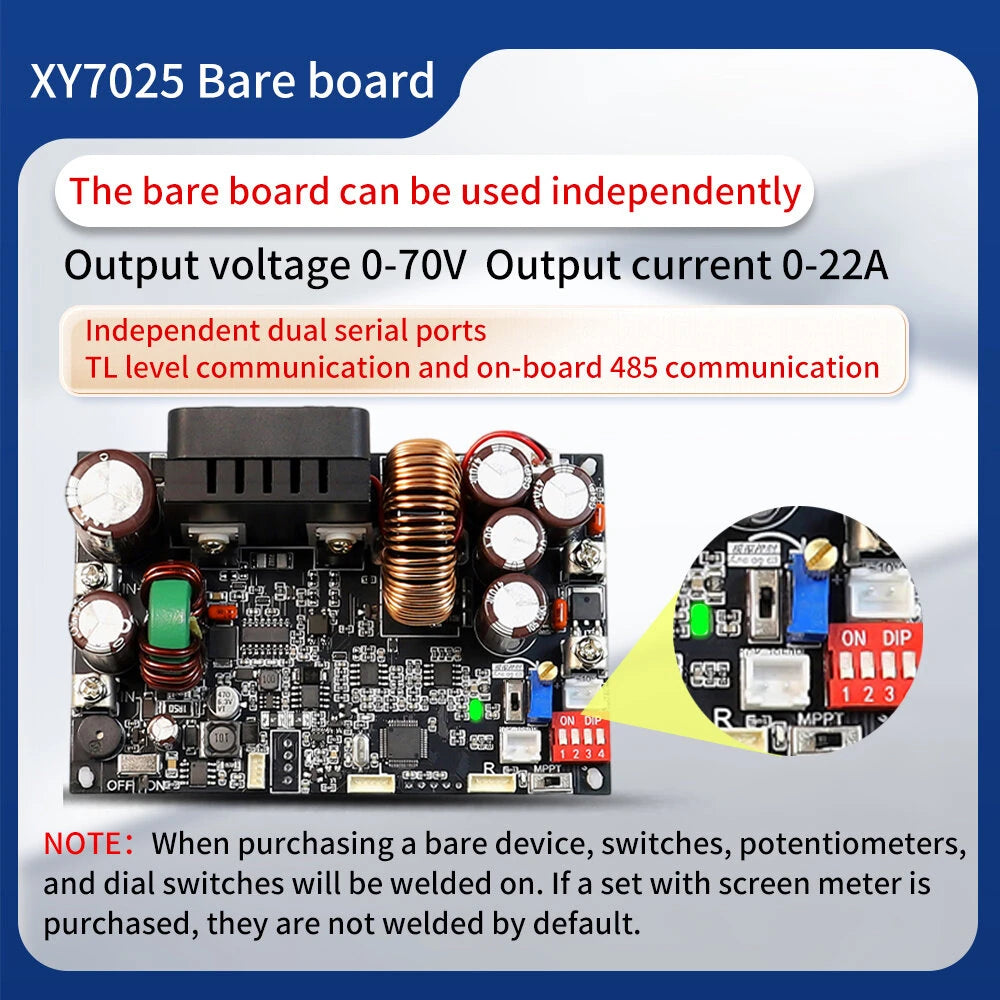

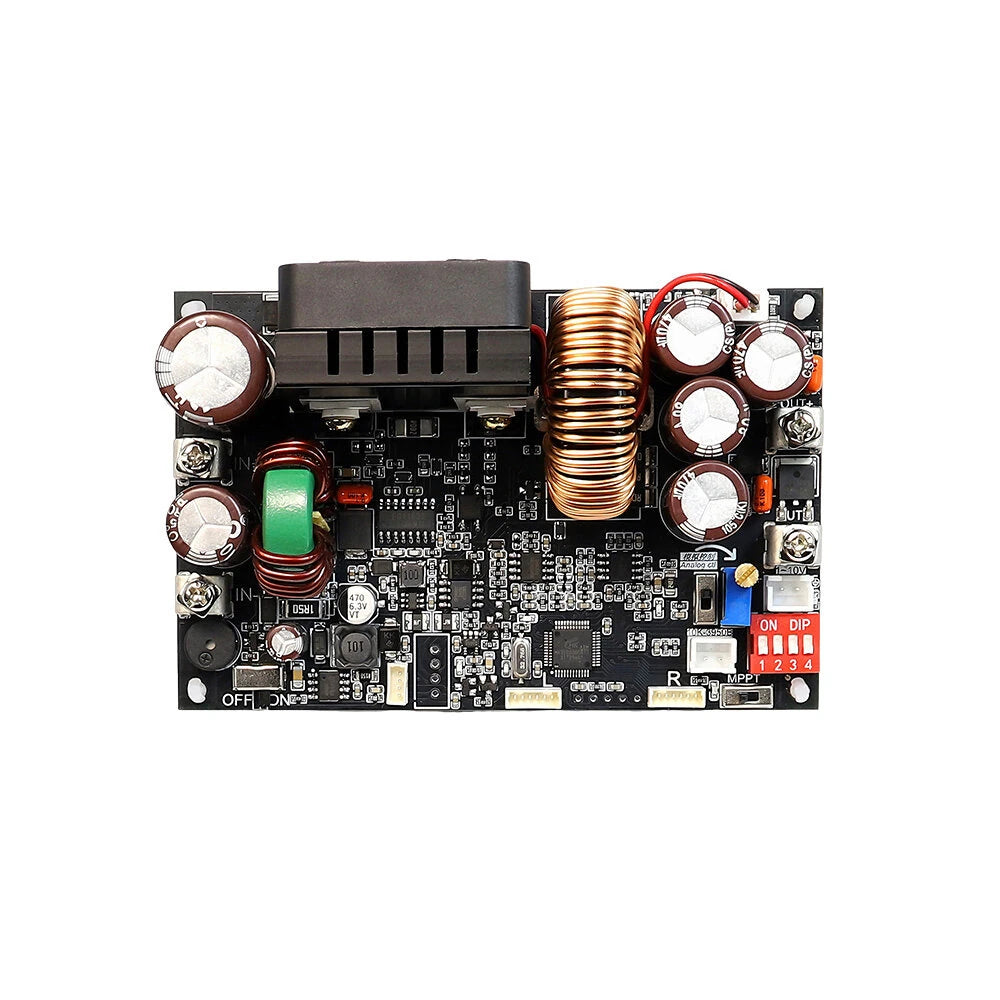

• Package #1: 1 x Sinilink XY7025 DC Buck Power Supply Module (Only Board)
• Package #2: 1 x Sinilink XY7025 DC Buck Power Supply with LCD Module (Full Kit)
