Product Overview

Experience unparalleled performance with our durable and versatile display. Designed for both developers and multimedia enthusiasts, this product offers exceptional features in a robust package.

Specifications

• Enclosure: Durable iron casing

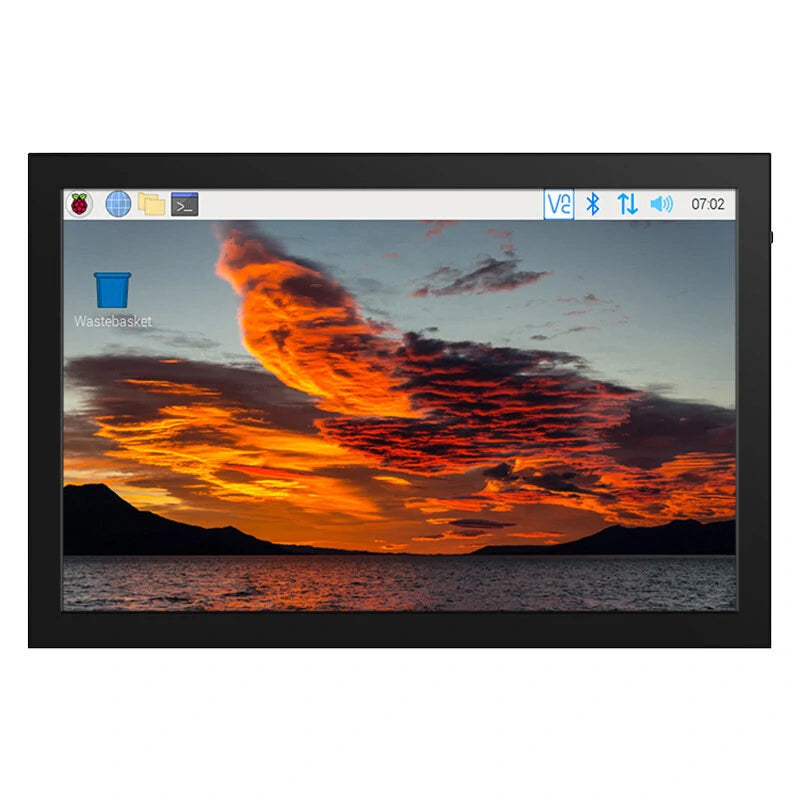

• Display: 10.1-inch IPS full-view angle screen
• Resolution: 1280x800 (upgradable to 1920x1080 through software settings)
• Touch Panel: Tempered glass cover with 6H hardness
• Touch Sensitivity: High sensitivity capacitive touch screen
• Video Input Interfaces: HDMI and VGA
• Audio Output: Stereo dual speakers with a 3.5mm audio output interface
• Multi-function Wheel Switch: Supports brightness and volume adjustment, menu settings, HDMI/VGA video signal switching

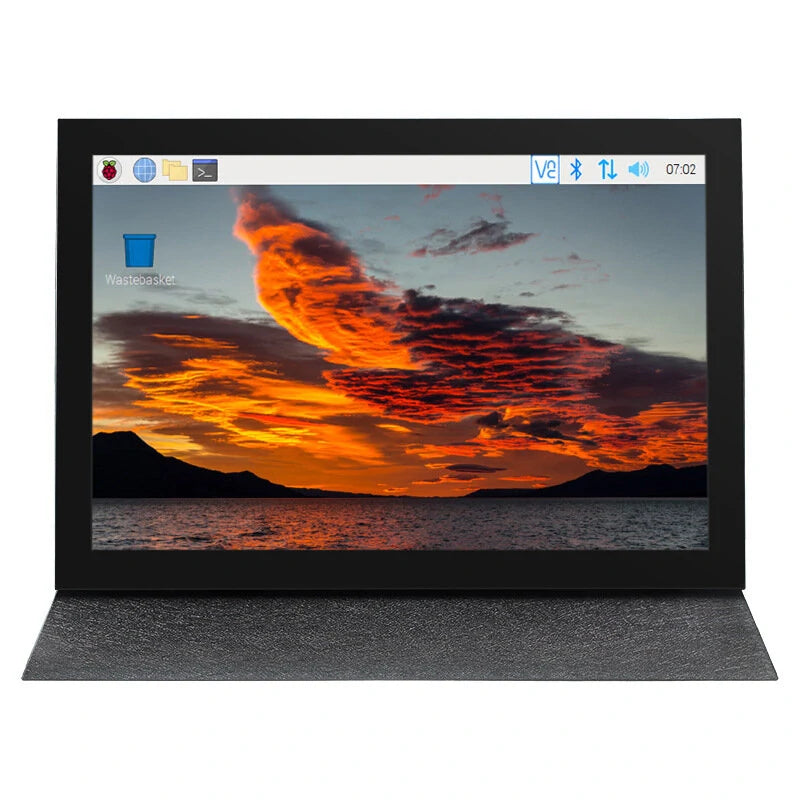

• Device Compatibility: Compatible with development boards like Raspberry Pi, Banana Pi, BB Black, gaming consoles like PS4, Xbox360, Switch, TV boxes, and digital cameras (display only)

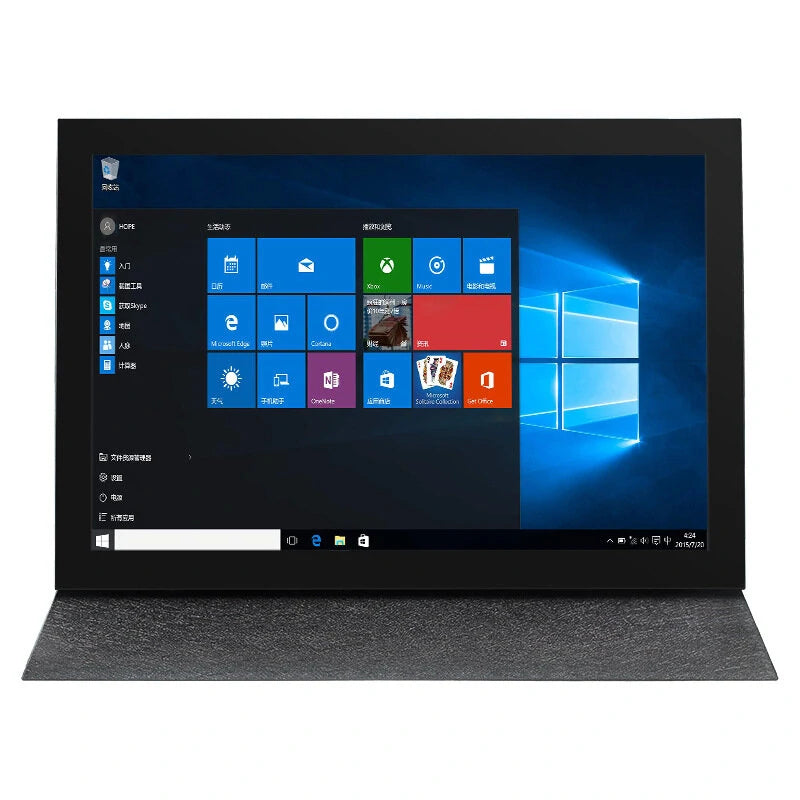

• System Compatibility: Supports Raspbian, Kali Linux, Ubuntu, Kodi, Win10 IoT (plug and play touch support), Windows 7/8/10/11 (plug and play touch support)

Features

1. Sturdy Construction: Robust iron enclosure for durability and component protection.
2. Immersive Display: Wide-angle viewing, true-to-life colors, and high-definition picture quality with resolution enhancement up to 1920x1080 via software.
3. Responsive Touch Panel: Scratch-resistant, tempered glass cover with a 6H hardness rating, supports accurate 5-point touch.
4. Versatile Connectivity: HDMI and VGA inputs for high-def video, stereo sound with dual speakers, and 3.5mm audio output.
5. Convenient Controls and Compatibility: Multifunction wheel for adjusting brightness, volume, and menu settings, and compatibility with a wide range of devices and operating systems.

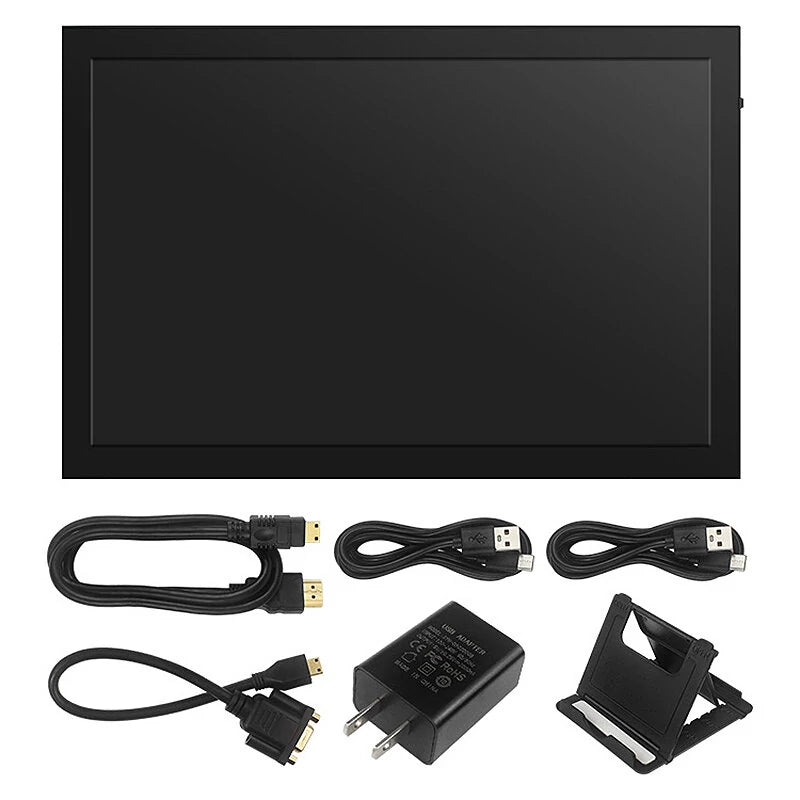

Package Includes

• 1 × Touch Screen
• 4 × Cables
• 1 × Adapter

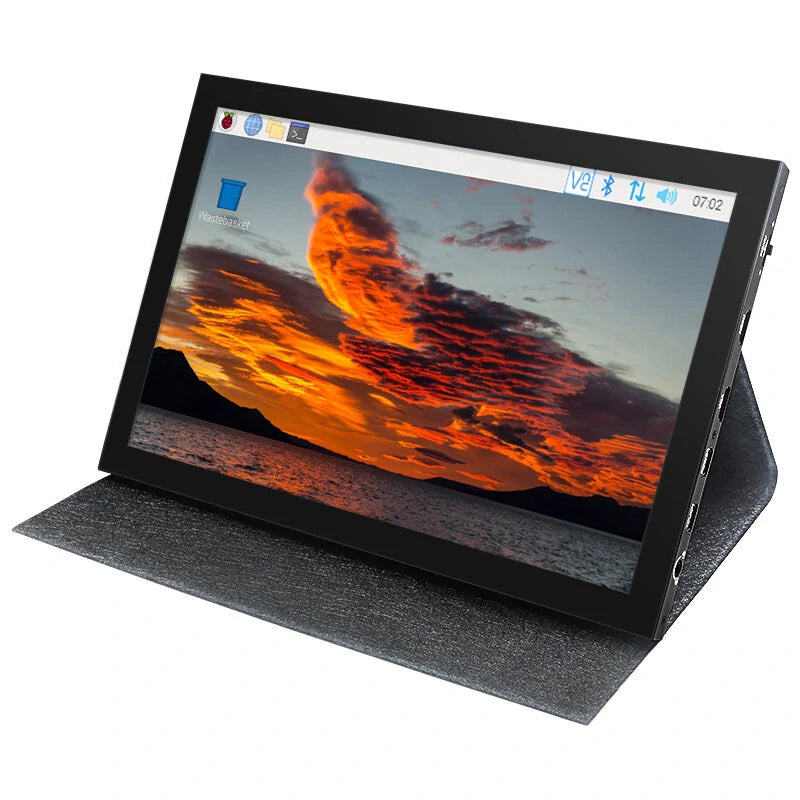

• 1 × Bracket
• (Raspberry Pi not included)

Buttons and Interfaces

HDMI Port

Connects via Mini HDMI cable, supporting resolutions up to 1920x1080.

VGA Port

Connects via Mini HDMI male to VGA female adapter.

Power Supply

Connects using Type-C cable for power supply only.

Touch Output

Connects with Type-C cable for both power and touch functionality.

Headphone Jack

3.5mm audio output for headphones or speakers.

Menu and Control Functions:

Brightness: Adjust using the rotary switch upwards. Exit by pressing the switch or waiting 10 seconds.

Volume: Adjust using the rotary switch downwards. Exit by pressing the switch or waiting 10 seconds.

Menu Settings: Press the rotary switch to enter and navigate the menu. Confirm using a short press, return with a long press.

Signal Switching: Hold the rotary switch to toggle between HDMI and VGA inputs.
