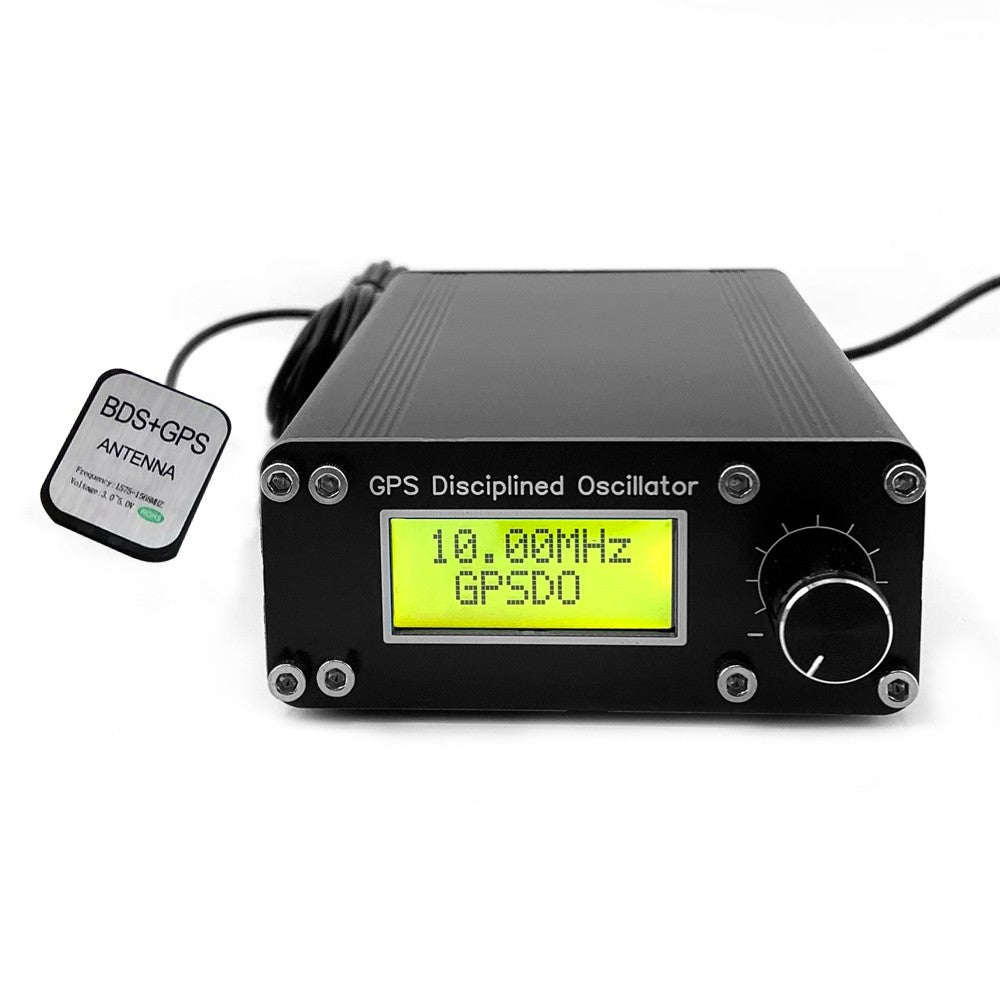

Multifunctional GPSDO 10MHz Thermostatic Crystal Oscillator with GPS Disciplined Clock

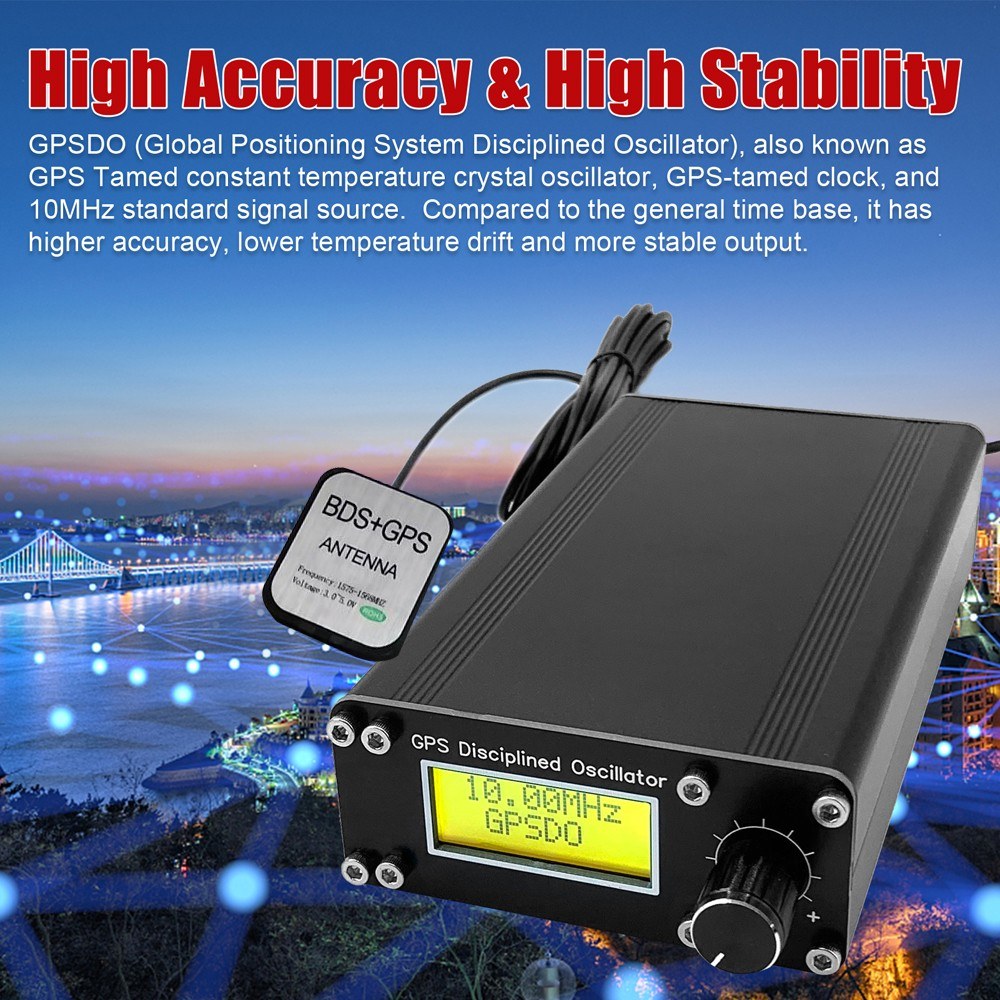

GPSDO (Global Positioning System Disciplined Oscillator)

Also known as the GPS Tamed constant temperature crystal oscillator, GPS-tamed clock, and 10MHz standard signal source. A step above the general time base, this device offers higher accuracy, reduced temperature drift, and a stable output. Ideal for high-end audio decoders, instruments, meters, frequency meters, signal sources, and any device that requires an external 10MHz reference source input.

Features

• Strong Durability: Crafted with precision, featuring a premium housing and top-quality electronic components. Ensures extended durability and long service life.
• High Accuracy & High Stability: Delivers superior accuracy over general time bases, with minimal temperature drift and consistent output.
• Voltage Adjustment: Utilizes a GPS 1PPS signal combined with microcontroller comparison for precision output control. The isothermal crystal frequency fine-tuning voltage ranges from 0 to 5V, with 1bit PWM controlling an output voltage of 0.000076V.

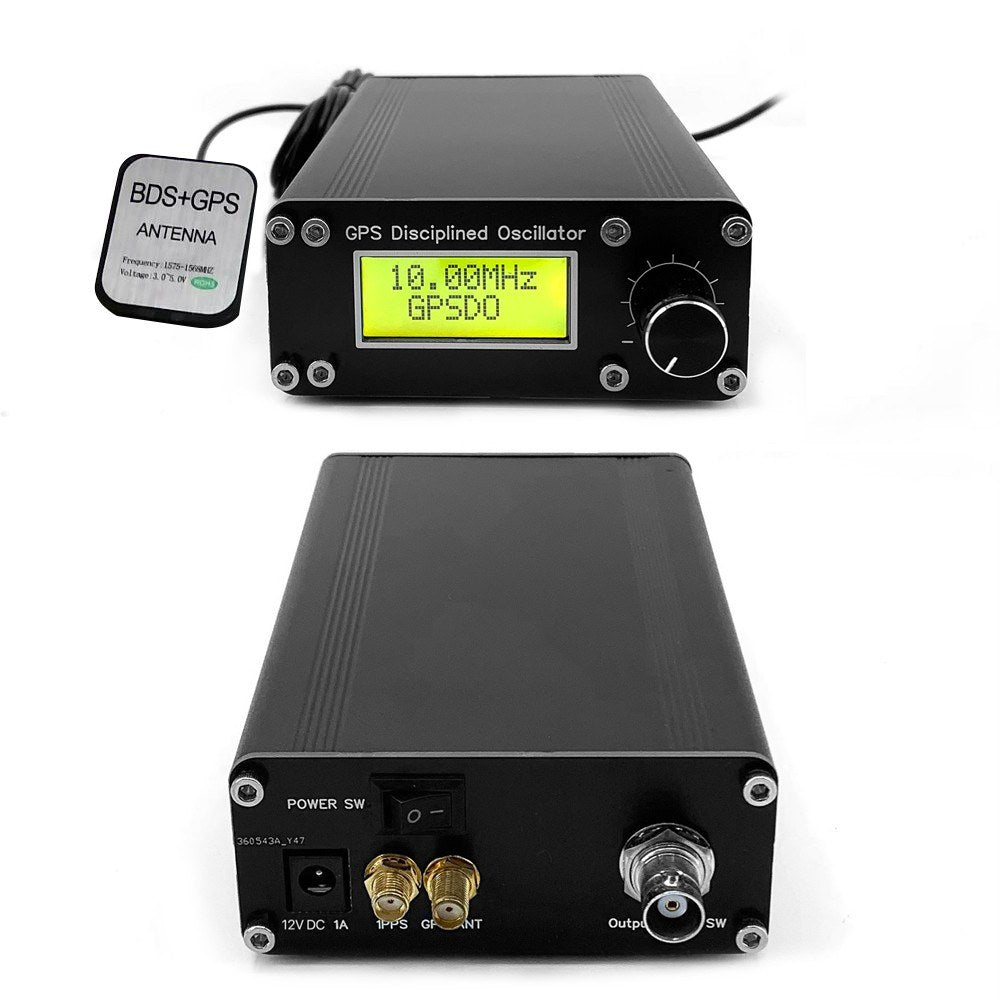

• Easy to Use & Multifunctional Interfaces: The front panel includes a display screen and encoder, while the back panel is equipped with a 10MHz output interface, 1PPS output interface, GPS antenna interface, power switch, and 12VDC power interface.
• Wide Applications: Perfect for a range of scenarios, including high-end audio decoders and a variety of scientific instruments and devices needing a 10MHz reference input.

Specifications

• Name: GPS Tamed Clock
• Supplying Voltage: 12VDC ±2V
• Working Current: 650mA during preheating, 350mA when stabilizing
• Output Frequency: 10.000000.000MHz ±0.001Hz
• Output Waveform: Squarewave
• Output Amplitude: -45dBm
• Constant Temperature Crystal: ISOTEMP OCXO 143-141
• Package Size: 200 * 180 * 50mm (7.87 * 7.09 * 1.97in)
• Package Weight: 320g (11.29 ounces)

Packing List

• 1 x GPS Tamed Clock (Power adapter not included)
• 1 x GPS Antenna
