RIGOL DS1054Z 4-Channel 50MHz Oscilloscope, 1GS/s, 7 WVGA, 12Mpts Memory, 30,000wfm/s
RIGOL DS1054Z 4-Channel 50MHz Oscilloscope, 1GS/s, 7 WVGA, 12Mpts Memory, 30,000wfm/s
Regular price
$638.99 USD
Regular price
$0.00 USD
Sale price
$638.99 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Guaranteed secure & safe checkout.
Description
The DS1000Z Plus Series represents the new standard in digital oscilloscopes, designed to meet diverse applications through its innovative technology. The MSO1000Z Series, equipped with 16 channels, is specifically tailored for the embedded design and test market. It offers industry-leading specifications, robust trigger functions, and comprehensive analysis capabilities.
Features
- 50 MHz Bandwidth with 4 channels
- 1G Sa/s Real-time Sample Rate
- Memory Depth: 12Mpts (standard) and 24Mpts (optional)
- Features innovative "UltraVision" technology
- Waveform Capture Rate of up to 30,000 wfms/s
- 7 Inch WVGA (800x480) display with multiple intensity levels
Model Specifications
| Model | DS1054Z |
|---|---|
| Bandwidth | 50 MHz |
| Analog Channels | 4 |
| Sample Rate | 1GSa/s (Single-channel), 500MSa/s (Dual-channel), 250MSa/s (Full-channel) |
| Max Memory Depth | 12Mpts (standard) |
| Max. Waveform Capture Rate | Up to 30,000 wfms/s |
| Real-Time Waveform Record and Replay | Up to 60,000 Frames (optional) |
| Standard Probes | RP2200 150MHz BW Passive Probe: 4 sets |
| Built-in 2 Ch Source | No |

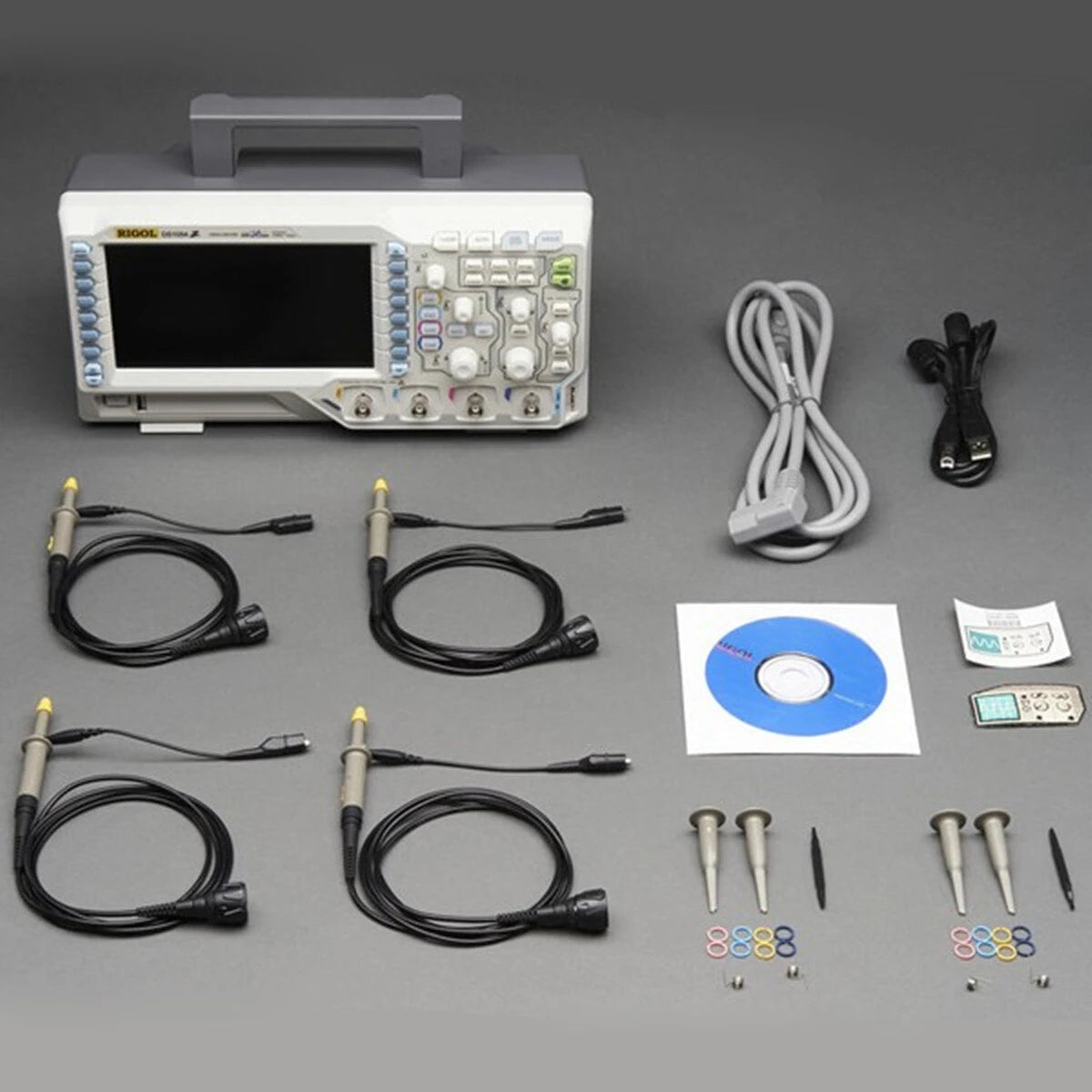

What's Included
- 1 x RIGOL DS1054Z Digital Oscilloscope
- 4 x Probes
- 1 x USB Cable
- 1 x Power Cord
- 1 x User's Manual
- 1 x CD
