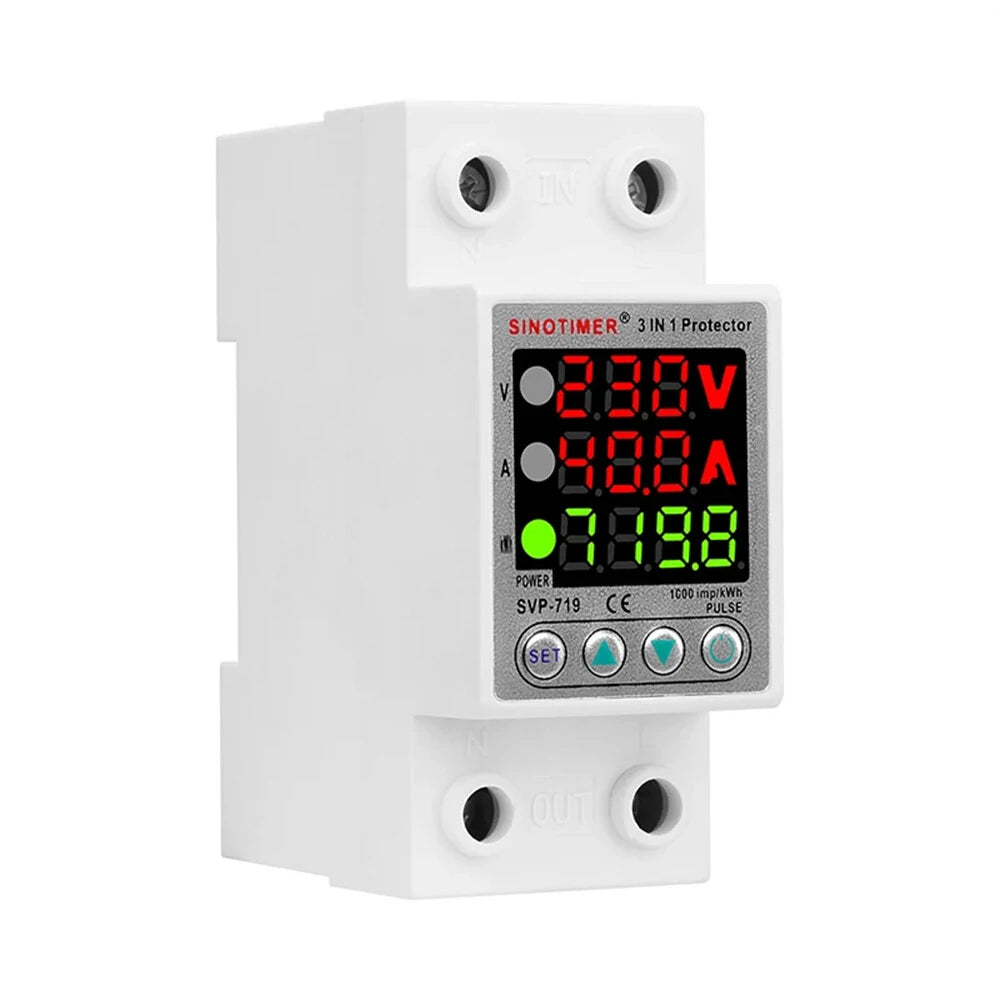

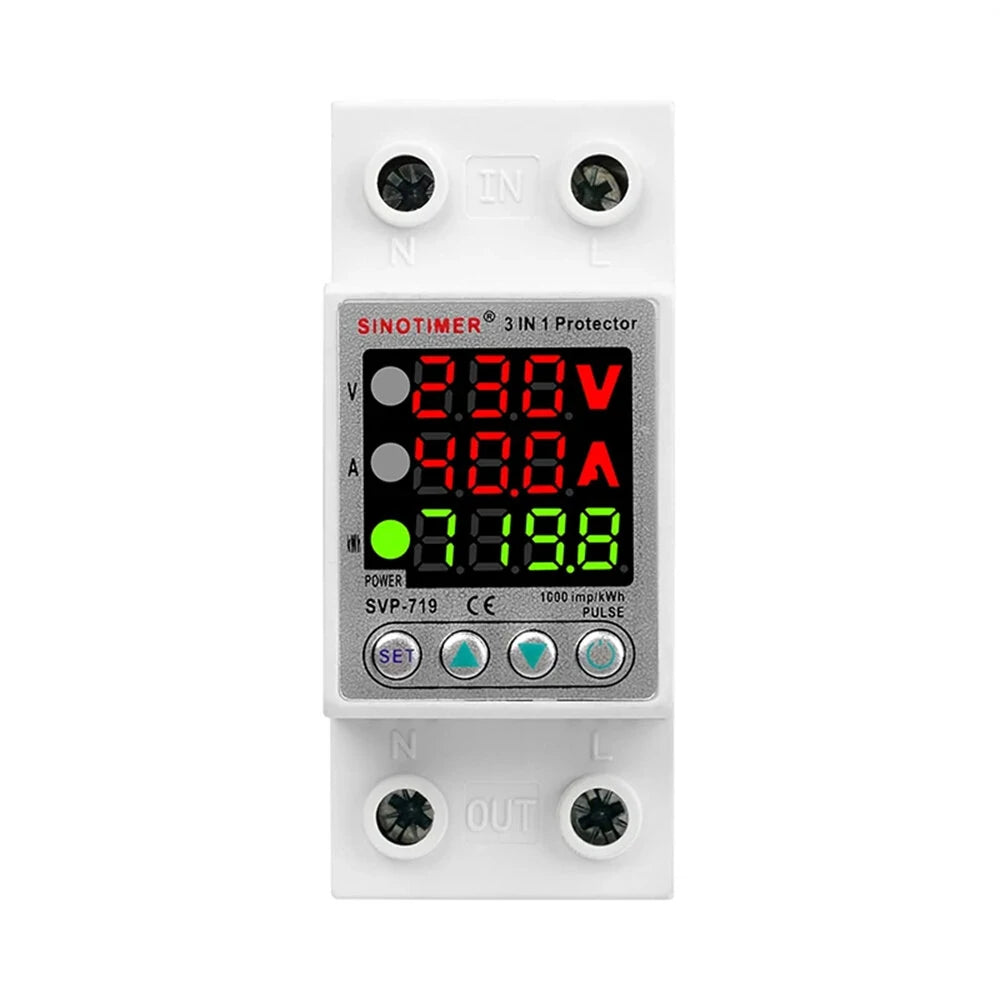

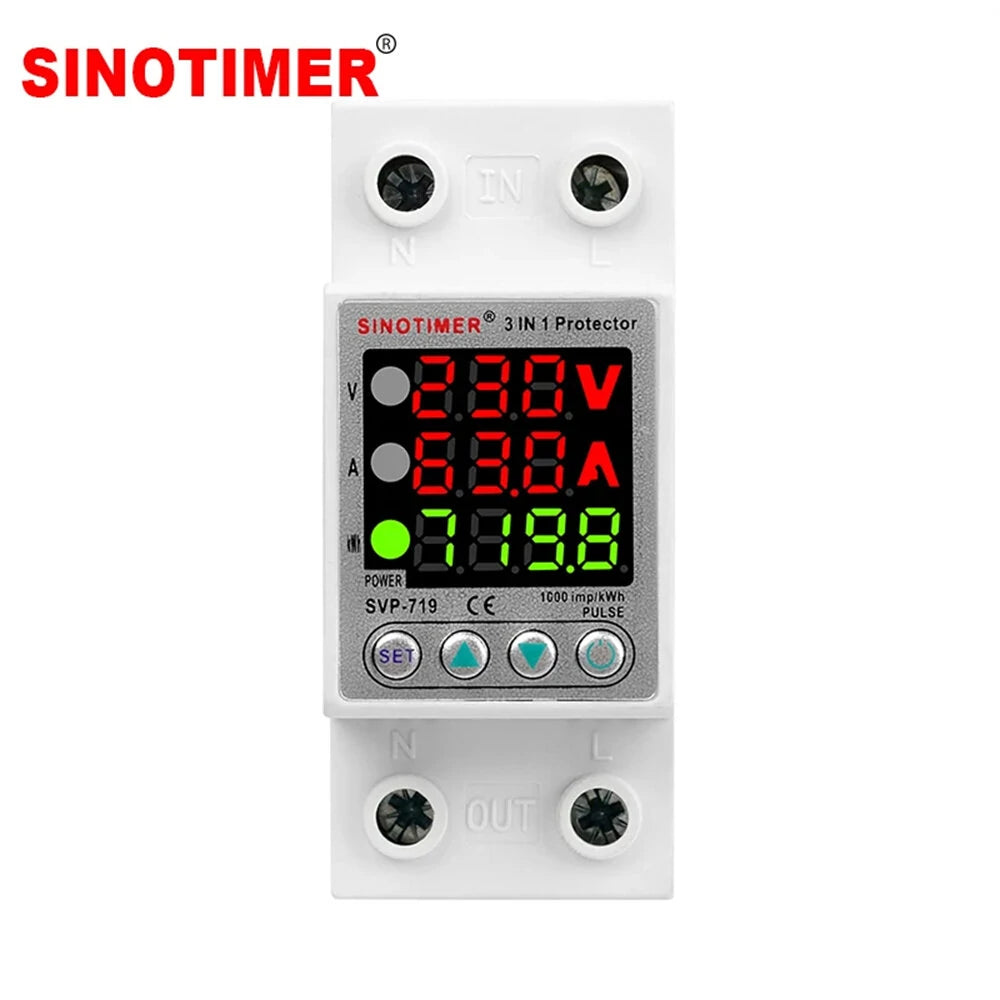

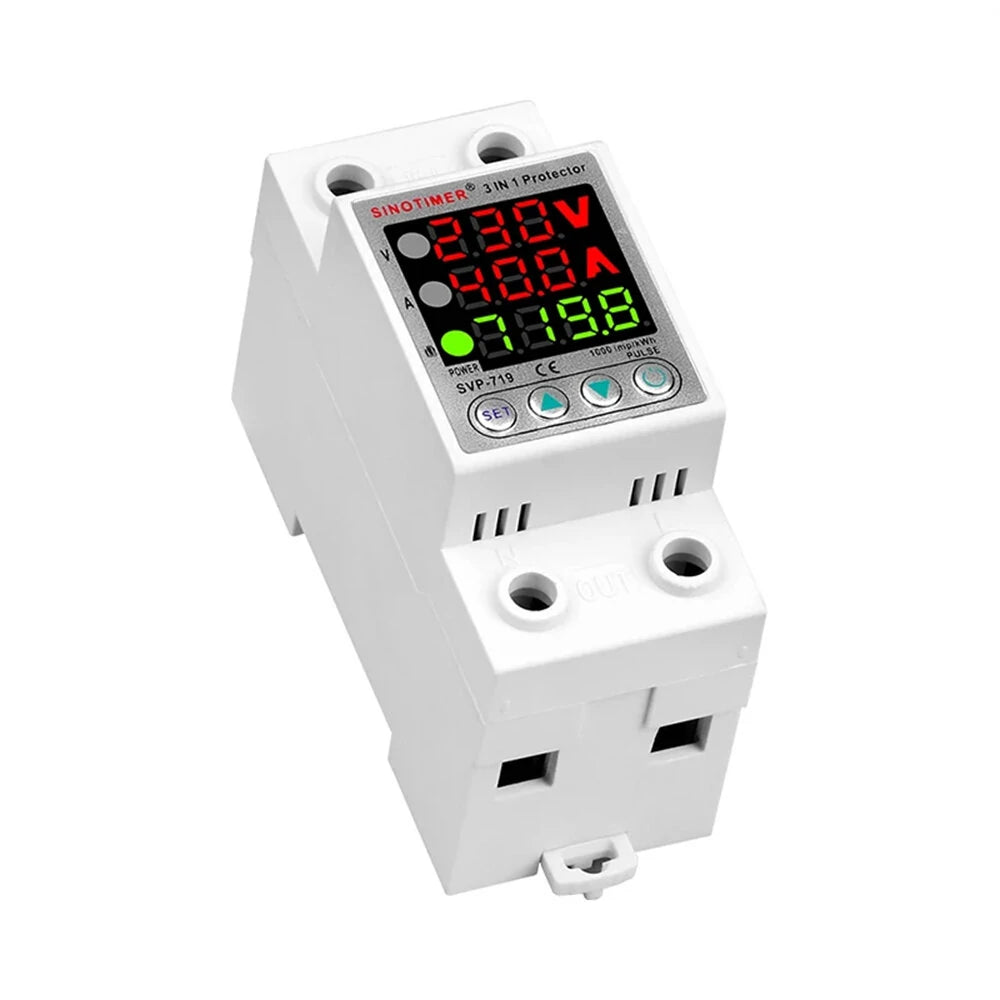

Adjustable Voltage Relay 220V 40A/63A with Over/Under Voltage & Over Current Protection, Precision Wattmeter, Energy Meter, Auto Recovery for Power Monitoring

Product Features

• Overvoltage Protection: Safeguard your electronics against power spikes for enhanced safety and longevity.
• Undervoltage Protection: Prevent potential damage to your equipment during power sags with our reliable undervoltage feature.
• Overcurrent Protection: The wattmeter includes protection against high currents, preventing potential damage.
• Automatic Recovery: The device effortlessly restores normal operation after a temporary fault, eliminating the need for manual intervention.
• High Precision Measurement: Accurately displays voltage, current, and power consumption for your reassurance and clarity.

Specifications

• Rated Supply Voltage: AC 220V
• Operating Voltage: AC 80-400V (single phase)
• Rated Frequency: 50/60Hz
• Current Setting Range: 1-40/63A OFF
• Overvoltage Setting Range: 230-300V/OFF
• Undervoltage Protection: Active under specified conditions
• Kilowatt-hour Protection Value: 1-9999/OFF
• Optional Rated Current: 40/63A
• Output Contact: 1NO
• Operating Temperature: -50℃ to 55℃
• Humidity: ≤50% at 40℃ (non-condensing)
• Storage Temperature: -30℃ to 70℃

Package Included

• 1 x Adjust Voltage Relay (current setting as per your choice)
