USDX SDR 8-Band HF All Mode QRP Ham Radio Transceiver with ATU-100 Tuner & Dual OLED Display

Description:

Discover the ultimate convenience with our highly integrated USDX and ATU product. Its user-friendly and innovative design is sure to captivate and bring ease to enthusiasts. Download the product manual here.

About USDX

Overview:

USDX is a compact shortwave QRP SSB/CW transceiver optimized from Guido PE1NNZ's open-source uSDX/QCX-SSB project. It features a 1602 LCD screen and is ultra-portable, making it effortless to carry.

For advanced users, explore the open-source details and join engaging discussions in our forum.

Features:

• Covers 8 bands: 80m, 60m, 40m, 30m, 20m, 17m, 15m, and 10m.
• Emission efficiency: More than 85% for lower bands and over 70% for 10m.
• Connects to PC for digital modes like FT8, JS8, and FT4, with CW automatic decoding.
• Delivers 3-5W power across bands with upgradable PA module support.
• High-precision TCXO with exceptional frequency accuracy and stability.
• Separate core, RF PA, and ATU boards to prevent signal interference.

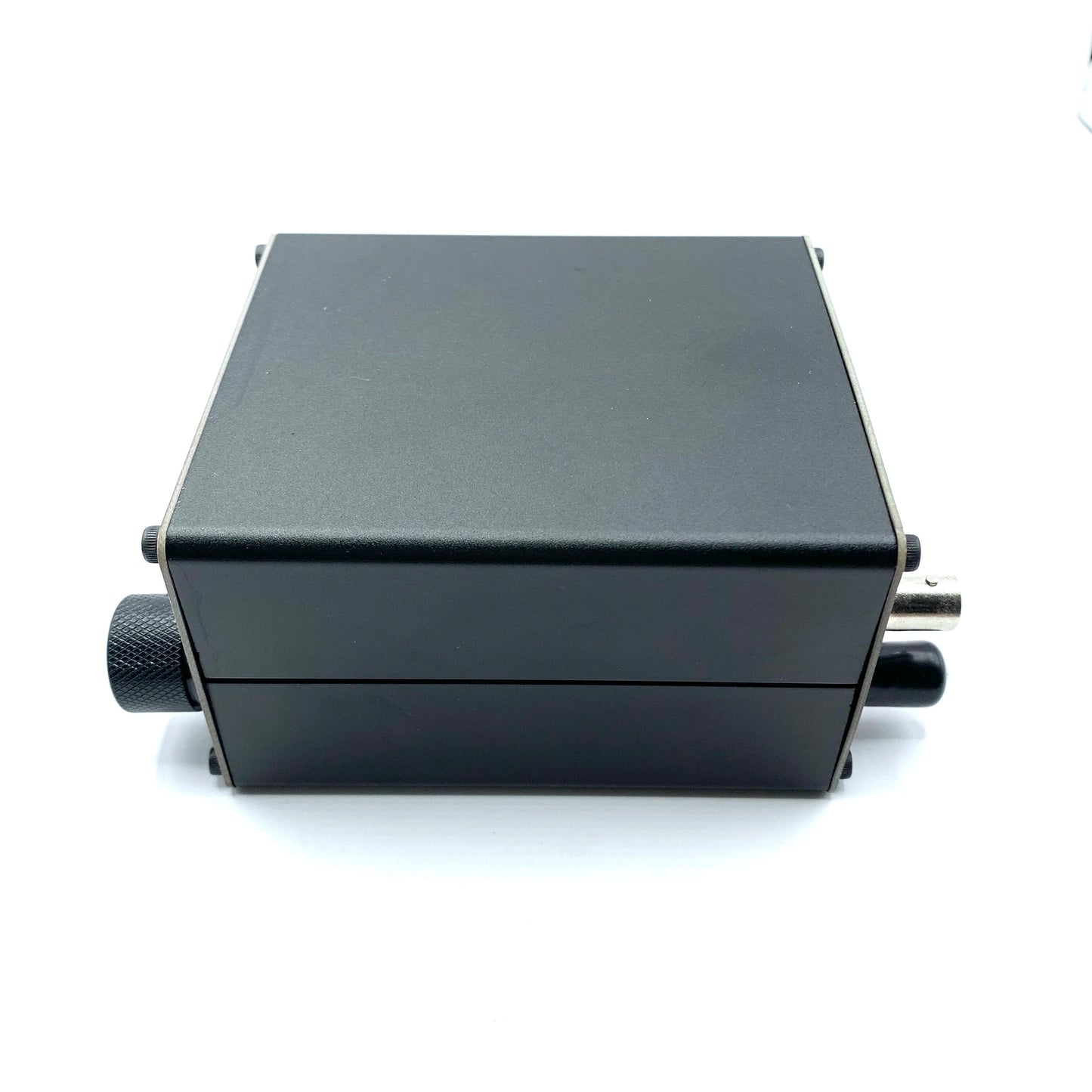

• Compact size: 100 x 90 x 57mm (3.9” x 3.5” x 2.2”).
• Uses high-quality 100V C0G/NP0 capacitors and original op-amp chips.

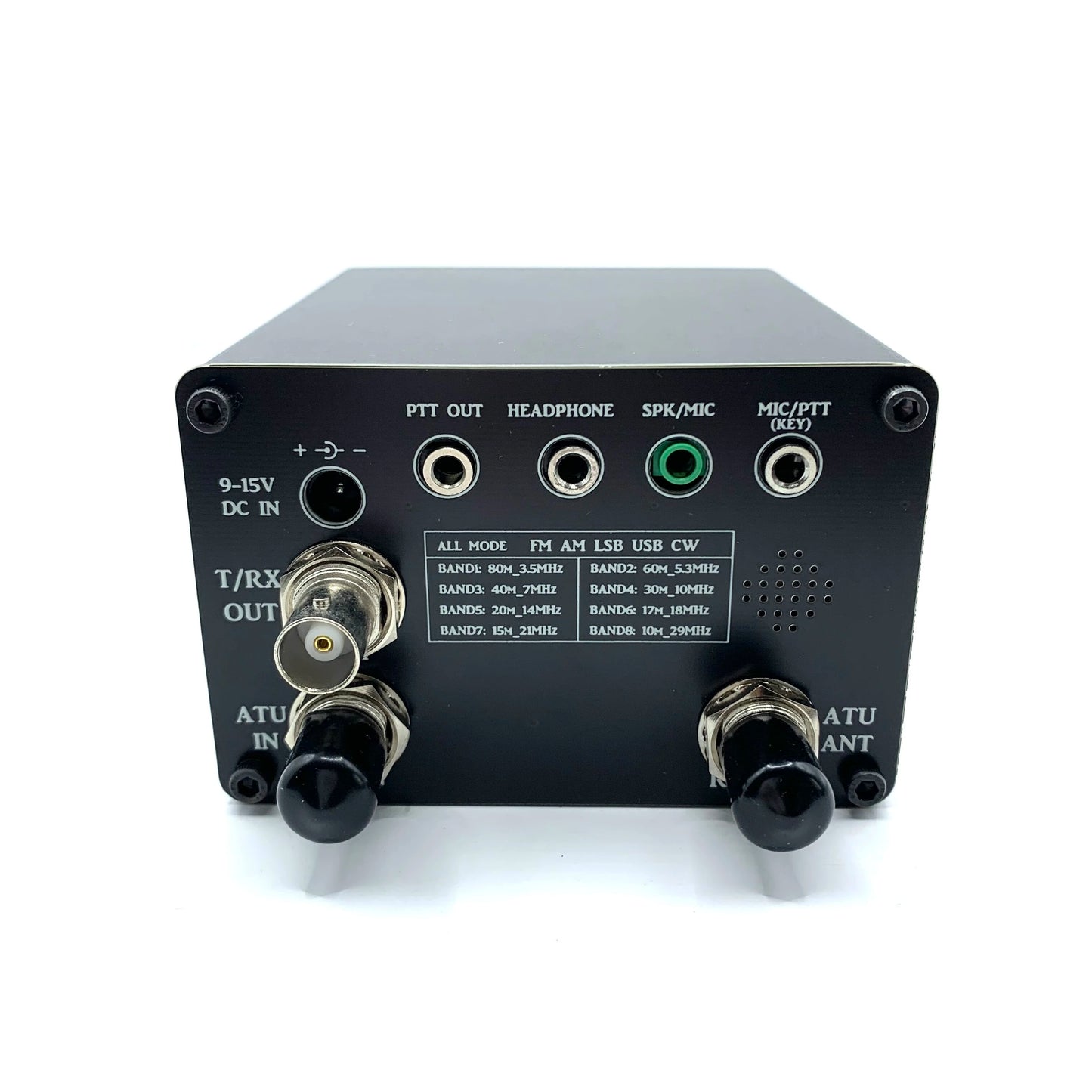

• Comprehensive interface options including HEADPHONE, PTT OUT, MIC/PTT, SPK/MIC.
• BNC antenna interface with easy-to-match BCN-SL16 adapter.
• External power options: 12.6VDC/13.8VDC adapter (random delivery).
• Supports a range of modes: USB, LSB, CW, AM, FM (AM/FM functionality is secondary).
• All-digital, software-based SDR and SSB capabilities.
• Adjustable receive attenuator and extensive DSP filter bandwidth settings.
• Receives low-noise signals and precise front-end selectivity.
• Advanced DSP functions including AGC, noise reduction, and more.

About ATU

Overview:

The ATU component is enhanced from the open-source 7X7 ATU100 project by David Fainitski, N7DDC, offering reliable and optimal performance.

Features:

• Handles up to 10 watts of throughput.
• Initiates tuning with a minimum of 1 watt*.
• Measures power as low as 0.1 watts* with a 0.1-watt measurement step size**.
• Maintains 10% power measurement accuracy*.
• Features maximum inductance and capacity with precise installation steps.
• Operates in frequencies from 1.8 to 30MHz.

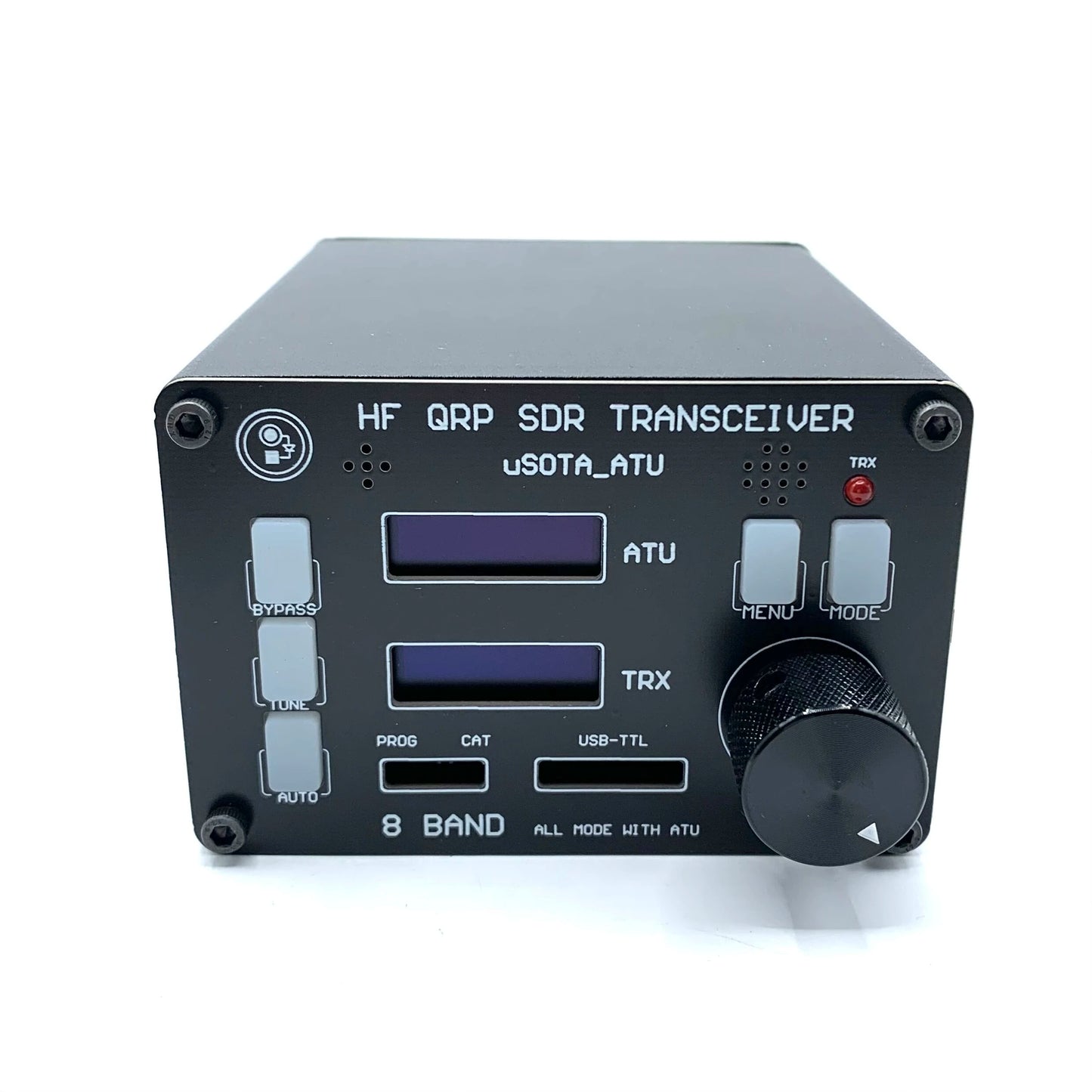

• Equipped with a 0.91 inch OLED 128x32 display for clear readings.

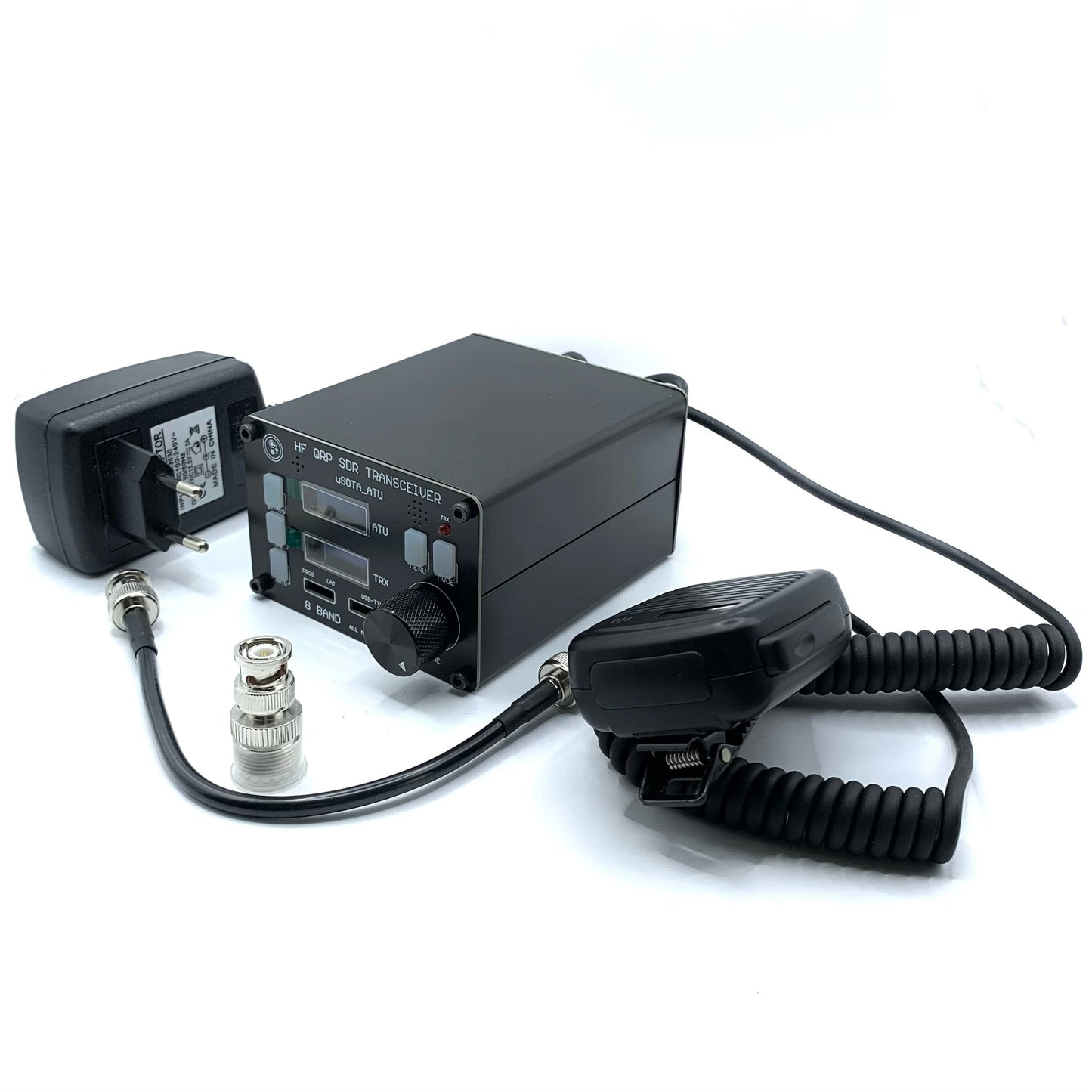

Package Includes:

• 1 x USDX-ATU host
• 1 x 12.6VDC power adapter (or 13.8VDC)
• 1 x BNC-SL16 adapter
• 1 x BNC-BNC cable
• 1 x UV-3R hand microphone (includes MIC, PTT, SPEAKER functions)
