NanoVNA-F V3 Portable Vector Network Analyzer

Features

• NanoVNA-F V3 is a portable vector network analyzer (VNA) with a frequency range of 1MHz to 6GHz. Perfect for S11 and S21 measurements.
• Offers S21 dynamic range of 65 dB and S11 dynamic range of 50 dB. Ideal for comprehensive testing in a variety of applications.
• Suitable for testing antennas of MF/HF/VHF/UHF/SHF bands, including shortwave, ISM band, WiFi, Bluetooth, GPS antennas, and more.
• Measure filters, amplifiers, attenuators, cables, power dividers, couplers, duplexers, and other RF components effortlessly.

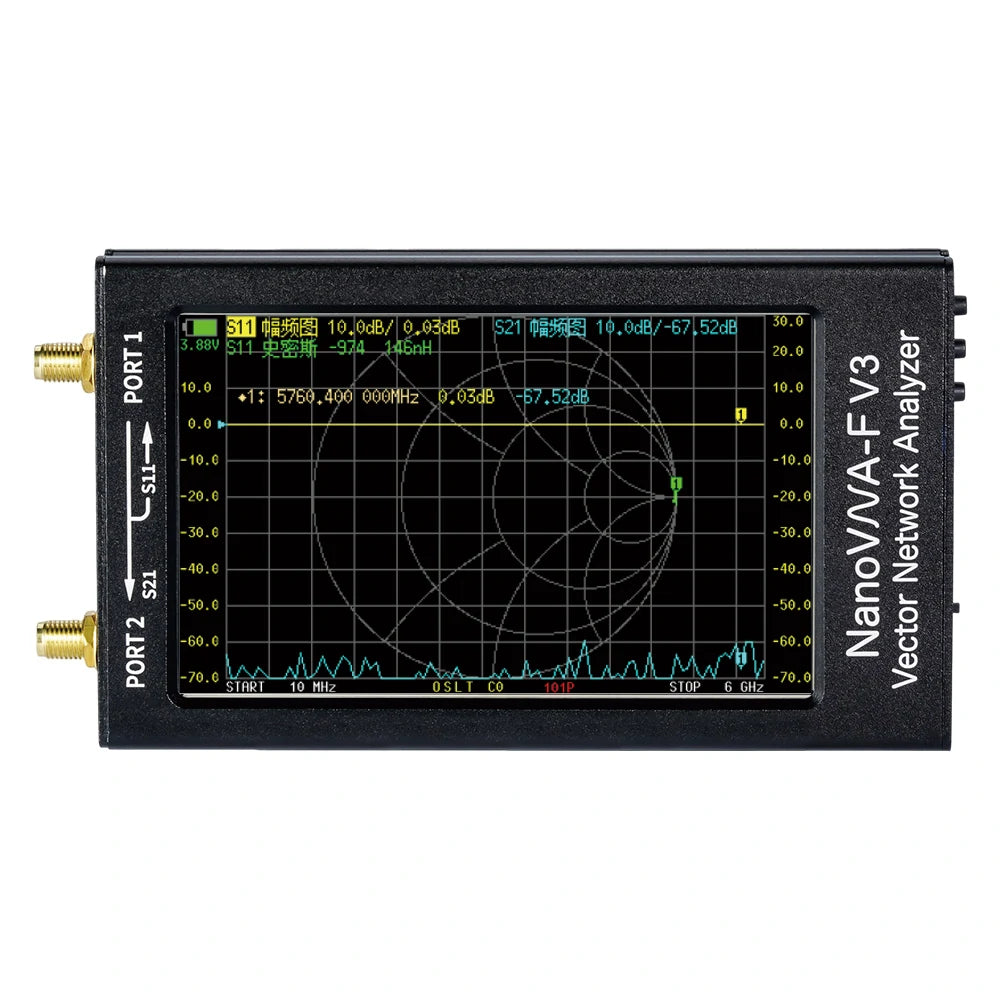

• Supports multiple display formats: Log Mag, Linear Mag, Phase, Smith R+jX, Smith R+L/C, VSWR, Polar, Group Delay, Resistance, Reactance, etc.
• Additional support for TDR function to measure cable lengths effectively.
• Constructed with a durable metal case to effectively shield electromagnetic interference, ensuring reliability and stability.
• Compact dimensions of 125mm x 75mm x 20mm, with an SMA connector for direct DUT connections.
• Fast scan speed up to 200 points/s and maximum scanning points up to 801 allow quick data acquisition and analysis.
• Equipped with a 4.3-inch high-brightness IPS screen with a resistive panel for clear visibility, even outdoors.
• Features a full touch screen design complemented by 3 physical buttons for quick and user-friendly operation.
• 4500mAh lithium-ion battery offers up to 5 hours of battery life; charging interface is USB Type-C, supporting data transfers too.

Specifications

• Frequency Range: 1MHz – 6GHz
• S21 Dynamic Range: 65dB, S11 Dynamic Range: 50dB
• 4.3-inch high-brightness IPS display with resistive touch panel
• Metal case for effective electromagnetic interference shielding
• SMA connector, stable and durable
• Full touch screen and 3 physical buttons for convenient and smooth operation
• Dimensions: 125mm x 75mm x 20mm
• Built-in 4500mAh lithium-ion batteries with a battery life of up to 5 hours
• TDR function for cable length measurement
• Capability to use up to 4 reference traces and 4 markers
• 12 save/recall slots for user convenience

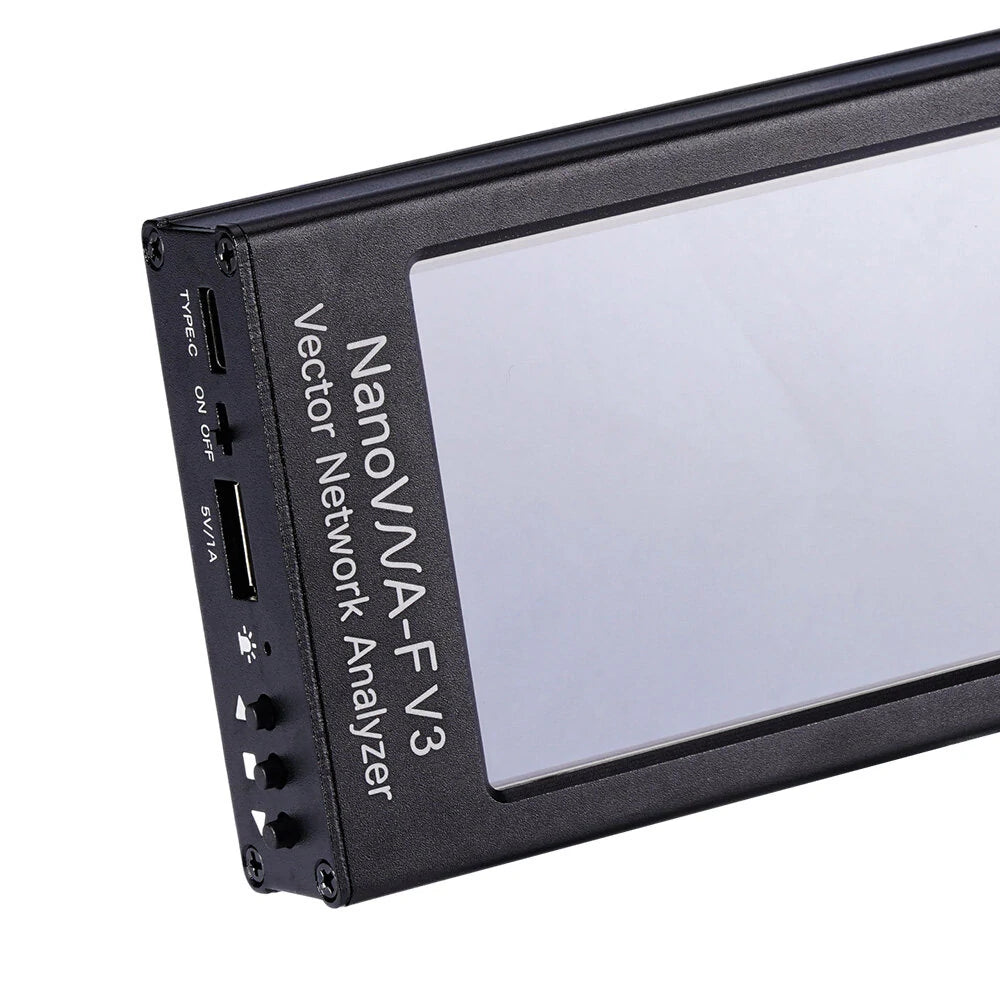

• Charging via USB Type-C with 5V DC voltage
• Supports firmware upgrade via virtual U disk with USB Type-C cable
• Includes SMA calibration kit and 2 x 20cm SMA-JJ RG405 coaxial cables
• Compatible with console commands and PC software

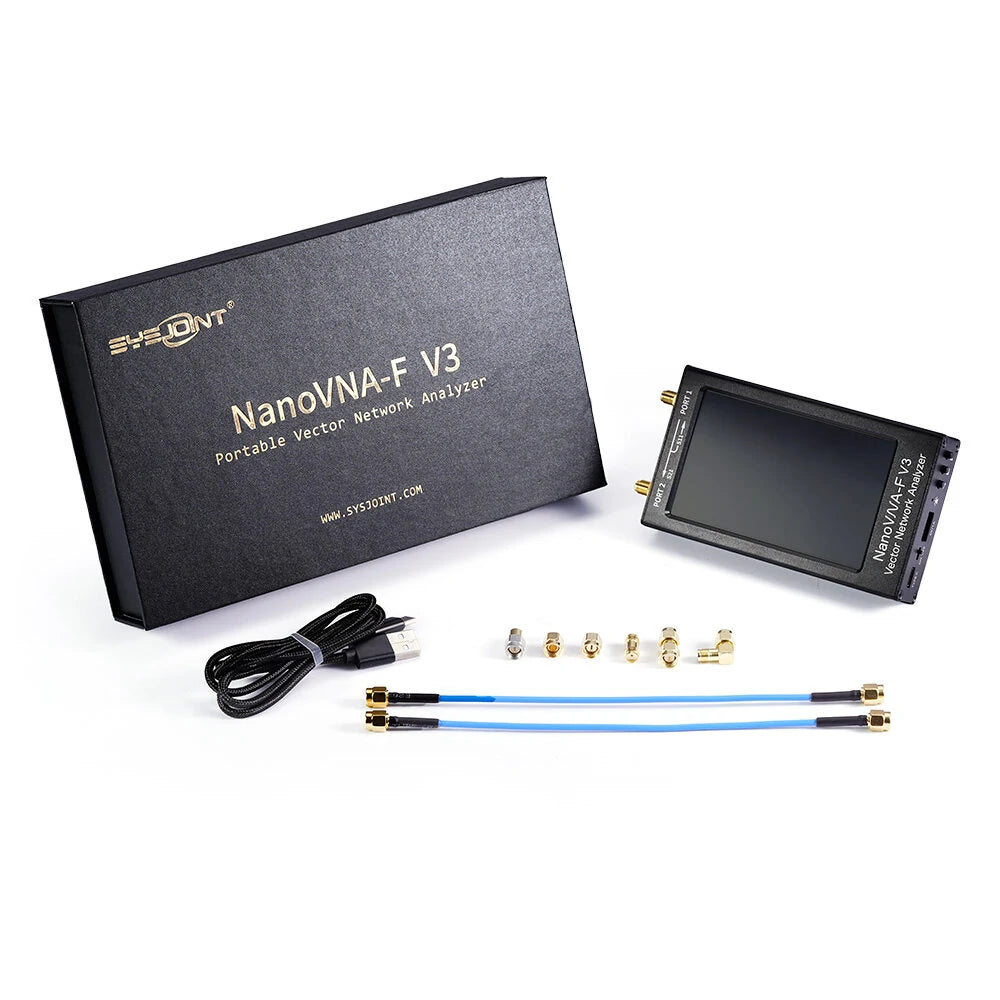

Package Includes

• 1 x NanoVNA-F V3
• 1 x SMA OPEN/SHORT/LOAD calibration kit
• 1 x SMA-KK adapter
• 1 x SMA-JJ adapter
• 1 x SMA-JKW adapter
• 2 x 20cm SMA-JJ RG405 coaxial cable
• 1 x USB Type-C cable
