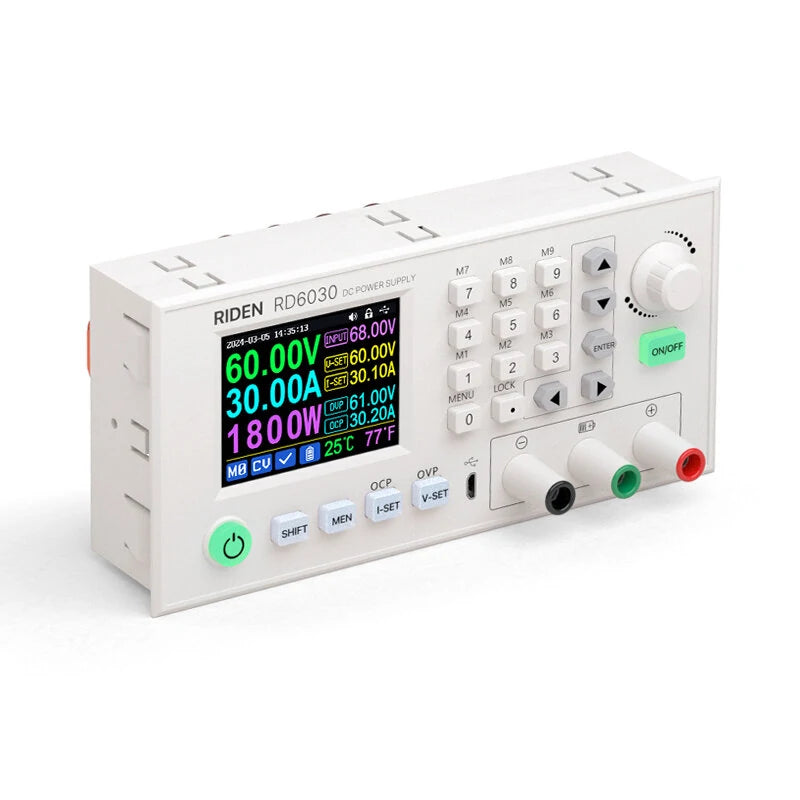

60V 30A Adjustable DC Step-Down Converter Power Supply Module for Lab & Battery Charging - RIDEN RD6030/W
60V 30A Adjustable DC Step-Down Converter Power Supply Module for Lab & Battery Charging - RIDEN RD6030/W
Regular price
$109.99 USD
Regular price
$0.00 USD
Sale price
$109.99 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Guaranteed secure & safe checkout.
File Download Instructions
APP Download:
Android:
- Available on Google Play by searching "Ruideng tech" for Android 8.0 and above.
iOS: Available for iOS 10.0 - iOS 13.4 by searching "Ruideng tech"; older devices can use the "RDPower" app.
Product Models and Specifications
| Model | Suitable Shell | Suitable Power Supply | Input Voltage Range | Voltage/Current Display Digit | Output Voltage Range | Output Current Range | Output Power Range | Output Voltage Setting Resolution | Output Voltage Accuracy | Output Current Resolution | Output Current Accuracy |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RD6006/W | ID: 1995241 | ID: 1594324 | 6-70V | 4-digit | 0-60V | 0-6A | 0-360W | 0.01V | ±(0.3%+3digits) | 0.001A | ±(0.5%+5digits) |
| RD6012/W | ID: 1995241 | ID: 1995201 | 6-70V | 4-digit | 0-60V | 0-12A | 0-720W | 0.01V | ±(0.3%+3digits) | 0.01A | ±(0.5%+5digits) |
| RD6018/W | ID: 1995241 | ID: 1995201 | 6-70V | 4-digit | 0-60V | 0-18A | 0-1080W | 0.01V | ±(0.3%+3digits) | 0.01A | ±(0.5%+5digits) |
| RD6024/W | ID: 1995241 | ID: 1995203 | 7-70V | 4-digit | 0-60V | 0-24A | 0-1440W | 0.01V | ±(0.3%+3digits) | 0.01A | ±(0.5%+5digits) |
| RD6030/W (this item) | ID: 1995241 | ID: 1995203 | 7-70V | 4-digit | 0-60V | 0-30A | 0-1800W | 0.01V | ±(0.3%+3digits) | 0.01A | ±(0.5%+5digits) |
| RD6006P/W | ID: 1995241 | ID: 1594324 | 7-70V | 5-digit | 0-60V | 0-6A | 0-360W | 0.001V | ±(0.5%+4digits) | 0.0001A | ±(1%+6digits) |
| RD6012P/W | ID: 1995241 | ID: 1995201 | 7-70V | 5-digit | 0-60V | 0-12A | 0-720W | 0.001V | ±(0.5%+4digits) | 0.0001A | ±(1%+6digits) |
Additional Specifications
- Output Ripple (VPP): Varying between models, typical values are 100-250mV.
- Cooling Fan Start Condition: Output voltage >40V or current >4A or system temperature >45℃.
- Cooling Fan Shut Down Condition: Dependent on specific conditions noted in the product manual.
- Over Temperature Protection: Engages at system temperature >80℃.
- Input Fuse: Fast blow fuse types 1808 or 1032; current ratings 10A-40A.
- Input Terminal: Varies by model; includes HT508K-2P, HT508K-4P, K14 Terminal.
- Product Weight: Ranges from about 0.58kg to 0.74kg depending on the model.
- Product Size: Approximately 167mm x 81mm x 69mm for all models.

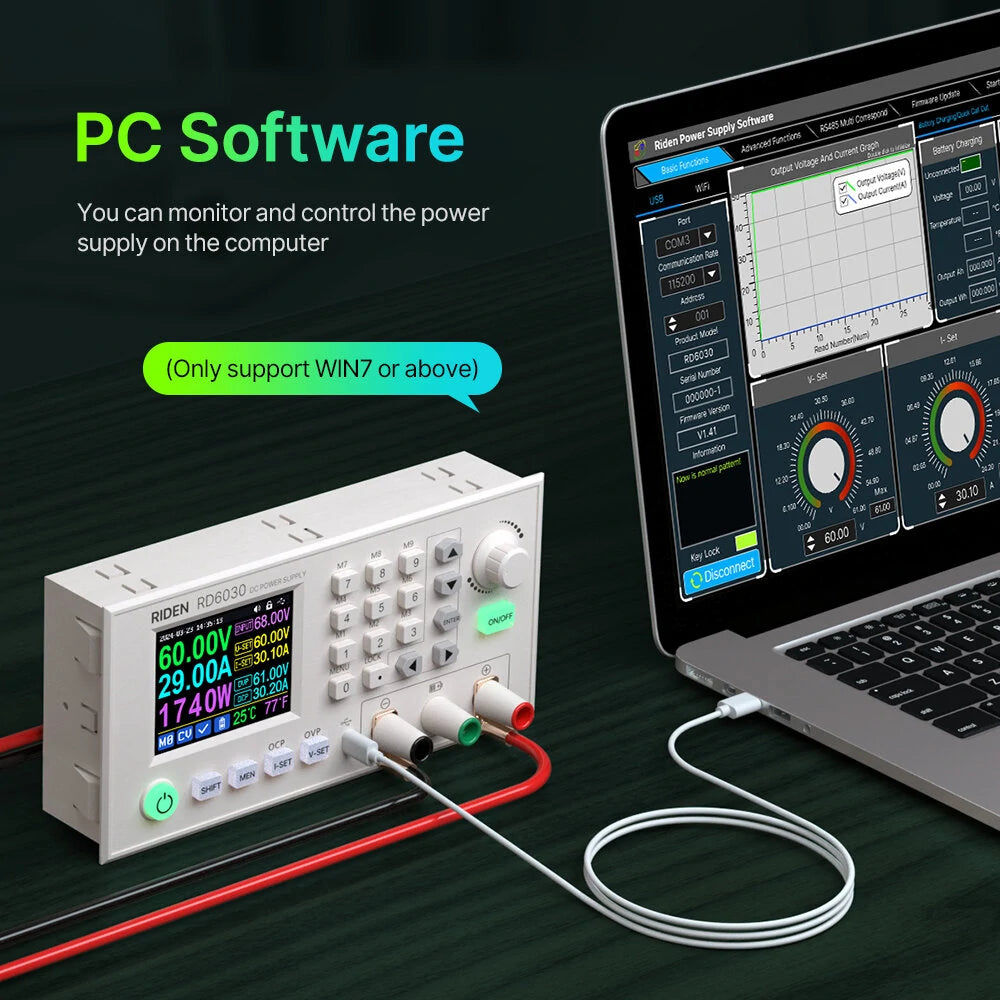

- USB Communication: Supported in all models.
- WiFi Communication: Supported only in W versions.
Package Includes
- 1 x Power supply (WiFi optional)
Note: Problems caused by using other power supplies will void your warranty.
