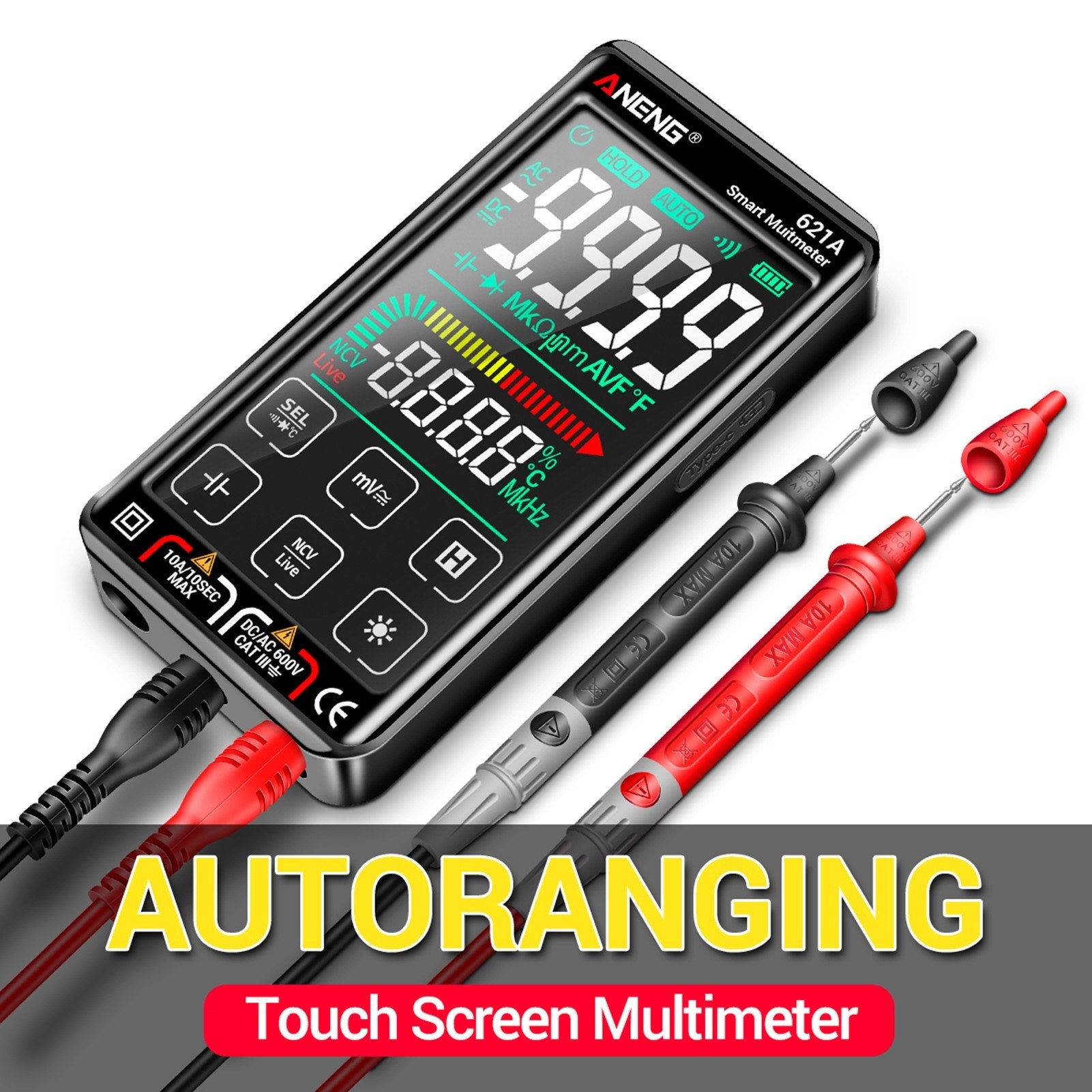

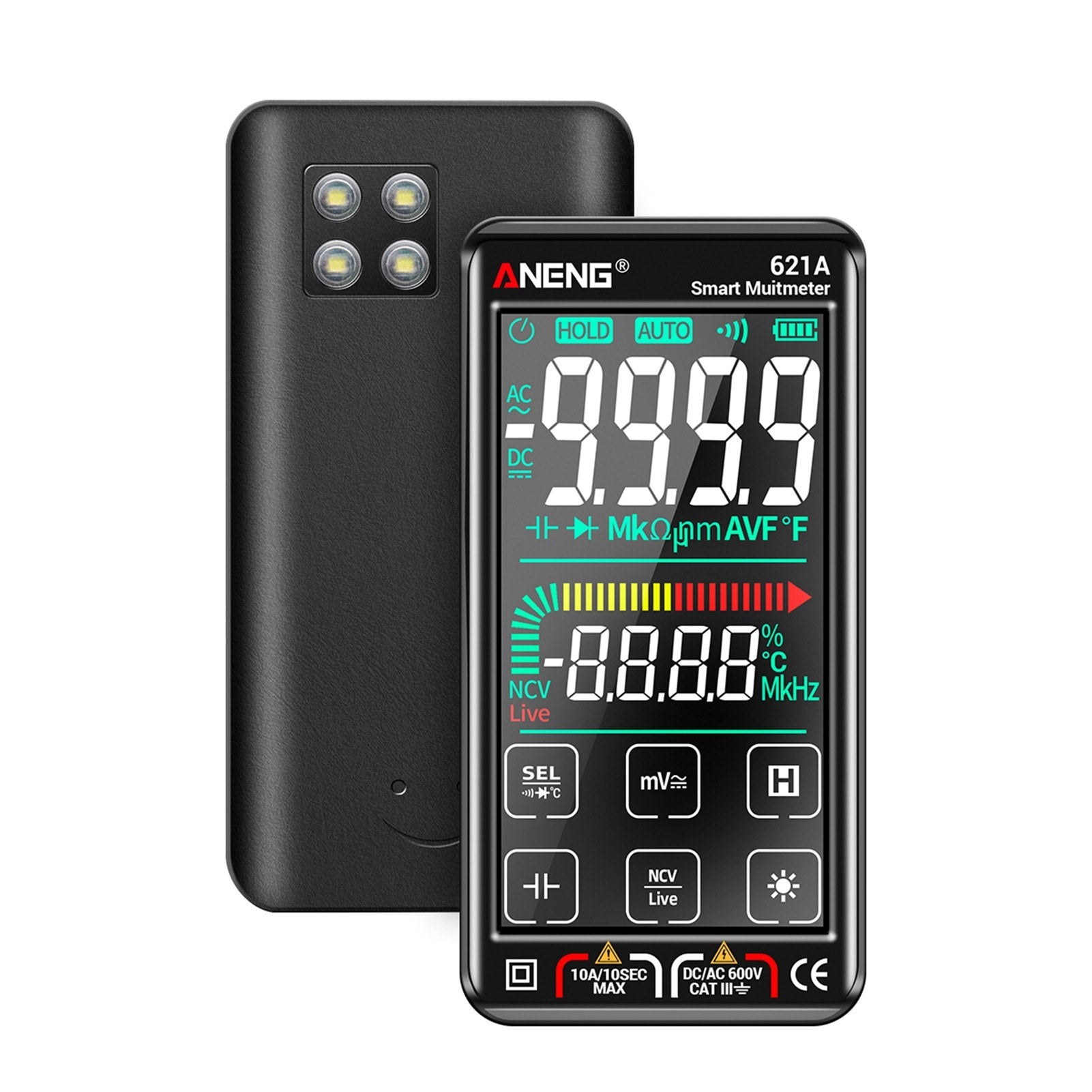

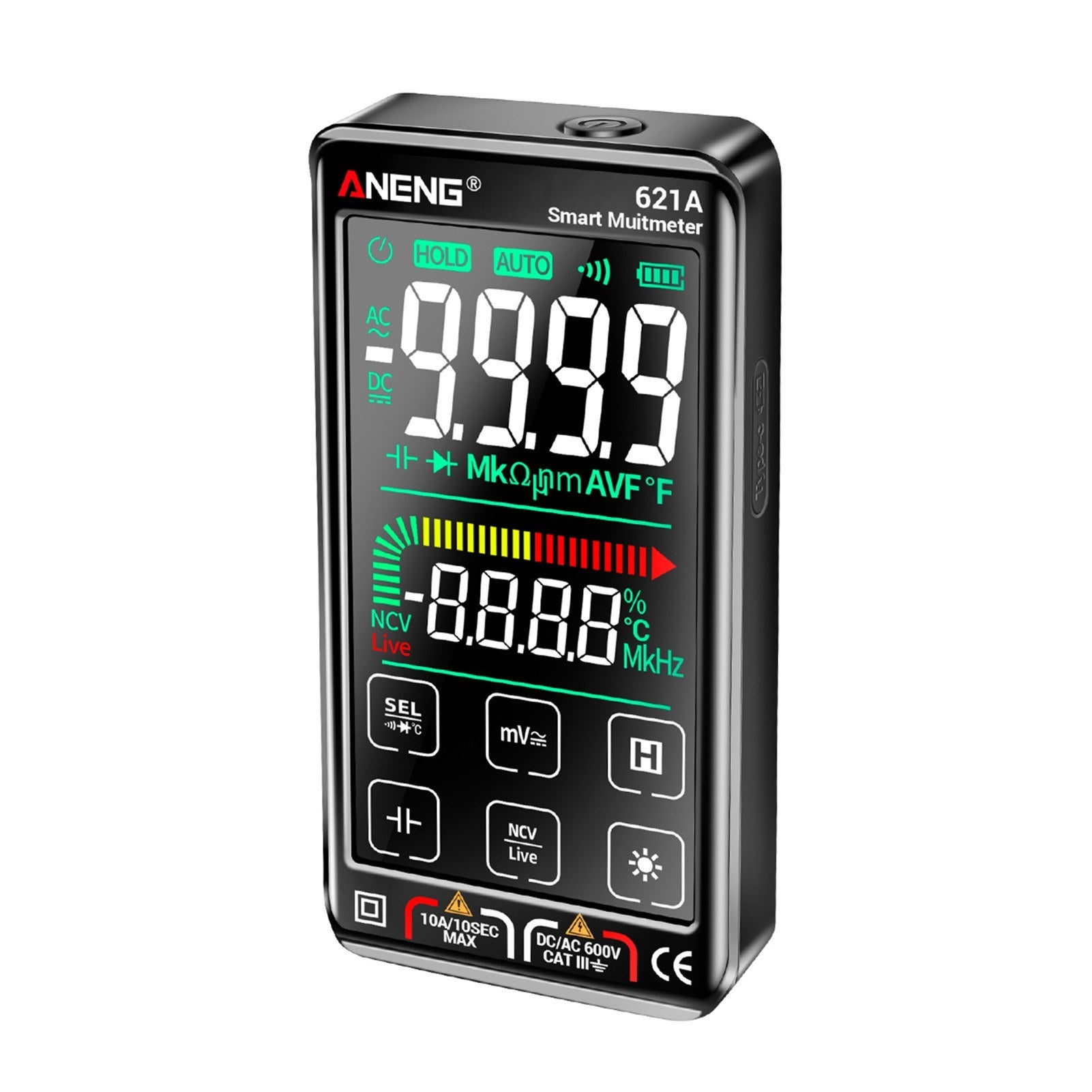

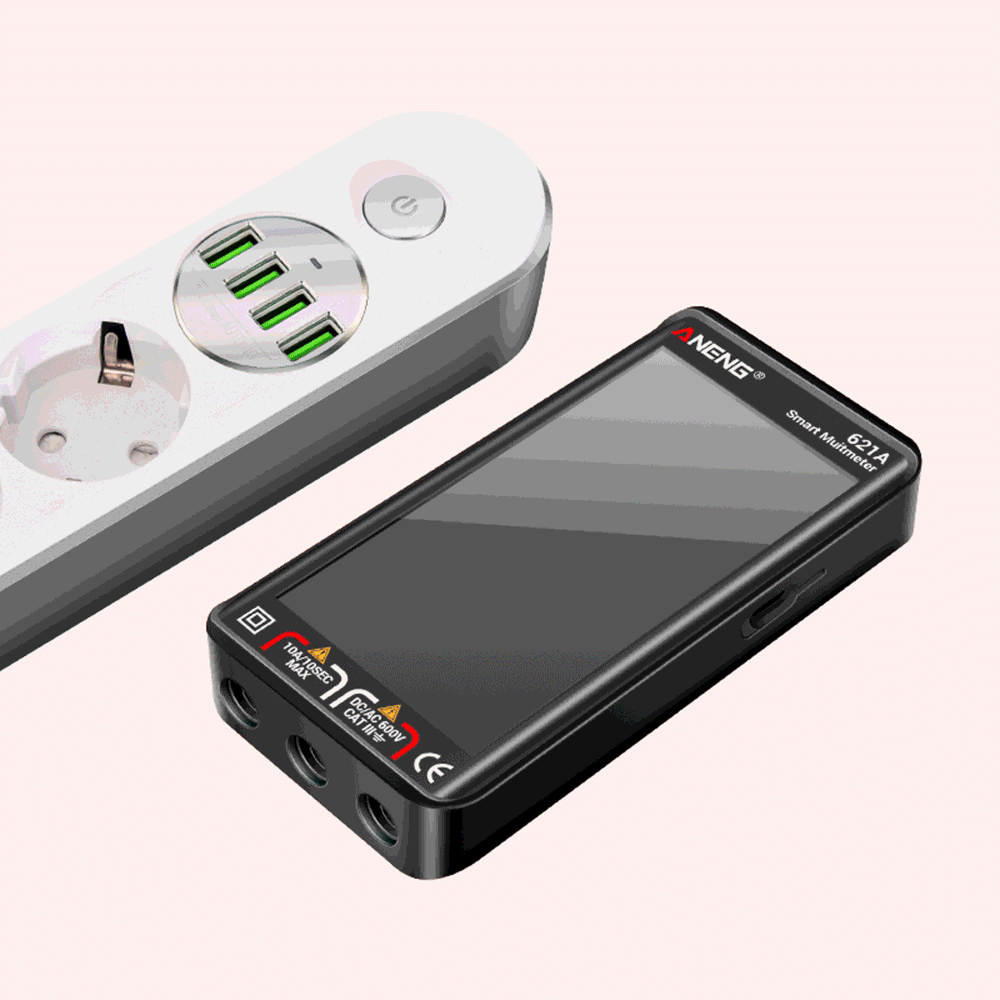

ANENG 621A Touch Screen Digital Multimeter 9999 Counts Auto Range Portable Rechargeable NCV Meter

Features

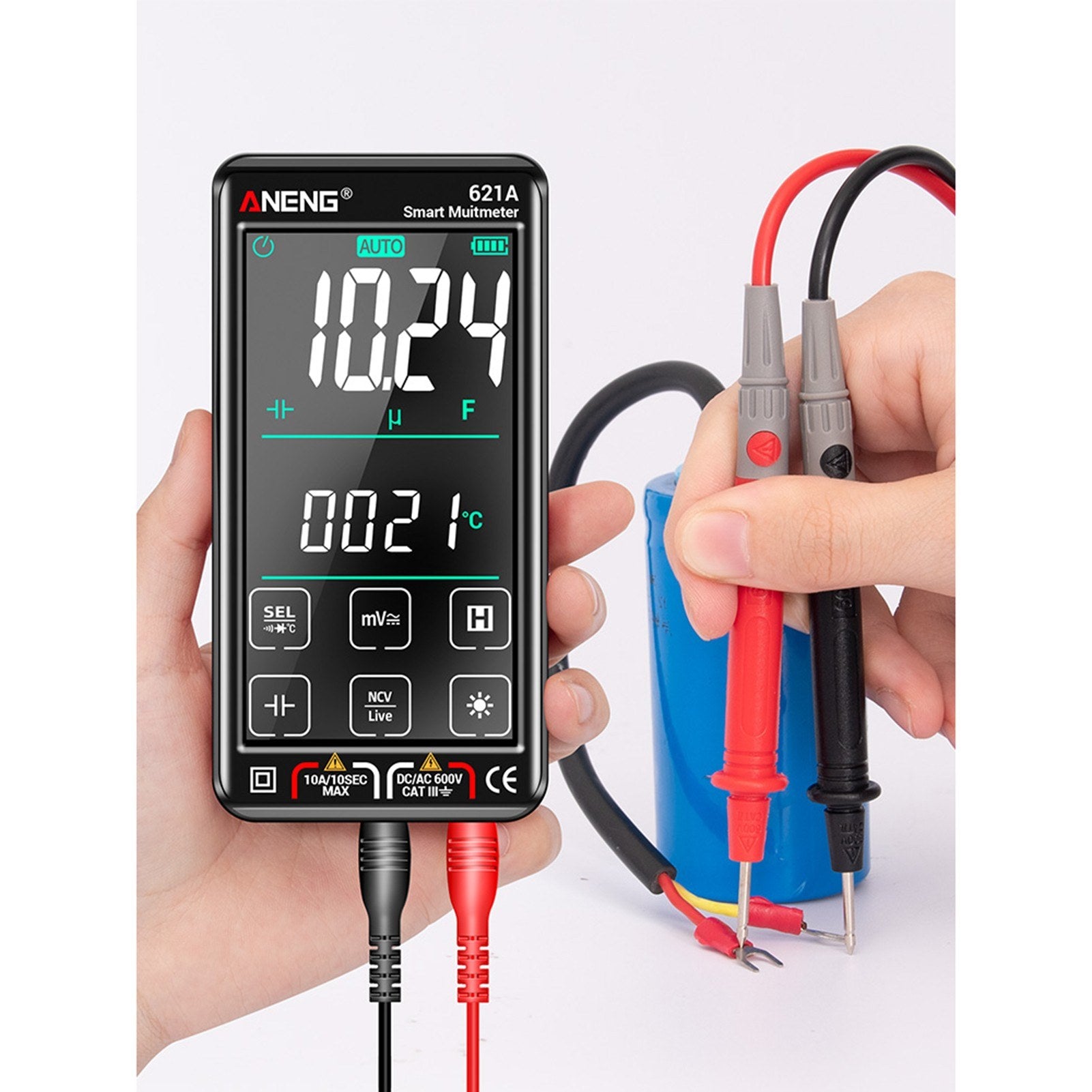

• Intelligent Multimeter with Multiple Functions: Capable of measuring AC/DC current, AC/DC voltage, resistance, capacitance, temperature, frequency, continuity, diode tests, and detecting fire wires.

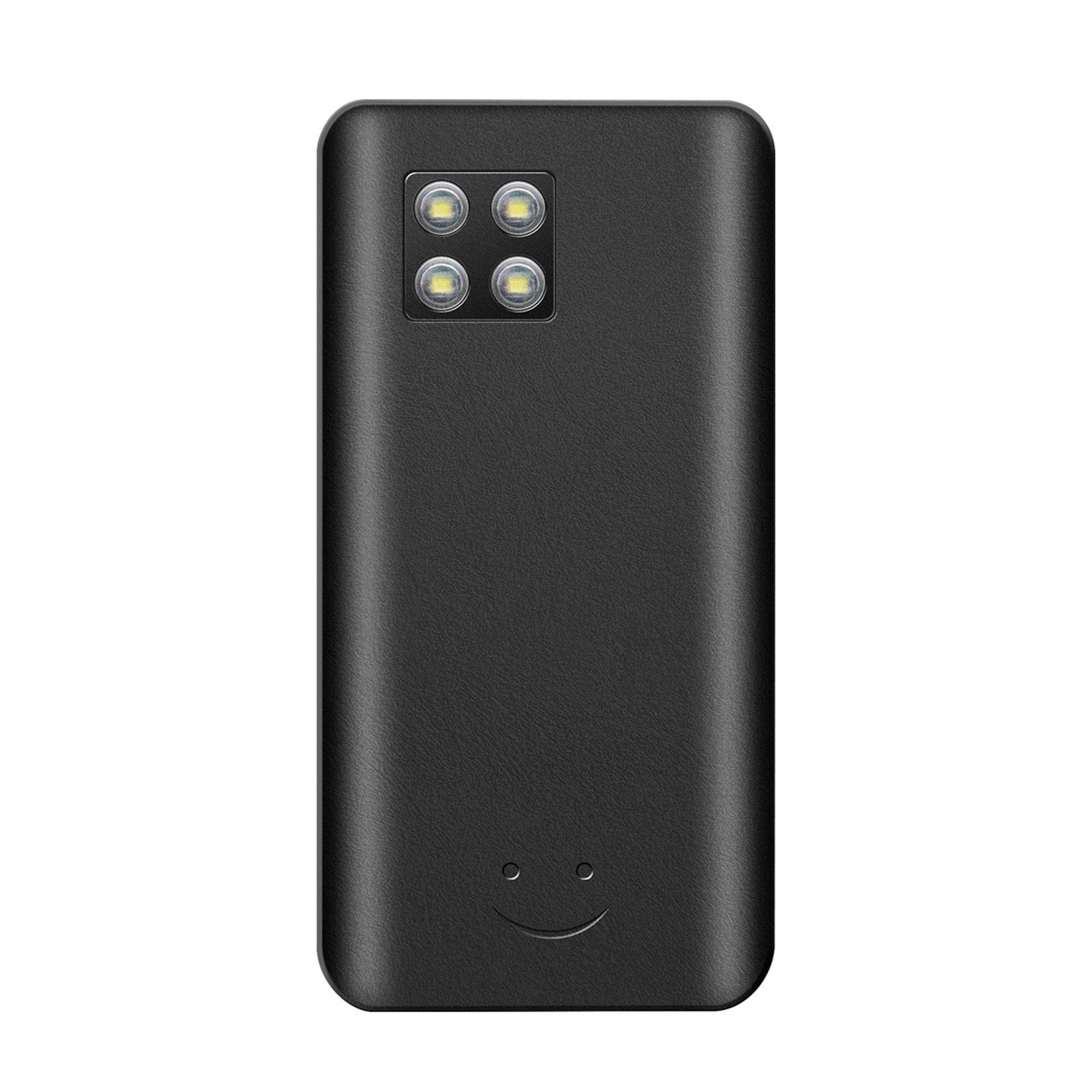

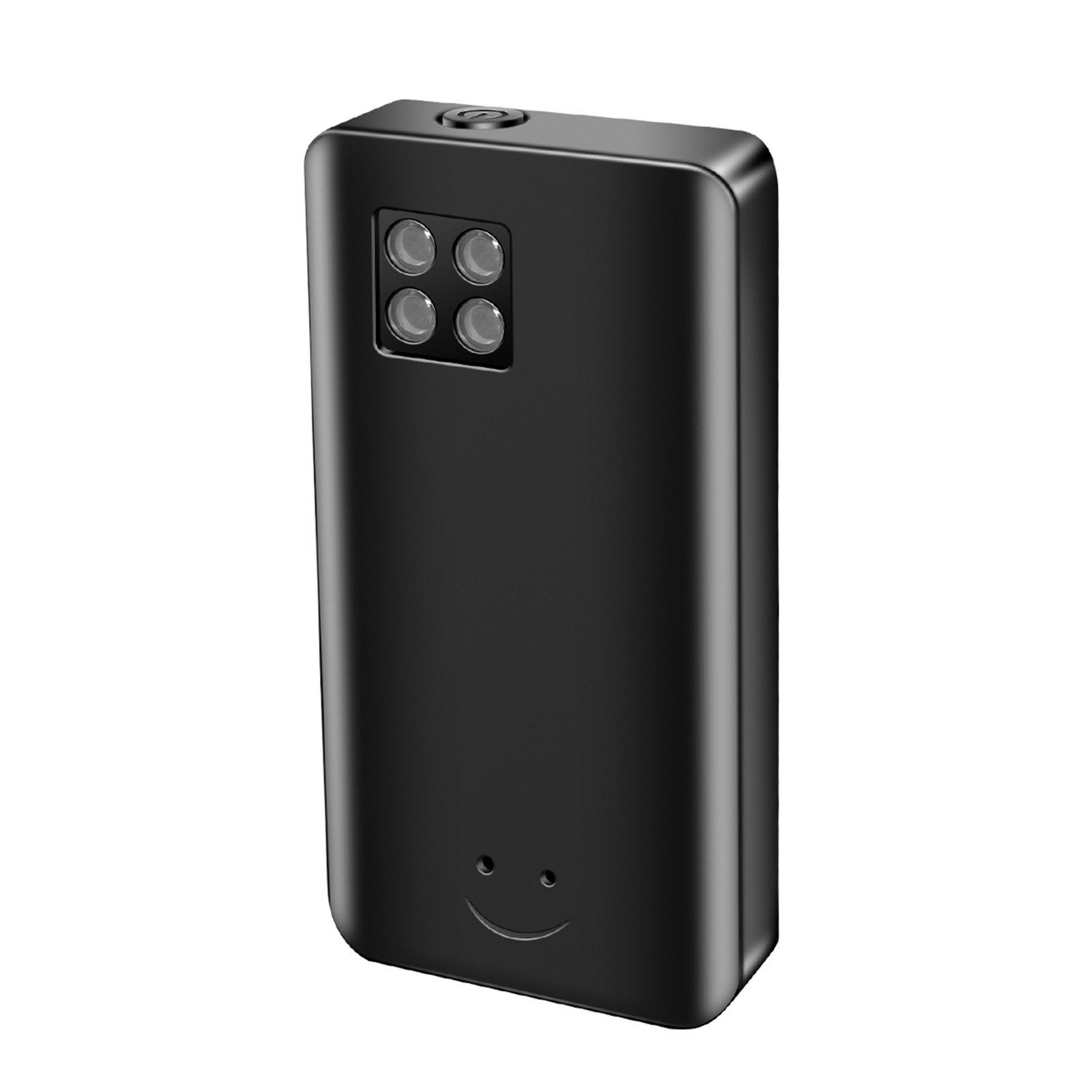

• Flashlight Function: Provides auxiliary lighting in dark environments and automatically turns off after approximately 1 minute.
• NCV Non-contact Voltage Detection: Detects voltage over 90ACV using the NCV sensor. When AC voltage is detected, the buzzer alarms and the LCD displays the induction intensity.
• Safety Operation: Includes a built-in overload protection fuse and smart anti-burn features. Complies with the DC/AC 600V CAT III overvoltage standard and provides double insulation protection.

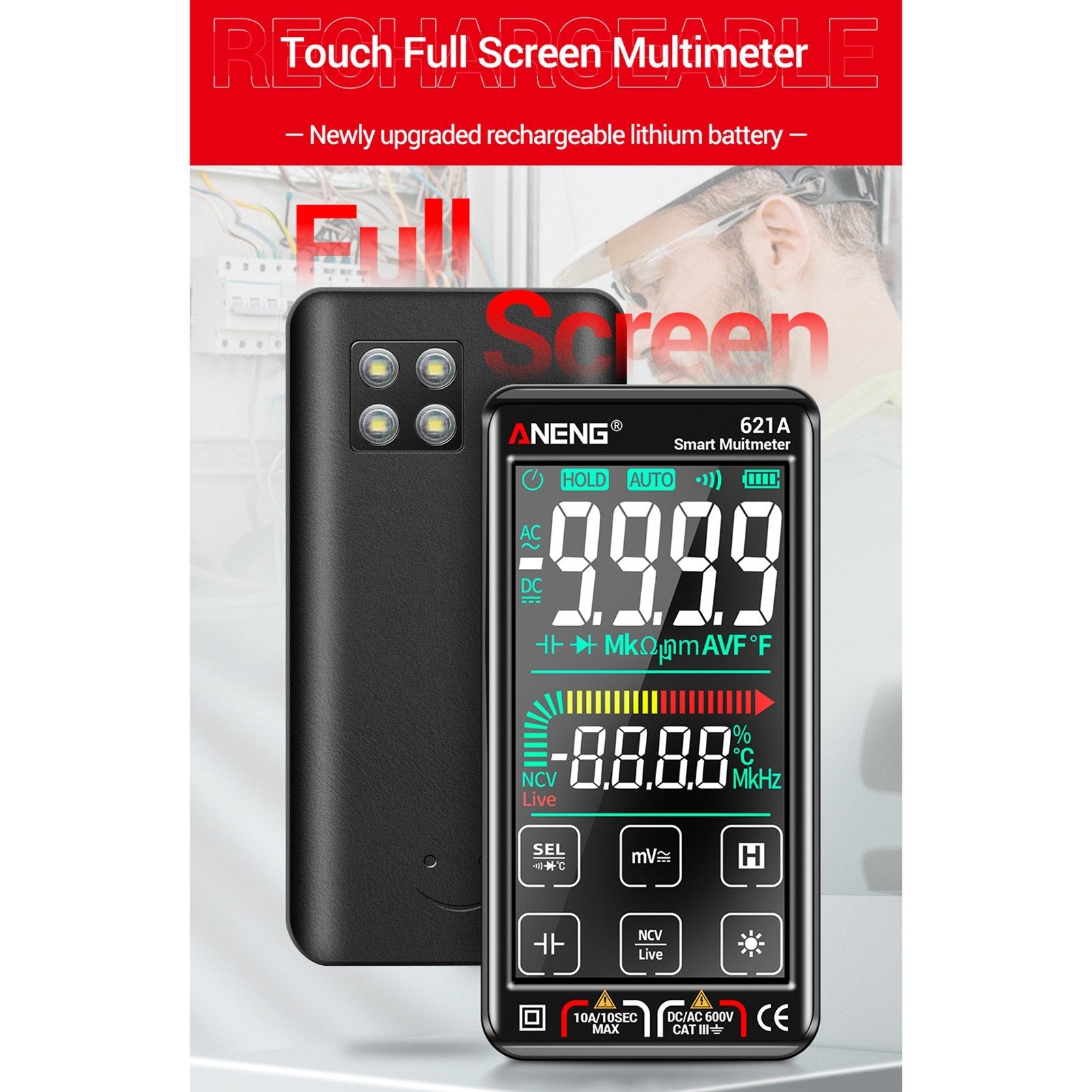

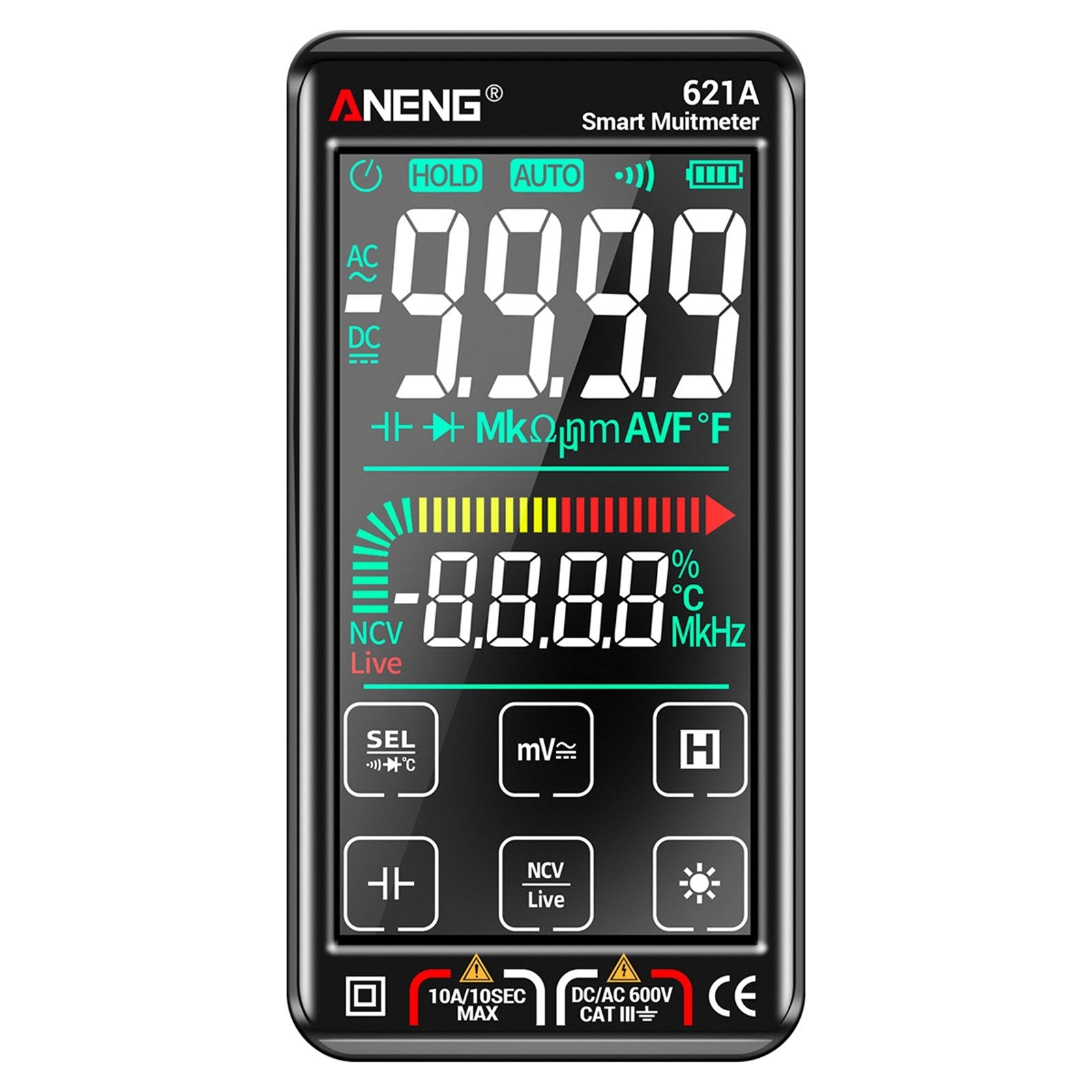

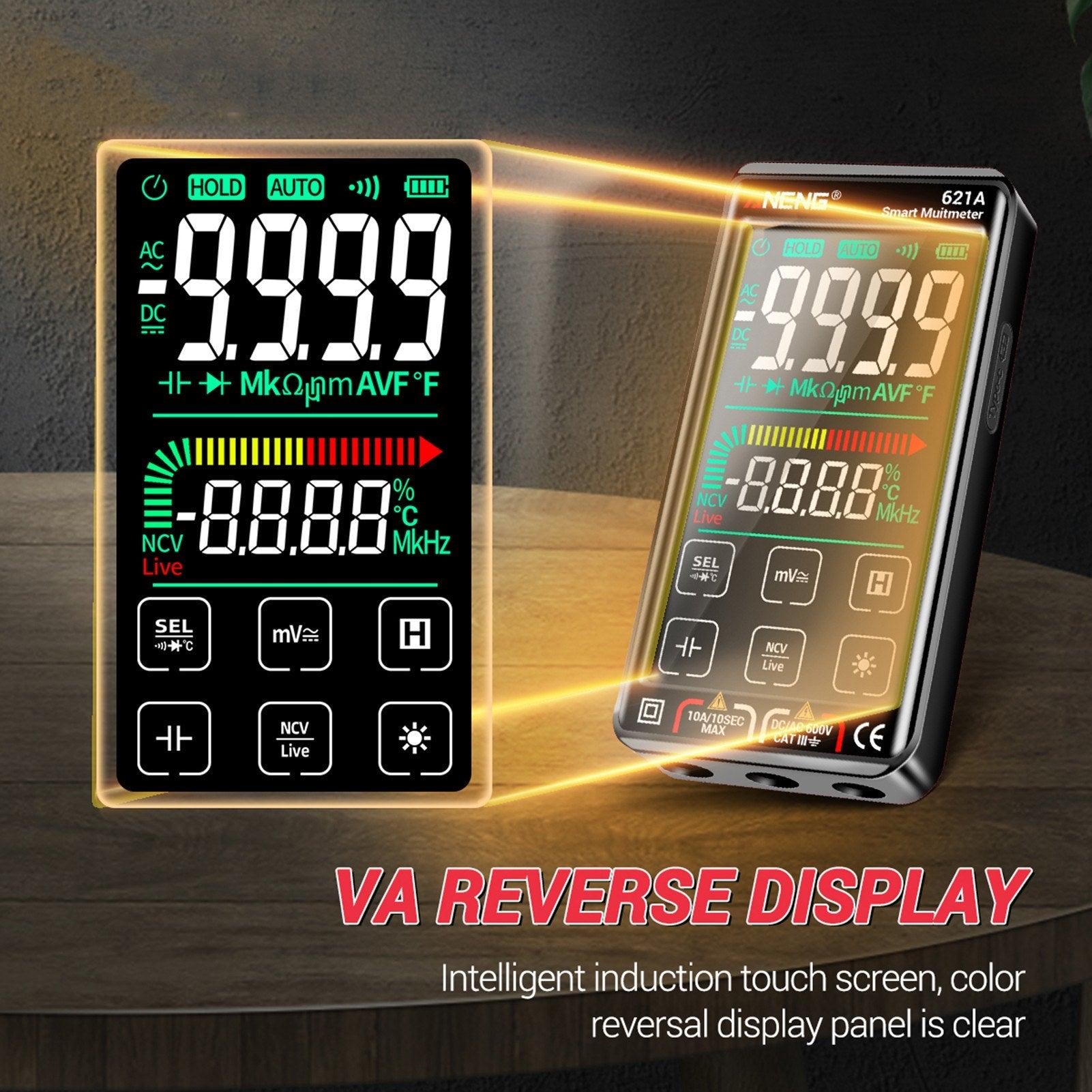

• Smart Touch Screen Control: Features an easy-to-use interface with a large VA color reverse LCD display for convenient data viewing.
• Compact & Accurate: Sized like a mobile phone for ease of use and portability, equipped with a high-performance chip for accuracy.

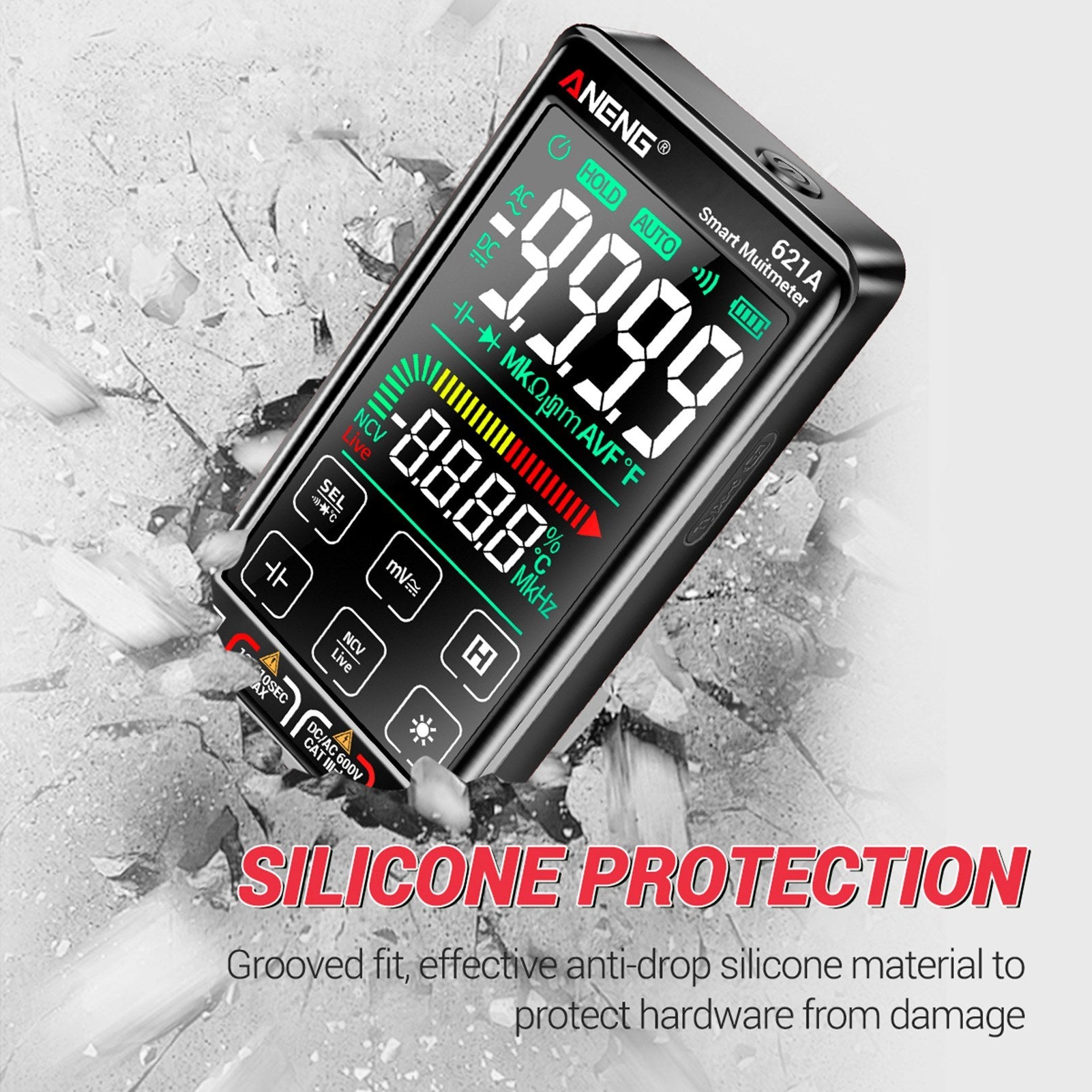

• Silicone Protective Case: A durable silica gel case protects the meter from falls and scratches, suitable for various conditions.

Specifications

• AC Current: 999.9mA/10A
• DC Current: 999.9mA/10A
• AC Voltage: 999.9mV/9.999V/99.99V/999.9V
• DC Voltage: 999.9mV/9.999V/99.99V/999.9V
• Resistance: 999.9Ω/9.999KΩ/99.99KΩ/999.9KΩ/9.999MΩ/99.99MΩ
• Capacitance: 9.999nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
• Temperature: -40~1000℃ (-40~1832℉)
• Frequency: 100Hz/1000Hz
• Color Options: Black / Red
• Material: ABS
• Working Altitude: Maximum 2000m
• Display: LCD, Maximum Display Value: 9999 digits
• Polarity Indication: Automatic, "-" indicates negative
• Overrange Display: "OL" or "-OL"
• Sampling Time: Approx. 3 times/second
• Automatic Shutdown Time: 15 minutes
• Battery Undervoltage Indicator: Yes
• Temperature Coefficient: <0.1X accuracy/℃
• Operating Temperature: 0~40°C
• Storage Temperature: -10~50℃
• Power Supply: Built-in 3.7V 600mAh polymer lithium battery

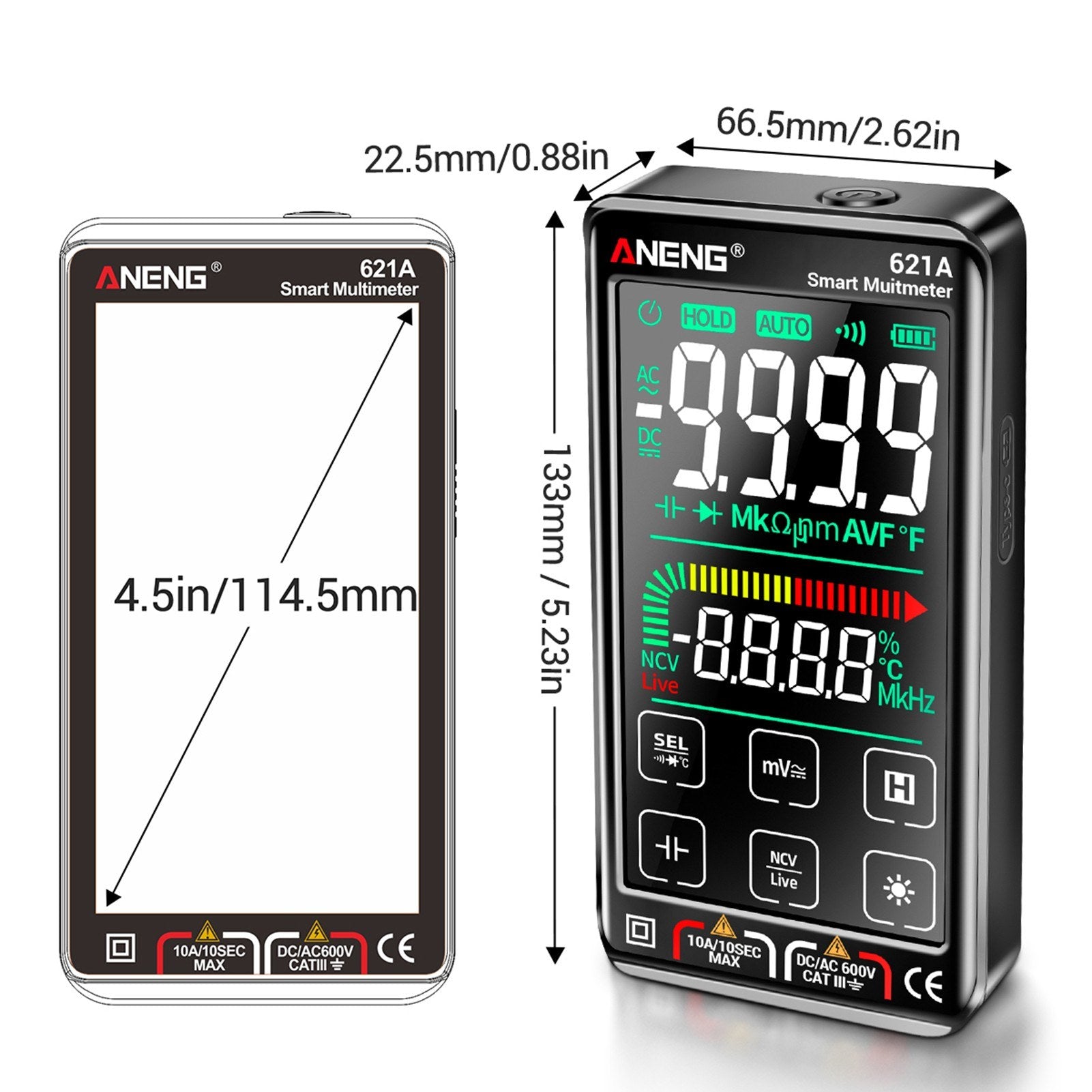

• Item Size: 133 x 66.5 x 22.5mm (5.24 x 2.62 x 0.89 in)
• Item Weight: 162g (5.71 oz)
• Package Weight: 400g (14.11 oz)
• Package Size: 22 x 14 x 5cm (8.66 x 5.51 x 1.97 in)

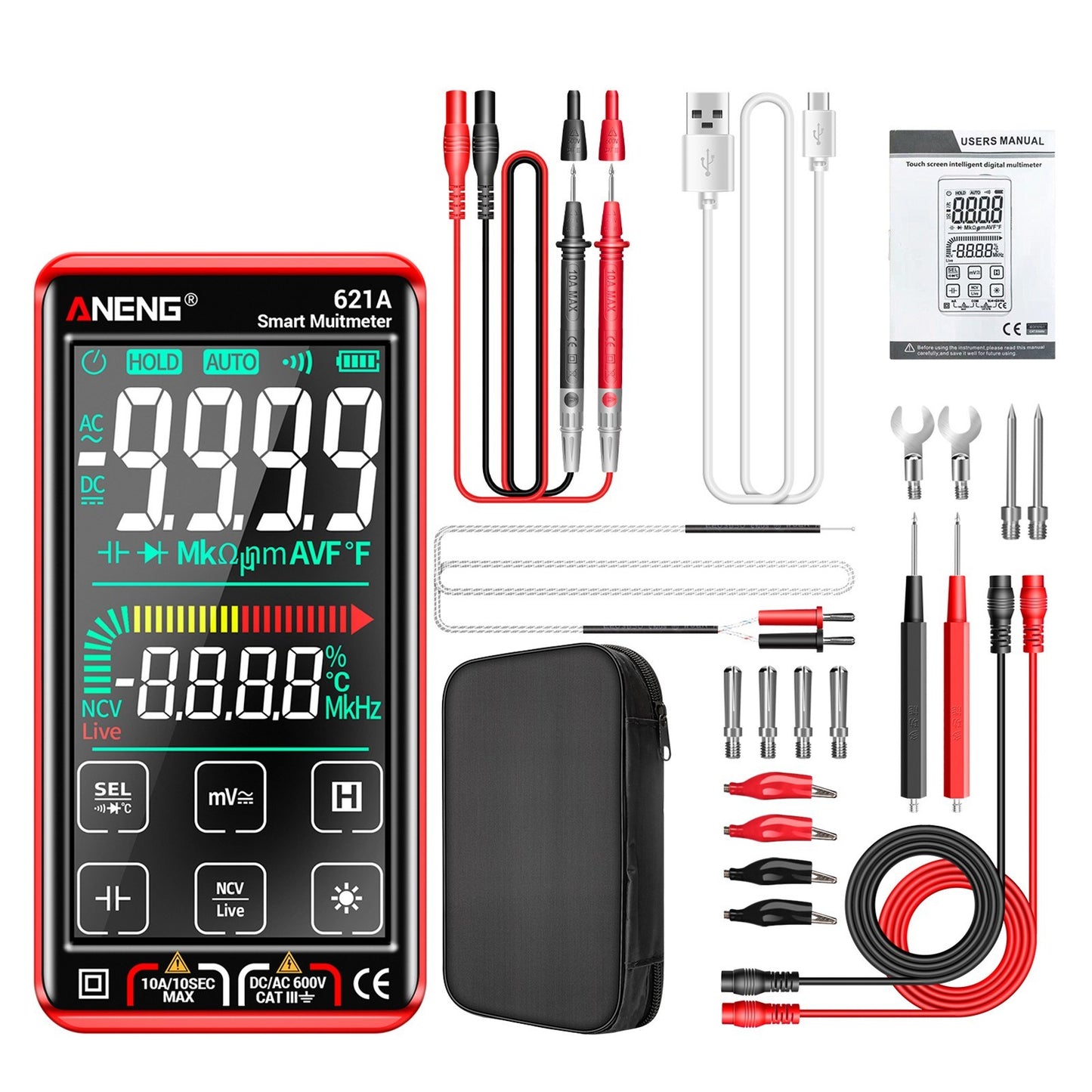

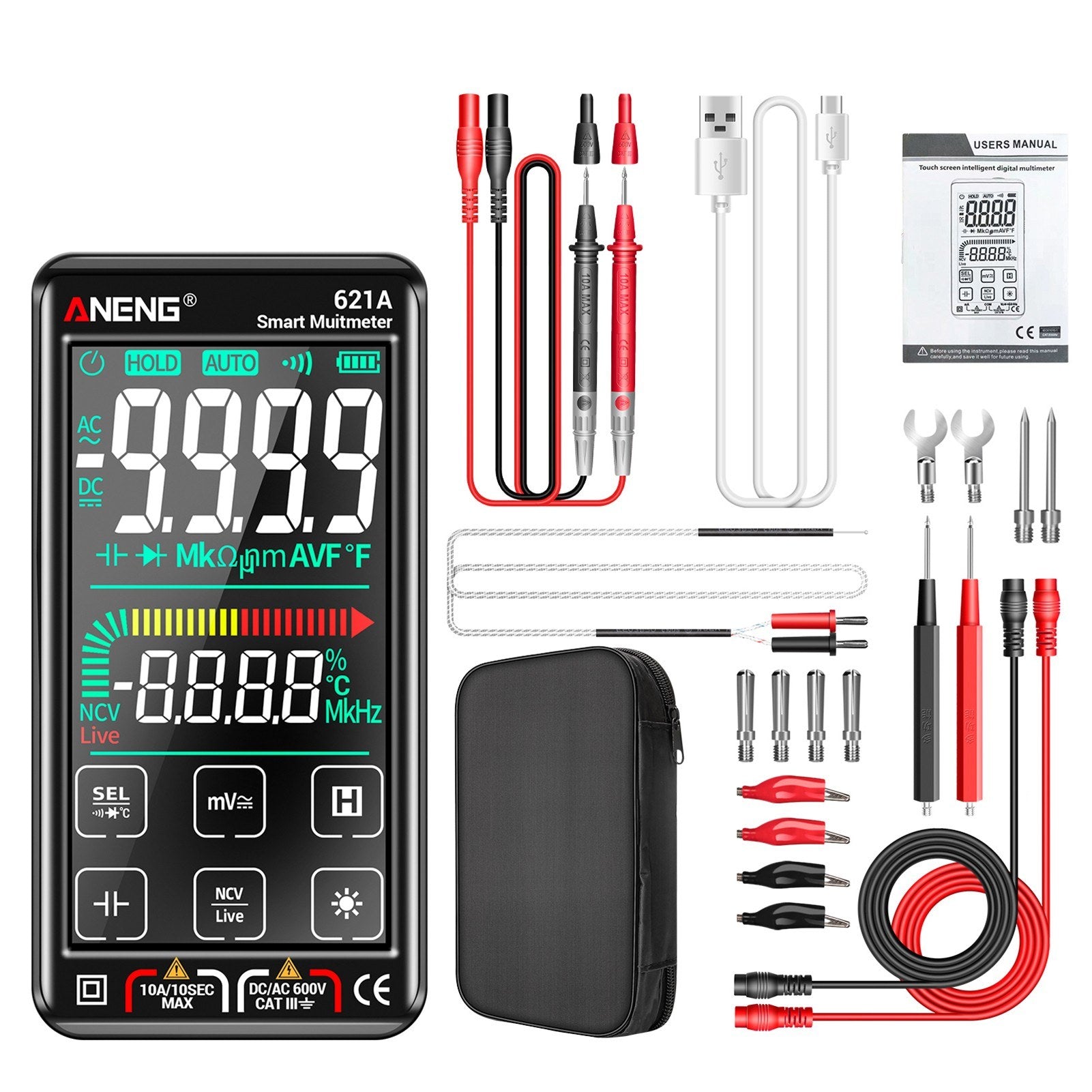

Packing List

• 1 Multimeter
• 1 Pair of Test Pen Line
• 1 Thermocouple

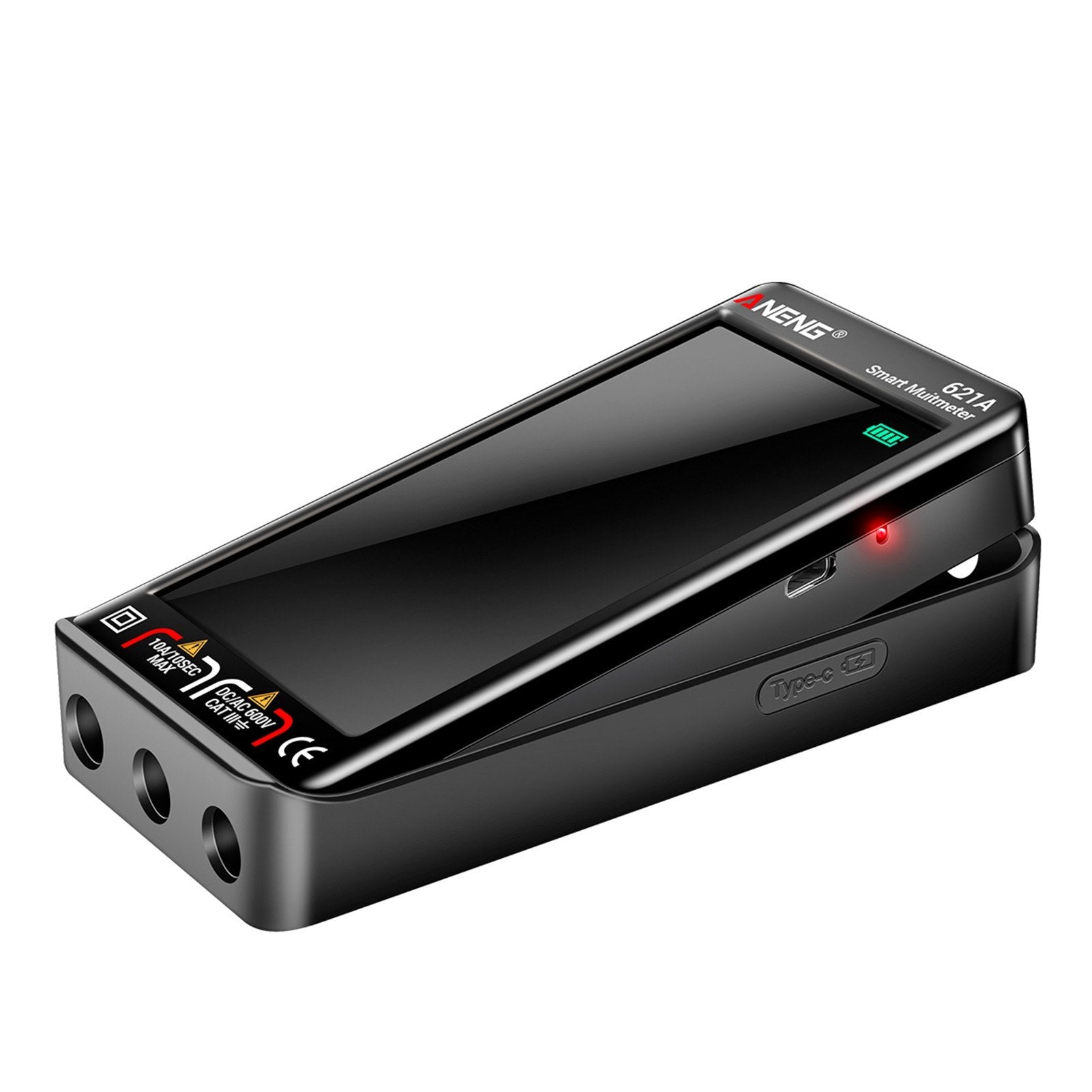

• 1 USB Type-C Cable
• 2 Nickel-plated Copper Needles
• 2 Test Leads
• 2 PVC Cables
• 2 U-shaped Inserts
• 4 Connection Sockets
• 4 Alligator Clips

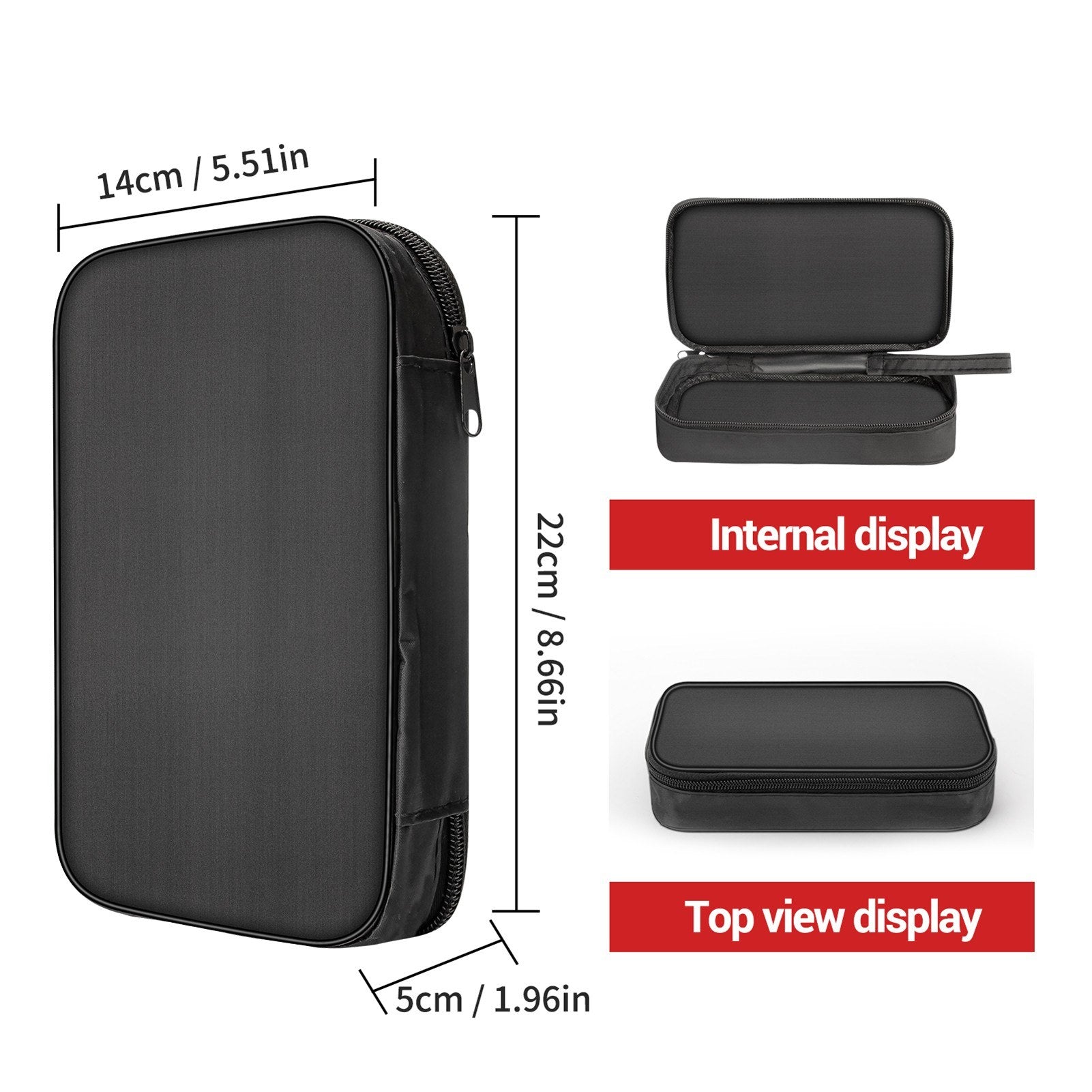

• 1 Storage Bag
• 1 Manual (English)
