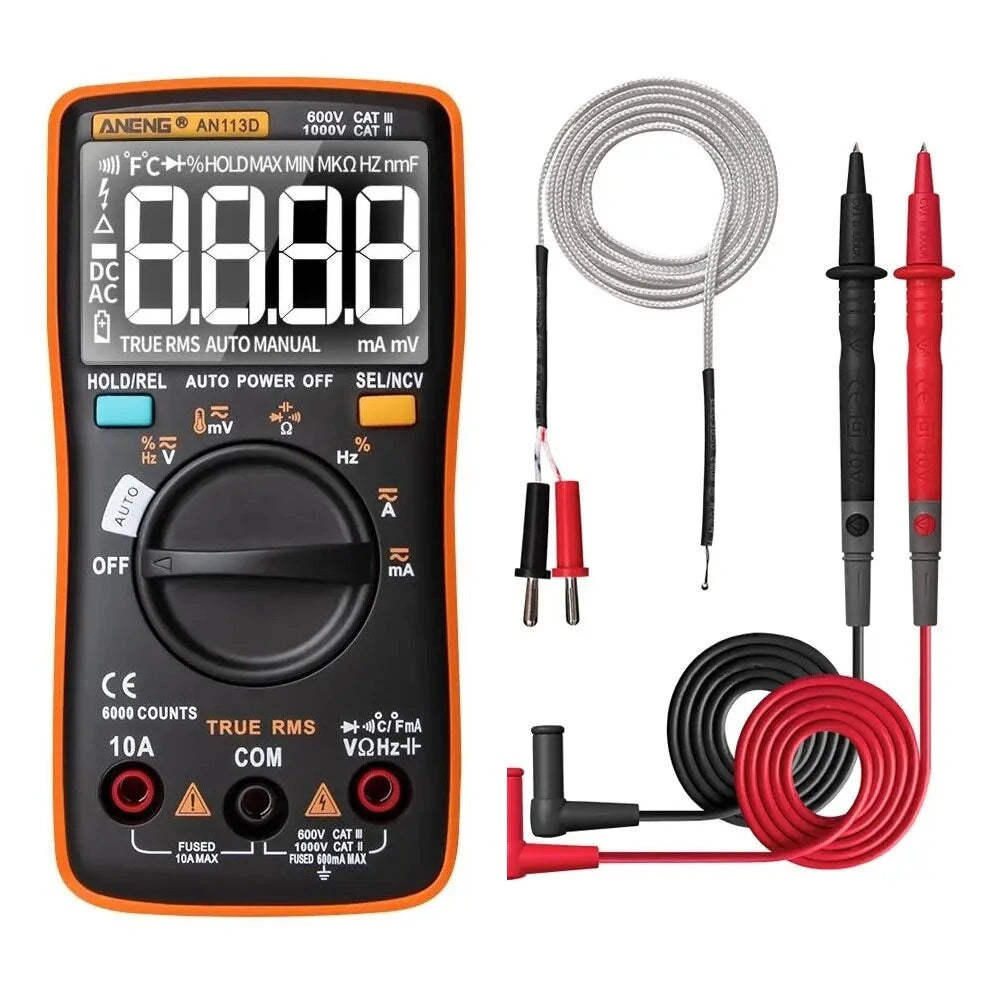

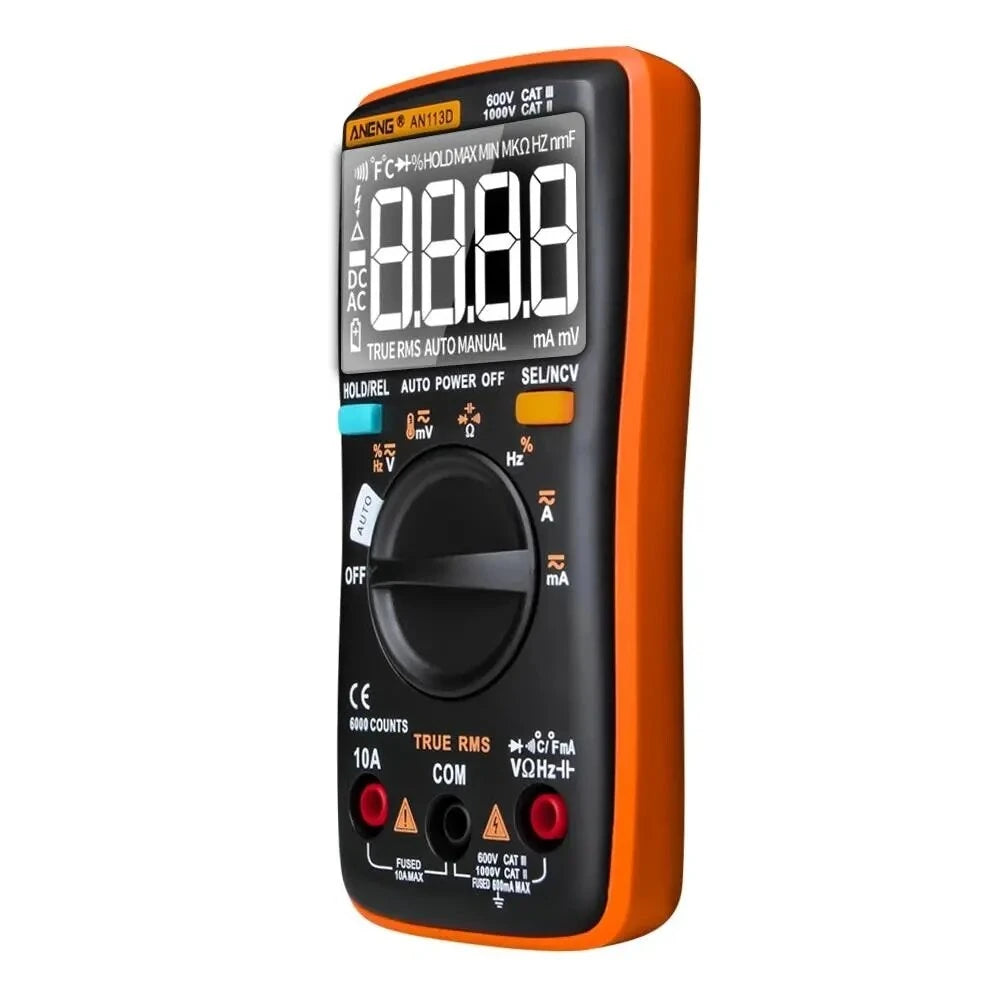

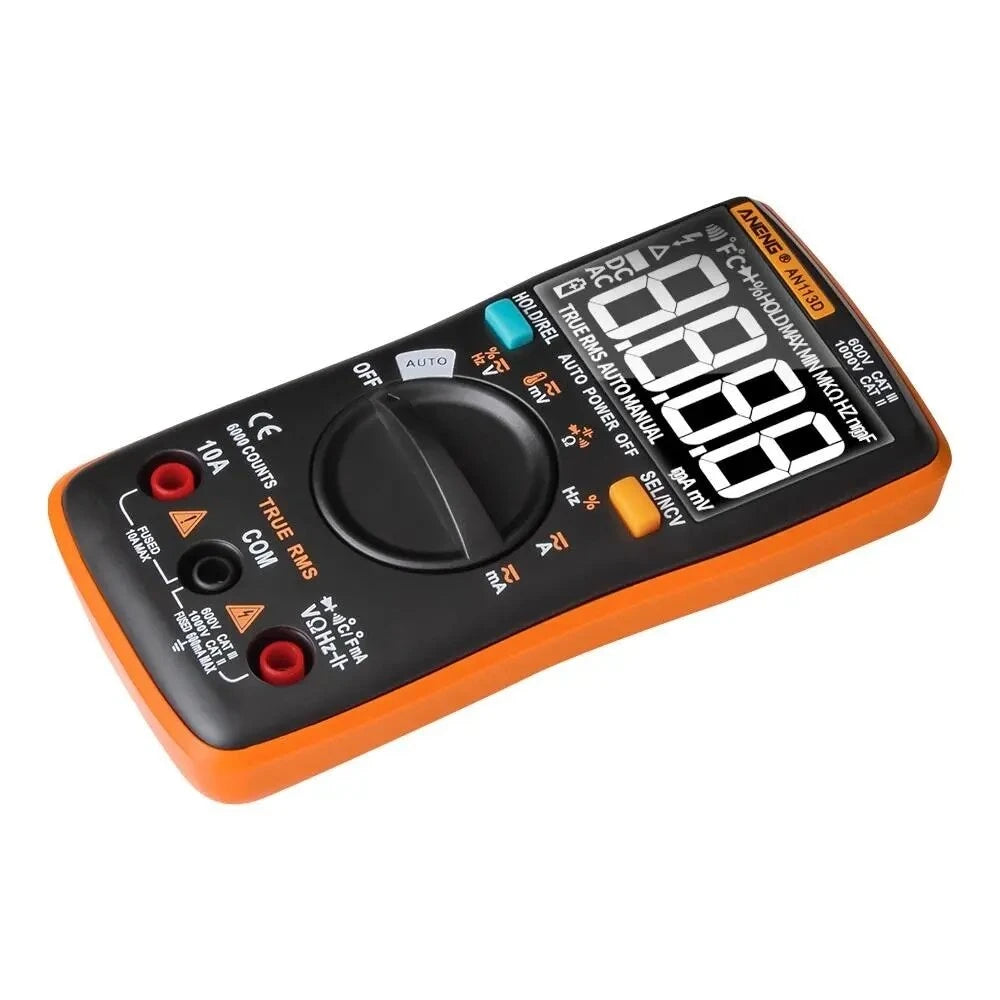

ANENG AN113D True-RMS Digital Multimeter, 6000 Counts, Auto-Measure, AC/DC Voltage, Current, Resistance, Diode, Continuity, Temperature Tester, Upgraded from AN8002 - Orange

Features:

This multi-functional, auto-ranging digital multimeter comes with a 6000 counts LCD display, offering a range of advanced measurement capabilities for various applications.

• Measurement Functions: AC/DC voltage, AC/DC current, resistance, diode test/continuity, NCV, frequency/duty cycle, capacitance.
• True-RMS Support: Ensures accurate measurements for both linear and non-linear loads.
• Auto Power Off: Conserves battery life by automatically powering down after a period of inactivity.
• Temperature Measurement: Means you can check temperature ranges efficiently and effectively.
• Data Hold Function: Allows you to freeze the display reading, making it easy to capture and record measurements.

Specification:

• Display (LCD): 6000 counts, Auto Ranging
• Material: ABS/PVC
• Color: Orange
• Update Rate: 3 times per second
• Low Battery Indication: Yes
• Product Weight: 114g (batteries not included)
• Product Dimensions: 130 x 65 x 32mm
• Operating Temperature: 0~40℃, Storage Temperature: -20~60℃

Measurement Ranges:

• DC Voltage: 6.000V (0.001V) to 1000V (1V), ±(0.5%+3)
• AC Voltage: 6.000V (0.001V) to 750V (1V), ±(1.0%+3)
• DC Current: 60.00mA (0.01mA) to 10.00A (0.01A), ±(1.2%+3)
• AC Current: 60.00mA (0.01mA) to 10.00A (0.01A), ±(1.5%+3)
• Resistance: Up to 60.00MΩ, ±(0.5%+3) to ±(1.5%+3)
• Capacitance: 9.999nF (0.001nF) to 9.999mF (0.001mF), varying accuracies
• Frequency: 99.99Hz (0.01Hz) to 9.999MHz (0.001MHz), ±(0.1%+2)
• Duty Cycle: 1%~99% with an accuracy of ±(0.1%+2)
• Temperature: (-20~1000)℃, 1℃ increment, ±(2.5%+5)

Additional Features:

• Diode Test: Yes
• Continuity Test: Yes

Package Includes:

• 1 x Multimeter
• 1 x Pair of Test Leads
• 1 x Thermocouple
• 1 x English User Manual
