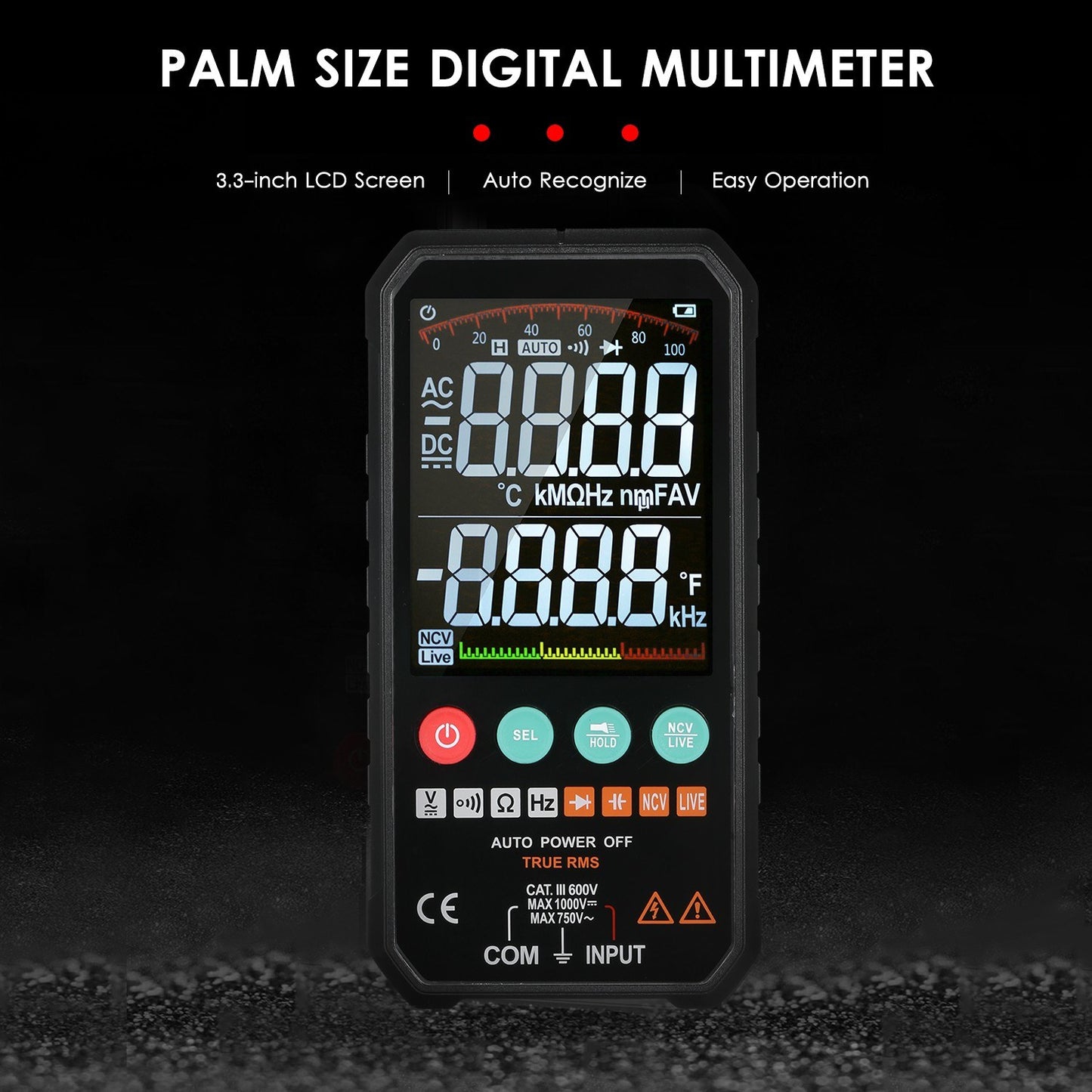

Palm-Size 3.3 LCD Digital Multimeter, 6000 Counts True RMS Universal Meter, Super Slim Design

Experience Precision and Portability with Our 6000 Counts Handheld Digital Multimeter

The ideal tool for students, professionals, and hobbyists alike, our digital multimeter offers fast response times and a user-friendly large LCD display. Lightweight and portable, it's perfect for use at school, home, or in a factory setting.

Key Features:

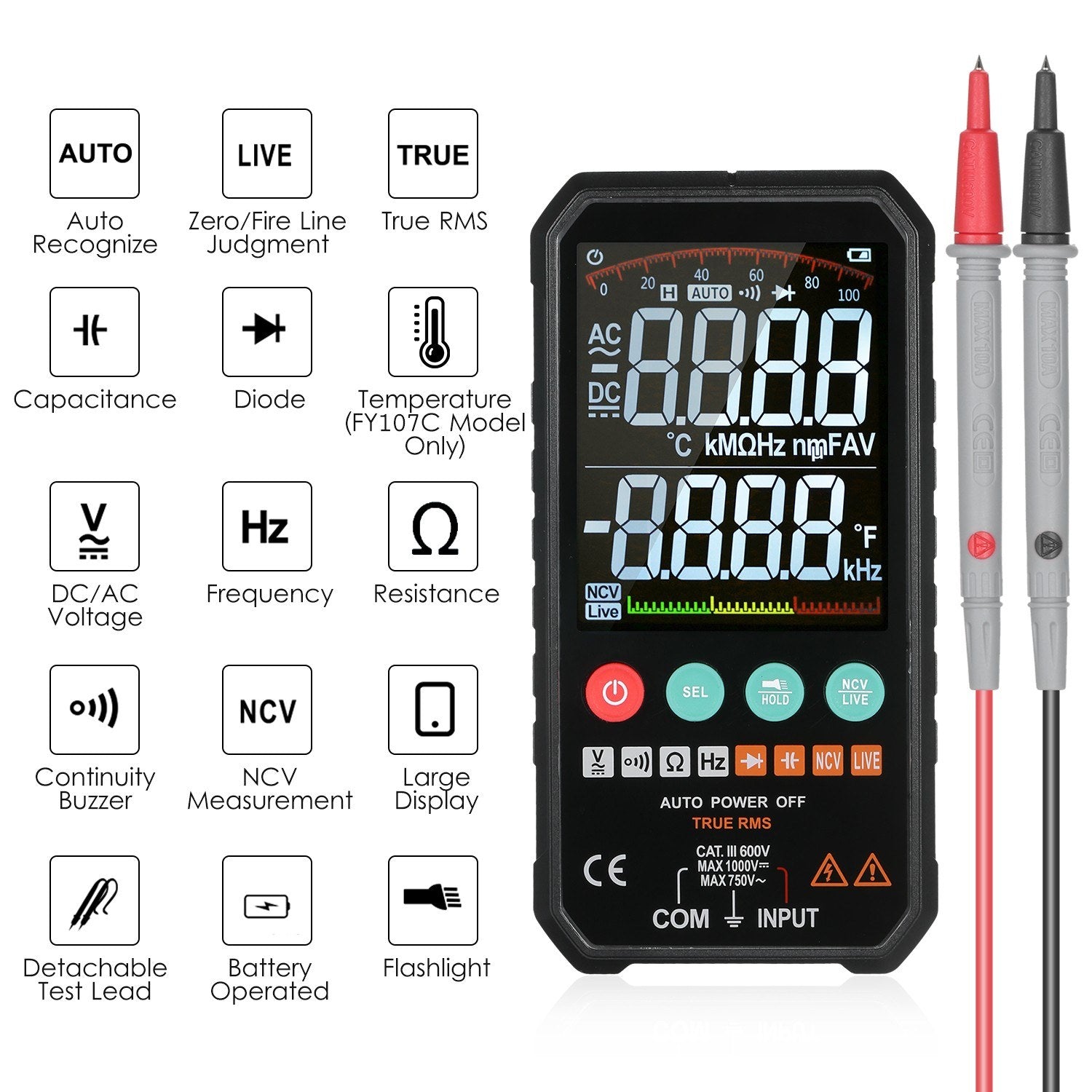

• Wide Measurement Range: Accurately measure AC/DC voltage, resistance, capacitance, frequency, diode and continuity, NCV test, and temperature (for FY107C Model only).

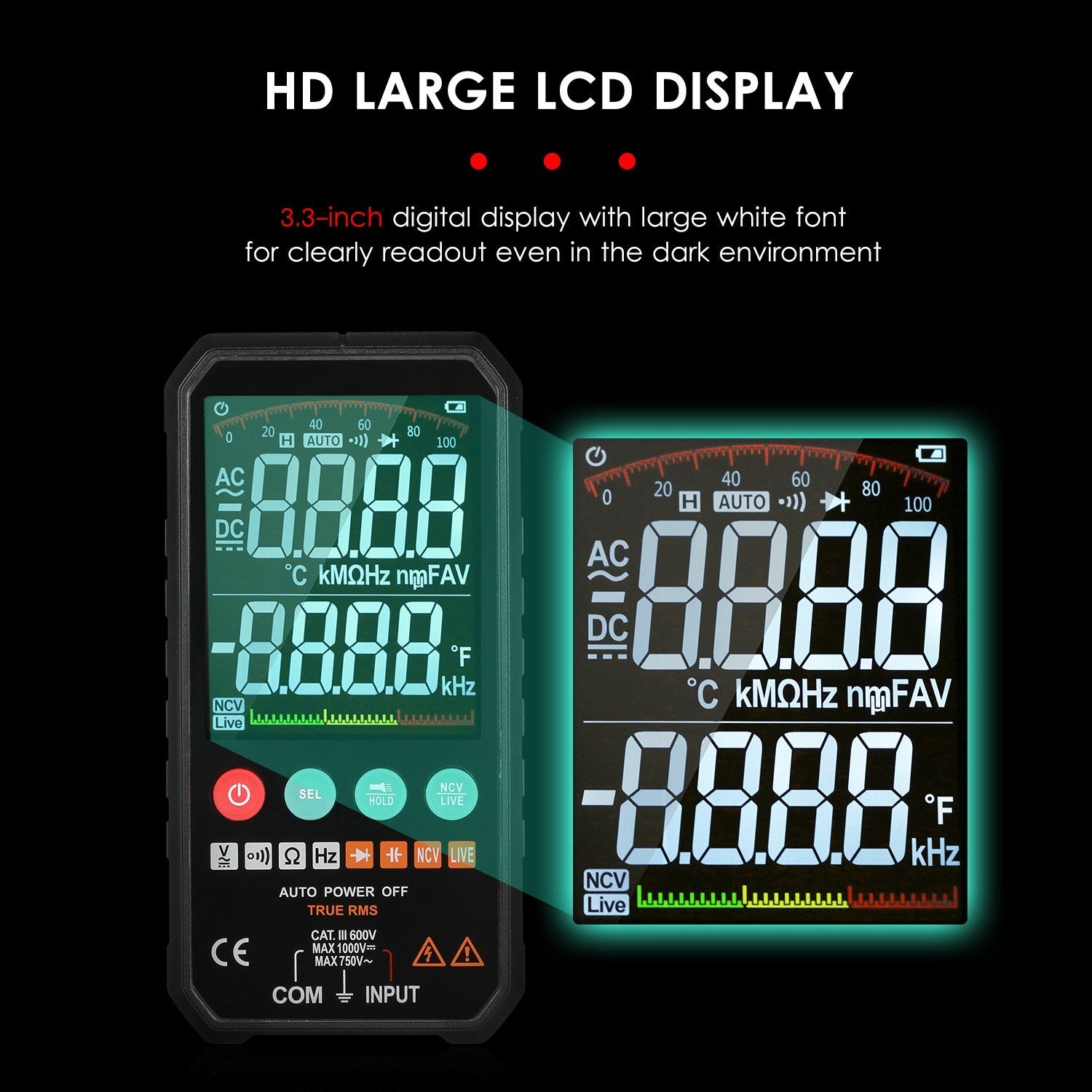

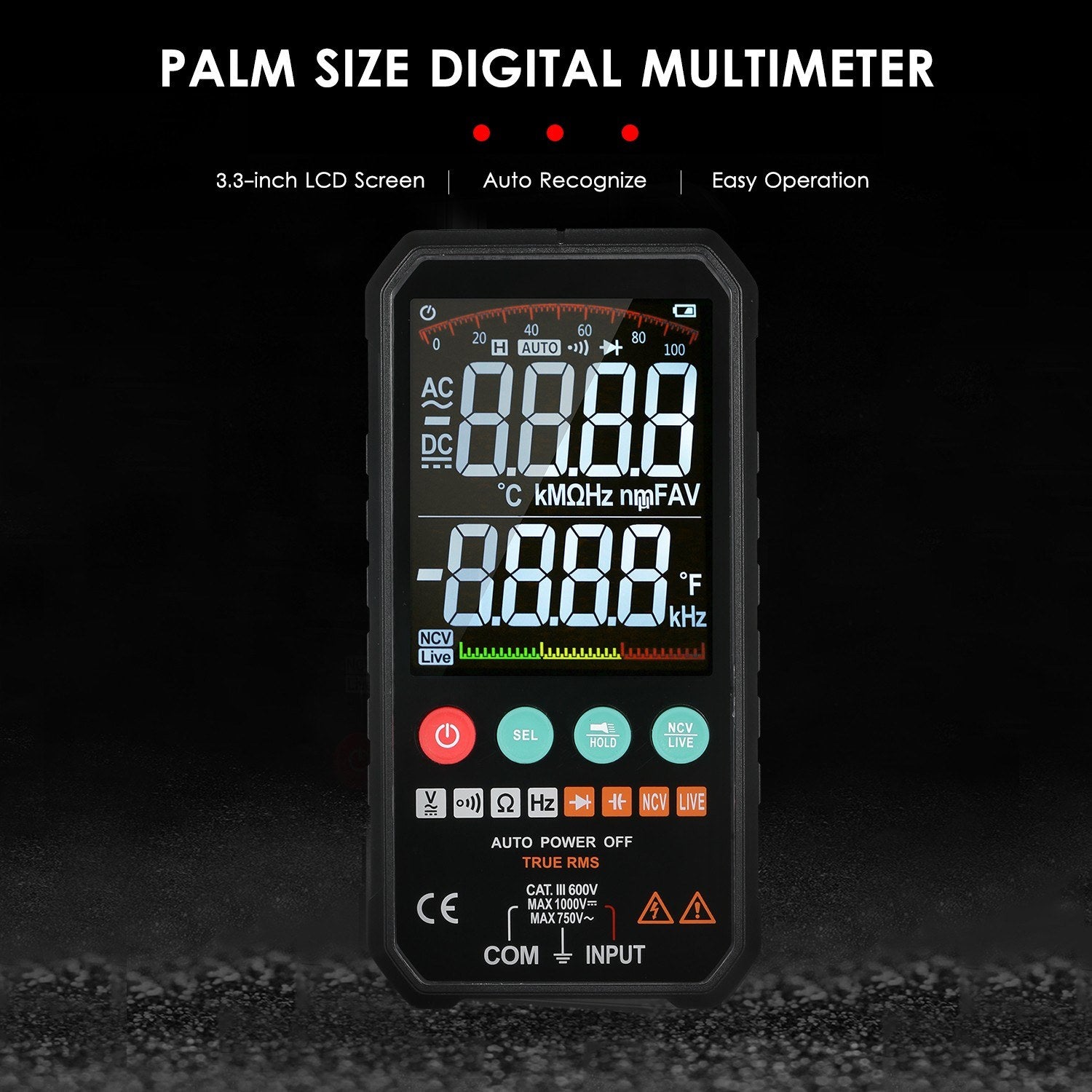

• HD Large LCD Display: Enjoy the convenience of a 3.3-inch multifunctional screen with large white font for easy visibility, even in dark environments.
• Measurement Data Retention: Easily hold and record measurements for note-taking or spreadsheet entry.

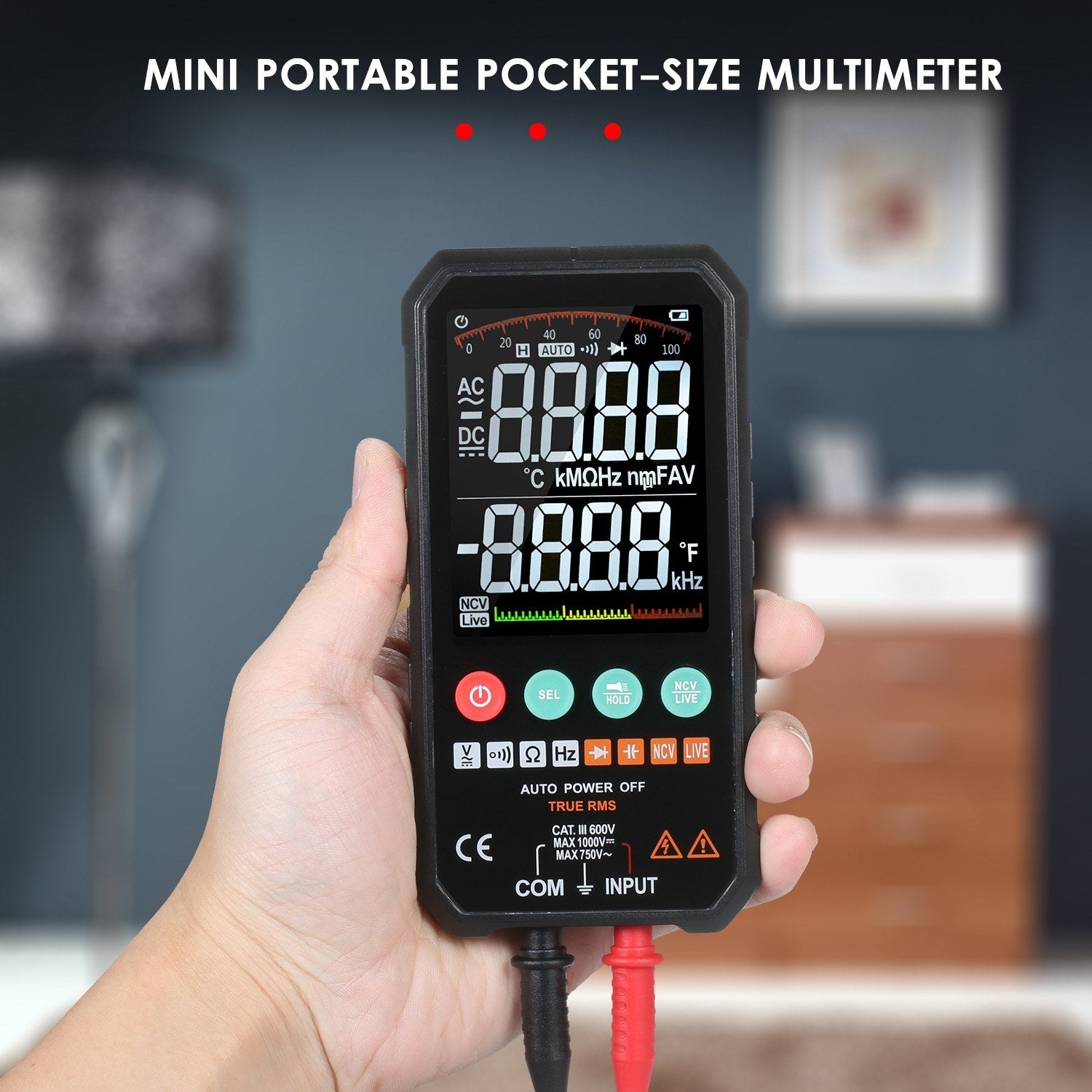

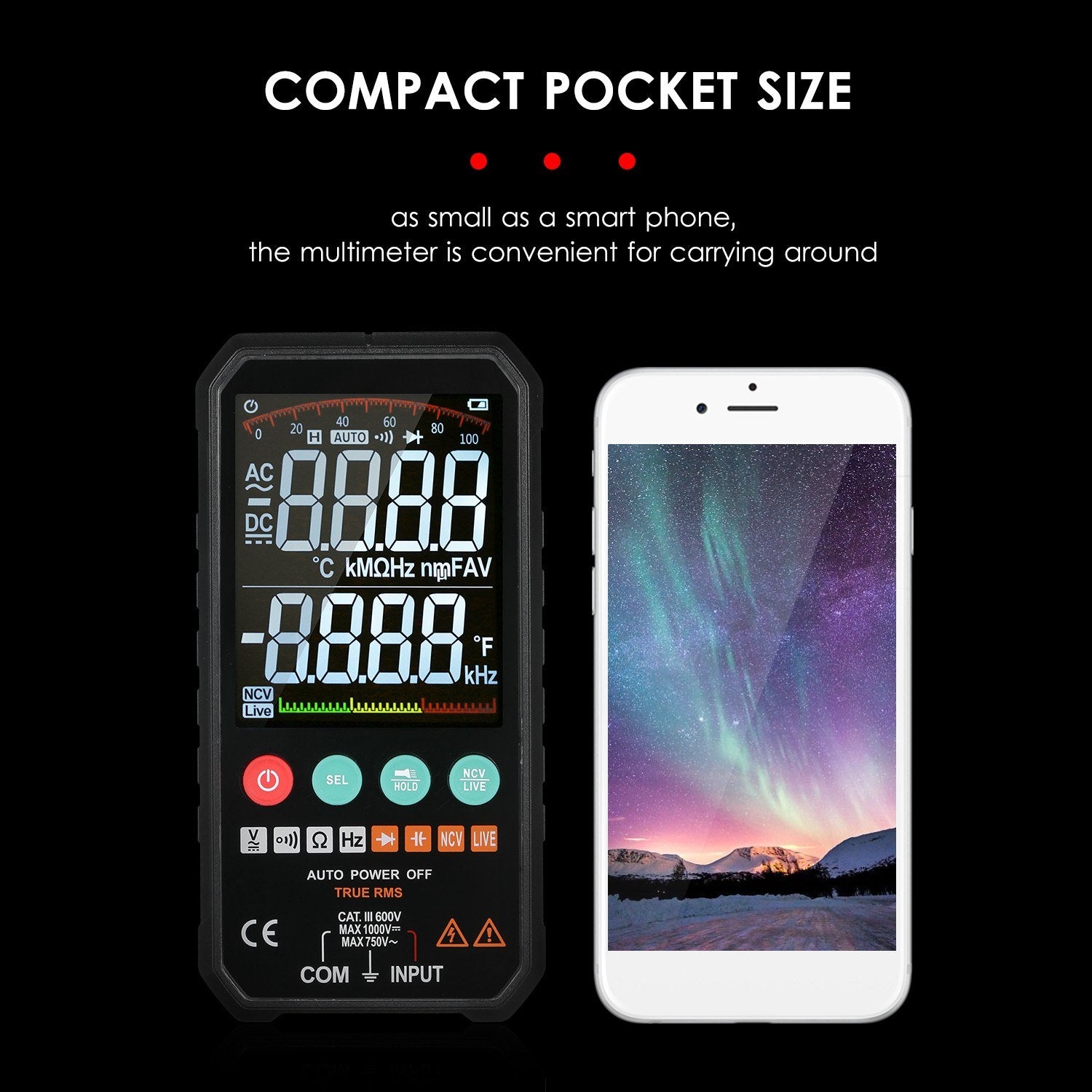

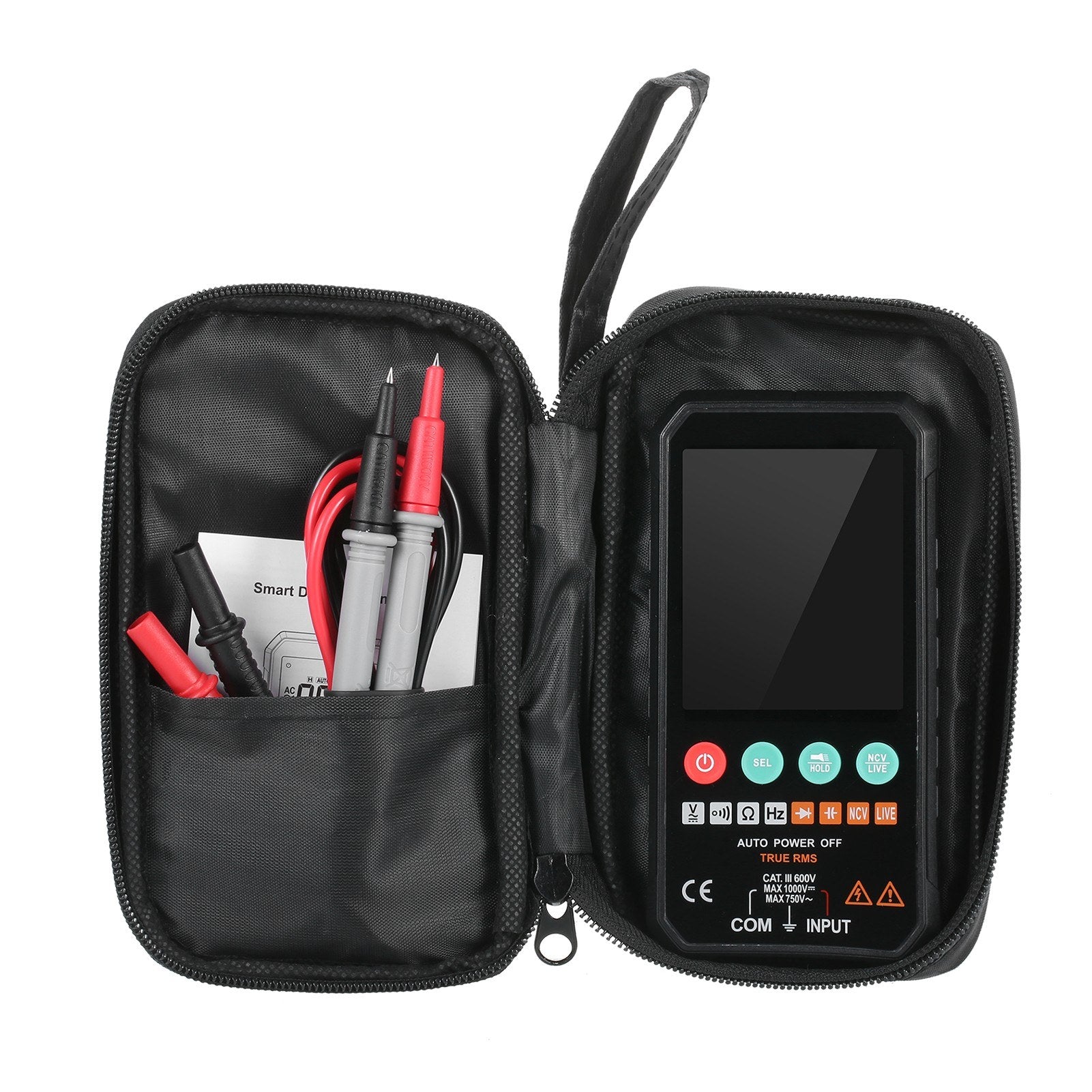

• Compact Pocket Size: As small as a smartphone and powered by two AAA batteries (not included), it includes a protective zipper bag for damage prevention.

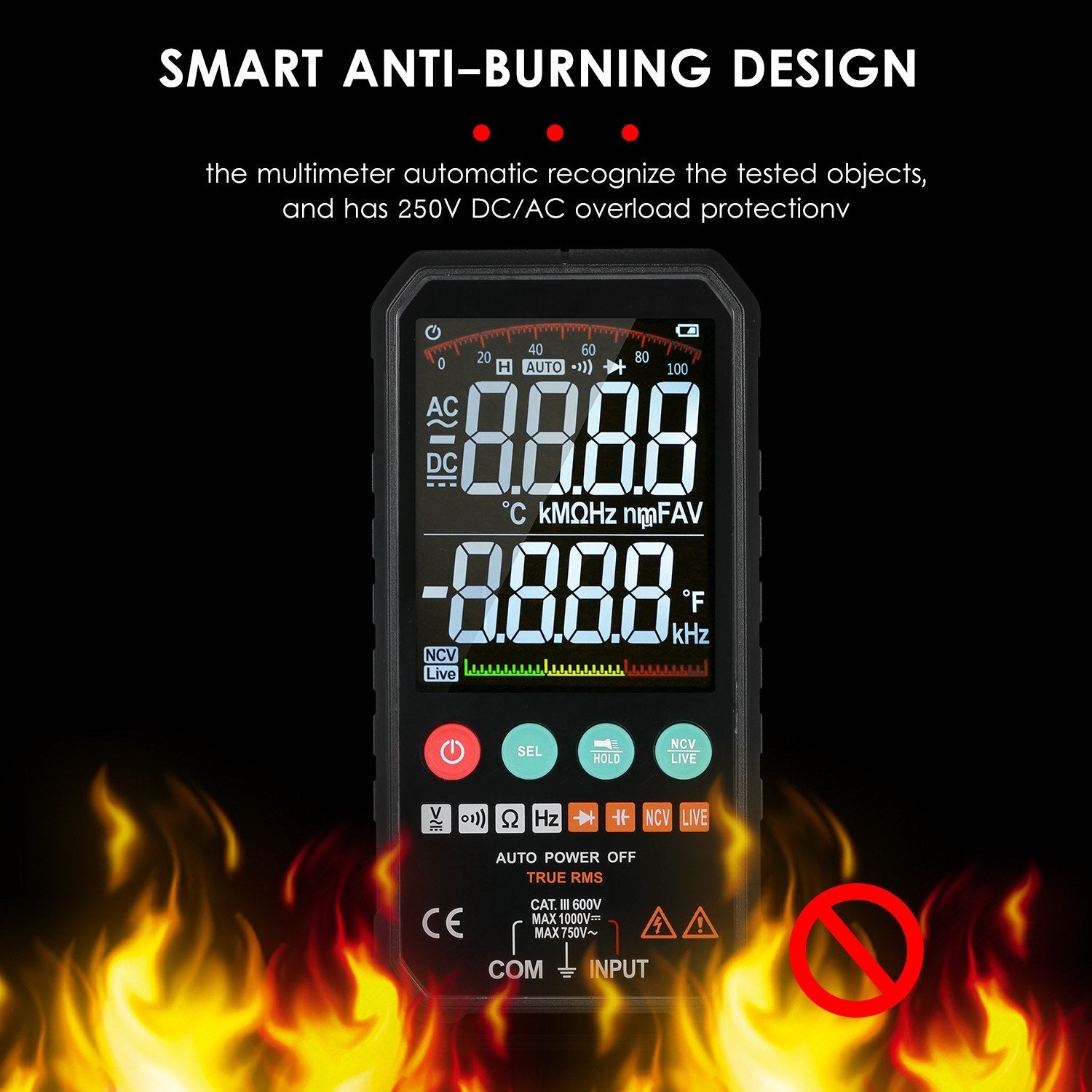

• Smart Anti-burning Design: Features automatic object recognition with 250V DC/AC overload protection.

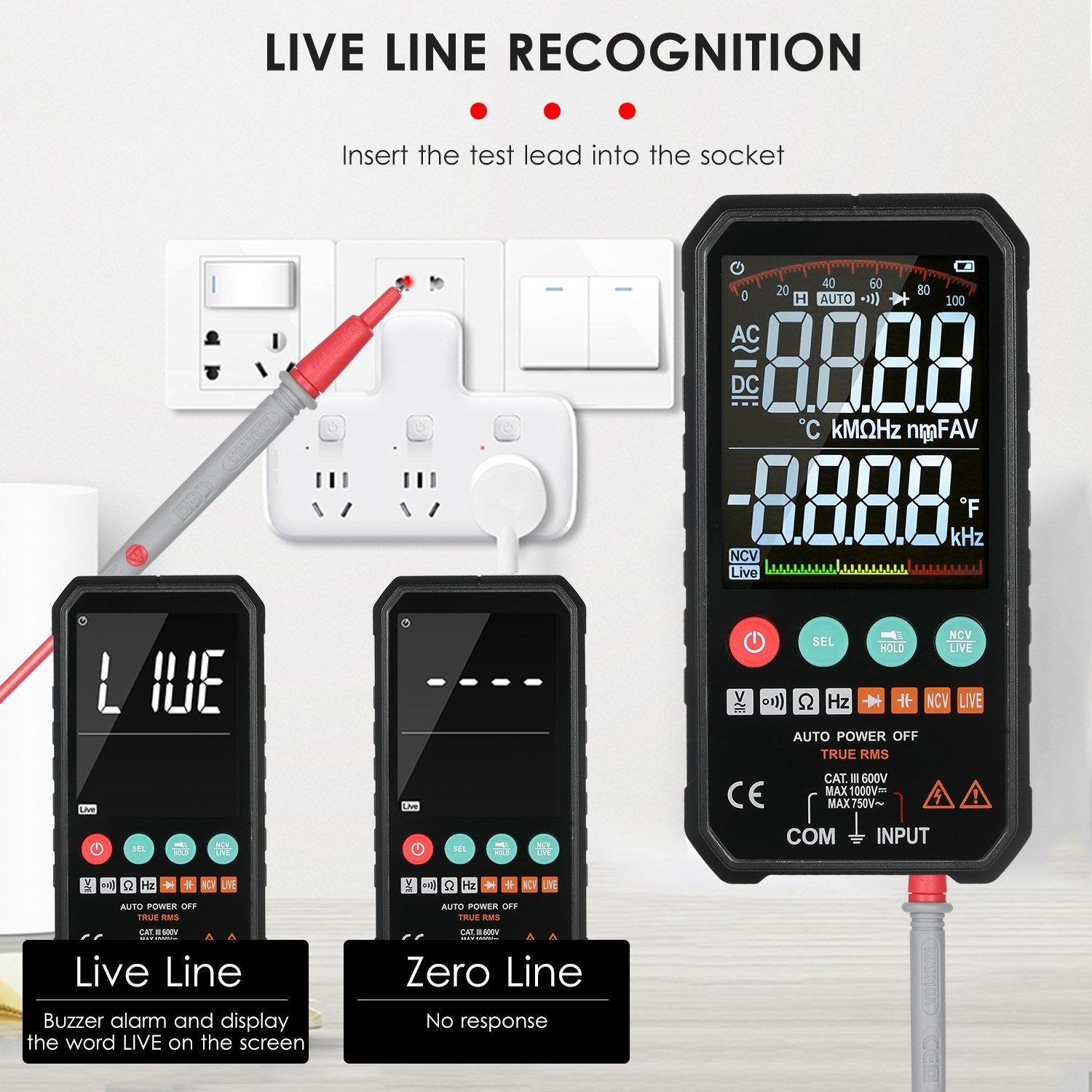

• Four Measurement Modes: Auto measurement for DC/AC voltage, resistance, and continuity, along with NCV, LIVE, and diode tests.
• NCV Test: High-sensitivity voltage probe measurement with analogue bar and buzzer for signal strength indication.

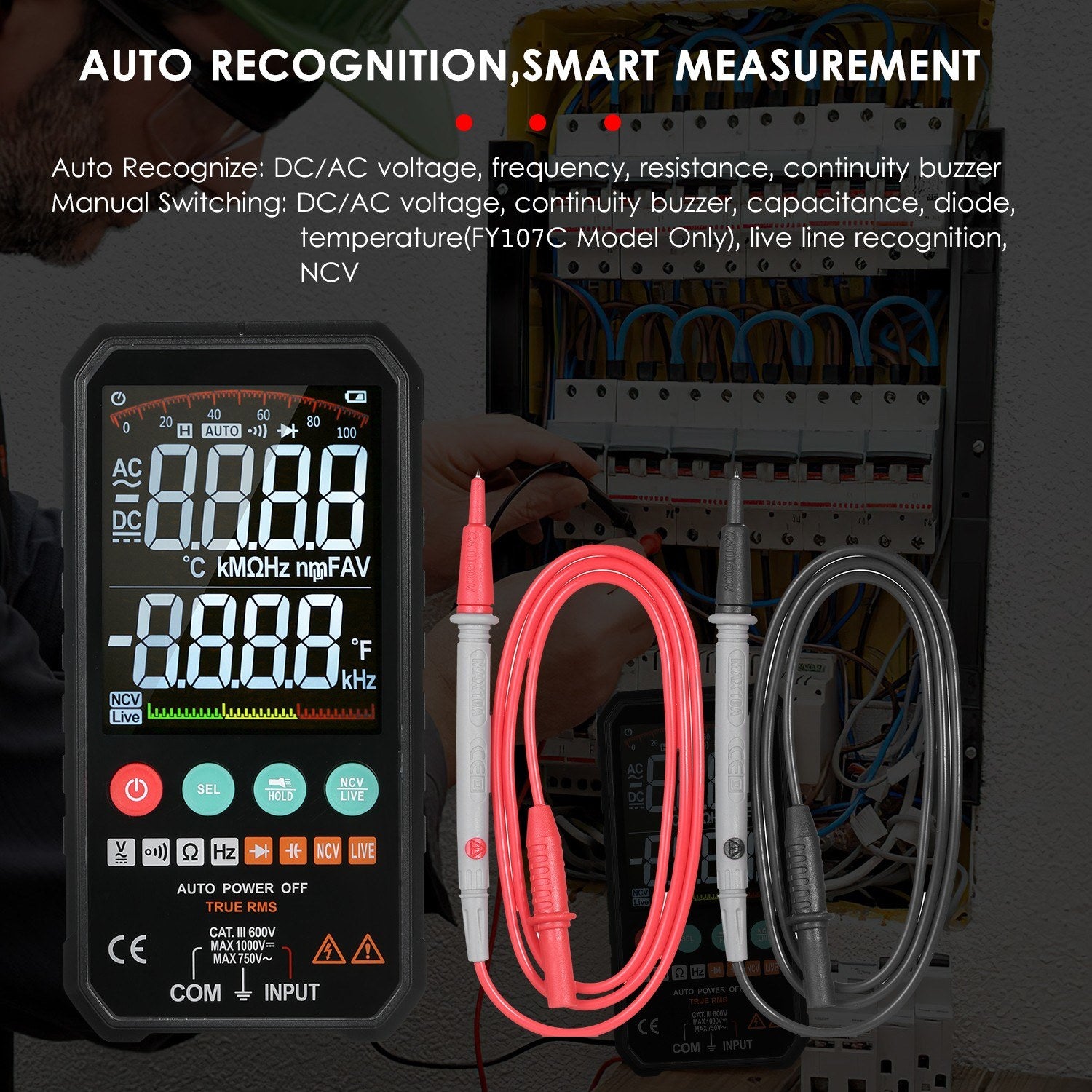

• Smart Measurement: Automatically detects DC/AC voltage, frequency, resistance, and continuity without manual switching.
• Additional Features: Includes a flashlight, true RMS, 15-minute auto-off, low battery indicator, live line, and continuity buzzer.

Specifications:

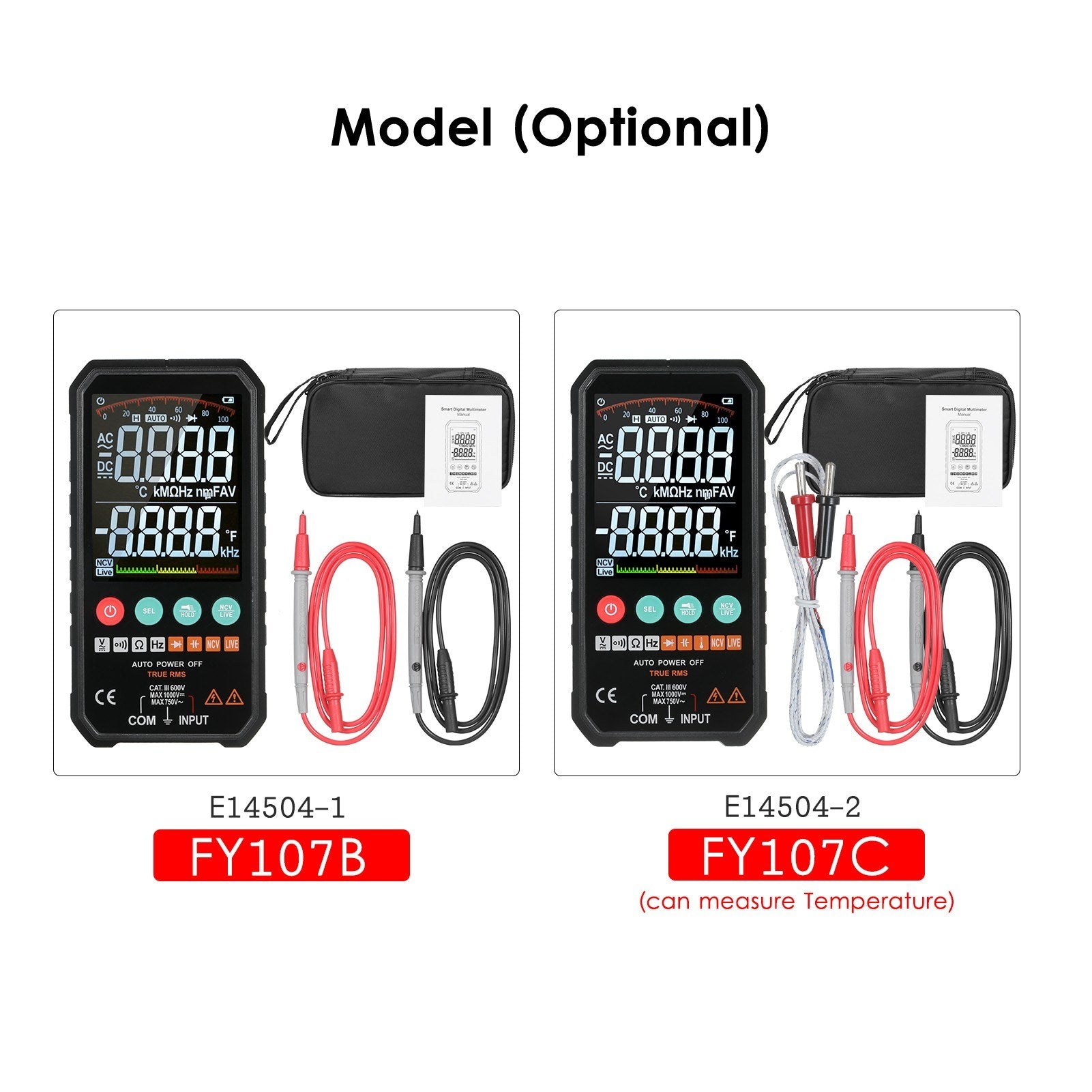

• Model: FY107B / FY107C (Optional)
• DC Voltage Range: 6V/60V/600V/1000V
• AC Voltage Range: 6V/60V/600V/750V
• Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
• Capacitance Range: 6nF/60nF/600nF/6μF/60μF/600μF/60mF
• Frequency Range: 6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz
• Temperature Range: -20~1000℃ / -4~1832℉ (FY107C Model Only)
• Continuity: 100Ω
• Material: ABS
• Display: 6000 counts LCD
• Safety Level: 600V CAT III
• Pollution Level: 2
• Over Range Indication: OL
• Sampling Time: 3 times/second
• Operating Temperature: 0~40℃
• Storing Temperature: -10~60℃
• Operating Altitude: <2000m

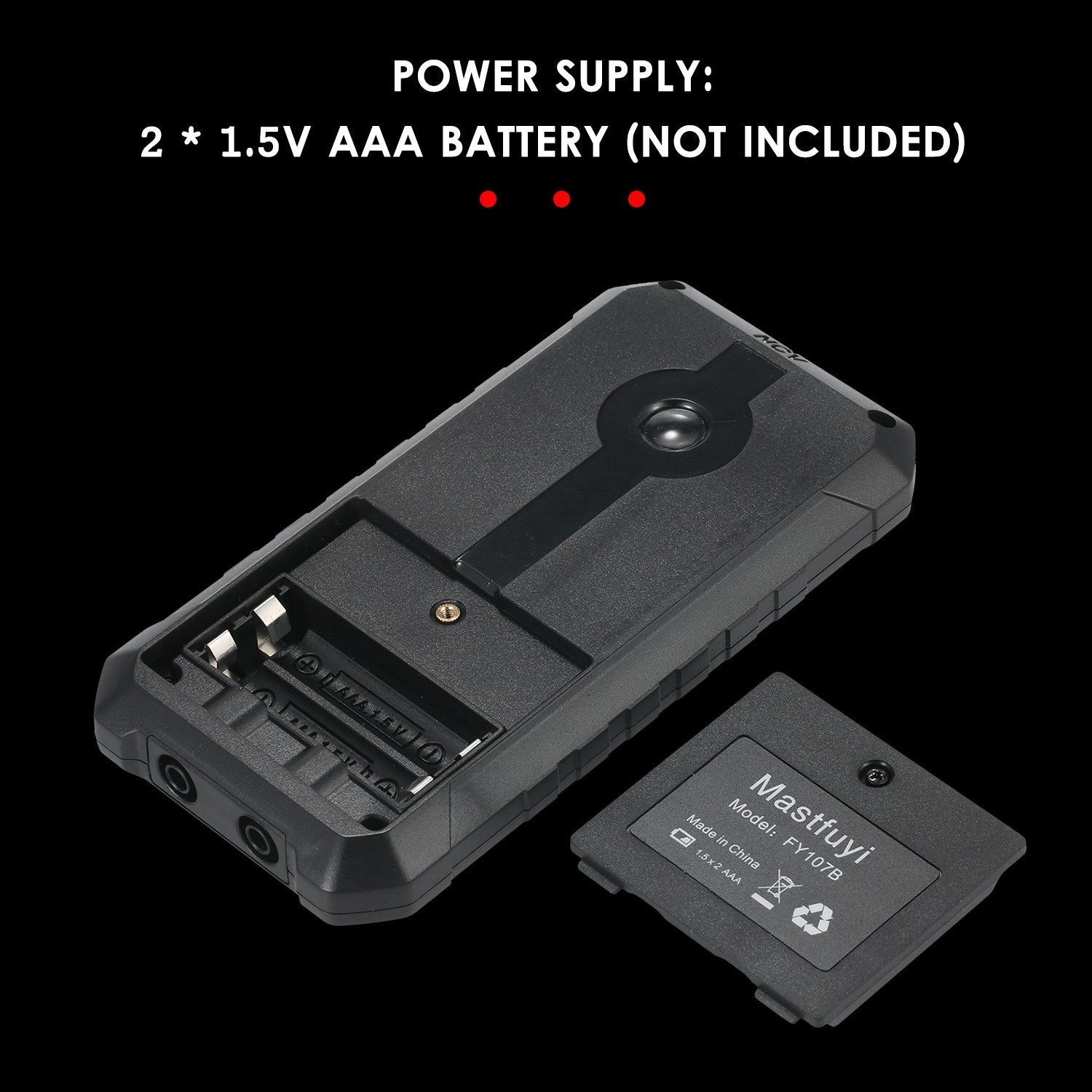

• Power Supply: 2 * 1.5V AAA battery (NOT included)

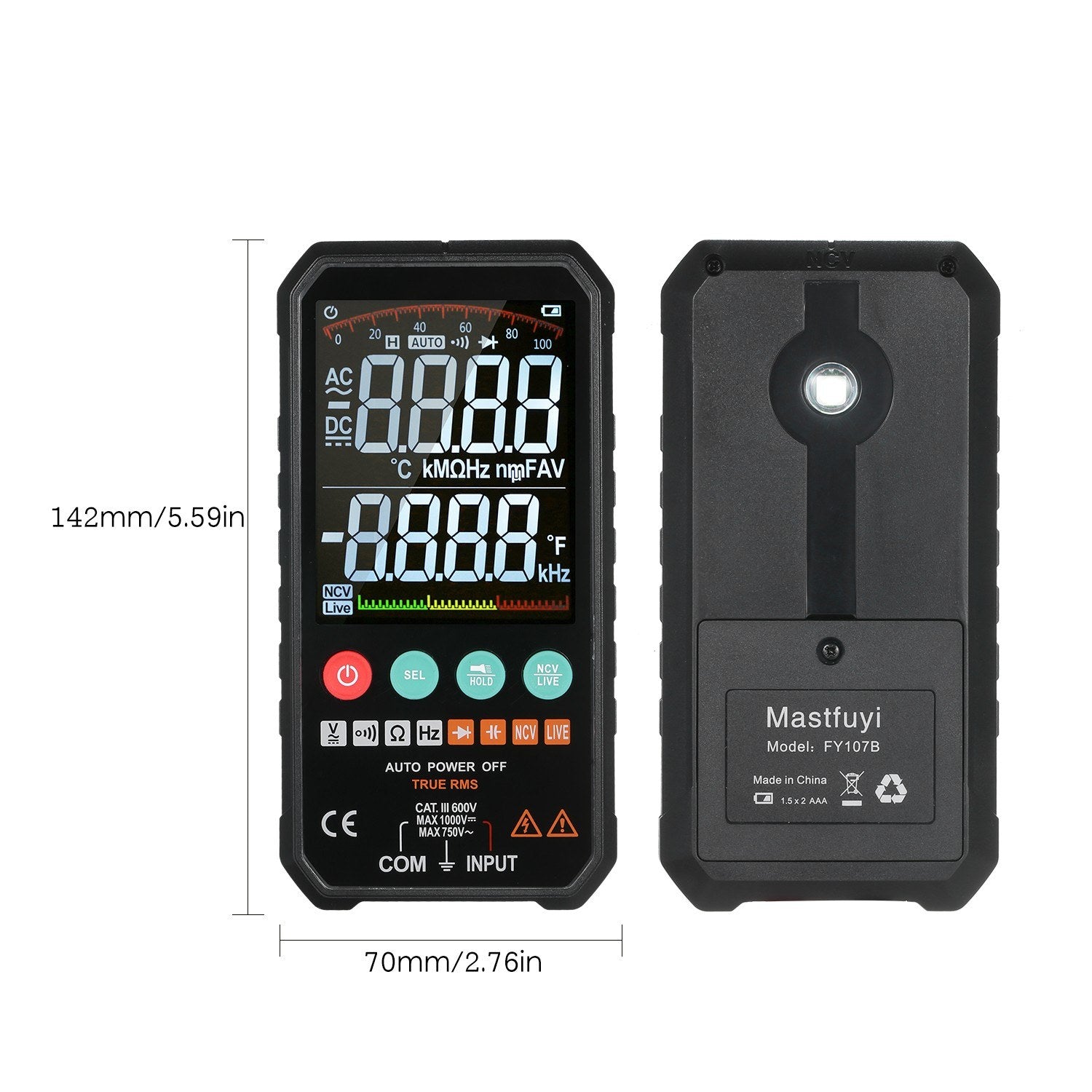

• Item Size: 142 * 70 * 20mm / 5.59 * 2.76 * 0.79in
• Item Weight: 189g / 6.69oz (FY107B), 202g / 7.14oz (FY107C)
• Package Weight: 293g / 10.35oz (FY107B), 305g / 10.77oz (FY107C)
• Package Size: 19.5 * 11.5 * 4cm / 7.68 * 4.53 * 1.57in

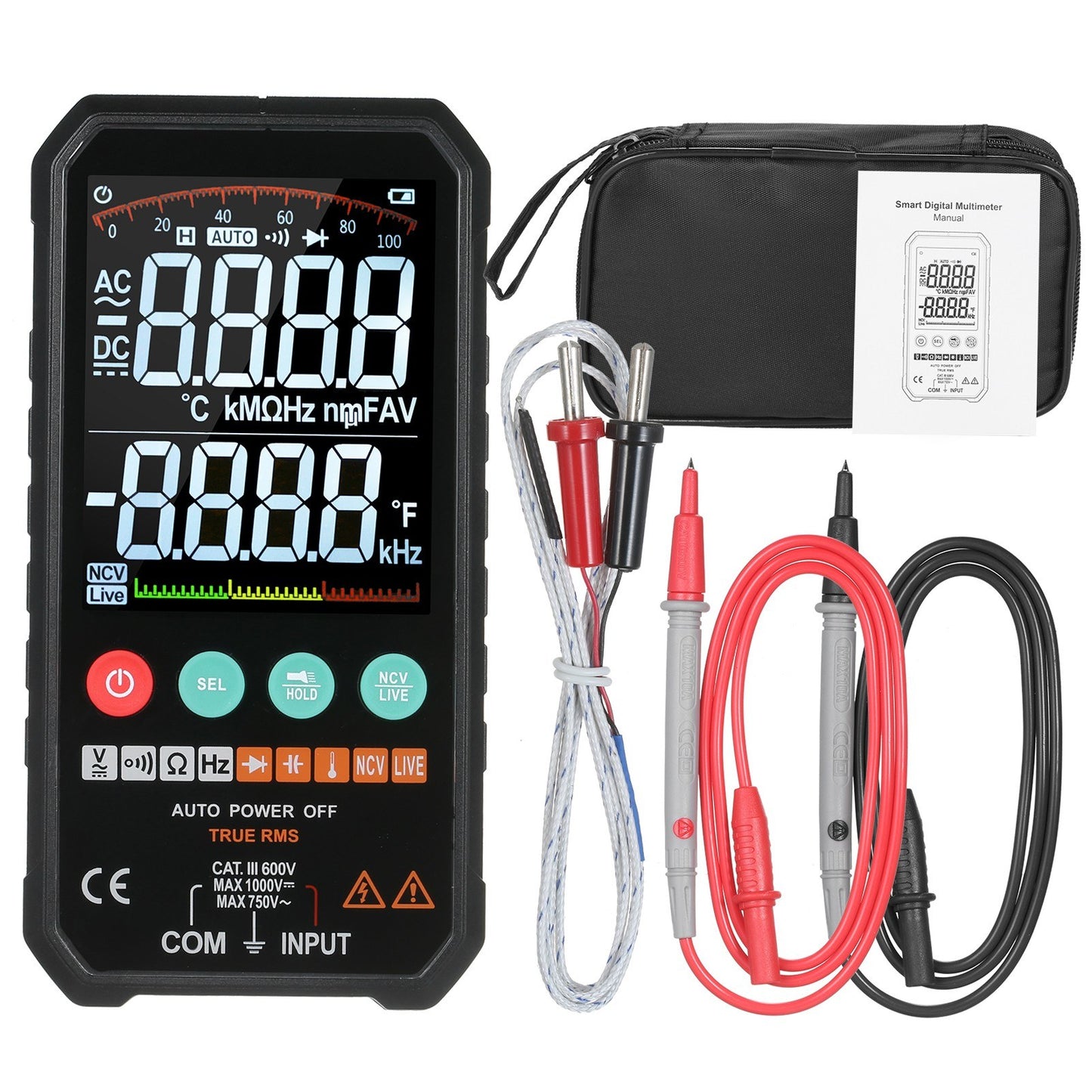

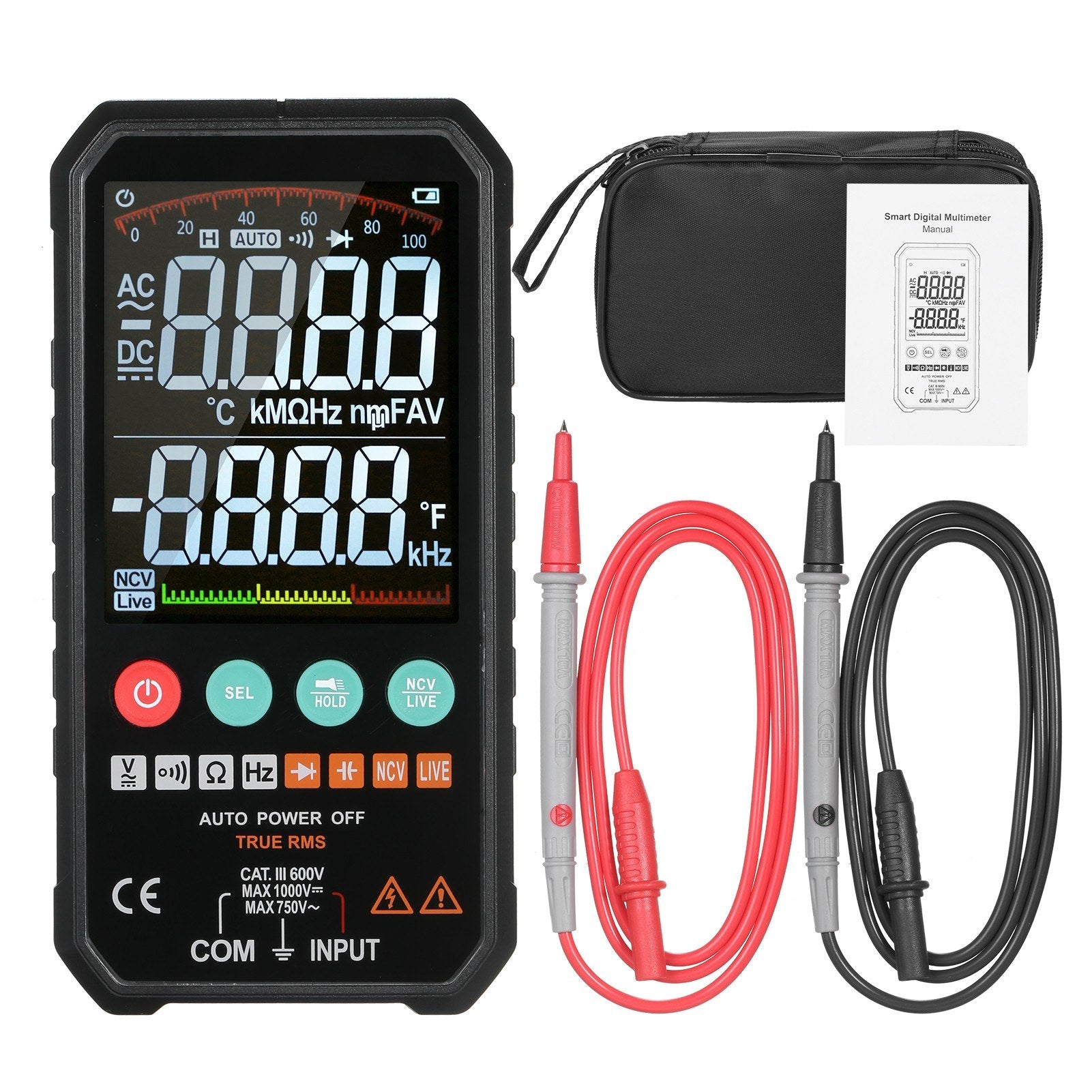

Packing List:

• 1 * Multimeter

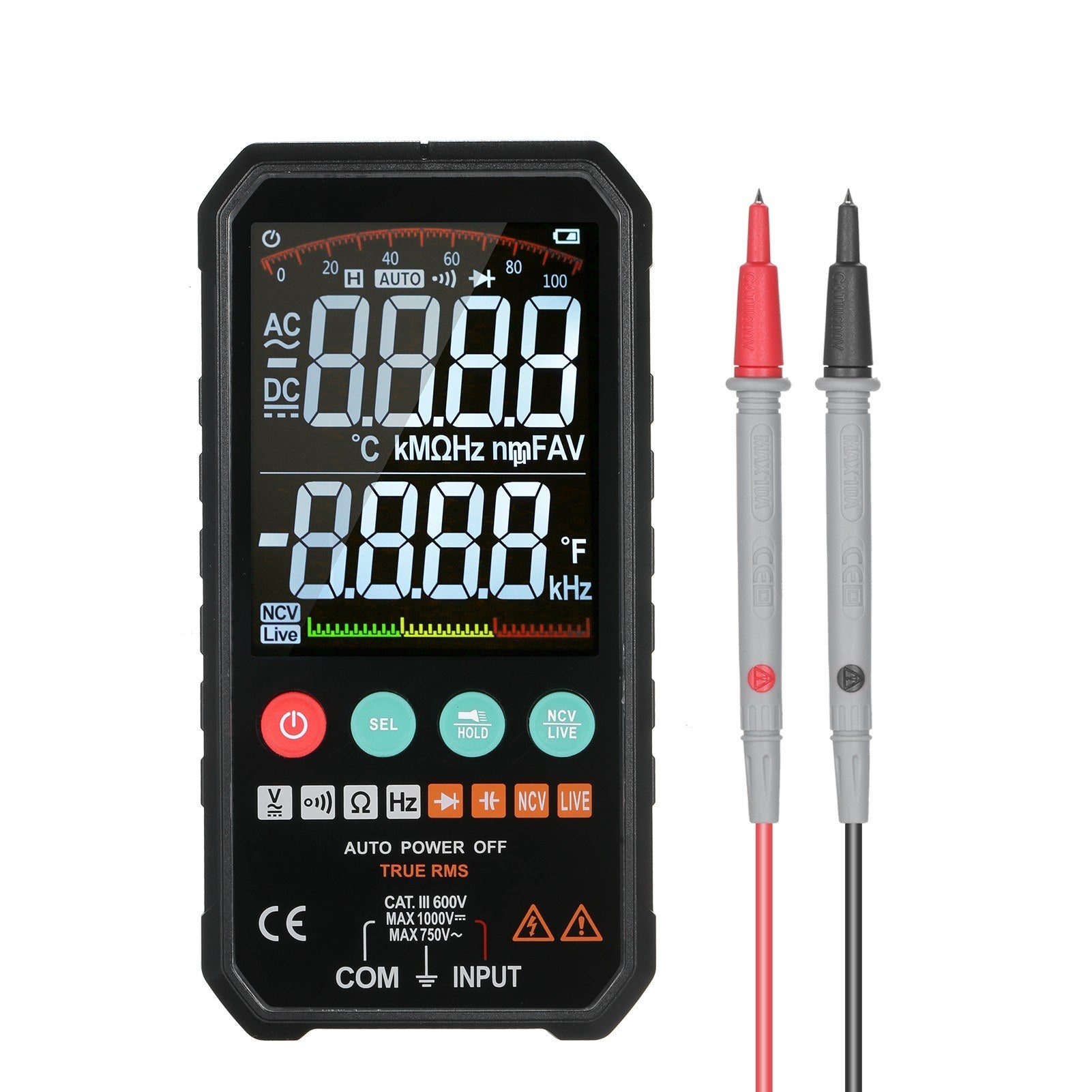

• 1 * Pair of Test Lead
• 1 * Storage Bag
• 1 * Temperature K-type Probe (FY107C Model Only)
• 1 * Manual (English)
