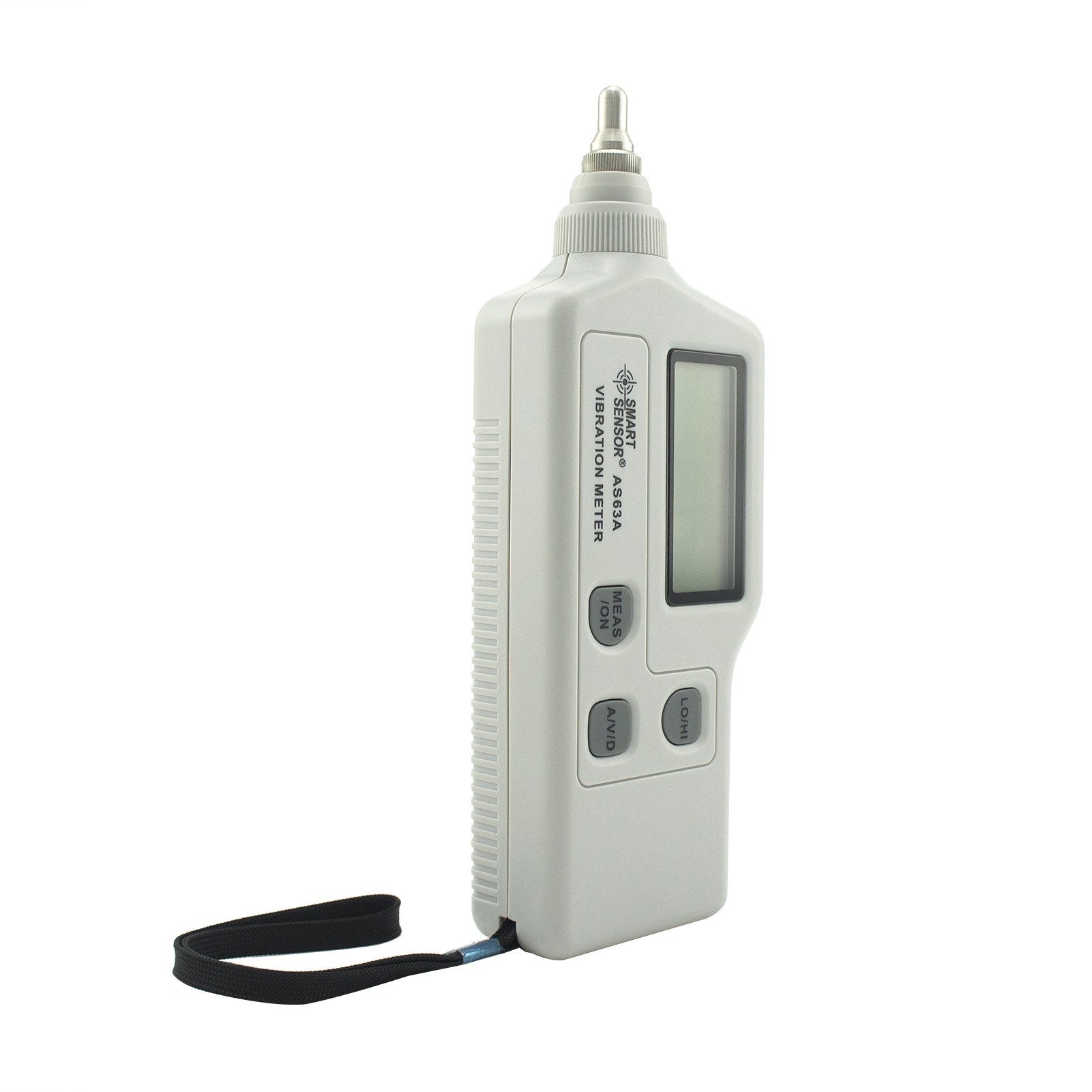

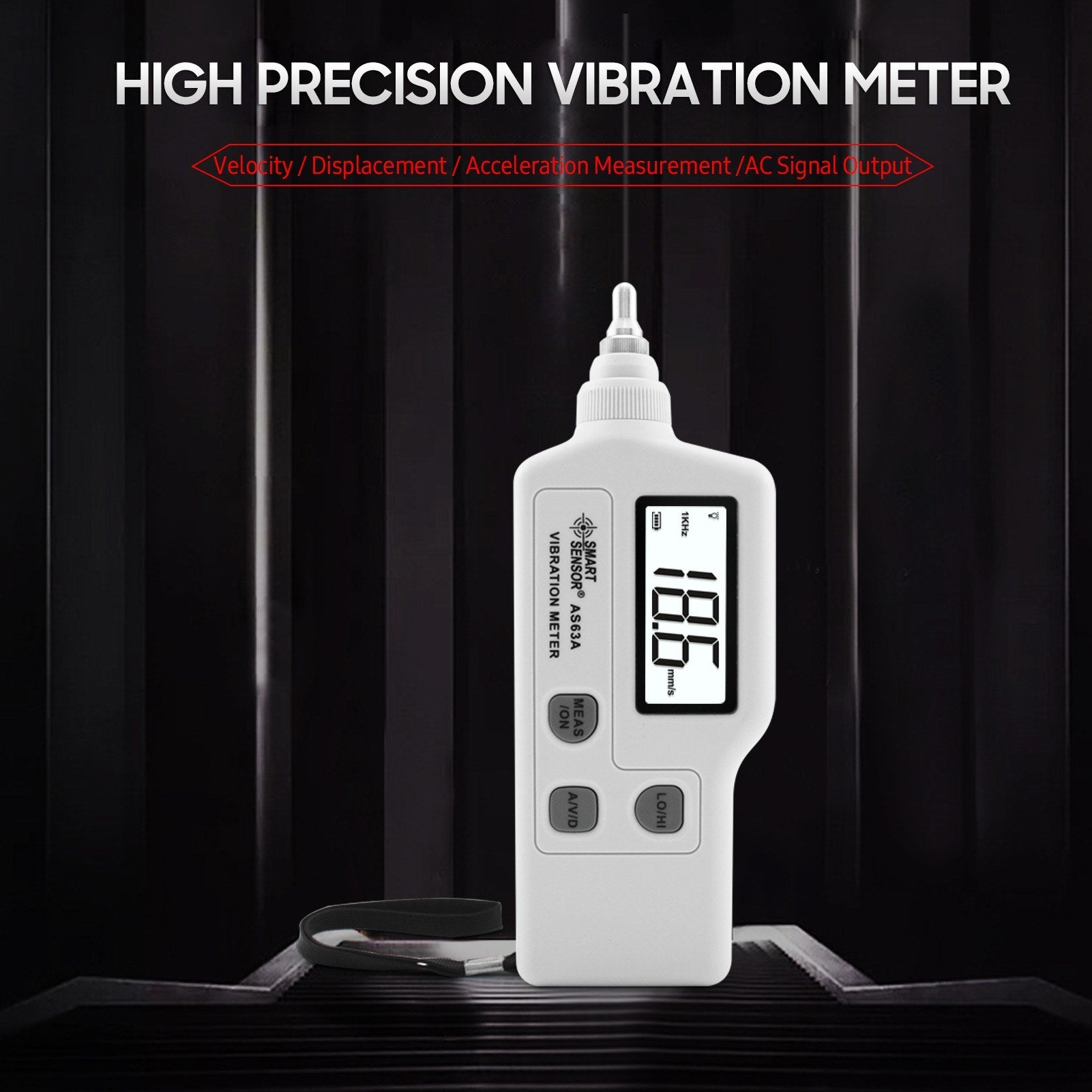

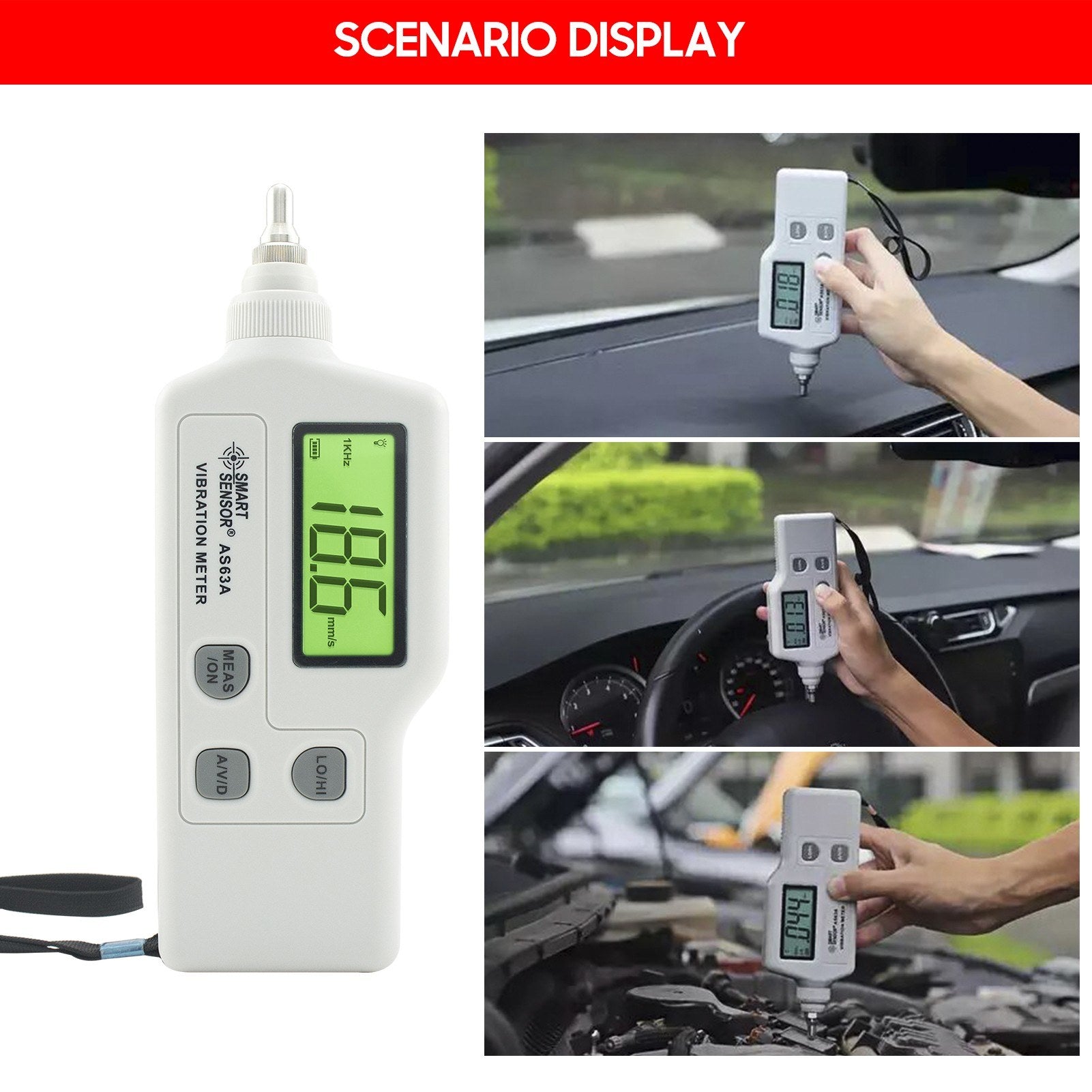

AS63A Digital Vibration Meter - LCD Screen Analyzer with AC Output for Acceleration, Velocity, Displacement Measurement

Product Overview:
This advanced vibration meter leverages the piezoelectric effect of artificial polarized ceramics for superior performance. It is ideal for monitoring a wide range of vibrating mechanical equipment, particularly for the vibration measurement of rotating and reciprocating machinery. The device is versatile and can measure acceleration, velocity, and displacement, making it valuable in industries such as mechanical manufacturing, electric power, metallurgy, and general aviation.

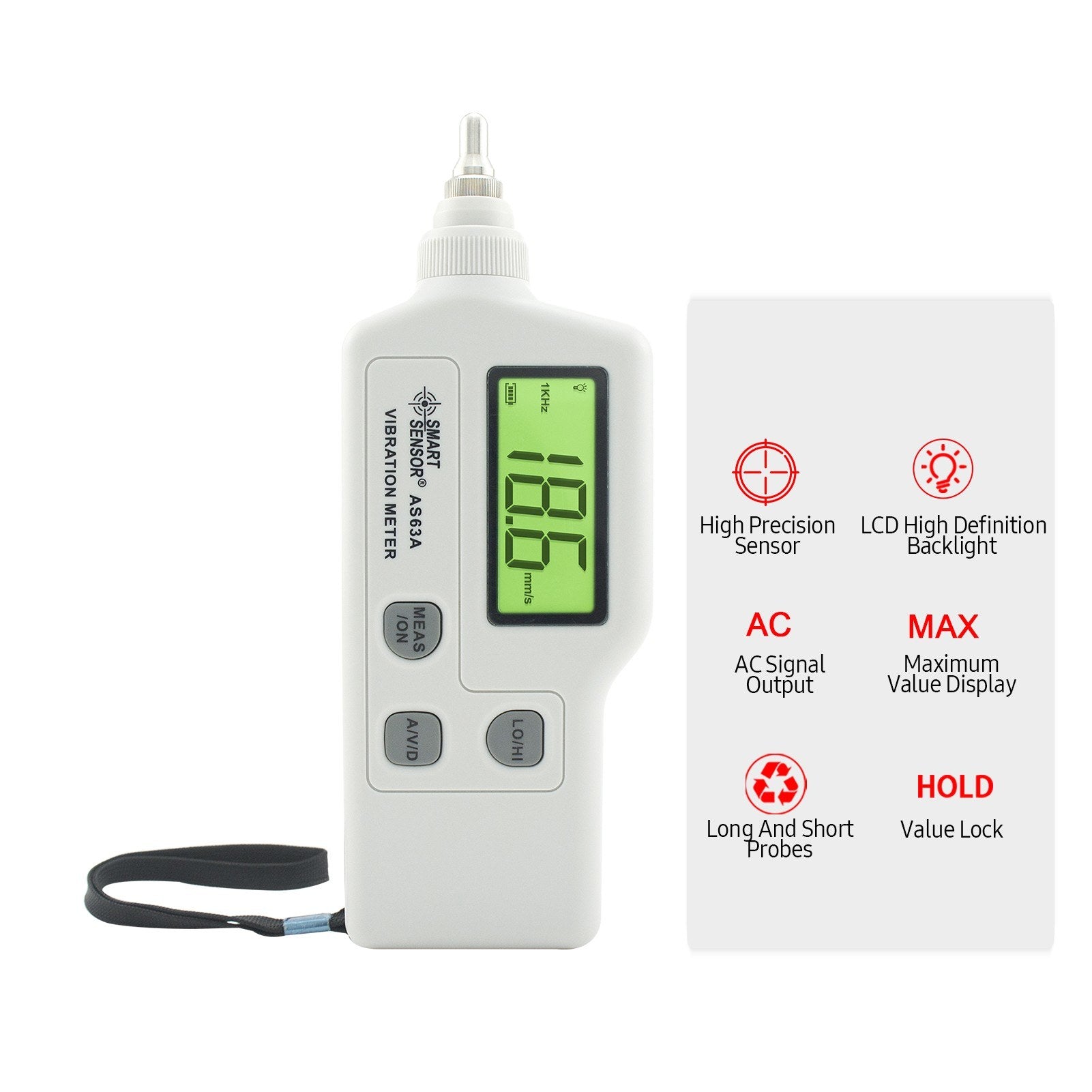

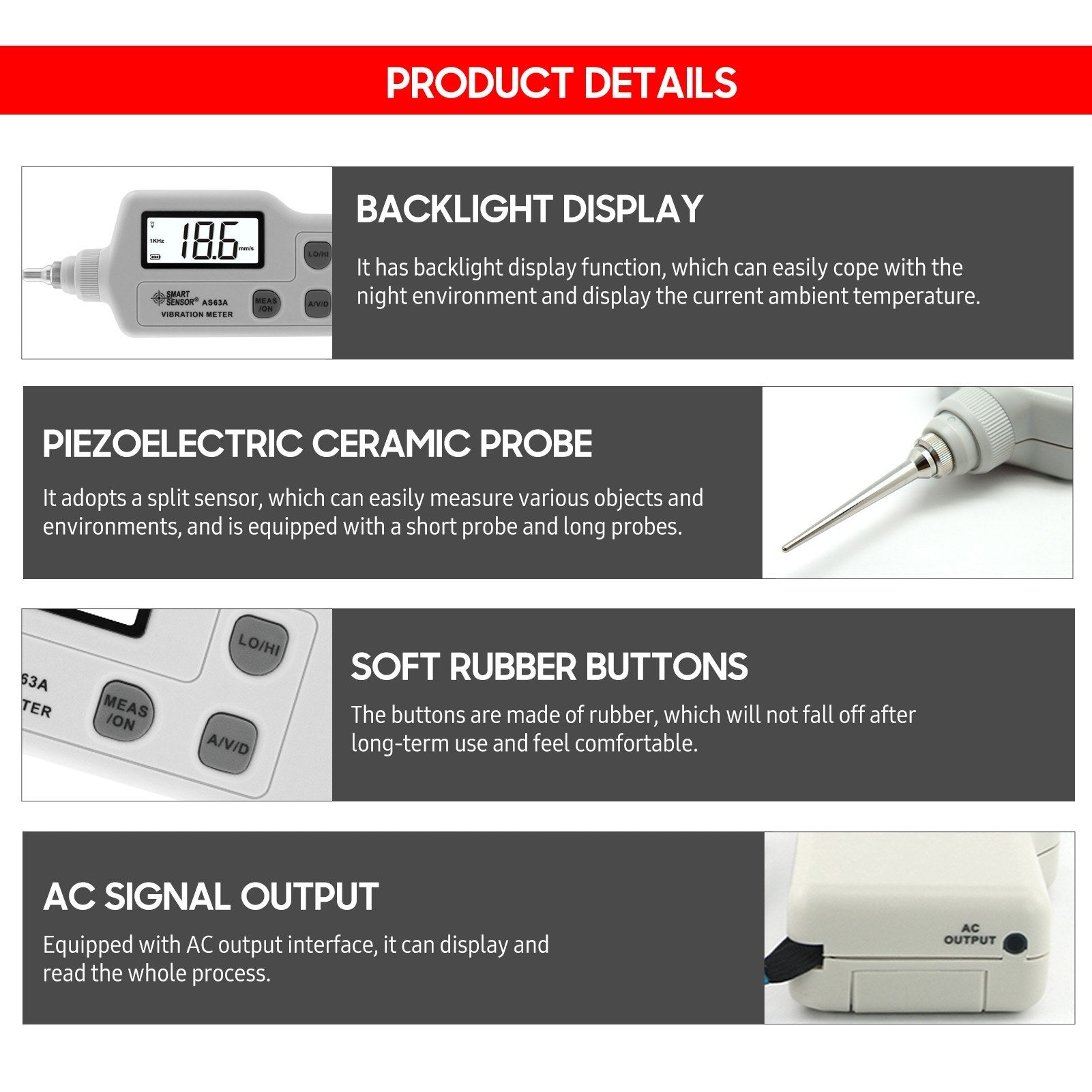

Key Features:

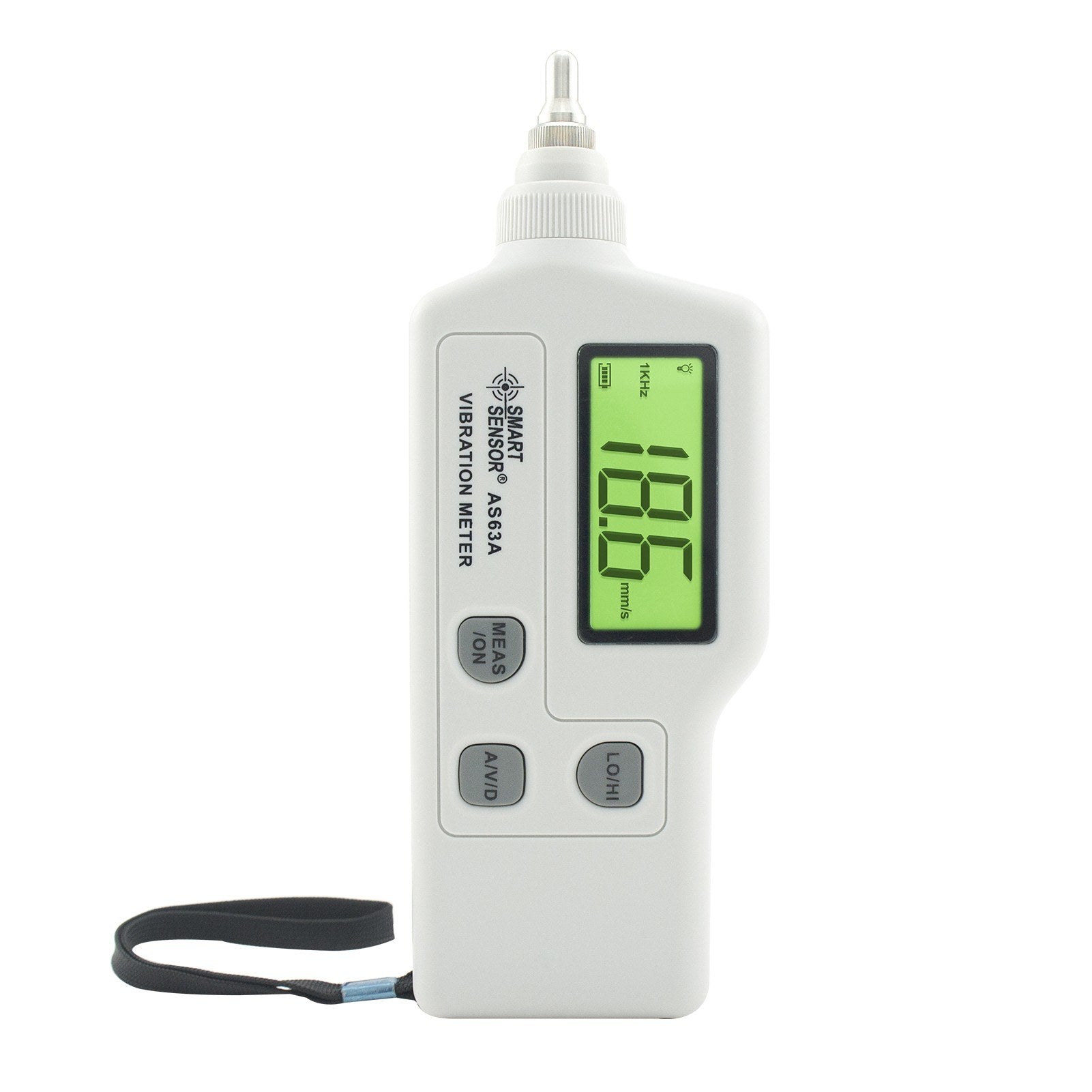

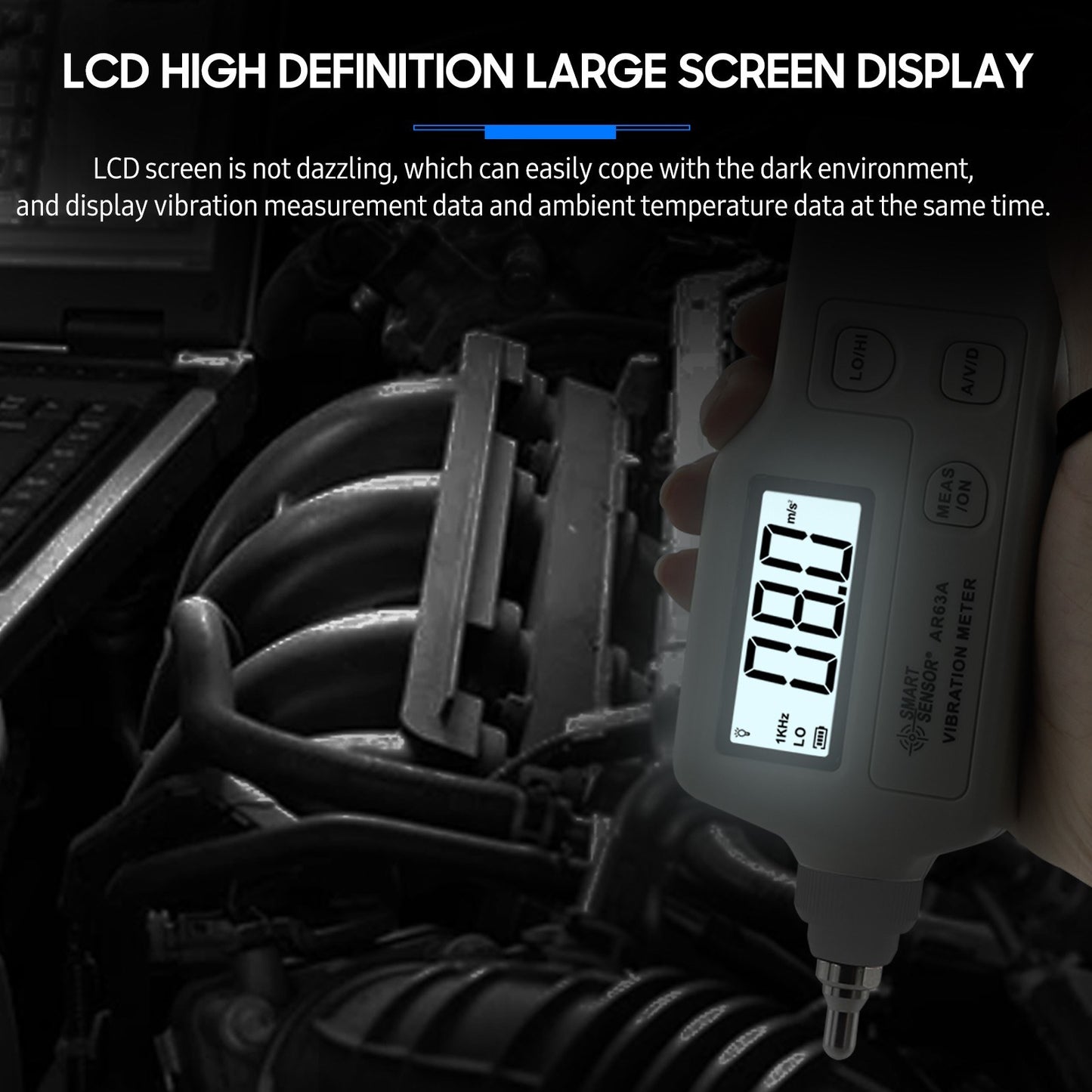

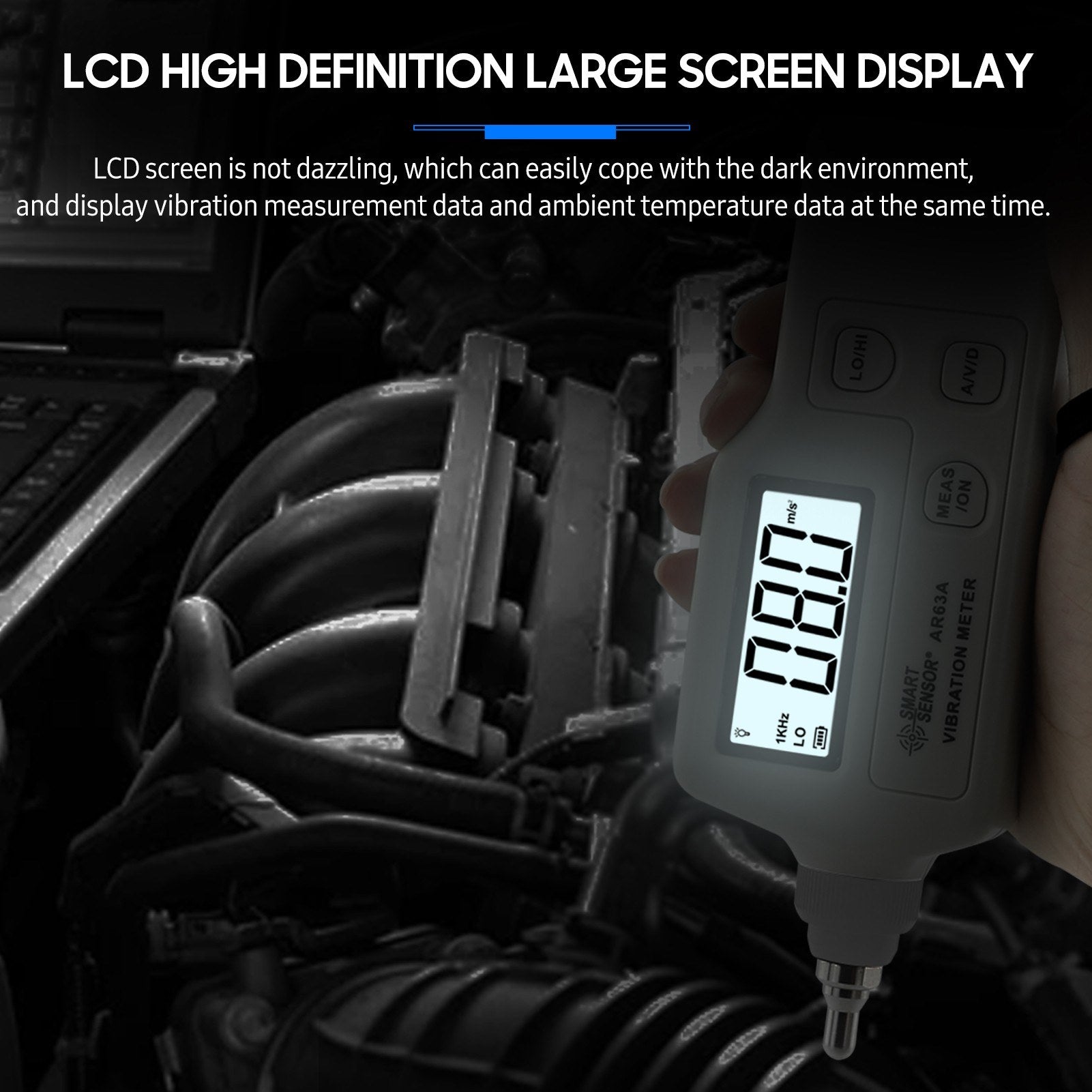

• Clear Display: Visually presents measurement values and operating status.

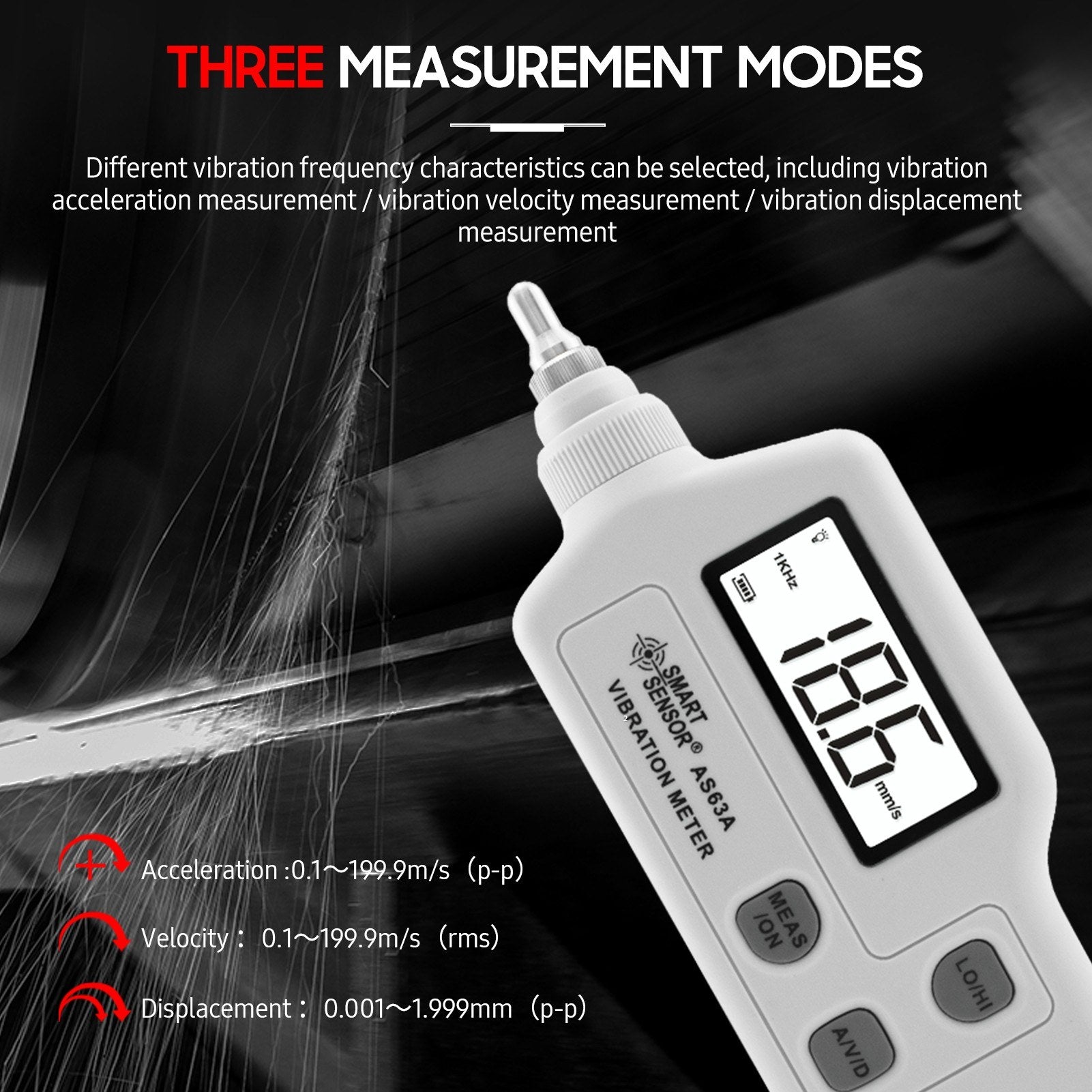

• Versatile Measurement: Supports acceleration, velocity, and displacement measurement.
• Frequency Options: Offers selection for different vibration frequencies.

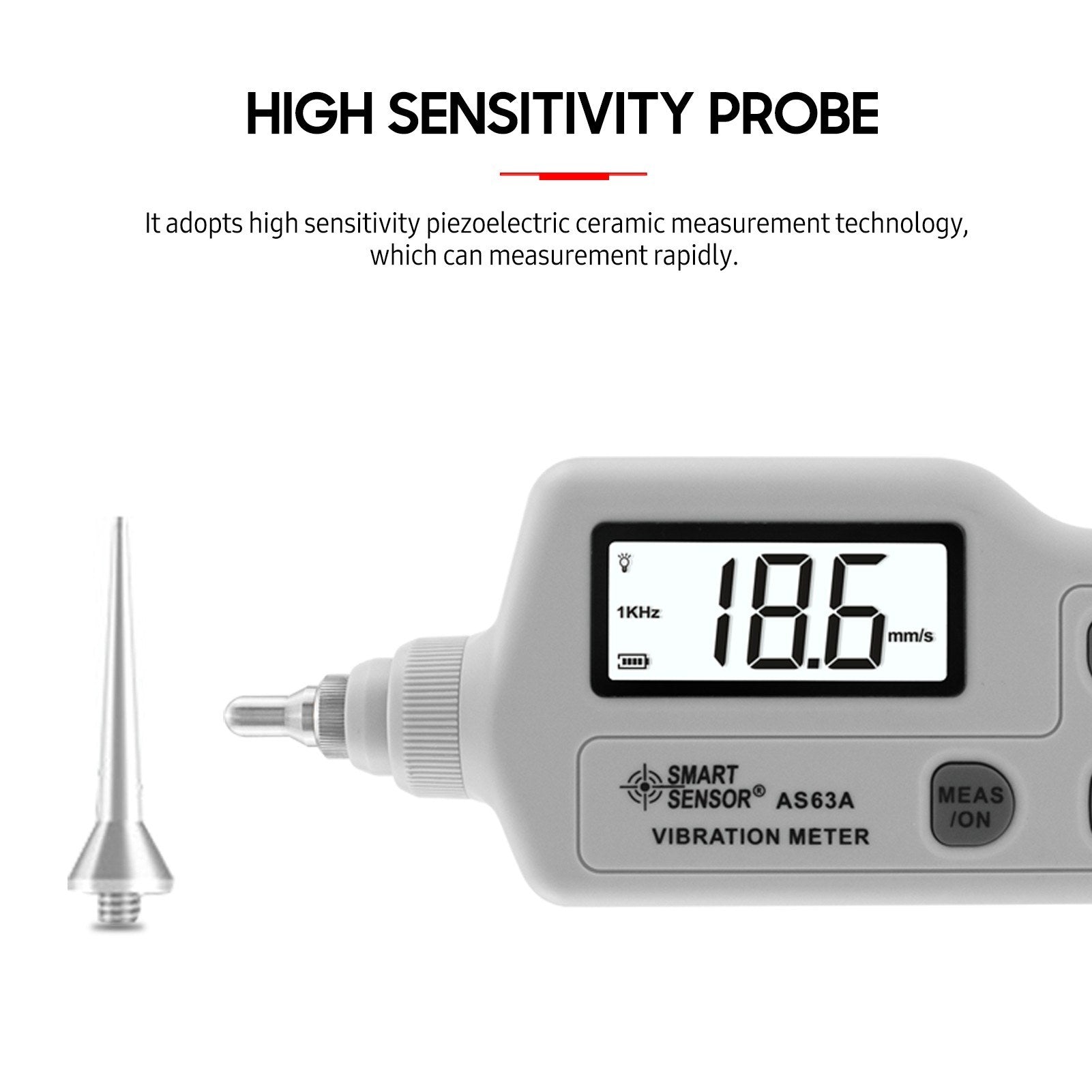

• Precision Probes: High-sensitivity probe ensures accurate readings. Comes with both long and short probe heads for varied measurement needs.
• Signal Output: Equipped with an AC signal output interface.
• Power Efficiency: Features a low power indication and automatic power-off for energy saving.
• Portability: Compact and easy to carry for on-the-go measurement tasks.

Important Notes:

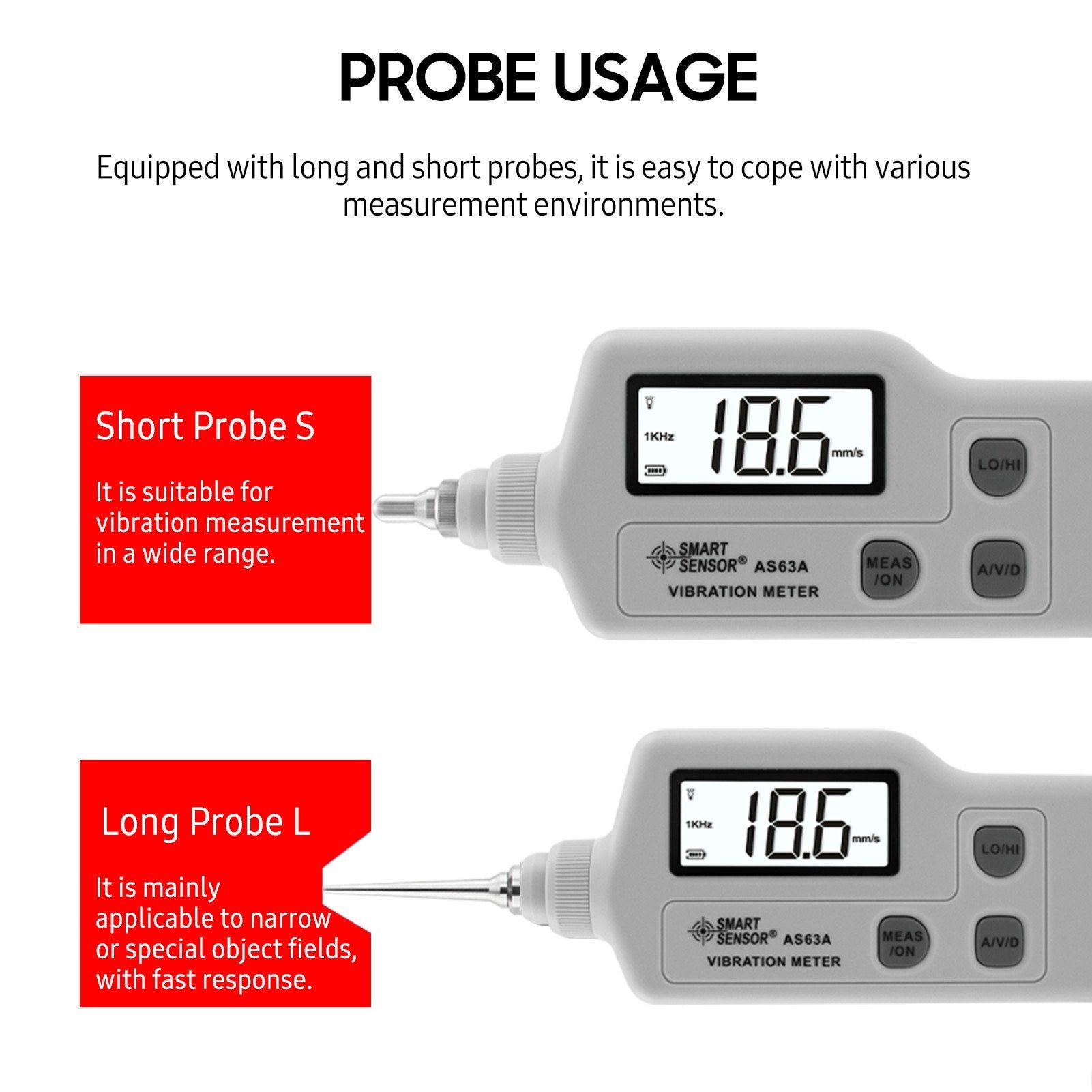

• Use the short probe (S) for both high (HI) and low (LO) frequency vibration measurements.
• The long probe (L) is best for low-frequency measurements. For velocity measurements exceeding 1KHz, switch to the short probe.
• Frequency adjustments from acceleration to velocity or displacement modes automatically switch from high (HI) to low (LO) frequency.
• High/low frequency settings are only applicable in acceleration measurements.
• Manual measurement can result in slight size discrepancies.
• Lighting conditions and monitor displays might cause slight variations in product color.

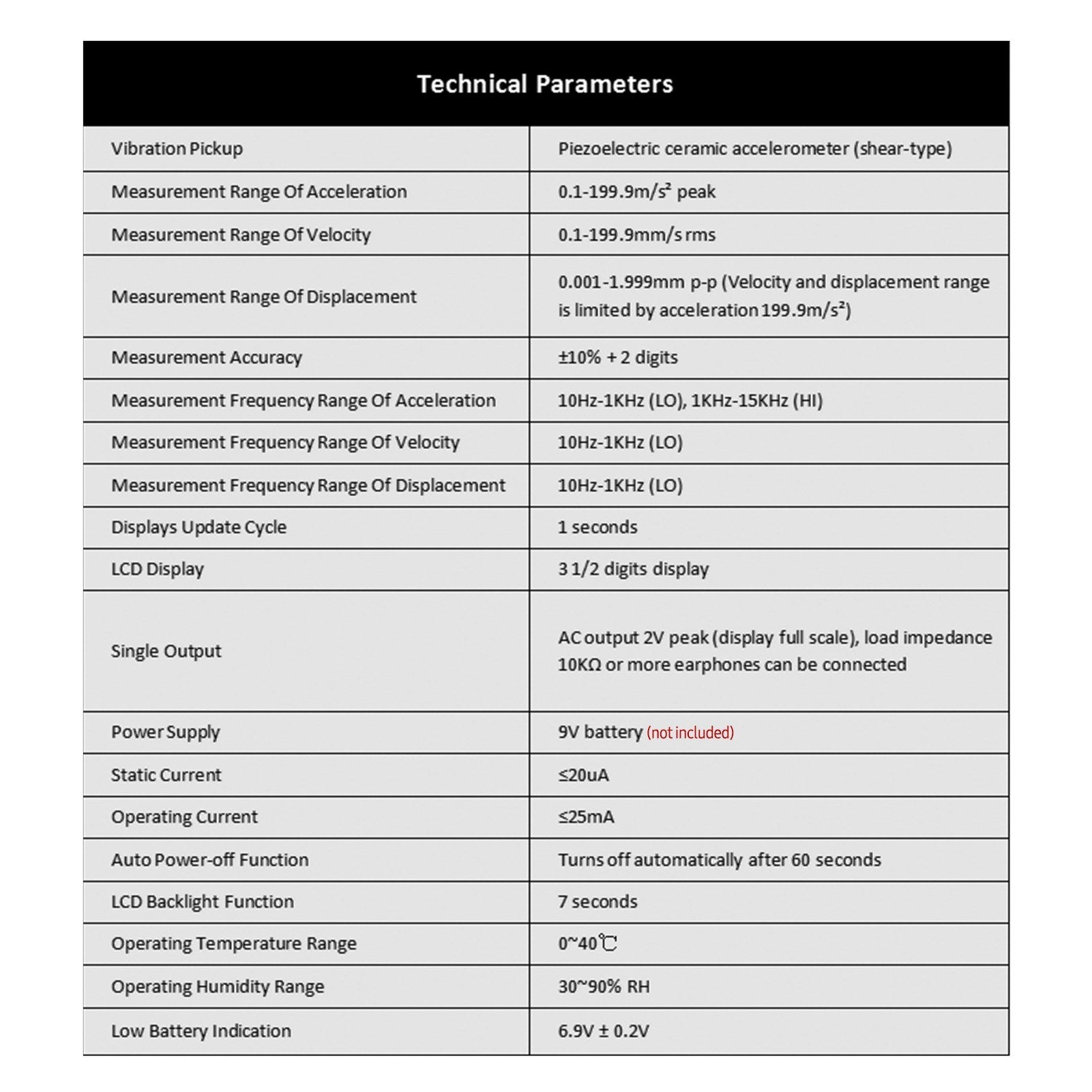

Specifications:

• Brand: SMART SENSOR
• Model: AS63A
• Color: Grey
• Shell Material: ABS
• Vibration Pickup: Piezoelectric ceramic accelerometer (shear-type)
• Acceleration Measurement Range: 0.1-199.9m/s² peak
• Velocity Measurement Range: 0.1-199.9mm/s rms
• Displacement Measurement Range: 0.001-1.999mm p-p (constrained by acceleration limit of 199.9m/s²)
• Measurement Accuracy: ±10% + 2 digits
• Acceleration Frequency Range: 10Hz-1KHz (LO), 1KHz-15KHz (HI)
• Velocity Frequency Range: 10Hz-1KHz (LO)
• Displacement Frequency Range: 10Hz-1KHz (LO)
• Display Update Cycle: 1 second
• LCD Display: 3 1/2 digits
• Output: AC output 2V peak (for display full scale), load impedance 10KΩ or more
• Power Supply: 9V battery (not included)
• Static Current: ≤20uA
• Operating Current: ≤25mA
• Auto Power-off: 60 seconds
• LCD Backlight Duration: 7 seconds
• Operating Temperature Range: 0~40℃
• Operating Humidity Range: 30~90% RH
• Low Battery Indication: 6.9V ± 0.2V
• Storage Case Size: 23.5*18*5cm / 9.25*7.09*1.97in

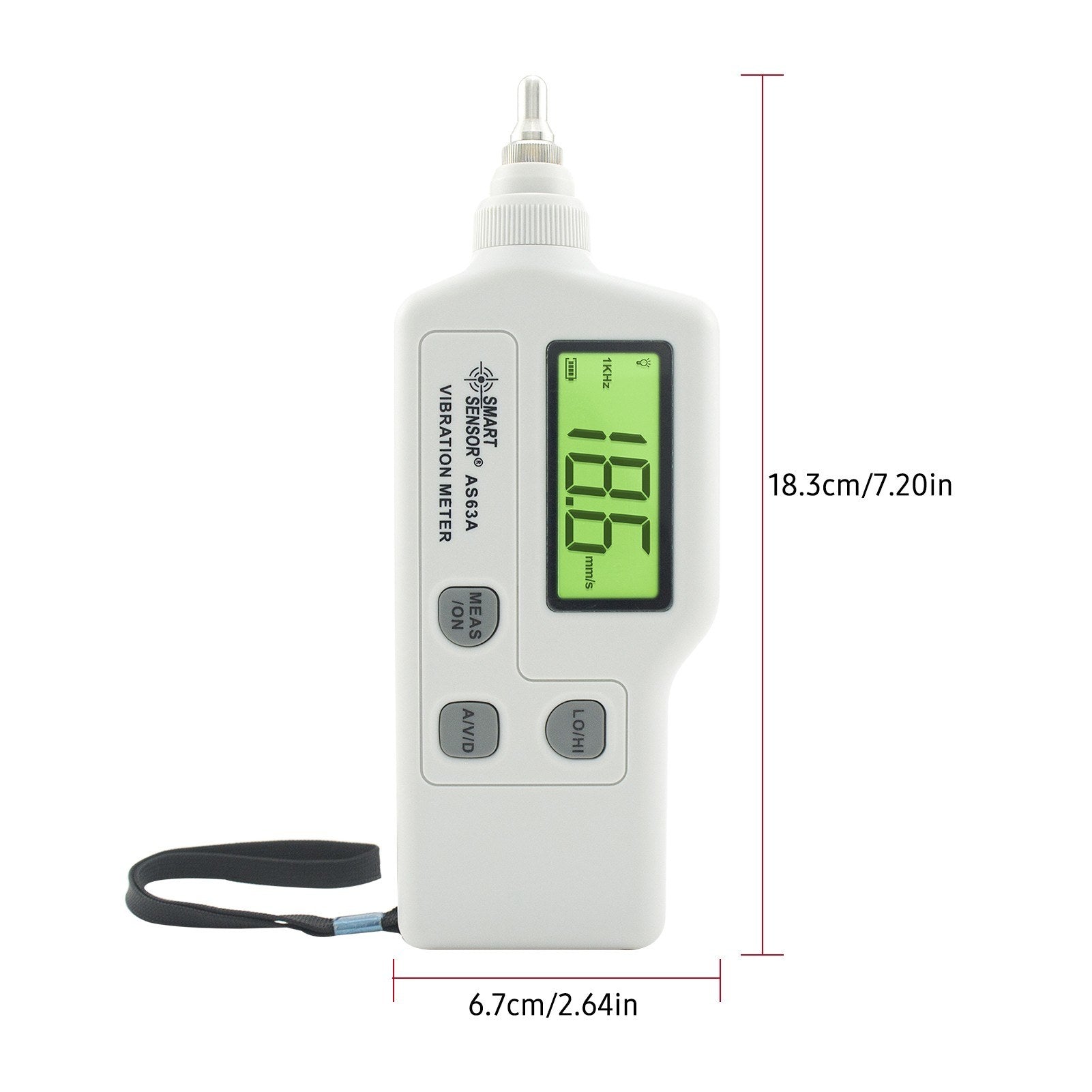

• Vibration Meter Size (with Short Probe): 6.7*3*18.3cm / 2.64*1.18*7.20in
• Vibration Meter Weight: 147g / 5.19oz
• Packing Size: 25.5*21*5.8cm / 10.03*8.27*2.28in
• Gross Weight: 610g / 21.52oz

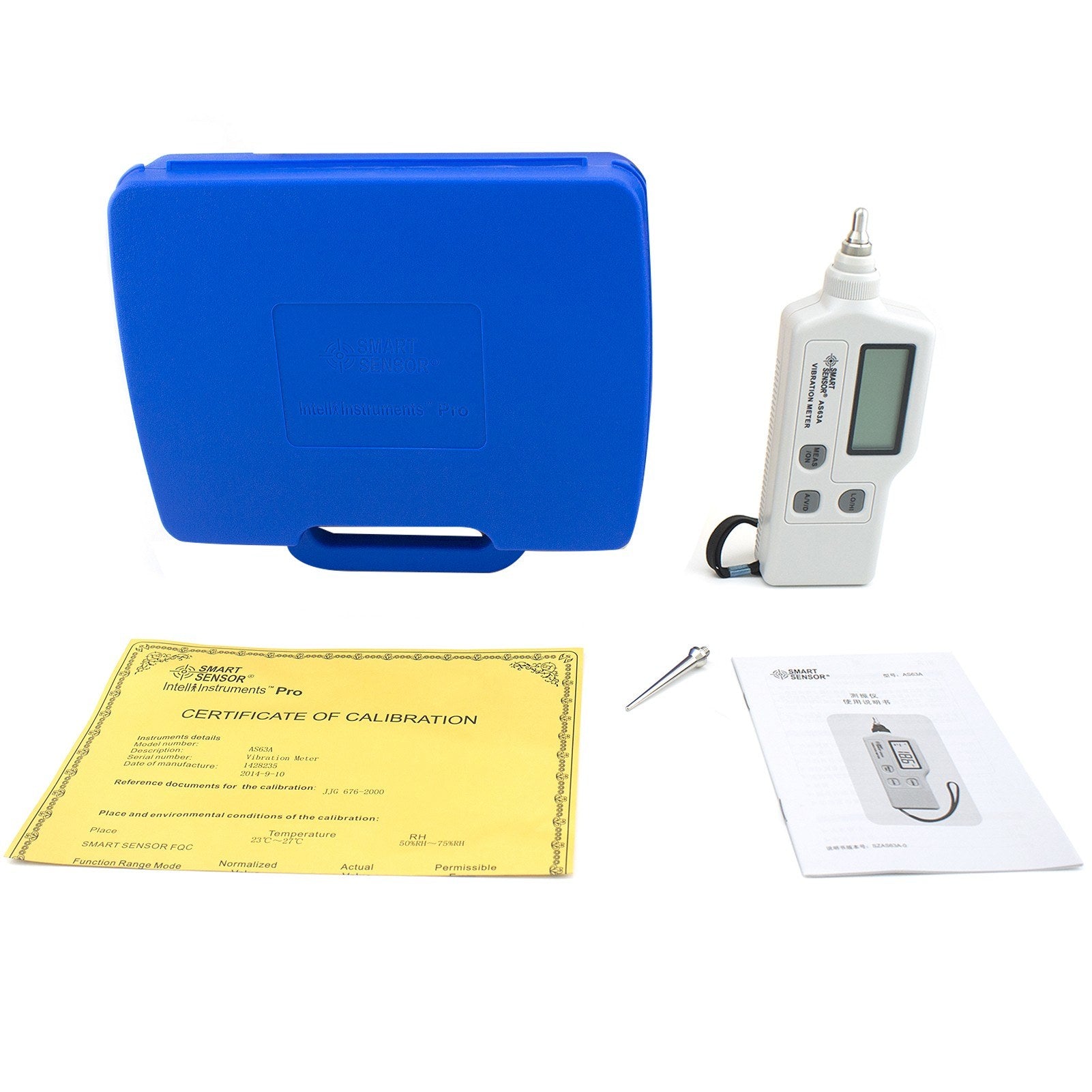

Package Includes:

• 1 x Vibration Meter (without battery)
• 1 x Long Probe
• 1 x Short Probe (attached to the main unit)
• 1 x Storage Case
• 1 x User's Manual (English)
