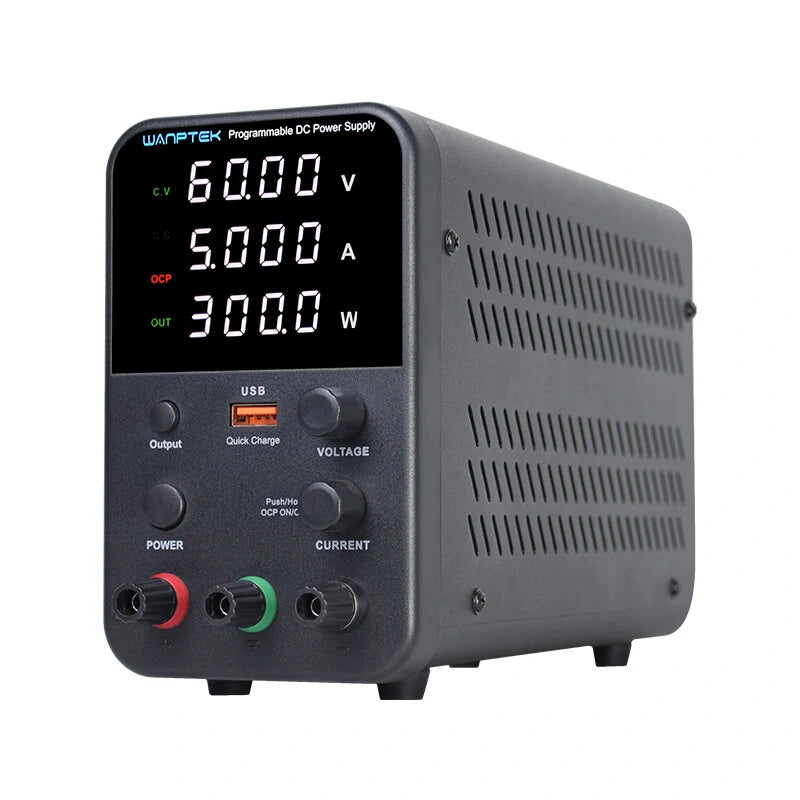

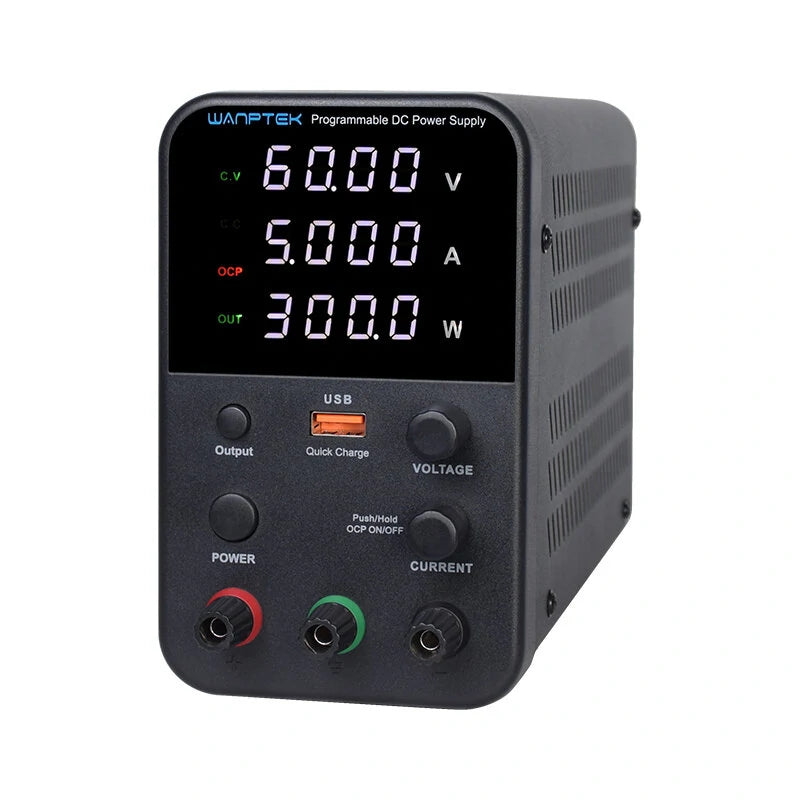

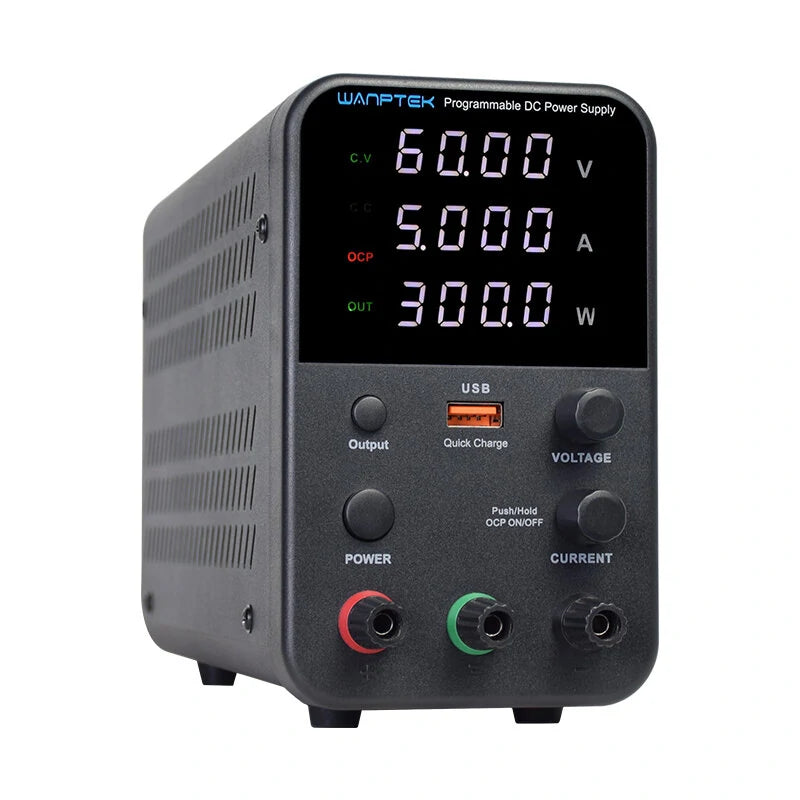

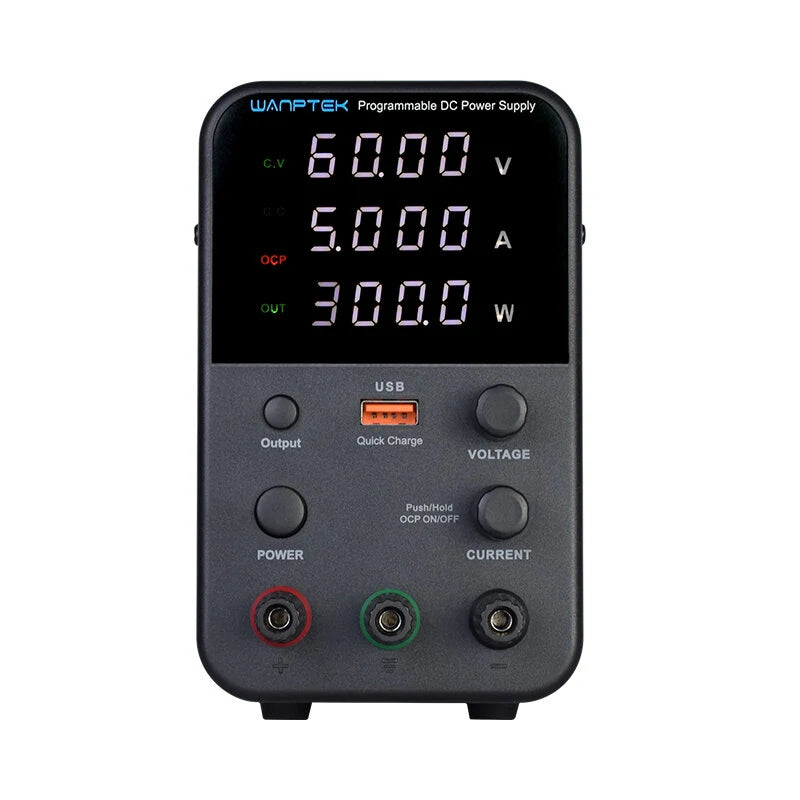

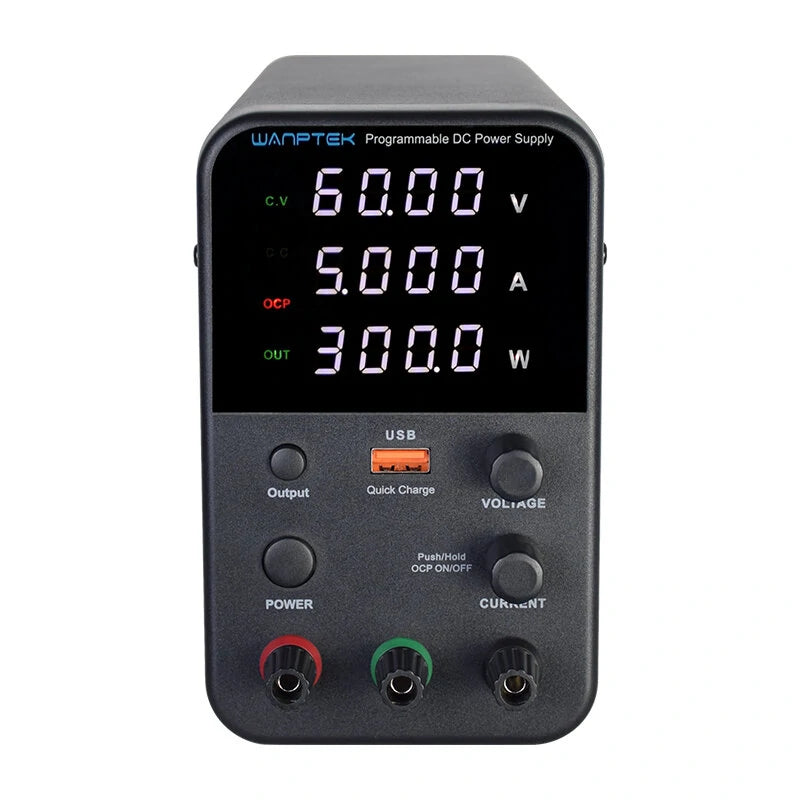

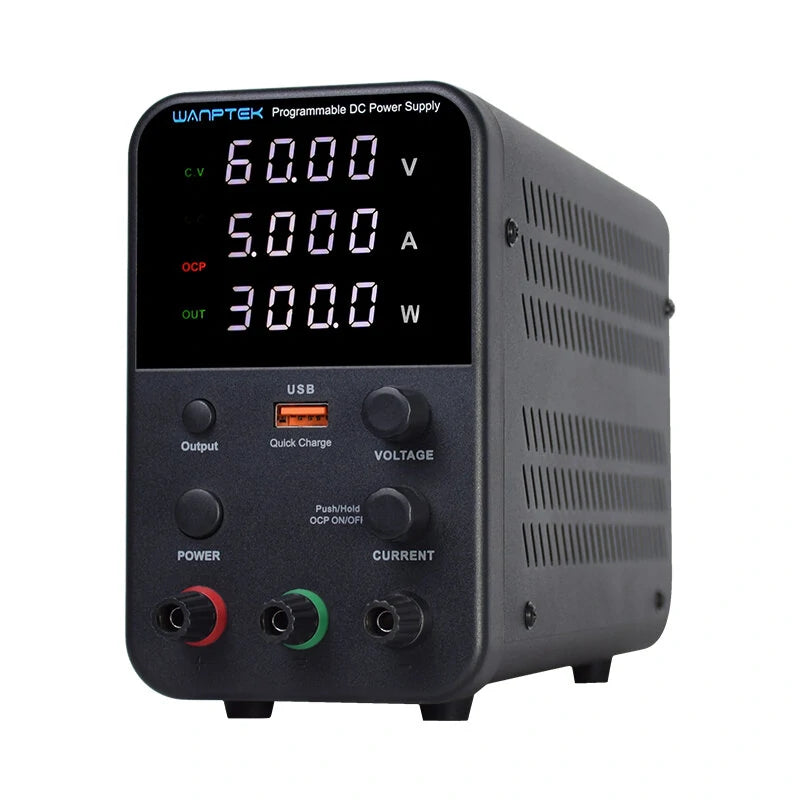

Wanptek DC Power Supply Series

Discover the new series of miniature switching DC power supplies from Wanptek. Designed for accuracy and ease of use, you can control the output voltage and current with variable resistors. The high-precision digital display allows you to monitor voltage, current, and power effortlessly.

Key Features

• Program-controlled encoder for precise voltage and current adjustments.
• Three-group, four-digit digital display shows voltage, current, and power.
• Easy-to-use OUTPUT button.
• OCP short circuit alarm protection for safety.
• USB fast charging interface supporting multiple protocols.
• Optional USB host interface for computer and PLC control.

Specifications

Model	Output Voltage	Output Current	Output Power

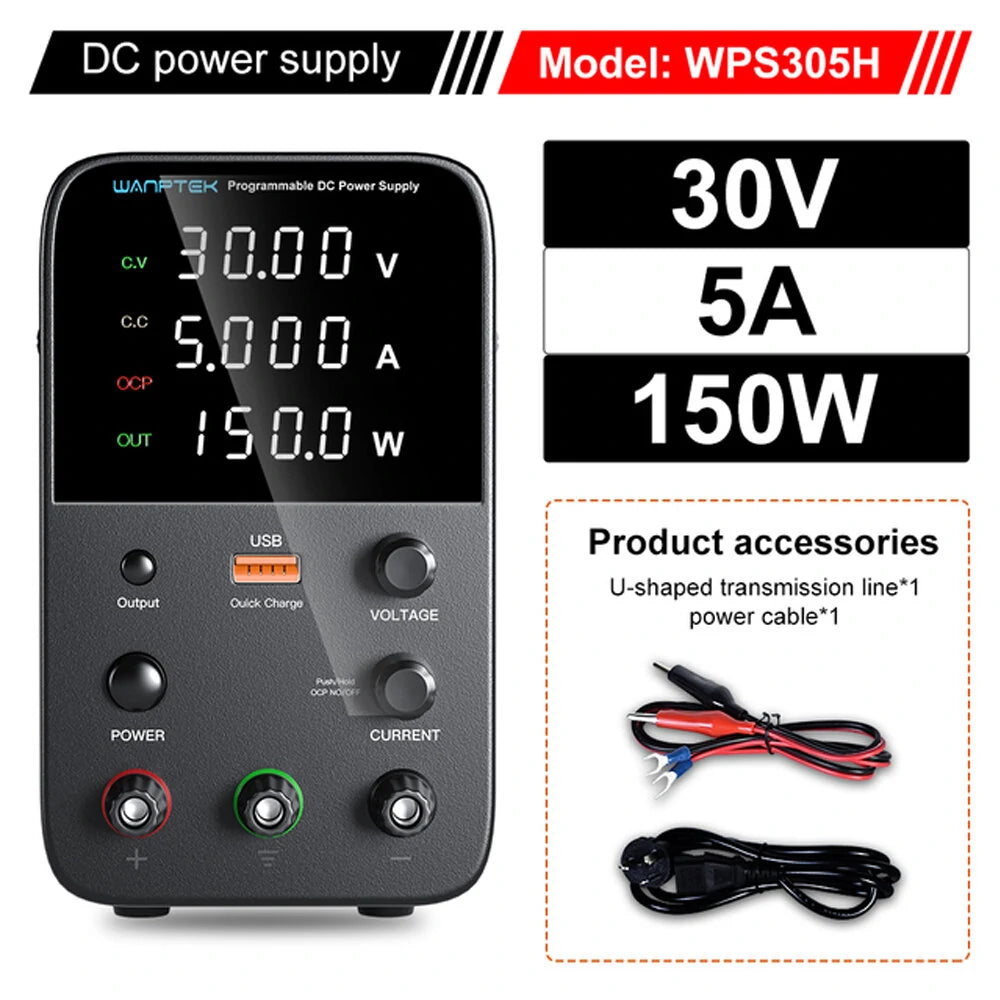

WPS305H	0~30V	0~5A	150W

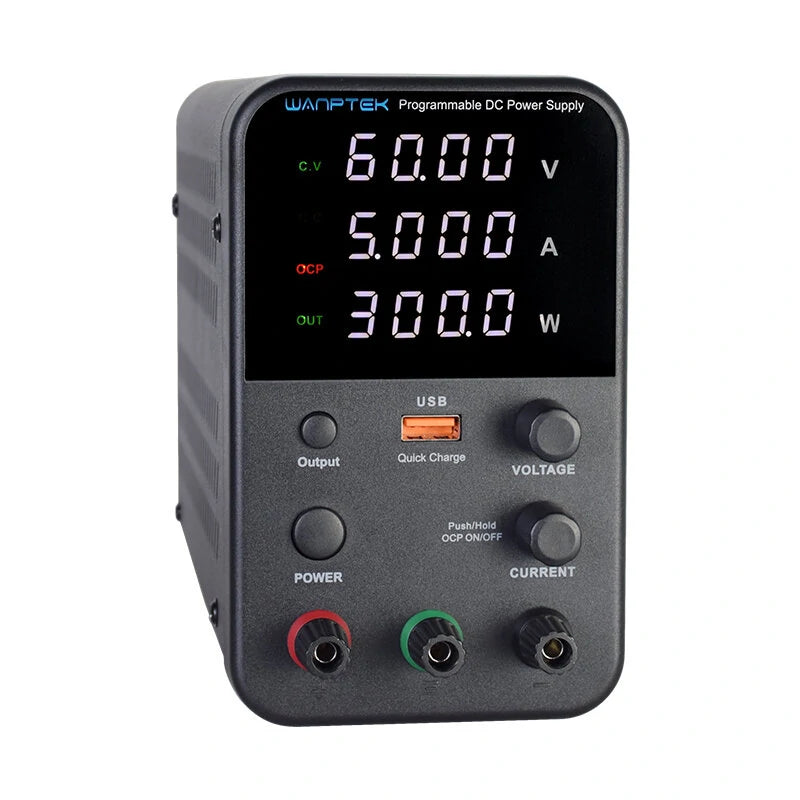

WPS605H	0~60V	0~5A	300W

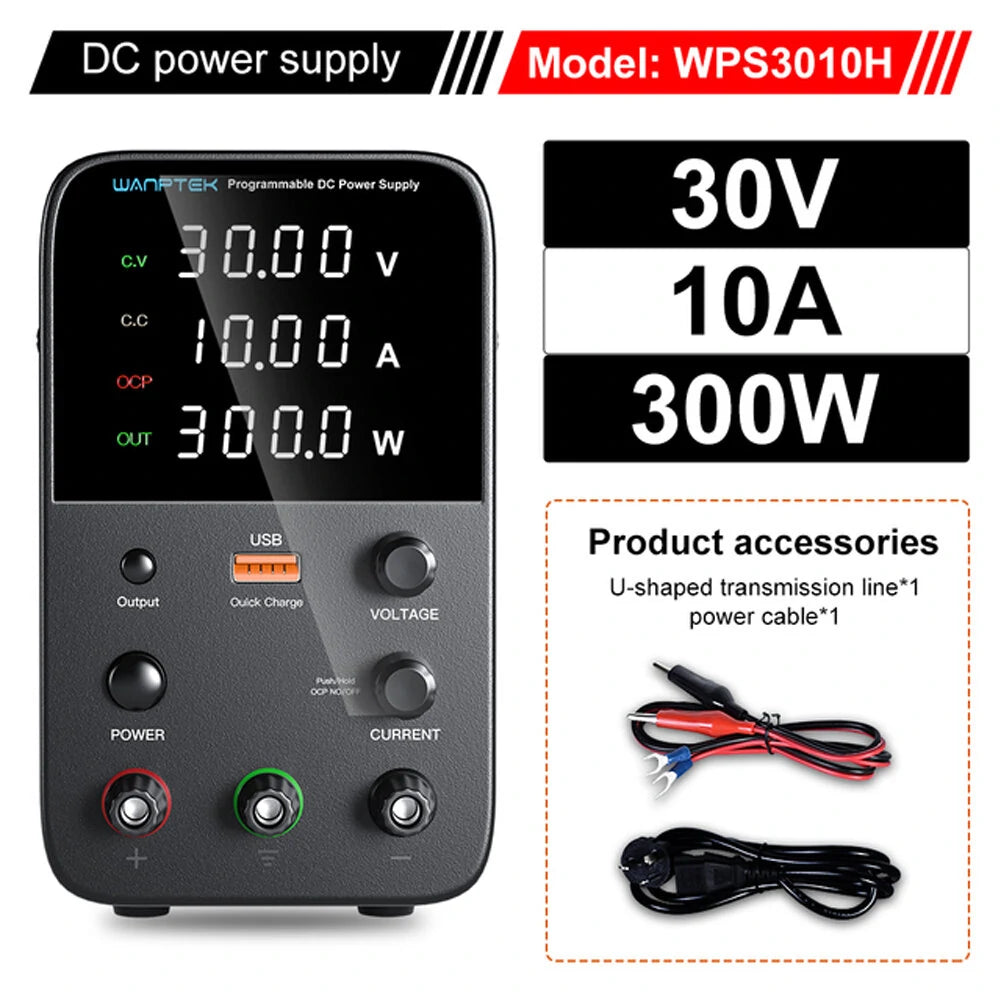

WPS3010H	0~30V	0~10A	300W

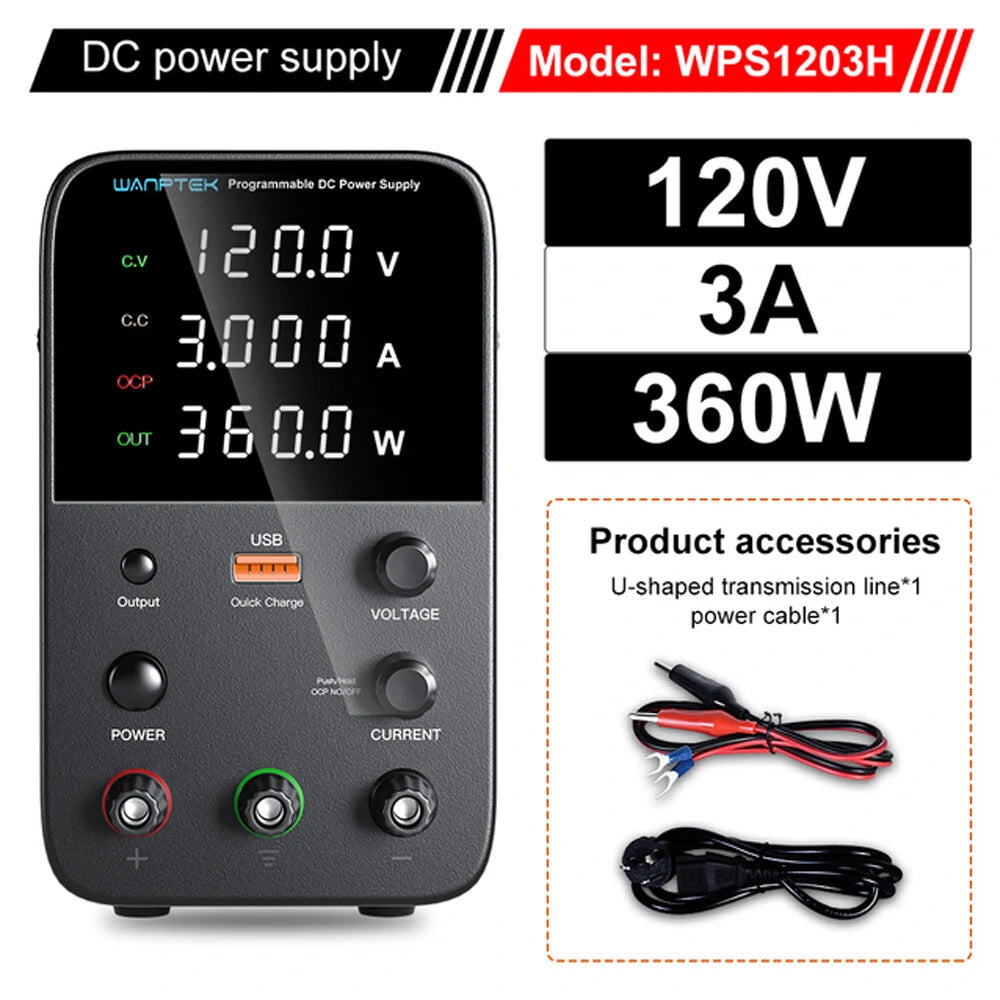

WPS1203H	0~120V	0~3A	360W
WPS1602H	0~160V	0~2A	320W

Working Environment:
- Input voltage: AC 230V/115V±10%; 50Hz/60Hz
- Working temperature: 0℃-40℃; relative humidity
- Storage temperature: -10℃-70℃

Performance

• Constant Voltage (CV): Voltage stability: ±0.1%3mV; Load stability: ±0.2%3mV; Ripple: ≤0.5% Vp-p;
• Constant Current (CC): Current stability: ±0.1%3mA; Load stability: ±0.2%3mA; Ripple: ≤0.5% Vp-p; Recovery time: ≤500µS; Temperature coefficient: ≤100ppm/℃

Applications

• Production line testing
• Maintenance of mobile phones, computers, electrical appliances, car audio
• Product aging and electroplating processes involving resistors, capacitors, relays, DC motors, LEDs
• Battery charging
• Laboratories, scientific research, school labs, and more

Package Includes

• 1 x DC power supply (model as chosen)
• 1 x Power cord (EU, AU plug type as chosen)
• 1 x Test line
• 1 x Instructions
