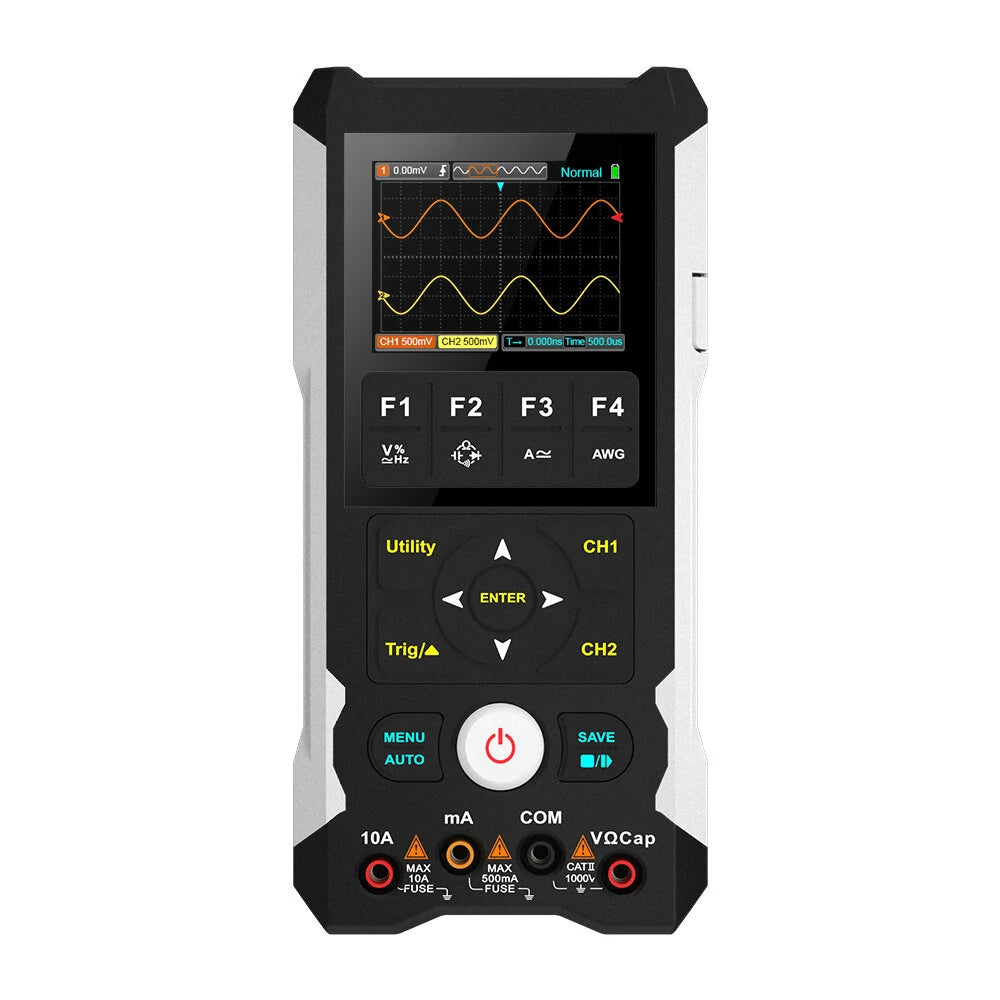

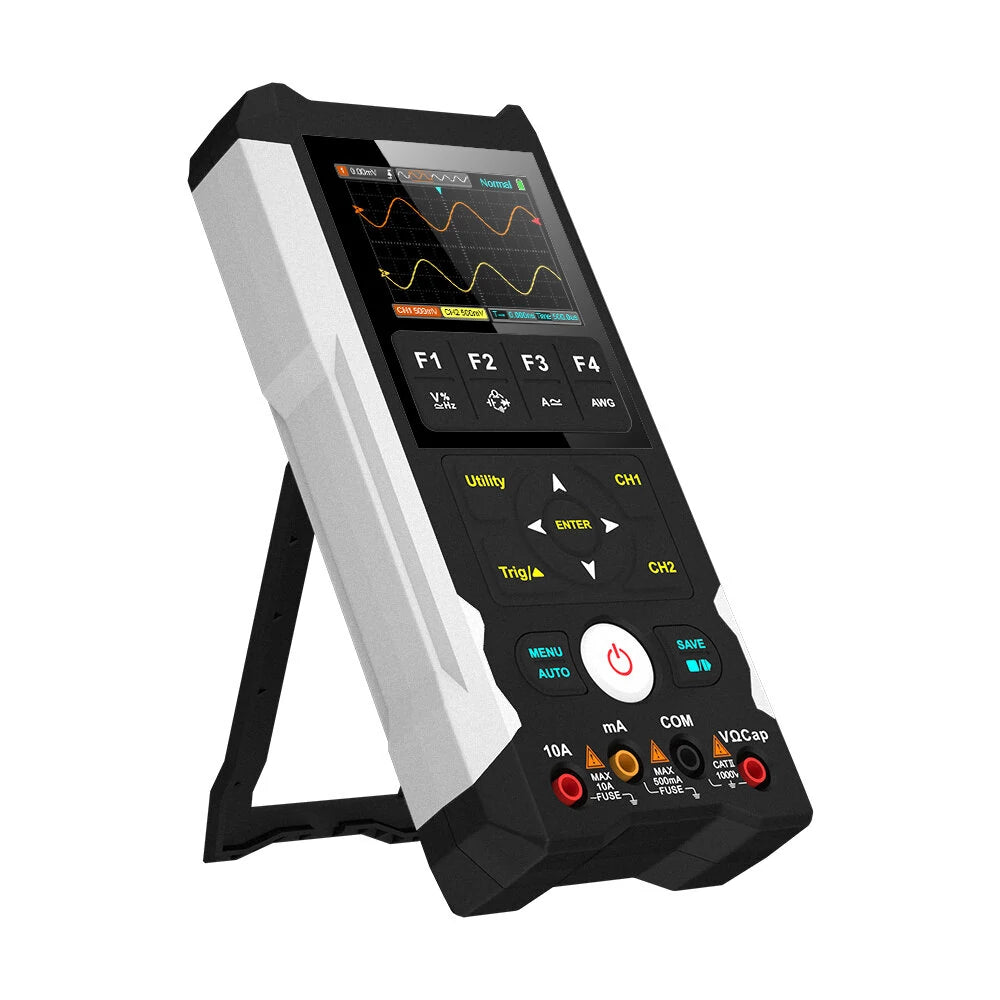

MUSTOOL MDS8209 3-in-1 Handheld Oscilloscope, DMM & Waveform Generator - 80MHz/50MHz, Dual Channel, AI Preview, 15W Fast Charge

Features

• 3-in-1: Oscilloscope, multimeter, and waveform generator
• 80MHz analog bandwidth with 250MSa/s sampling rate
• Afterglow selection for optimal viewing
• AI waveform preview for ease of use
• Self-calibration function for accuracy
• Supports DC 15W fast charging (includes a fast charger)
• Compatible with PC software analysis
• 2.8-inch 320x240 TFT color LCD display for clear visuals
• 6000 counts true RMS large capacitance multimeter
• Three trigger modes: auto, normal, and single

Specifications

General Characteristics

• Display resolution: 320 x 240 pixels
• Display size: 2.8-inch TFT color screen
• Adjustable display backlight time and brightness
• Power supply: AC 100V-240V, 50Hz–60Hz; DC 15W fast charge
• Power consumption: ≤400mA for oscilloscope, ≤200mA for multimeter
• Battery: 18650 lithium battery 2000mAh x 2 with level indicator
• Auto sleep with adjustable timing and prompt
• On/off sound prompts with customizability
• Operating time: Approximately 10 hours with oscilloscope, 20 hours with multimeter
• Operating environment: 0°C–40°C; Storage: -10°C–60°C
• Dimensions: 100mm x 210mm x 40mm (L x W x H)
• Weight: 480g

Oscilloscope Specifications

• Channels: CH1, CH2
• Analog bandwidth: 80MHz (single channel), 50MHz (dual channel)
• Max real-time sampling rate: 250MSa/s (single), 125MSa/s (dual)
• Vertical scale range: 10mV/div-100V/div
• Trigger types: Edge, with multiple modes and levels
• Advanced features: FFT, waveform zoom, AI preview

Multimeter Specifications

• DC Voltage: 600.0mV–1000V
• AC Voltage: 600.0mV–750V (TRMS, 40Hz–1kHz)
• DC/AC Current: Up to 10.00A with overload protection
• Resistance, capacitance, frequency measurements
• Diode and on-off tests included

Waveform Generator Specifications

• Waveform frequency: Sine to 5MHz, others to 500kHz
• Amplitude: Max 5Vpp with fixed-point output
• Includes 1 channel with 8-bit resolution

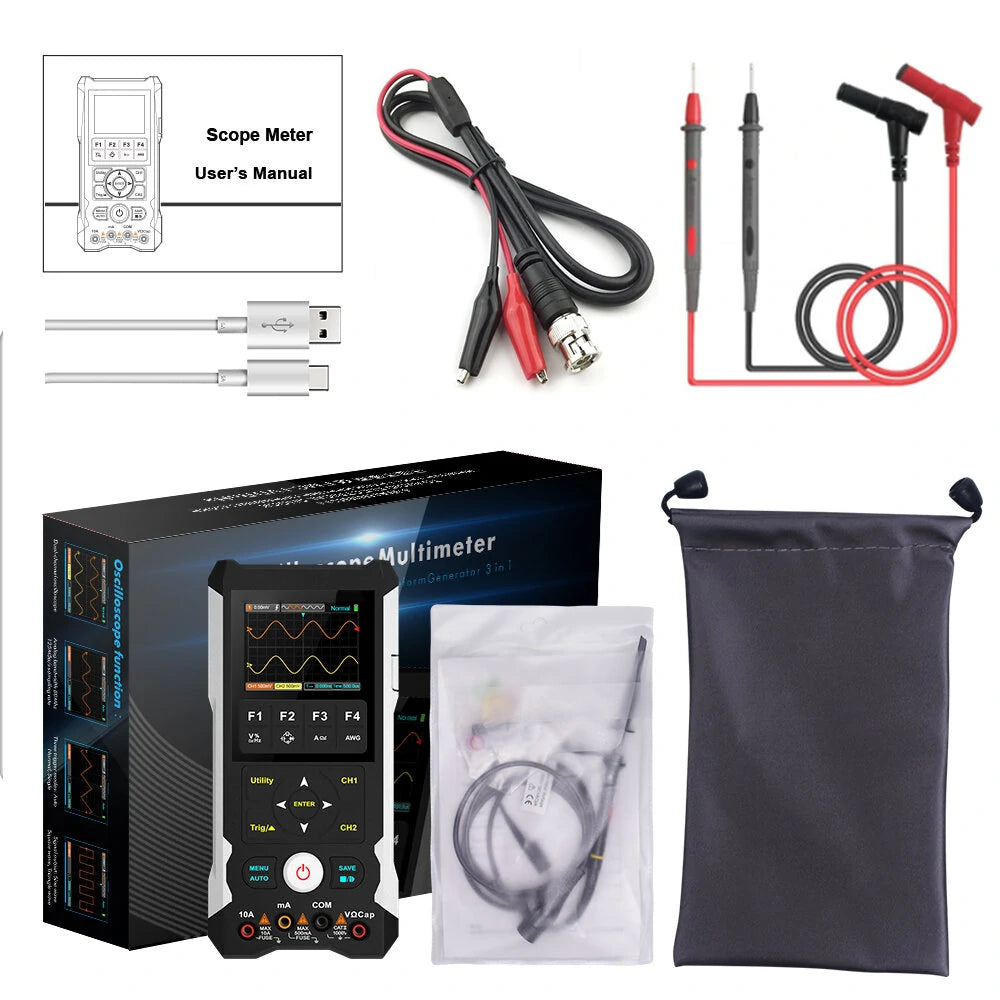

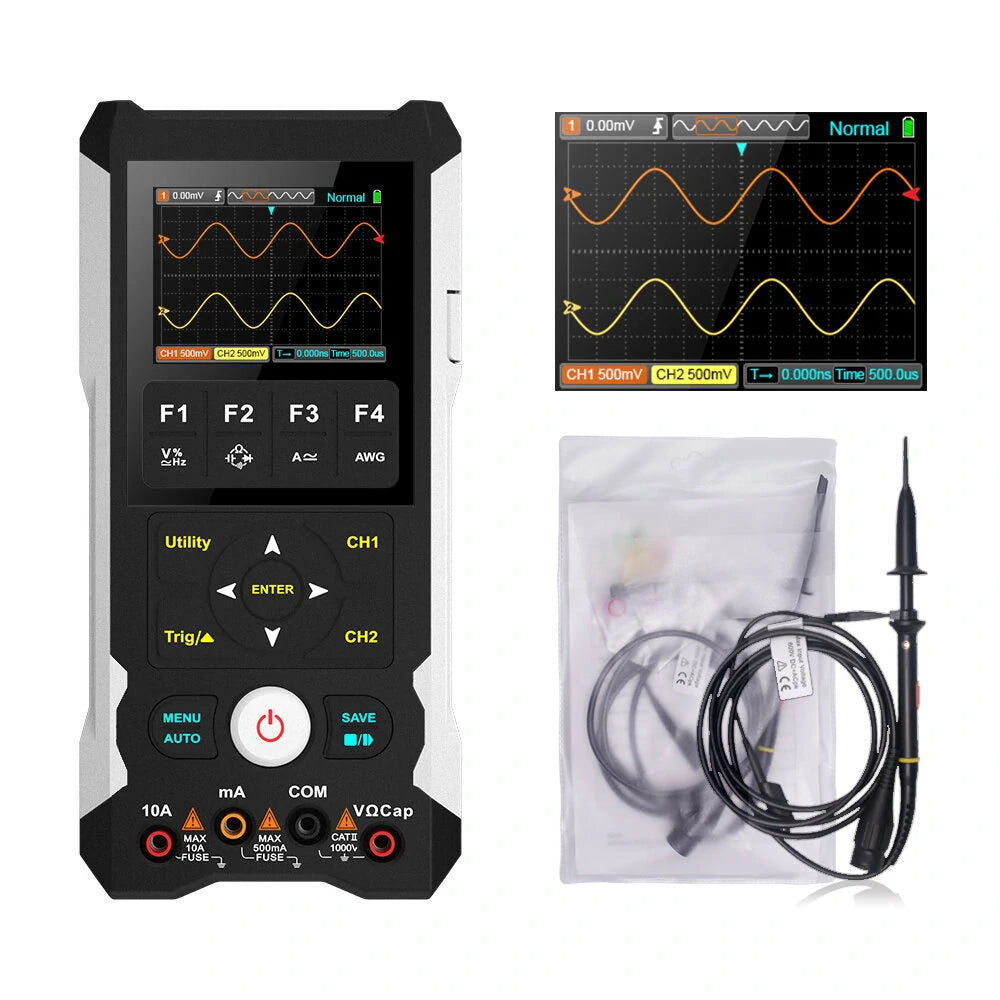

Package Includes

• 1 x MDS8209 3 in 1 Oscilloscope
• 1 x Dual Injection Test Lead
• 1 x Scope Probe
• 1 x Signal Output Clip Wire
• 1 x Type-C USB Cable
• 1 x User Manual
• 1 x Cloth Bag
• 1 x Color Box
