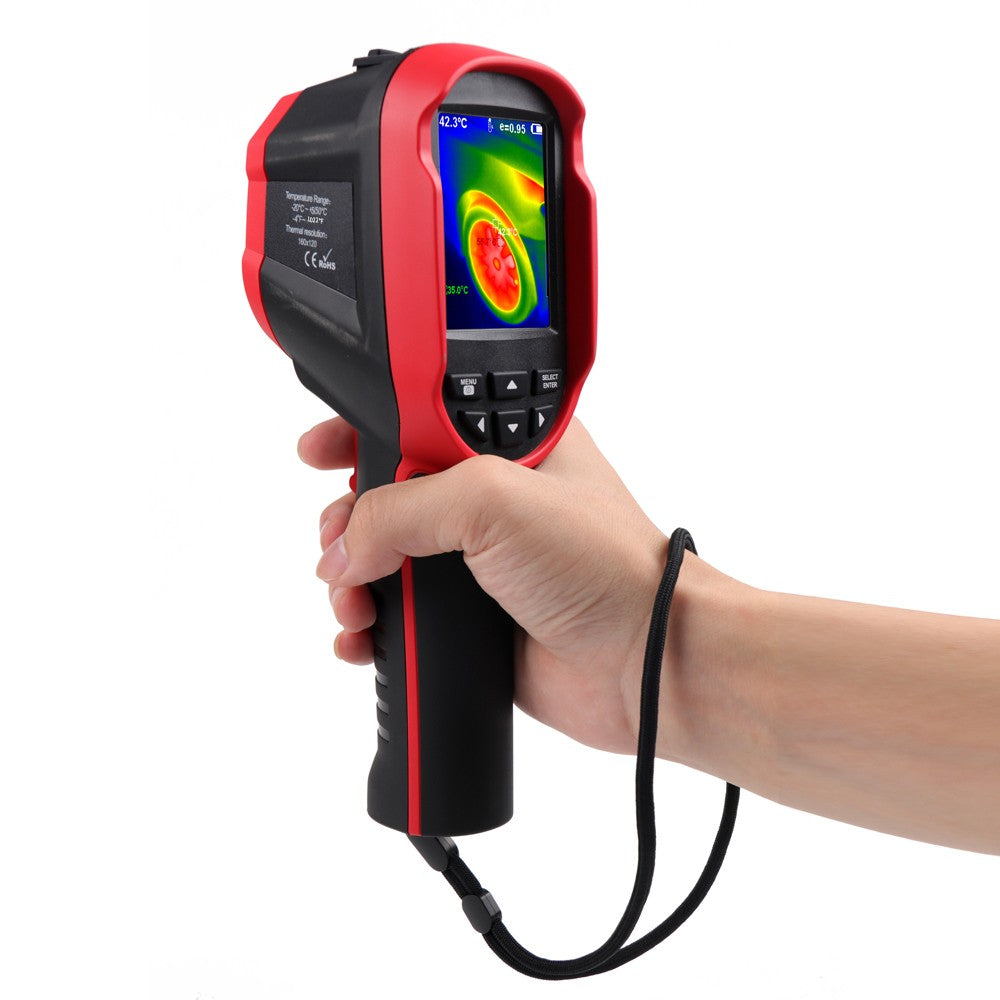

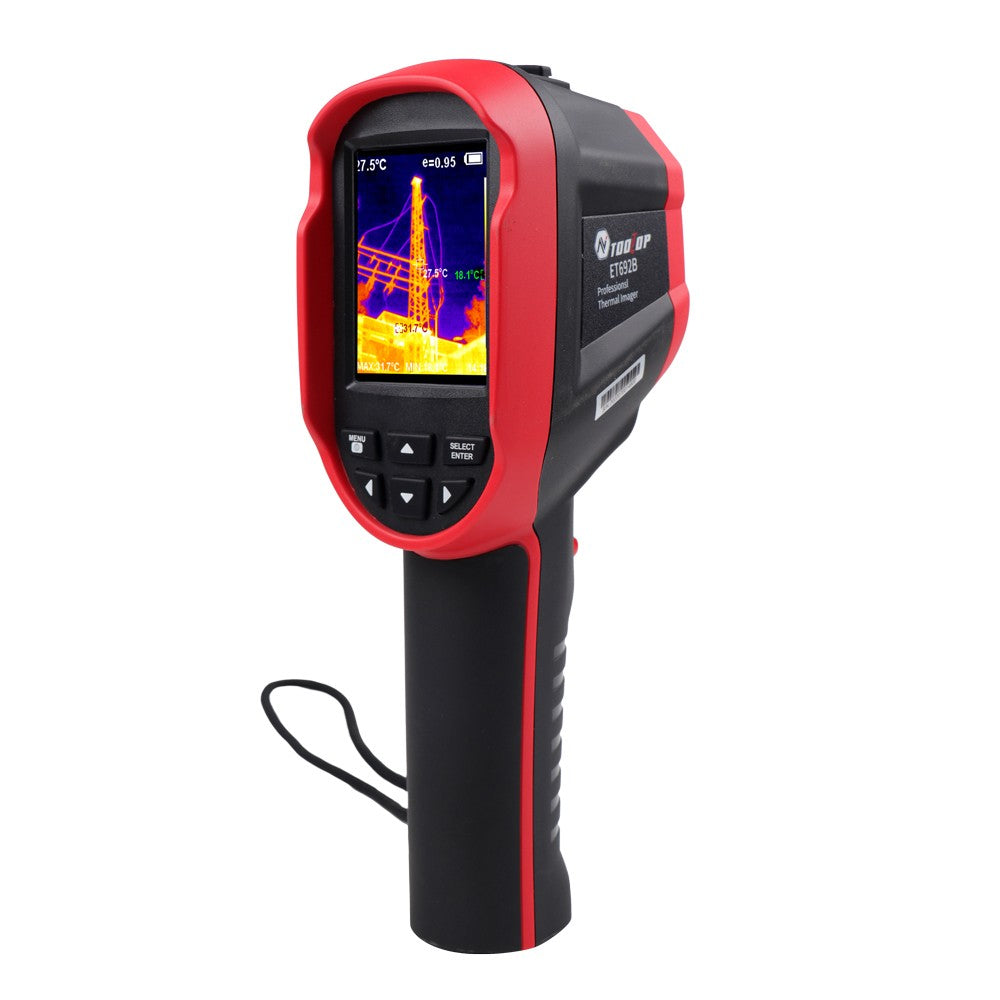

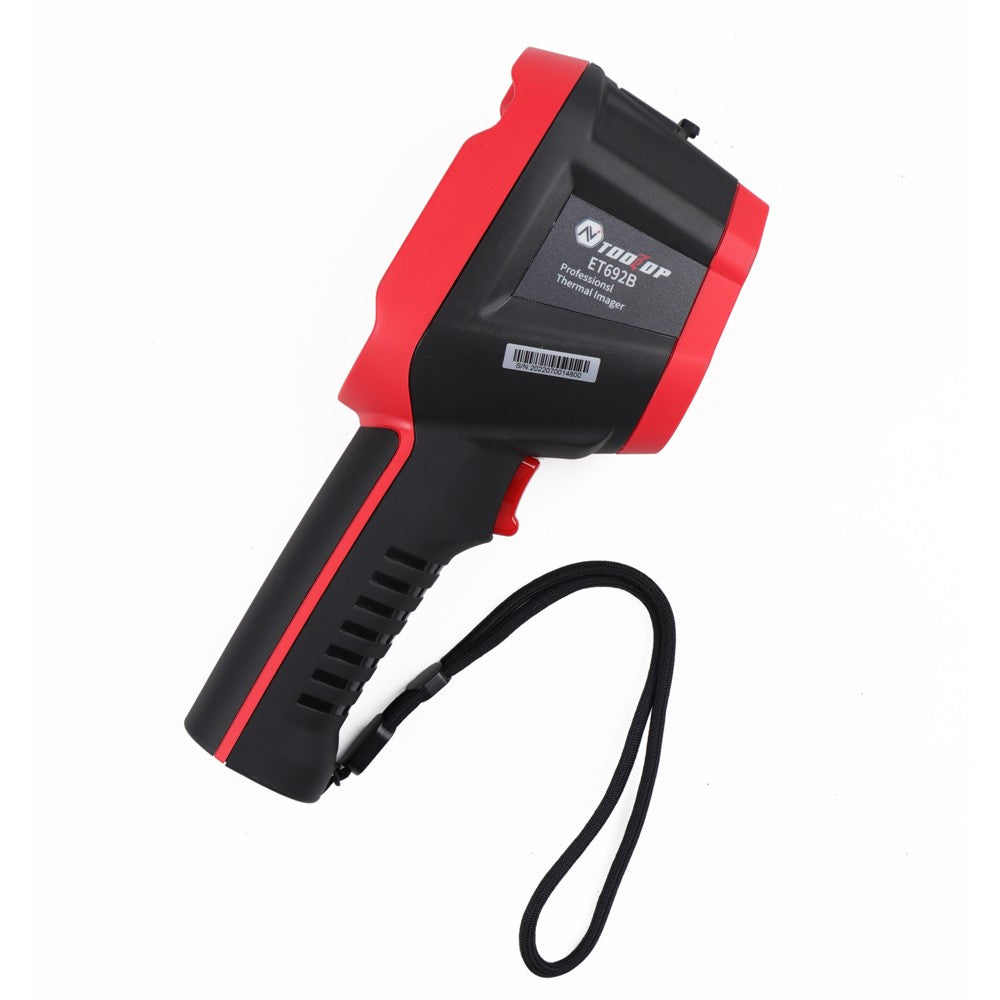

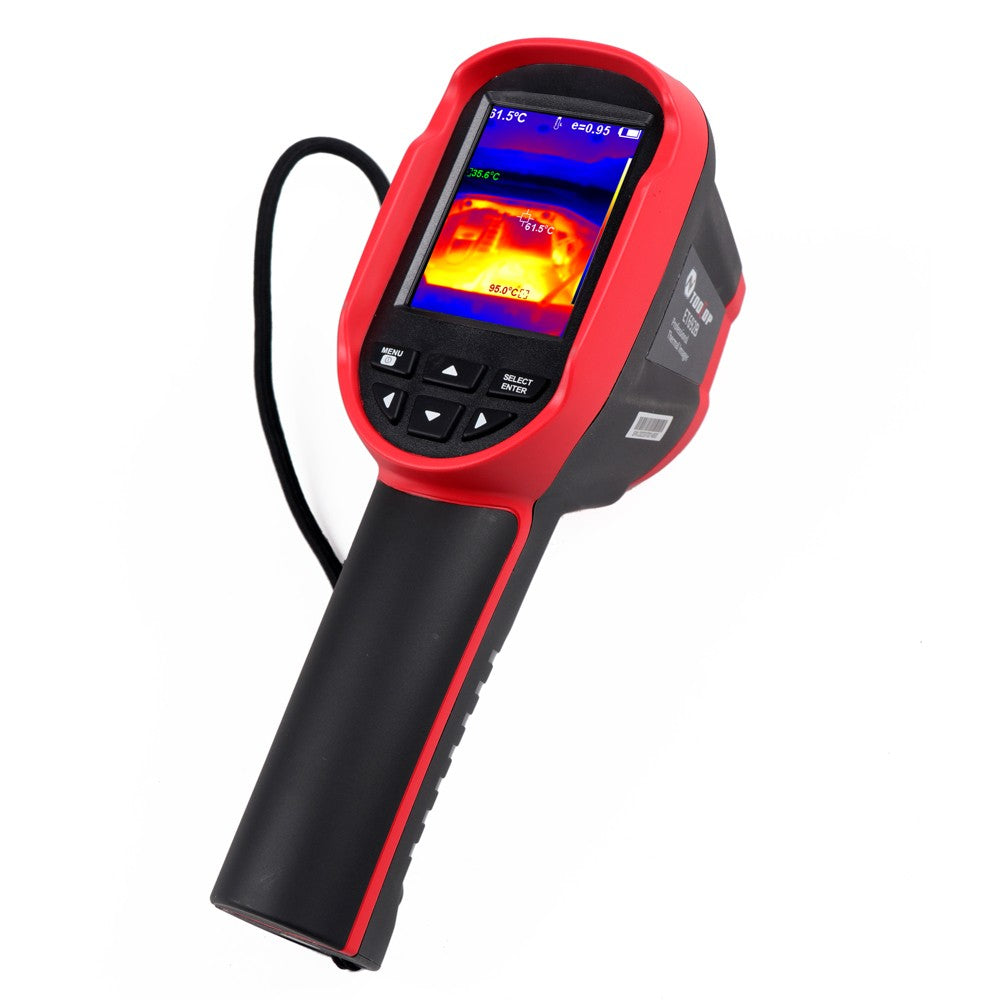

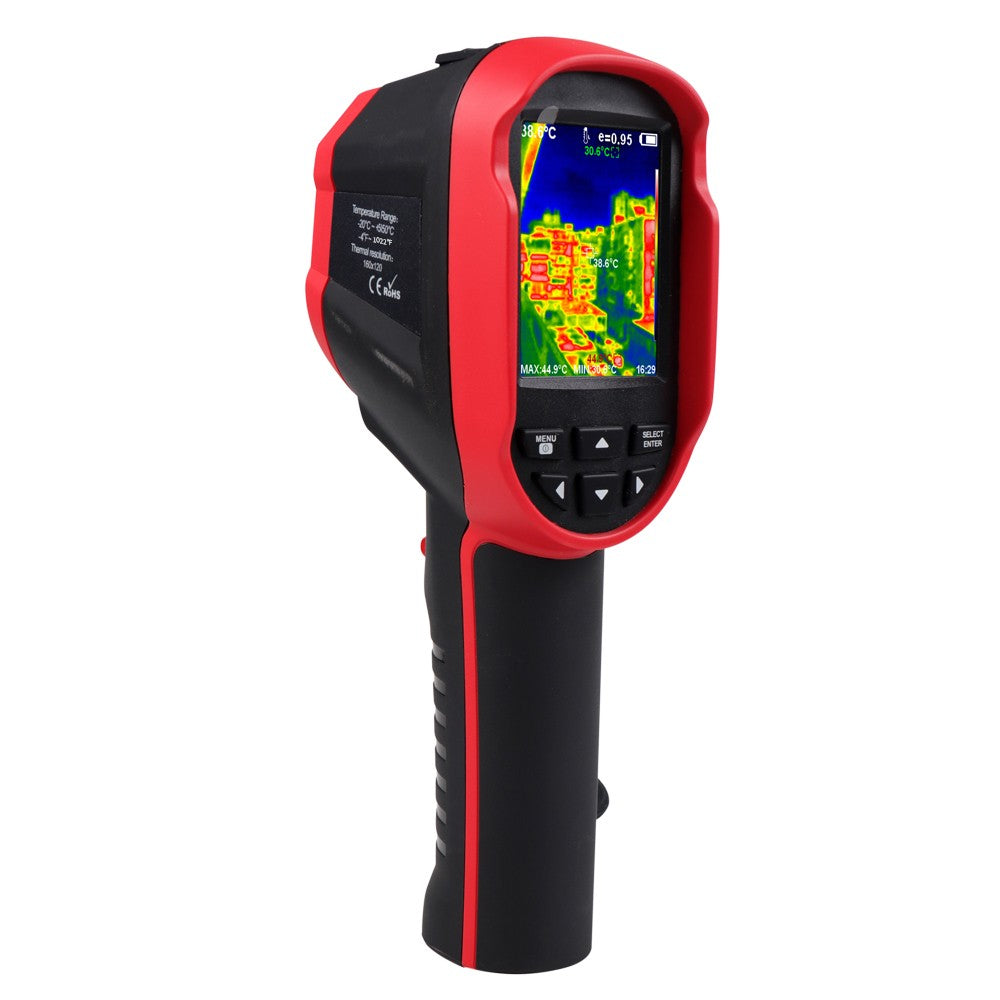

Handheld Multifunctional Thermal Imager

Experience the pinnacle of thermal imaging technology with our compact and lightweight handheld thermal imager. Featuring a vibrant 2.8-inch TFT full viewing angle screen, it offers a visible light resolution of 640x480 and an infrared resolution of 160x120 for clear, detailed imaging.

Key Features

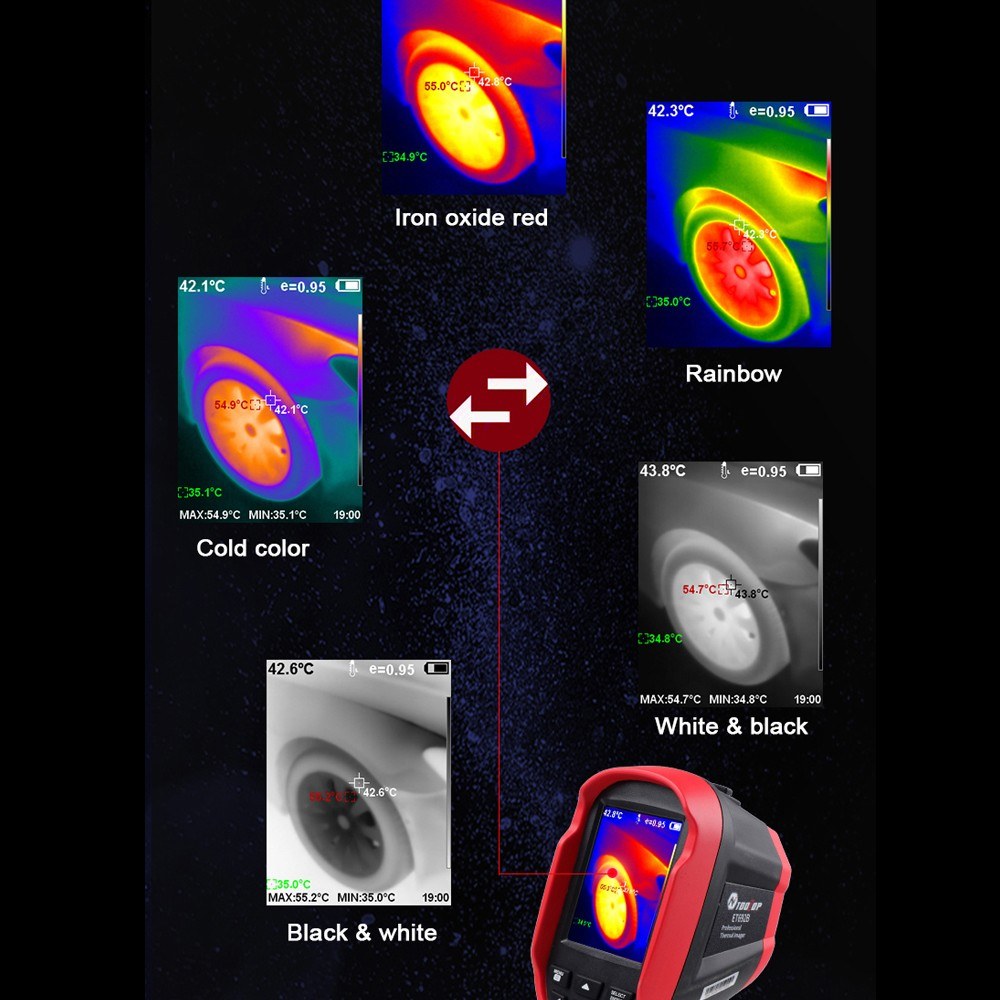

• Five imaging modes: Easily switch between rainbow, iron oxide red, cold color, black & white, or white & black to suit your needs.

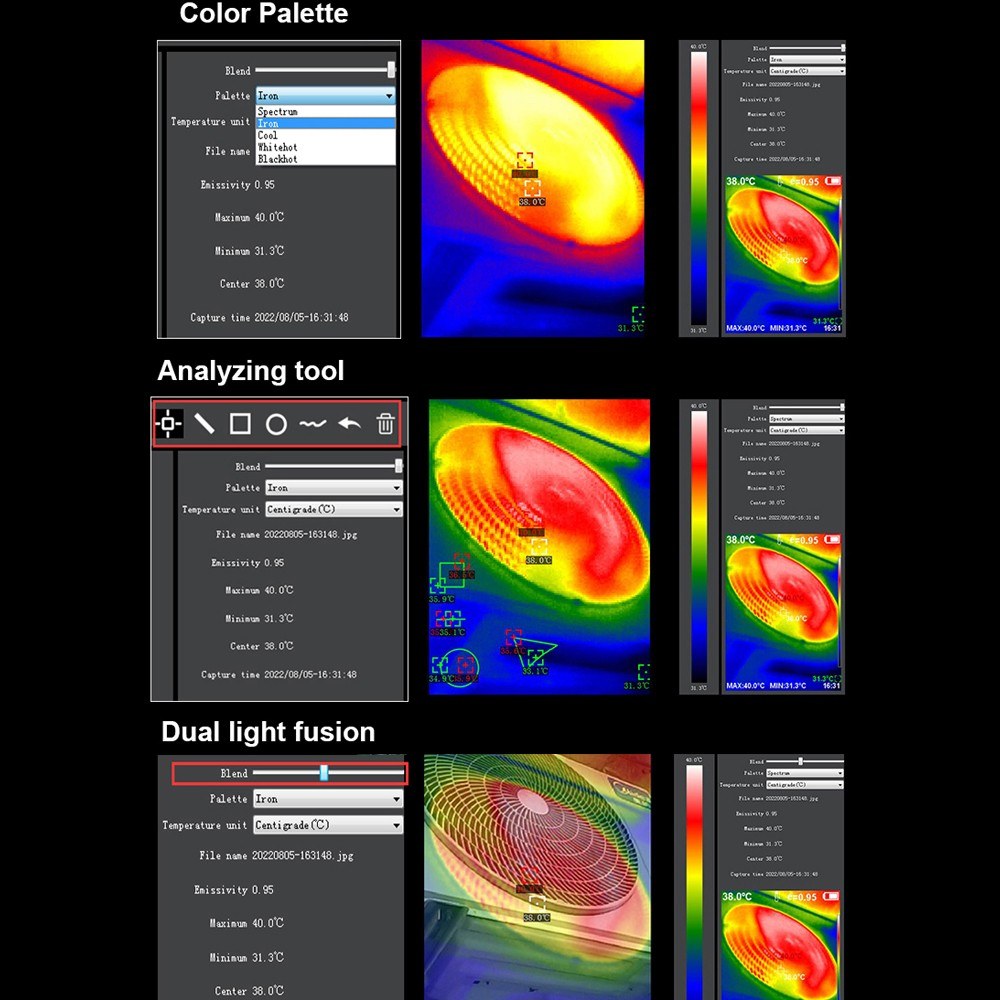

• Three display modes: Choose from infrared mode, visible light mode, or infrared-visible light fusion with adjustable fusion levels (25%, 50%, 75%, 100%).
• High quality: Industrial-level durability with comfortable soft rubber buttons for a superior user experience.
• Sensitivity and clarity: Quick image refresh with highly sensitive infrared sensors for precise measurements.
• Real-time measurement: Wide temperature range from -20℃ to +550℃ (-4℉ to 1022℉) with unit conversion between ℃ and ℉.
• Multi-language support: Available in English, Chinese, German, and Italian.
• User-friendly: Automatic shut-off function with customizable timing options (5min, 20min, or OFF).
• Comprehensive functionality: Photo-taking and video recording capabilities with support for photo storage and historical record management.

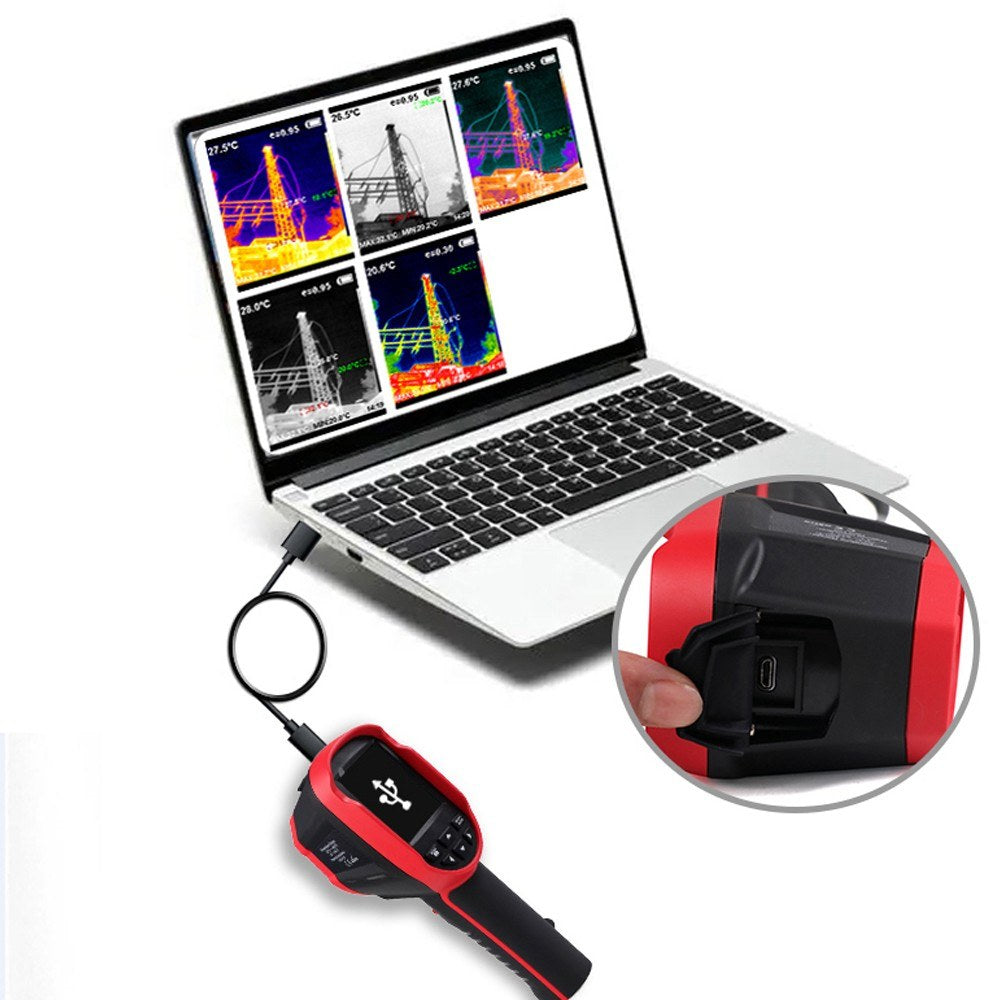

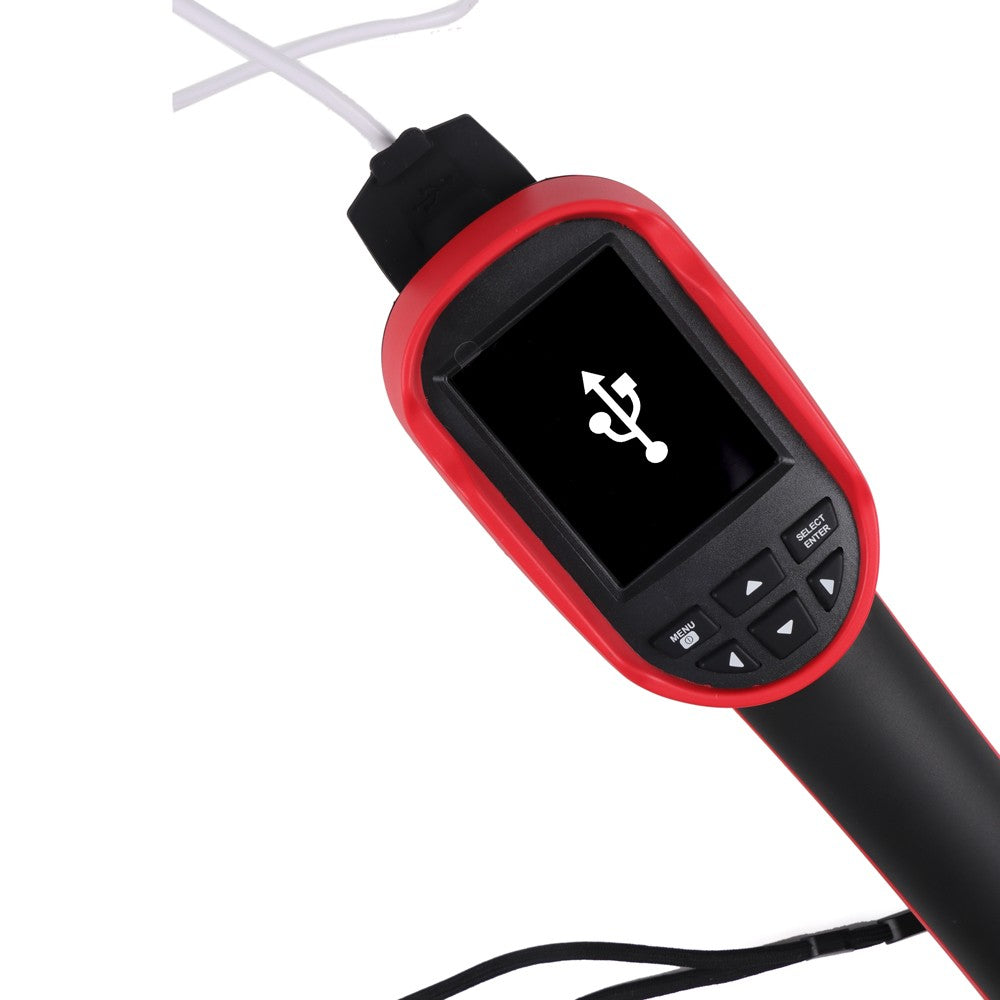

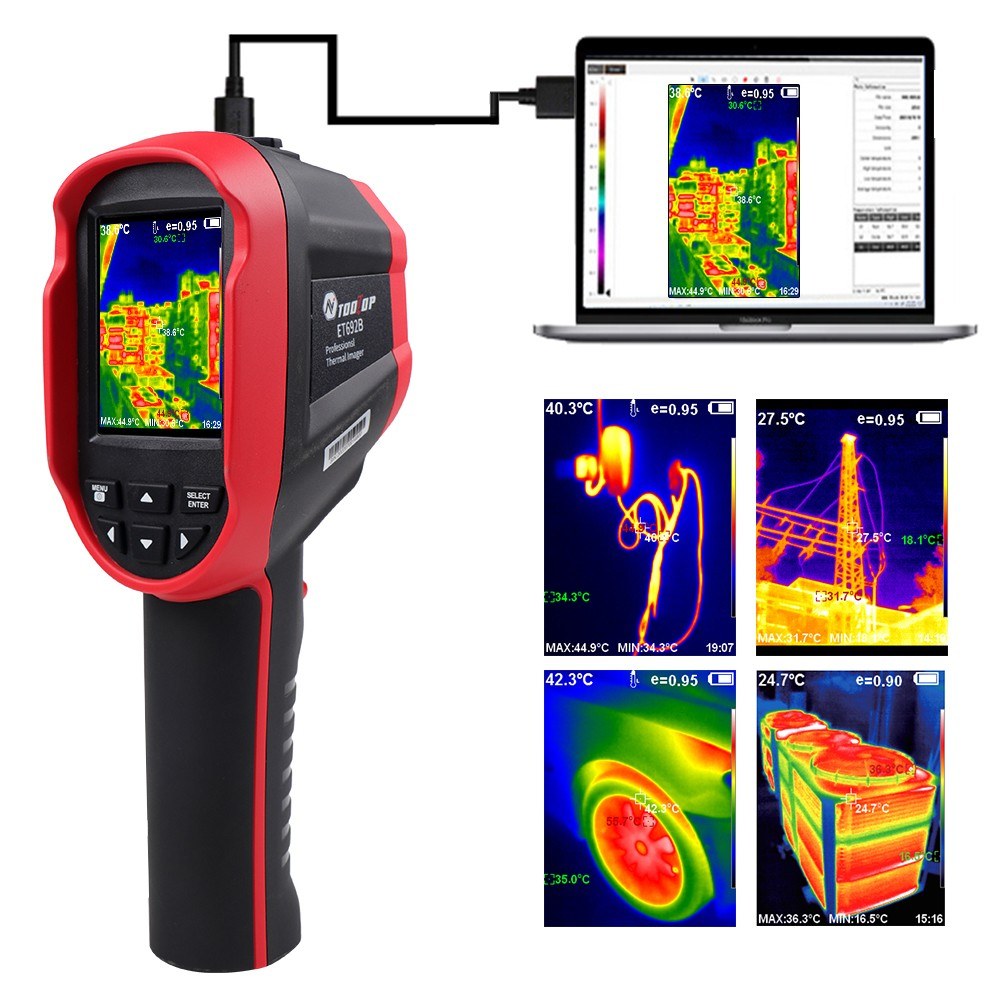

• Easy connectivity: Export images and videos via USB connection, compatible with WinXP, Win7, Win8, and Win10 systems for offline analysis.
• Versatile applications: Perfect for building inspection, vehicle maintenance, automotive parts temperature detection, floor heating detection, and more.

Specifications

• Name: Thermal Imager
• Material: Plastic
• Battery: 1 x Removable Rechargeable Lithium Battery, 2200mAh (included)
• Infrared resolution: 160x120
• Infrared response band: 8 to 14μm
• NETD: ≤50mK @25℃, @F/1.1
• Lens focal length: 3.2mm
• Field of View: 35° x 27°
• Focus mode: Free focus
• Temperature ranges: -20℃ to +550℃ (-4℉ to 1022℉)
• Accuracy: ±2℃ or ±2%
• Resolution: 0.1℃

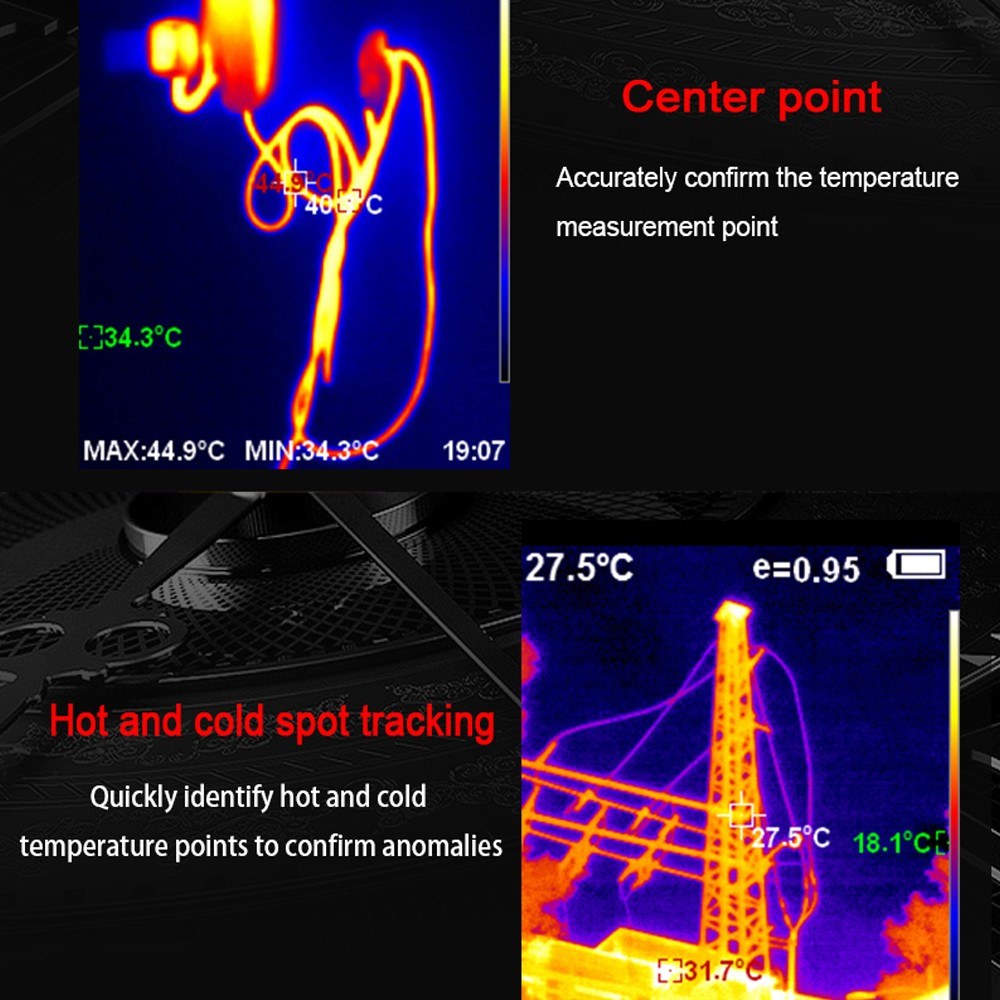

• Measurement modes: Center point/hot and cold spots tracking
• Color palette: Rainbow, iron oxide red, cold color, black & white, white & black
• Emissivity setting: Adjustable from 0.01 to 1.00
• Frame rate: ≤25Hz
• Visible light resolution: 640x480
• Display size: 2.8-inch (240x320)
• Lighting system: LED fill light
• Storage: Built-in 4G eMMC (approx. 3G available for use)
• Image/Video format: JPG/MP4
• Languages: English, Chinese, Italian, German
• Working hours: 2 to 3 hours
• Power interface: Micro USB
• Operation temperature: -10℃ to +50℃
• Storage temperature: -20℃ to +60℃
• Humidity: 10% to 85% RH (non-condensing)
• Dimensions: 96 x 72 x 226mm (3.78 x 2.83 x 8.90in)
• Weight: 389g (0.86lb)
• Package dimensions: 260 x 130 x 90mm (10.24 x 5.12 x 3.54in)
• Package weight: 880g (1.94lb)

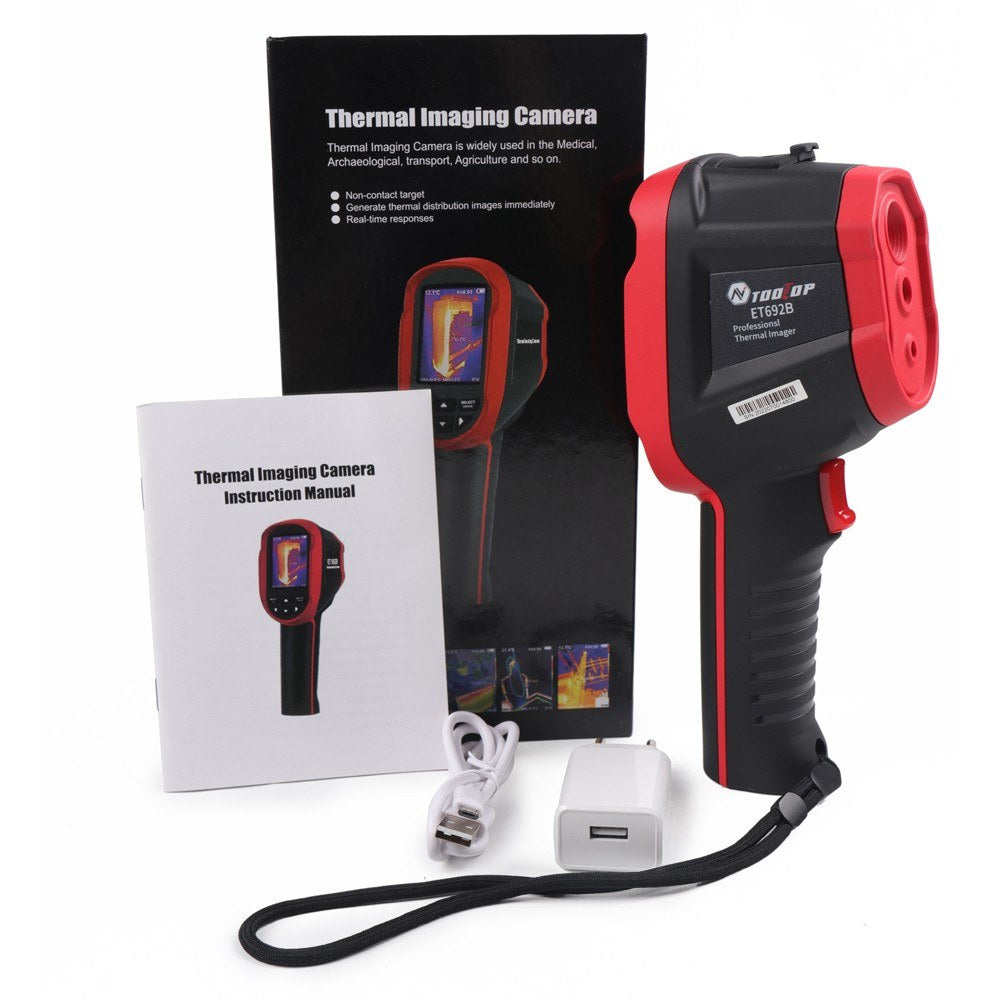

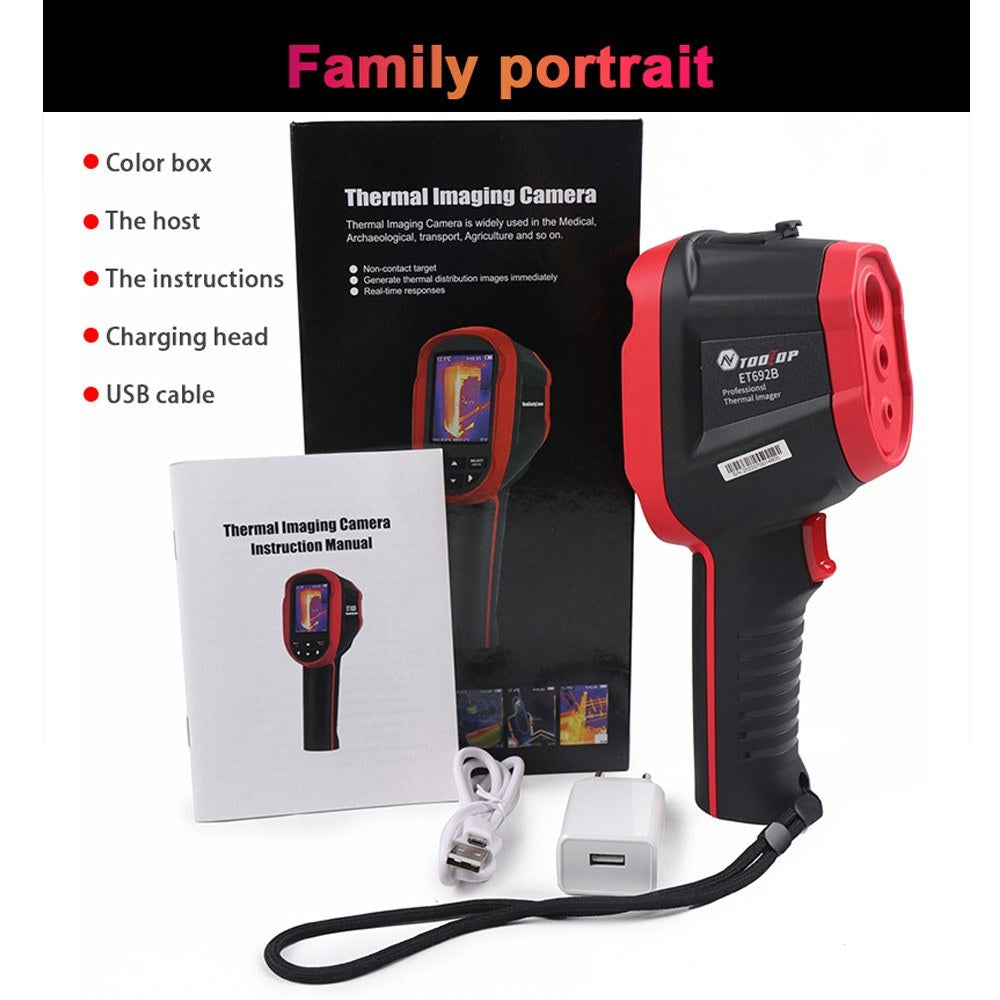

Package Includes

• 1 x Thermal Imager
• 1 x USB Cable
• 1 x Adapter
• 1 x User Guide
